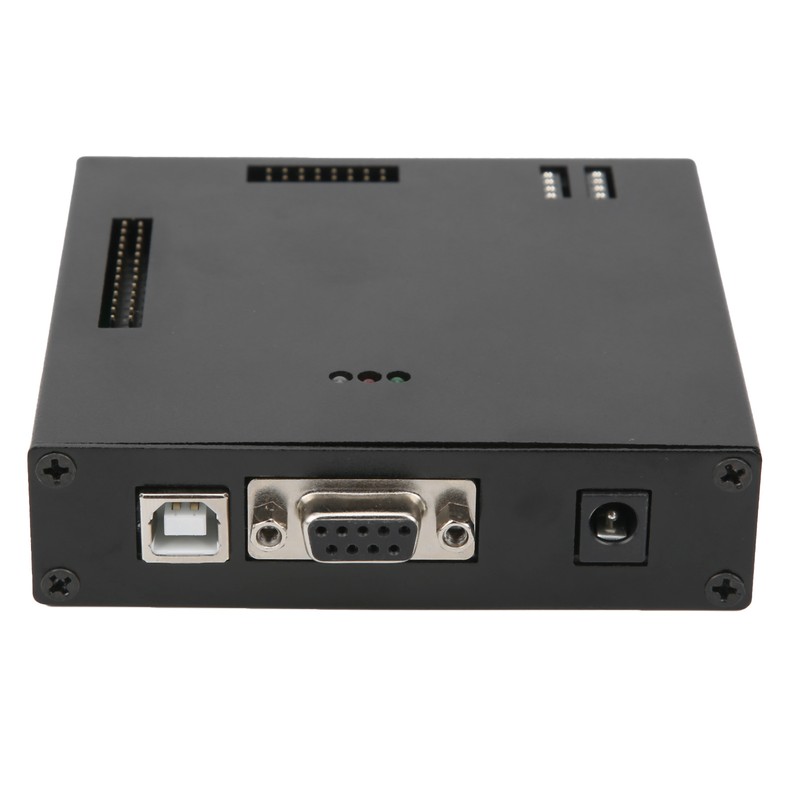

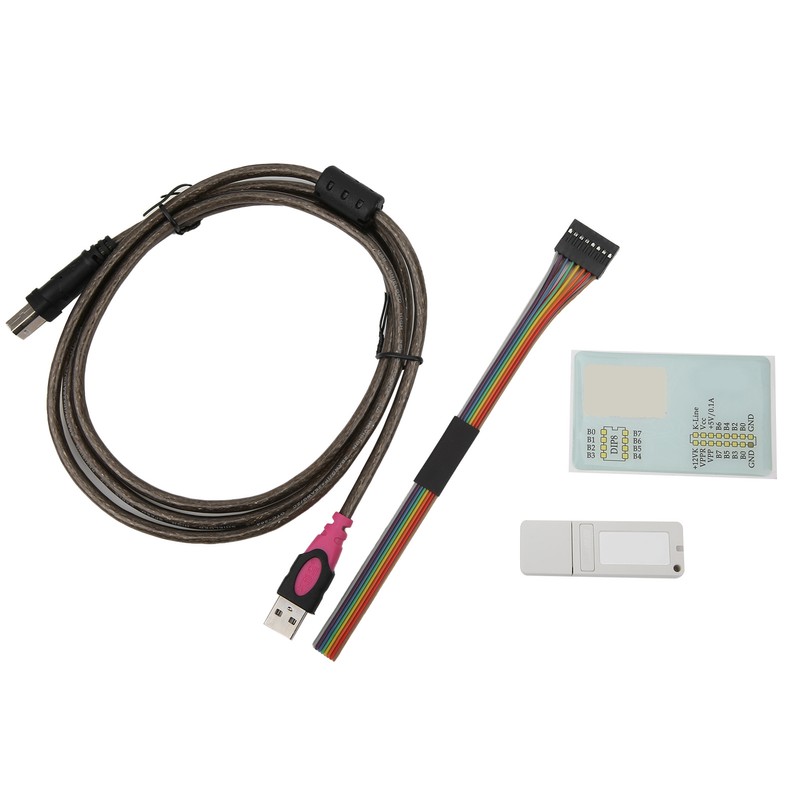

V5.84 ECU Programmer Programming Tool with USB Dongle for Win 7 32bits/for Win XP English
$125.52
- $14.50 shipping from United States View details
-
Arrives

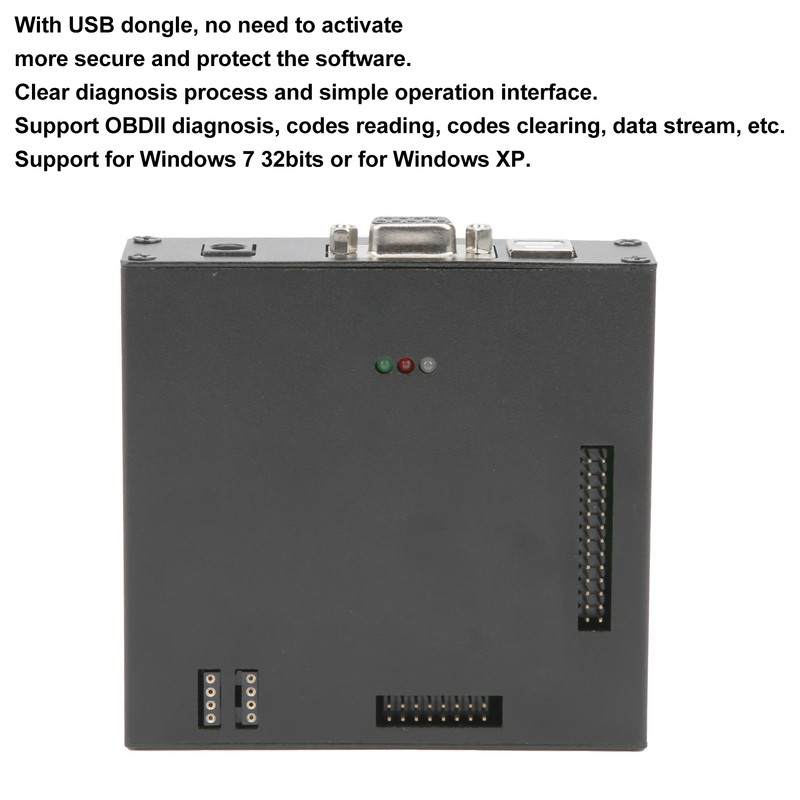

1、With USB dongle, no need to activate, more secure and protect the software. 2、The clear diagnosis process and simple operation interface make the diagnosis work handy. 3、Support OBDII diagnosis, codes reading, codes clearing, data stream, version number checking, reading and writing VIN codes, and whole system diagnosis. 4、Supports maintenance light zeroing, throttle matching, electronic brake pad zeroing, tire pressure warning light zeroing, timing belt maintenance light zeroing, and electronic steering matching zeroing. 5、Adopt processor for Pentium 60MHz or faster, features one free physical COM or USB port, and support for Win 7 32bits or for Win XP.
1、With USB dongle, no need to activate, more secure and protect the software. 2、The clear diagnosis process and simple operation interface make the diagnosis work handy. 3、Support OBDII diagnosis, codes reading, codes clearing, data stream, version number checking, reading and writing VIN codes, and whole system diagnosis. 4、Supports maintenance light zeroing, throttle matching, electronic brake pad zeroing, tire pressure warning light zeroing, timing belt maintenance light zeroing, and electronic steering matching zeroing. 5、Adopt processor for Pentium 60MHz or faster, features one free physical COM or USB port, and support for Win 7 32bits or for Win XP.
1、With USB dongle, no need to activate, more secure and protect the software. 2、The clear diagnosis process and simple operation interface make the diagnosis work handy. 3、Support OBDII diagnosis, codes reading, codes clearing, data stream, version number checking, reading and writing VIN codes, and whole system diagnosis. 4、Supports maintenance light zeroing, throttle matching, electronic brake pad zeroing, tire pressure warning light zeroing, timing belt maintenance light zeroing, and electronic steering matching zeroing. 5、Adopt processor for Pentium 60MHz or faster, features one free physical COM or USB port, and support for Win 7 32bits or for Win XP.
More Information

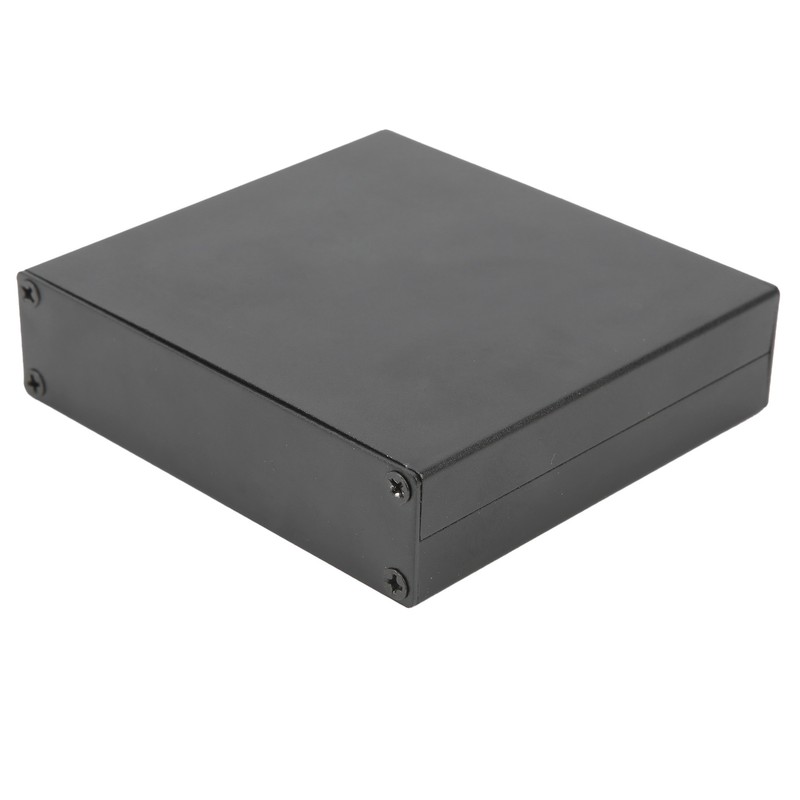

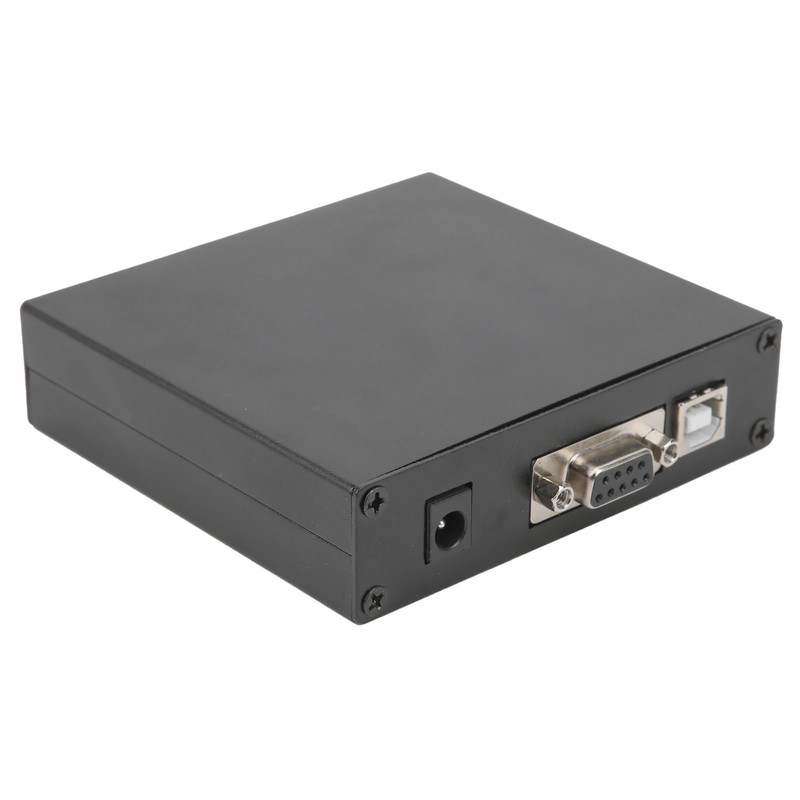

Item Type: ECU Programmer
Material: Aluminum Alloy
Color: Black

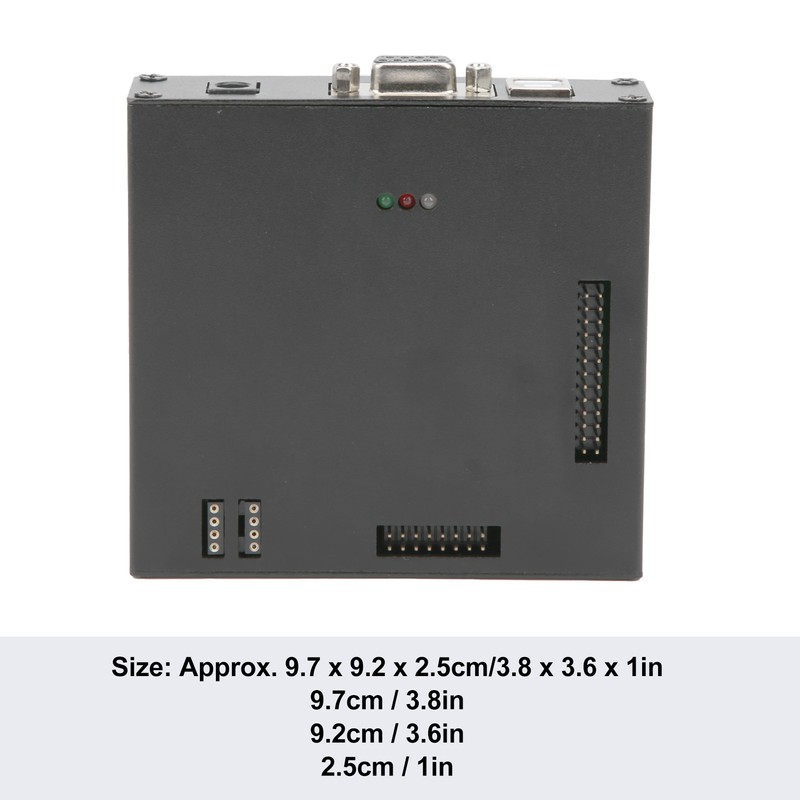

Size: Approx. 9.7 x 9.2 x 2.5cm/3.8 x 3.6 x 1in (due to manual measurement, there may be a deviation of 1-2 mm)
Voltage: DC12V
Language: English
Latest Software Version: V5.84
USB Dongle: Yes
Computer Requires:
Processor: for Pentium 60MHz or faster (depends on operating system)
Memory(Random Access Memory): 64MB (depends on operating system)
Hard Drive: 20MB free spaces
Communication: One free physical COM or USB port
Operating System: for Win 7 32bits or for Win XP
Authorizations:
AUTH-0001 for family authorization (allows to read/write EEPROM)
AUTH-0002 for HC08 family authorization (allows to read/write EEPROM)
AUTH-0003 for HC11 family authorization (allows to read/write EEPROM)
AUTH-0004 for HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
AUTH-0005 for Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
AUTH-0006 for family bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0007 for ST M35080 authorization. Read/Write/Erase device to delivery state.
AUTH-0008 for EWS3 authorization
AUTH-0009 for ATMEGA family authorization (allows to read/write EEPROM and flash memory)
AUTH-0010 for MB ZGS001 authorization
AUTH-0011 for HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and Random Access Memory)
AUTH-0012 for National CR16 authorization (allows to read/write EEPROM memory)
AUTH-0014 for ST7, ST10 family authorization (allows to read/write internal flash)
AUTH-0015 for MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
AUTH-0018 for HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0020 for ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)
AUTH-0021 for ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage, Chassis number (VIN), serial number and PIN codes).
AUTH-0023-1 for MAC7xxx
AUTH-0023-2 for XC23xx
AUTH-0024-1 for MC9S12Cxx
AUTH-0024-2 for MC9S12XE
AUTH-0024-3 for 9S12XE SECURITY
AUTH-0024-4 for MC9S12HA/HY/P
AUTH-0025-1 for MPC/SPC5xxx Authorized 2016/3/13
AUTH-0027-1 for HC(S)908 update Authorized 2016/3/13
AUTH-0027-2 for HC(S)908 sercurity Authorized 2016/3/13
AUTH-0028-1 for Renesas V850 Authorized 2017/10/9
AUTH-0028-2 for Renesas SuperH Authorized 2017/10/9

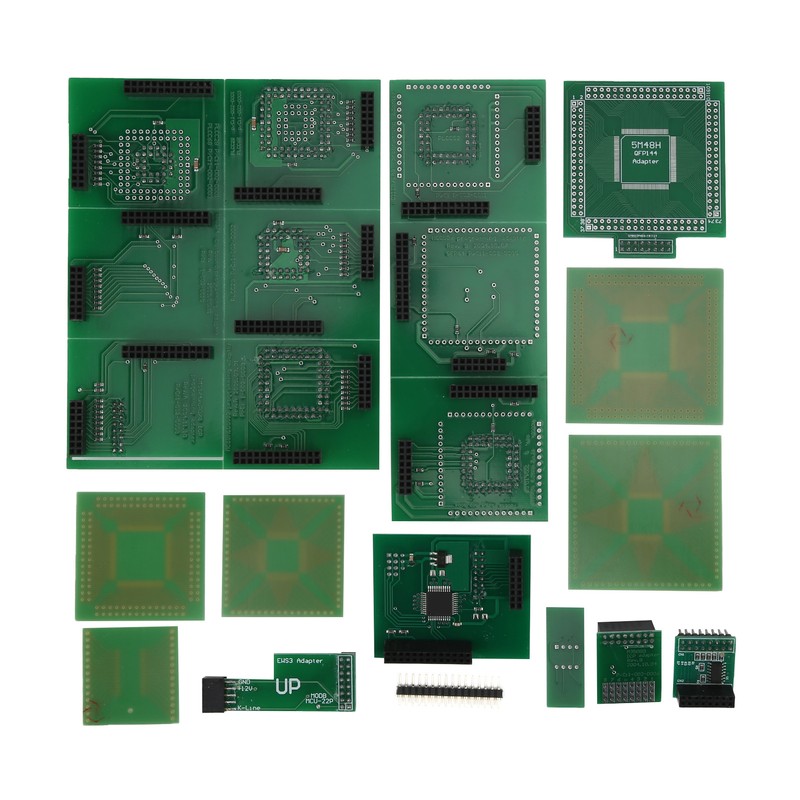

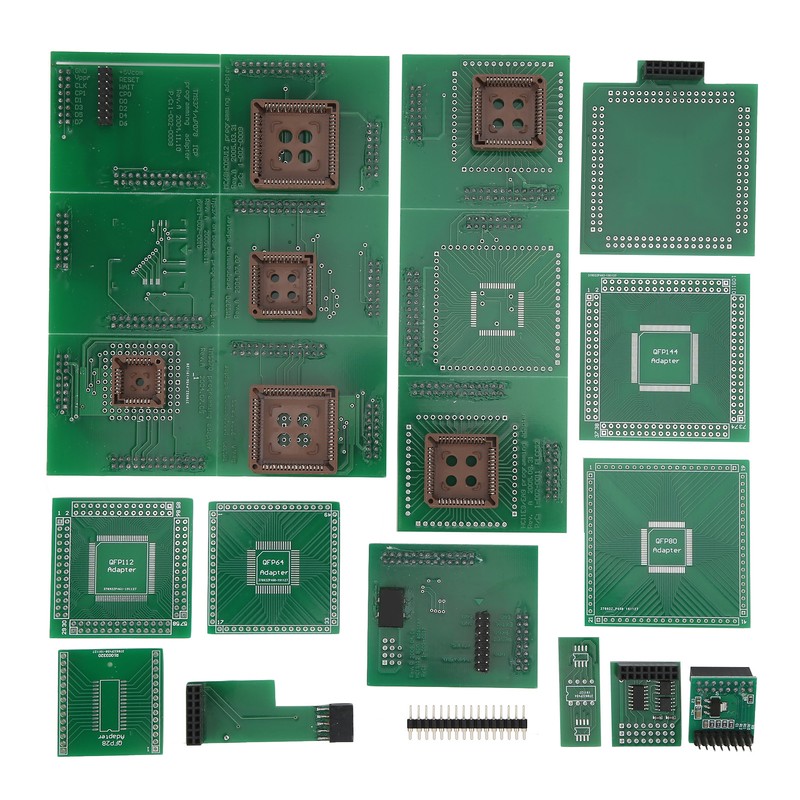

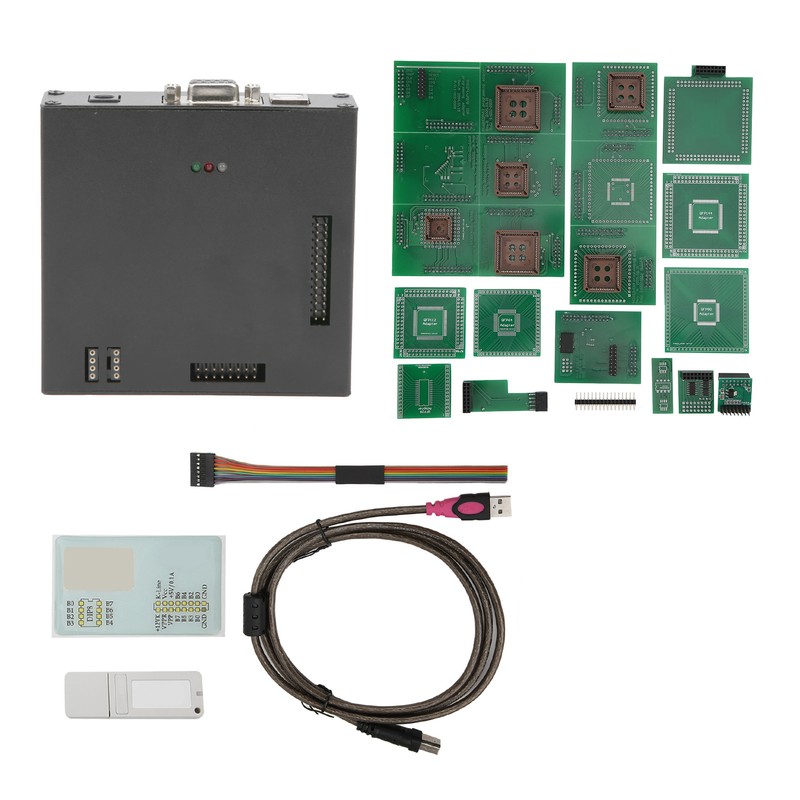

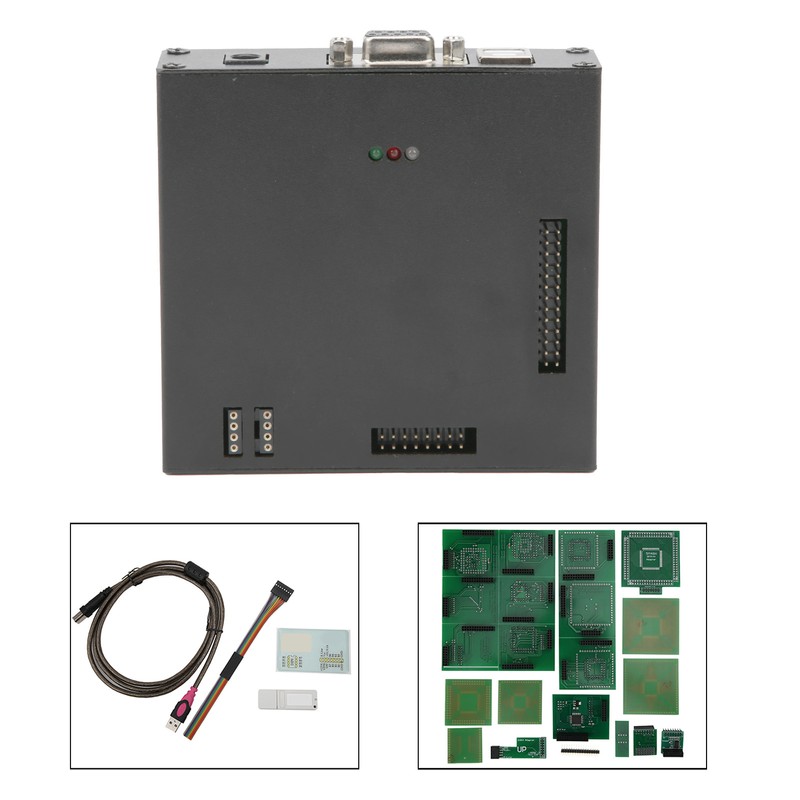

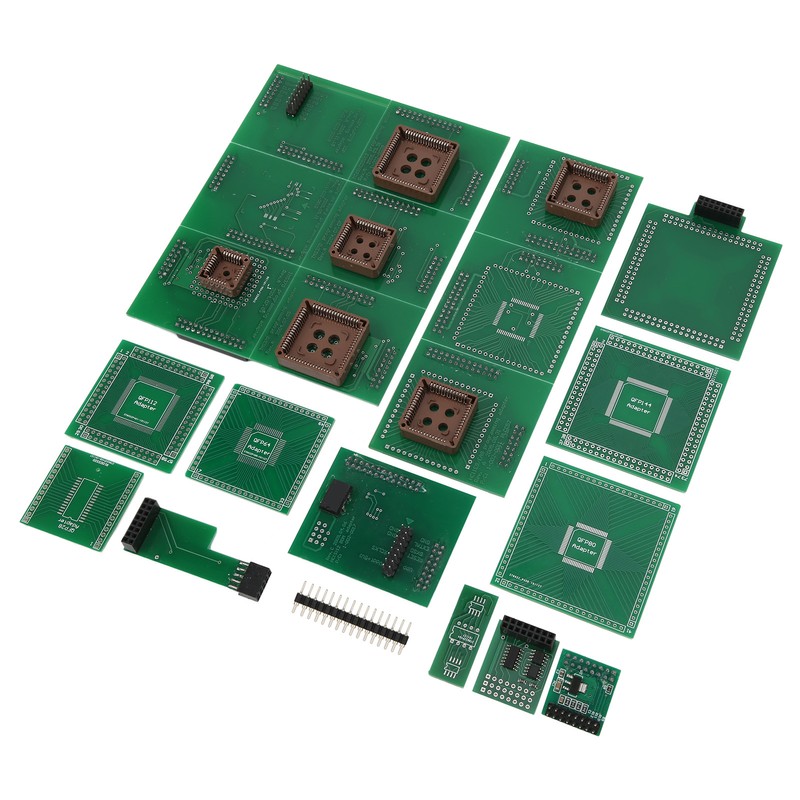

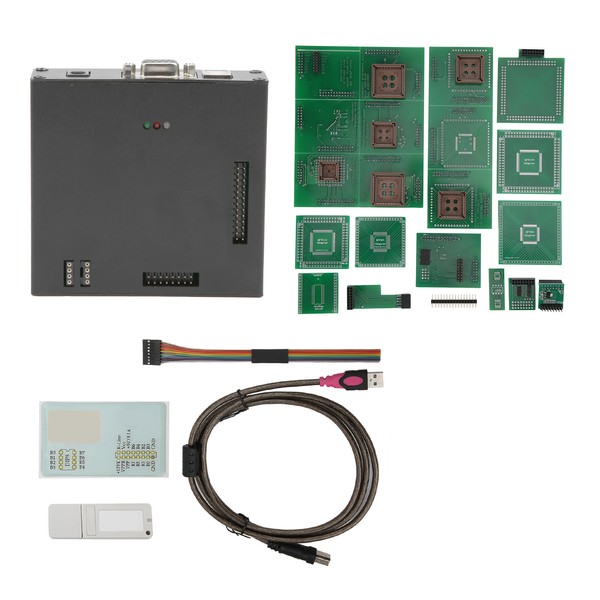

V5.84 Adapters:
ADP-0001 for TMS370 PLCC28 programming adapter
ADP-0002 for TMS370 PLCC44 programming adapter
ADP-0003 for TMS370 PLCC68 programming adapter
ADP-0004 for PLCC52 programming adapter
ADP-0005 for QFP64 programming adapter
ADP-0006 for ST M35080 in-circuit programming adapter
ADP-0008 for TMS374 family in-circuit programming adapter
ADP-0009 for MC68HC05V12 programming adapter
ADP-0010 for TMS374 on-board programming adapter
ADP-0011 for HC11EA9/E9 programming adapter
ADP-0017 for HC(S)12 ARM Micronas in-circuit programming/bypass security adapter
Additional adaptor for 5M48H P-Flash
ADP-0019 Rev.A
EWS3 adaptor
EEPROM adaptor
QFP28 adaptor
QFP64 adaptor
QFP80 adaptor
QFP112 adaptor
QFP144 adaptor
