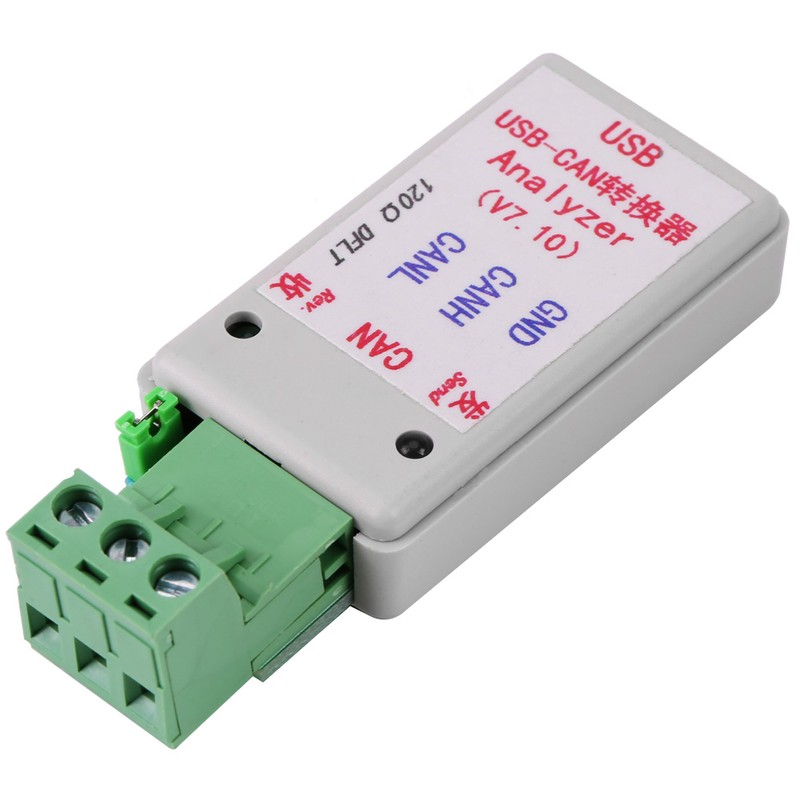

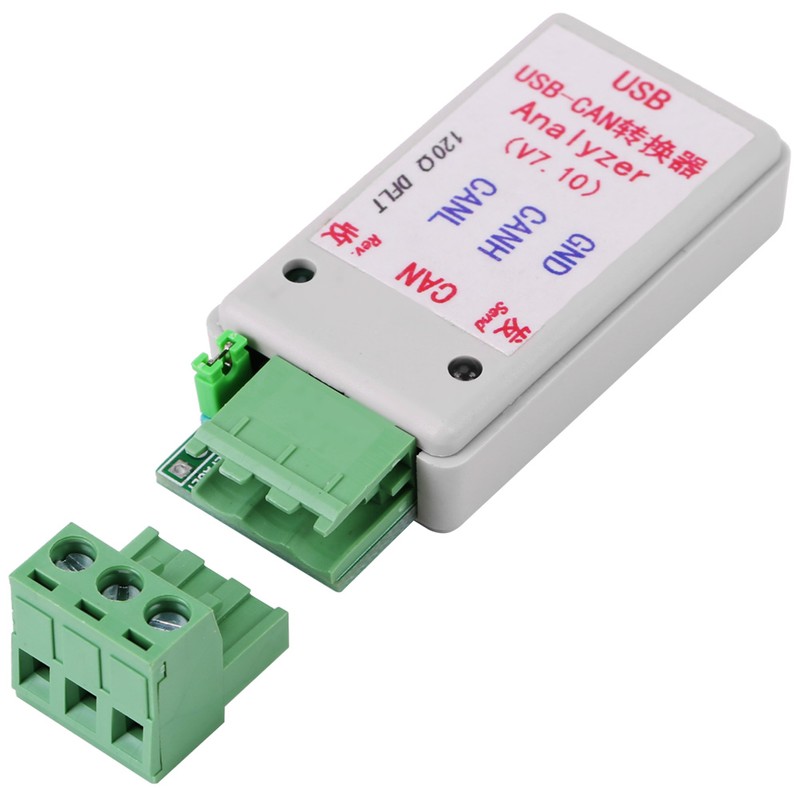

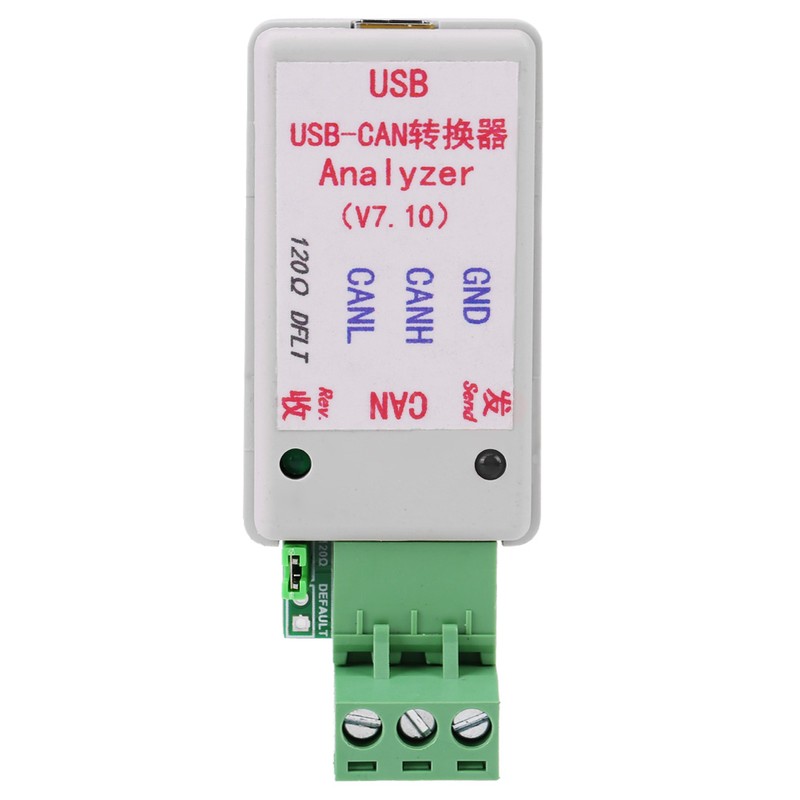

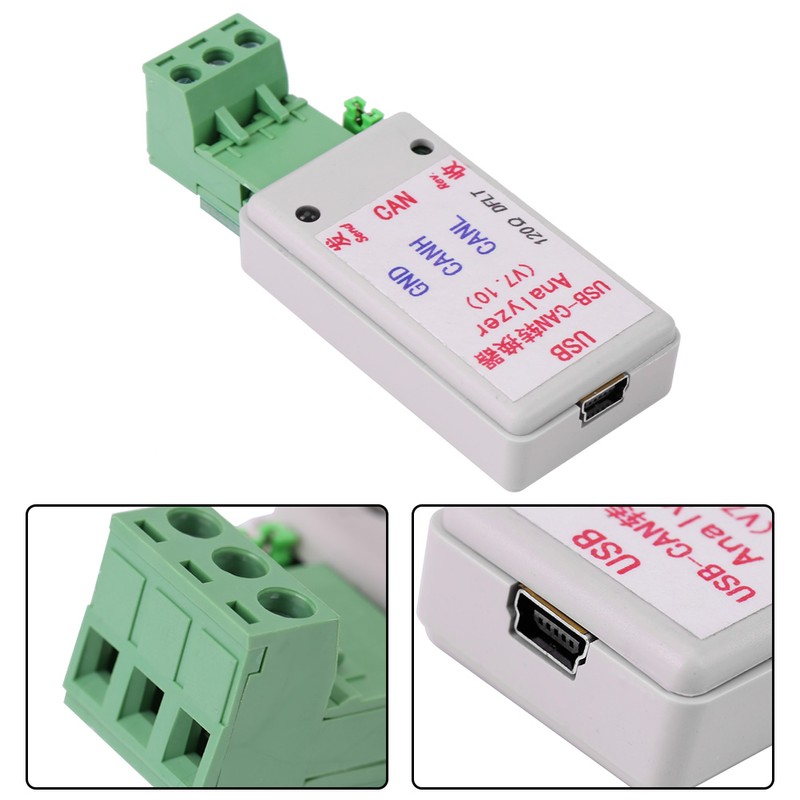

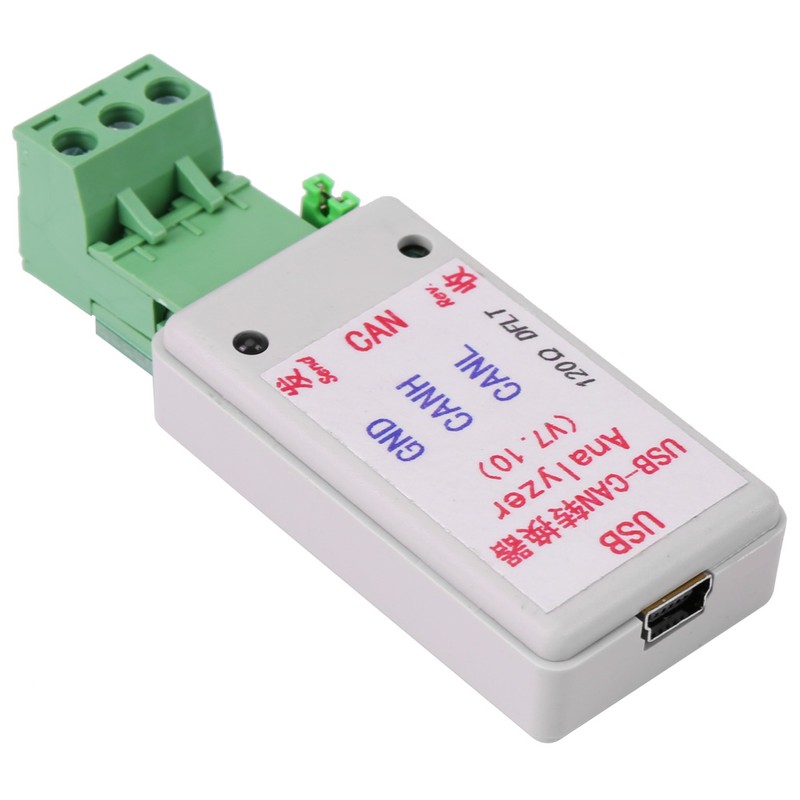

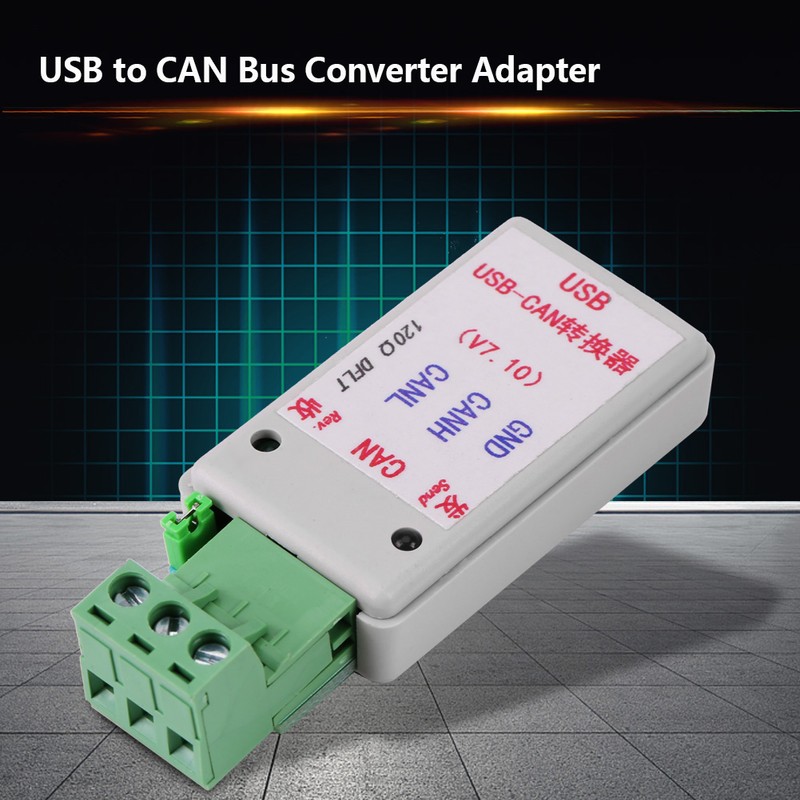

USB to CAN Bus Converter Adapter With USB Cable Support XP/WIN7/WIN8
Product Overview
1、Inside the hardware, TVS surge protection is added 2、With 120 ohm match resistance 3、Included data cable with magnetic ring shielding 4、Basic function -- communication support CAN2.0A (standard frame) and CAN2.0B (extended frame) 5、Basic function -- CAN communication baud rate range (5K~1M),CAN baud ratecan be customized
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
Product Overview
1、Inside the hardware, TVS surge protection is added 2、With 120 ohm match resistance 3、Included data cable with magnetic ring shielding 4、Basic function -- communication support CAN2.0A (standard frame) and CAN2.0B (extended frame) 5、Basic function -- CAN communication baud rate range (5K~1M),CAN baud ratecan be customized
1、Inside the hardware, TVS surge protection is added 2、With 120 ohm match resistance 3、Included data cable with magnetic ring shielding 4、Basic function -- communication support CAN2.0A (standard frame) and CAN2.0B (extended frame) 5、Basic function -- CAN communication baud rate range (5K~1M),CAN baud ratecan be customized
More Information
Features:
Hardware:
1. Inside the hardware, TVS surge protection is added.
2. With 120 ohm match resistance.

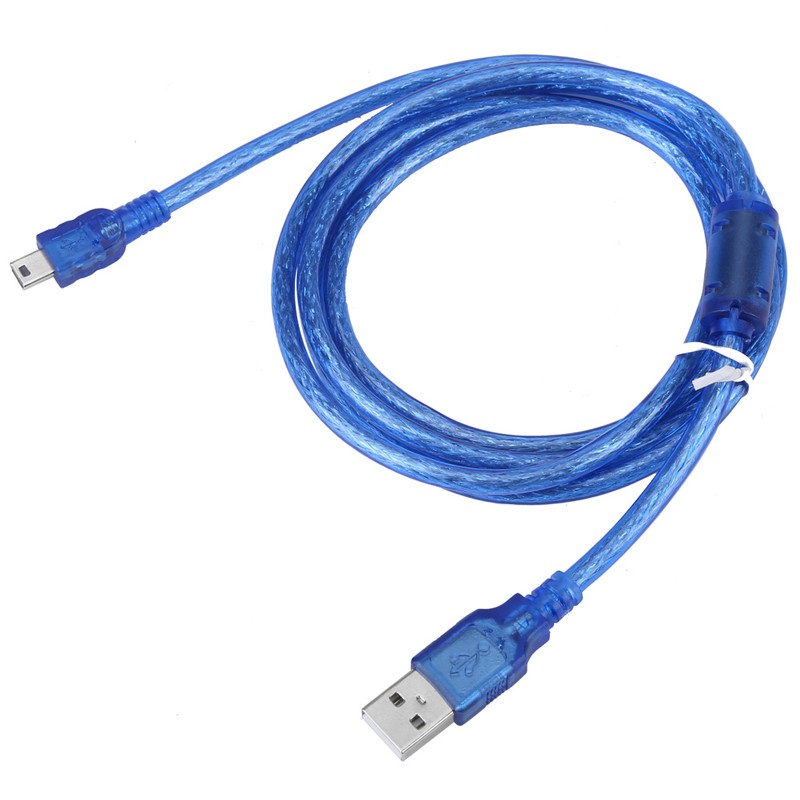

3. Included data cable with magnetic ring shielding
Software:
1. Basic function -- communication support CAN2.0A (standard frame) and CAN2.0B (extended frame)
2. Basic function -- CAN communication baud rate range (5K~1M), CAN baud rate can be customized.
3. Basic function --CAN Send and receive data display with time show, the receive data can be displayed sequentially or refreshed.
4. Basic function -- sending data can be sent in single frame or multiple frames, can be sent manually, can be sent on a regular basis, and can be sent in a loop, which is more convenient for debugging.
5. Enhancement function - the receiving data can also be automatically answered. When we want to receive the received ID, we can automatically reply the data that is set to send ID.
6. Enhancement function - you can manually view the CAN bus state.
7. Enhancement function - you can directly set the desired ID, not by setting the filter ID or masking ID, and directly entering the ID you want to receive, can be configured directly.
8. Enhancement function -- there are four working modes to choose from (normal mode is mainly used for direct communication with CAN devices.The loopback mode CAN be used for the self-test of the converter,In this mode, the converter will automatically send and receive, the data can be also sent to CAN bus. Silent mode CAN be used to monitor CAN bus data without affecting CAN bus communication, loopback silent mode is usually used for thermal test CAN converter
9. Enhancement function - send and receive data can be saved as TXT text format or Excel format.
10. Enhancement function -- the baud rate of the virtual COM port can also be modified, and the default communication baud rate is over 1M, so don't worry about conversion efficiency.
11. Advanced function -- so the configuration is automatically saved and can be used directly next time.
12. Advanced function -- secondary development is very simple, just processing a single receive and send command.
13. Advanced function - enhanced transparent transport function.
14. Advanced function -- the software interface can be switched in English and Chinese.
Specifications:
Type: USB - CAN7
Applicable scope: all kinds of CAN bus transmission equipment

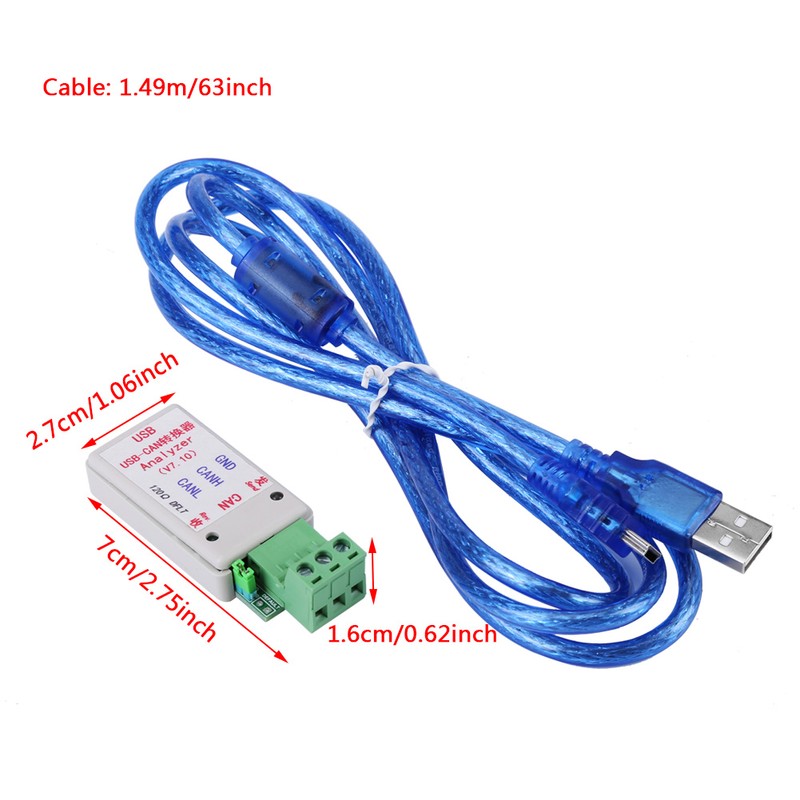

Adapter size: 7 x 2.7 x 1.6cm/2.76 x1.06 x 0.63inch
Cable: 1.49m/63inch

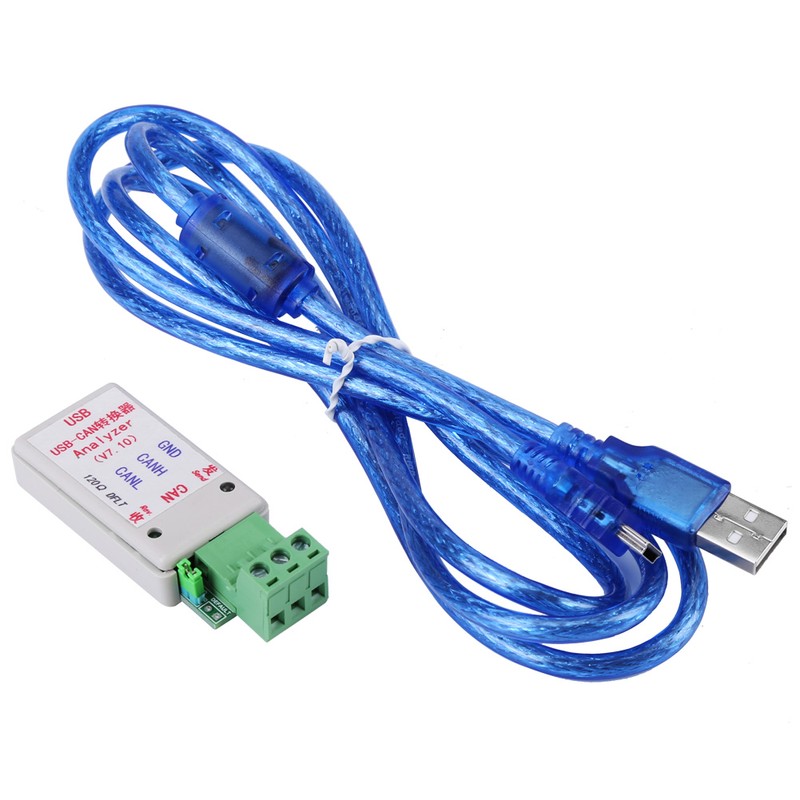

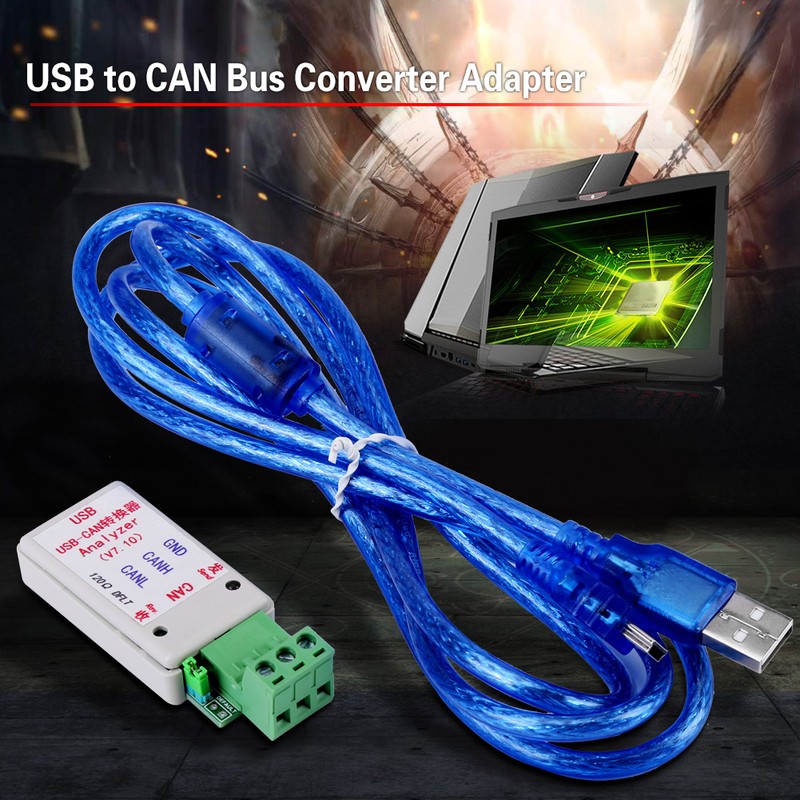

Package Included:
1 x USB to CAN Bus Converter
1 x USB Cable
Note:
The latest upgrade of this converter is V7.0, the default V7.0 converter, the previous version of the converter has a default communication rate of 1.2288M, and V7.0 is upgraded to 2M, which can change the baud rate to 1.2288M and communicate with the previous version of the software.
