호환 USB DAC 192kHz 24Bit 디지털-아날로그 변환기(베이스볼륨 제어 포함) 동축 Toslink-아날로그 스테레 Compatible USB DAC 192kHz 24Bit Digital-Analog Converter (with Base Volume Control) Coaxial Toslink-Analog Stereo [01 USB DAC 192KHz]

$82.07

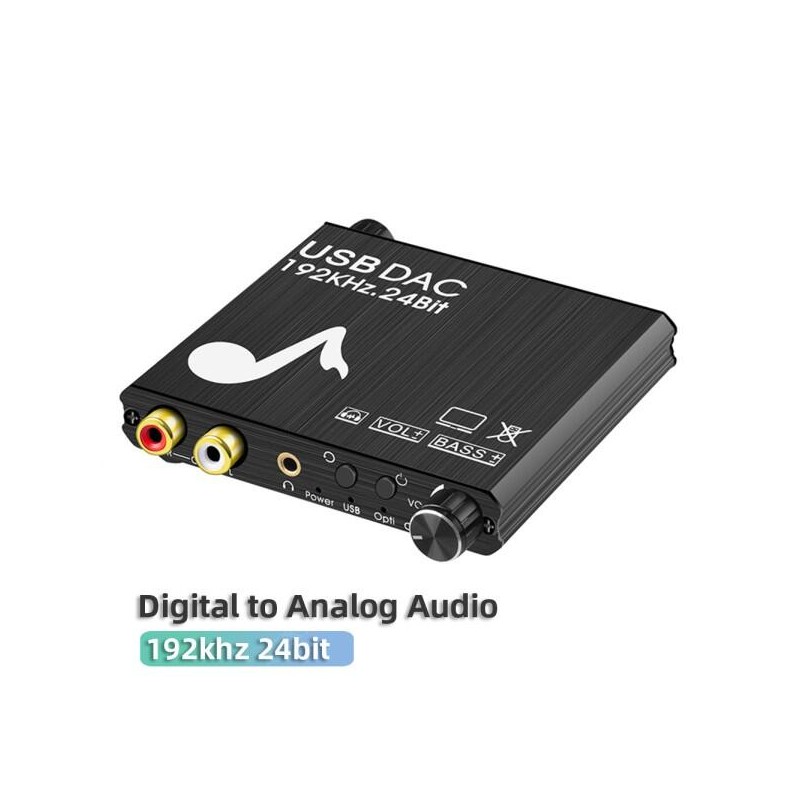

USB DAC 192kHz 24Bit Digital-Analog Converter

This high-quality digital-analog converter is designed to provide precise and clear audio conversion, making it perfect for music enthusiasts and audiophiles.

Product Highlights:

  • Supports up to 192kHz sampling frequency and 24-bit resolution
  • Features base volume control for easy adjustment
  • Compatible with coaxial and Toslink inputs
  • Outputs analog stereo signal through L/R RCA connectors

Specifications:

Parameter Value
Brand AIXXCO
Model AY107
Sampling Frequency 192kHz
Resolution 24-bit
Input USB Type A, Optical (SPDIF)




제목 : USB DAC 192kHz 24Bit 디지털-아날로그 변환기(베이스볼륨 제어 포함) 동축 Toslink-아날로그 스테레오 L/R RCA





상품 기본정보



이름: AIXXCO : AY107 PCM 샘플링 주파수: 192kHz
PCM 단어 길이: 24비트 입력: USB 유형 A 입력: 광학(SPDIF)
입력: 동축 재료: 금속 고농도 화학 물질: 없음
원산지: 중국 출력: RCA는 무엇입니까 출력: 3.5mm
유형: 휴대용 DSD 샘플링 주파수: 아무도




메인 이미지









상세 페이지

소개:
이 제품은 전문 오디오 신호 처리를 위해 특별히 설계되었으며 동축 광 인터페이스 입력의 디지털 오디오 신호를 RCA 인터페이스3.5mm 헤드폰 잭의 아날로그 스테레오 오디오 신호로 쉽게 변환할 수 있습니다.
내장된 전문 오디오 증폭기 칩과 볼륨 조절 손잡이는 헤드폰을 직접 구동하고 볼륨을 조절할 수 있습니다.
제품의 베이스 조정 기능은 스테레오 묵직한 베이스 효과를 제공하고 음장과는 다른 환경을 조성할 수 있습니다.얻은 효과는 분명하여 베이스의 세계에 빠져들게 됩니다.

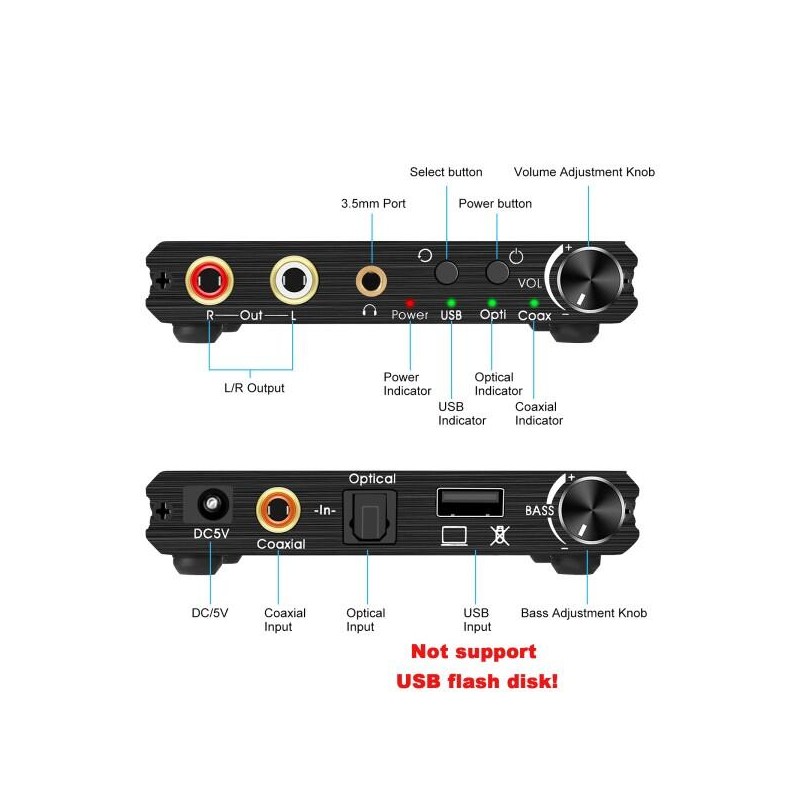

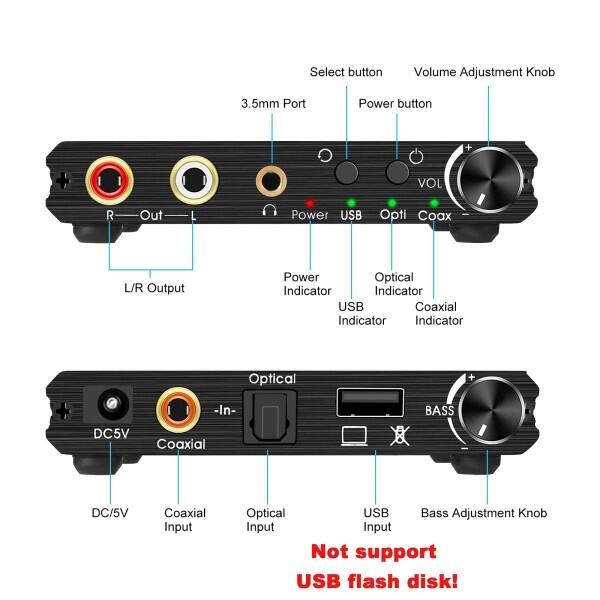

특징
광섬유 1개와 동축 입력 인터페이스 1개.DVD HD 플레이어기타 장치에 연결
USB 입력 1개 컴퓨터에 연결합니다.
전력 증폭기 시스템에 연결된 RCA 출력 인터페이스 1개
1채널 3.5mm 오디오 출력 인터페이스 헤드폰에 연결됨.
입력 신호가 없을 때 소음을 제거하고 오디오 신호가 아닌 신호가 입력되면 자동으로 음소거됩니다.
192kHz 24비트 샘플링 속도를 지원합니다.

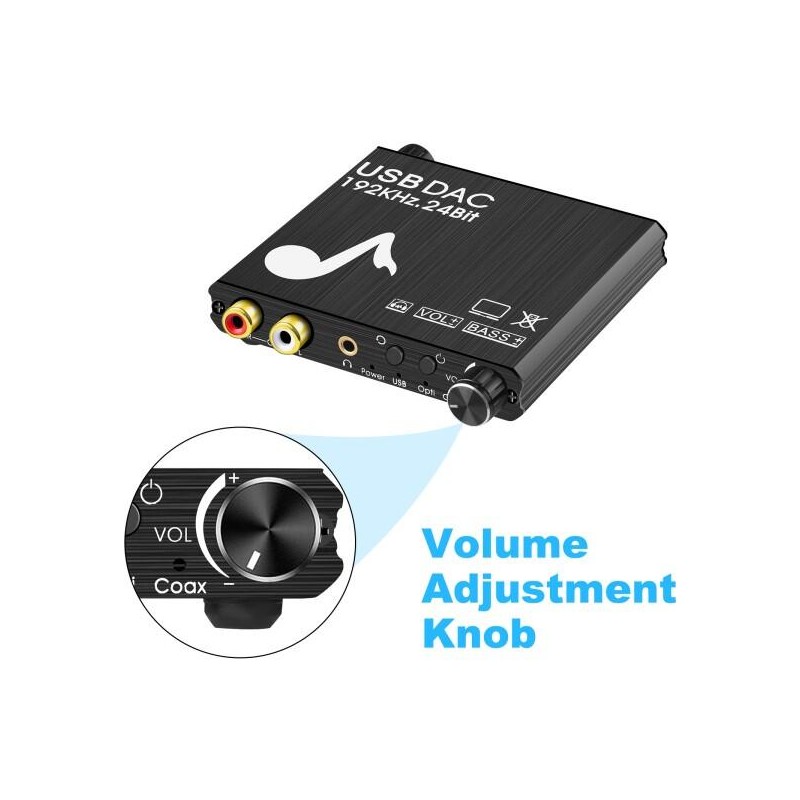

볼륨 조정 지원
베이스 조정 지원
금속 쉘 간섭 방지

사양

지원 오디오 형식................................................PCM

분리도(1KHZ)................................94DB

응답 주파수.........................20Hz20KHz -0.2db

신호 대 잡음비(SNR)................................-100DB

총 고조파 왜곡(THD+N).....10Hz20KHz 0.25-0.065%

차단 시간.................................................0.577Fs

샘플링 속도.................................................32192KHz

비트 전송률................................................. ......1624비트

패키지 내용

1PCS........DAC 변환기

1PCS........사용자 설명서

1PCS........USB 전원 케이블(옵션 액세서리)

1PCS........광섬유 오디오 케이블


옵션표




01 USB DAC 192KHz

옵션


01 USB DAC 192KHz









Isin:
IFTJLWNVAJSR

$82.07

In Stock

, Fulfilled by IBSPOT • Ships from US
