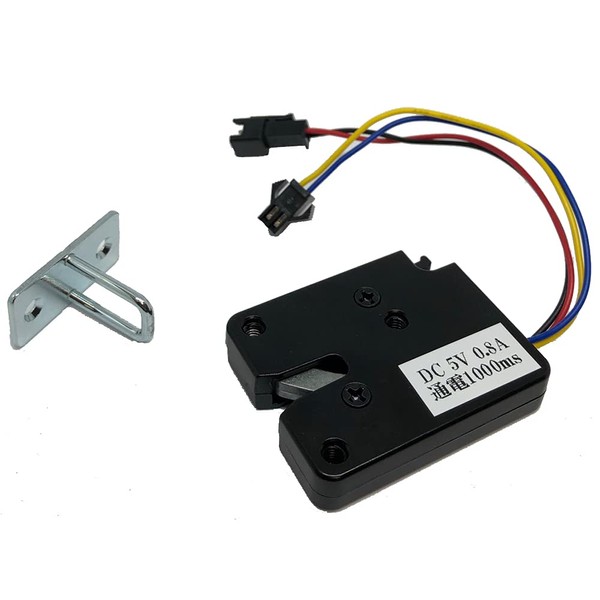

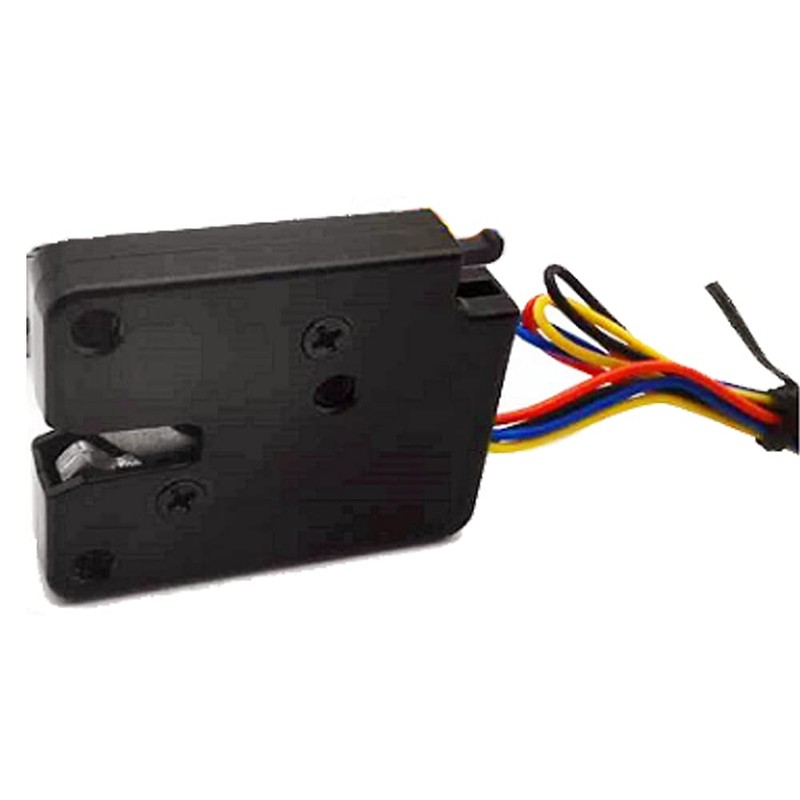

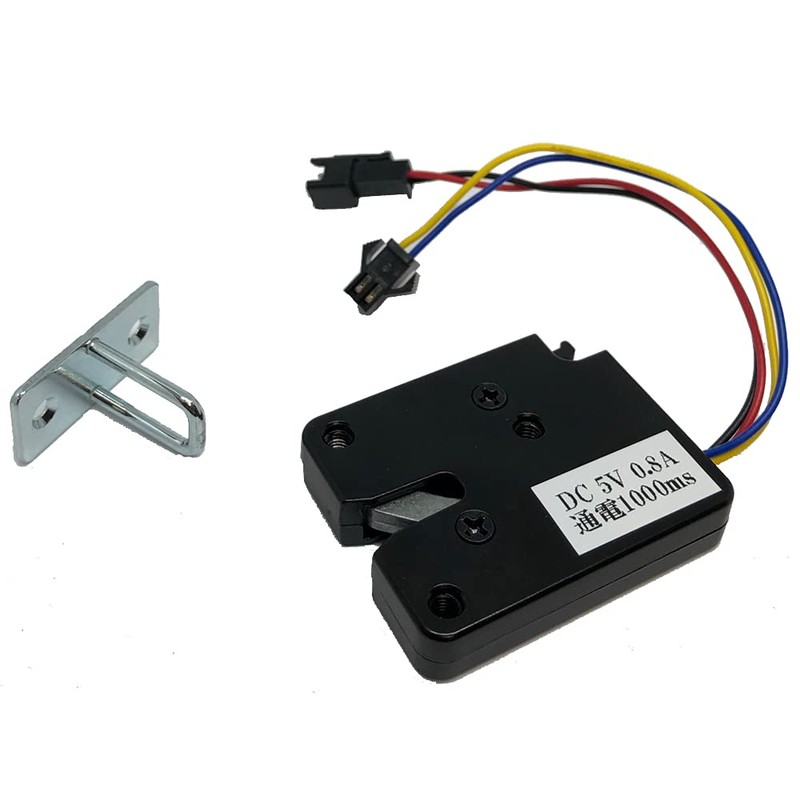

USB 5V Mini Size Solenoid Lock Metal Housing Electric Lock Small Low Power Consumption Electromagnetic Lock Smart Cabinet Lock Cabinet Lock Self-Oriented
$29.10
- $9.99 shipping from Japan View details
-
Arrives
- USB 5 V 0.8 A (4 W), Low Power Consumption, Metal Housing: Mini Size, Electric Lock, Electromagnetic Lock, Solenoids Lock, USB 5 V Compatible. *Do not use for home keys or other security locations. *When using a Raspberry Pi or other controlling the lock, please use a relay etc
- If you connect 5V, 0.8A for about 1 second, the lock will be unlocked (unlock the ratchet) and the metal hook is extruded to unlock. The timing and method of opening this product is different from our 5 v-eleclock, 12 v-eleclock. *Continuous power supply within 1.5 seconds. If the current is continued to flow out, the solenoid will burn and break. Can be used in conjunction with applications to create a smart locking cabinet (drawer)
- Power required when unlocking: DC 5V, 800mA [0.8 - 1 second] *Please do not run a current for more than 1.5 seconds. Solenoid will be burned and damaged. Service life: Approx. 100,000 times. Product size: 2.0 x 1.6 x 0.8 inches (50 x 40 x 10 mm) (mm) (mm) (mm) (thickness) mm), Metal hook tensile strength of metal hook: 2222222220 kg). -4°F (-20°C). The design of the metal hook may vary slightly
- Product Weight: Approx. 2.0 oz (56 g); Metal Hook Weight: Approx. 0.2 oz (6 g); Case Material: Titanium alloy; Product Contents: Electric lock x 1, metal hook x 1. *All items are inspected before shipping
- Power Line: Red (+), Black (-), Status Line: Yellow, Blue (You can detect the key opening and closing without a short circuit) *Unlock can be physically released by pushing the release bar at the top of the main unit. *This product is for professionals who know how to handle electronic devices. Please refrain from purchasing this product because it may lead to accidents and damage. Please only purchase if you know how to use it
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- USB 5 V 0.8 A (4 W), Low Power Consumption, Metal Housing: Mini Size, Electric Lock, Electromagnetic Lock, Solenoids Lock, USB 5 V Compatible. *Do not use for home keys or other security locations. *When using a Raspberry Pi or other controlling the lock, please use a relay etc
- If you connect 5V, 0.8A for about 1 second, the lock will be unlocked (unlock the ratchet) and the metal hook is extruded to unlock. The timing and method of opening this product is different from our 5 v-eleclock, 12 v-eleclock. *Continuous power supply within 1.5 seconds. If the current is continued to flow out, the solenoid will burn and break. Can be used in conjunction with applications to create a smart locking cabinet (drawer)
- Power required when unlocking: DC 5V, 800mA [0.8 - 1 second] *Please do not run a current for more than 1.5 seconds. Solenoid will be burned and damaged. Service life: Approx. 100,000 times. Product size: 2.0 x 1.6 x 0.8 inches (50 x 40 x 10 mm) (mm) (mm) (mm) (thickness) mm), Metal hook tensile strength of metal hook: 2222222220 kg). -4°F (-20°C). The design of the metal hook may vary slightly
- Product Weight: Approx. 2.0 oz (56 g); Metal Hook Weight: Approx. 0.2 oz (6 g); Case Material: Titanium alloy; Product Contents: Electric lock x 1, metal hook x 1. *All items are inspected before shipping
- Power Line: Red (+), Black (-), Status Line: Yellow, Blue (You can detect the key opening and closing without a short circuit) *Unlock can be physically released by pushing the release bar at the top of the main unit. *This product is for professionals who know how to handle electronic devices. Please refrain from purchasing this product because it may lead to accidents and damage. Please only purchase if you know how to use it
[Self-Strength Series]
This product is for professionals, who know how to handle electronic devices, and there are no instruction manual (English language not guaranteed).
Please refrain from purchasing this product as those who do not have knowledge of electronic devices may lead to accidents and damage.
This is a solenoid lock for electronic work. [Do not use it for house keys or other security areas. Please do not use this product for any troubles, etc.
5V 0.8A Low Power Consumption Mini Size Metal Housing
Electric Lock, Electromagnetic Lock, Solenoid Lock
Can be used in conjunction with applications to create a smart locking cabinet (drawer)
Product Name: USB 5V Low Power Consumption Mini Size Metal Housing Electrical Lock Electromagnetic Lock Solenoid Lock
5V, 800mA, 0.8-1 second power will push the release bar and unlock it.
Power transfer within 1.5 seconds. The solenoid may burn and damage if the current is continued to flow further
This product is a new model that incorporates a protective mechanism, so the current is not flowing after the key is released, but please only use the current when unlocked.)
Power required when unlocking: DC 5V, 800 mA [0.8 - 1 second power transfer]
Please do not run an current for more than 1.5 seconds, the solenoid will burn and break.
To unlock the unlock the device by pushing the release bar at the top of the main unit, it can be unlocked physically.
Service Life: Approx. 100,000 times

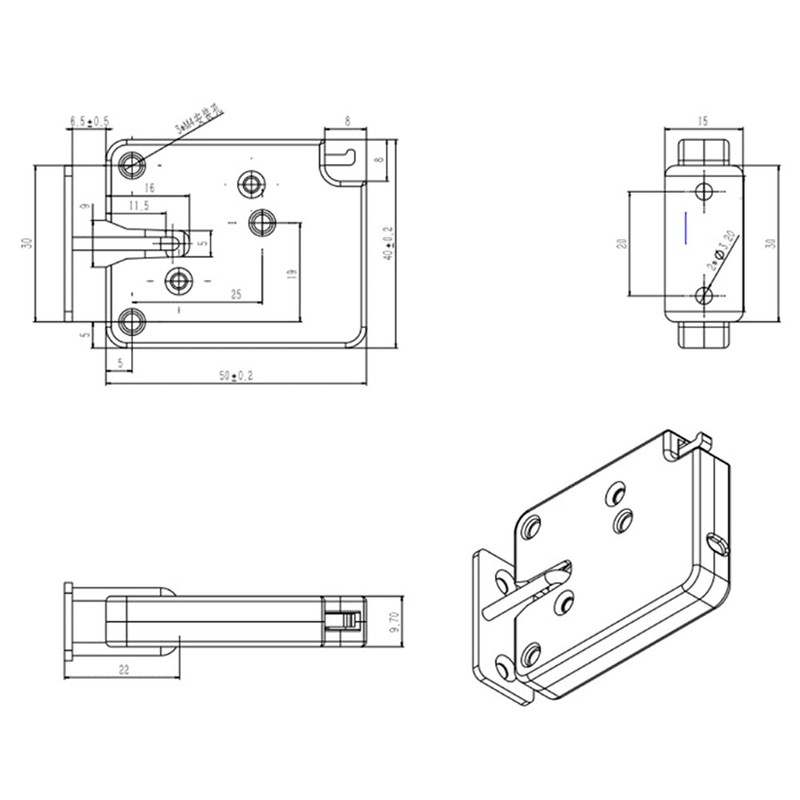

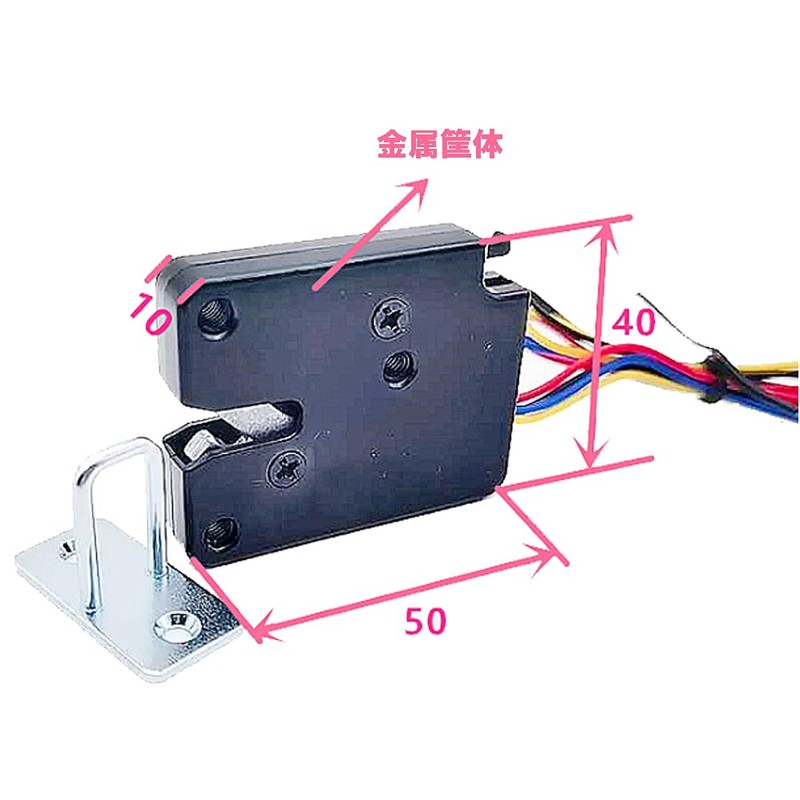

Product Size: 2.0 x 1.6 x 0.4 inches (50 x 40 x 10 mm)
Screw hole size for unit mounting: M3 x 3
Metal hook size: 1.2 x 0.6 x 0.9 inches (30 x 15
Metal Hook Tensile Strength: 220.5 lbs (100 kg)
Metal hook design may vary slightly.
Operating Temperature: -4°F to 140°F (-20°C to 60°C).
Product Weight: Approx. 2.0 oz (56
Metal Hook Weight: Approx. 0.2 oz (6
Housing Material: Titanium Alloy
Power wire: Red (+), Black (-)
Status Line: Yellow, Blue (Key can be detected with short circuit)
Product Contents: Electric lock x 1, metal hook x 1.
All products are inspected before shipping.
When using the Raspberry Pi to control the unlock, please use a relay and other things.
Returns and exchanges cannot be accepted for burned, damaged, or failure due to mistakes in use.
Please only purchase if you know how to use it.
[Examples of choice for each application of a Winn Bug Solenoid Lock]
Housing Strength Required: Metal Housing Version ⇒ 12v-elelock-met, 5v-elelockmini-met
Emphasizes mini size than unlocking power: Mini size version: 5v-elelockmini-met, 3v-eleclock.
For use with USB 5V: 5V Edition ⇒ 5v-elelockmini-met, 5v-eleclock, 5v-elelock-pla
For use in low voltage environment: 3.0V version, 3v-elelock-pla, 3.3V-5.0V version, 3v-eleclock.
Emphasis on unlocking power, stability and durability: 12V version. ⇒ 12v-elelock-met, 12v-eleclock.
