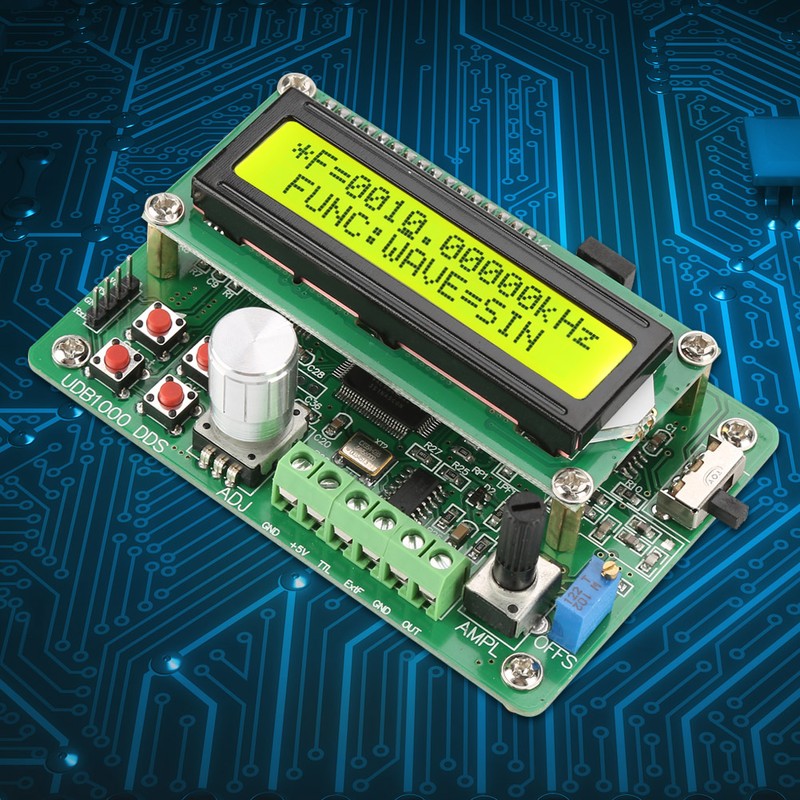

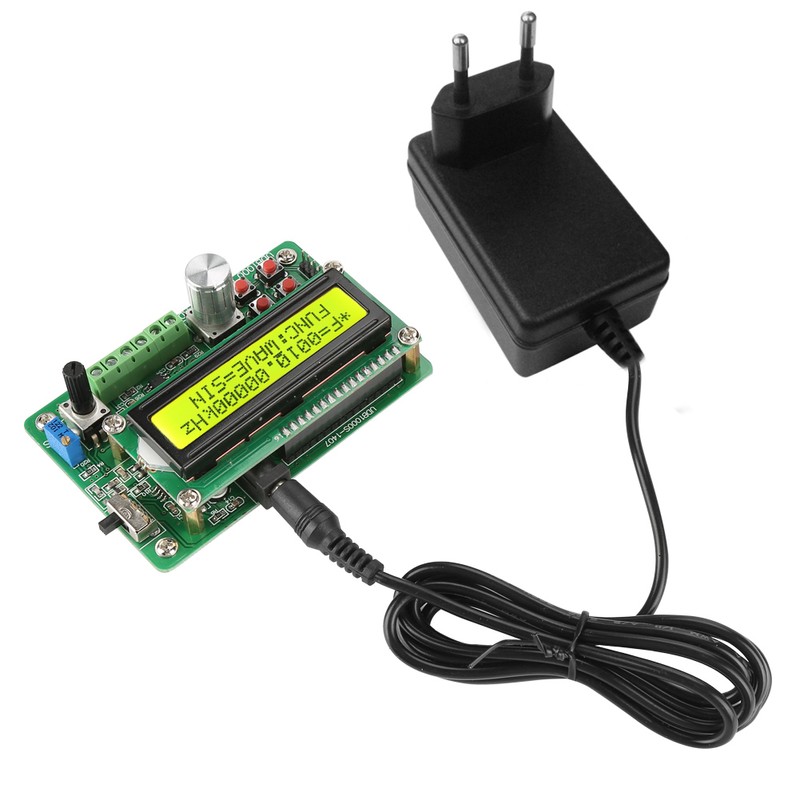

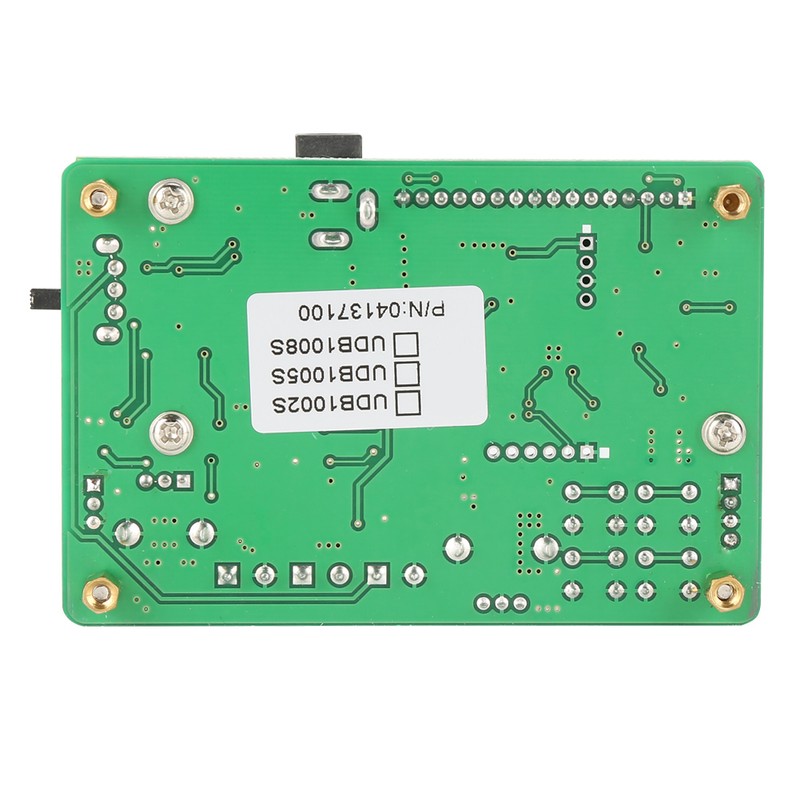

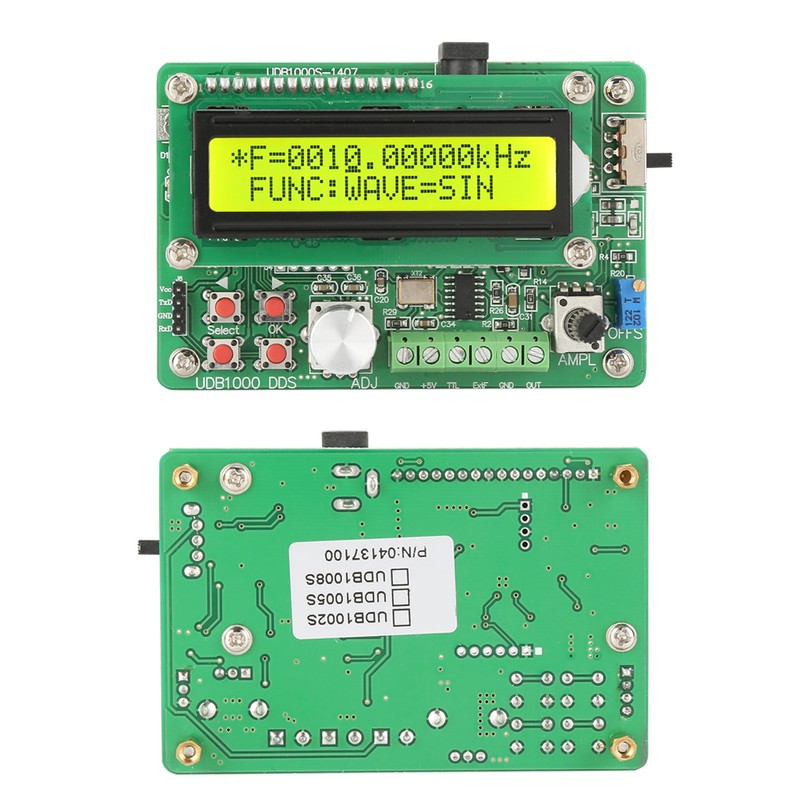

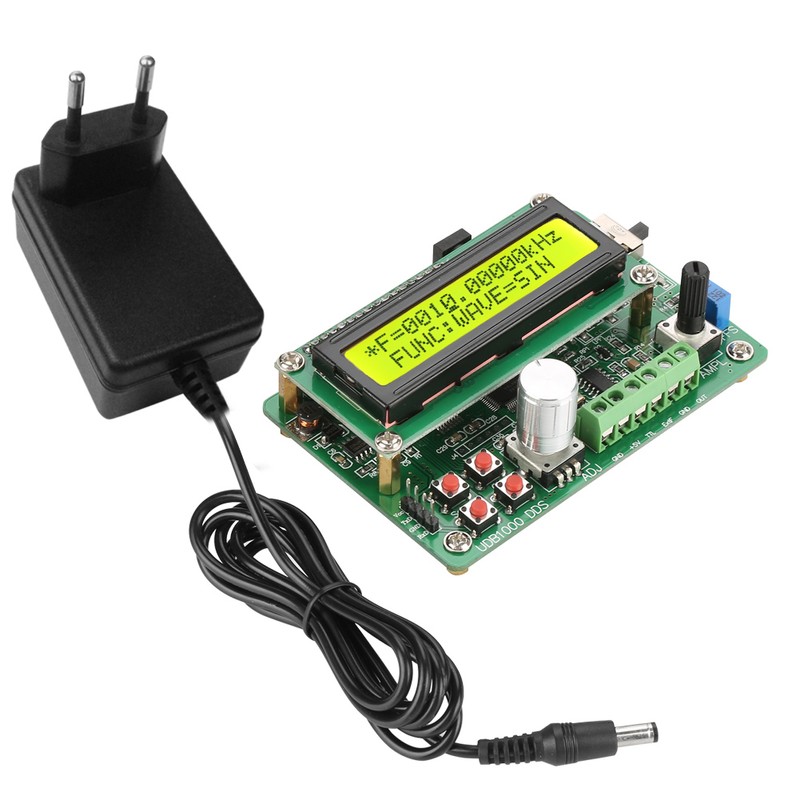

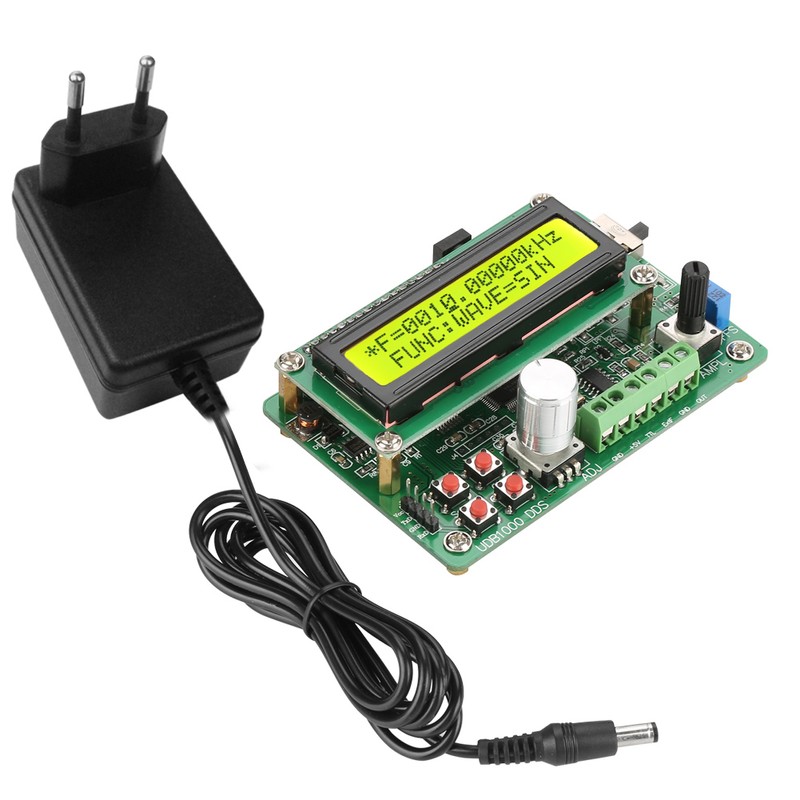

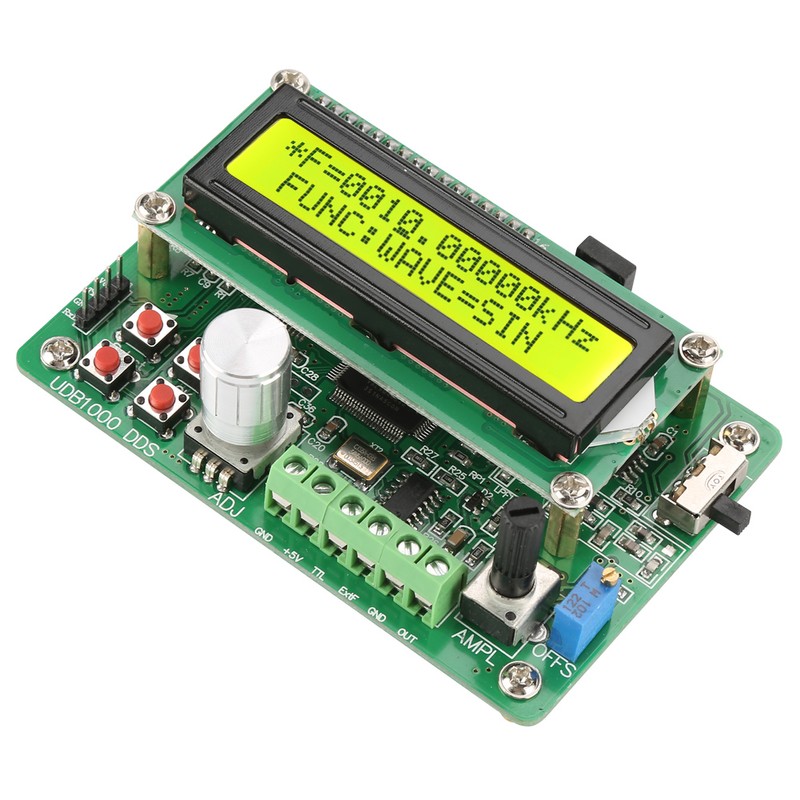

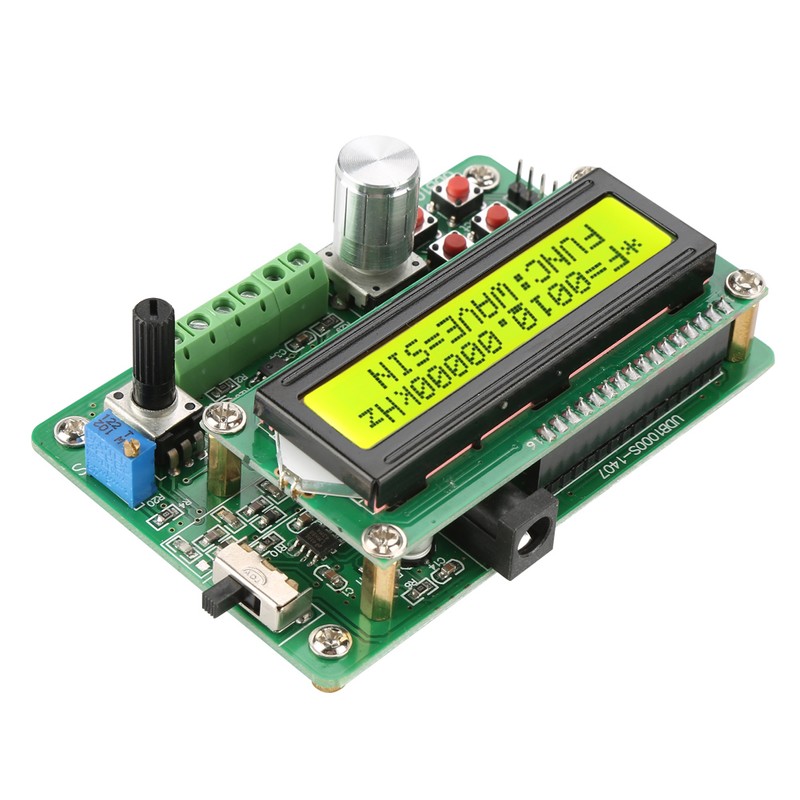

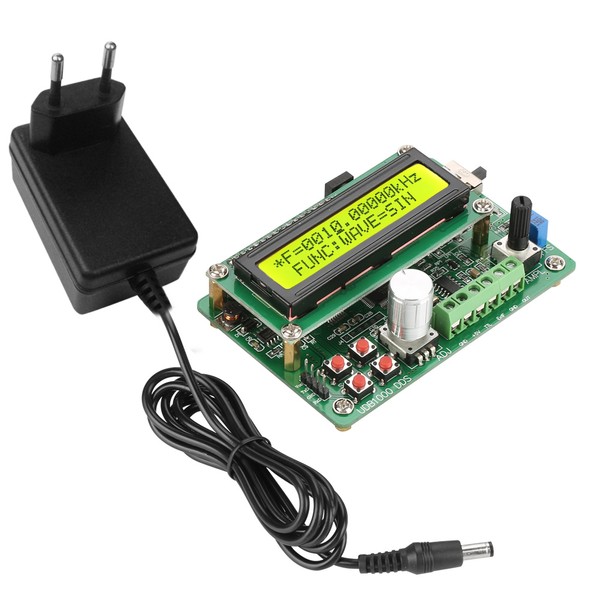

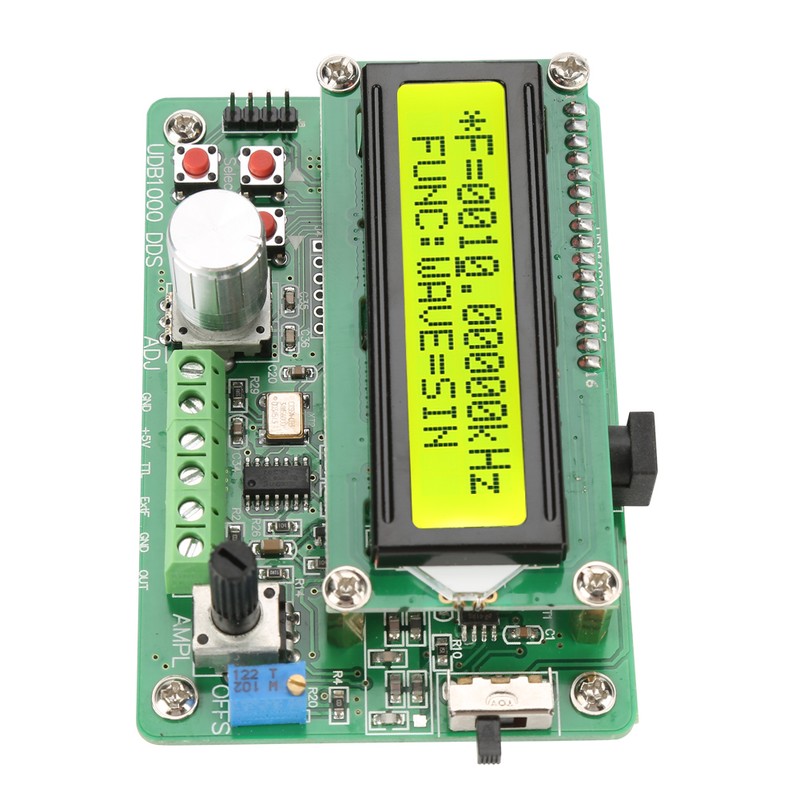

UDB1005S AC100-240V Waveform Function Signal Generator DDS Module(5MHz )
$65.59
- $9.99 shipping from United States View details
-
Arrives
1、Signal aspects: The meter is able to generate sine, square, triangle and sawtooth 2、Measurement: The meter has the frequency measurement and counting functions 3、Scan aspects: It has scanning capability and can achieve frequency sweep with an arbitrary start and end point. 4、Storage and Recall function: With 10sets (M0~M9) parameter storage locations, data of M0 can be loaded as power on. 5、Suitable for laboratory, engineering technicians and hobbyists.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
1、Signal aspects: The meter is able to generate sine, square, triangle and sawtooth 2、Measurement: The meter has the frequency measurement and counting functions 3、Scan aspects: It has scanning capability and can achieve frequency sweep with an arbitrary start and end point. 4、Storage and Recall function: With 10sets (M0~M9) parameter storage locations, data of M0 can be loaded as power on. 5、Suitable for laboratory, engineering technicians and hobbyists.
1、Signal aspects: The meter is able to generate sine, square, triangle and sawtooth 2、Measurement: The meter has the frequency measurement and counting functions 3、Scan aspects: It has scanning capability and can achieve frequency sweep with an arbitrary start and end point. 4、Storage and Recall function: With 10sets (M0~M9) parameter storage locations, data of M0 can be loaded as power on. 5、Suitable for laboratory, engineering technicians and hobbyists.
More Information
Features:
- Using FPGA design, it is easy to use and has high signal stability. It also has TTL output and external frequency measurement functions; the output signal can adjust amplitude and DC offsets
- Suitable for laboratory, engineering technicians and hobbyists.
- Signal aspects: The meter is able to generate sine, square, triangle and sawtooth

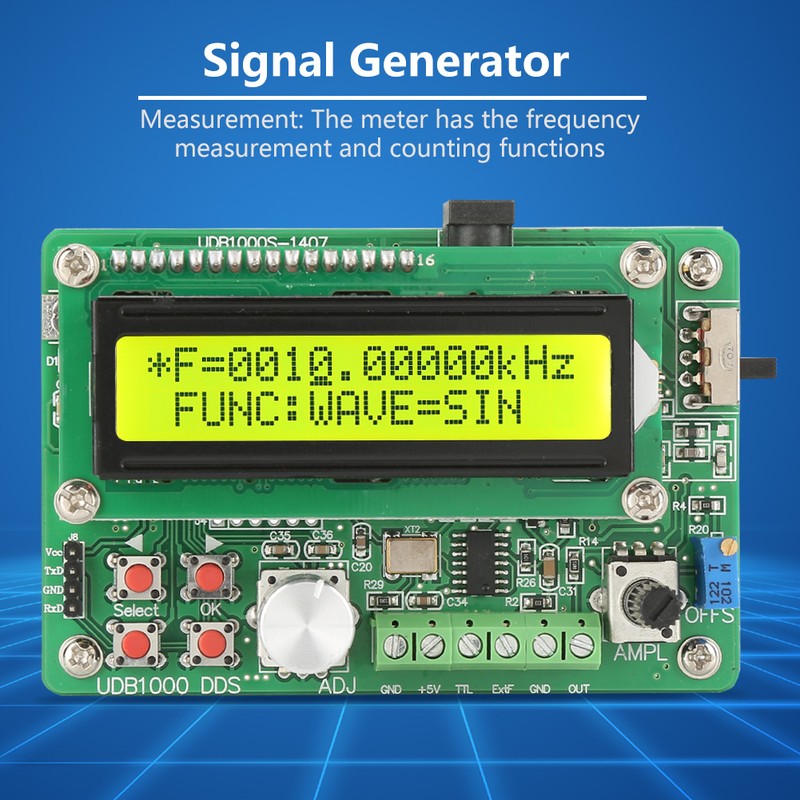

- Measurement: The meter has the frequency measurement and counting functions
- Scan aspects: It has scanning capability and can achieve frequency sweep with an arbitrary start and end point.
- Storage and Recall function: With 10sets (M0~M9) parameter storage locations, data of M0 can be loaded as power on.
Specification:
Type: UDB1005S 5MHz EU plug
Technical data
|
Item |
Parameter |
|
|
|
Output |
Waveform |
sine, square, triangle and sawtooth |
|
|
Output amplitude |
≥9Vp-p(No load) |
|
|
|
Output Impedance |
50Ω±10% |
|
|
|
DC bias |
±2.5V |
|
|
|
Frequency Range |
0.01Hz~2MHz(UDB1002S) 0.01Hz~5MHz(UDB1005S) 0.01Hz~8MHz(UDB1008S) |
|
|
|
|
|||
|
|
|||
|
Frequency resolution |
0.01Hz |
|
|
|
Frequency stability |
±1x10-6 |
|
|
|
Frequency error |
±5x10-6 |
|
|
|
Distortion of sine Wave |
≤0.8% (Reference frequency:1kHz) |
|
|
|
Linearity of triangle wave |
≥98% (0.01Hz~10kHz) |
|
|
|
Rise or fall time of square wave |
≤100ns |
|
|
|
Duty cycle range of square wave |
1%~99% |
|
|
|
TTL |
Frequency Range |
0.01Hz~2MHz(UDB1002S) 0.01Hz~5MHz(UDB1005S) 0.01Hz~8MHz(UDB1008S) |
|
|
|
|||
|
|
|||
|
Amplitude |
>3Vp-p |
|
|
|
Fanout factor |
>20 TTL Load |
|
|
|
Measurement |
Counting range |
0-4294967295 |
|
|
Frequency range |
1Hz~60MHz |
|
|
|
Input amplitude |
0.5Vp-p~20Vp-p |
|
|
|
Sweep |
Range |
fM1~fM2 |
|
|
Amplitude |
0.5Vp-p~20Vp-p |
|
|
|
Save |
Quantity |
10 |
|
|
Location |
M0~M9 |
|
|
|
Power supply |
DC |
5V |
|
|

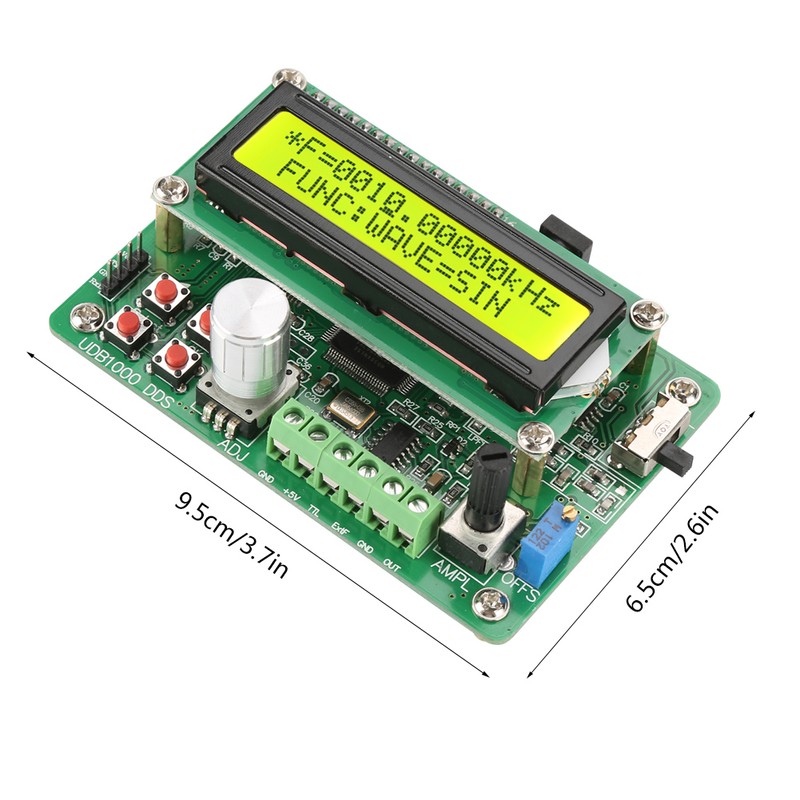

Dimensions |
L x w |
9.5*6.5cm/3.7*2.6in |
|
|
Weight |
Host |
Approx.255g/9oz |
|
|

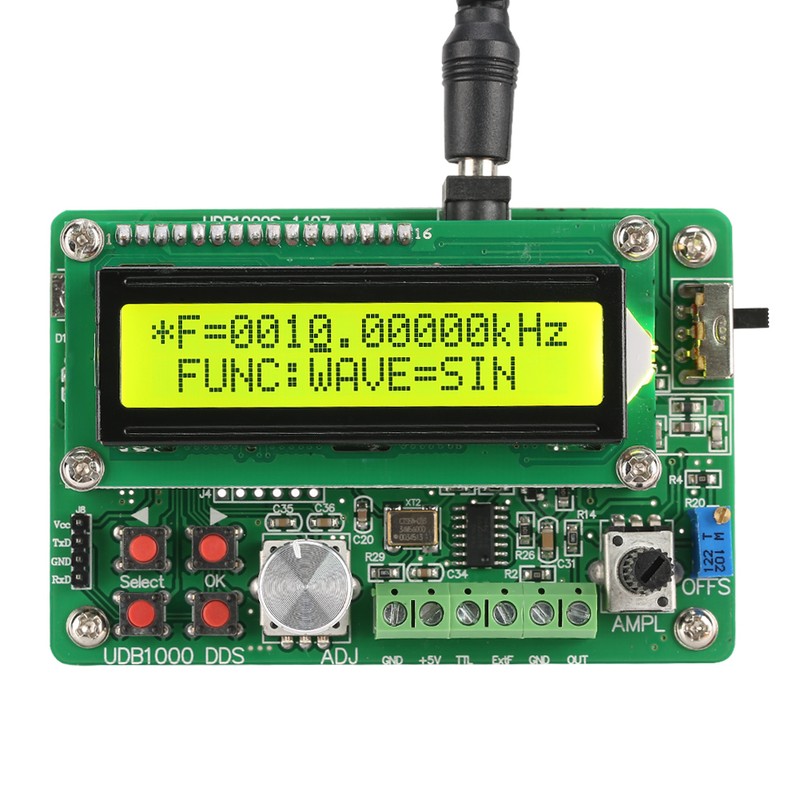

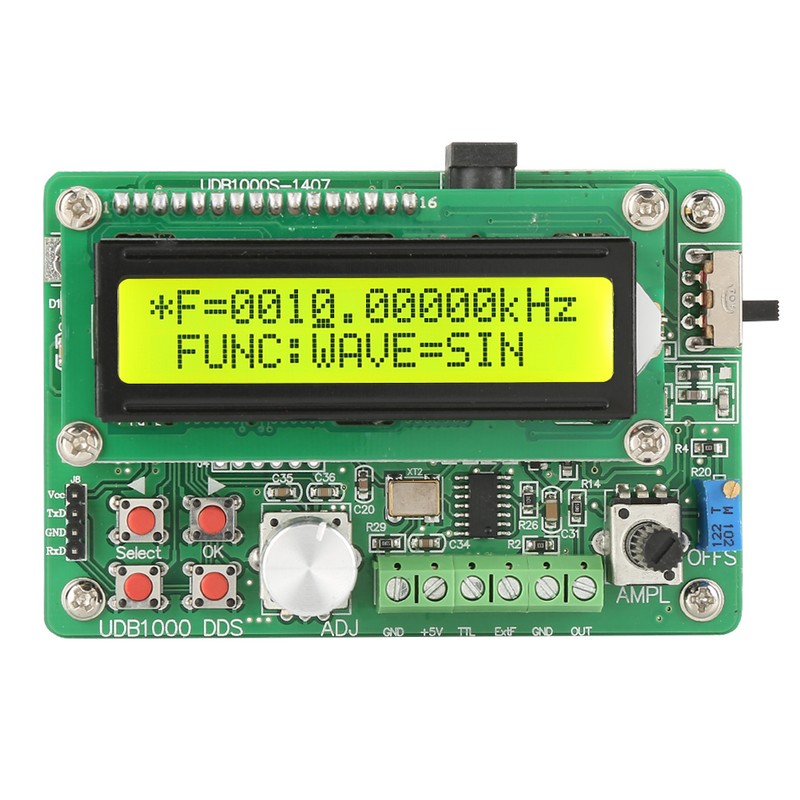

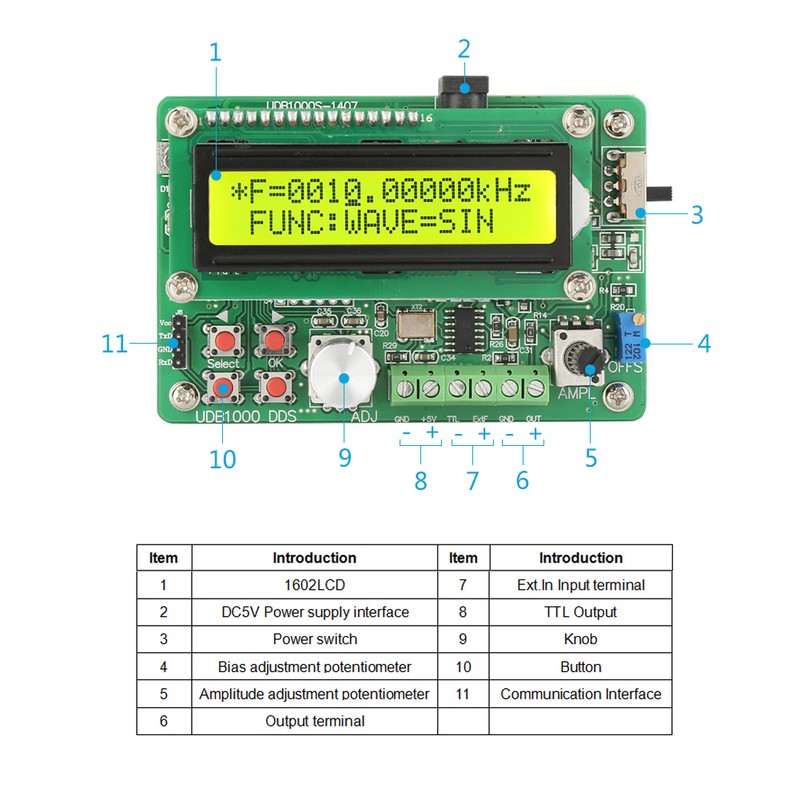

Item |
Introduction |
Item |
Introduction |
|
1 |
1602LCD |
7 |
Ext.In Input terminal |
|
2 |
DC5V Power supply interface |
8 |
TTL Output |
|
3 |
Power switch |
9 |
Knob |
|
4 |
Bias adjustment potentiometer |
10 |
Button |
|
5 |
Amplitude adjustment potentiometer |
11 |
Communication Interface |
|
6 |
Output terminal |
|
|

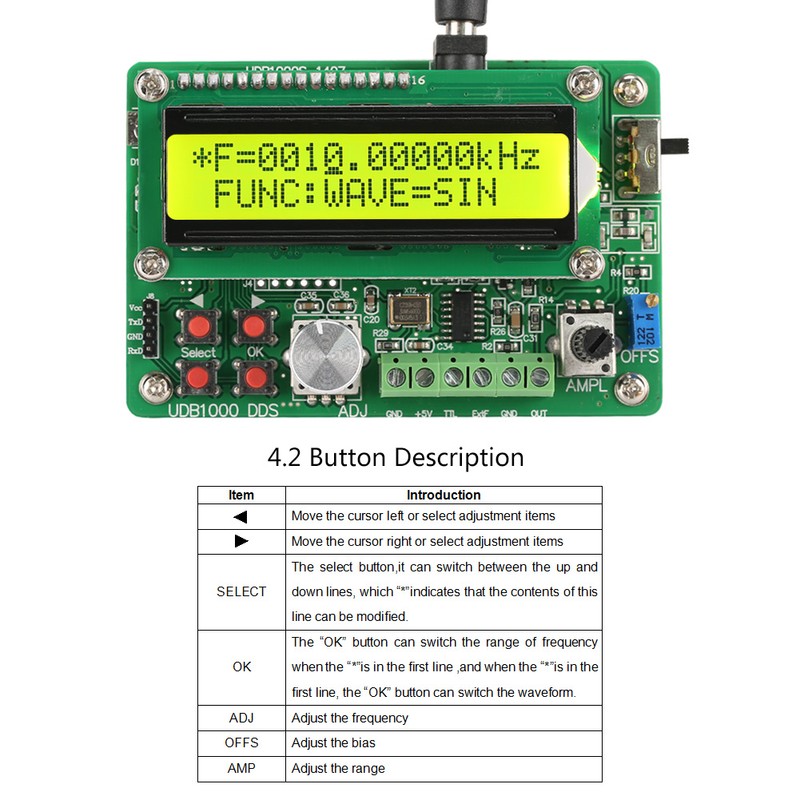

Button Description:
| Item | Introduction |
| < | Move the cursor left or select adjustment items |
| > | Move the cursor right or select adjustment items |
| SELECT | The select button,it can switch between the up and down lines, which "*"indicates that the contents of this line can be modified. |
| OK | The "OK" button can switch the range of frequency when the "*"is in the first line ,and when the"*"is in the first line, the "OK" button can switch the waveform. |
| ADJ | Adjust the frequency |
| OFFS | Adjust the bias |
| AMP | Adjust the range |
Package list:
