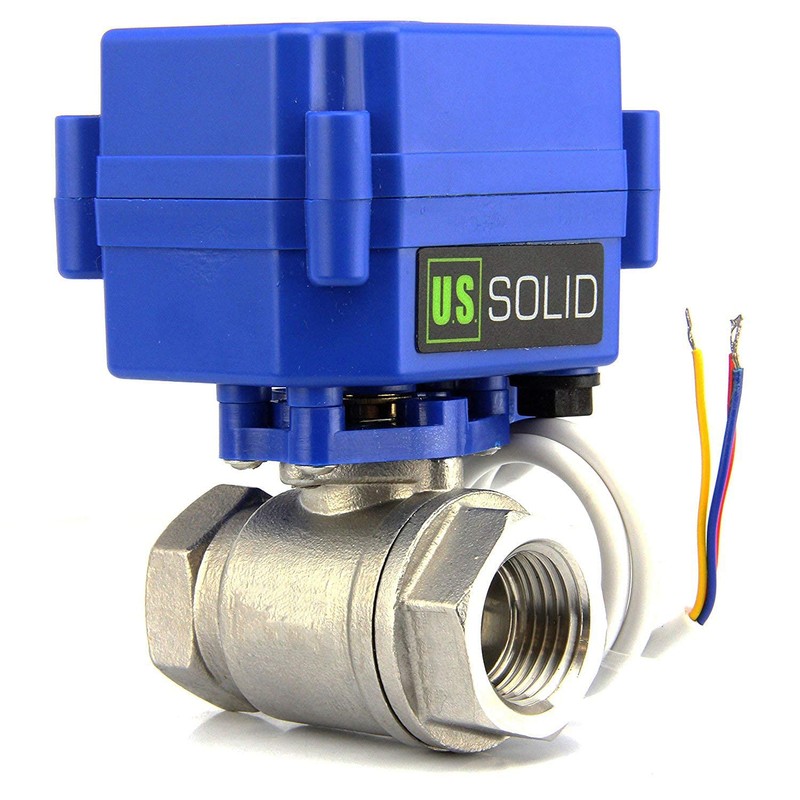

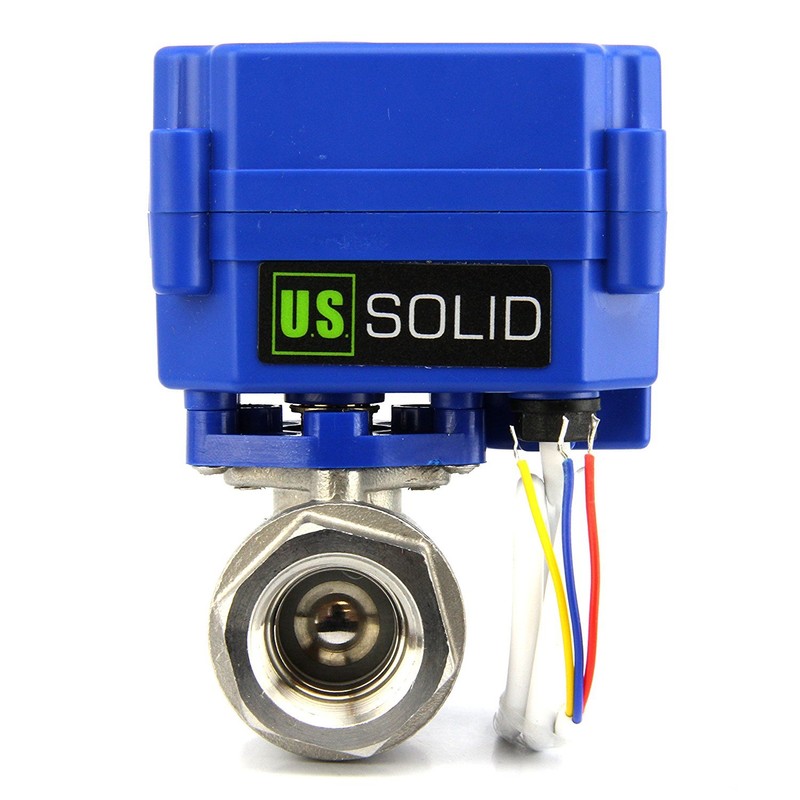

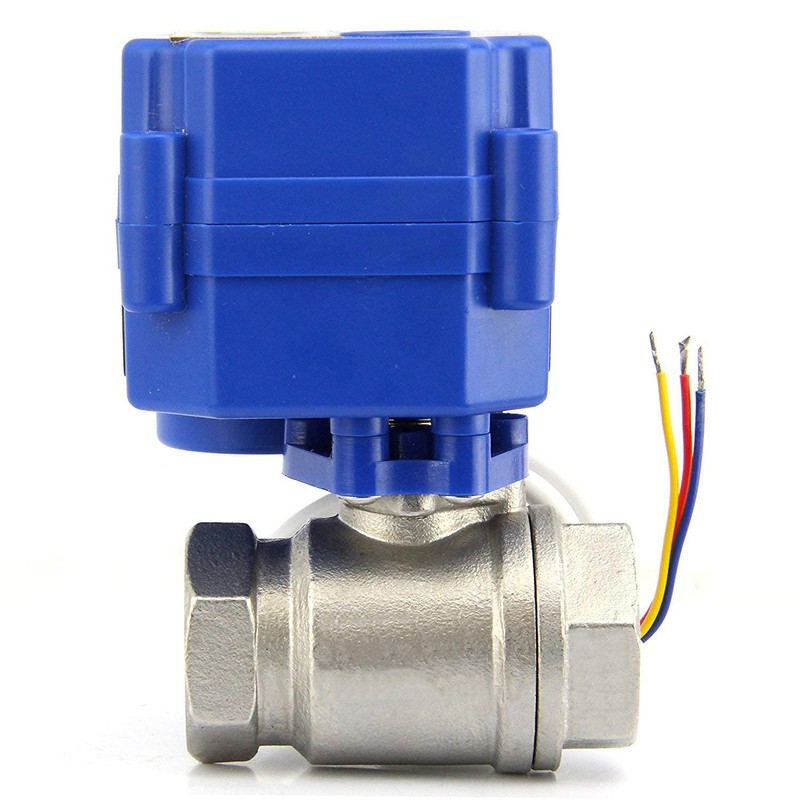

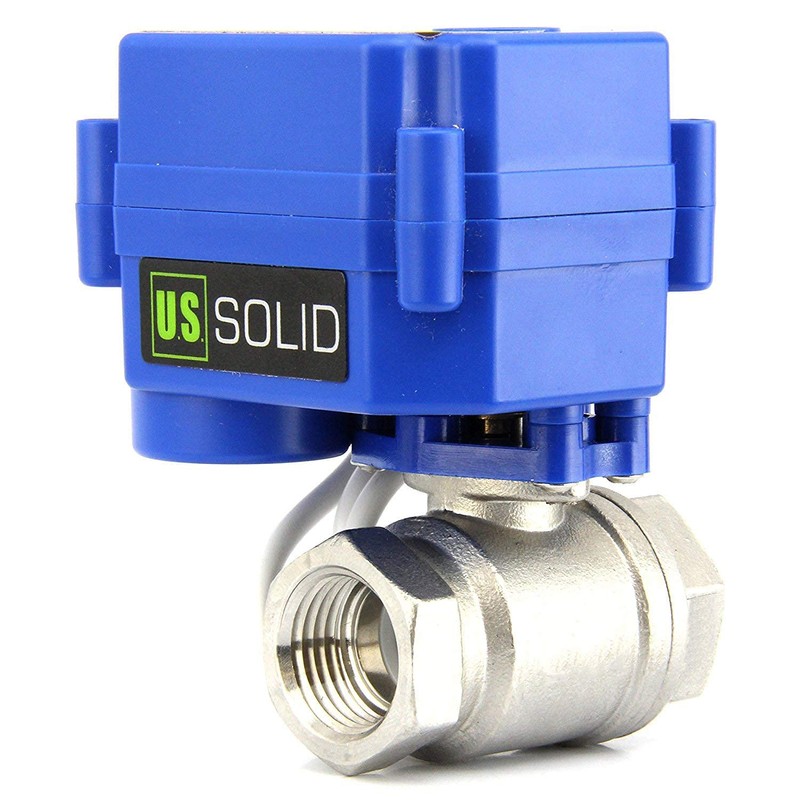

U.S. Solid 3/4" Motorized Ball Valve DN20 Stainless Steel Electrical Ball Valve, 9-24V AC/DC, 3 Wire Setup
U.S. Solid 3/4" Motorized Ball Valve DN20 Stainless Steel Electrical Ball Valve, 9-24V AC/DC, 3 Wire Setup
Product Overview

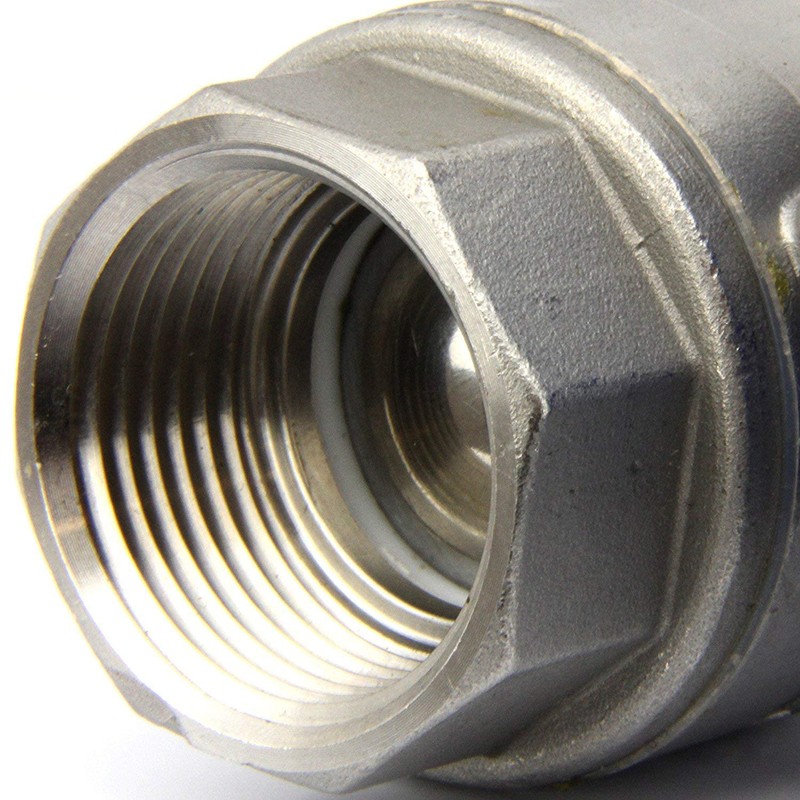

- G THREADING- 3/4” Stainless steel threading, manufactured and measured according to British Standard Pipe Thread.
- 9V-24V AC/DC- Works effectively over entire voltage range; Will open or close valve in 3-5 seconds; No power expended once fully open or fully closed.
- 3 WIRE, 2 POINT CONTROL SETUP- Simple three wire connection, with two points of control; No energy expended once in position.
- ALTERNATIVE TO SOLENOID VALVES- Automatically cuts off power once fully open or fully closed; This reduces likelihood of overheating, making it a great alternative to solenoid valves for projects where a valve needs to be open for an extended period of time.
- RELIABLE- Lifespan of 80,000-100,000 cycles means a valve that will last.
| Brand: | U.S. Solid |
|---|---|
| Size: | 3/4" |
| Manufacturer: | U.S. Solid |
| Part Number: | CWKSFPC |
| Material Type: | Stainless Steel |
| Isin: | IHXNQ5DXTQG3 |
Guaranteed as described or your money back. Learn program terms
- 30-Day Money-Back Guarantee
- Secure Checkout
- Reliable Shipping & Tracking
- Responsive Customer Support
Product Overview
- G THREADING- 3/4” Stainless steel threading, manufactured and measured according to British Standard Pipe Thread.
- 9V-24V AC/DC- Works effectively over entire voltage range; Will open or close valve in 3-5 seconds; No power expended once fully open or fully closed.
- 3 WIRE, 2 POINT CONTROL SETUP- Simple three wire connection, with two points of control; No energy expended once in position.
- ALTERNATIVE TO SOLENOID VALVES- Automatically cuts off power once fully open or fully closed; This reduces likelihood of overheating, making it a great alternative to solenoid valves for projects where a valve needs to be open for an extended period of time.
- RELIABLE- Lifespan of 80,000-100,000 cycles means a valve that will last.
| Brand: | U.S. Solid |
|---|---|
| Size: | 3/4" |
| Manufacturer: | U.S. Solid |
| Part Number: | CWKSFPC |
| Material Type: | Stainless Steel |
| Isin: | IHXNQ5DXTQG3 |
The attention to detail in this valve extends beyond the metal. The casing is rated as IP65. This ingress protection rating is used to define how well the casing does at sealing. For U.S. Solid motorized ball valves, they have the highest IP rating possible against solids, representing a seal that protects against all solids, even dust. For water, the rating represents seal protection against water spray from all directions. This means the casing and body are all built to last.

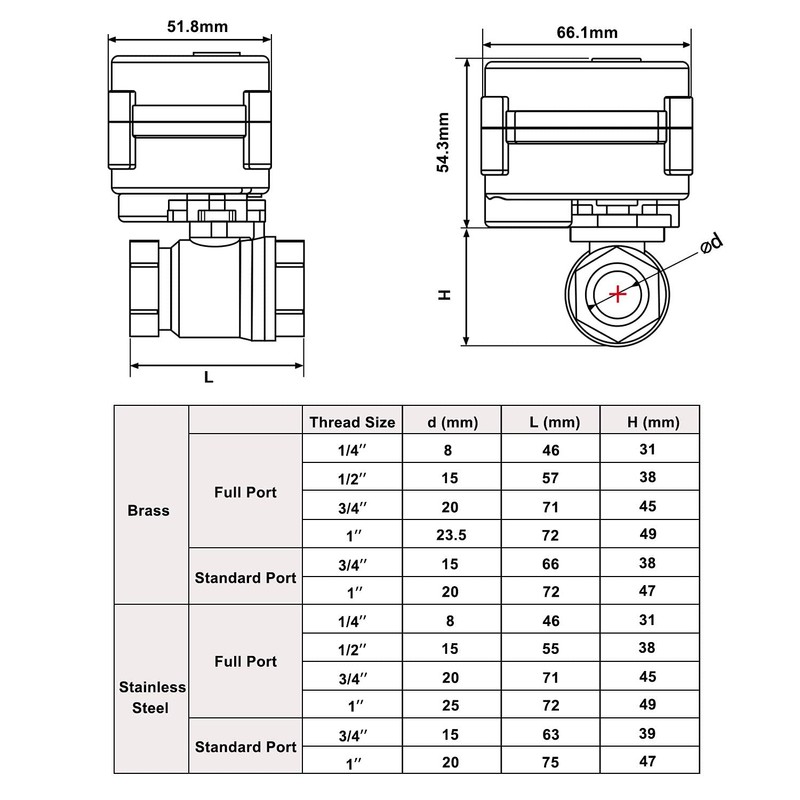

Specifications
Valve Material: SS304
Ball Seat: PTFE
Seal: EPDM
Close/Open Time: 3-5 Seconds
Working Voltage: 9-24V AC/DC
Max Power: 2 W
Max Torque: 2 N m
Max Pressure: 1.0 MPa
Temperature range for Flow Medium: 0°C to 90°C
Ambient Temperature Range: -10°C to 40°C
Enclosure Rating: IP65
Life Expectancy: 80,000-100,000 Cycles
Thread Type: G
Can not be used in strong acid, strong base, waste water, industrial gas and other media containing many impurities.
