Tzone RS485 Temperature Sensor Modbus RTU Temperature and Humidity Transmitter,Industrial Temp Sensor Analog Humidity Monitor -40℃ to 125℃ High Accuracy for Heating and Cooling System,Farm,Greenhouse
$77.85
- $5.99 shipping from United States View details
-
Arrives
- RS485 TEMPERATURE HUMIDITY TRANSMITTER: The industrial temperature sensor uses the newly designed CMOS chip SHT3X sensor, makes its performance more stable in high humidity environments; IP65 waterproof
- MODBUS TEMPERATURE SENSOR WITH DIP SWITCH: The DIP switch is used to set the address to facilitate sensor identification; Supports simultaneous monitoring of multiple temp humidity sensors through computers or other monitoring devices
- MEASUREMENT RANGE: Temperature measuring range is -40 ℉ to 257 ℉ (-40 ℃ to 125 ℃); humidity measuring range is 5% to 95% RH; DC:5 to 24V; Transmission rate(optional):4800 bps / 9600 bps / 19200 bps
- MODBUS RTU TEMPERATURE SENSOR: This analog temperature sensor adopts RS485 communication interface output,compatible with the standard Modbus-RTU protocol; Fully calibrated and has the characteristics of good versatility, long transmission distance
- COMPACT AND EASY TO USE: Low power consumption and strong resistance to chemical pollution; Small size, light weight, easy to carry and install, does not take up much space
- WIDE APPLICATIONS: The temperature and humidity transmitter probe is ideal for industrial, HVAC, communication room, warehouse buildings, and automatic control applications
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- RS485 TEMPERATURE HUMIDITY TRANSMITTER: The industrial temperature sensor uses the newly designed CMOS chip SHT3X sensor, makes its performance more stable in high humidity environments; IP65 waterproof
- MODBUS TEMPERATURE SENSOR WITH DIP SWITCH: The DIP switch is used to set the address to facilitate sensor identification; Supports simultaneous monitoring of multiple temp humidity sensors through computers or other monitoring devices
- MEASUREMENT RANGE: Temperature measuring range is -40 ℉ to 257 ℉ (-40 ℃ to 125 ℃); humidity measuring range is 5% to 95% RH; DC:5 to 24V; Transmission rate(optional):4800 bps / 9600 bps / 19200 bps
- MODBUS RTU TEMPERATURE SENSOR: This analog temperature sensor adopts RS485 communication interface output,compatible with the standard Modbus-RTU protocol; Fully calibrated and has the characteristics of good versatility, long transmission distance
- COMPACT AND EASY TO USE: Low power consumption and strong resistance to chemical pollution; Small size, light weight, easy to carry and install, does not take up much space
- WIDE APPLICATIONS: The temperature and humidity transmitter probe is ideal for industrial, HVAC, communication room, warehouse buildings, and automatic control applications

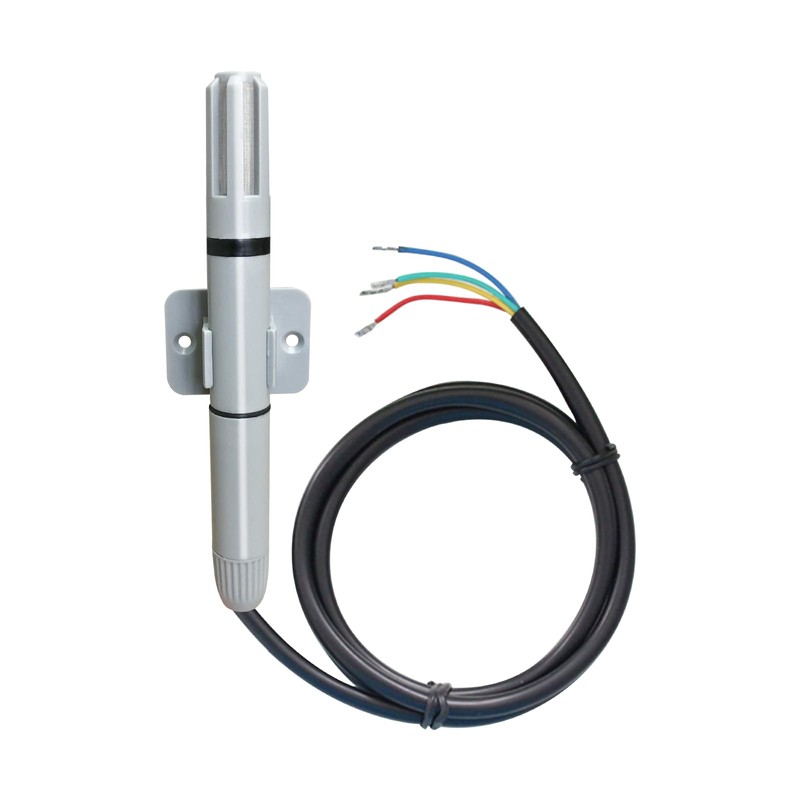

Tzone THT-02 temperature and humidity transmitter is designed based on RS-485 communication interface and is compatible with the standard Modbus-RTU protocol.It can be connected to the Modbus network to achieve temperature and humidity data measurement and monitoring.

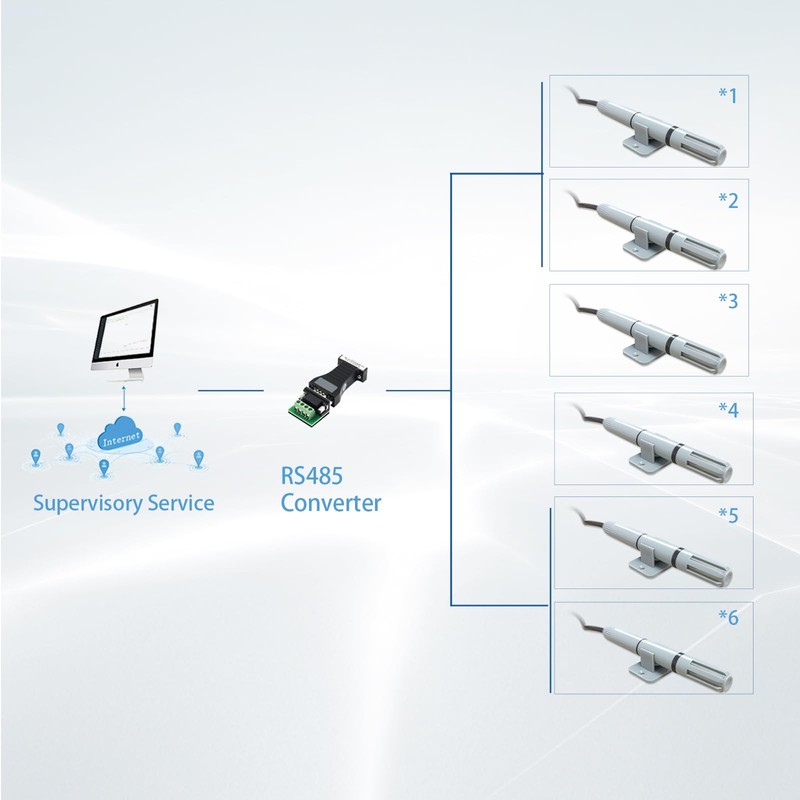

This temperature humidity sensor supports to be identified multiple sensors via DIP switch to set the address. And computer or other monitor devices can monitor multiple temperature and humidity transmitter collecter at the same time. NOTE:The standard MAX transmission distance is about 1200 meters, depending on the use environment, transmission material and transmission rate.

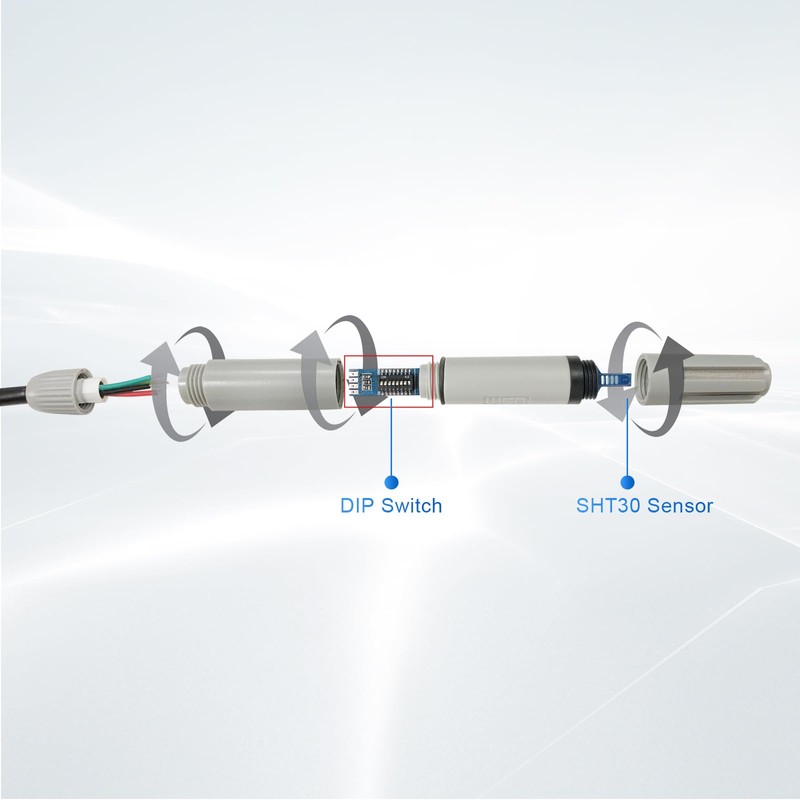

The temperature transmitter probe uses a newly SHT3X element,improves its stability of high humidity environment. The temp and humidity sensor element has excellent stability, low latency, low power consumption, strong resistance to chemical contamination.It is widely used in accurate temperature and humidity data measurement and monitoring in HVAC, communication room, warehouse construction, automatic control and other occasions.

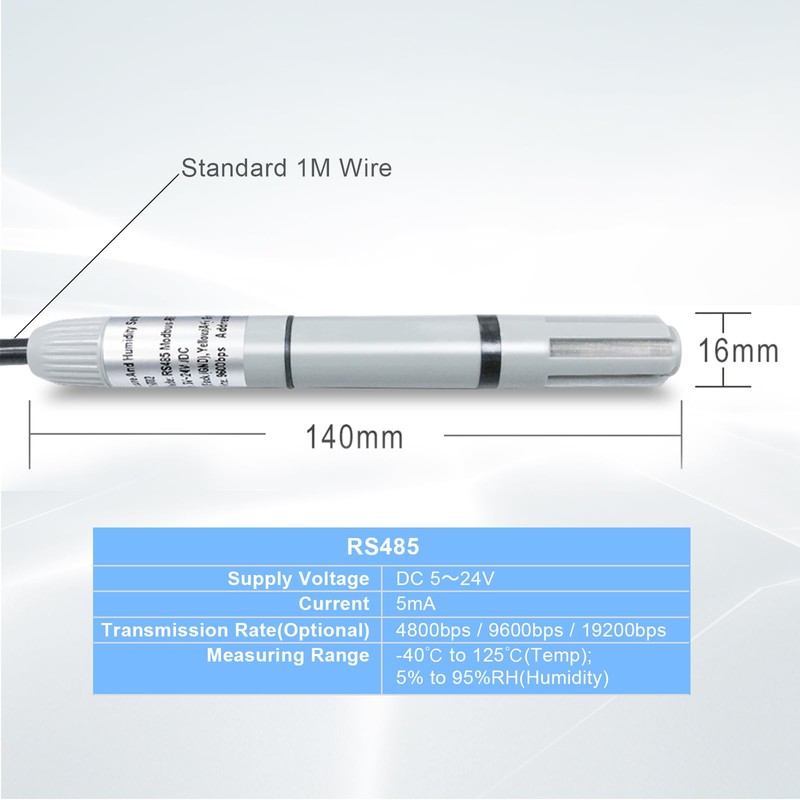

Parameters:
Output: RS485, modbus-RTU
Supply Voltage: DC 5V～24V
Current: 5mA
Measuring Range: -40℃～125℃(Temperature); 0～100%RH(Humidity)
Accuracy: ±0.2℃(Temperature); ±2%RH(Humidity)
Data Update Time: 30s
Waterproof: IP65 grade
Dimensions: 109mm x 100mm x 40mm

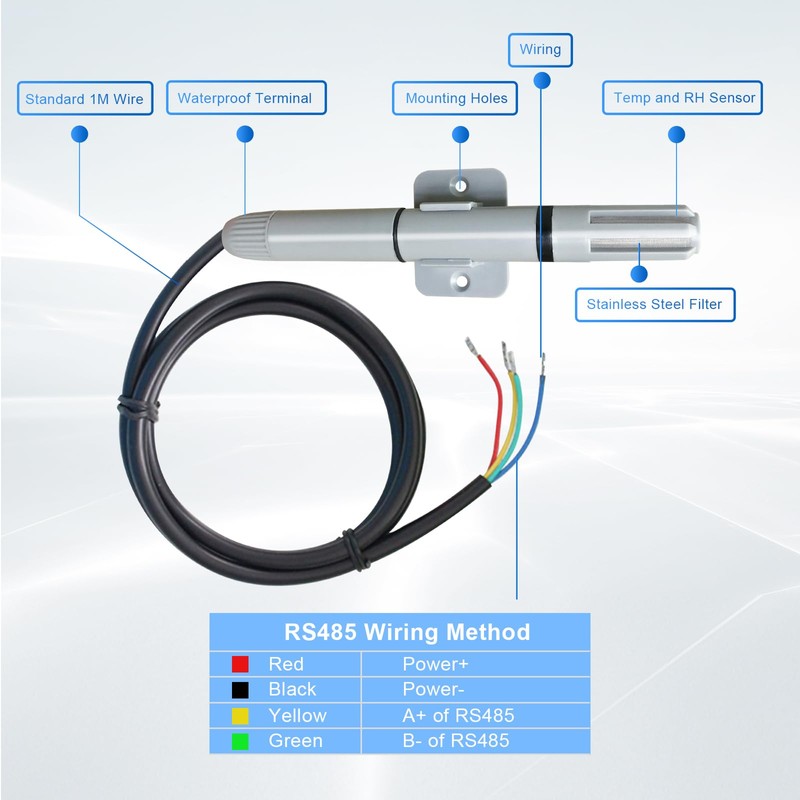

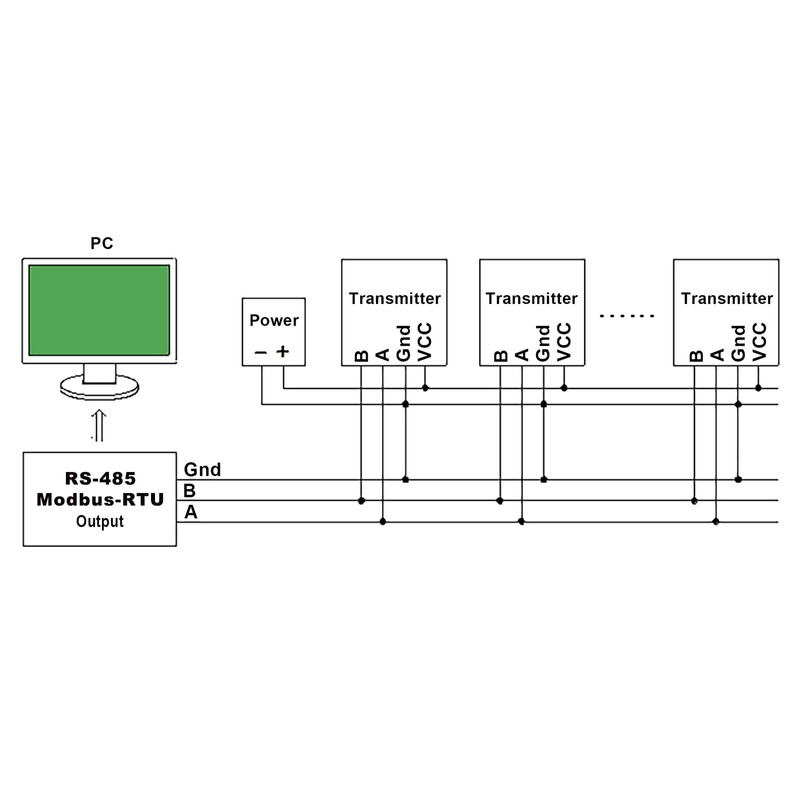

Electrical connections
Red Line: positive pole of power supply
Black Line: public ground (connect to the negative pole of the power supply when using DC power supply)
Yellow Line: RS485interface A+
Green Line: RS485 interface B-
