Tweeter & Full Range 2-Way Speaker Module L/R [Set of 2] & Network Full Set, Perfect for Sound Bar DIY 4Ω [Speaker DIY Audio]
$31.85
- $9.99 shipping from Japan View details
-
Arrives
- Sold as a set of L/R
- 2-Way Speaker Module
- Just connect the amplifier and you can use it immediately

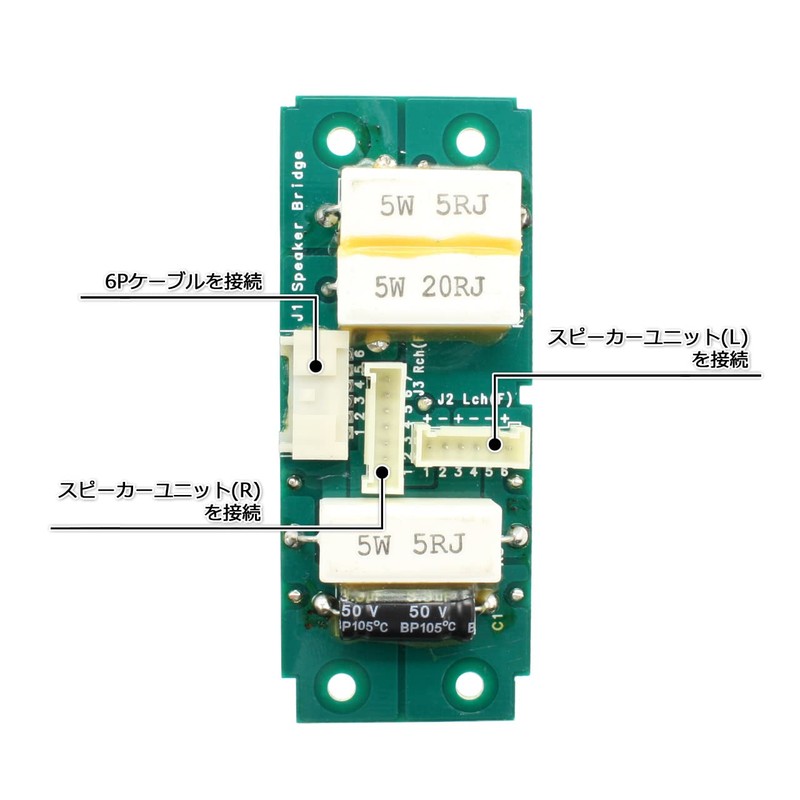

- Network board included (easy one-touch installation with cable connection connector)
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Sold as a set of L/R
- 2-Way Speaker Module
- Just connect the amplifier and you can use it immediately
- Network board included (easy one-touch installation with cable connection connector)

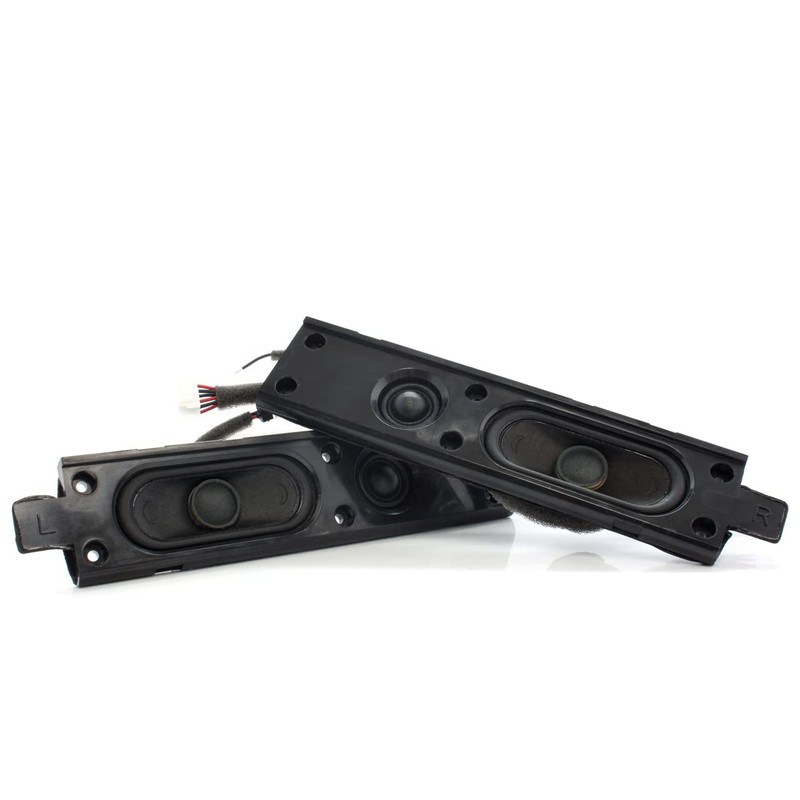

Tweeter and woofer (full range unit) 2-way configuration, the unit is already installed on the resin baffle board, so you can easily install the baffle to the enclosure.
The input to the network is also connected, and it comes with a compatible 6P cable, so you can simply attach it to the network board with a single touch and connect it to the amplifier.
Since the processing process is low, even beginners can enjoy it relatively easily.
A 20mm diameter soft dome tweeter combined with an oval full-range unit as a woofer, and a dedicated crossover network substrate is combined with a 2-way specification, so you can enjoy high-quality sound quality.
The basis is is a strict part of the unit, but when you mount it to the appropriate cardboard box without aging, we was very surprised to "hard-yan and coits..."
Of course, we have gained high reputation by our discerning staff.
The bass can be reinforced with a subwoofer, and you can also enjoy using passive radiator, so you can enjoy using various ideas for you.
We recommend this masterpiece!

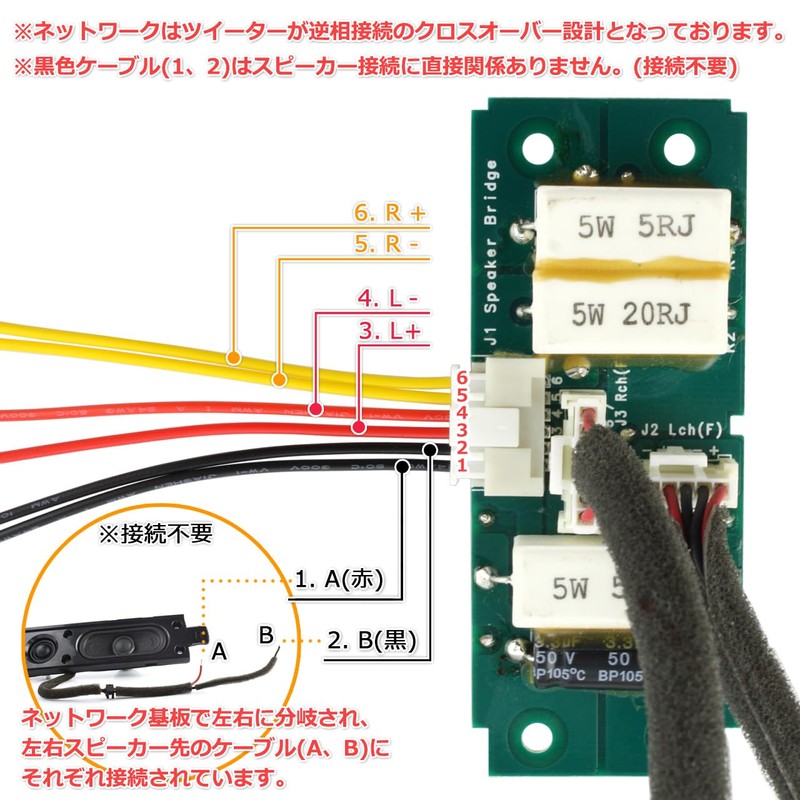

[About stripped wires from 6P cables and modules]
The speaker module first comes out of the tip stripped wire (red and black) without a connector, but this is not used for wiring that is not associated with the speaker. (No connection required)
There are 6 input wires in the network because the input connector is 6P connector, but you just need to connect 4 red and yellow pairs to the L/R output of the power amplifier.
Each stripped wire from the module has a split left and right part, and eventually connected to a 6P cable black wire (1 and 2), so for example, it can be used for power supply when two mono amplifier boards are built-in.
[Precautions]
Please be aware that this product is brand new, but there may be some stains or minor scratches as it is imported.
※Although we do not offer a warranty, we will replace it if you can check any injuries or fatal damage at the time of receiving the product.
Please be aware that we will not be able to deal with defects after processing.
The condition of the gaskets may vary depending on individual items, but please understand as a gift.
Product Specifications:

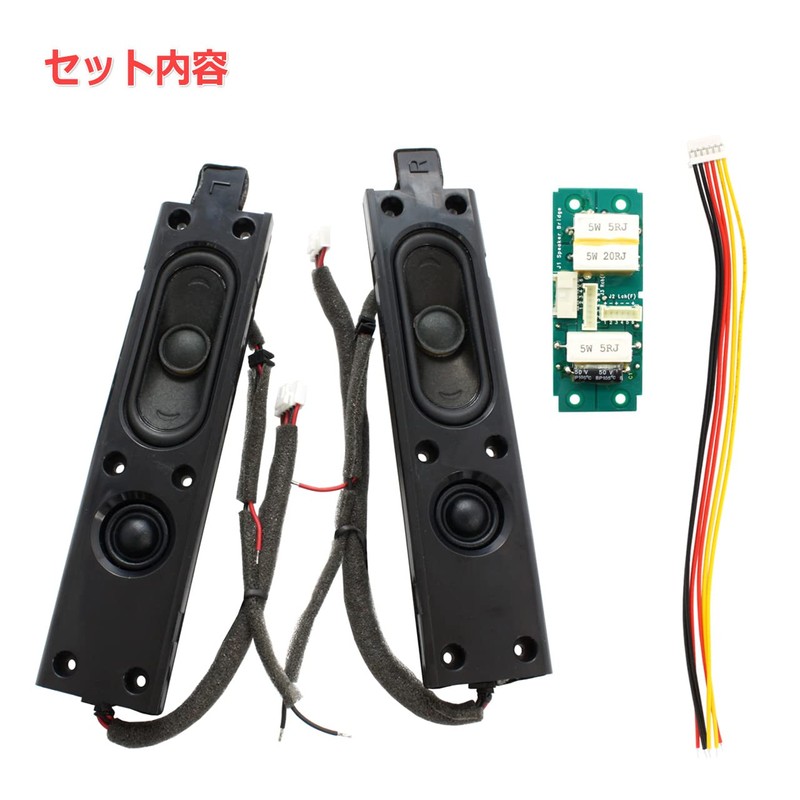

Unit of Sale: 2 pieces (L/R set)
Accessories: LR network board x 1, 6P cable x 1 (cable length: 7.9 inches (20 cm)
Diaphragm Material: 0.8 inch (20 mm) diameter tweeter silk dome / woofer paper cone
Edge Material: Woofer Rubber
Magnet: Tweeter Woofer Neodymium
Impedance: 4Ω

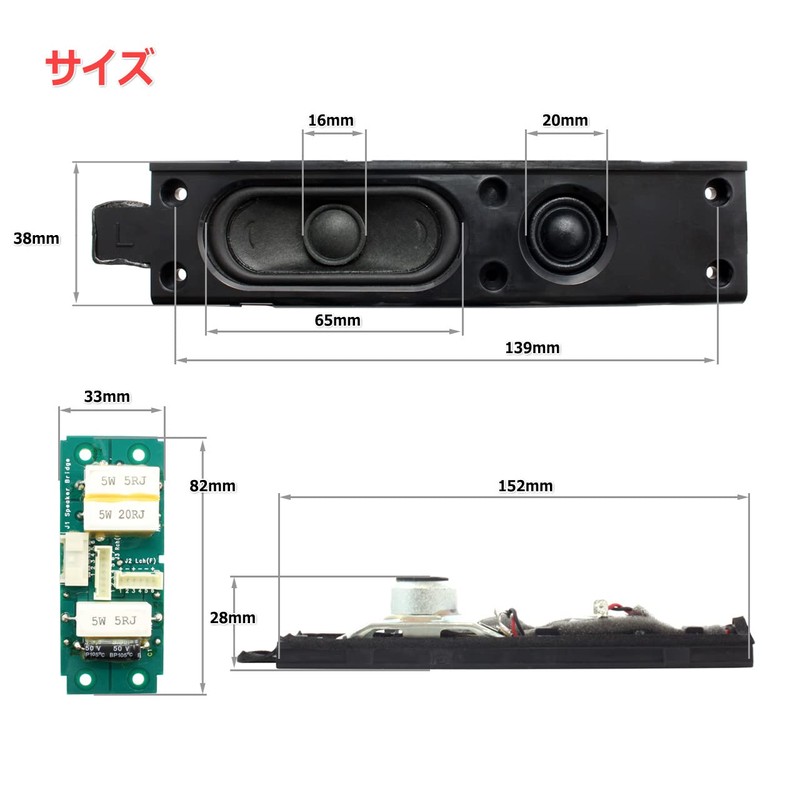

Unit caliber (cone diameter with edge): Tweeter 0.8 inch (20 mm) / Woofer 2.5 inch (65 mm)
Size: 6.6 inches (168 mm) x 1.5 inches (38 mm) x
Weight: Approx. 12.2 oz (360
