Transistor Tester BSIDE ESR02 Pro Transistor Capacitor Tester Digital Transistor Capacitor Tester SMD Chip Component Inductance Meter Large LCD Display with Function

Brand: Gugxiom

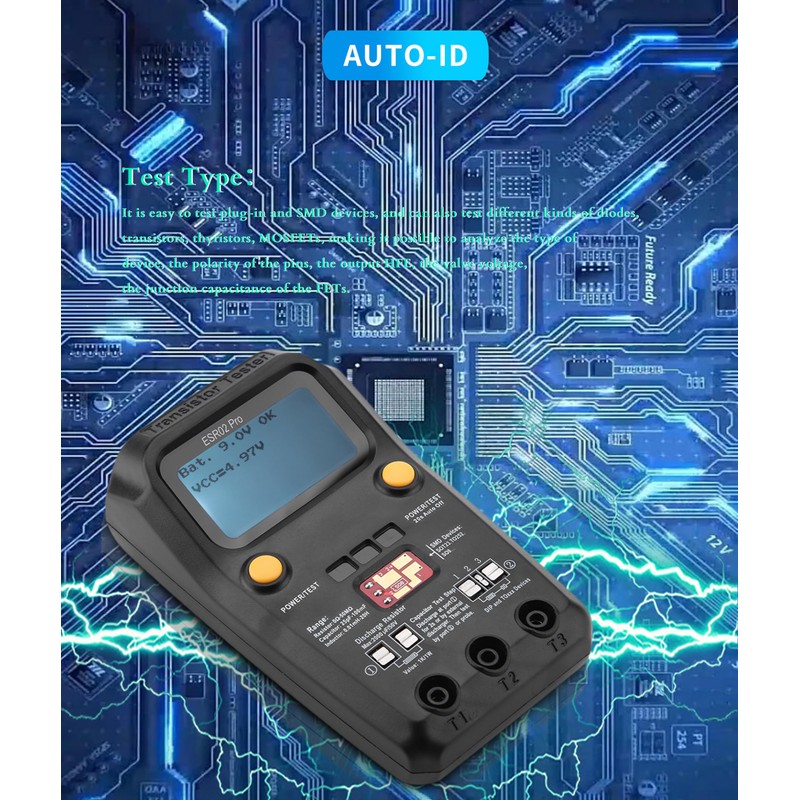

  • Auto ID - Automatically detects components such as NPN, PNP bipolar transistors, N-channel and P-channel MOSFET, diodes (including dual diodes), thyristors, transistors, resistors and capacitors.
  • Wide range of applications: this transistor tester has a wide range of applications. It is very easy to test SMD and pluggable devices, and it can also be used to test a variety of transistors, thyristors and MOSFETs, and it is able to analyze the device type, polarity of the pins, HFE output, valve voltage and joint capacity. by FET.
  • LARGE LCD DISPLAY This digital transistor tester features a large LCD display that also comes with backlight for easy reading.
  • ON-Button Operation: By pressing ON/TEST, the functions of power on and a test can be performed, and press this button repeatedly to perform multiple tests; 20 seconds after the test, it will automatically turn off without operation.
  • Safety: the transistor tester can detect the direct polarization voltage of the transistor emitter, MOSFET diode reference and gain factor, MOSFET door threshold voltage and door capacity measurement.
Brand: Gugxiom
Manufacturer: Gugxiom
Part Number: ST1MXTG
Isin: IQPXJF8NRCJQ

$84.47

  • Free shipping in US
  • Shipping: $14.5 Extended Delivery (Ships from overseas warehouse, 10-15 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow

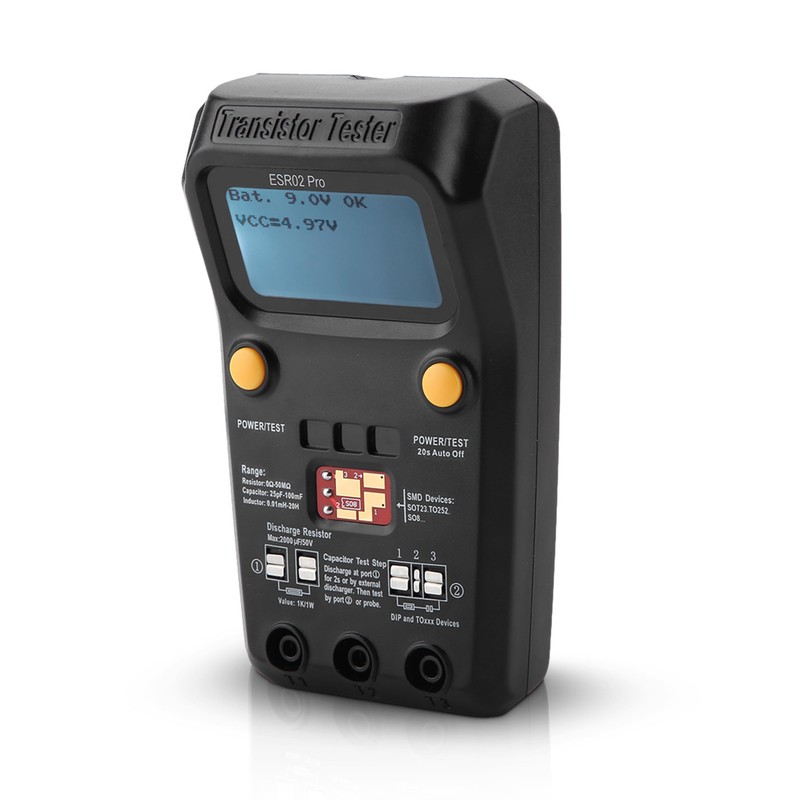

Transistor Tester BSIDE ESR02 Pro Transistor Capacitor Tester Digital Transistor Capacitor Tester SMD Chip Component Inductance Meter Large LCD Display with Function

Transistor Tester BSIDE ESR02 Pro Transistor Capacitor Tester Digital Transis...

$84.47

Specification:
Brand: BSIDE
Model: ESR02 Pro.
Resistance: 0Ω~50Ω, Resolution: 0.01ohm
Capacity: 25pF~100mF, Resolution: 1pF
Inductance: 0.01mH~20H, Resolution: 0.01mH
ESR resolution of capacitor: 0.01Ω
Battery: 1 x 9V 6LR61 battery (not included)
Colour: black.
Size: approx. 14*8*4.5cm
Weight: approx. 214g
Instructions for use:
Press POWER/TEST to turn on and start a test. This button can repeat multiple measurements and automatically turns off 20 seconds after measurement.
Provides three types of connectors, each plug is connected to pin 1, pin 2 and pin 3.
The placement of the device does not require the order of instruction, and the screen shows the function of the component of each pen after measurement.
There is a typical ESR value table of the electrolytic capacitor on the back, it is only as a guide, these are typical values for the standard quality electrolytic capacitor at room temperature.

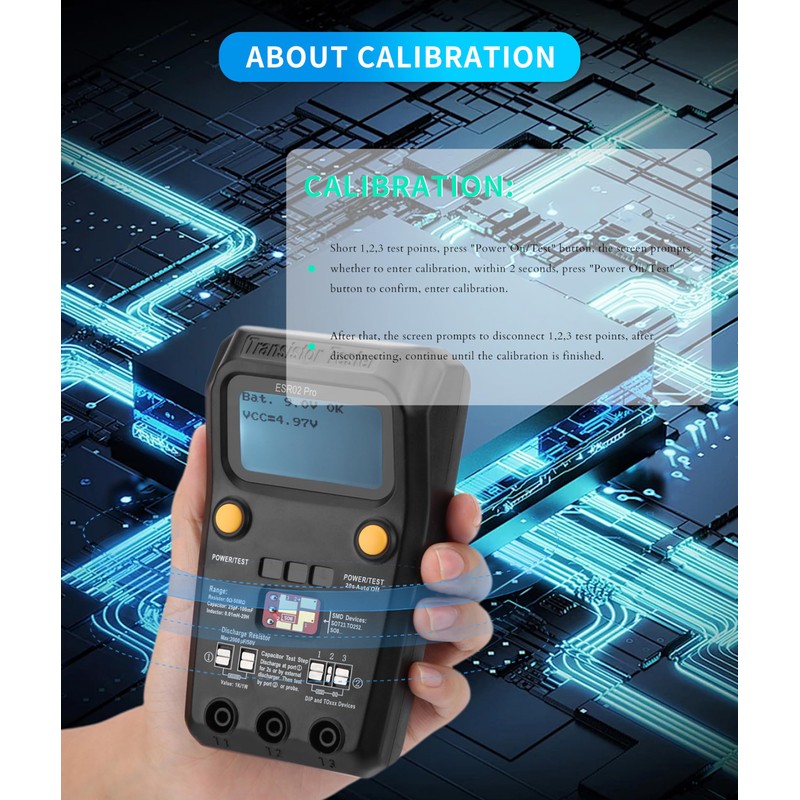

Calibration:
Cut the test pins 1, 2, 3 together and press the ON/TEST button, then the screen will prompt you to enter the calibration, press the button again within 2 seconds to confirm. A few seconds later, the screen prompts you to release pins 1, 2, 3 and wait for the calibration to complete.
Package includes:
1 x Transistor Tester
1 x user manual (may not English language not guaranteed).
Note:
Before testing the capacitor, make sure you discharge it, otherwise this could damage the internal circuit.
If you use DC power supply, choose a 9V~12V DC adapter. (including 9V and 12V)
Can be powered by a 6LR61 9V battery (not included). If the battery charge is less than 6V, please replace a new one.
