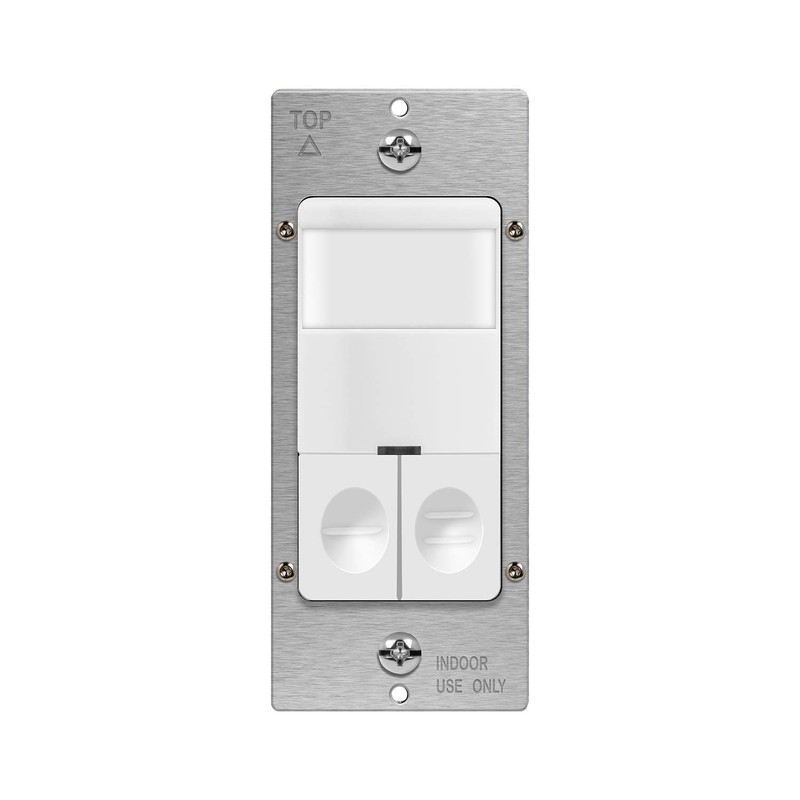

TOPGREENER Dual Load Motion Sensor Switch, PIR Sensor Light and Fan Switch, Occupancy & Vacancy Modes, No Neutral Wire Required, Ground Wire Required, 150W LED/CFL, 1/4HP, Single Pole, TDOS5-JD, White
$99.09
- $5.95 shipping from United States View details
-
Arrives

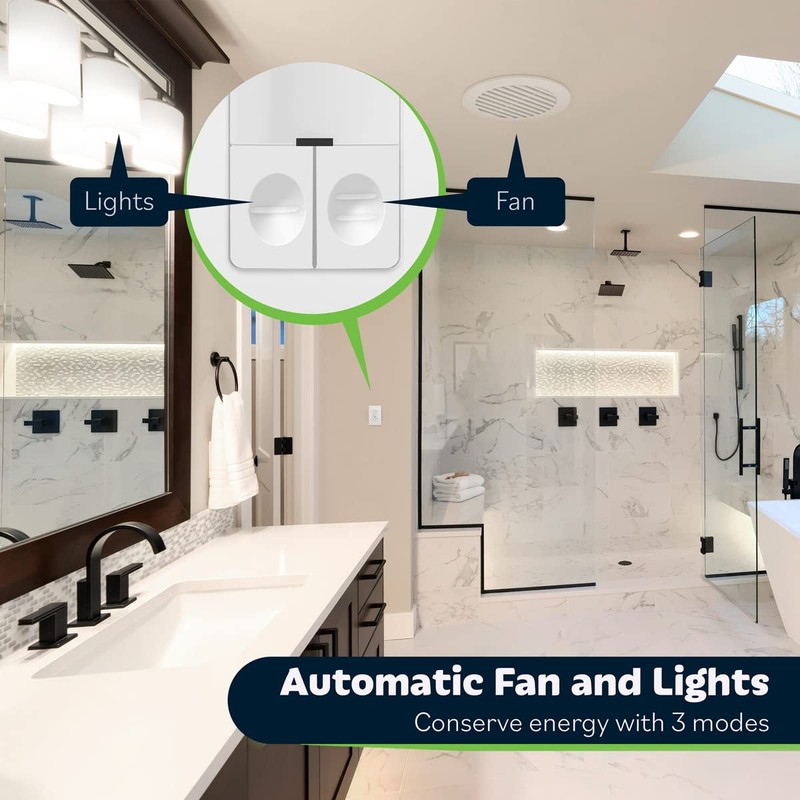

- Connect and automate two separate loads from a single unit; sensor wall switch detects motion to automatically turn lights or fan ON and OFF based on the occupancy or vacancy in a room; ideal for the bathroom, kitchen, or garage
- Passive Infrared (PIR) sensor detects motion with 180° field of view; max distance of 40ft in front of the sensor and 20ft on either side; advanced PIR reduces false triggers from unwanted movements
- Includes walk-through feature: turns lights off after 2 ½ minutes if motion is not detected again within 30 seconds after the original trigger

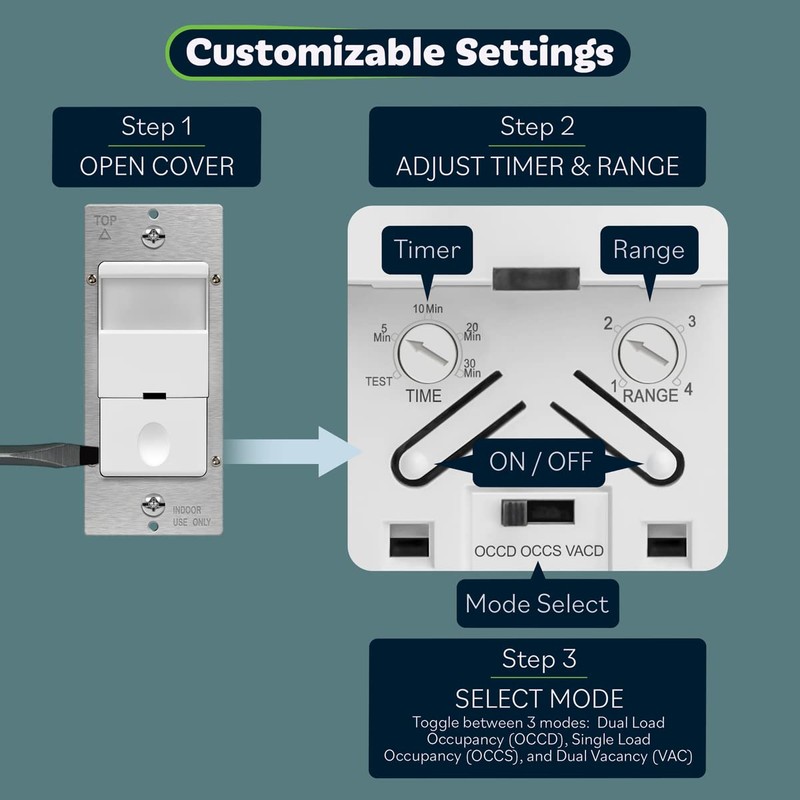

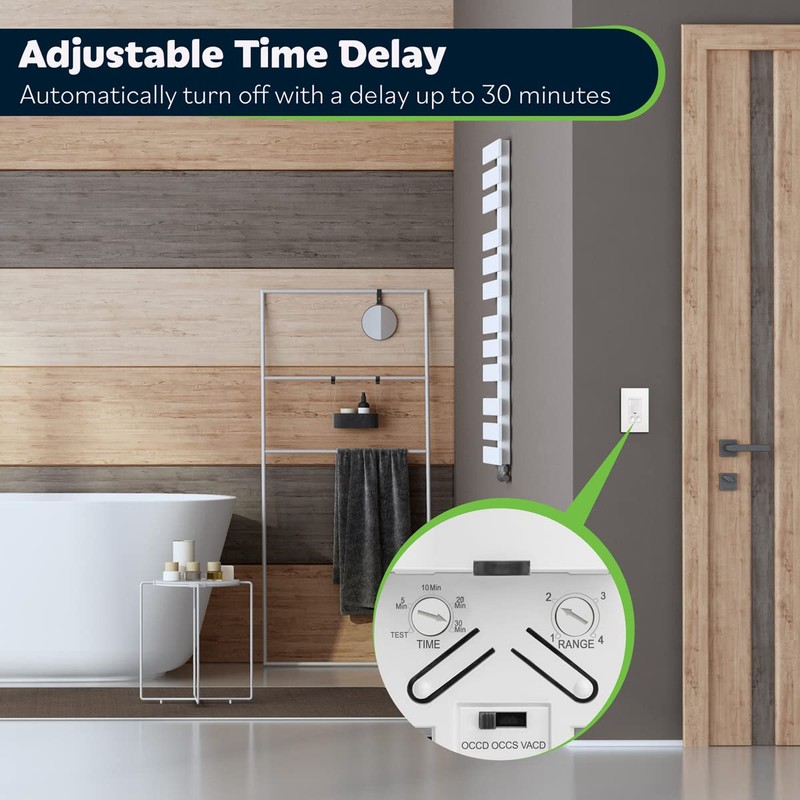

- 3 modes: Occupancy sensor mode (OCCS), dual occupancy (OCCD), and vacancy sensor mode (VACD) allow you to customize the sensor according to your needs; adjustable time delay options: 15 sec (Test), 5 min, 10 min, 20 min, 30 min; change mode with the OCC/VAC switch located under the face of the device
- White color; residential/commercial grade; 1200 square feet max coverage area, 180-degree field of view; no neutral wire required; ground wire required; 5A, 120VAC @ 60 Hz; 800W incandescent/halogen, 500W LED/CFL, 1/4HP motor rating; operating temperature 32-131ºF; compliant with Title 20 & Title 24; single-pole only; device dimensions: 2.5" W x 4.5" H x 2.5" D; UL listed; 1-year warranty
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Connect and automate two separate loads from a single unit; sensor wall switch detects motion to automatically turn lights or fan ON and OFF based on the occupancy or vacancy in a room; ideal for the bathroom, kitchen, or garage
- Passive Infrared (PIR) sensor detects motion with 180° field of view; max distance of 40ft in front of the sensor and 20ft on either side; advanced PIR reduces false triggers from unwanted movements
- Includes walk-through feature: turns lights off after 2 ½ minutes if motion is not detected again within 30 seconds after the original trigger
- 3 modes: Occupancy sensor mode (OCCS), dual occupancy (OCCD), and vacancy sensor mode (VACD) allow you to customize the sensor according to your needs; adjustable time delay options: 15 sec (Test), 5 min, 10 min, 20 min, 30 min; change mode with the OCC/VAC switch located under the face of the device
- White color; residential/commercial grade; 1200 square feet max coverage area, 180-degree field of view; no neutral wire required; ground wire required; 5A, 120VAC @ 60 Hz; 800W incandescent/halogen, 500W LED/CFL, 1/4HP motor rating; operating temperature 32-131ºF; compliant with Title 20 & Title 24; single-pole only; device dimensions: 2.5" W x 4.5" H x 2.5" D; UL listed; 1-year warranty

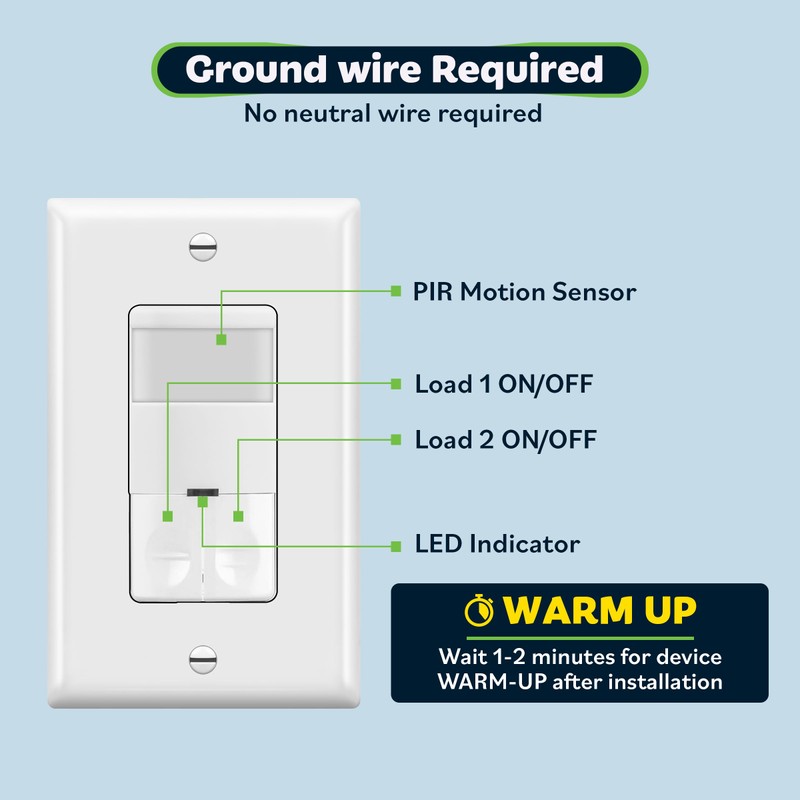

TOPGREENER TDOS5-JD dual load occupancy / vacancy sensor switch automatically turns the lights and motors on and off according to the motion detected in the room. It provides a reliable solution for dual load applications such as lighting and fan combinations. The adjustable settings let you customize time delay, detection range, and ambient light detection. This motion sensor switch can be installed in residential and commercial buildings. Neutral wire is not required, but a GROUND WIRE IS REQUIRED for the sensor switch to work properly. **Included in the box:**
* Sensor Switch * Instructions * Wire nuts * Standard wall plate (screwless style shown not included)
**Technical Specifications:**
* Dual load, single-pole * Three operating modes: Dual Occupancy Mode (OCCD), Single Occupancy Mode (OCCS), Vacancy (VACD) * 120-277VAC, CFL/LED: 500W, Incandescent/Halogen: 800W, Fluorescent/Ballast: 800VA@120VAC /1600VA@277VAC, Motor: 1/4Hp * Time Delay: 15 sec (Test), 5 min, 10 min, 20 min, 30 min * Ground wire required, neutral wire not required * UL-listed
TOPGREENER sensor switches are compliant with all required standards and are UL-listed. As a longstanding partner to both DIYers and professionals, we have a large selection of products at affordable prices. Best of all, we offer expert advice to all our customers. Unlike your local big-box store, we will take the time to get to know your needs and recommend the right items for any job.
