TK Star 24 V 2 Channel 433 MHz Wireless Receiver Switch Button + 2 Button Handheld Transmitter Potential-Free Fits Homelink Hörmann Novoferm Garage Door Drive
TK Star 24 V 2 Channel 433 MHz Wireless Receiver Switch Button + 2 Button Handheld Transmitter Potential-Free Fits Homelink Hörmann Novoferm Garage Door Drive
TK Star 24 V 2 Channel 433 MHz Wireless Receiver Switch Button + 2 Button Handheld Transmitter Potential-Free Fits Homelink Hörmann Novoferm Garage Door Drive
- - TKSTAR DC24V 2-channel wireless switch potential-free + hand-held transmitter
- - Compatible with Homelink transmitter / Novoferm, Hörmann, standard steel drives
- - Operating instructions with connection examples
- - Adjustable function mode: button, switch
| Brand: | TKSTAR |
|---|---|
| Size: | Abmessungen: 50 x 30 x 13mm |
| Color: | White |
| Manufacturer: | TKStar d-itec |
| Part Number: | JX68D5V |
| Isin: | IZN5RJTBGIRJ |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.

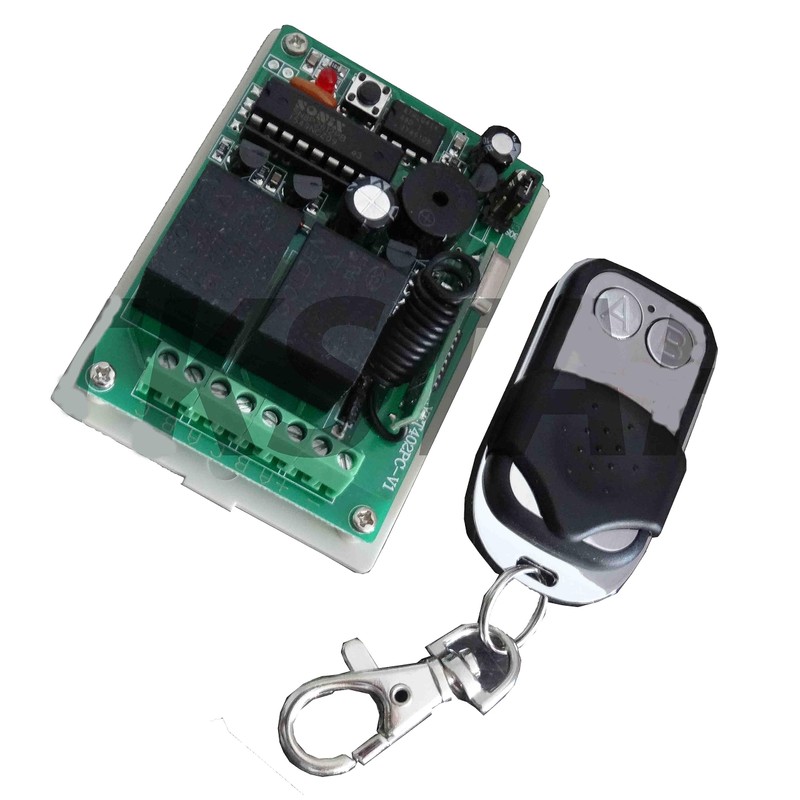

You are purchasing a 2-channel DC24V universal 433 MHz wireless receiver potential-free + 2-button hand-held transmitter. The remote control has a range of up to 100 m outdoors. In buildings/rooms up to 30 m. The wireless switch requires an operating voltage of DC 24 V and is potential-free at the output and can switch any voltage. The working mode can be changed to: jumper to 1→ relay pulls on for 5 seconds and then goes off again Jumper to 2→ 1 button (on/off) / 2nd button (on/off) Jumper to 3→ 1 button off/2nd button off. No jumper → button function (relay pulls on as long as button is pressed). The receiver relay becomes itself. understandable in a white housing delivered. A German connection instructions with pictorial explanation are included in the delivery and is feasible for everyone. Technical data: - Receiver module: overlay receiver - Modulation type: Reliable ASK technology - Operating voltage: DC 24V - Current output: potential-free - Power consumption: depends on the relay number - Quiescent current/stand-by: 9mA - RF sensitivity at 433MHz: -103dBm[1] - Encoding type: fixed code (2266) 0, 226 2, 2264, HT12E, etc.), learning code (1527, 527, RT1587, etc.), rolling code - coding method: fixed code - hand-held transmitter memory: 30 fixed code hand-held transmitters or 6 rolling code hand transmitters - decoder onboard: 2272, MCU and more - frequency: 433.92MHz - frequency sync. thesizer: stabilized Saw filter - output per relay: 10 A max. - Output connection type: DIP Micro - 4 working modes adjustable via jumper - Output channels: 2 - Remote control range indoor/outdoor: 30m / 100m - Dimensions board: 52mm x 18mm x 47mm - Dimensions with housing: 75mm x 29mm x 54mm - Operating temperatures: -20° to 72°C Scope of delivery: - 2 channels DC24V 4 33,92 Mhz receiver potential-free - 2 buttons 433.92 MHz hand-held transmitter - instruction manual in German
