Timer Module, Timer Switch Module, DC 6V-30V Trigger On/Off Cycle Timing Delay Switch, Adjustable LED Display Automation Digital Delay Timer Module Micro USB 5V

Brand: Estink

Product Overview

  • [Wide Voltage Compatibility] Wide dc power supply voltage from 6V to 30V, supporting micro USB 5.0V power supply for convenience. Load Capacity: DC 30V 5A, AC 220V 5A, Quiescent Current: 20mA, Operating Current: 50mA, Operating Temperature: -40℃~85℃
  • [Intuitive Interface] DC 6V-30V trigger delay On/Off cycle timer relay switch module features LED digital dispaly. Clear, simple, and powerful interface, meeting all your needs with ease of use.
  • [Enhanced Sleep Mode] Automatically turns off display after 5 minutes of inactivity, easily wake up with any button press. C-P sleep mode: if no operation within 5 minutes; display will close automatically while procedure runs normally. O-d normal mode: displays always shows. Press and hold STOP button for 2 seconds to change between C-P and O-d, present state will flash and then back to the main interface.
  • [Emergency Stop Function] Built-in STOP button for emergency situations, with reverse input protection for safety. Relay Enable Mode: 1. NO: Connection is allowed during OP time. 2. OFF: Connection is not allowed, always turned off. Press STOP button at main interface to change between ON and OFF, the present state will flash then back to main interface. (This is emergency stop function, used to disconnect relay.)
  • [Flexible Settings] Set different OP, CL, LOP parameters independently, automatically save settings in case of power failure, and improve anti-interference with optical coupling isolation. OP: Connect time. CL: Disconnect time. LOP: Loop times(1~999, "---" indicates infinite times). Press SET button at the main interface (display 000), it will show OP(CL, LOP) and corresponding time.
Brand: Estink
Size: DC 6V-30V
Manufacturer: Estink
Part Number: SC6YYS5
Material Type: Plastic, Metal
Isin: IQYVRLNJB94A

$19.53

  • Free shipping in US
  • $14.5 Extended Delivery from United Kingdom

  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

More seller options

Starting from

Compare all sellers
scroll to top arrow
Timer Module, Timer Switch Module, DC 6V-30V Trigger On/Off Cycle Timing Delay Switch, Adjustable LED Display Automation Digital Delay Timer Module Micro USB 5V

Timer Module, Timer Switch Module, DC 6V-30V Trigger On/Off Cycle Timing Dela...

$19.53

Product Overview

  • [Wide Voltage Compatibility] Wide dc power supply voltage from 6V to 30V, supporting micro USB 5.0V power supply for convenience. Load Capacity: DC 30V 5A, AC 220V 5A, Quiescent Current: 20mA, Operating Current: 50mA, Operating Temperature: -40℃~85℃
  • [Intuitive Interface] DC 6V-30V trigger delay On/Off cycle timer relay switch module features LED digital dispaly. Clear, simple, and powerful interface, meeting all your needs with ease of use.
  • [Enhanced Sleep Mode] Automatically turns off display after 5 minutes of inactivity, easily wake up with any button press. C-P sleep mode: if no operation within 5 minutes; display will close automatically while procedure runs normally. O-d normal mode: displays always shows. Press and hold STOP button for 2 seconds to change between C-P and O-d, present state will flash and then back to the main interface.
  • [Emergency Stop Function] Built-in STOP button for emergency situations, with reverse input protection for safety. Relay Enable Mode: 1. NO: Connection is allowed during OP time. 2. OFF: Connection is not allowed, always turned off. Press STOP button at main interface to change between ON and OFF, the present state will flash then back to main interface. (This is emergency stop function, used to disconnect relay.)
  • [Flexible Settings] Set different OP, CL, LOP parameters independently, automatically save settings in case of power failure, and improve anti-interference with optical coupling isolation. OP: Connect time. CL: Disconnect time. LOP: Loop times(1~999, "---" indicates infinite times). Press SET button at the main interface (display 000), it will show OP(CL, LOP) and corresponding time.
Brand: Estink
Size: DC 6V-30V
Manufacturer: Estink
Part Number: SC6YYS5
Material Type: Plastic, Metal
Isin: IQYVRLNJB94A

Spec:

Voltage: 6V~30V(support micro USB 5.0V)

Trigger Signal Source: High voltage level trigger(3.0V~24V), signal ground and system ground are not connected to improve system anti-interference ability(or you can connect them).

Load Capacity: DC 30V 5A, AC 220V 5A

Quiescent Current: 20mA

Operating Current: 50mA

Operating Temperature: -40℃~85℃

Size: Approx. 6.2*3.8*1.7cm / 2.44*1.49*0.67"

Timing Range: 0.1seconds to 999 minutes(continuously adjustable)

Instruction:

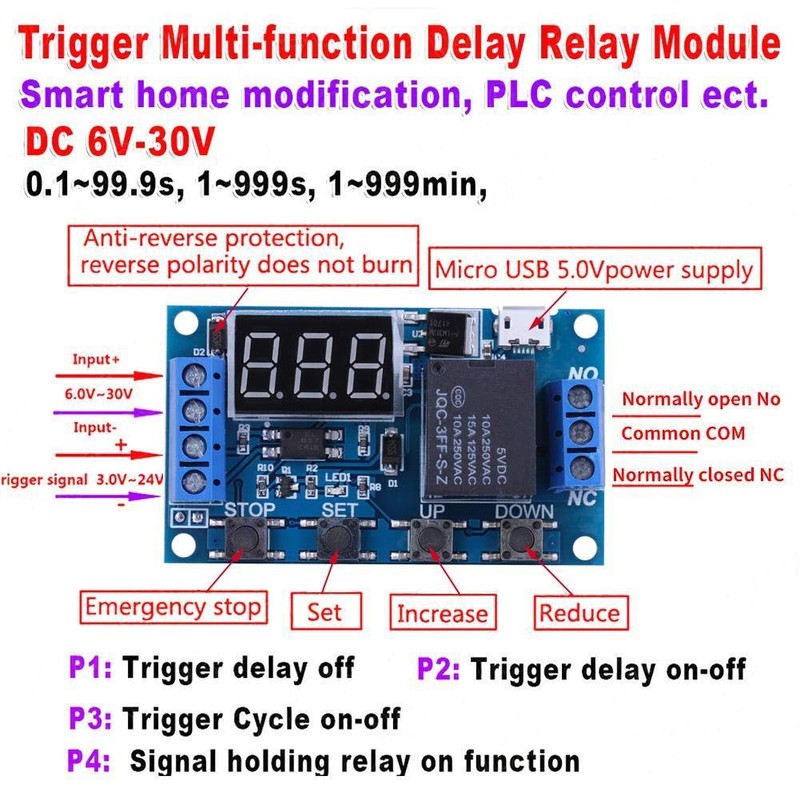

Operation Mode:

P1: After triggering signal, switch is connected for "OP" time, then disconnected; within the "OP" time:

P1.1: if trigger signal again, it is invalid.

P1.2: if trigger signal again, restart timing.

P1.3: if trigger signal again, switch is disconnected, stop timing.

P-2: After triggering signal, switch is disconnected for "CL" time, then switch is connected for "OP" time, and disconnect after timing.

P3.1: After triggering signal, switch is connected for "OP" time, then switch is disconnected for "CL" time, and enter loop. If trigger signal during loop, switch is disconnected and stop timing. The loop times (LOP) can be set.

P3.2: After power on, no need trigger signal, switch will be connected for "OP" time, then disconnected for "CL" time, and enter loop. The loop times (LOP) can be set

P-4: Signal holding function. If there is trigger signal, timing will be reset, switch remains connected; when the signal disappears, it will disconnect after "OP" time. During timing, if there is a signal, timing will be reset.

OP: Connect time. CL: Disconnect time. LOP: Loop times(1~999, "---" indicates infinite times)

All above parameters are independent from each other, but all modes use the same parameters. For example, if set OP time as 5 seconds in P1.1, then change to P1.2, then the OP time in P1.2 will also be 5 seconds.

Press SET button at the main interface (display 000), it will show OP(CL, LOP) and corresponding time.

If there is only OP mode (e.g. P1.1,          P1.2, P1.3), press SET button to display OP and corresponding time only.

If there are OP, CL, LOP modes (e.g.P3.1, P3.2), press SET button to display OP, CL, LOP and corresponding time.

After setting mode, press SET button at the main interface to check the parameter of present mode.



How to Choose Timing Range:

After setting parameter in the interface selection mode, press the STOP button to select the time range:

XXX.  If the last decimal point lights up, the time range is 1sec to 999sec.

XX.X  If the second last decimal point lights up, the time range is 0.1sec to 99.9sec.

X.X.X.  If all decimal points light up, the time range is is 1 min to 999 min.

For example, if you set OP as 3.2 seconds, the make the second last point light up, and it displays 03.2

How to Set Parameter:

1. Make sure operation mode.

2. According to the operation mode, at main interface(after power on, it will flash present mode then enter main interface), press and hold SET button for 2 seconds to enter mode selection interface, then press UP, DOWN button to choose mode (P1.1~P-4)

3. After selecting mode, press short SET button to set the corresponding parameter, then the parameter you want to set will flash. Press UP, DOWN button to set value, then press STOP button to select time range. Press SET button to set next parameter.

4. After setting mode parameter, press and hold the SET button for 2 seconds then the present mode will flash, and go back to the main interface.

Main interface: when relay does not work, it shows "000" (no decimal point); when relay is working, it shows decimal point

Mode Selection Interface: Press and hold SET button to enter. After setting, press and hold SET button to back to main interface.

Relay Enable Mode:

1. NO: Connection is allowed during OP time.

2. OFF: Connection is not allowed, always turned off.

Press STOP button at main interface to change between ON and OFF, the present state will flash then back to main interface. (This is emergency stop function, used to disconnect relay.)

Sleep Mode:

C-P sleep mode: if no operation within 5 minutes; display will close automatically while procedure runs normally.

O-d normal mode: displays always shows.

Press and hold STOP button for 2 seconds to change between C-P and O-d, present state will flash and then back to the main interface.

Package Includes:

1 x Timer Switch Module

Note:

Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
