TECNOULAB DS3231 AT24C32 IIC Precision Clock Module Pack of 5
TECNOULAB DS3231 AT24C32 IIC Precision Clock Module Pack of 5
TECNOULAB DS3231 AT24C32 IIC Precision Clock Module Pack of 5
- DS3231: DS3231 is a cost-effective, high-precision I2C real-time clock (RTC) with integrated temperature-compensated quartz oscillator (TCXO) and quartz. The device has a battery input, disconnects the main power supply and keeps the exact time. The integrated oscillator improves the long-term accuracy of the device and reduces the number of components in the production line.
- 【Compact Design】Dimension: 38mm(Length)*22mm(Width)*14mm(Height); Weight: 8g; Working Voltage: 3.3-5.5V; Clock Chip: High Precision Clock Chip DS3231; Clock Accuracy: Range 0-40, Accuracy 2ppm, Error Approx. 1 minute;
- Compatibility: calendar alarm clock with two; programmable rectangular wave output; real-time clock generator seconds, minutes, hours, day, date, month and year as well as time valid up to leap year 2100; the chip temperature sensor has an accuracy of ±3; memory chip: AT24C32 (32K storage capacity);
- High performance: IIC bus interface interface, maximum transmission speed of 400 kHz (working voltage 5 V); can be cascaded with other IIC devices, the addresses 24C32 can be shortened. Change A0/A1/A2, the default address is 0 x 57; with the rechargeable CR2032 battery, the watch moves normally to ensure system operation after a power failure. Packaging: individual anti-static packaging.
- Package Includes: 5 x DS3231 AT24C32 IIC Precision Watch Module (Without Battery)
| Brand: | TECNOULAB |
|---|---|
| Manufacturer: | TECNOULAB |
| Part Number: | 78G4TSR |
| Isin: | IOSAAGJUILJC |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.

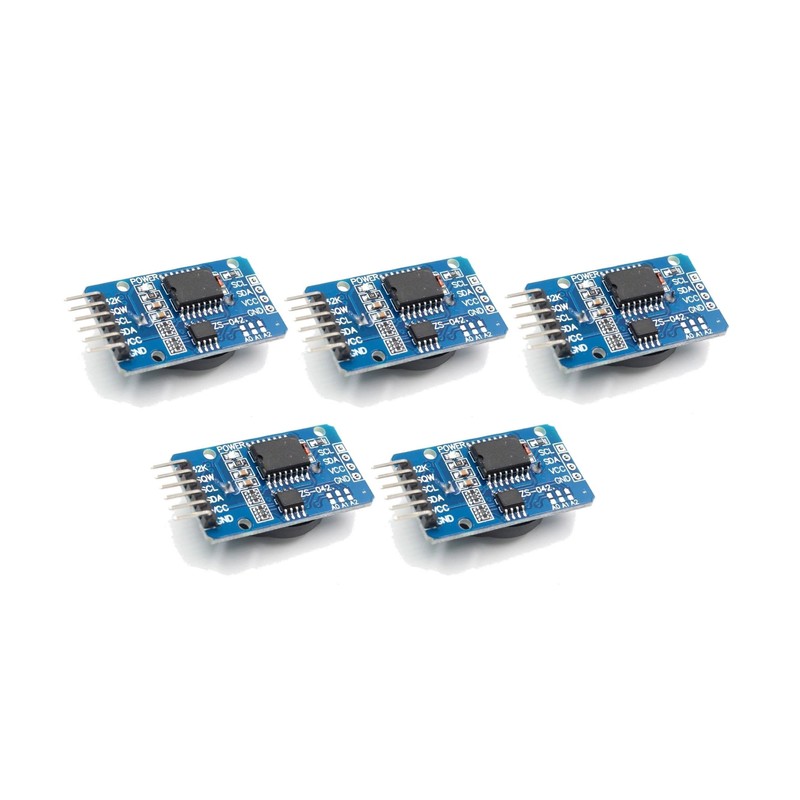

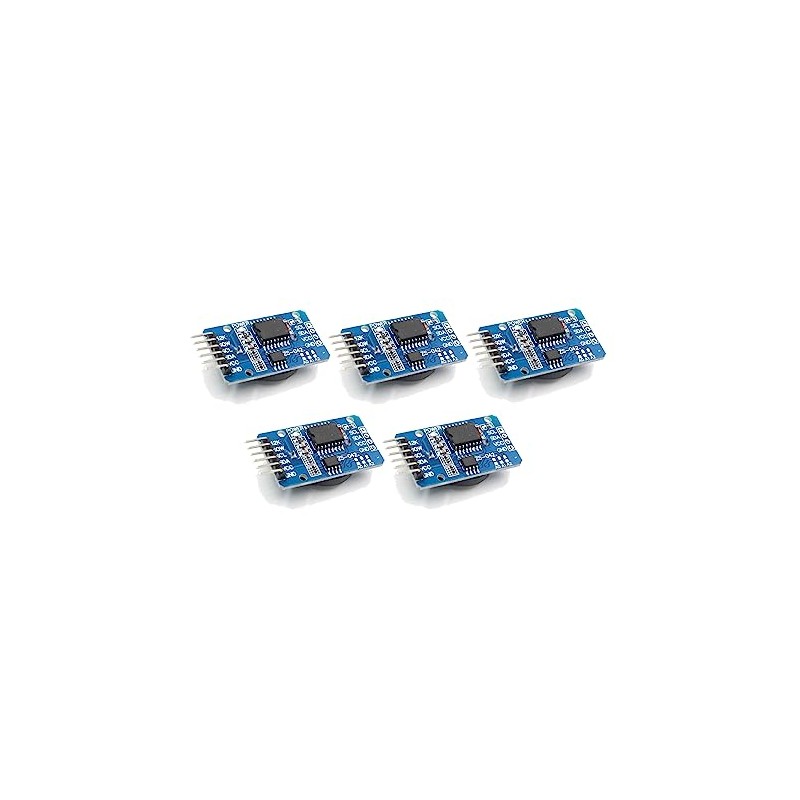

x5pcs DS3231 AT24C32 IIC Module Precision Clock Module DS3231SN.
Description:
DS3231 is a low-cost, extremely accurate I2C real-time clock (RTC), with an integrated temperature-compensated crystal oscillator (TCXO) and crystal. The device incorporates a battery input, disconnect the main power supply and maintains accurate timekeeping. Integrated oscillator improve long-term accuracy of the device and reduces the number of components of the production line. The DS3231 is available in commercial and industrial temperature ranges, using a 16-pin 300mil SO package.
Module parameters:
1. Size: 38 mm (length) x 22 mm (W) x 14 mm (height).
2. Weight: 8 g.
3. Operating voltage: 3.3 - 5.5 V.
4. Clock chip: high-precision clock chip DS3231.
5. Clock Accuracy :0-40 range, the accuracy 2ppm, the error was about 1 minute
6. Calendar alarm clock with two
7. Programmable square-wave output
8. Real time clock generator seconds, minutes, hours, day, date, month and year timing and provide valid until the year 2100 leap year compensation
9. Chip temperature sensor comes with an accuracy of ± 3
10. Memory chips: AT24C32 (storage capacity 32K).
11. IIC bus interface, the maximum transmission speed of 400KHz (working voltage of 5V)
12. Can be cascaded with other IIC device, 24C32 addresses can be shorted A0/A1/A2 modify default address is 0x57
13. With rechargeable battery CR2032, to ensure the system after power failure, the clock move any natural normal
14. Packing: single anti-static packaging.
Wiring instructions ( for Arduino uno r3 for example):
SCL → A5.
SDA → A4.
VCC → 5V.
GND → GND
Package content:
5pcs x DS3231 AT24C32 IIC Module Precision Clock Module (Without Battery)
