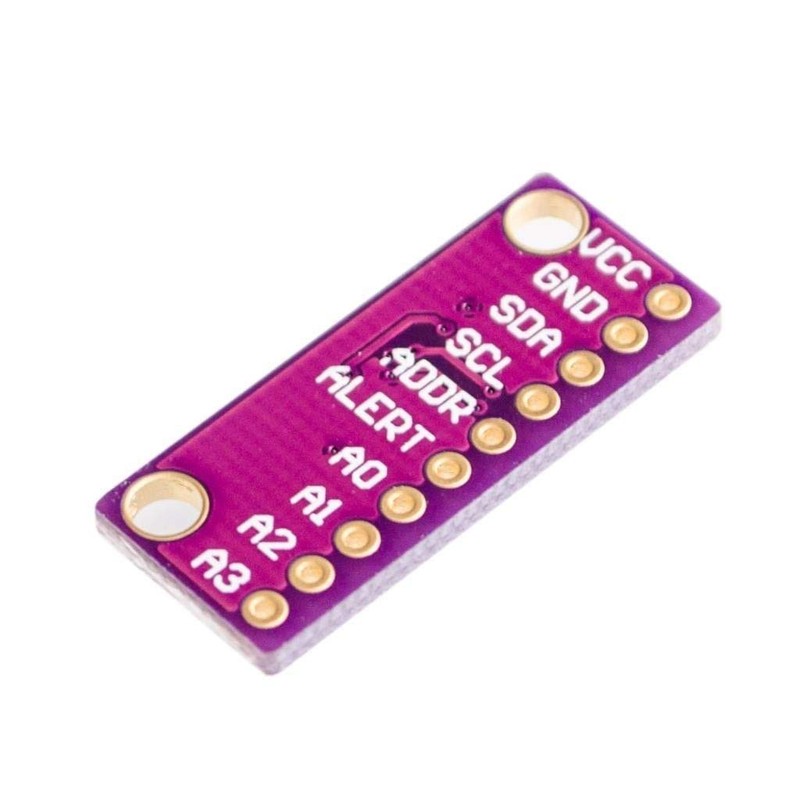

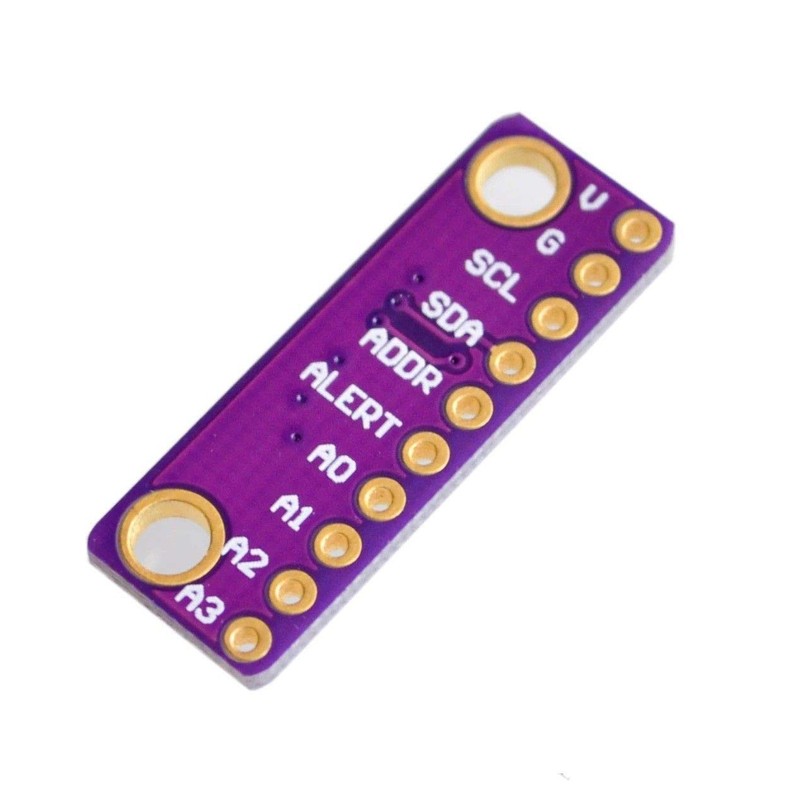

TECNOIOT 2pcs I2C ADS1015 12-bit Precision ADC 4 Channel Converter Module Development Board Module with Programmable Gain Amplifier
TECNOIOT 2pcs I2C ADS1015 12-bit Precision ADC 4 Channel Converter Module Development Board Module with Programmable Gain Amplifier
TECNOIOT 2pcs I2C ADS1015 12-bit Precision ADC 4 Channel Converter Module Development Board Module with Programmable Gain Amplifier
Product Overview
- ADS1015: For microcontrollers without an analog-to-digital converter or if a more accurate ADC is desired, the ADS1015 provides 12-bit accuracy at 3300 samples per second via I2C. This card integrated circuit uses I2 C 7-bit addresses between 0 x 48 - 0 x 4B; PCB size: 25.5 mm x 9 mm / 1.00 x 0.35 (L x W).
- 【High Performance】 I2 C interface: selectable address pin; Large supply range: 2.0V to 5.5V; Data transmission: programmable 8spps to 860sps.
- Easy to use: the chip is quite small, so it comes in a starter board with ferrites to keep the AVDD and AGND quiet. The interface is via I2C. The address can be changed to one of the four options (see Table 5) so that up to 4 ADS1015 can be connected to a single 2-wire I2C bus for 16 individual closed inputs.
| Brand: | TECNOIOT |
|---|---|
| Color: | purple |
| Manufacturer: | TECNOIOT |
| Part Number: | JN8BWJS |
| Isin: | IPP0K8GFRQLZ |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
Product Overview
- ADS1015: For microcontrollers without an analog-to-digital converter or if a more accurate ADC is desired, the ADS1015 provides 12-bit accuracy at 3300 samples per second via I2C. This card integrated circuit uses I2 C 7-bit addresses between 0 x 48 - 0 x 4B; PCB size: 25.5 mm x 9 mm / 1.00 x 0.35 (L x W).
- 【High Performance】 I2 C interface: selectable address pin; Large supply range: 2.0V to 5.5V; Data transmission: programmable 8spps to 860sps.
- Easy to use: the chip is quite small, so it comes in a starter board with ferrites to keep the AVDD and AGND quiet. The interface is via I2C. The address can be changed to one of the four options (see Table 5) so that up to 4 ADS1015 can be connected to a single 2-wire I2C bus for 16 individual closed inputs.
| Brand: | TECNOIOT |
|---|---|
| Color: | purple |
| Manufacturer: | TECNOIOT |
| Part Number: | JN8BWJS |
| Isin: | IPP0K8GFRQLZ |
x2pcs I2C ADS1015 12 Bit ADC 4 channel Module with Programmable Gain Amplifier 2.0V to 5.5V
Description:
For microcontrollers without an analog-to-digital converter or when you want a higher-precision ADC, the ADS1015 provides 12-bit precision over I2C. The chip can be configured as 4 single-ended input channels, or two differential channels. As a nice bonus, it even includes a programmable gain amplifier, up to x12, to help boost up smaller single/differential signals to the full range. We like this ADC because it can run from 2V to 5V power/logic, can measure a large range of signals and its super easy to use. It is a great general purpose 12 bit converter.
The chip's fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C. The address can be changed to one of four options (see the datasheet table 5) so you can have up to 4 ADS1015's connected on a single 2-wire I2C bus for 16 single ended inputs.
Features:
Wide supply range: 2.0 V to 5.5 V.
LOW CURRENT CONSUMPTION: Continuous Mode: Only 150μA Single-Shot Mode: Auto Shut-Down
Programmable data rate: 8SPS to 860SPS
INTERNAL LOW-DRIFT VOLTAGE REFERENCE
INTERNAL OSCILLATOR
INTERNAL PGA
I2C Interface: Pin-Selectable Addresses
FOUR SINGLE-ENDED OR TWO DIFFERENTIAL INPUTS
PROGRAMMABLE COMPARATOR
This board chip uses I2C 7-bit addresses between 0x48-0x4B, selectable with jumpers.
Package contains:

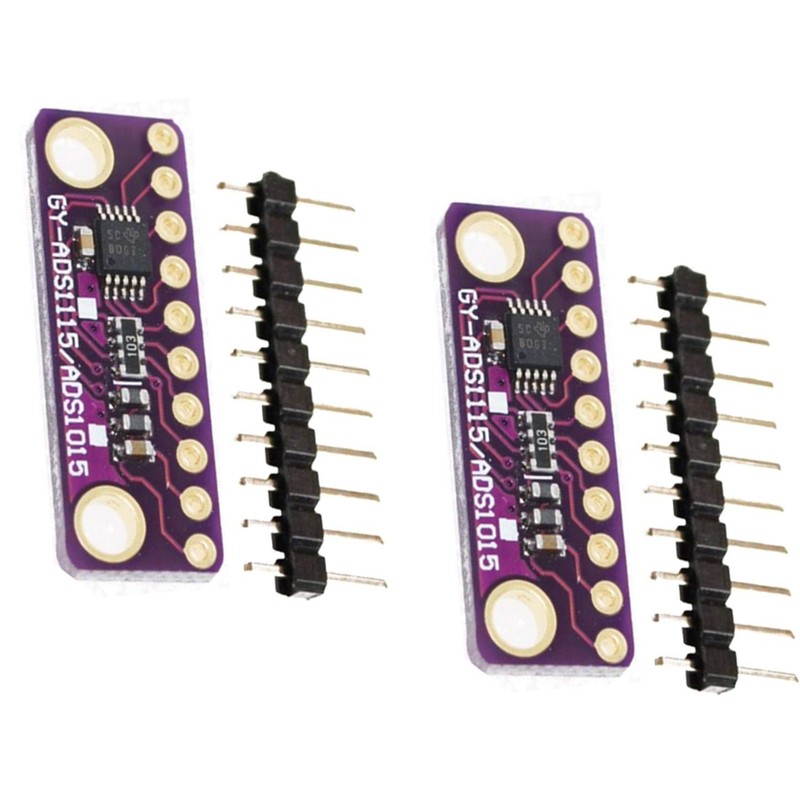

2pcs x ADS1015 Module ADC (as shown in th picture)
