STEPPERONLINE 2Nm Closed Loop Stepper Motor Nema 23 283oz.in Hybrid Servo Driver
$177.83
- Free US shipping
-
Arrives
This item is stocked & dispatched from US.
This Closed-loop Stepper Driver offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. The system includes a 2-phase stepper motor combined with a fully digital, high performance drive and an internal encoder which is used to close the position, velocity and current loops in real time, just like servo systems. It combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost of a servo system.

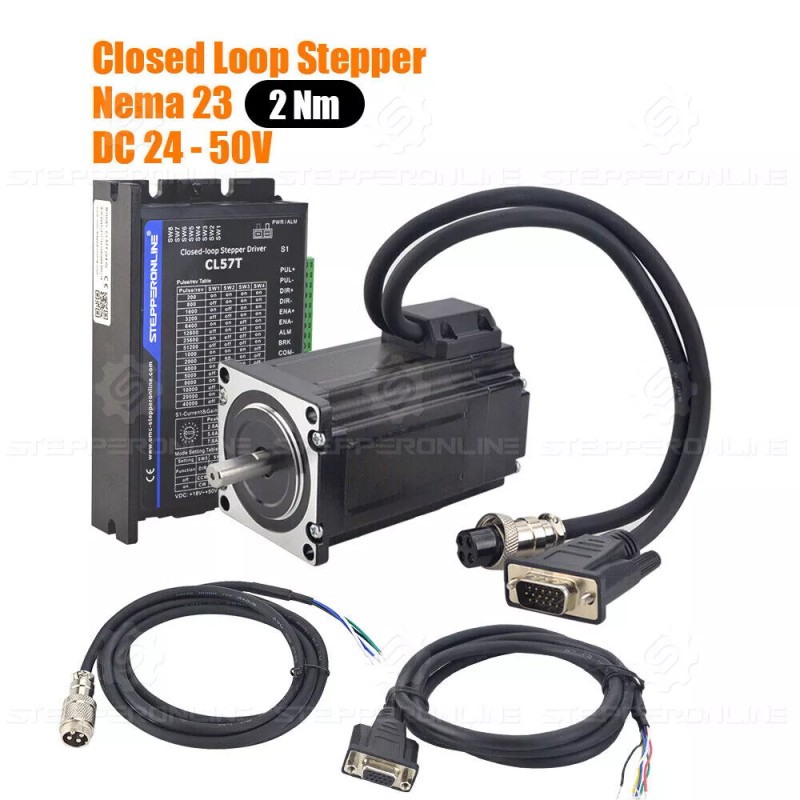

This CNC Closed Loop Stepper Kit Including:
- 1 x Closed Loop Stepper Driver 0-8.0A 24-48VDC for Nema 17, 23, 24 Stepper Motor
- 1 x Nema 23 Closed Loop Stepper Motor 2.0 Nm/283.28oz.in Encoder 1000CPR

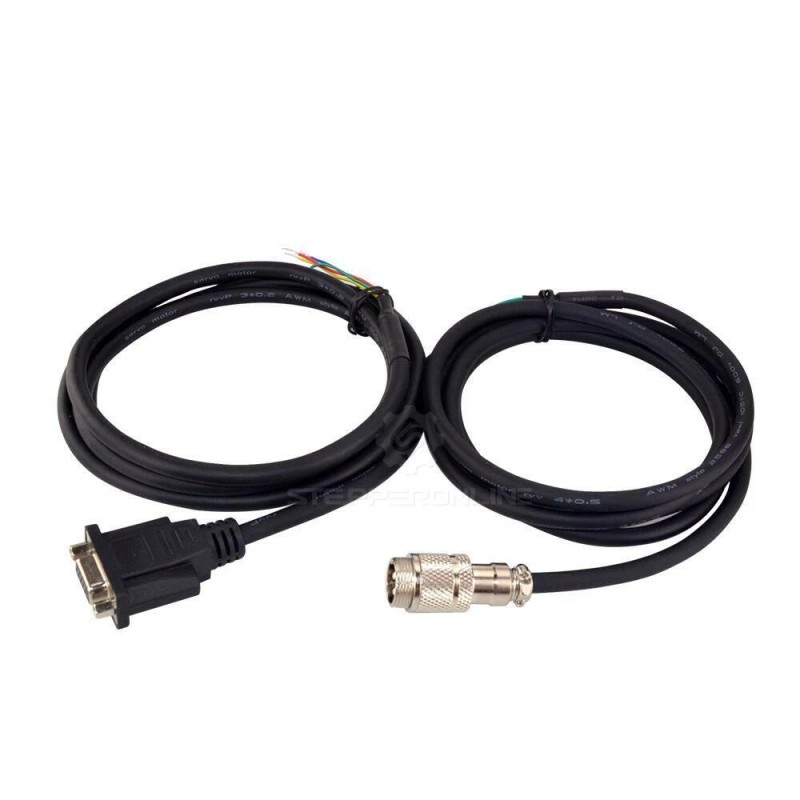

- 1 x 1.7 m(67") Long Encoder Extension Cable for Closed Loop Stepper Driver
- 1 x RV-4 AWG20 1.7 m(67") Long Motor Extension Cable with GX16 Aviation Plug
- 1x driver CL57T User Manual

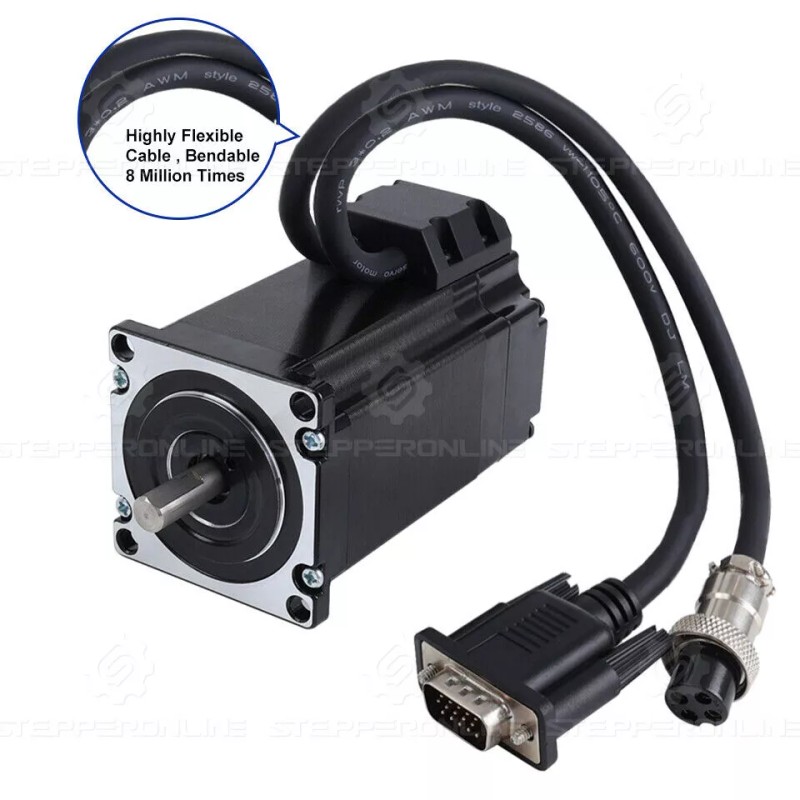

Motor Specification:
- Part Number: 23HS30-5004D-E1000
Number of phase: 2
Holding Torque: 2.0 Nm(283.28oz.in)
Rated Current/phase: 5.0 A
Phase Resistance: 0.42 ohms± 10%
Inductance: 1.7 mH ± 20%(1KHz)
Frame Size: 57 x 57 mm
Body Length: 76 mm
Shaft Diameter: Φ8 mm
Shaft Length: 21 mm
D-CUT Shaft Length: 15 mm
Lead Length: 300 mm
Output Circuit Type: Differential type
Encoder Resolution: 1000
Output Signal Channels: 2 channels
Supply Voltage Min: 4V
Supply Voltage Max: 5V
Output Current: 100mA
Output High Voltage: 5V
Output Low Voltage: 4.5V
Output Frequency Max: 60kHZ

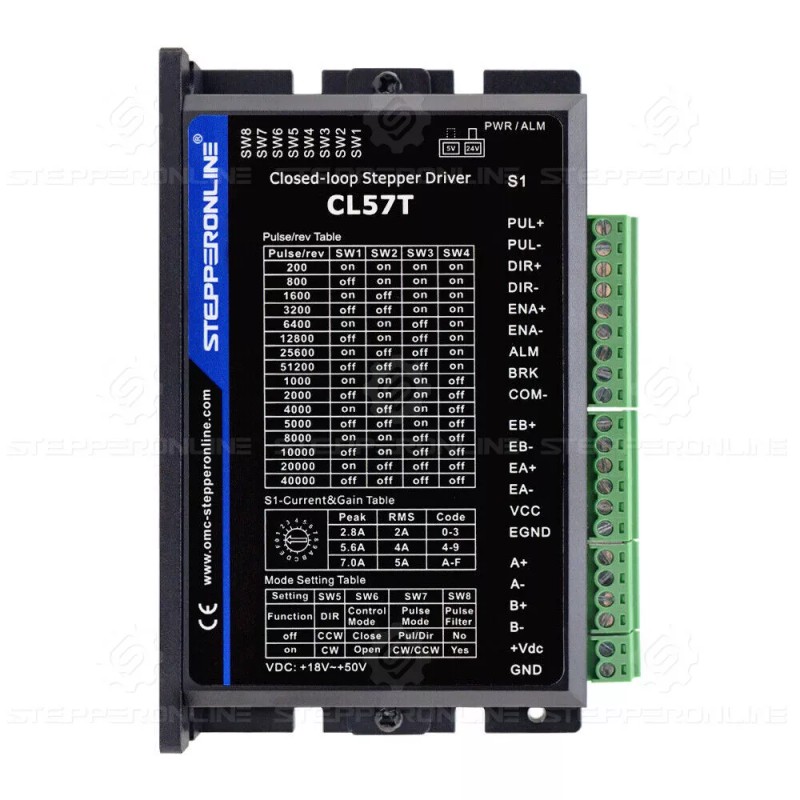

2-Phase Hybrid Stepper Servo Driver CL57T
Key Features:
Closed-loop, eliminates loss of synchronization
No Tuning and always stable
Do not need a high torque margin
Broader operating speed range
Reduced motor heating and more efficient
Smooth motion and super-low motor noise
Protections for over-voltage, over-current and position following error
Electrical Specifications:
Input Voltage: +24~48VDC (Typical 36VDC)
Logic Signal Current: 7~16mA (Typical 10mA)
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ
- Over 10,000 Products In Stock:
Our veteran engineers selected hundreds of typical models from our sales records, and we stocked in our warehouse. More than 10,000 products are ready to ship and we promise delivery your goods in 24 Hours!
- Low Prices Direct From Factory Suppliers:
As a China-based distributor, StepperOnline has developed long lasting ties with more than 50 factories. We purchasing products with huge quantity to lower the cost as possible. Even our prices are lower than the price you get from manufacturer directly.
- Fast Delivery Around The Globe:
Partnering with internationally trusted logistic service providers such as FedEx, UPS, DHL and TNT, StepperOnline ships to over 200 countries around the world. A variety of expedited shipping methods means there is a convenient delivery option for every budget.
- High Quality With Global Standards:
Cooperate with Top 3 famous manufacturers to make sure the products are produced with high quality, and in-house QC dep., ensuring each and every item purchased meets global quality standards.
- Customer Service & Technical Support:
You will get in touch with StepperOnline through Telephone, Email and also online Live Chat, our engineer are ready to serve you!
- Flexible Customization:
Small quantity, and customized products are available, we will delivery your samples within incredible short time.
On Sep 4, 2023 at 19:17:33 PDT, seller added the following information:
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
This item is stocked & dispatched from US.
This Closed-loop Stepper Driver offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. The system includes a 2-phase stepper motor combined with a fully digital, high performance drive and an internal encoder which is used to close the position, velocity and current loops in real time, just like servo systems. It combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost of a servo system.
This CNC Closed Loop Stepper Kit Including:
- 1 x Closed Loop Stepper Driver 0-8.0A 24-48VDC for Nema 17, 23, 24 Stepper Motor
- 1 x Nema 23 Closed Loop Stepper Motor 2.0 Nm/283.28oz.in Encoder 1000CPR
- 1 x 1.7 m(67") Long Encoder Extension Cable for Closed Loop Stepper Driver
- 1 x RV-4 AWG20 1.7 m(67") Long Motor Extension Cable with GX16 Aviation Plug
- 1x driver CL57T User Manual
Motor Specification:
- Part Number: 23HS30-5004D-E1000
Number of phase: 2
Holding Torque: 2.0 Nm(283.28oz.in)
Rated Current/phase: 5.0 A
Phase Resistance: 0.42 ohms± 10%
Inductance: 1.7 mH ± 20%(1KHz)
Frame Size: 57 x 57 mm
Body Length: 76 mm
Shaft Diameter: Φ8 mm
Shaft Length: 21 mm
D-CUT Shaft Length: 15 mm
Lead Length: 300 mm
Output Circuit Type: Differential type
Encoder Resolution: 1000
Output Signal Channels: 2 channels
Supply Voltage Min: 4V
Supply Voltage Max: 5V
Output Current: 100mA
Output High Voltage: 5V
Output Low Voltage: 4.5V
Output Frequency Max: 60kHZ
2-Phase Hybrid Stepper Servo Driver CL57T
Key Features:
Closed-loop, eliminates loss of synchronization
No Tuning and always stable
Do not need a high torque margin
Broader operating speed range
Reduced motor heating and more efficient
Smooth motion and super-low motor noise
Protections for over-voltage, over-current and position following error
Electrical Specifications:
Input Voltage: +24~48VDC (Typical 36VDC)
Logic Signal Current: 7~16mA (Typical 10mA)
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ
- Over 10,000 Products In Stock:
Our veteran engineers selected hundreds of typical models from our sales records, and we stocked in our warehouse. More than 10,000 products are ready to ship and we promise delivery your goods in 24 Hours!
- Low Prices Direct From Factory Suppliers:
As a China-based distributor, StepperOnline has developed long lasting ties with more than 50 factories. We purchasing products with huge quantity to lower the cost as possible. Even our prices are lower than the price you get from manufacturer directly.
- Fast Delivery Around The Globe:
Partnering with internationally trusted logistic service providers such as FedEx, UPS, DHL and TNT, StepperOnline ships to over 200 countries around the world. A variety of expedited shipping methods means there is a convenient delivery option for every budget.
- High Quality With Global Standards:
Cooperate with Top 3 famous manufacturers to make sure the products are produced with high quality, and in-house QC dep., ensuring each and every item purchased meets global quality standards.
- Customer Service & Technical Support:
You will get in touch with StepperOnline through Telephone, Email and also online Live Chat, our engineer are ready to serve you!
- Flexible Customization:
Small quantity, and customized products are available, we will delivery your samples within incredible short time.
On Sep 4, 2023 at 19:17:33 PDT, seller added the following information:
This item is stocked & dispatched from US.
This Closed-loop Stepper Driver offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. The system includes a 2-phase stepper motor combined with a fully digital, high performance drive and an internal encoder which is used to close the position, velocity and current loops in real time, just like servo systems. It combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost of a servo system.
This CNC Closed Loop Stepper Kit Including:
- 1 x Closed Loop Stepper Driver 0-8.0A 24-48VDC for Nema 17, 23, 24 Stepper Motor
- 1 x Nema 23 Closed Loop Stepper Motor 2.0 Nm/283.28oz.in Encoder 1000CPR
- 1 x 1.7 m(67") Long Encoder Extension Cable for Closed Loop Stepper Driver
- 1 x RV-4 AWG20 1.7 m(67") Long Motor Extension Cable with GX16 Aviation Plug
- 1x driver CL57T User Manual
Motor Specification:
- Part Number: 23HS30-5004D-E1000
Number of phase: 2
Holding Torque: 2.0 Nm(283.28oz.in)
Rated Current/phase: 5.0 A
Phase Resistance: 0.42 ohms± 10%
Inductance: 1.7 mH ± 20%(1KHz)
Frame Size: 57 x 57 mm
Body Length: 76 mm
Shaft Diameter: Φ8 mm
Shaft Length: 21 mm
D-CUT Shaft Length: 15 mm
Lead Length: 300 mm
Output Circuit Type: Differential type
Encoder Resolution: 1000
Output Signal Channels: 2 channels
Supply Voltage Min: 4V
Supply Voltage Max: 5V
Output Current: 100mA
Output High Voltage: 5V
Output Low Voltage: 4.5V
Output Frequency Max: 60kHZ
2-Phase Hybrid Stepper Servo Driver CL57T
Key Features:
Closed-loop, eliminates loss of synchronization
No Tuning and always stable
Do not need a high torque margin
Broader operating speed range
Reduced motor heating and more efficient
Smooth motion and super-low motor noise
Protections for over-voltage, over-current and position following error
Electrical Specifications:
Input Voltage: +24~48VDC (Typical 36VDC)
Logic Signal Current: 7~16mA (Typical 10mA)
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ
- Over 10,000 Products In Stock:
Our veteran engineers selected hundreds of typical models from our sales records, and we stocked in our warehouse. More than 10,000 products are ready to ship and we promise delivery your goods in 24 Hours!
- Low Prices Direct From Factory Suppliers:
As a China-based distributor, StepperOnline has developed long lasting ties with more than 50 factories. We purchasing products with huge quantity to lower the cost as possible. Even our prices are lower than the price you get from manufacturer directly.
- Fast Delivery Around The Globe:
Partnering with internationally trusted logistic service providers such as FedEx, UPS, DHL and TNT, StepperOnline ships to over 200 countries around the world. A variety of expedited shipping methods means there is a convenient delivery option for every budget.
- High Quality With Global Standards:
Cooperate with Top 3 famous manufacturers to make sure the products are produced with high quality, and in-house QC dep., ensuring each and every item purchased meets global quality standards.
- Customer Service & Technical Support:
You will get in touch with StepperOnline through Telephone, Email and also online Live Chat, our engineer are ready to serve you!
- Flexible Customization:
Small quantity, and customized products are available, we will delivery your samples within incredible short time.
On Sep 4, 2023 at 19:17:33 PDT, seller added the following information:
- Country/Region of Manufacture: China
- Rated Current per Phase: 5A
- Current Type: DC
- Wiring Configuration: 4-Wire Bipolar
- Actual Rated Input Voltage: 24-50VDC
- MPN: 1CL57TS20
- Full Step Angle: 1.8° (200 Steps)
- Shaft Diameter: 0.31 in (8mm)
- UPC: Does not apply
- Package Content 2: 1 x Stepper Driver CL57T
- Package Content 1: 1 x Hybrid Closed-loop Stepper Motor
- Package Content 4: 1 x 1.7m Long Motor Cable
- Package Content 3: 1 x 1.7m Long Encoder Cable
- Holding Torque: 2Nm(283.28oz.in)
- Brand: STEPPERONLINE
- Nominal Rated Input Voltage: 24-50VDC, 24 V, 48 V
- Resistance per Phase: 0.42 ohms± 10%
- Shaft Type: D-CUT
