Stemedu 5PCS HX711 A/D 24 Bits Precision Module Load Cell Amplifier Breakout Board Dual-Channel Weight Weighing Sensors Converter Modules for Ar duino Raspberry Pi
Stemedu 5PCS HX711 A/D 24 Bits Precision Module Load Cell Amplifier Breakout Board Dual-Channel Weight Weighing Sensors Converter Modules for Ar duino Raspberry Pi
Stemedu 5PCS HX711 A/D 24 Bits Precision Module Load Cell Amplifier Breakout Board Dual-Channel Weight Weighing Sensors Converter Modules for Ar duino Raspberry Pi
Product Overview
- 🚩 This HX711 amplifier module use 24 high precision A/D converter chip hx711, dual-Channel 24 Bit Precision A/D Module
- 🚩 HX711 load cell AD module is a specially designed for the high precision electronic scale designwith two analog input channel to internal integration of 128 times the programmable gain amplifier
- 🚩 The input multiplexer selects either Channel A Or B differential input to the low-noise programmable gain amplifier (PGA)
- 🚩 Applications: This weighing sensor amplifier module can use to be weight scales, kitchen scale, industrial process control and so on.
- 🚩 What you will get: 5pcs HX711 amplifier module for load cell.
| Brand: | Stemedu |
|---|---|
| Manufacturer: | Stemedu |
| Part Number: | MTYT95R |
| Material Type: | Stainless Steel, Aluminum, FR4 |
| Isin: | I2TU6WWRCFTG |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
Product Overview
- 🚩 This HX711 amplifier module use 24 high precision A/D converter chip hx711, dual-Channel 24 Bit Precision A/D Module
- 🚩 HX711 load cell AD module is a specially designed for the high precision electronic scale designwith two analog input channel to internal integration of 128 times the programmable gain amplifier
- 🚩 The input multiplexer selects either Channel A Or B differential input to the low-noise programmable gain amplifier (PGA)
- 🚩 Applications: This weighing sensor amplifier module can use to be weight scales, kitchen scale, industrial process control and so on.
- 🚩 What you will get: 5pcs HX711 amplifier module for load cell.
| Brand: | Stemedu |
|---|---|
| Manufacturer: | Stemedu |
| Part Number: | MTYT95R |
| Material Type: | Stainless Steel, Aluminum, FR4 |
| Isin: | I2TU6WWRCFTG |
Description:
This module use 24 high precision A/D converter chip HX711.
It is a specially designed for the high precision electronic scale design with two analog input channel the internal integration of 128 times the programmable gain amplifier.

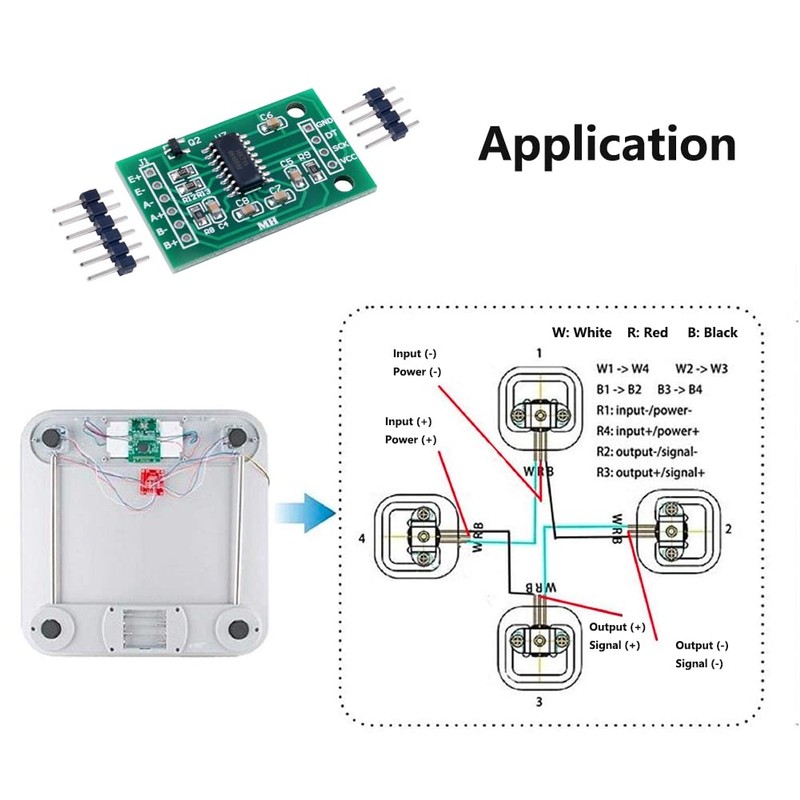

The input circuit can be configured to provide a bridge type pressure bridge (such as pressure weighing sensor mode)is of high precision low cost is an ideal sampling front-end module.
Features:
Two selectable differential input channels.
On-chip active low noise PGA with selectable gain of 3264 and 128.
On-chip power supply regulator for load-cell and ADC analog power supply.
On-chip oscillator requiring no external component with optional external crystal.
On-chip power-on-reset.
Simple digital control and serial interface: pin-driven controls no programming needed.
Selectable 10SPS or 80SPS output data rate.
Simultaneous 50 and 60Hz supply rejection.
Current consumption including on-chip analog power supply regulator: normal operation < 1.5m Apower down < 1uA.
Operation supply voltage range: 2.6 ~ 5.5V.
Operating Temperature Range:-20 degree ~ +85 degree.
There are some using tips from our customers:
#1 If your trying to connect a strain gauge directly to it it won't work it needs to be in a wheatstone bridge config.
#2 The chip sleeps after 60 micro seconds so if you plan on using something like a raspberry pi you should use a signal.signal type of command to disable interrupts. Arduino or ESP32 will be a better / easier choice.
#3 it calculates the change in resistance for the wires connecting the wheatstone bridge too so if you moving anything around the readings will keep changing.
Package Included:

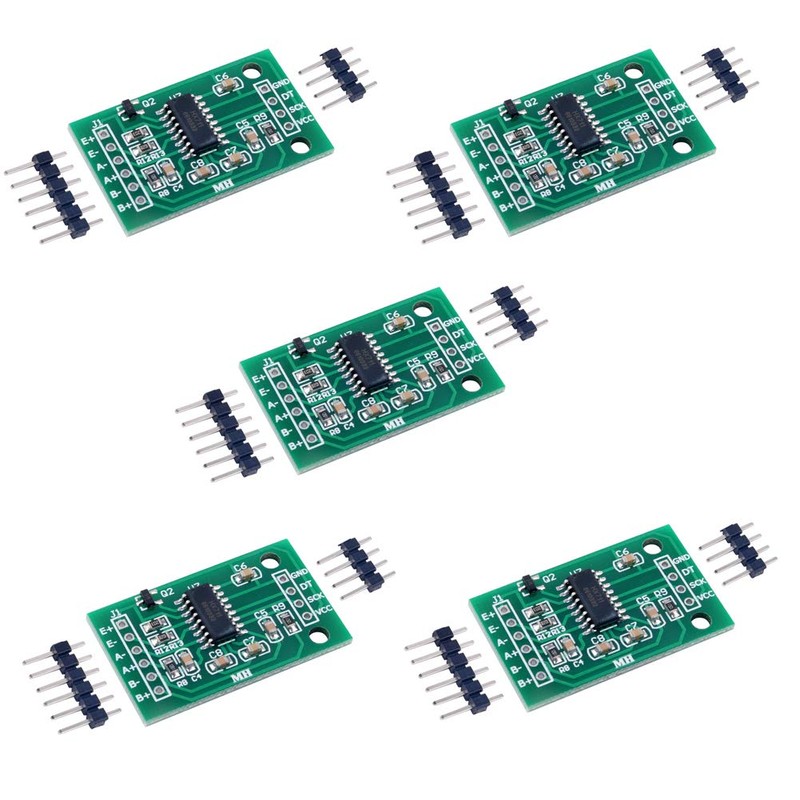

5 X Stemedu HX711 Load Cell Amplifier Modules with Pins
FAQ
Q:What is the minimum weight can be read?
A:It's depend on the weight sensor you are using and its resolution
This module use 24 high precision A/D converter chip HX711.
It is a specially designed for the high precision electronic scale design with two analog input channel the internal integration of 128 times the programmable gain amplifier.
The input circuit can be configured to provide a bridge type pressure bridge (such as pressure weighing sensor mode)is of high precision low cost is an ideal sampling front-end module.
Features:
Two selectable differential input channels.
On-chip active low noise PGA with selectable gain of 3264 and 128.
On-chip power supply regulator for load-cell and ADC analog power supply.
On-chip oscillator requiring no external component with optional external crystal.
On-chip power-on-reset.
Simple digital control and serial interface: pin-driven controls no programming needed.
Selectable 10SPS or 80SPS output data rate.
Simultaneous 50 and 60Hz supply rejection.
Current consumption including on-chip analog power supply regulator: normal operation < 1.5m Apower down < 1uA.
Operation supply voltage range: 2.6 ~ 5.5V.
Operating Temperature Range:-20 degree ~ +85 degree.
There are some using tips from our customers:
#1 If your trying to connect a strain gauge directly to it it won't work it needs to be in a wheatstone bridge config.
#2 The chip sleeps after 60 micro seconds so if you plan on using something like a raspberry pi you should use a signal.signal type of command to disable interrupts. Arduino or ESP32 will be a better / easier choice.
#3 it calculates the change in resistance for the wires connecting the wheatstone bridge too so if you moving anything around the readings will keep changing.
Package Included:
5 X Stemedu HX711 Load Cell Amplifier Modules with Pins
FAQ
Q:What is the minimum weight can be read?
A:It's depend on the weight sensor you are using and its resolution
