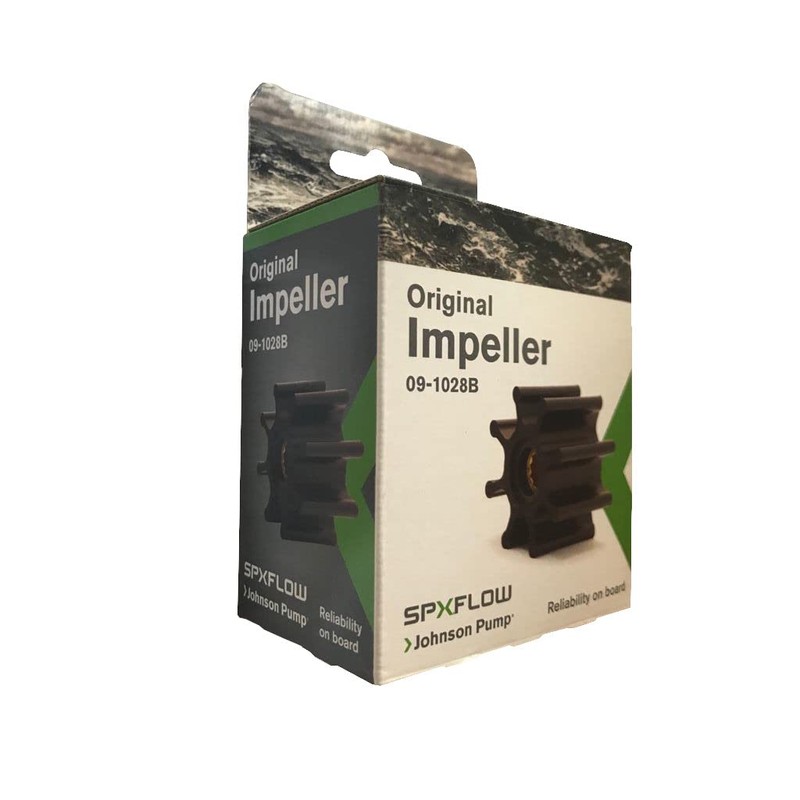

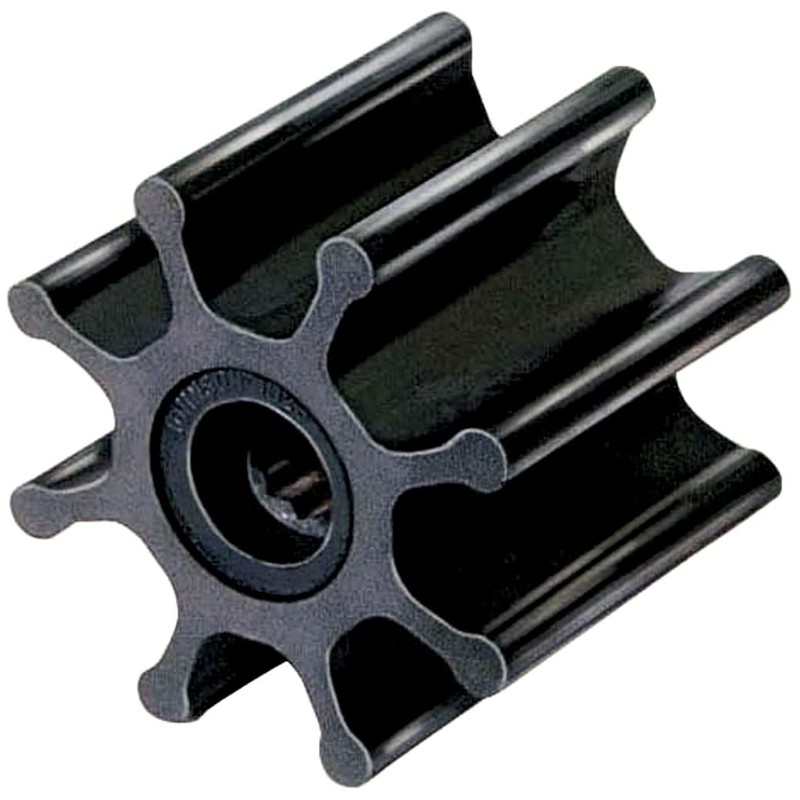

SPX FLOW 09-1028B Johnson Pump Marine Original Impeller Kit for F7B Transfer Pump, Boat Pump, Ship Pump, Ballast Pump, Yacht Pump, MC97 Impeller
$183.73
- $12.99 shipping from Germany View details
-
Arrives
- This balance bike is an original product from Johnson Pump SPX Flow Sweden. Unlike cheap Asian counterparts, the original SPX FLOW impeller from Johnson Pump offers: a correct cooling flow, a significantly longer service life, excellent self-priming, sufficient cooling immediately at startup
- When the flexible impeller blades come into contact with the cam again, they bend and the liquid comes out of the pump in a uniform stream. Liquids can be pumped upside down
- Correct impeller dimensions thanks to the unique MC97 rubber compound in SPX FLOW wheels ensure maximum service life, especially if the end user does not start the engine regularly: - constant pressure supply over time - minimal fatigue failures - minimal swelling - direct cooling at start-up
- Johnson heavy duty bronze universal pump impellers are raw water resistant and compact. Designed for a wide range of marine applications, these pumps have proven themselves in terms of quality and reliability. With excellent self-priming, these pumps are ideal as cooling water pumps for marine engines, bilge pumps, deck wash pumps, fresh water pumps, fuel delivery pumps (nitrile impeller only) and other applications
- For general raw or fresh water applications, the standard durable neoprene rubber wheel is used. A general feature of all pumps with flexible impeller is that they must not run dry for more than 30 seconds. Both the impeller and the seals depend on water for lubrication and will soon fail when dry running
- Suction height up to a maximum of 3 metres. Impeller operating temperature minimum: 5 °C / 41 °F, maximum: 55 °C / 131 °F
- The main advantage of a flexible impeller pump is its self-absorption. When the blades of the impeller depressed and bounce back, they create their own vacuum that sucks liquid into the pump. A dry Johnson pump can lift water up to 3 metres. Thus, a flexible impeller pump used for engine cooling does not need to be arranged below the waterline or manually sucked.
- An additional feature of pumps with flexible impeller is that they can let relatively large solids through without clogging or damaging the pump. This reduces the filter requirements of the incoming liquid
- Johnson Pump Marines products offer continuous reliability even in the most difficult conditions and are designed to maximize efficiency while minimizing energy consumption and maintaining quiet operation. With its help, the long-term maintenance of ships can be maintained at the highest level and in addition, SPX FLOW technology contributes to the comfort and safety of owners, crew and passengers.
- Flexible wheels – functional principle vacuum is created when aligning the flexible impeller blades from the cam, sucking liquid into the pump. A rotating impeller promotes the liquid from the inlet to the outlet. Thus, due to their construction, pumps with flexible impeller can transport relatively large solids.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- This balance bike is an original product from Johnson Pump SPX Flow Sweden. Unlike cheap Asian counterparts, the original SPX FLOW impeller from Johnson Pump offers: a correct cooling flow, a significantly longer service life, excellent self-priming, sufficient cooling immediately at startup
- When the flexible impeller blades come into contact with the cam again, they bend and the liquid comes out of the pump in a uniform stream. Liquids can be pumped upside down
- Correct impeller dimensions thanks to the unique MC97 rubber compound in SPX FLOW wheels ensure maximum service life, especially if the end user does not start the engine regularly: - constant pressure supply over time - minimal fatigue failures - minimal swelling - direct cooling at start-up
- Johnson heavy duty bronze universal pump impellers are raw water resistant and compact. Designed for a wide range of marine applications, these pumps have proven themselves in terms of quality and reliability. With excellent self-priming, these pumps are ideal as cooling water pumps for marine engines, bilge pumps, deck wash pumps, fresh water pumps, fuel delivery pumps (nitrile impeller only) and other applications
- For general raw or fresh water applications, the standard durable neoprene rubber wheel is used. A general feature of all pumps with flexible impeller is that they must not run dry for more than 30 seconds. Both the impeller and the seals depend on water for lubrication and will soon fail when dry running
- Suction height up to a maximum of 3 metres. Impeller operating temperature minimum: 5 °C / 41 °F, maximum: 55 °C / 131 °F
- The main advantage of a flexible impeller pump is its self-absorption. When the blades of the impeller depressed and bounce back, they create their own vacuum that sucks liquid into the pump. A dry Johnson pump can lift water up to 3 metres. Thus, a flexible impeller pump used for engine cooling does not need to be arranged below the waterline or manually sucked.
- An additional feature of pumps with flexible impeller is that they can let relatively large solids through without clogging or damaging the pump. This reduces the filter requirements of the incoming liquid
- Johnson Pump Marines products offer continuous reliability even in the most difficult conditions and are designed to maximize efficiency while minimizing energy consumption and maintaining quiet operation. With its help, the long-term maintenance of ships can be maintained at the highest level and in addition, SPX FLOW technology contributes to the comfort and safety of owners, crew and passengers.
- Flexible wheels – functional principle vacuum is created when aligning the flexible impeller blades from the cam, sucking liquid into the pump. A rotating impeller promotes the liquid from the inlet to the outlet. Thus, due to their construction, pumps with flexible impeller can transport relatively large solids.
All accessories included are not a cheap Asian copy. Impeller material made of MC97/EPDM. These neoprene wheels are only used for engine cooling and for the transport of fresh or salt water. Neoprene is the most commonly used material and is suitable for use where only small amounts of oil or diesel fuel are present.
Specifications:
Number of sheets: 8
Outer diameter: 2 inches (50.8 mm).
Inner diameter: 0.50 inches (6 mm).
Spline shafts and width 0.87 inches (22 mm).
Replaces:
-Jabsco No: 920-0001
- Vetus: IMP00301.
- Volvo Penta: 21951356, 3841697, 801277, 825941, 877061-2, 875593-6, 21422632.
-Yanmar: 127610-42200, 127610-42270, 120650-42310.
- Perkins-Sabre: 0460024, 24880031, 24880178.
-Solè Diesel: 34711008.
Johnson pumps with flexible impeller provide an efficient solution for most requirements when pumping raw and salt water. The pumps are self-priming and can pass relatively large solids without clogging or damaging the pumps. Johnson engine cooling pumps are designed to meet the requirements of the world's leading marine engine manufacturers, not just because of our reputable pumps.
The main advantage of a flexible impeller pump is its self-absorption. When the blades of the impeller depressed and bounce back, they create their own vacuum that sucks liquid into the pump. A dry Johnson pump can lift water up to 3 metres.
