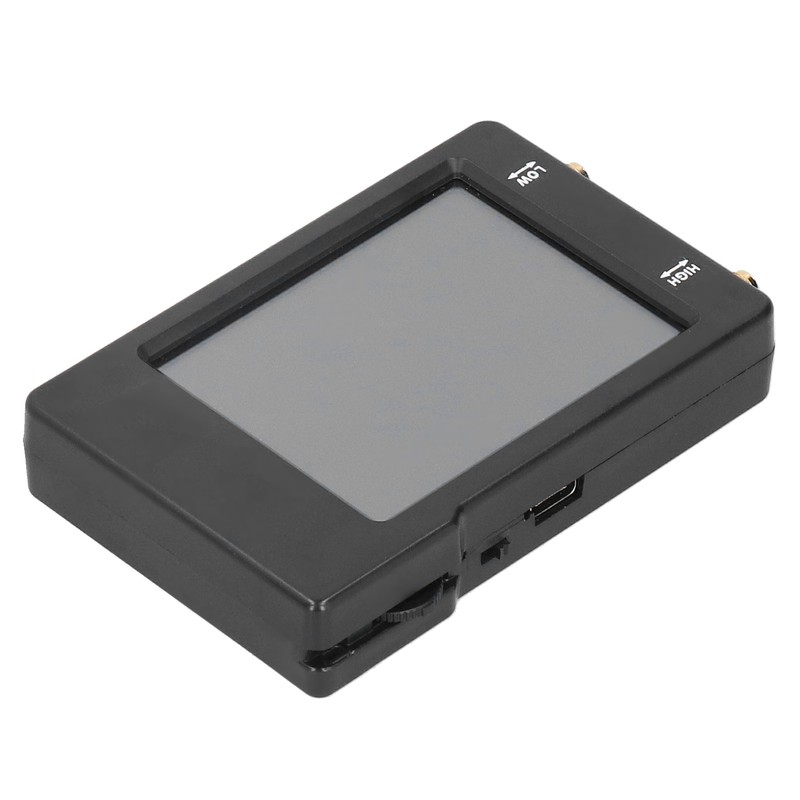

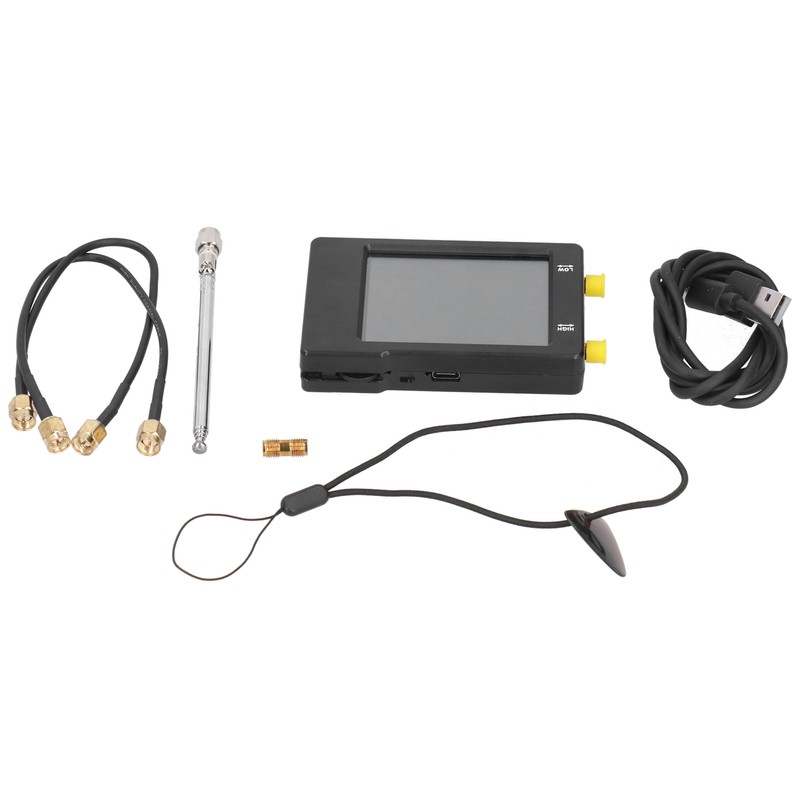

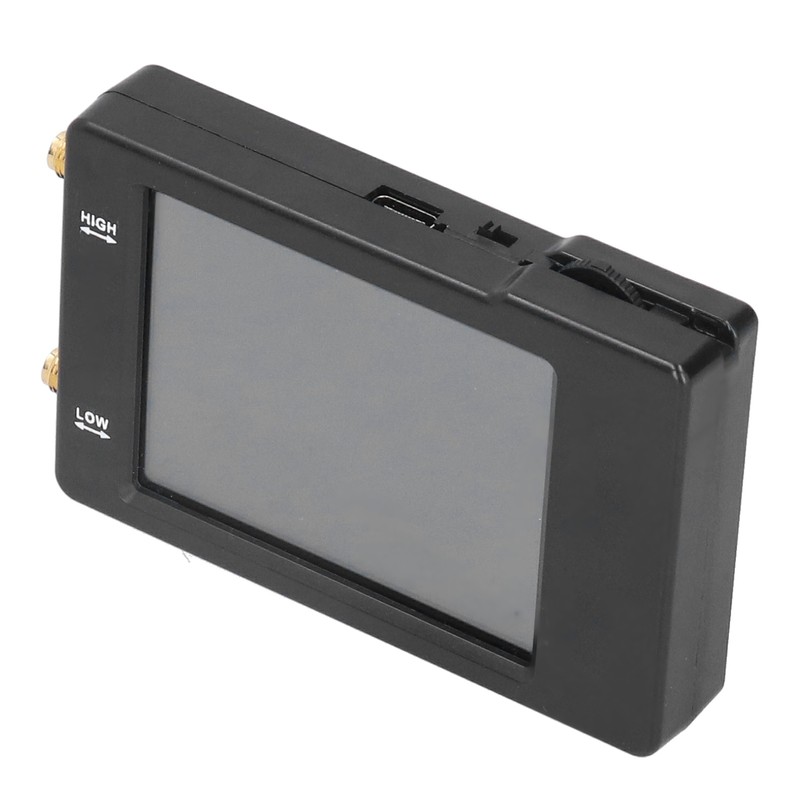

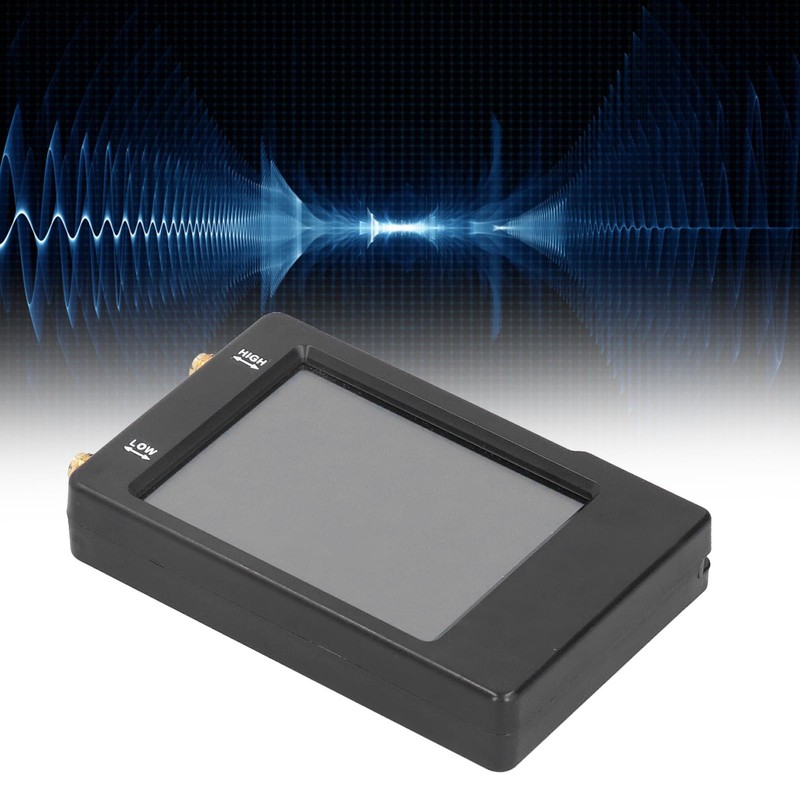

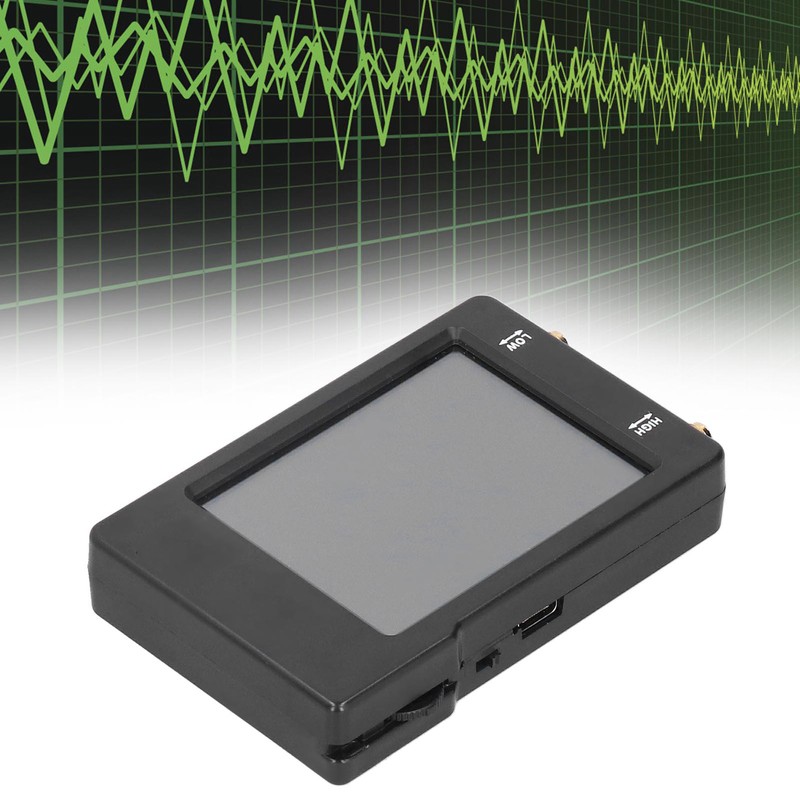

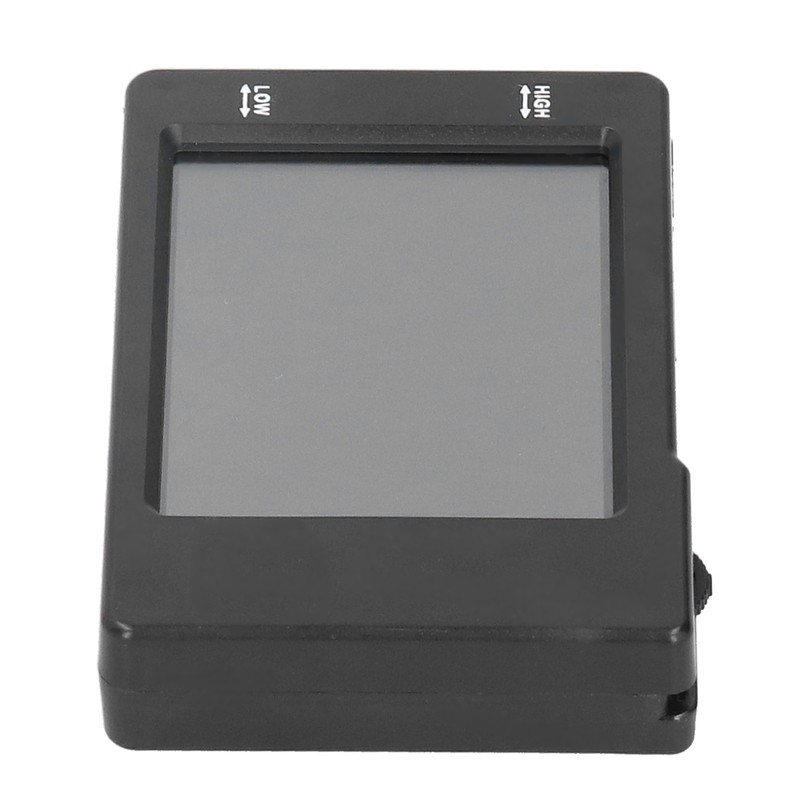

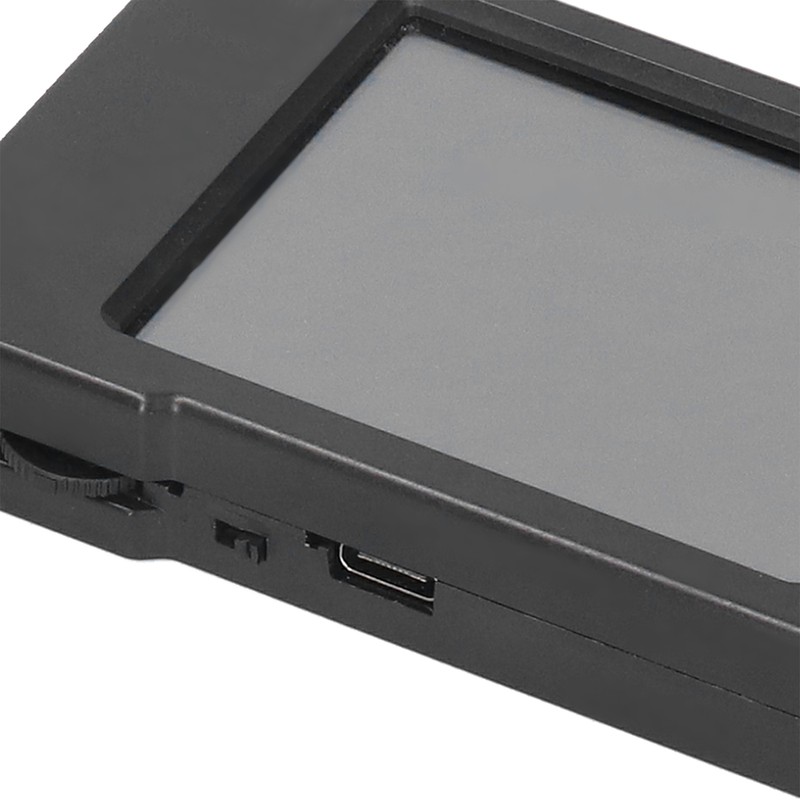

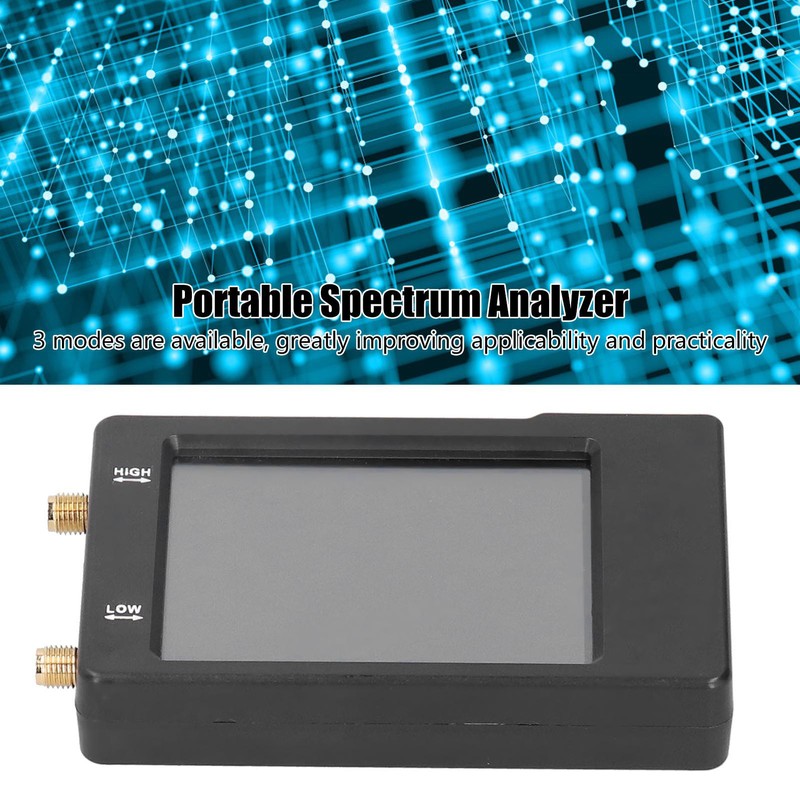

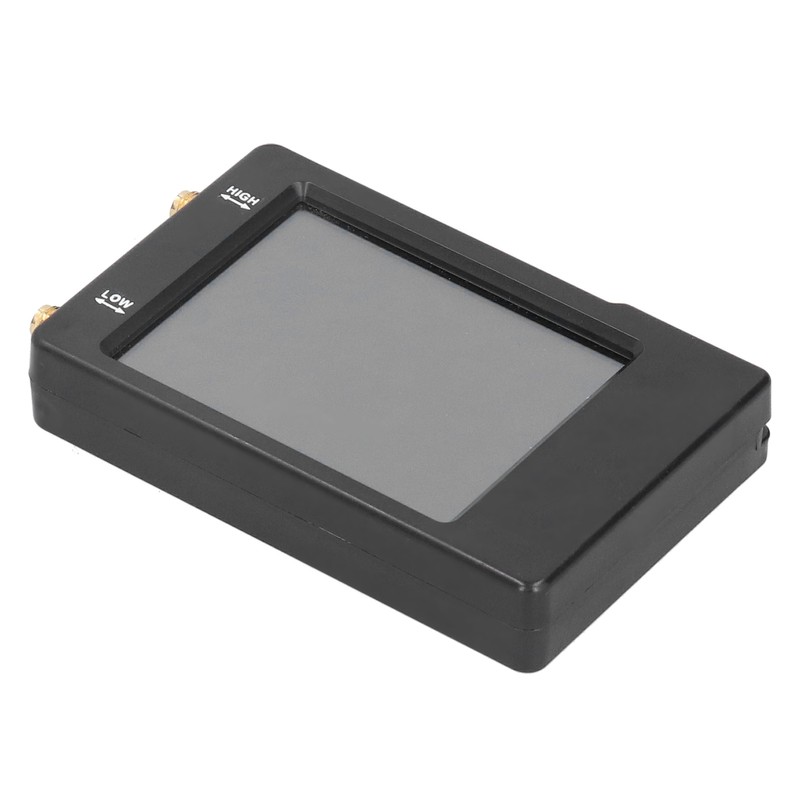

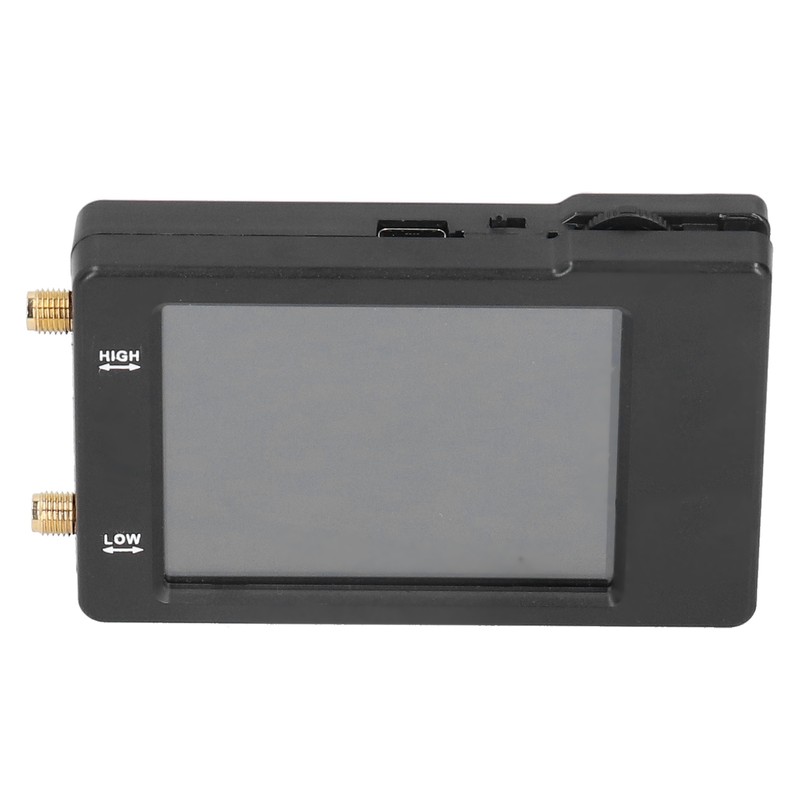

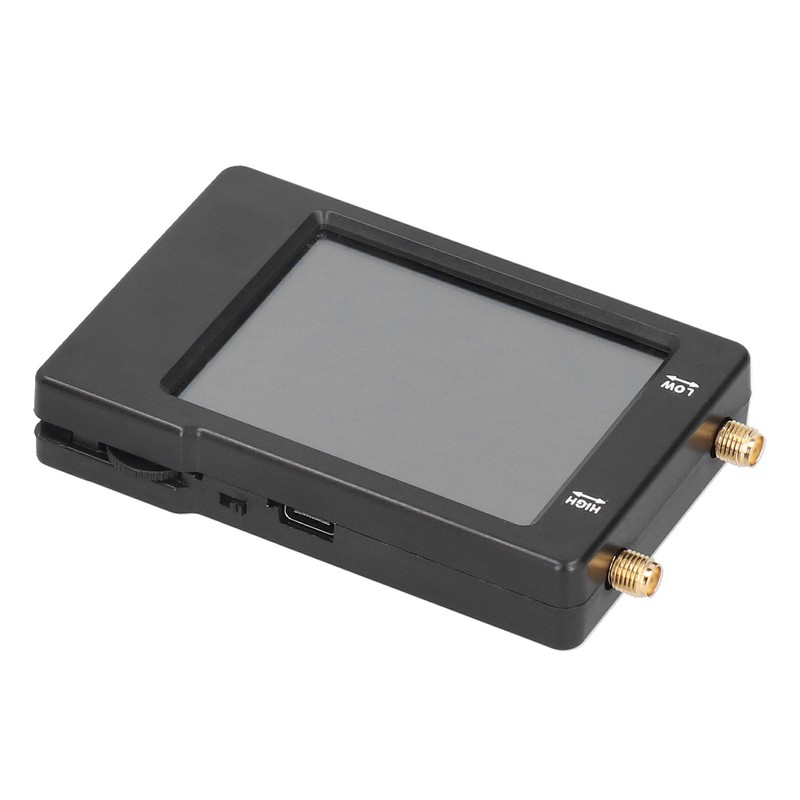

Spectrum Analyzer Handheld Simple Portable Small Analysis Tool tinySA 0.1MHZ‑350MHz
$88.44
- $14.50 shipping from United States View details
-
Arrives
1、This spectrum analyzer has 3 modes to choose from, greatly improving the applicability and practicality. 2、The product is light and small, easy to install, which can reduce the difficulty of work. 3、Use high-quality ABS material shell protection, strong and durable, increase service life. 4、Spectrum Analyzer with two inputs, high quality MF/HF/VHF input for 0.1MHZ-350MHz, lesser quality UHF input for 240MHz-960MHz. 5、Color display showing 290 scan points covering up to the full low or high frequency range.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
1、This spectrum analyzer has 3 modes to choose from, greatly improving the applicability and practicality. 2、The product is light and small, easy to install, which can reduce the difficulty of work. 3、Use high-quality ABS material shell protection, strong and durable, increase service life. 4、Spectrum Analyzer with two inputs, high quality MF/HF/VHF input for 0.1MHZ-350MHz, lesser quality UHF input for 240MHz-960MHz. 5、Color display showing 290 scan points covering up to the full low or high frequency range.
1、This spectrum analyzer has 3 modes to choose from, greatly improving the applicability and practicality. 2、The product is light and small, easy to install, which can reduce the difficulty of work. 3、Use high-quality ABS material shell protection, strong and durable, increase service life. 4、Spectrum Analyzer with two inputs, high quality MF/HF/VHF input for 0.1MHZ-350MHz, lesser quality UHF input for 240MHz-960MHz. 5、Color display showing 290 scan points covering up to the full low or high frequency range.
More Information
Item Type: Spectrum Analyzer
The tinySA is a small spectrum analyzer, primarily intended for 0.1MHz to 350MHz input but it has some nice other capabilities:
1.Spectrum Analyzer with two inputs, high quality MF/HF/VHF input for 0.1MHZ-350MHz, lesser quality UHF input for 240MHz-960MHz.
2.Switchable resolution bandpass filters for both ranges between 2.6kHz and 640kHz
3.Color display showing 290 scan points covering up to the full low or high frequency range.
4.Input Step attenuator from 0dB to 31dB for the MF/HF/VHF input.
5.When not used as Spectrum Analyzer it can be used as Signal Generator, MF/HF/VHF sinus output between 0.1MHZ-350MHz, UHF square waving output between 240MHz-960MHz.
6.A built-in calibration signal generator that is used for automatic self test and low input calibration.
7.Connected to a PC via USB it becomes a PC controlled Spectrum Analyzer
8.Rechargeable battery allowing a minimum of at least 2 hours portable use
9.Due to the low cost and very small form factor there are certain relevant limitations.
Resistive touch control
1.Jog switch control
2.USB serial port control
4.Linear power supply to avoid switching noise.
The input/output specification of the tinySA is split over the 4 modes
Low input mode spec:
1.Input frequency range from 100kHz to 350MHz
2.Input impedance 50 ohm when input attenuation set to 10dB or more.
3.Selectable manual and automatic input attenuation between 0dB and 31dB in 1 dB steps
4.Absolute maximum input level without attenuation of +10dBm
5.Absolute maximum input power with 30dB attenuation of +20dBm for short period
6.Input Interce Point of third order modulation products (IIP3) with 0dB attenuation of +15dBm
7.1dB compression point at +2dBm with 0dB attenuation
8.Power detector resolution of 0.5dB and linearity frequency of +/-1dB
9.Absolute power level accuracy after power level calibration of +/- 1dB
10.Lowest discernible signal using a resolution bandwidth of 30kHz of -102dBm
11.Frequency accuracy equal to the selected resolution bandwidth
12.Phase noise of -90dB/Hz at 100kHz offset and -115dB/Hz at 1MHz offset
13.Spur free dynamic range when using a 30kHz resolution bandwidth of 70dB
14.Manually selectable resolution filters of 3, 10, 30, 100, 300, 600kHz. Automatic selection of one of the 57 resolution filters.
15.On screen resolution of 51, 101, 145 or 290 measurement points.
16.Scanning speed of over 1000 points/second using largest resolution filters.
17.Automatic optimization of actual scanning points to ensure coverage of the whole scan range regardless of the chosen resolution bandwidth
High input mode spec:
1.Input frequency range from 240MHz to 960MHz
2.Input impedance is frequency dependent and deviates from 50 ohm
3.As there is no input bandfilter, strong input signals outside the 240MHz to 960MHz range can cause distortion of the in band signals
4.Absolute maximum input level without attenuation of +10dBm
5.Input Interce Point of third order modulation products (IIP3) of -5dBm
6.1dB compression point at -6dBm with no attenuation
7.Power detector resolution of 0.5dB and linearity frequency of +/-1dB
8.Absolute power level accuracy after power level calibration of +/- 1dB
9.Lowest discernible signal using a resolution bandwidth of 30kHz of -115dBm
10.Frequency accuracy equal to the selected resolution bandwidth
11.Spur free dynamic range when using a 30kHz resolution bandwidth of 50dB
12.Manually selectable resolution filters of 3, 10, 30, 100, 300, 600kHz. Automatic selection of one of the 57 resolution filters.
14.On screen resolution of 51, 101, 145 or 290 measurement points.
15.Scanning speed of over 1000 points/second using largest resolution filters.
16.Automatic optimization of actual scanning points to ensure coverage of the whole scan range regardless of the chosen resolution bandwidth
Low output mode spec:
1.Sinus output with harmonics below -40dB of fundamental
2.Output frequency range from 100kHz to 350MHz
3.Output level selectable in 1dB steps between -76dBm and -6dBm
High output mode spec:
1.Square waving output
2.Output frequency range from 240MHz to 960MHz
3.Output level selectable in variable increments between -38dBm and +13dBm
Reference generator spec:
1.Optional square wave output with fundamental at -25dBm connected to high input/output
2.Frequency can be set to 1MHz, 2MHz, 4MHz, 10MHz, 15MHz or 30MHz.
Battery spec:
3.Charging time max 1 hour on 500mA minimum USB port or USB charger
4.Operation on full charged battery for at least 2 hours
