SOViK 12V DC 24 inch Stroke Linear Actuator Electric Cylinder with Mounting Brackets Max Force 44 pounds High Speed 1.8" per sec Square Tube 7/4"(W) x7/4"(H) (Slotted Shaft End)
$242.49
- $5.99 shipping from United States View details
-
Arrives

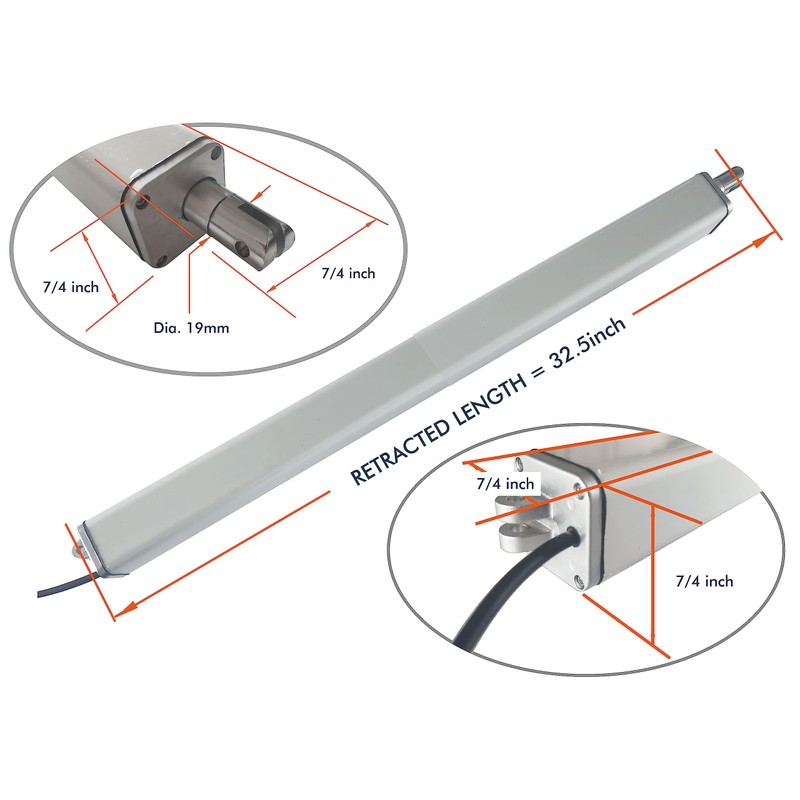

- Stroke Length=24"(600mm), Retracted Length(Installation Length of hole to hole) =32"(815mm), Max Extended Length(hole to hole)=55.7"(1415mm)
- Push Force 44 pounds (200N), No-load Speed: 1.8 inches (45mm) per sec. Starting Current 0.3A, Max Current 2A. Come with a pair of mounting brackets

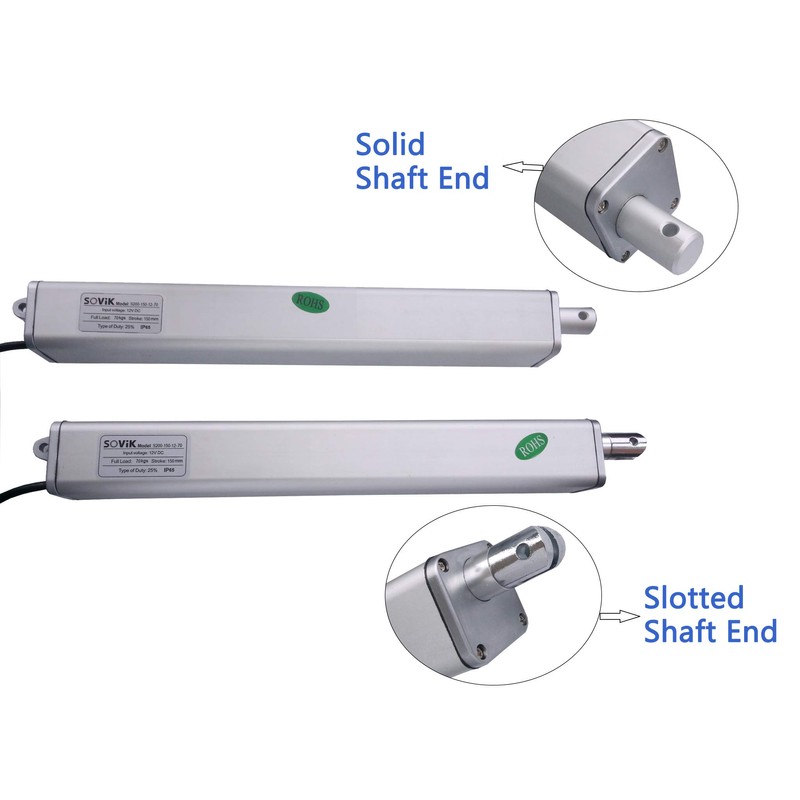

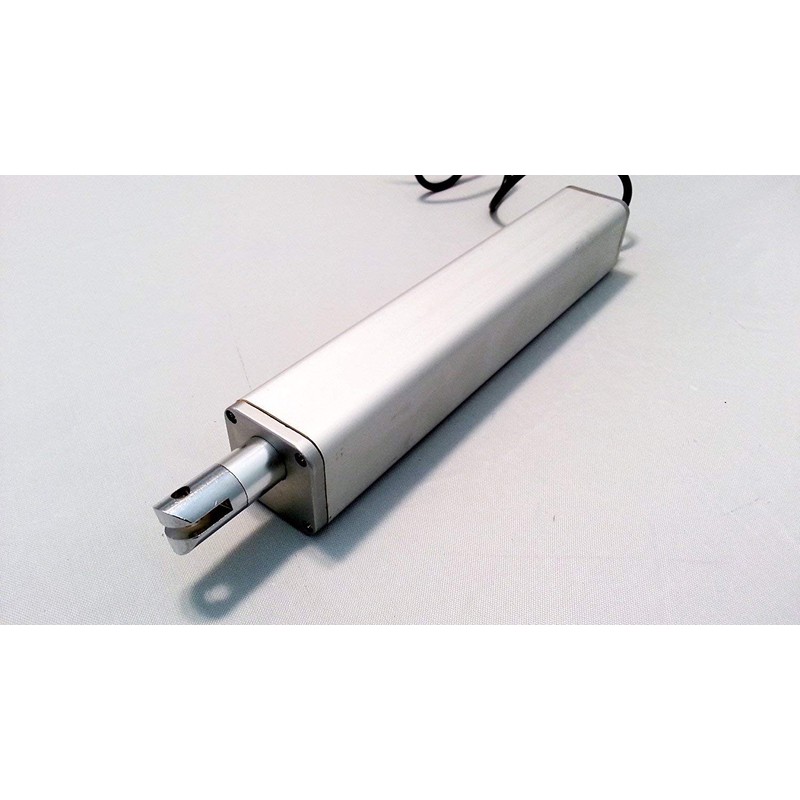

- The Protection Class is IP65, suitable for Indoor and Outdoor use. The Duty Cycle is 25%, Built-in Limit Switch. 6mm diameter Mounting Holes. The actuator adopts Slotted Shaft End
- The actuator adopts In-line design, square tube dimension: 7/4"(W)*7/4"(H). It has Smaller Volume than which actuator with external motor. Compact structure and smooth operation, used for Limited Space
- Application: 1. As adjuster for your solar panel and tracker. 2. As automatic opener for your coop, gate, door, window, shutter skylight and so on. 3. Other uses: Industrial engineering and medical equipment which need linear motion
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Stroke Length=24"(600mm), Retracted Length(Installation Length of hole to hole) =32"(815mm), Max Extended Length(hole to hole)=55.7"(1415mm)
- Push Force 44 pounds (200N), No-load Speed: 1.8 inches (45mm) per sec. Starting Current 0.3A, Max Current 2A. Come with a pair of mounting brackets
- The Protection Class is IP65, suitable for Indoor and Outdoor use. The Duty Cycle is 25%, Built-in Limit Switch. 6mm diameter Mounting Holes. The actuator adopts Slotted Shaft End
- The actuator adopts In-line design, square tube dimension: 7/4"(W)*7/4"(H). It has Smaller Volume than which actuator with external motor. Compact structure and smooth operation, used for Limited Space
- Application: 1. As adjuster for your solar panel and tracker. 2. As automatic opener for your coop, gate, door, window, shutter skylight and so on. 3. Other uses: Industrial engineering and medical equipment which need linear motion
Specification
Input Voltage: 12 DC
Stroke Length: 24 inch / 600mm
Maximum Load: 44 pounds / 200N
No-load Speed: 1.8 inch(45mm) per sec
Limit Switch: Built in
Model Number: S200-600-12-20-S
Duty cycle: 25%
Mounting Holes: 6mm diameter
Protection Class: IP65 Rated
Main Material: Aluminum alloy
Color: Silver
How to install
Prepare to connect the two wires of the actuator to a 12 volt power supply
Green wire to the positive terminal and brown wire to negative terminal will make the actuator extend. To make it retract, just reverse the terminal connections.
To simplify the last step, you can prepare a reverse polarity relay or switch for the actuator. When you want the actuator to extend and retract, just press the switch.
Your actuator will hold its position when the power is off. It will automatically stop when reaches the end.
How to protect your actuator
Please use the 12V DC power supply
The actual load does not exceed the rated load
All the actuators have duty cycle, they are unable to work all the time without stop. If the actuator keeps working for long time, the motor is easily burnt out
Please be careful, the actuator not completely waterproof
What you will get
1pc SOViK Linear Actuator

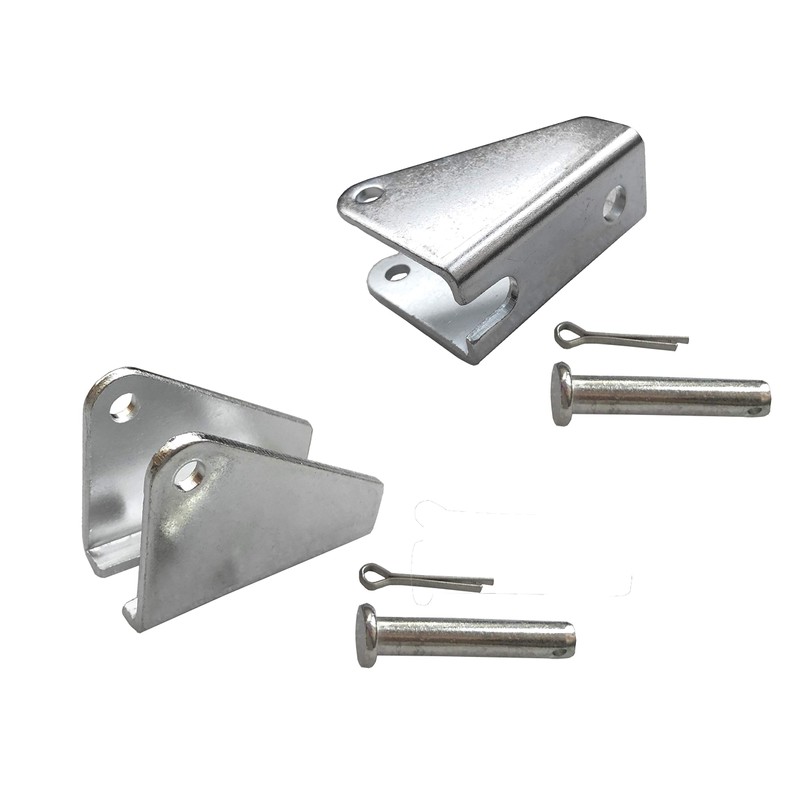

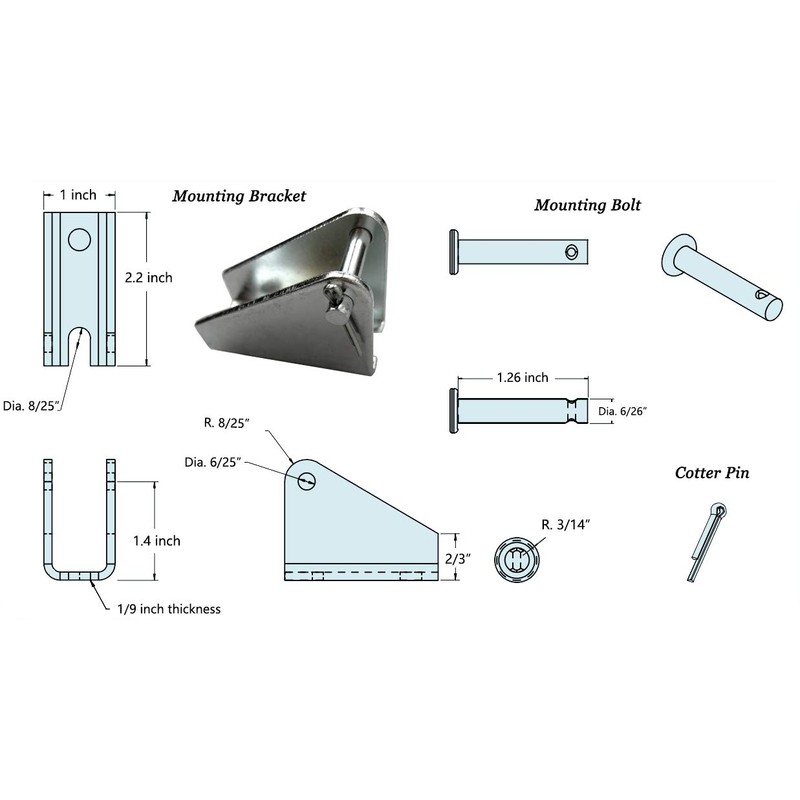

2pcs Mounting Brackets
Professional after-sale service
Application
As adjuster for your solar panel and tracker

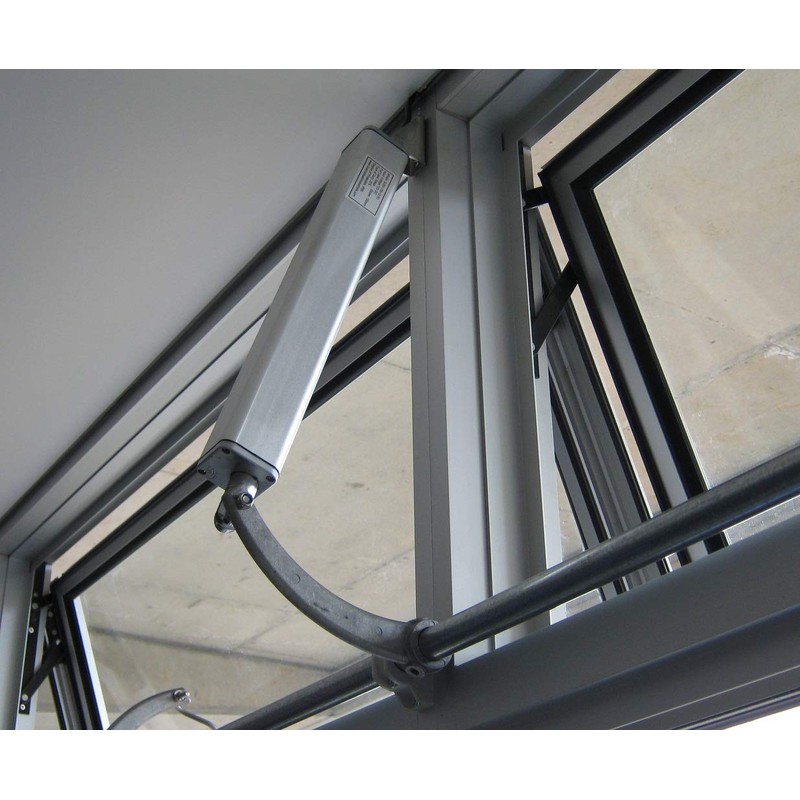

As automatic opener for your coop, gate, door, window, shutter skylight and so on
Other uses: Industrial engineering and medical equipment which need linear motion
For the DIY lovers, this actuator will bring a lot of inspiration to do many creative things
Suggestions

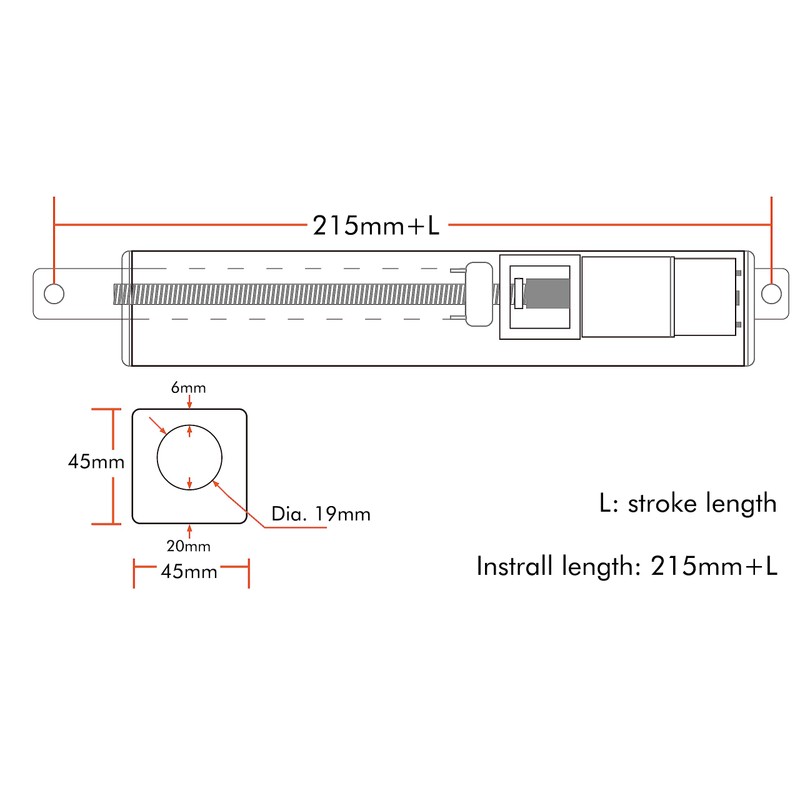

Please pay attention to the dimension of product, SEE DIMENSIONAL DRAWING AND ADDITIONAL TECHNICAL SPECIFICATIONS
