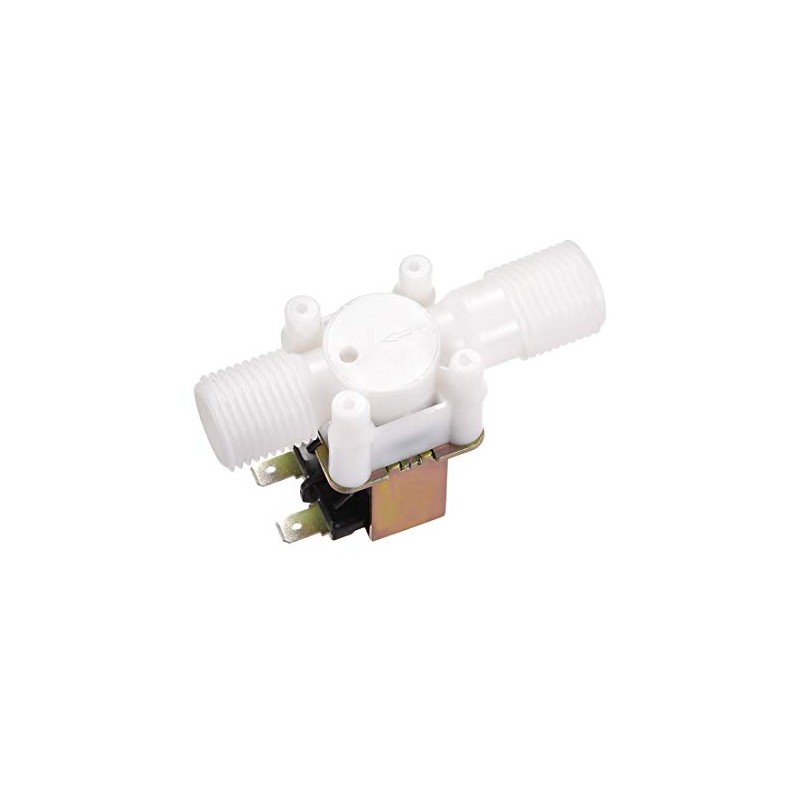

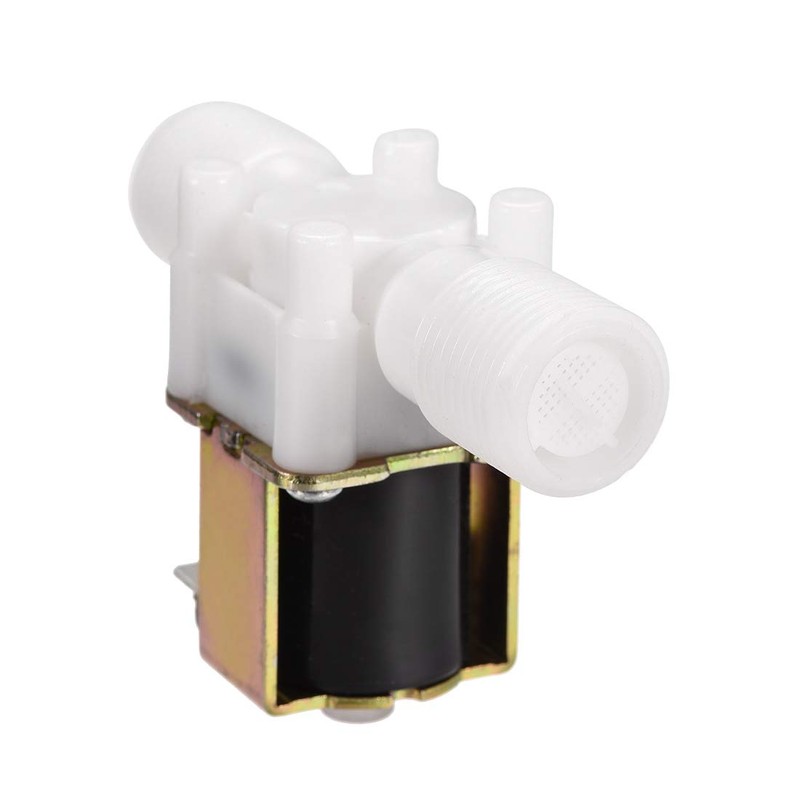

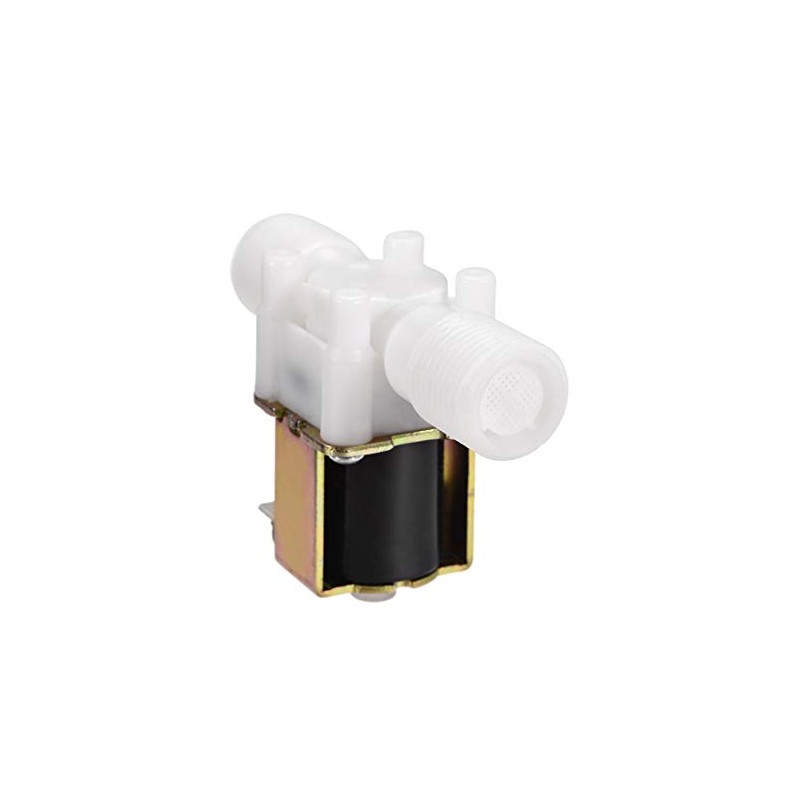

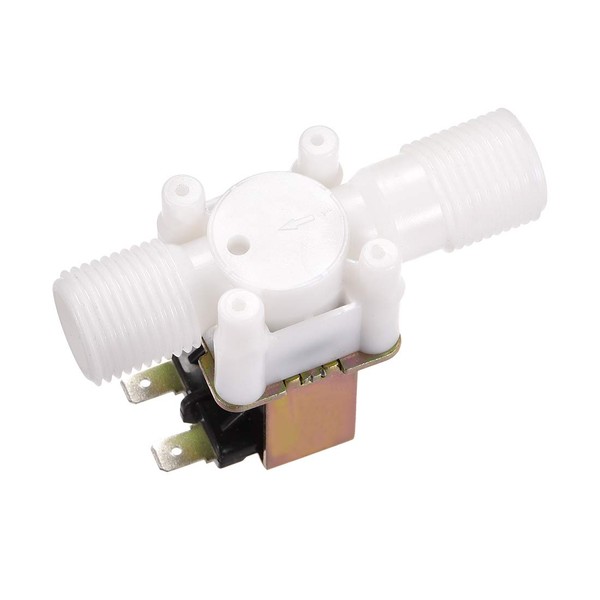

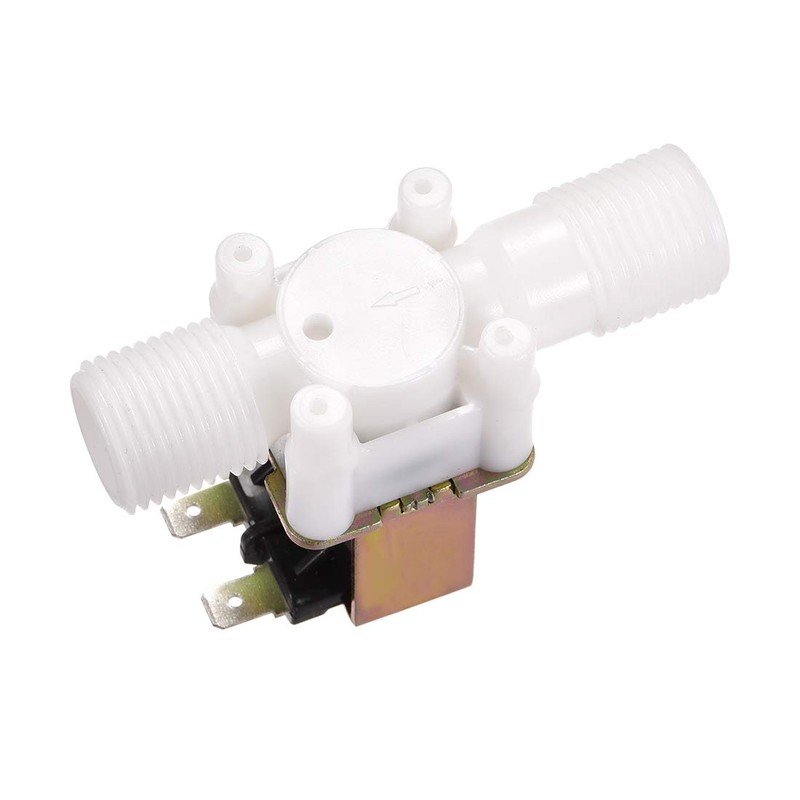

sourcing map DC12V G1/2 Plastic Water Electric Solenoid Valve Normally Open N/O Pressure Water Inlet Flow Switch

Brand: sourcing map
  • 【Standard】- Model: FPD-270A; Voltage: DC12V; Connector Angle: 180 Degree; Inlet and Outlet Thread Size : G1/2"; Solenoid Valve Type : Normally Open; Working pressure: 0.02~0.8mpa (3~114 psi); Operating temperature: 0~90 Degree Celsius.
  • 【FEATURE】- This is an Inlet Feed Water Solenoid Valve for hot Liquid not more than 100℃, turn on water when system start and cut off water when system stop.
  • 【DESIGN】- Inlet hole has Filter,Flow Direction: Unidirectional(Follow the Arrow on Valve Body) ; Operation Mode: N/O(Normally Open).
  • 【APPLICATION】- Plastic Water Solenoid Valve used in automatic control system: solar automatic water supply, infrared induction ware, water dispenser, water control machine, automatic water dispenser, water heater, campus card equipment, etc.
  • 【ATTENTION】- It will become hot when it works because there are so many coils inside. It’s normal and safe phenomenon.
Brand: sourcing map
Size: DC12V,N/O
Manufacturer: sourcing map
Part Number: Z2VNZX4
Material Type: Plastic
Isin: IHPRWBKTMMDL

$56.06

  • Free shipping in US
  • Shipping: $14.5 Extended Delivery (Ships from overseas warehouse, 10-15 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
sourcing map DC12V G1/2 Plastic Water Electric Solenoid Valve Normally Open N/O Pressure Water Inlet Flow Switch

sourcing map DC12V G1/2 Plastic Water Electric Solenoid Valve Normally Open N...

$56.06

Specification:
Product Name : Water Solenoid Valve
Model: FPD-270A
Color : White
Material: Plastic,Metal
Voltage :DC12V
Connector Angle :180 Degree
Inlet and Outlet Thread Size : G1/2"
Solenoid Valve Type : Normally Open
Working pressure: 0.02~0.8mpa (3~114 psi)
Operating temperature: 0~90 Degree Celsius
Total Size : 85mm x 34mm x 61mm /3.35 "x 1.34" x 2.4" (LxWxH)

Package Content:
1pcs x Water Solenoid Valve

Description:
1. The water solenoid valve selects the corresponding voltage and temperature according to the actual situation when selecting type.
2. When install the solenoid valve, medium flow direction must be consistent with the direction arrow as shown in the valve body, the valve must be installed in horizontal pipe runs. Solenoid valve coil keep in a vertical position, the valve can not be put in places with splashing water or water leakage.
4. During use solenoid valve should be regularly cleaning dirt on the surface of the movable iron core and the piston, sealing gasket should be checked at the same time in dismounting, damaged should be replaced timely when found.
5. Before installing the solenoid valve, pipeline should be cleaned.
6.Used in automatic control system: solar automatic water supply, infrared induction ware, water dispenser, water control machine, automatic water dispenser, water heater, campus card equipment, etc.
