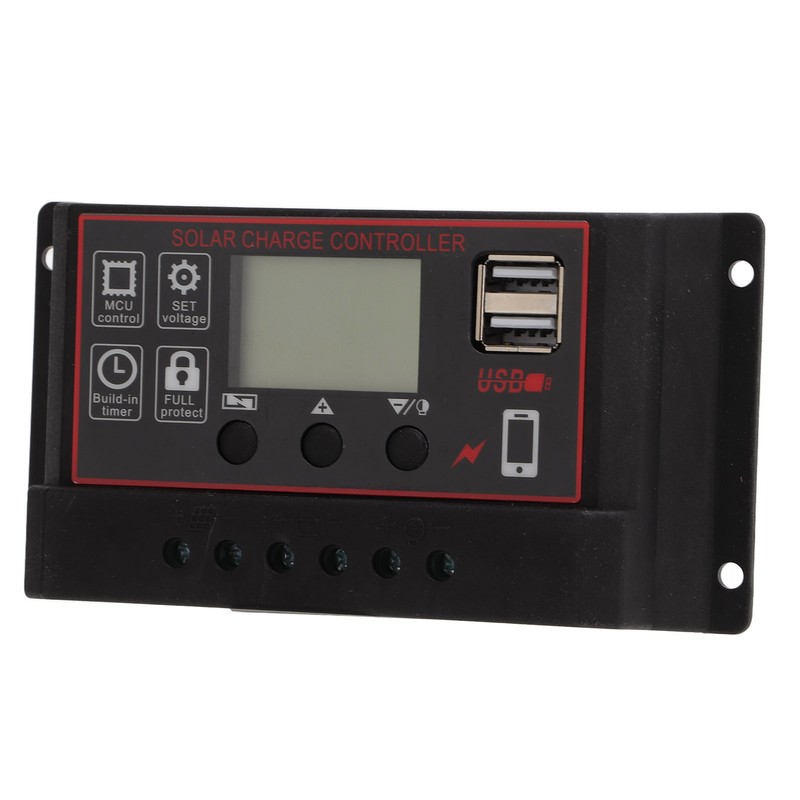

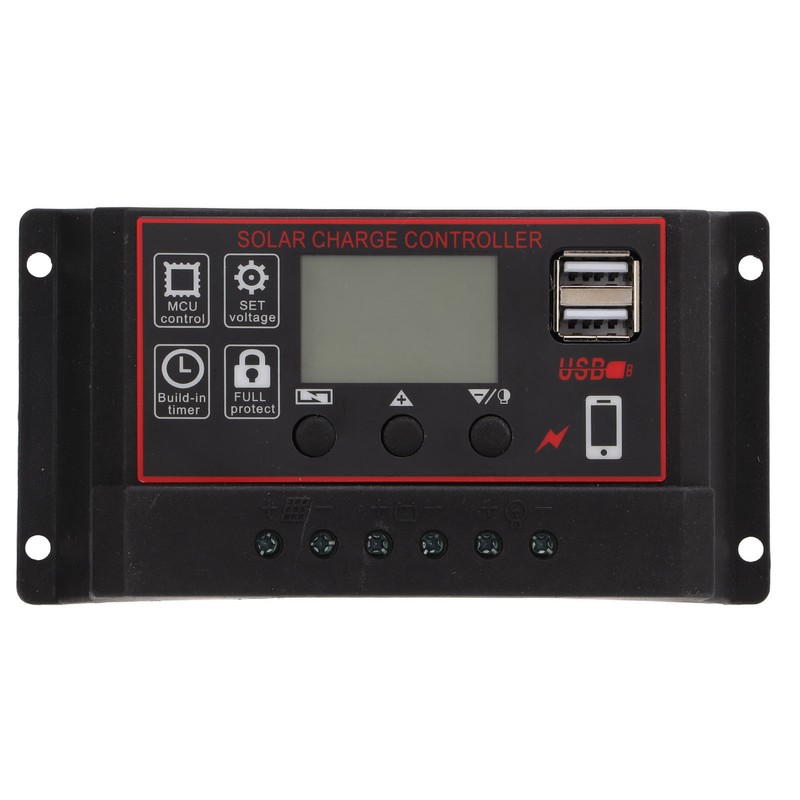

Solar Charge Controller Solar Panel Battery Intelligent Regulator with Dual USB Port 12V/24V PWM Auto Paremeter Adjustable LCD Display10A

1、High Performance: Using industrial grade main control chip, high quality components to improve system performance, the highest conversion efficiency is up to 98%, ultra fast tracking speed to ensure tracking efficiency. The controller is 12V/24V automatic identification, compatible with 12V 24V system. 2、LCD Display: The controller has a large LCD display, and the charging and discharging parameters are adjustable. With power off memory function, the status and data can be clearly displayed, and the mode and parameter configuration can be easily switched. It is suitable for home, industry, and business. 3、Multiple Protection Functions: The controller's complete 3 stage charging management improves system efficiency and extends battery life. Built in multiple protection functions, over current, short circuit protection, open circuit protection, reverse connection protection, all of which are self recovery and do not damage the controller. 4、Input and Output: The controller has dual USB outputs, the maximum current is up to 25A, supports mobile phone charging, and uses dual for MOS anti backflow circuits with ultra low heat. The controller will heat up during operation, please pay attention to install the charge controller in a flat, well ventilated place. 5、Easy to Install and Operate: The charge controller should be connected to the battery first, then the solar panel, and finally the load! The disassembly sequence is opposite to the wiring sequence.

Isin: IPUMM0RXD2VZ

$19.03

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow

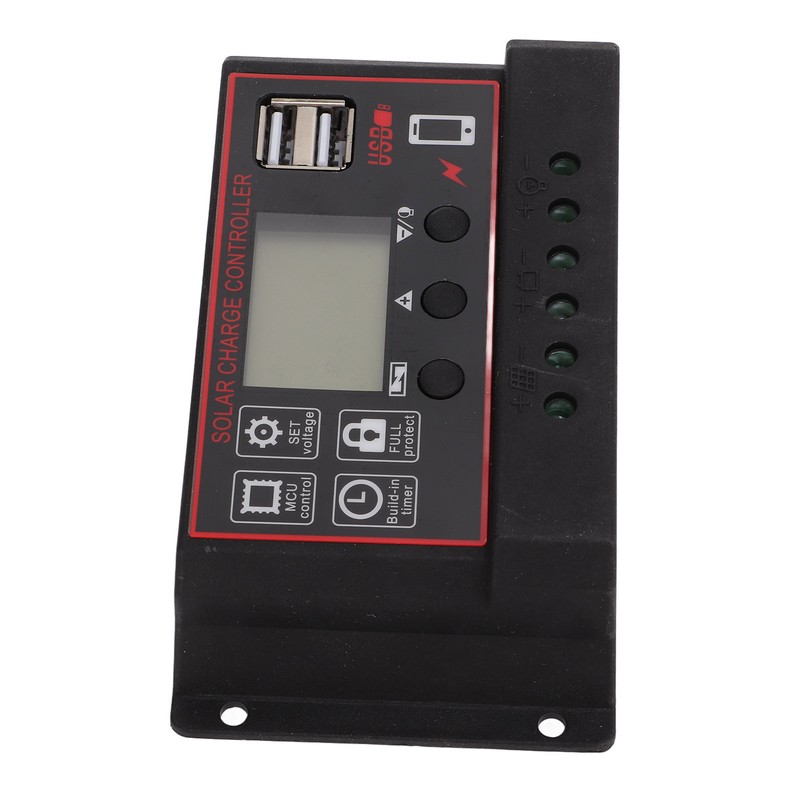

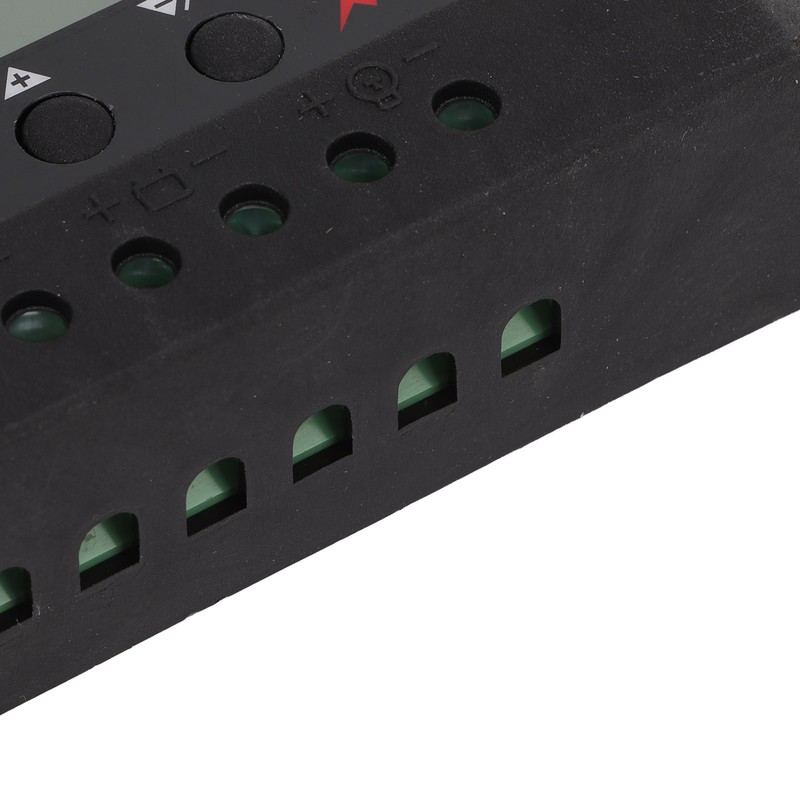

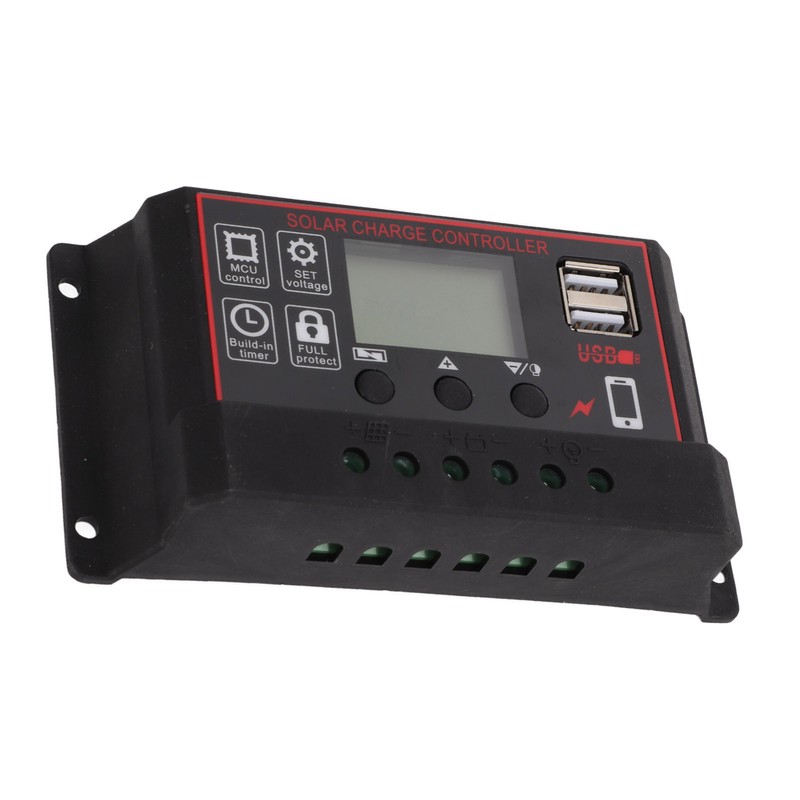

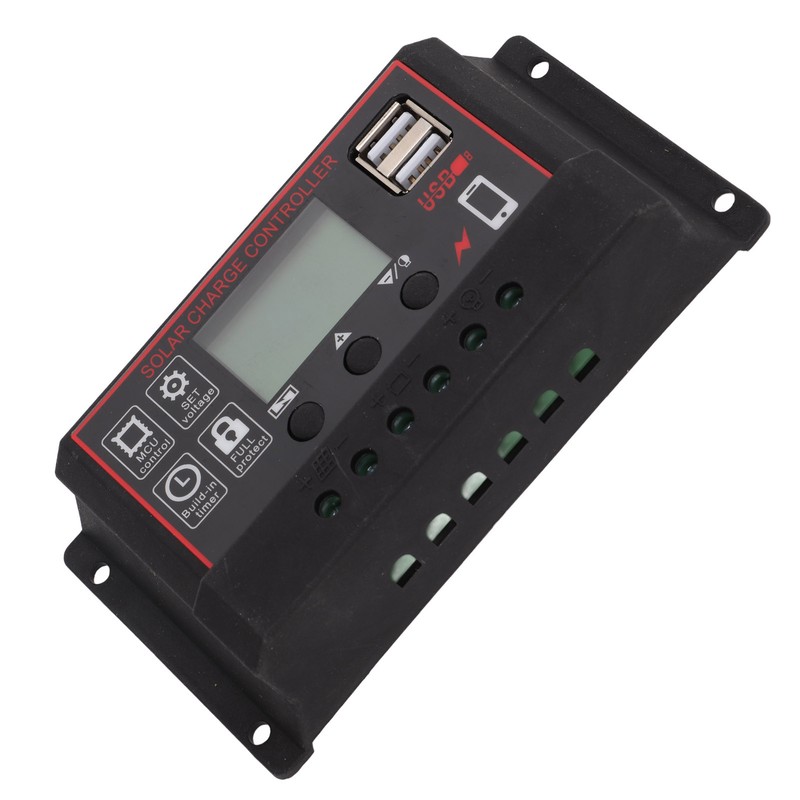

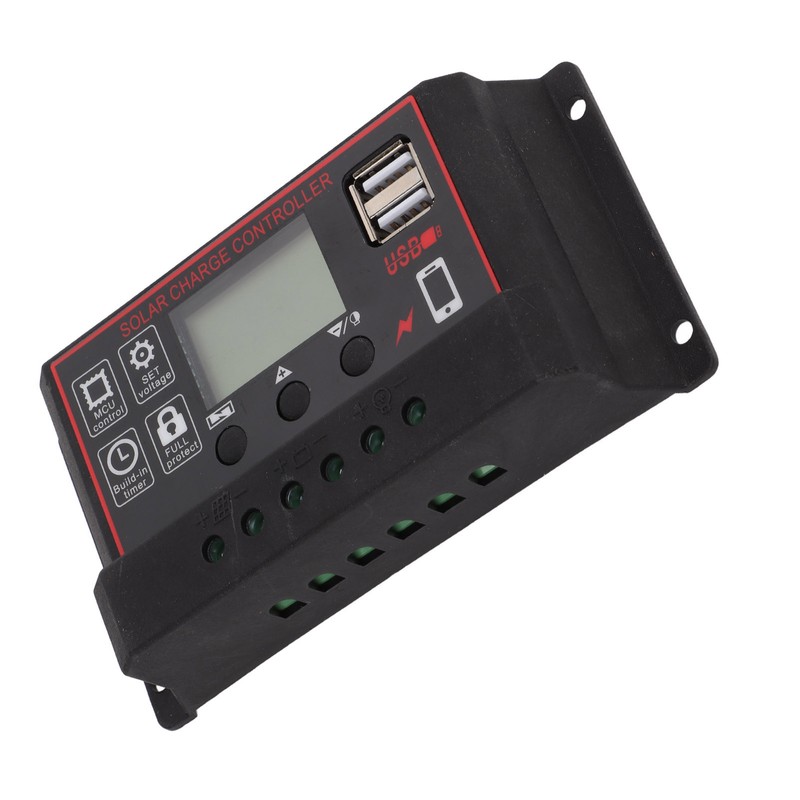

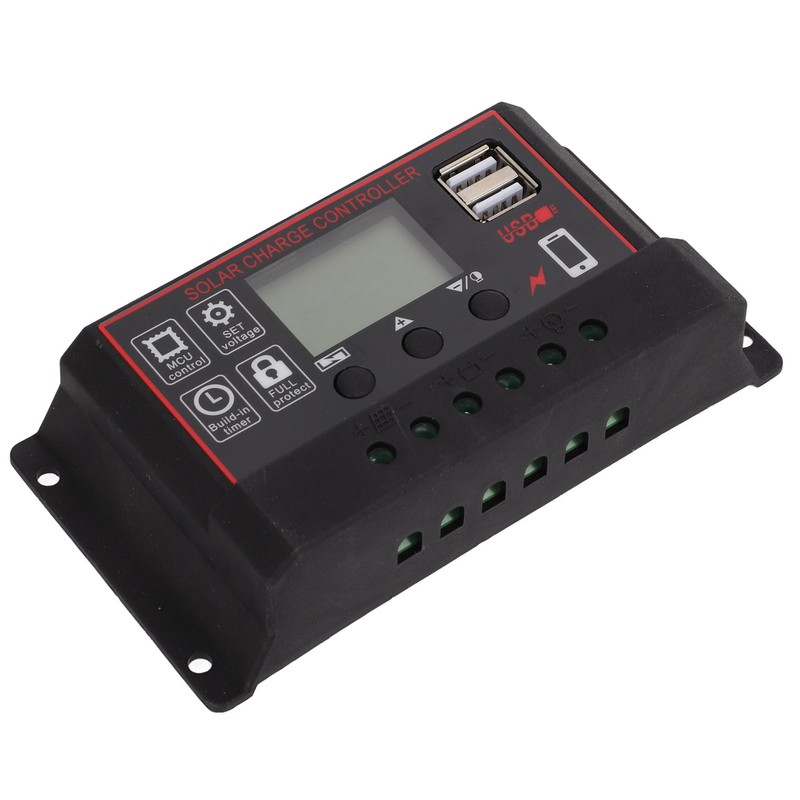

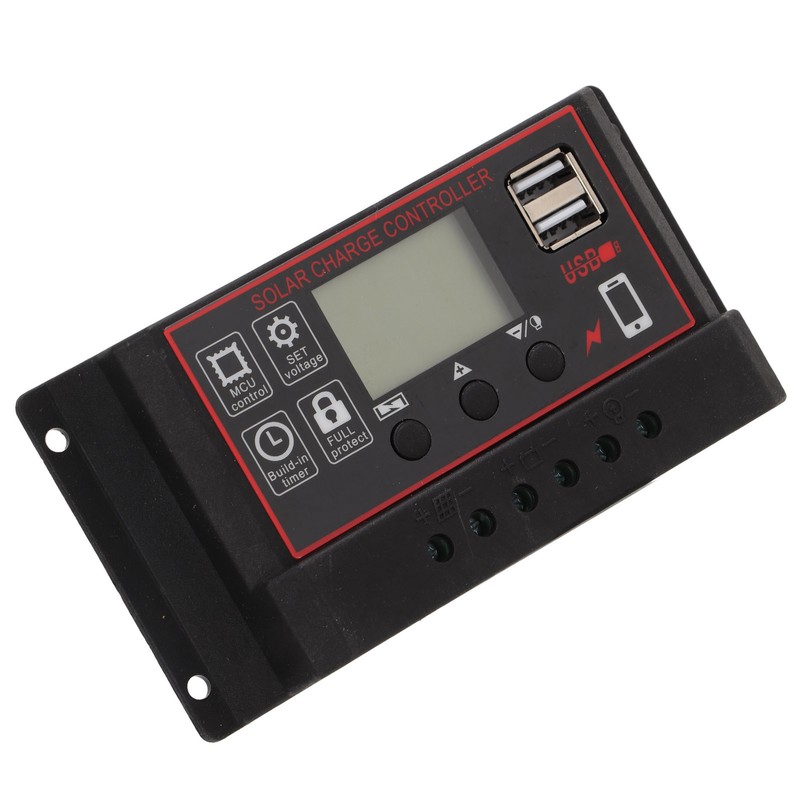

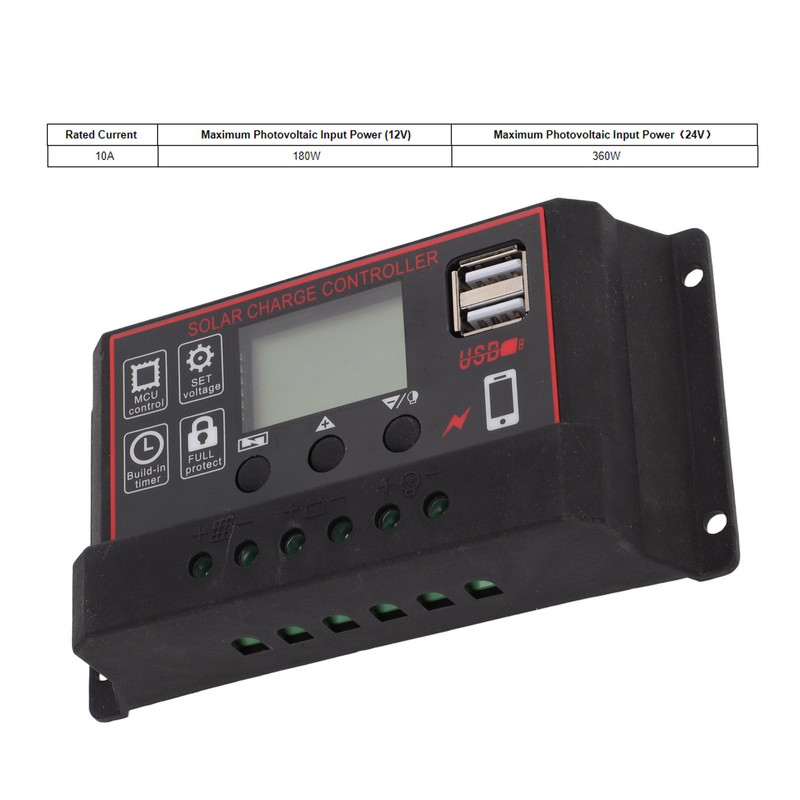

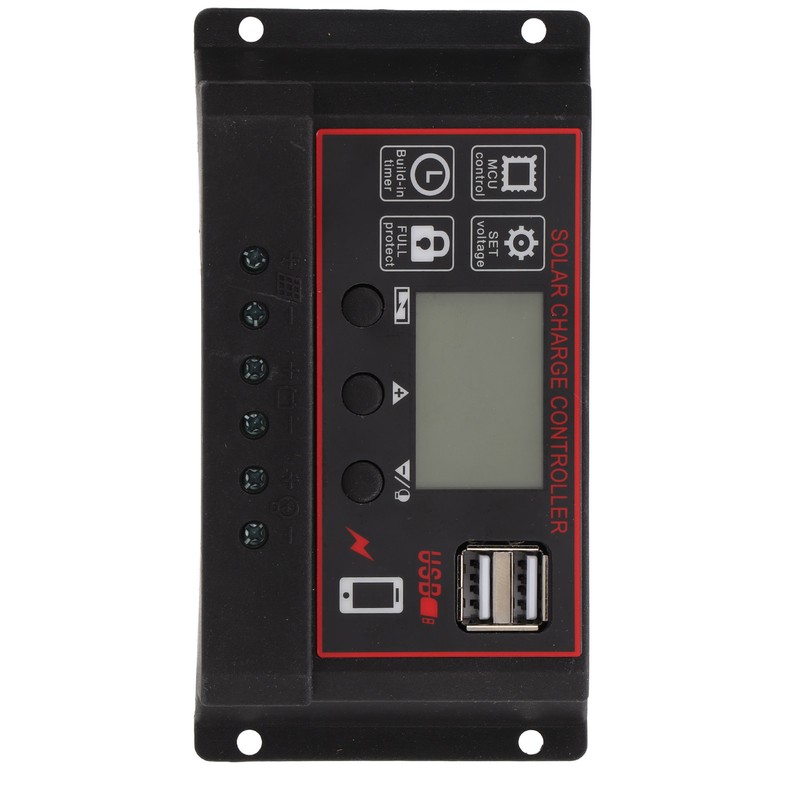

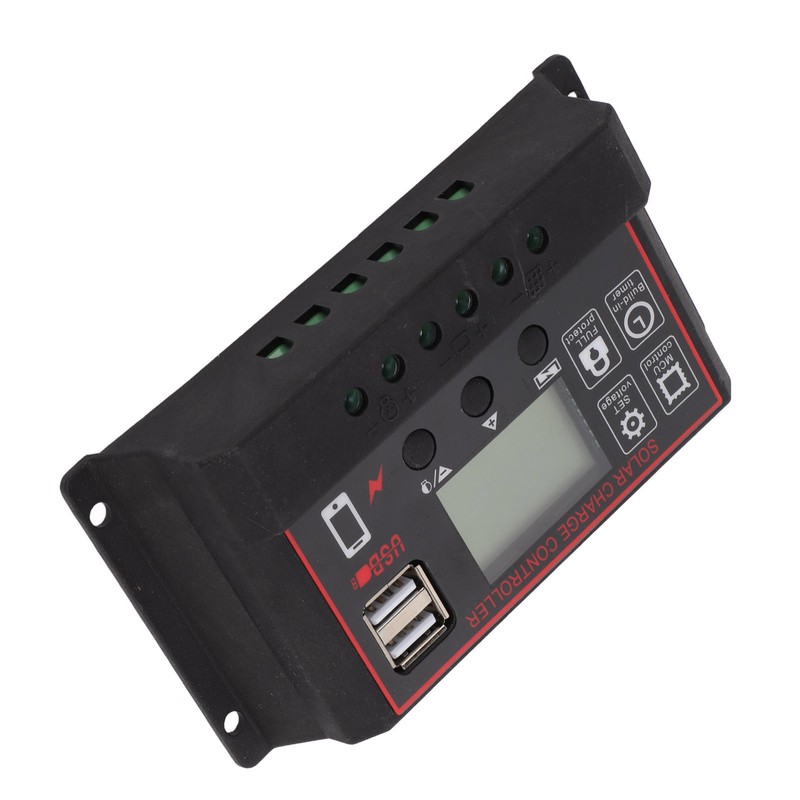

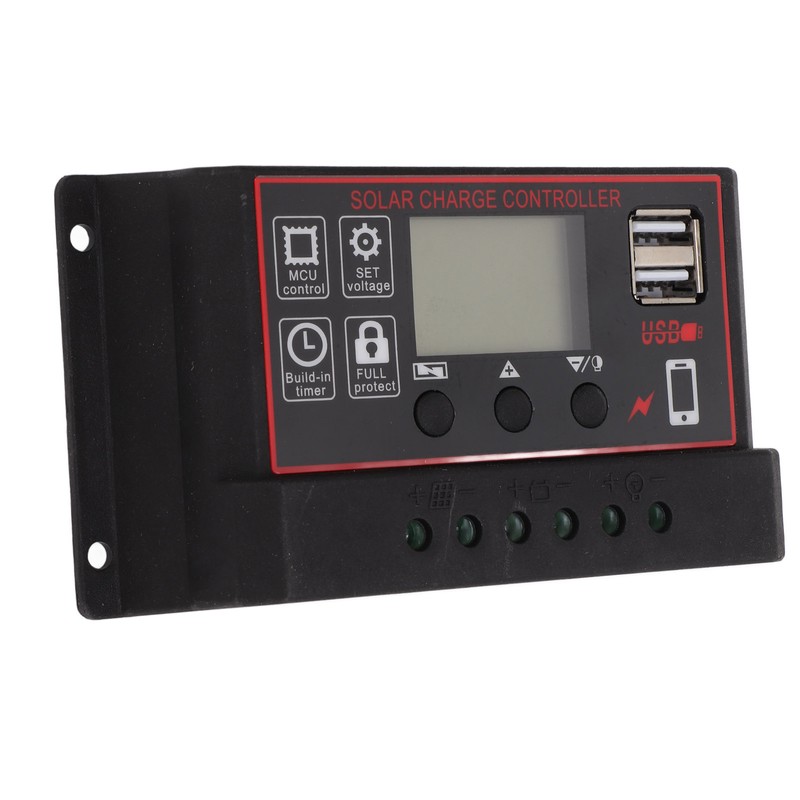

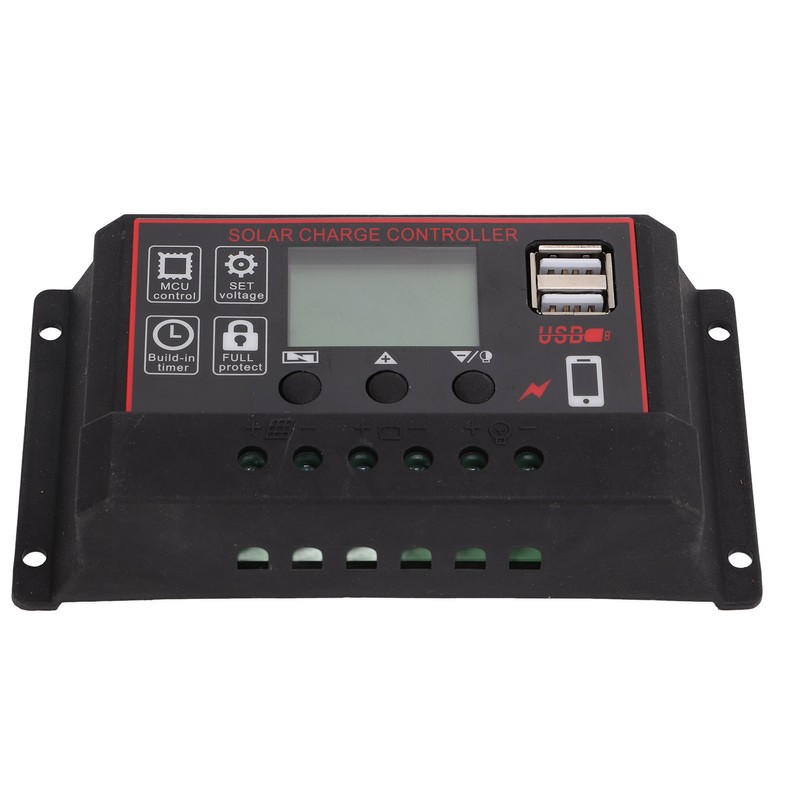

Solar Charge Controller Solar Panel Battery Intelligent Regulator with Dual USB Port 12V/24V PWM Auto Paremeter Adjustable LCD Display10A

Solar Charge Controller Solar Panel Battery Intelligent Regulator with Dual U...

$19.03

1、High Performance: Using industrial grade main control chip, high quality components to improve system performance, the highest conversion efficiency is up to 98%, ultra fast tracking speed to ensure tracking efficiency. The controller is 12V/24V automatic identification, compatible with 12V 24V system. 2、LCD Display: The controller has a large LCD display, and the charging and discharging parameters are adjustable. With power off memory function, the status and data can be clearly displayed, and the mode and parameter configuration can be easily switched. It is suitable for home, industry, and business. 3、Multiple Protection Functions: The controller's complete 3 stage charging management improves system efficiency and extends battery life. Built in multiple protection functions, over current, short circuit protection, open circuit protection, reverse connection protection, all of which are self recovery and do not damage the controller. 4、Input and Output: The controller has dual USB outputs, the maximum current is up to 25A, supports mobile phone charging, and uses dual for MOS anti backflow circuits with ultra low heat. The controller will heat up during operation, please pay attention to install the charge controller in a flat, well ventilated place. 5、Easy to Install and Operate: The charge controller should be connected to the battery first, then the solar panel, and finally the load! The disassembly sequence is opposite to the wiring sequence.

More Information

Item Type: Solar Charge Controller

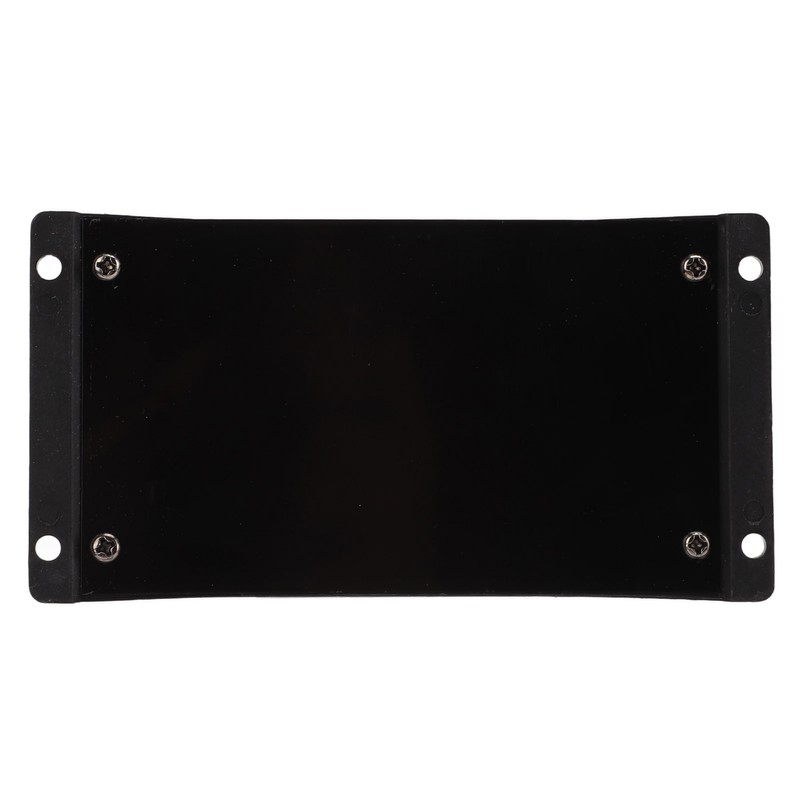

Material: Shell Plastic + Back Plate Iron
Product Color: Black

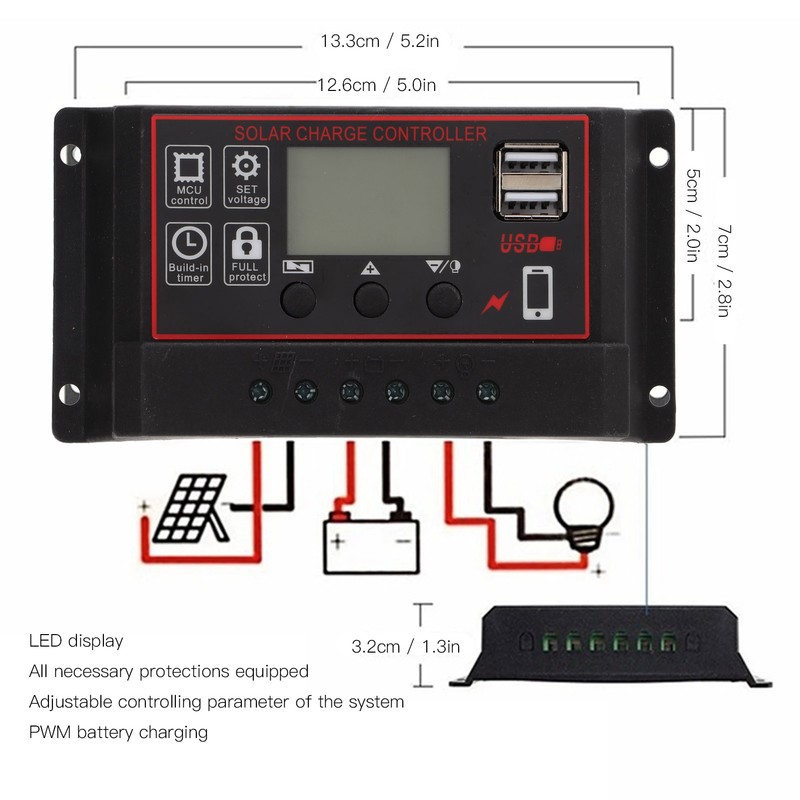

Total Length: Approx. 13.3cm / 5.2in
Total Width: Approx. 7cm / 2.8in
Total Width: Approx. 3.2cm / 1.3in
Display Length: Approx. 12.6cm / 5.0in
Display Width: Approx. 5cm / 2.0in
Product Weight: Approx. 157g / 5.5oz
Display Mode: LCD Screen
Voltage: 12V / 24V Automatic Identification
Applicable Solar Panels: 12V is suitable for 18V solar panels, 24V is suitable for 36V solar panels
Maximum Photovoltaic Voltage: 12V battery, up to 23V; 24V battery, up to 46V (up to 50V under no load)
Full Cut Off Voltage: 14.4 / 28.8V
Discharge Cut Off Voltage: 10.7 / 21.4V
Discharge Recovery Voltage: 12.6 / 25.2V
Charging Recovery Voltage: 13.2V / 26.4V
Light Controlled Turn On Threshold: Solar Panel 8V (light on delay)
Light-controlled Turn Off Threshold: Solar Panel 8V (light on delay)
Standby Current: <10MA

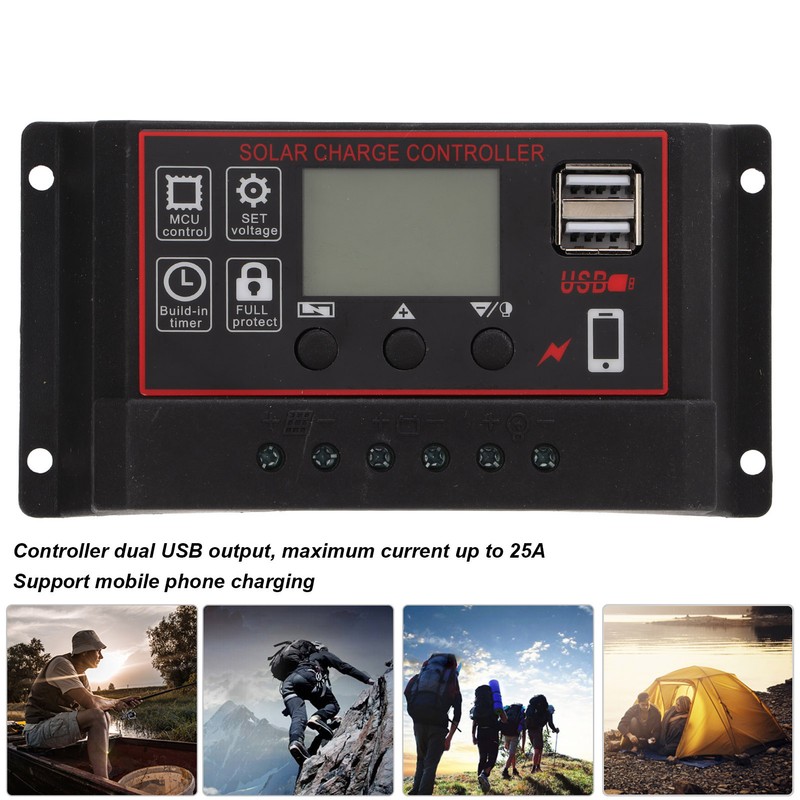

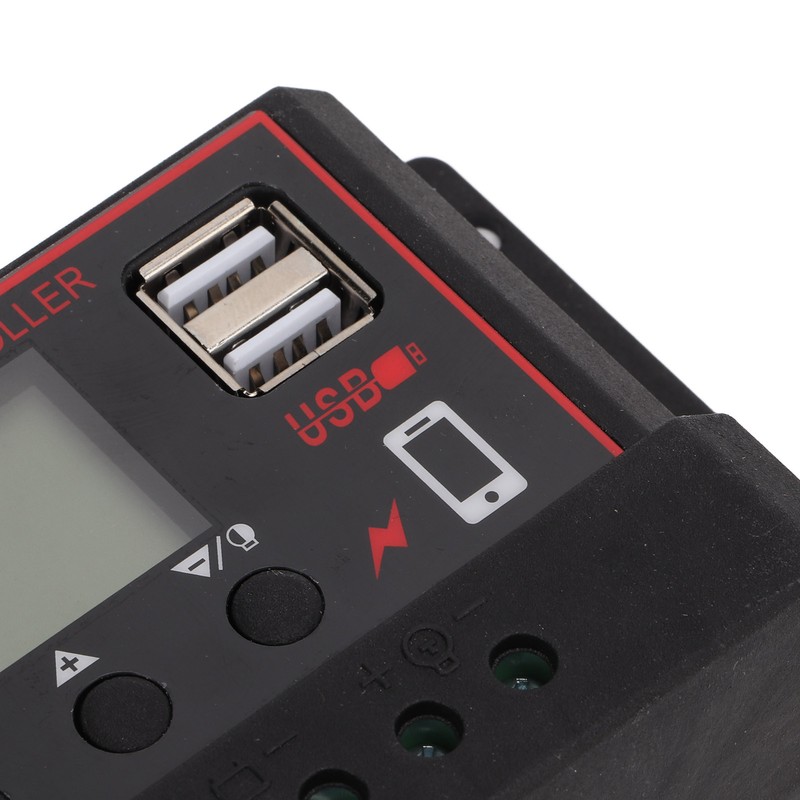

USB Output: Dual USB Output, 5V / 2.5A(MAX)
Working Temperature: -35℃ to 60℃

Notice

1. This controller is 12V/24V automatic identification. When installing for the first time, please make sure that the battery has enough voltage so that the controller can recognize the correct battery type. In order to protect the service life of the battery, once the battery voltage is lower than 8V, the solar controller will automatically shut down.
2. Install the controller as close to the battery as possible to avoid voltage drop caused by excessively long wires and affect normal voltage judgment.
3. This controller is only suitable for various VRLA batteries (including openings, seals, gels, etc.), please do not use it for other batteries (including lithium battery, NI‑MH battery, etc.).
4. This controller can only use photovoltaic panels as the charging source. Do not use DC or other power sources as the charging source.
5. The controller will generate heat when it is running. The operating temperature of the controller is ‑35°C to +60°C. Please be careful to install the controller on a flat, well‑ventilated surface.
6. The LCD display of this controller has an error of 0.2V‑0.3V, but this is normal.
