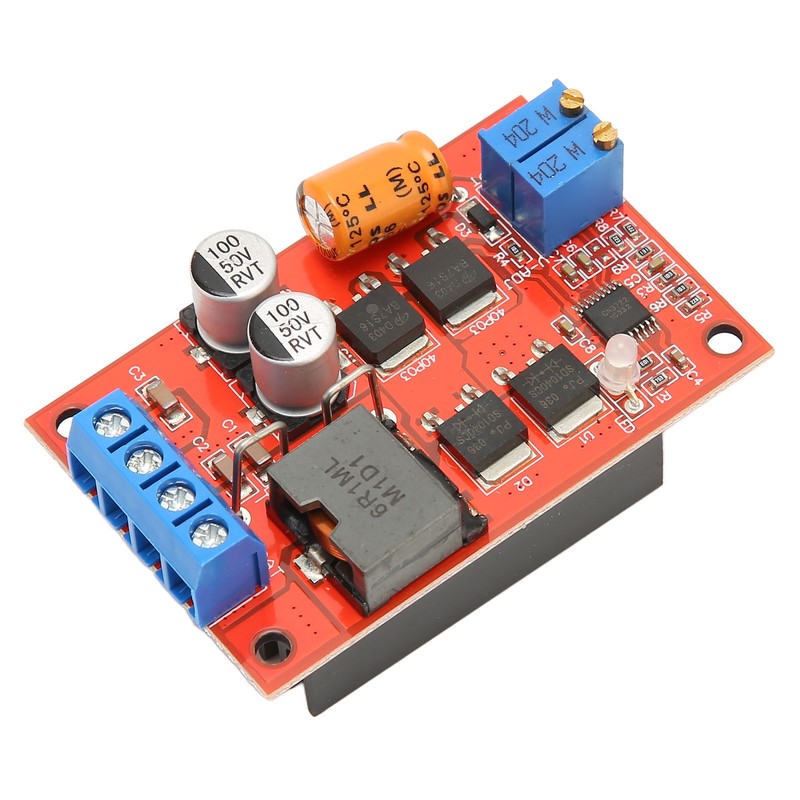

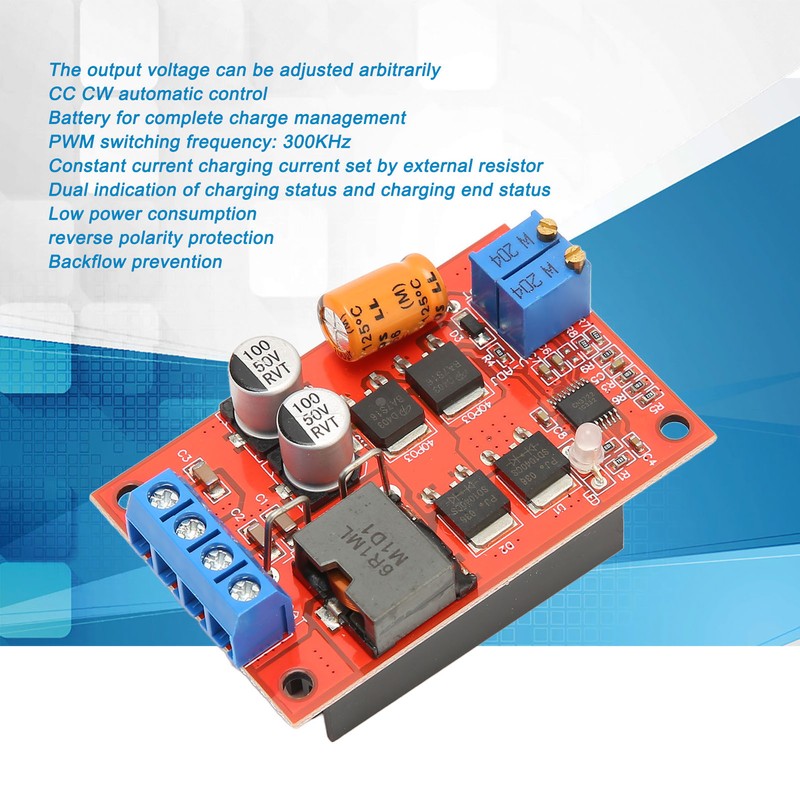

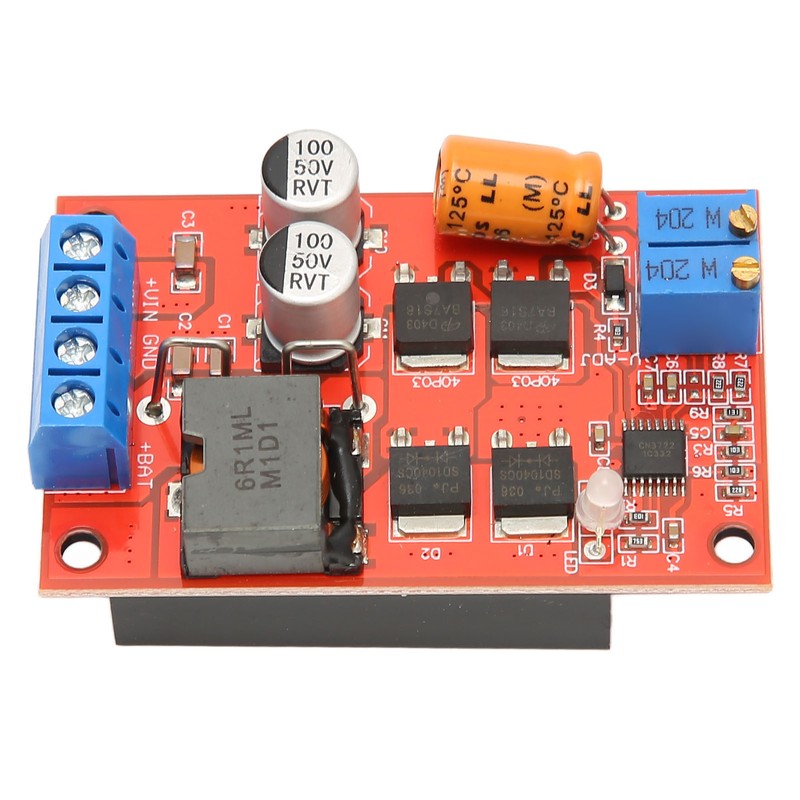

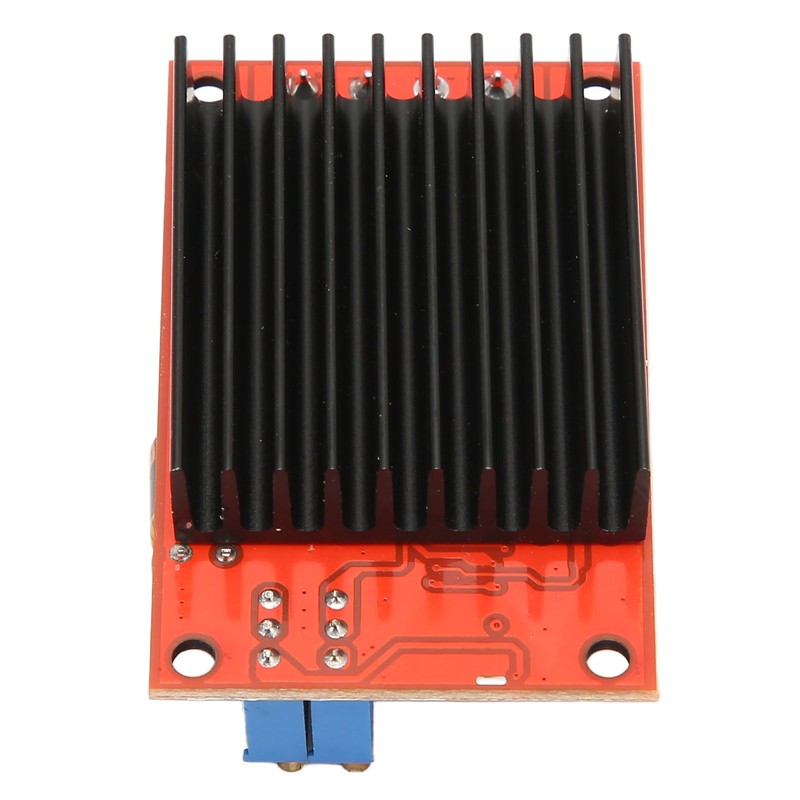

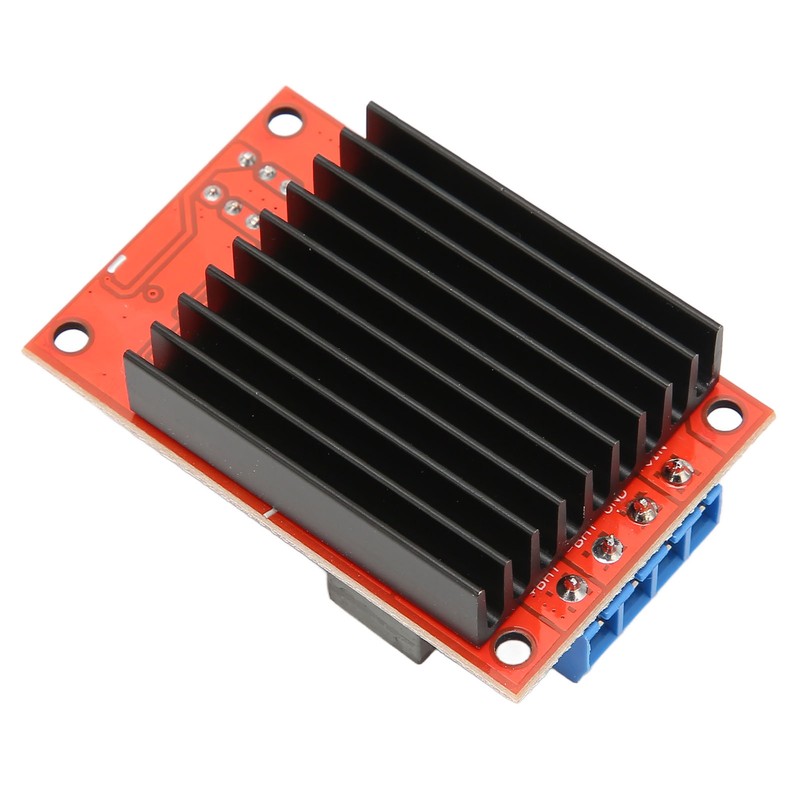

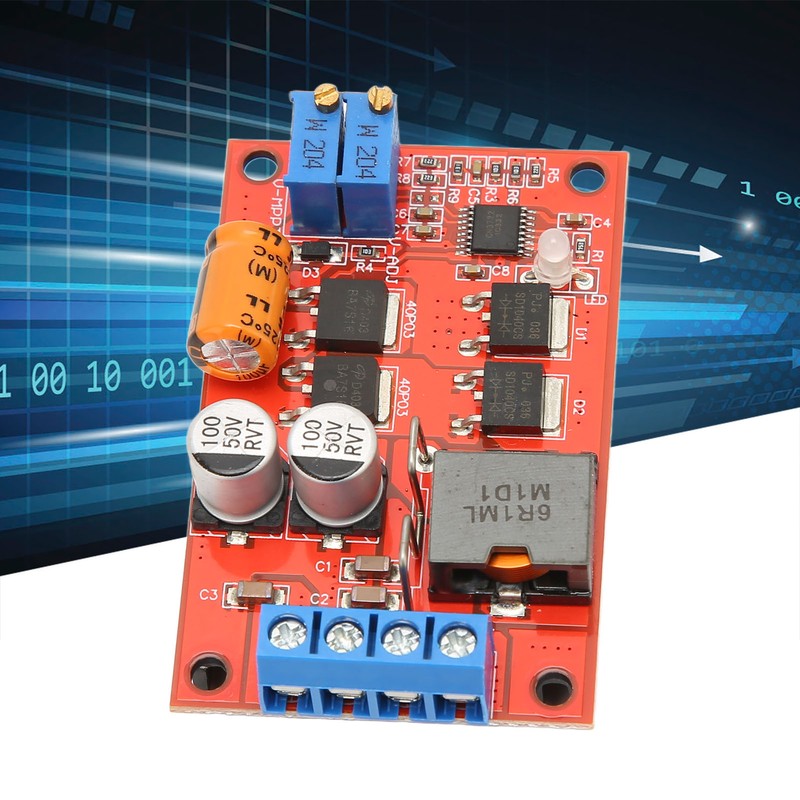

Solar Charge Controller Reverse Connection Protection Low Power Consumption 5A MPPT Solar Panel Charge Controller

$20.19

  • $14.50 shipping from United States

  • Arrives

1、Scope of Application: The scope of application is 1W‑100W, 9V‑28V, suitable for 9V 12V 18V 24V solar panels to charge batteries, nickel cadmium, nickel hydrogen, lithium batteries (battery packs), wind turbines, solar street lights, etc. 2、Adjustable Output Voltage: The output voltage can be adjusted arbitrarily, CC CW automatic control (can support single or multi cell lithium battery or lithium iron phosphate, high power LED, etc.) 3、Complete Charge Management: Complete charge management of battery, PWM switching frequency: 300KHz, constant current charging current set by external resistor (preset 5000mA/2000MA), trickle charge for deeply discharged battery. 4、Charging Status Indication: Dual indication of charging status and charging end status (the red light is on when charging, the blue light is on when fully charged, and the red light is flashing and the blue light is always on, indicating that the battery is not connected). 5、Reverse Connection Protection: It has anti reverse connection protection with low voltage drop, and it does not work when connected in reverse, preventing reverse connection from damaging the charging board.

Isin:
IOMVUFKIIOWL

$20.19

  • $14.50 shipping from United States

  • Arrives

In Stock

Sold by , Fulfilled by IBSPOT • Ships from US

IBSPOT Buyer Protection
  • Free 30-Day Returns
  • Full Refund for Damaged or Incorrect Items
  • Guaranteed Delivery or Money Back
  • Secure Checkout & Fast Support
scroll to top arrow
Solar Charge Controller Reverse Connection Protection Low Power Consumption 5A MPPT Solar Panel Charge Controller

Solar Charge Controller Reverse Connection Protection Low Power Consumption 5...

$20.19

1、Scope of Application: The scope of application is 1W‑100W, 9V‑28V, suitable for 9V 12V 18V 24V solar panels to charge batteries, nickel cadmium, nickel hydrogen, lithium batteries (battery packs), wind turbines, solar street lights, etc. 2、Adjustable Output Voltage: The output voltage can be adjusted arbitrarily, CC CW automatic control (can support single or multi cell lithium battery or lithium iron phosphate, high power LED, etc.) 3、Complete Charge Management: Complete charge management of battery, PWM switching frequency: 300KHz, constant current charging current set by external resistor (preset 5000mA/2000MA), trickle charge for deeply discharged battery. 4、Charging Status Indication: Dual indication of charging status and charging end status (the red light is on when charging, the blue light is on when fully charged, and the red light is flashing and the blue light is always on, indicating that the battery is not connected). 5、Reverse Connection Protection: It has anti reverse connection protection with low voltage drop, and it does not work when connected in reverse, preventing reverse connection from damaging the charging board.

Isin:
IOMVUFKIIOWL

1、Scope of Application: The scope of application is 1W‑100W, 9V‑28V, suitable for 9V 12V 18V 24V solar panels to charge batteries, nickel cadmium, nickel hydrogen, lithium batteries (battery packs), wind turbines, solar street lights, etc. 2、Adjustable Output Voltage: The output voltage can be adjusted arbitrarily, CC CW automatic control (can support single or multi cell lithium battery or lithium iron phosphate, high power LED, etc.) 3、Complete Charge Management: Complete charge management of battery, PWM switching frequency: 300KHz, constant current charging current set by external resistor (preset 5000mA/2000MA), trickle charge for deeply discharged battery. 4、Charging Status Indication: Dual indication of charging status and charging end status (the red light is on when charging, the blue light is on when fully charged, and the red light is flashing and the blue light is always on, indicating that the battery is not connected). 5、Reverse Connection Protection: It has anti reverse connection protection with low voltage drop, and it does not work when connected in reverse, preventing reverse connection from damaging the charging board.

More Information

Item Type: Solar Charge Controller
Material: PCB
Module Nature: with Real MPPT Solar Maximum Power Point Tracking Function, Automatic and Intelligent Charging Management, Low Power Consumption
Input Voltage: Dc 8-28v Input Dc Voltage (prohibit Input of Ac Power)
Output Voltage: Dc 5-26v Steplessly Adjustable
Output Current: 2A 5A (There Are Two Types of Maximum Charging Current: a Version 5A, B Version 2A a Version with 5a is Shipped by Default)
Charging Indicator: Fast Charging Red Light is On, Red and Blue Light Alternately Flashing when Fully Charged. Automatically Stop when Full.
Mppt Function: Mppt Maximum Power Point Automatic Tracking Function, Can Make Full Use of Solar Energy Charging
Minimum Voltage Difference: 1v (because It is a Stepping Down Voltage Regulator Module, the Input Voltage is at Least 1v Higher Than the Output)
Ultra Low Power Consumption: Adopt Ultra Low Dropout Design to Achieve Low Power Consumption and Higher Conversion Efficiency, Professionally Adapted to Solar Panels
Operating Temperature: Industrial Grade (-40℃ to +85℃)
Load Regulation: ±1%
Voltage Regulation Rate: ±0.5%
Conversion Efficiency: Maximum: 93% Peaking: 95% Different Lighting Conditions Vary.
Charging Method: Fully Automatic and Intelligent Three Stage Charging Mode. Self Tracking Solar Power Automatically Adjusts the Charging Current
No Load Current: 3ma Can Easily Start Automatically Even in Weak Sunlight in the Morning, Eliminating the Need for Manual Switches.
Input Reverse Connection Protection: Mos Tube Ultra Low Dropout Anti Reverse Connection Protection, Input Reverse Connection Does Not Work.
Output Backflow Protection: Effectively Prevent the Battery's Electricity from Flowing Back to the Charging Board at Night

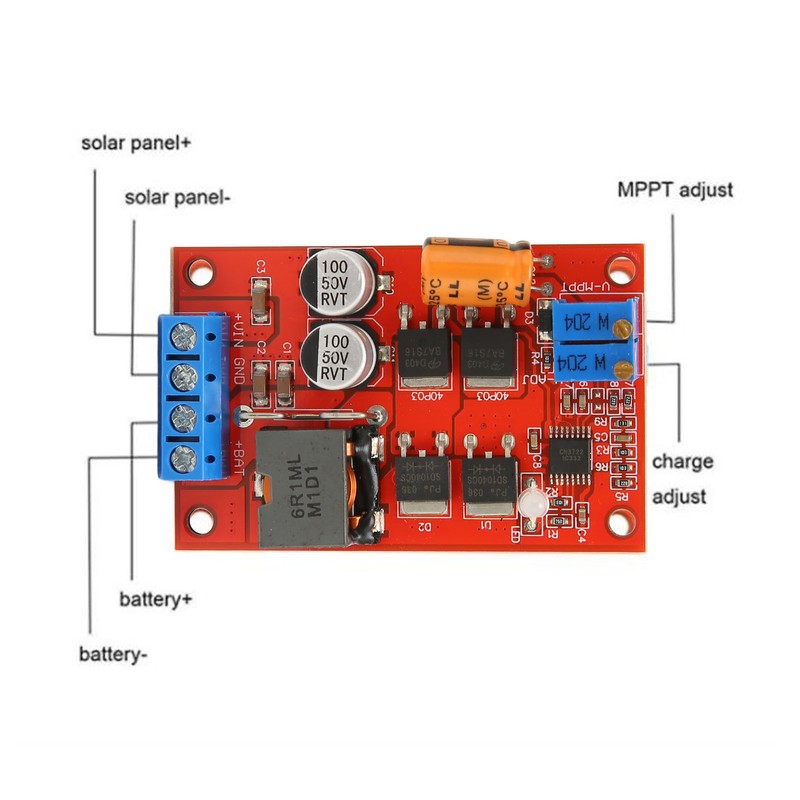

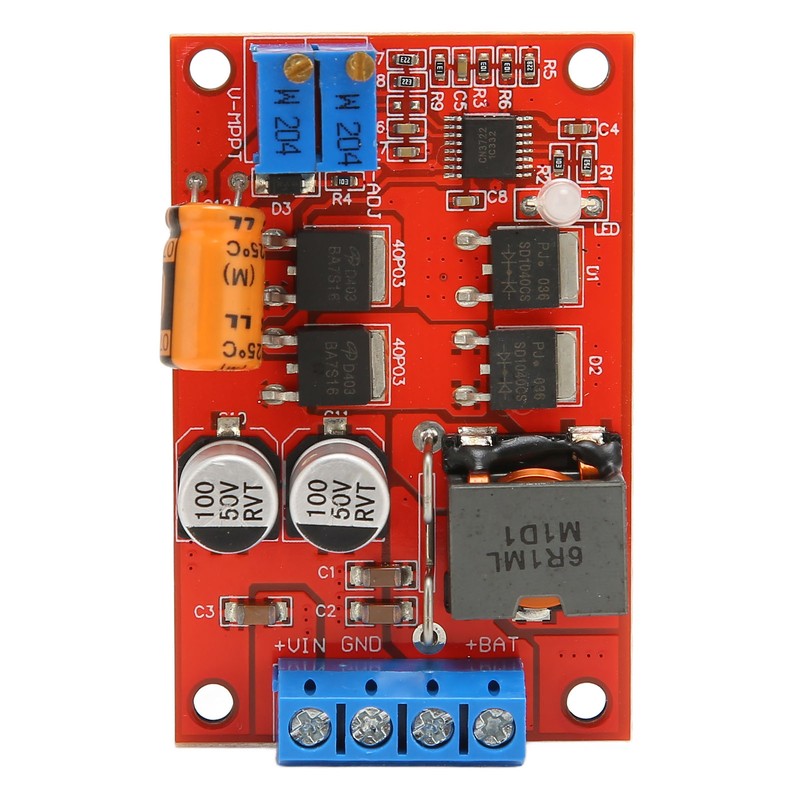

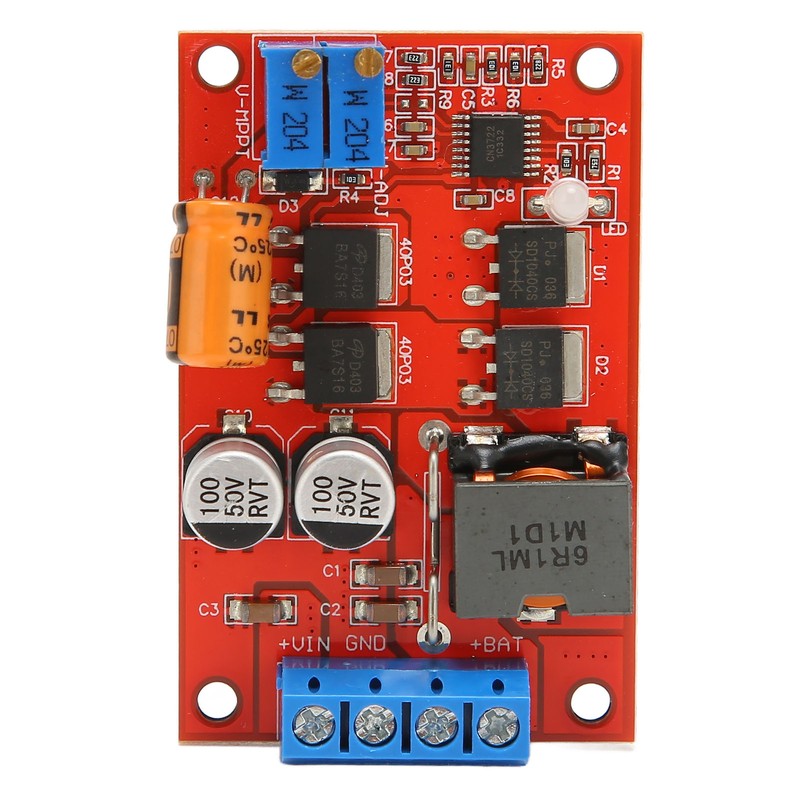

Wiring Method: with Terminals
Mppt Voltage: Arbitrarily Adjustable, Mppt Voltage of Different Solar Modules is Different, Low Power Consumption Design, Reduce Power Loss. the Mppt Function Can Effectively Prevent the Voltage of the Solar Panel from Being Dragged to Death by the Battery and Thus Charging Slowly

Notice

For the first charge, please adjust the output voltage before and monitor the battery voltage closely to prevent overcharging. Do not charge unprotected lithium batteries
