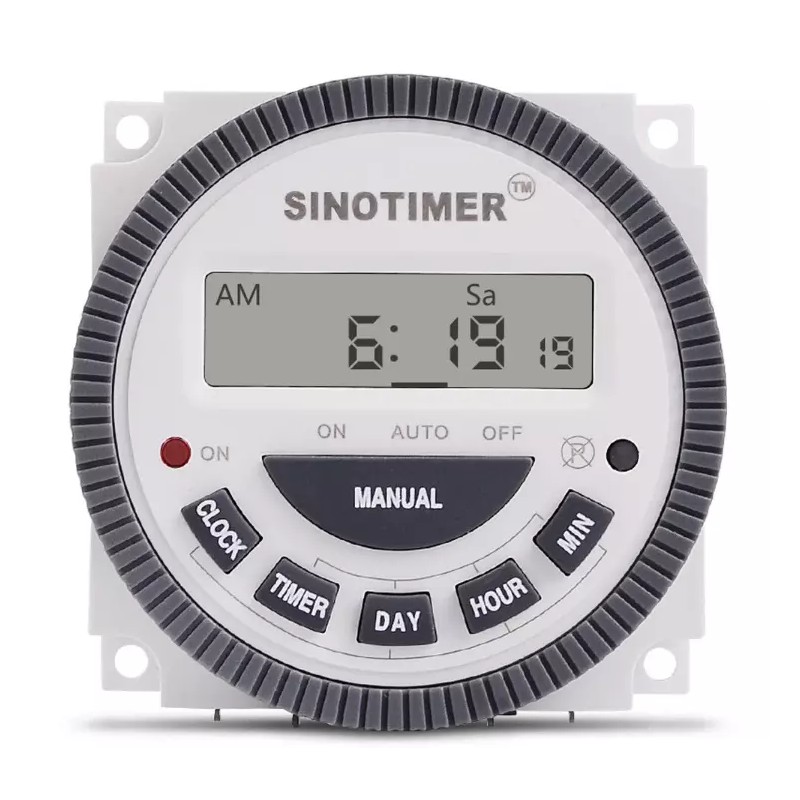

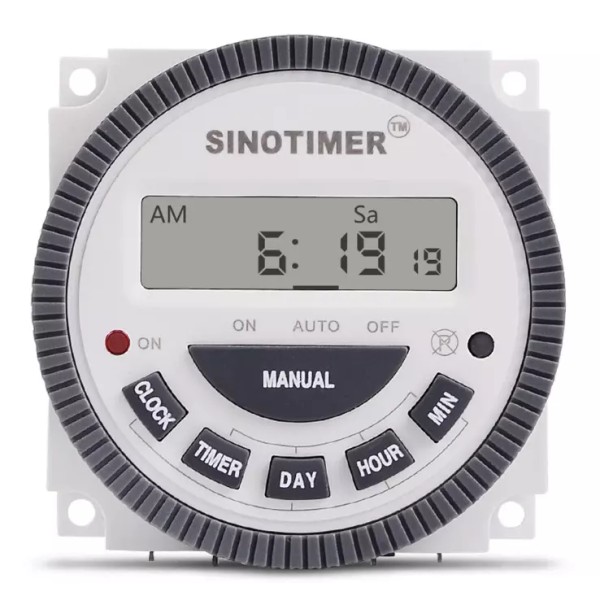

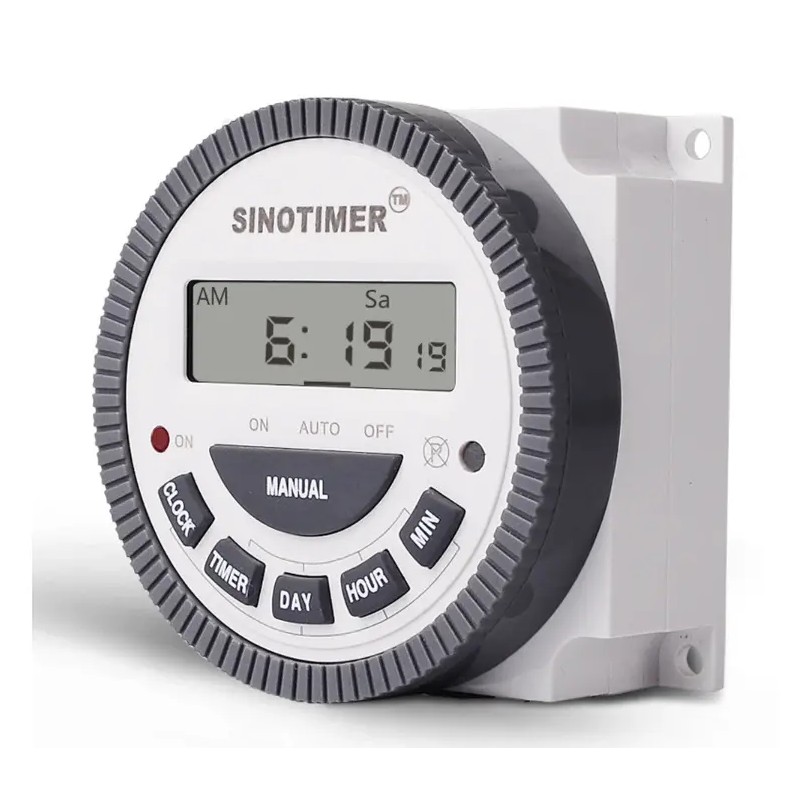

Sinotimer TM-619-4 Multipurpose Programmable Digital Timer Module Model Input 12VDC
$43.95
- Free US shipping
-
Arrives
- Place of Origin:
- Zhejiang, China
- Brand Name:
- SINOTIMER
- Model Number:
- TM619-4
- Max. Current:
- 16A
- Max. Voltage:
- 12VDC
- Function:
- 7 Days 24hrs Programmable Time Switch
- Programs:
- 16 ON/OFF per Day
- Programming Combinations:
- 15 Groups
- Operating voltage:
- 12VDC/AC
- Output:
- 16amp, SPDT @ 250Vac, 1NO+1NC.
- Interval:
- 1 Mins
- Batteries:
- 1.2V/40mAh inside
- Dustproof Cover:
- Yes
- Installation:
- Panel or Screw
- Certifications:
- CE RoHS EMC LVD
- Selling Units:
- Single item
- Single package size:
- 7X7X4 cm
- Single gross weight:
- 0.110 kg
- Package Type:
1 inner recycled carton box
- Lead Time:
Quantity(Pieces) 1 - 10 11 - 100 101 - 500 >500 Est. Time(days) 10 12 15 To be negotiated
12v Relay Digital LCD Power Programmable Timer Time Switch
Multipurpose TM619 Digital Timer Switch with Waterproof Cover can automatically switch on and switch off various kinds of electric equipment at a preset time before a week and can work cyclically per week or day (from one minute to 168hours) according to the preset programs.
Application:
- streetlight
- neon light (sign)
- lamp
- water heater
- air conditioner
- billboard
- electric cooker
- booster, sprayer
- bottler
- preheater
- pool
- gate
- sprinkler
- agriculture facilities
- broadcasting equipment
Characteristics:
* You can use the timer to SWITCH ON/OFF any electrical equipments at a preset timer
* 16 ON/OFF programs per day, 15 combinations to a week.
* 24 hours / 7 days a week programmable.
* Built-in battery for backup the memory (save the programs you set) when power failure
* Repeat programs with 16 on/off settings, and setting on/off manually
* Easy to read LCD display, LED indicators
* Admissible ambient temperature: -10 C to 55 Celsius
* Square housing & slide bracket available as option

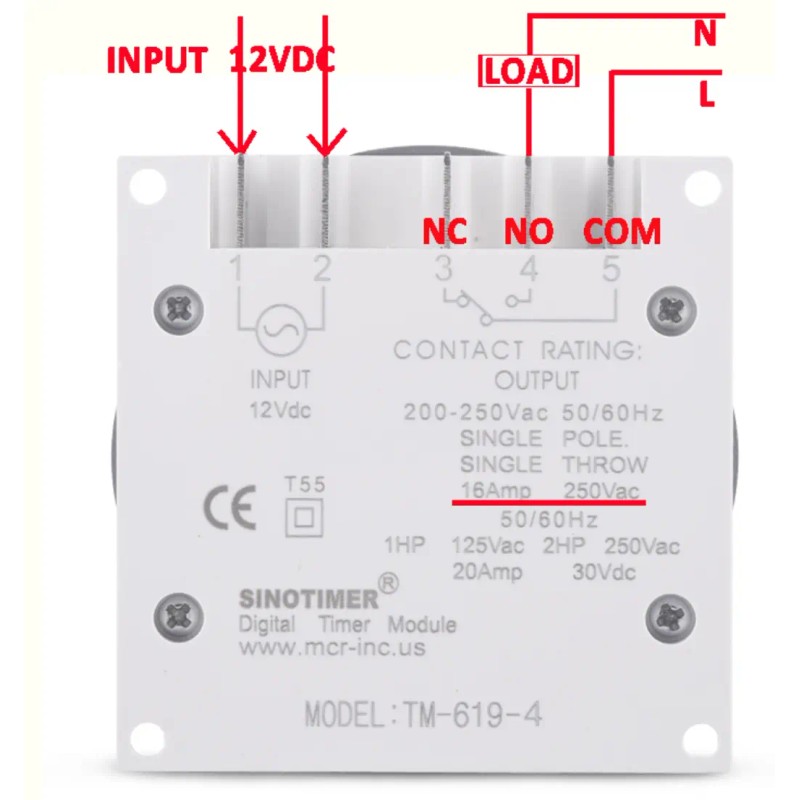

* Form C output, NO, NC, Common, 1/4 Quick Connect
* Contact rating: Resistive 16A, Inductive 8A, Motor 1/2HP
Specification:
| Muliti Input Voltage | 12V DC/AC, 24VDC/AC, AC110V, AC240V |
| Output | 16amp, SPST @ 250Vac, volt output. |
| Installation | pannel mounted. |
| Usage | 7 Days 24hrs Programmable |
| Programs | 16 ON/OFF per Day |
| Programming Combinations | 15 Groups |
| Power Supply | 12VDC 50/60Hz |
| Load | 16A |
| Battery for Saving Programs | 1.2V/40mAh Inside |
| Output | Voltage Output SPST |
| Certificates | CE RoHS EMC LVD |

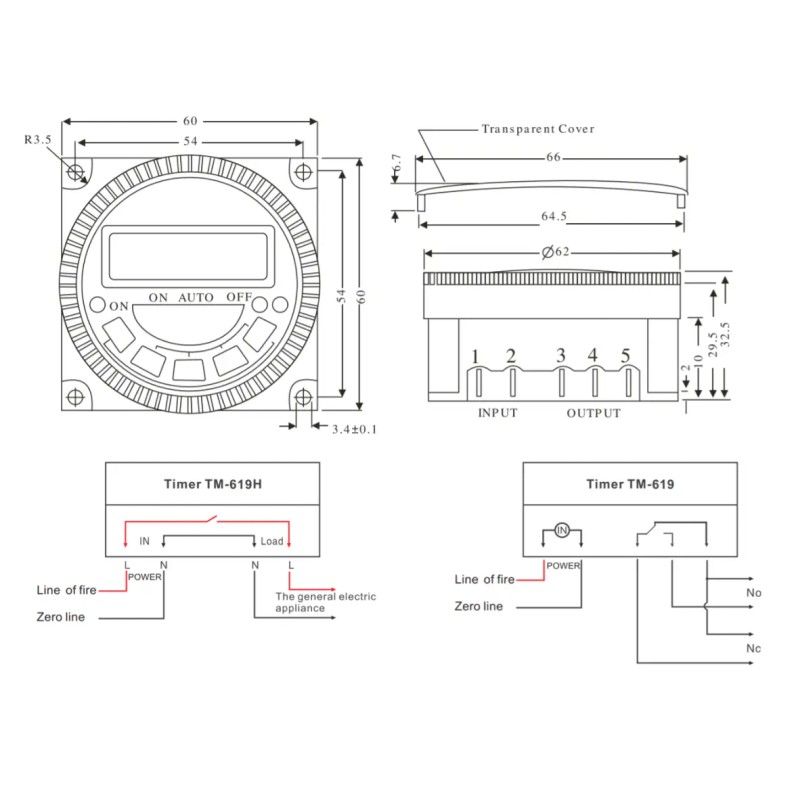

| Dimensions | 60*60*32.5 mm |
| Cover | Dustproof |
| 12/24 hours format | Yes |
dimensions:42*29*32cm
