SIM7600G-H 4G DONGLE with Antenna, Industrial Grade 4G USB/UART, Communication and GNSS Positioning Support PC/Raspberry Pi/Drone/Industrial Computer, Support Global Band
$186.96
- $14.50 shipping from Australia View details
-
Arrives
- Supports 2G/3G/4G network connection, global band. Driver provided, for operating systems including Windows/Linux. Support Multi host: working with laptop / Raspberry Pi / industrial computer,etc. Up to 150Mbps downlink and 50Mbps uplink.
- Onboard USB port, for directly connecting with ARM/X86 hosts or other industrial computer. Onboard UART port with hardware flow control, for connecting with host boards like Arduino/STM32.
- Onboard GNSS connector, supports GPS, Beidou, Glonass, LBS base station positioning (additional GNSS antenna is required but NOT included)
- Cloud Communication: Supports USB/UART communication interfaces; Supports TCP/UDP/FTP/FTPS/HTTP/HTTPS communication protocols.
- Baudrate support: 300bps ~ 4Mbps (115200bps by default). Baudrate auto-negotiation: 9600bps ~ 115200bps.
- Supports 2G/3G/4G network connection, global band. Driver provided, for operating systems including Windows/Linux. Support Multi host: working with laptop / Raspberry Pi / industrial computer,etc. Up to 150Mbps downlink and 50Mbps uplink.
- Onboard USB port, for directly connecting with ARM/X86 hosts or other industrial computer. Onboard UART port with hardware flow control, for connecting with host boards like Arduino/STM32.
- Onboard GNSS connector, supports GPS, Beidou, Glonass, LBS base station positioning (additional GNSS antenna is required but NOT included)
- Cloud Communication: Supports USB/UART communication interfaces; Supports TCP/UDP/FTP/FTPS/HTTP/HTTPS communication protocols.
- Baudrate support: 300bps ~ 4Mbps (115200bps by default). Baudrate auto-negotiation: 9600bps ~ 115200bps.

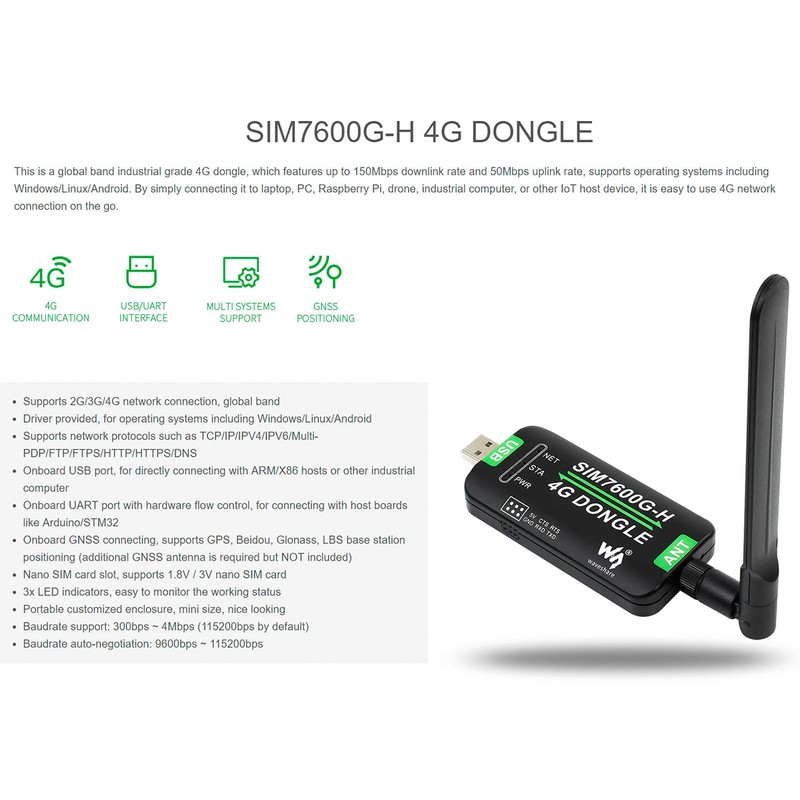

This is a global band industrial grade 4G dongle, which features up to 150Mbps downlink rate and 50Mbps uplink rate, supports operating systems including Windows/Linux. By simply connecting it to laptop, PC, Raspberry Pi, drone, industrial computer, or other IoT host device, it is easy to use 4G network connection on the go.

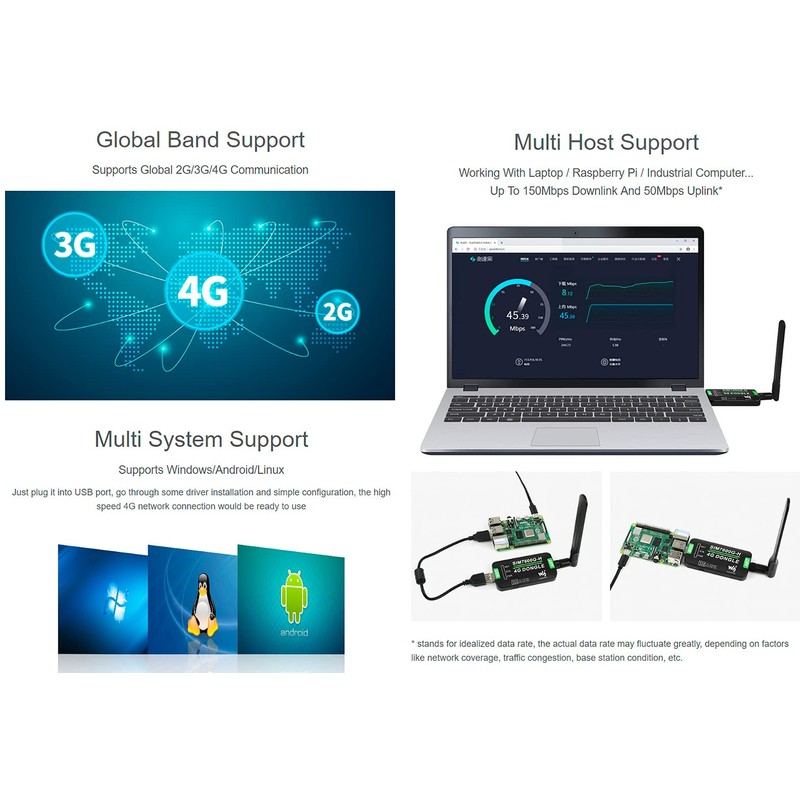

1) Global Band Support
Supports global 2G/3G/4G communication
2) Multi Host Support
Working with laptop / Raspberry Pi / industrial computer,etc
Up to 150Mbps downlink and 50Mbps uplink
3) Multi System Support
Supports Windows/Linux
Just plug it into USB port, go through some driver installation and simple configuration, the high speed 4G network connection would be ready to use

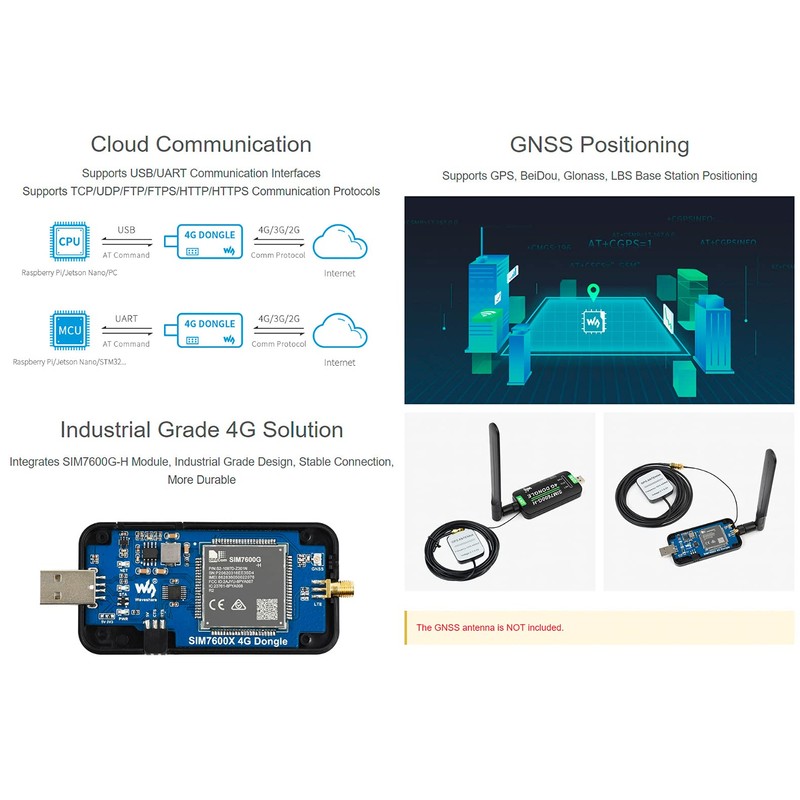

4) Cloud Communication
Supports USB/UART communication interfaces
Supports TCP/UDP/FTP/FTPS/HTTP/HTTPS communication protocols
5) GNSS Positioning
Onboard GNSS connector, supports GPS, Beidou, Glonass, LBS base station positioning (additional GNSS antenna is required but NOT included)
6) Embedded AUX antenna
Embedded customized FPC AUX antenna, better communication via dual antennas
7) Industrial Grade 4G Solution
Integrates SIM7600G-H module, industrial grade design, stable connection, more durable

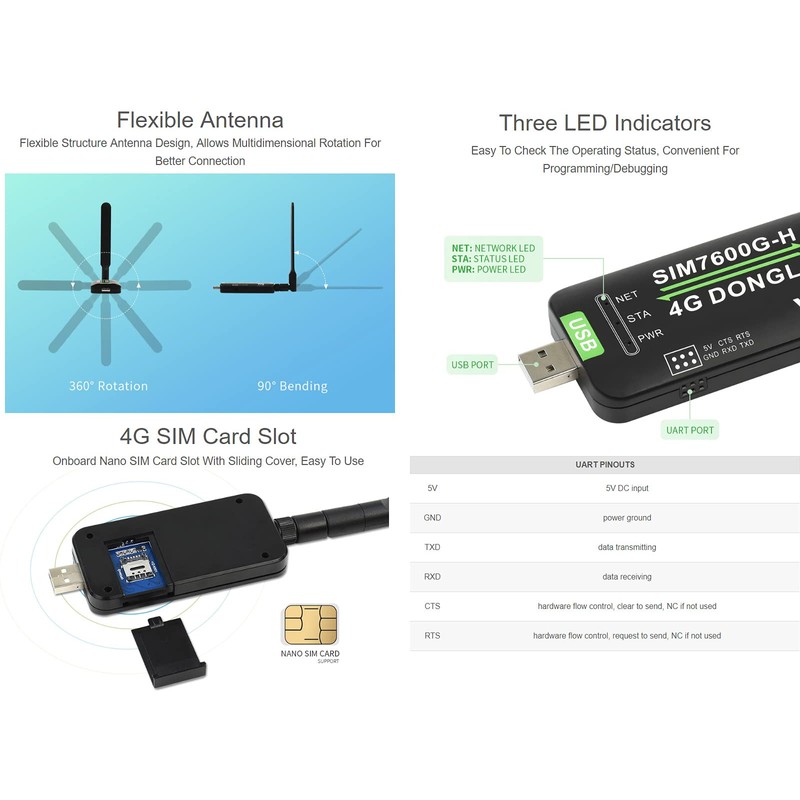

8) Flexible antenna
Flexible structure antenna design, allows multidimensional rotation for better connection
9) 4G SIM Card Slot
Onboard nano SIM card slot with sliding cover, easy to use
10) Three LED Indicators
Easy to check the operating status, convenient for programming/debugging
Online Development Resources /User Manual://bit.ly/3NoaQ1U

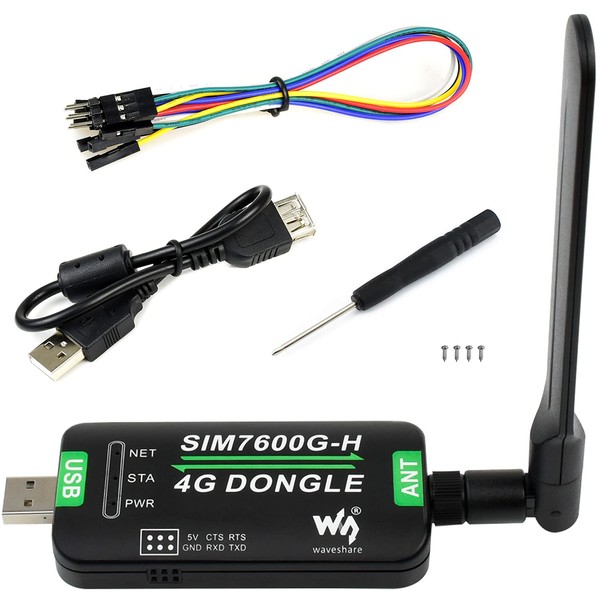

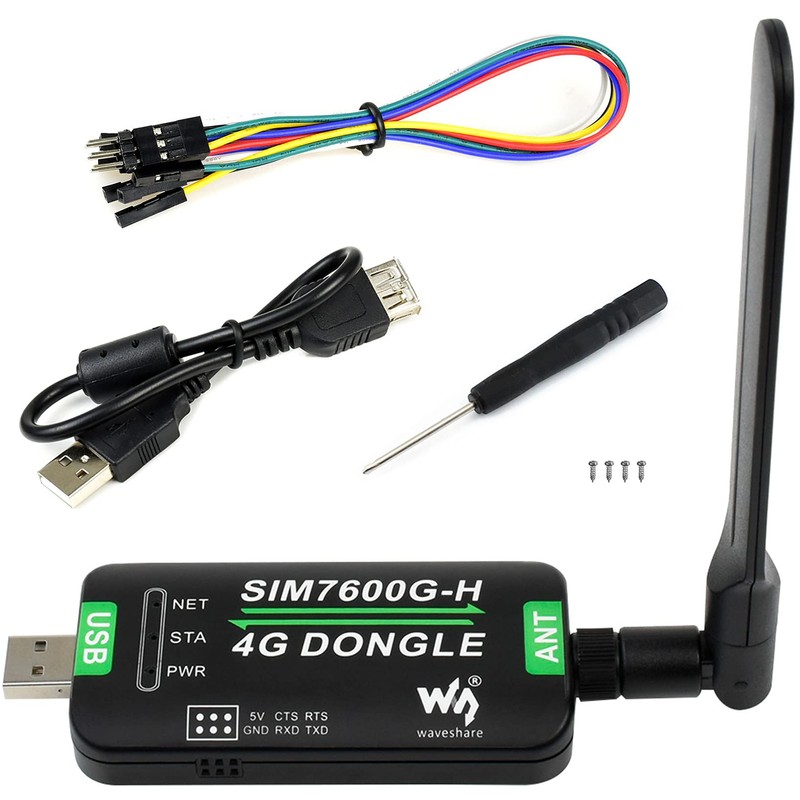

Package Content
SIM7600G-H 4G DONGLE x1
LTE Antenna x1
USB extension cable x1
6PIN jumper wire x1
Screws tool kit x1
