SEQURE 3625 Brushless Motor 1800KV Outrunner Motor 2-4S Outer Rotor Brushless Motor with 3.5mm Male Banana Connector for 1/10 RC Crawler Car
$89.49
- $5.99 shipping from United States View details
-
Arrives
- SEQURE 3625 outrunner motor adopts 14 Pole 12 Slot High torque rotor design, specially designed for 1/10 remote-controlled climbing crawler cars.
- Motor KV 1800, Working voltage 2-4S Lipo , Recommend 70A or above ESC, Mounting space 24.5mm.
- CNC Machined aluminum alloy shell for solid toughness. High-purity copper windings maximize efficiency. High-strength stainless steel motor shaft(Φ 3.175mm).
- Small and lightweight design, with a volume of 36*25mm, and a 12-slot stator of 30*12mm. Only 90g( includes 16AWG 200mm motor wire), maximizes vehicle weight reduction and lowers the center of gravity.
- Eight-angle mounting holes eliminate any interference in the installation space. Silent and denoise design to lower the operating noise greatly.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- SEQURE 3625 outrunner motor adopts 14 Pole 12 Slot High torque rotor design, specially designed for 1/10 remote-controlled climbing crawler cars.
- Motor KV 1800, Working voltage 2-4S Lipo , Recommend 70A or above ESC, Mounting space 24.5mm.
- CNC Machined aluminum alloy shell for solid toughness. High-purity copper windings maximize efficiency. High-strength stainless steel motor shaft(Φ 3.175mm).
- Small and lightweight design, with a volume of 36*25mm, and a 12-slot stator of 30*12mm. Only 90g( includes 16AWG 200mm motor wire), maximizes vehicle weight reduction and lowers the center of gravity.
- Eight-angle mounting holes eliminate any interference in the installation space. Silent and denoise design to lower the operating noise greatly.

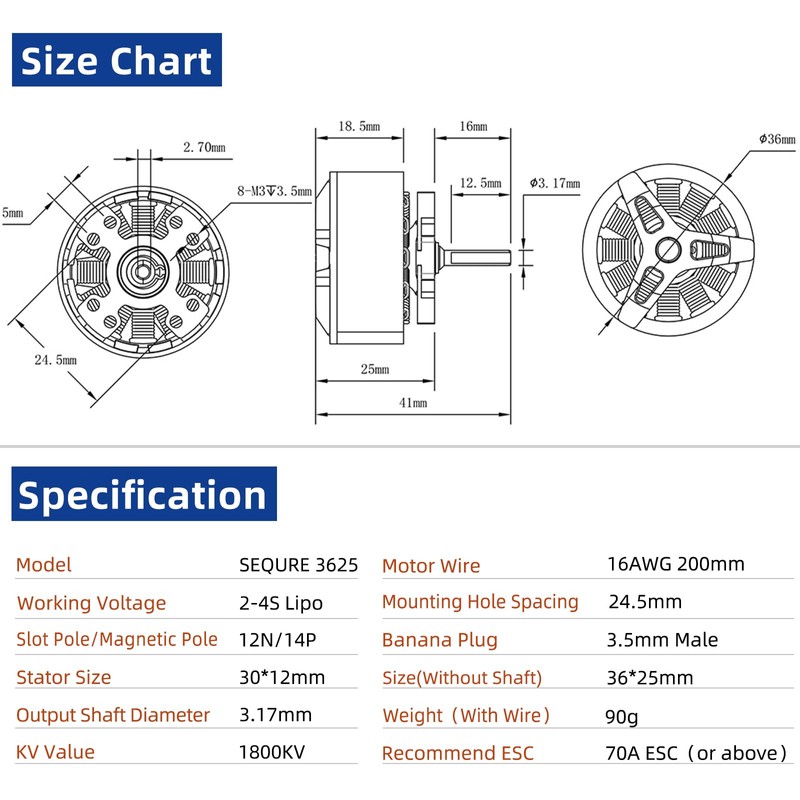

Specification:
Model: SEQURE 3625 Brushless Motor
Working Voltage: 2-4S Lipo
Slot Pole/Magnetic Pole: 12N/14P
Stator Size: 30*12mm
Output Shaft Diameter: 3.17mm
KV Value: 1800KV
Motor Wire: 16AWG 200mm
Mounting Hole Spacing: 24.5mm
Banana Plug: 3.5mm Male
Size(Without Shaft): 36*25mm
Weight(With Wire): 90g
Recommend ESC: 70A ESC (or above)
Features:
SEQURE 3625 is a high-performance brushless outer rotor motor specially designed for 1/10 remote-controlled climbing crawler cars. Features with the smallest size, highest power, and largest torque.
The motor has a volume of 36*25mm and adopts a 12-slot stator of 30*12mm, combined with high-purity copper wire winding, which greatly improves the motor power and explosive force.

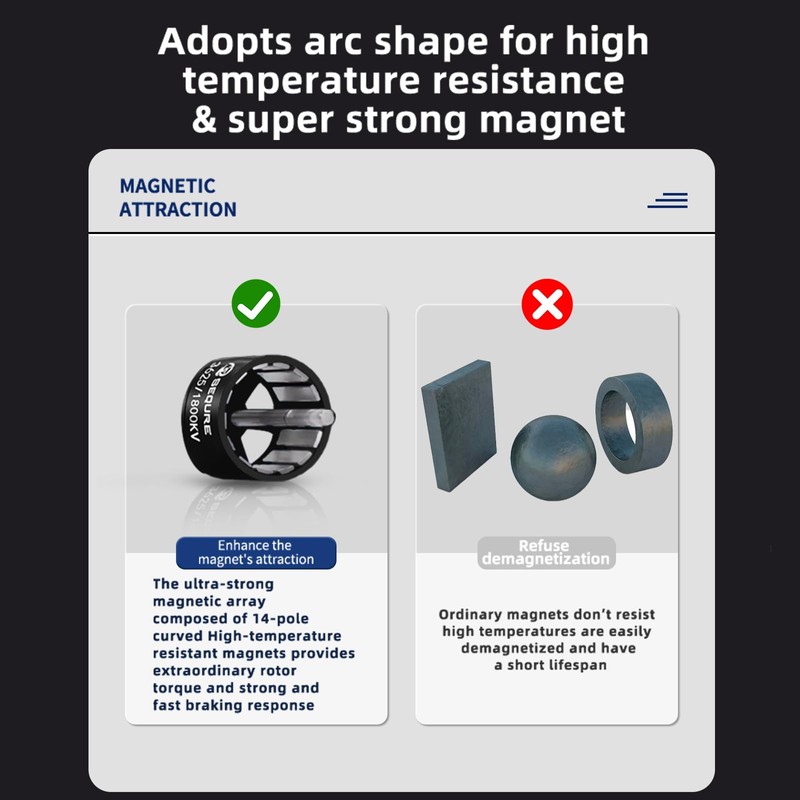

The ultra-strong magnetic array composed of 14-pole curved high-temperature resistant magnets provides extraordinary rotor torque and powerful and fast braking response.
The shell is made of high-hardness aluminum alloy and high-precision CNC processing, and the structure is stable and reliable.
High-strength stainless steel motor shaft, high-precision high-quality bearings, the motor is durable.
Eight-angle mounting holes eliminate any interference in the installation space.
Silent and denoise design to lower the operating noise greatly. No worry about the breaking wind noise at high speed.
Lightweight design, weight about 90g (including 16AWG 200mm motor wire), maximizes the reduction of vehicle weight and lowers the center of gravity.
