SEIWEI C80 Non Overlay Cabinet Hinge with Face Frame Plate for Door Connect Frame for Kitchen Cabinet, Corner Door Hinges, Hardware Corner Cabinet Replacement, Pack of 2

$48.62

  • 【Installation Information】The cup diameter of cabinet hinge is 35mm/1.37in, the depth of cup is 11.5mm/0.45, the distance of screw holes is 48mm/1.88in and 33mm/1.30in and the distance of side panel base installation is 37 mm/1.45in, which is better recommended to be used for the cabinet door with the thickness of panel 16-20mm/0.63-0.78in as well as the optimal door edge distance is 5mm/0.19in, followed by 4-6mm/0.15-0.23in.

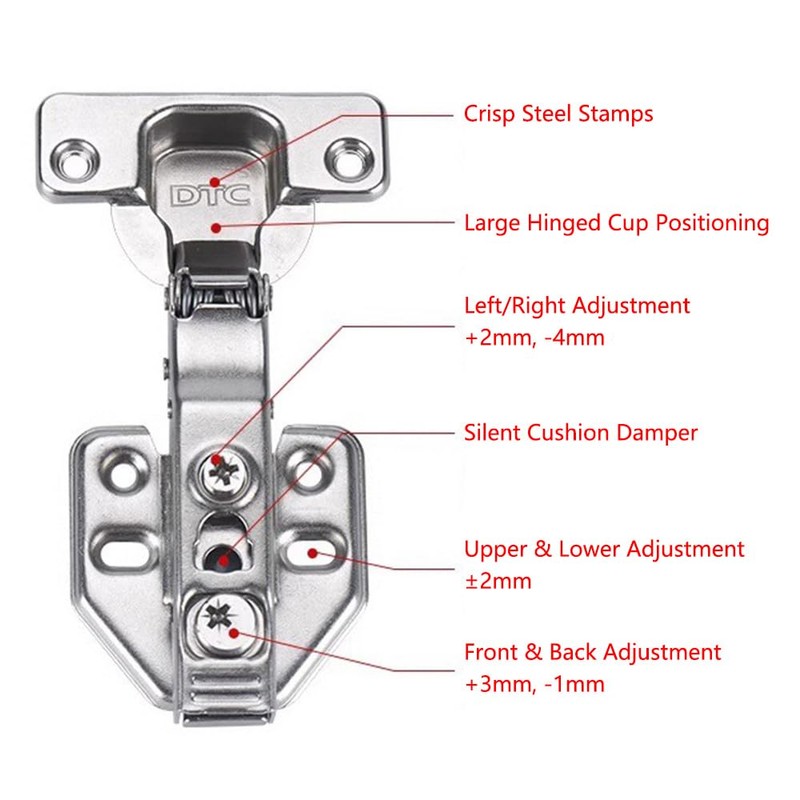

  • 【Sturdy And Durable】Door closing & opening hinge made of high quality cold rolled steel with surface plating, built-in shrapnel with heat treatment, so the hinge has a good load-bearing capacity, hardness, toughness, corrosion resistance, rust resistance, wear-resistant that can be used for a long time.

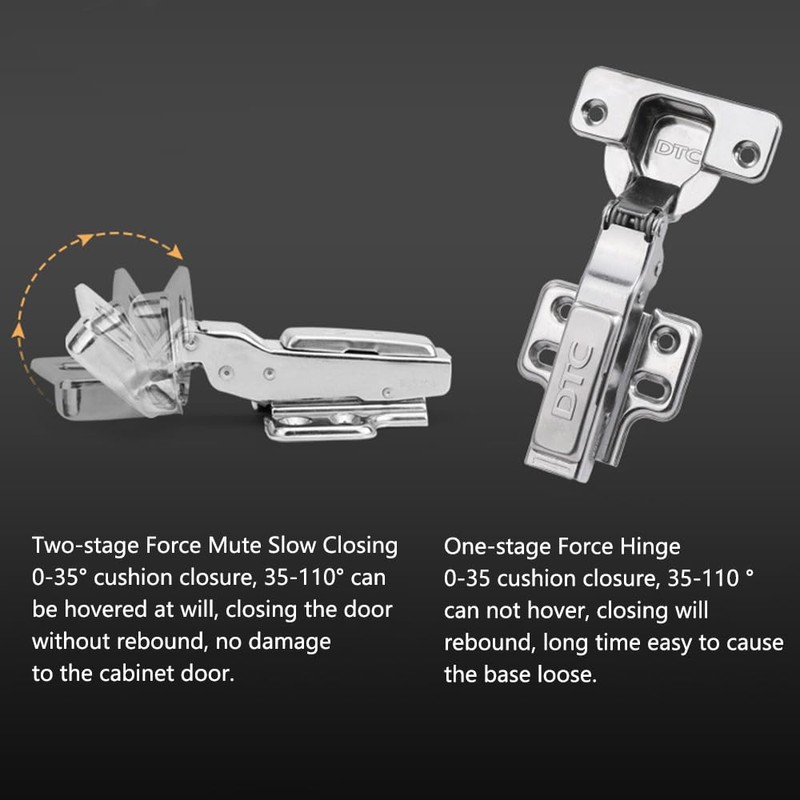

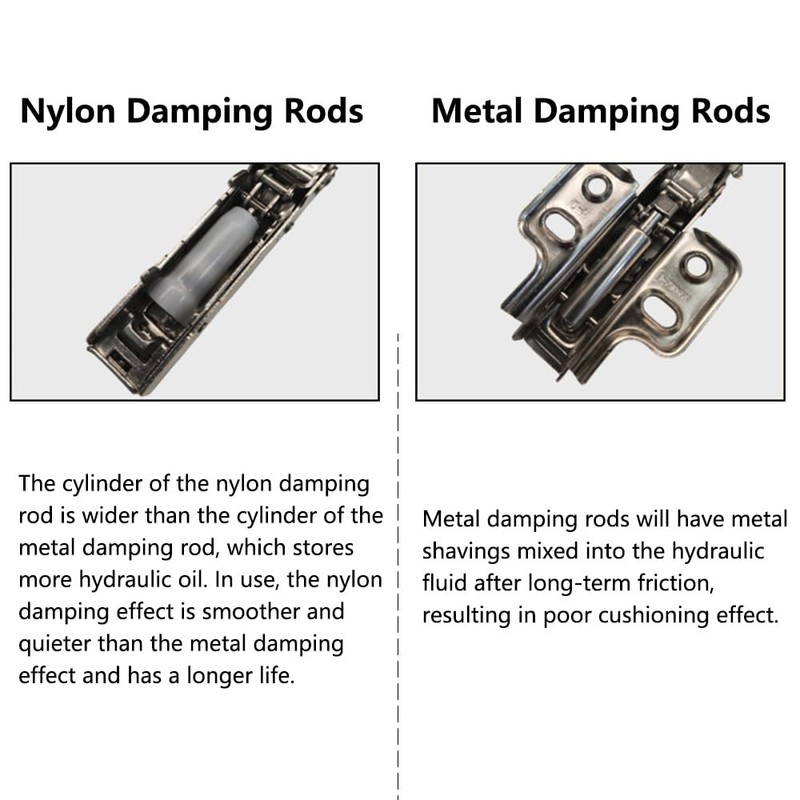

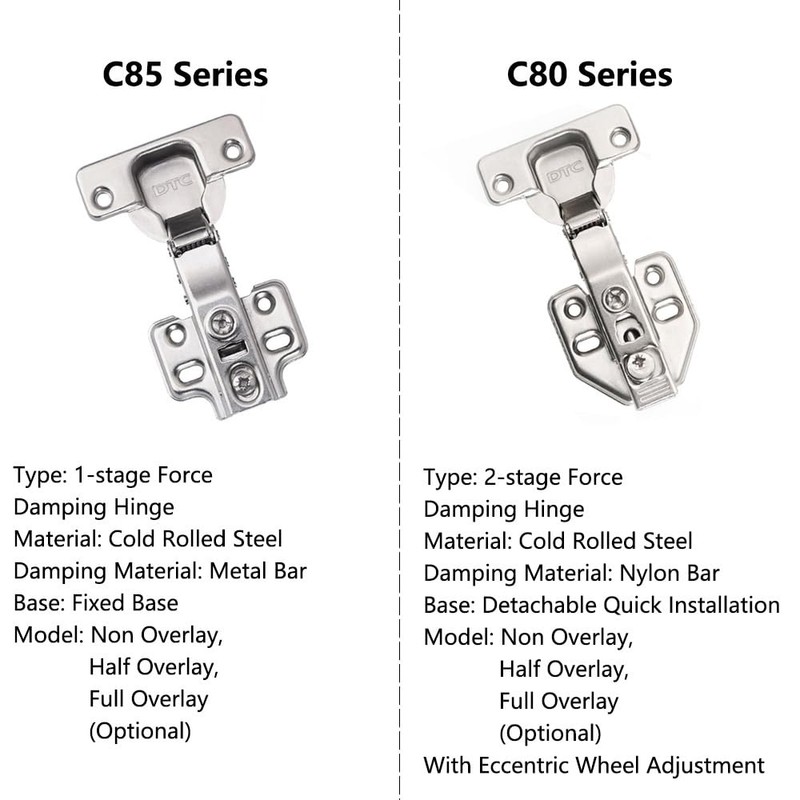

  • 【C80 Series】C80 series cabinet hinges internal metal damping bar with 2 stages of force that can be cushioned to close the cabinet door within 0-35 °, within 35-110 ° of the arbitrary suspension, closing the door will not rebound; and the installation method for the dismantling of the quick release, just press the switch at the end of the hinge, you can achieve the door dismantling, commonly used in the need to paint the door panels.
  • 【C85 Series】C85 series use metal damping strips inside with 1-stage force that can cushion the closure of the cabinet door within 0-35°, but cannot hover within 35-110°, closing the door will rebound; and the mounting method is a fixed base, which is generally applicable to the installation of the cabinet door without dismantling the door.

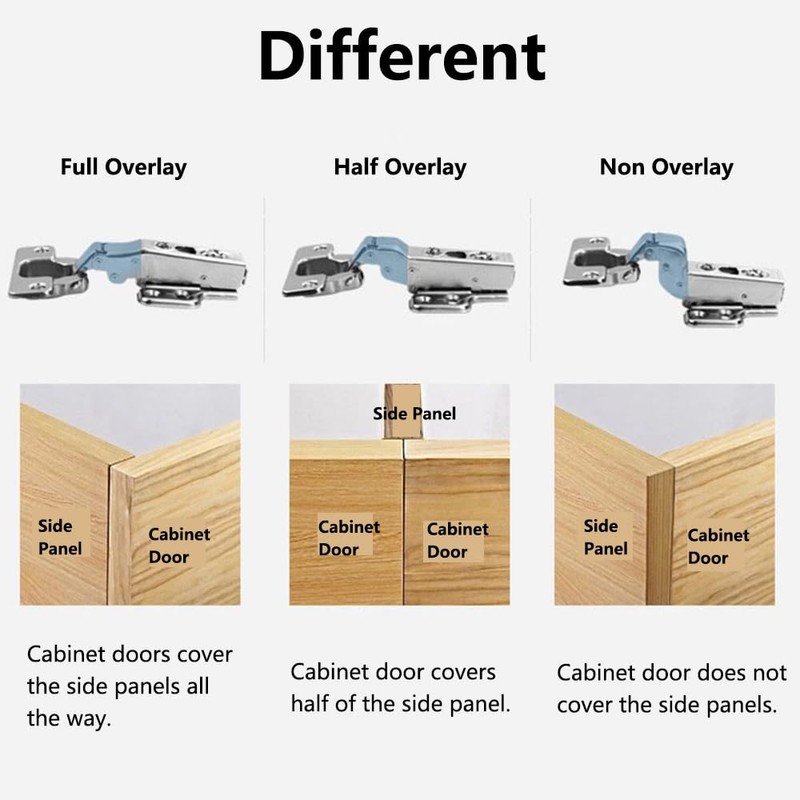

  • 【3 Models Options】There are 3 models to choose from, which are full overlay model suitable for the cabinet door covering all the side panels; half overlay model suitable for the cabinet door covering half of the side panels; and non overlay model suitable for the cabinet door not covering the side panels.

Manufacturer:
SEIWEI
Part Number:
7VYK97G
Material Type:
Electroplated Metal
Isin:
IEIO5X8A6WXR

$48.62

In Stock

Sold by , Fulfilled by IBSPOT • Ships from US

IBSPOT Buyer Protection
  • Free 30-Day Returns
  • Full Refund for Damaged or Incorrect Items
  • Guaranteed Delivery or Money Back
  • Secure Checkout & Fast Support
scroll to top arrow
SEIWEI C80 Non Overlay Cabinet Hinge with Face Frame Plate for Door Connect Frame for Kitchen Cabinet, Corner Door Hinges, Hardware Corner Cabinet Replacement, Pack of 2

SEIWEI C80 Non Overlay Cabinet Hinge with Face Frame Plate for Door Connect F...

$48.62

  • 【Installation Information】The cup diameter of cabinet hinge is 35mm/1.37in, the depth of cup is 11.5mm/0.45, the distance of screw holes is 48mm/1.88in and 33mm/1.30in and the distance of side panel base installation is 37 mm/1.45in, which is better recommended to be used for the cabinet door with the thickness of panel 16-20mm/0.63-0.78in as well as the optimal door edge distance is 5mm/0.19in, followed by 4-6mm/0.15-0.23in.
  • 【Sturdy And Durable】Door closing & opening hinge made of high quality cold rolled steel with surface plating, built-in shrapnel with heat treatment, so the hinge has a good load-bearing capacity, hardness, toughness, corrosion resistance, rust resistance, wear-resistant that can be used for a long time.
  • 【C80 Series】C80 series cabinet hinges internal metal damping bar with 2 stages of force that can be cushioned to close the cabinet door within 0-35 °, within 35-110 ° of the arbitrary suspension, closing the door will not rebound; and the installation method for the dismantling of the quick release, just press the switch at the end of the hinge, you can achieve the door dismantling, commonly used in the need to paint the door panels.
  • 【C85 Series】C85 series use metal damping strips inside with 1-stage force that can cushion the closure of the cabinet door within 0-35°, but cannot hover within 35-110°, closing the door will rebound; and the mounting method is a fixed base, which is generally applicable to the installation of the cabinet door without dismantling the door.
  • 【3 Models Options】There are 3 models to choose from, which are full overlay model suitable for the cabinet door covering all the side panels; half overlay model suitable for the cabinet door covering half of the side panels; and non overlay model suitable for the cabinet door not covering the side panels.

Manufacturer:
SEIWEI
Part Number:
7VYK97G
Material Type:
Electroplated Metal
Isin:
IEIO5X8A6WXR

Feature:

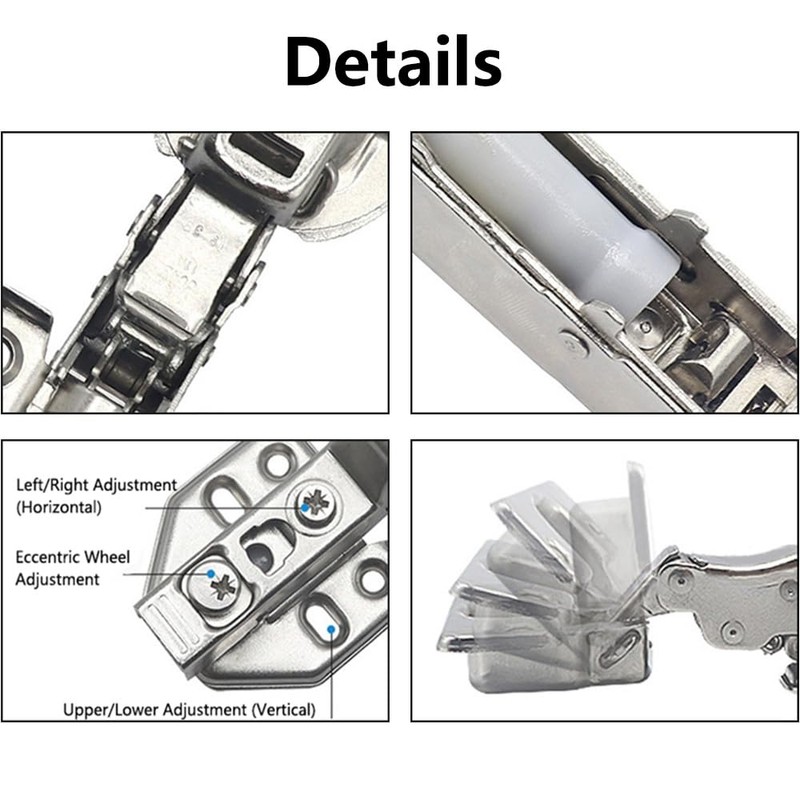

3 Models OptionsWhether it is C80 series or C85 series kitchen cabinets hardware damper, there are 3 models to choose from, which are full overlay model suitable for the cabinet door covering all the side panels; half overlay model suitable for the cabinet door covering half of the side panels; and non overlay model suitable for the cabinet door not covering the side panels, you can choose the right series and model according to your situation.

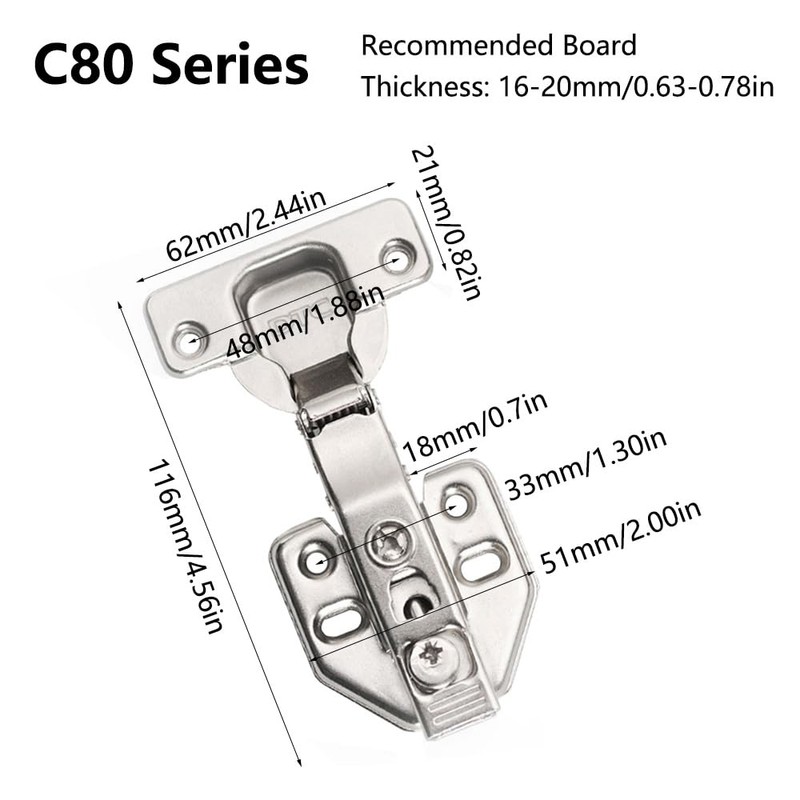

Installation InformationThe cup diameter of cabinet hinge is 35mm/1.37in, the depth of cup is 11.5mm/0.45, the distance of screw holes is 48mm/1.88in and 33mm/1.30in and the distance of side panel base installation is 37 mm/1.45in, which is better recommended to be used for the cabinet door with the thickness of panel 16-20mm/0.63-0.78in as well as the optimal door edge distance is 5mm/0.19in, followed by 4-6mm/0.15-0.23in. If the edge distance is lower than 3mm/0.12in, it is not recommended to purchase.

Sturdy And DurableDoor closing & opening hinge made of high quality cold rolled steel with surface plating, built-in shrapnel with heat treatment, so the hinge has a good load-bearing capacity, hardness, toughness, corrosion resistance, rust resistance, wear-resistant that can be used for a long time; Selected nylon (C80 series) and metal (C85 series) damping rods are adopted with piston dampers and strong springs, which make the hinges run smoothly and quietly and will not thump.

Specification:

Name: Kitchen Cabinet Hardware Hinge

Material: Electroplated Metal, Nylon

Serie: C85

Product Size: As Shown

Recommended Board Thickness: 16-20mm/0.63-0.78in

Hinge Cup Hole: 35mm/1.3in

Best Door Edge Distance: 5mm/0.19in

Package Include:

2 * Kitchen Cabinet Hardware Hinge
