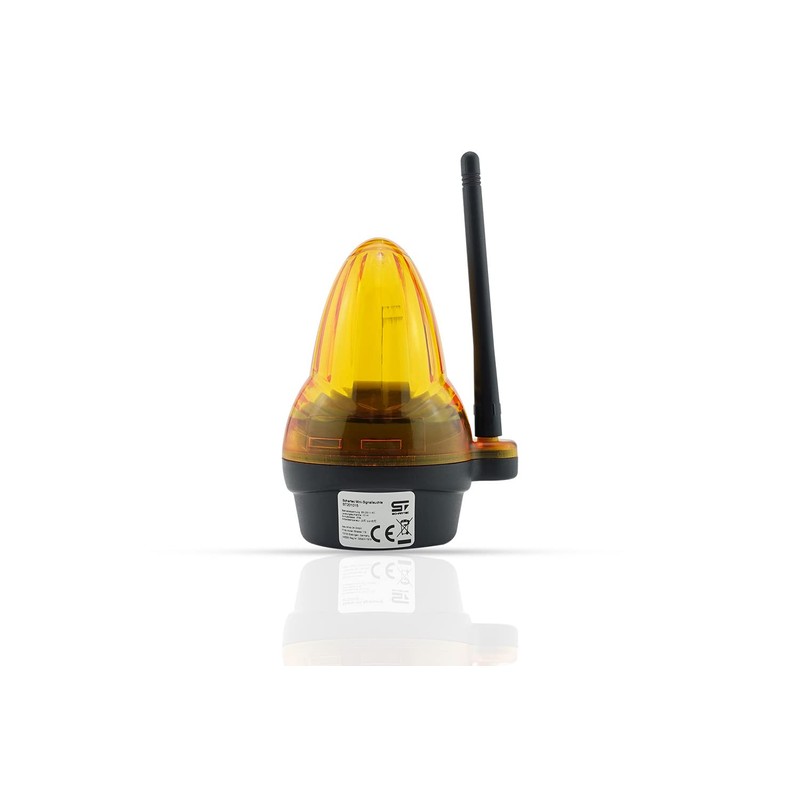

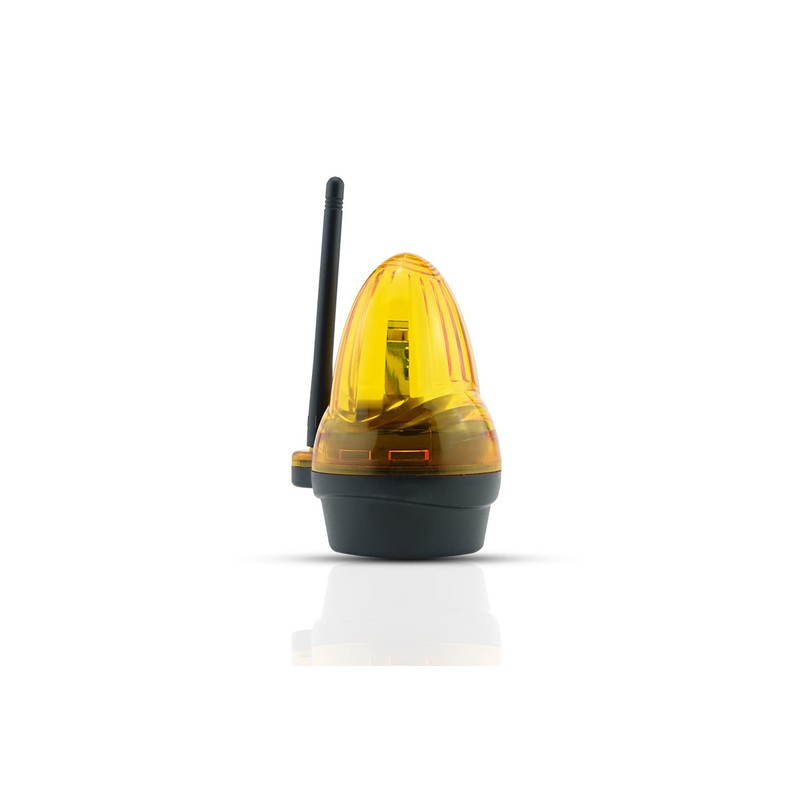

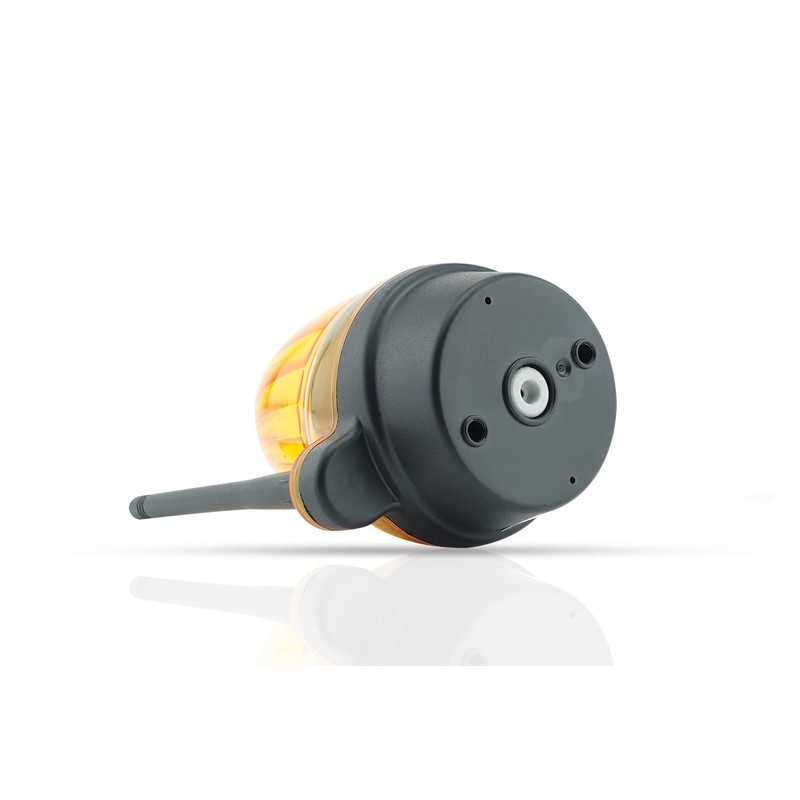

Schartec Mini Signal Light 12 V 24 V and 230 V LED Yellow with Rod Antenna for Garage Door Operator, Swing Gate Operator, Sliding Gate Operator, Warning Light, Warning Light

$57.30

  • ✔ Compact design ✔ Universal use ✔ LED technology ✔ Wall bracket included
  • ✔ Operation optionally 12-24 V AC/DC or 85-265 V AC
  • ✔ Integrated switch for flashing and continuous light

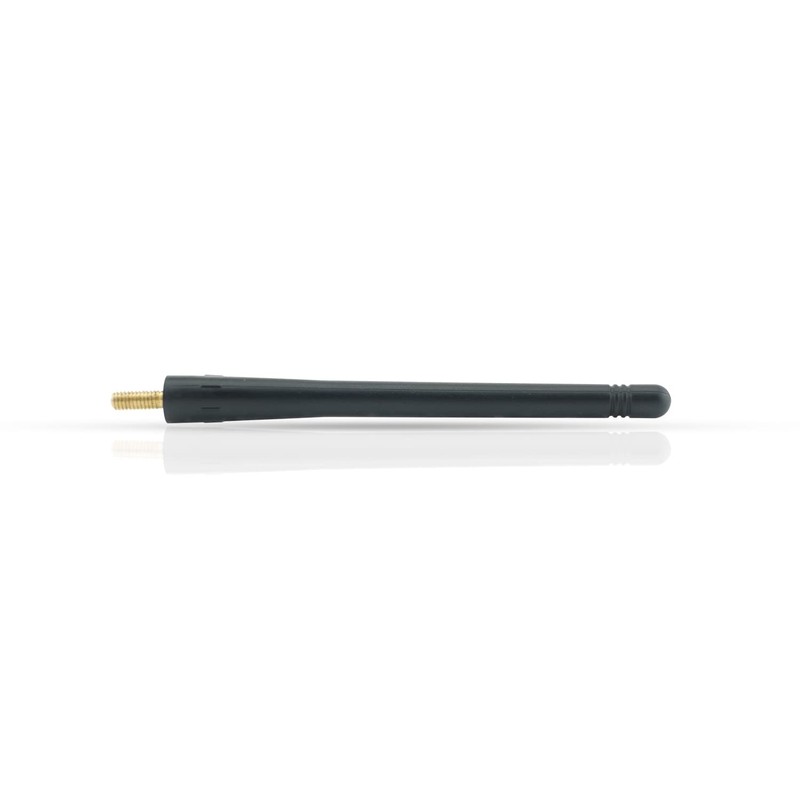

  • ✔ Integrated rod antenna to improve the radio signal of your gate drive
  • Specifications: Power supply: 85-240V AC or 12-24V AC/DC Power consumption: <3W Flashing frequency: 1Hz Working temperature: -20°C to +60°C. Protection class: IP54. Dimensions: 76 x 125 mm (including antenna). Weight: 93g Model Number:F6000 Item number: ST201015
  • Box contents: Schartec mini signal light, rod antenna, mounting material

Color:
Yellow
Manufacturer:
SCHARTEC
Part Number:
ZWFWF95
Material Type:
plas
Isin:
IPPX87DMRUTH

$57.30

In Stock

Sold by , Fulfilled by IBSPOT • Ships from US

IBSPOT Buyer Protection
  • Free 30-Day Returns
  • Full Refund for Damaged or Incorrect Items
  • Guaranteed Delivery or Money Back
  • Secure Checkout & Fast Support
scroll to top arrow
Schartec Mini Signal Light 12 V 24 V and 230 V LED Yellow with Rod Antenna for Garage Door Operator, Swing Gate Operator, Sliding Gate Operator, Warning Light, Warning Light

Schartec Mini Signal Light 12 V 24 V and 230 V LED Yellow with Rod Antenna fo...

$57.30

  • ✔ Compact design ✔ Universal use ✔ LED technology ✔ Wall bracket included
  • ✔ Operation optionally 12-24 V AC/DC or 85-265 V AC
  • ✔ Integrated switch for flashing and continuous light
  • ✔ Integrated rod antenna to improve the radio signal of your gate drive
  • Specifications: Power supply: 85-240V AC or 12-24V AC/DC Power consumption: <3W Flashing frequency: 1Hz Working temperature: -20°C to +60°C. Protection class: IP54. Dimensions: 76 x 125 mm (including antenna). Weight: 93g Model Number:F6000 Item number: ST201015
  • Box contents: Schartec mini signal light, rod antenna, mounting material

Color:
Yellow
Manufacturer:
SCHARTEC
Part Number:
ZWFWF95
Material Type:
plas
Isin:
IPPX87DMRUTH

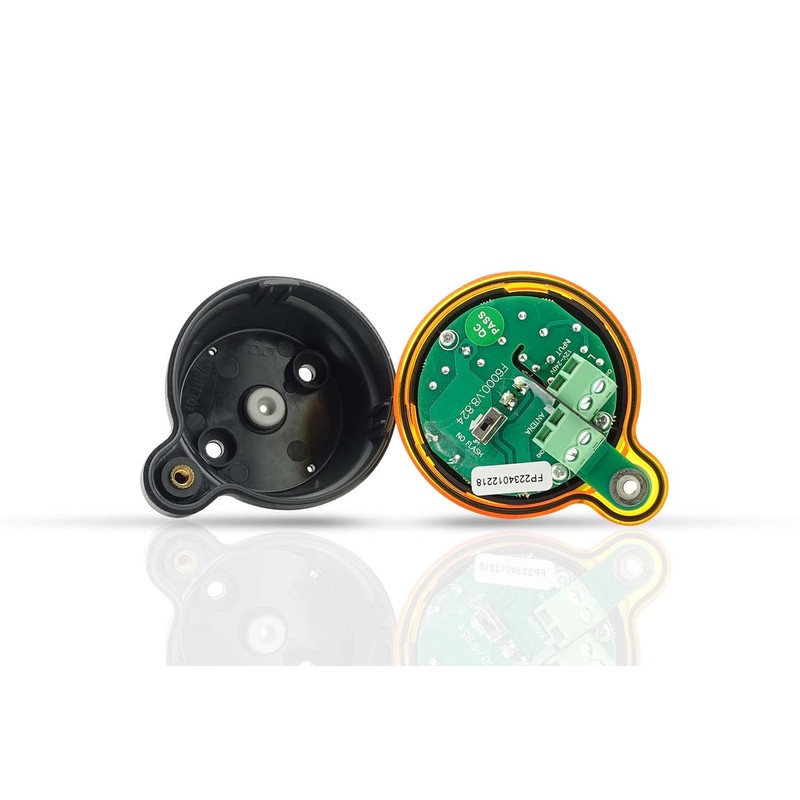

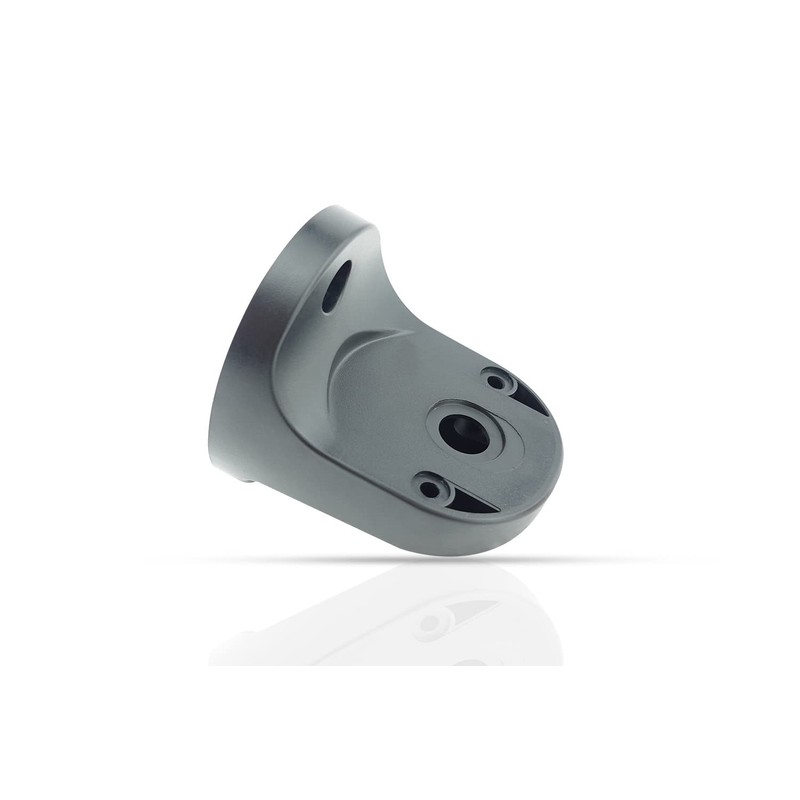

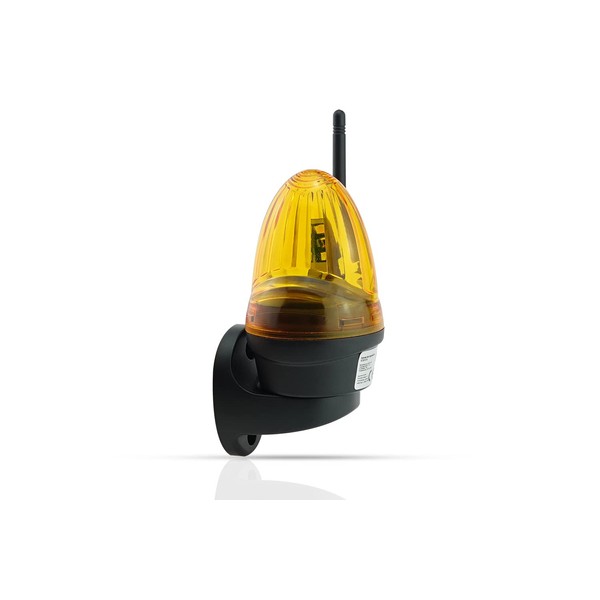

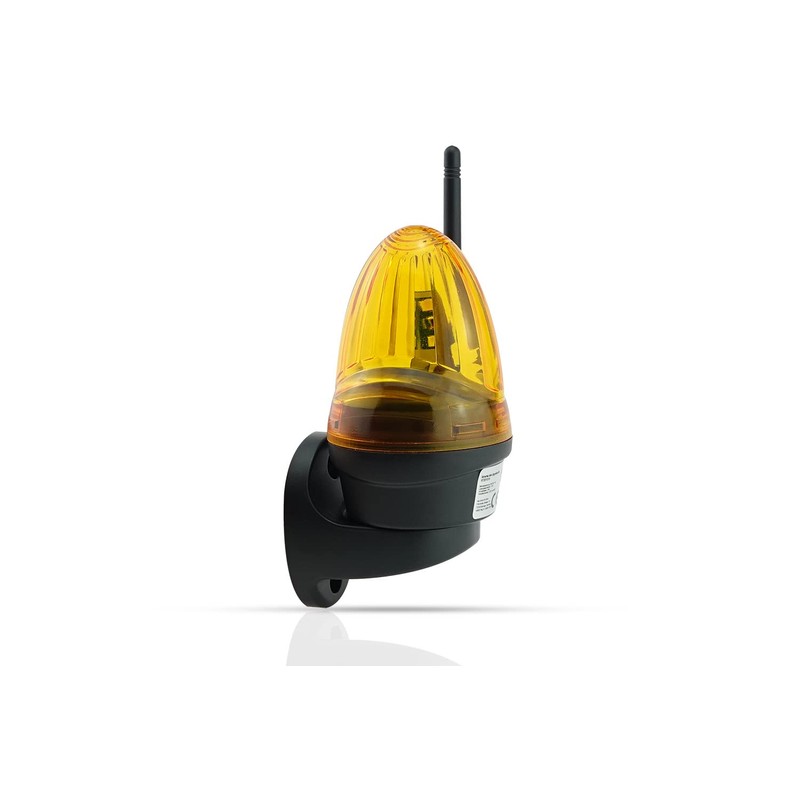

Universal mini signal light from Schartec The mini signal light from Schartec is characterised by premium quality and many useful properties. Thanks to LED technology, the light becomes very bright, while at the same time it is economical and designed for long-term use. Thanks to the compact dimensions of 125 x 76 mm, the signal lamp can be mounted in many places, thanks to the included wall bracket, the warning light can also be attached to a post or a wall surface. Connection and operation – you have the choice A built-in switch allows you to decide whether the signal light should be operated with 85-265 V AC or 12-24 V AC/DC. This makes the warning light compatible with almost all gate controls. In addition, it has an integrated micro switch that gives the customer the choice to switch the warning light between lighting and flashing. Thus, controls that do not control a flashing pulse can use this light as a flashing light. Extended wireless range thanks to extra antenna. As a further feature, the Schartec mini signal light has an additional integrated rod antenna that you can connect to your wireless receiver of the gate control to improve the range. This signal light is therefore a warning light and rod antenna at the same time - rounded off with a modern design.
