RURBRIN LP Thermopile Senor SP20824 for Water Heater Compatible with Rheem Ruud and Richmond Pilot Burner Kit SP20754 SP21058 SP20800 SP21096 SP20739
$43.57
- $5.99 shipping from United States View details
-
Arrives

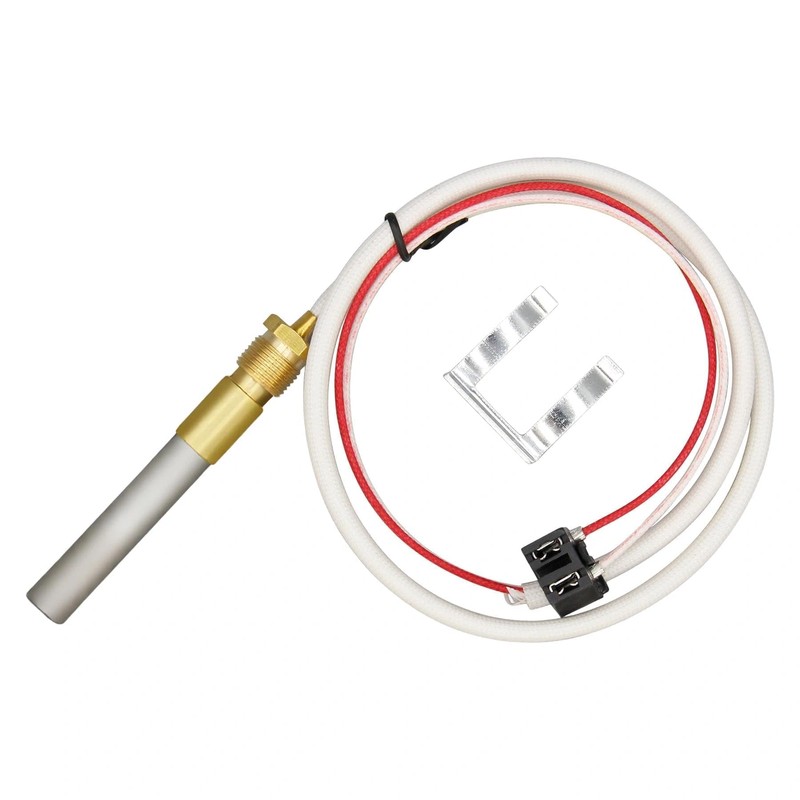

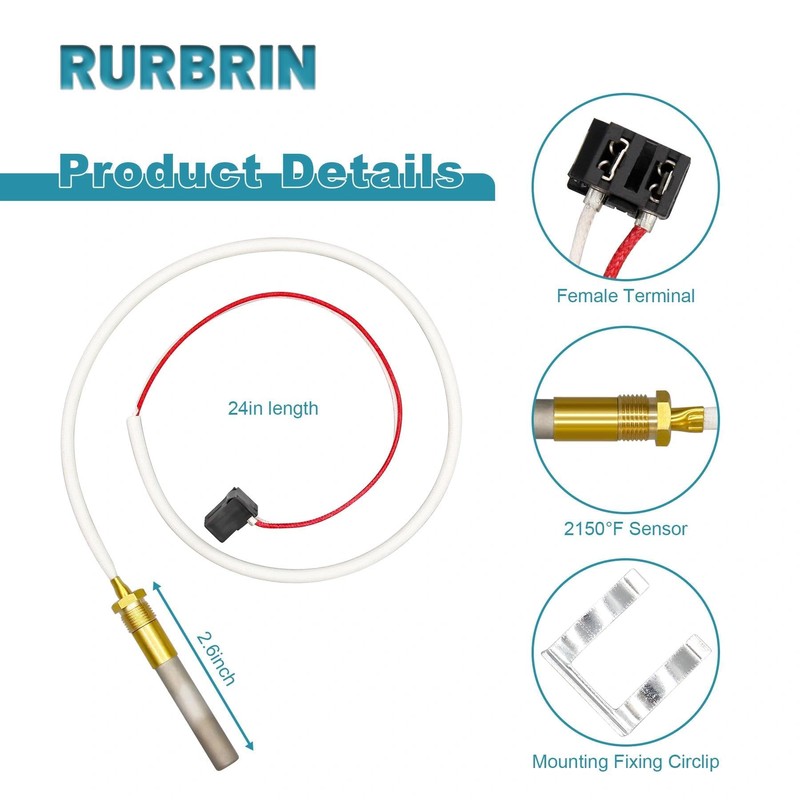

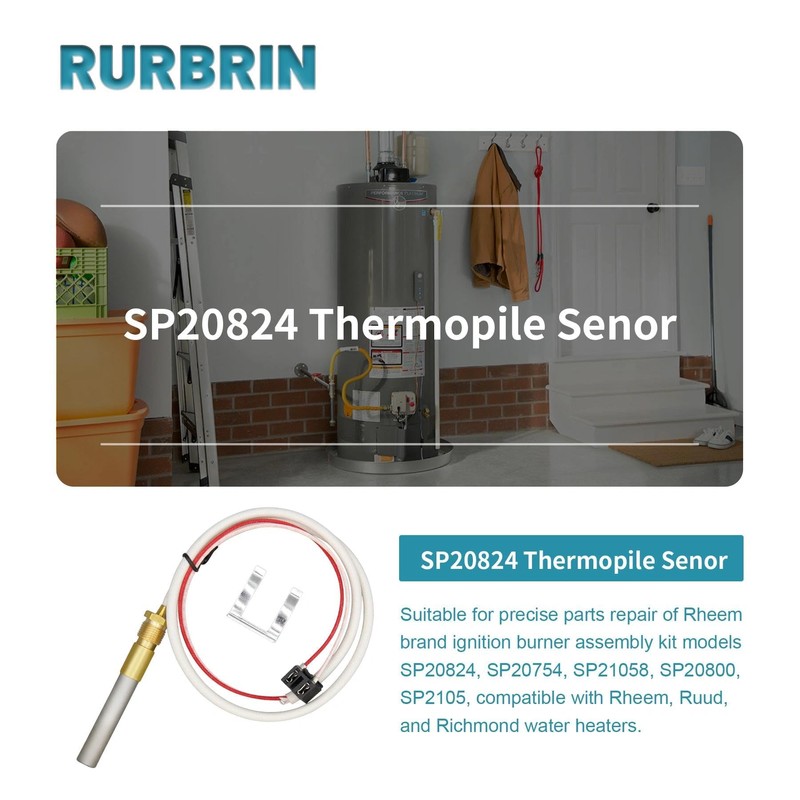

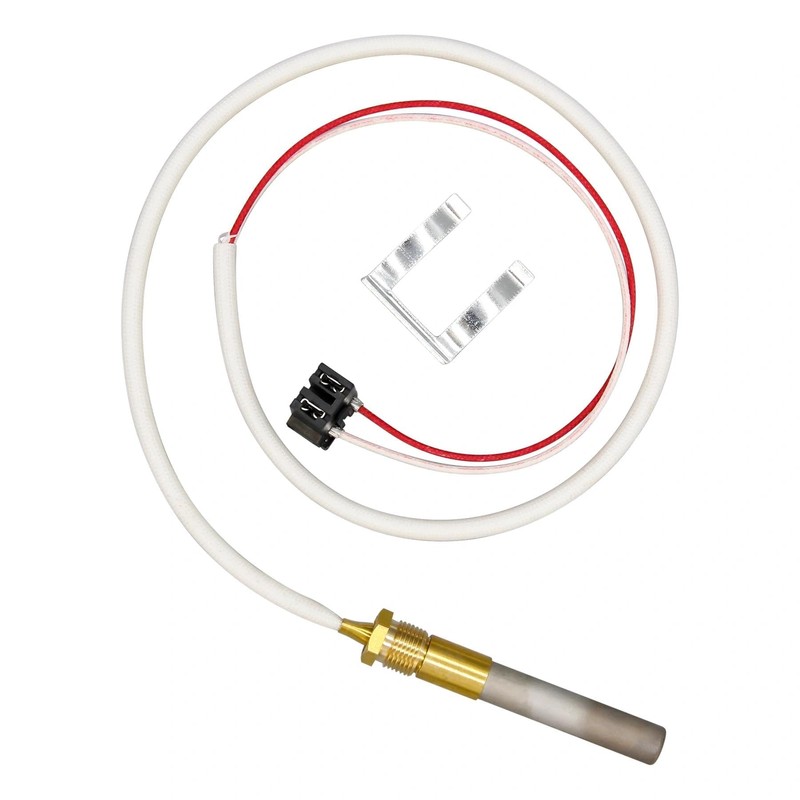

- This SP20824 Thermopile Senor Compatible for Rheem,Ruud and Richmond Water Heaters in Natural and LPG Gas, Over 750mV
- Gas System Protection : Delivering stable voltage to valves to prevent hazardous main burner ignition failure. avoid issue that main burner won't ignite
- Standard Specification : We have tested voltage exceeds industry standard (750mV), make sures reliable ignition and Optimized flame contact area for consistent thermopile performance
- Premium Material : all water heater thermopile head design made of High-Temperature Ceramic Core Withstands 2150°F+ to prevent burnout, even in extreme heat temperature condition
- Our Service : If you have any questions about the SP20824 LP Thermopile Senor , either before or after sale, please feel free to contact us, we will provide you with a professional solution.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- This SP20824 Thermopile Senor Compatible for Rheem,Ruud and Richmond Water Heaters in Natural and LPG Gas, Over 750mV
- Gas System Protection : Delivering stable voltage to valves to prevent hazardous main burner ignition failure. avoid issue that main burner won't ignite
- Standard Specification : We have tested voltage exceeds industry standard (750mV), make sures reliable ignition and Optimized flame contact area for consistent thermopile performance
- Premium Material : all water heater thermopile head design made of High-Temperature Ceramic Core Withstands 2150°F+ to prevent burnout, even in extreme heat temperature condition
- Our Service : If you have any questions about the SP20824 LP Thermopile Senor , either before or after sale, please feel free to contact us, we will provide you with a professional solution.

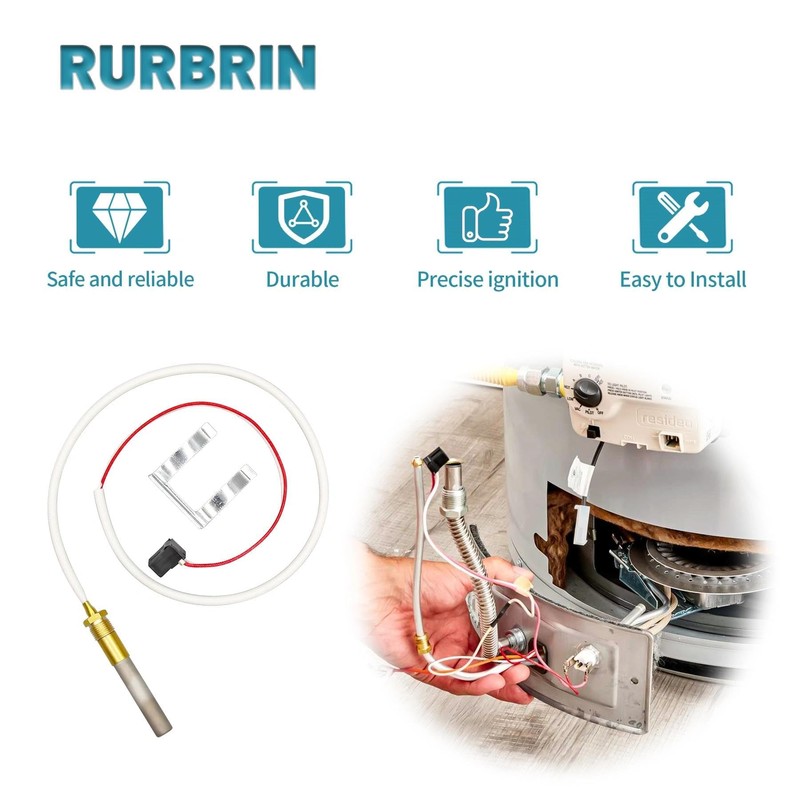

Here the installation guide for you, please make sure you got the right parts
1、Turn Off Gas supply & Power.
Shut off the gas valve to the water heater. Set the gas control knob to OFF. Wait several minutes to ensure no gas remains in the lines.
2、Remove the Burner Access cover
Unscrew and remove the burner door or access panel at the bottom of theI heater.
3、Disconnect the Old Thermopile
Locate the thermopile wiring connection at the gas control valve (usually marked "TP" or "TH/TP"). Carefully unscrew or unplug the thermopile wiresDisconnect the burner tube, pilot tube, and any sensor wires as needed.
4、Remove Burner Assembly
Gently slide out the entire burner assembly, including the thermopile andpilot assembly.Take note of how everything is arranged for reassembly, Remove the OldThermopile from BurnerUnscrew the thermopile from the bracket (often mounted with a smallscrew).Detach the pilot burner if the thermopile is integrated.
5、Install the New Thermopile
Attach the new thermopile to the burner assembly in the same position/orientation. Ensure the thermopile tip will be directly in the pilot flame.
6、Reinstall Burner Assembly
Carefully slide the burner assembly back into position. Reconnect the gasline, pilot tube, thermopile wires, and any sensor wires. Make sure all connections are secure and leak-free
7、Test for Gas Leaks
Turn the gas supply back on. Use soapy water to check connections forbubbles (leaks).
8、Check Operation
The pilot should stay lit, and the thermopile should generate enough volt-age to allow the main burner to operate.
