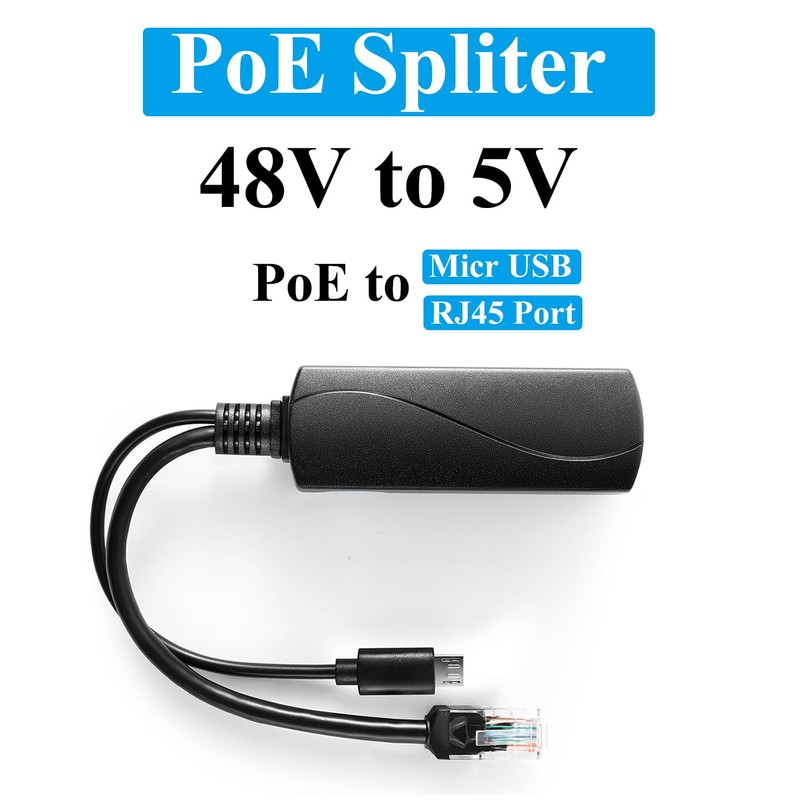

Revotech Active PoE Splitter 5V/3A Micro USB Plug, 48V PoE to USB 5V/3A Output, 10/100Mbps Compatible with IEEE802.3af/at, PoE Adapter for Micro USB Devices, Pi 3B/3B+ (USB0503)
$38.65
- $9.99 shipping from Germany View details
-
Arrives
- Supports international IEEE802.3 af/at standard; POE port supports 10/100Mbps data transmission. Transfer rate: 10/100 Mbps, Standard: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af.
- PD supports voltage transmission 44V-57V.Automatically detects the power supply of PSE power module.
- The 5V/3A current output uses micro USB, the micro USB port only for charging.

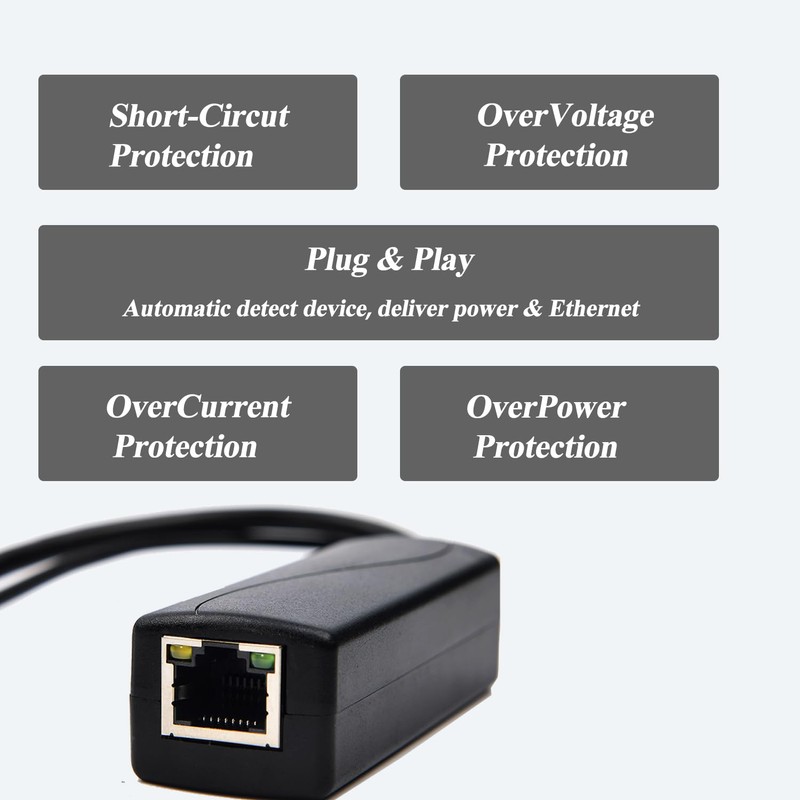

- Support insulation circuit protection, can effectively protect electrical equipment; Support short circuit, surge protection, 1500V high voltage insulation.
- POE splitters can separate power and data via cable transmission. Proper use with POE switch or PSE injector that complies with IEEE802.3af standard, simultaneously delivers power and data to the terminal, does not support PoE, allowing non-PoE devices to be powered over Ethernet."
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Supports international IEEE802.3 af/at standard; POE port supports 10/100Mbps data transmission. Transfer rate: 10/100 Mbps, Standard: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af.
- PD supports voltage transmission 44V-57V.Automatically detects the power supply of PSE power module.
- The 5V/3A current output uses micro USB, the micro USB port only for charging.
- Support insulation circuit protection, can effectively protect electrical equipment; Support short circuit, surge protection, 1500V high voltage insulation.
- POE splitters can separate power and data via cable transmission. Proper use with POE switch or PSE injector that complies with IEEE802.3af standard, simultaneously delivers power and data to the terminal, does not support PoE, allowing non-PoE devices to be powered over Ethernet."

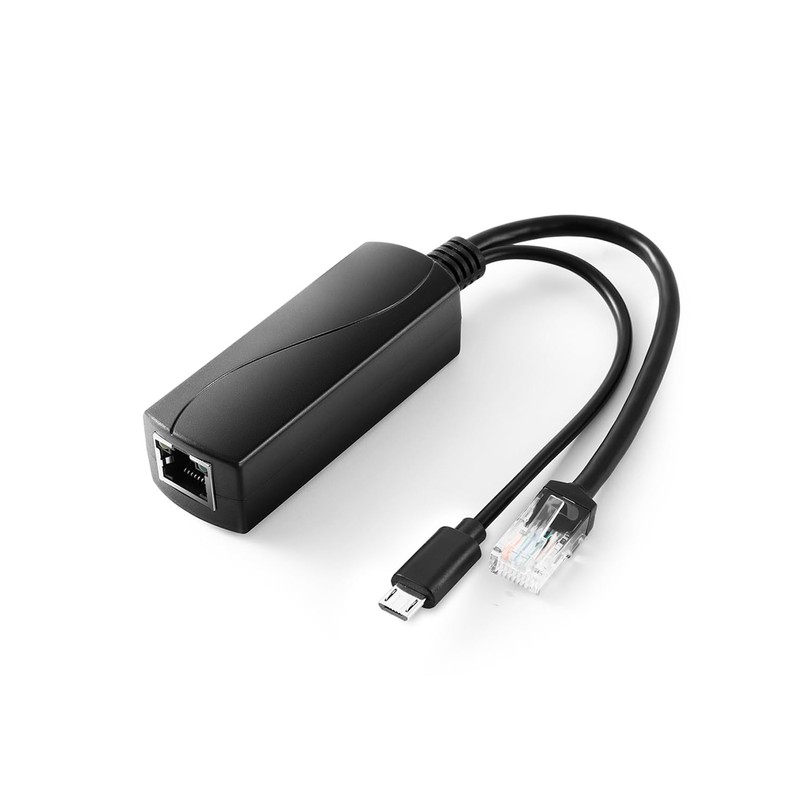

USB0503 PoE splitter is a new model: with RJ45 port and micro USB port.
It is an economical and practical PoE remote power equipment based on the IEEE802.3af/at standard. It can separate power and data via cable transmission. Proper use with Poe switch or PSE injector that complies with IEEE802.3af standard. Provides power and data for the terminal device at the same time, does not support PoE.
PoE splitter, output voltage of 5V, use with power supply devices. It helps to extend the wireless city, security monitoring and other practical places and is not restricted by the arrangement of the power line.
Specifications:
Supports the international standard IEEE802.3 af/at;
POE port supports 10/100Mbps data transfer
PD supports 44V - 57V voltage transmission, automatically detects the power supply from PSE power supply module
5V/3A power output via micro USB, the micro USB port only for charging.
Support the insulation circuit protection, you can effectively protect electrical devices.
Supports short circuit, surge protection, light load protection, overload protection.

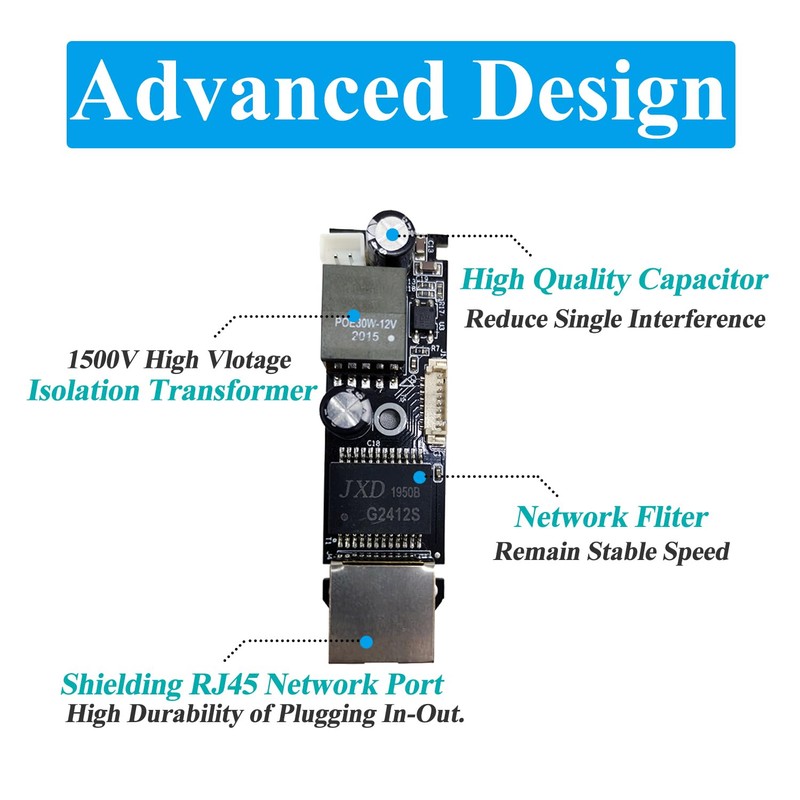

1500V high voltage insulation
Model: USB0503
Transfer rate: 10/100 Mbps
Power: input 48 V DC/0.6 A, output 5 V/3 A.
Standard: IEEE802.3 af/at.

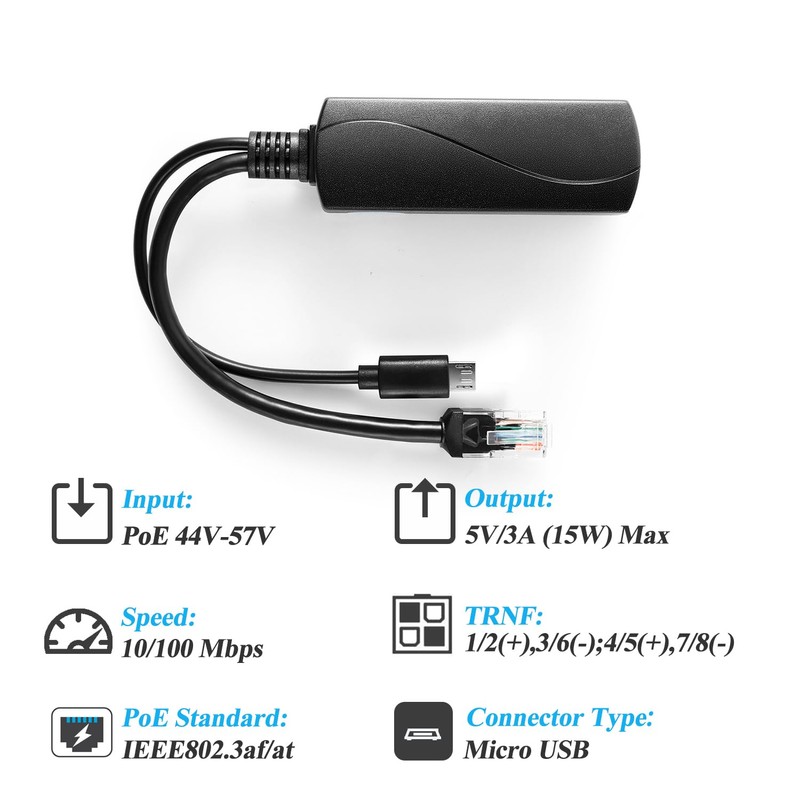

TRNF: 1/2(+),3/6(-);4/5(+),7/8(-)

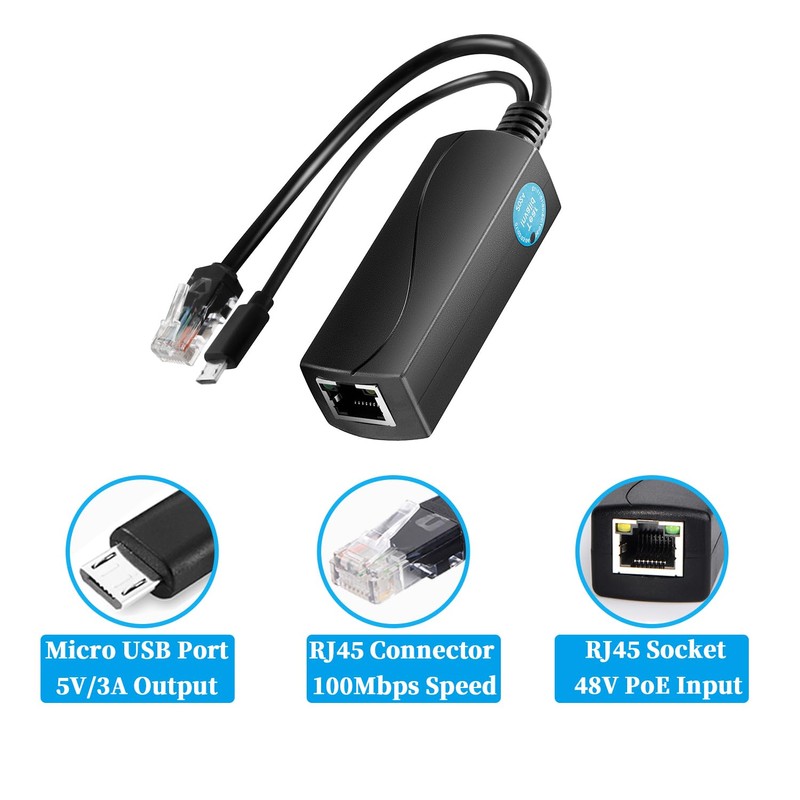

Interface Type: 1 RJ45 Input, 1 RJ45 Output, 1 DC Output (Micro USB)
Standard: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af, IEEE 802.3 at
LED: Yellow PoE Lamp
Temperature: work within -20~50°, storage within -30~60°.
Humidity: works within 10% to 90% (non-condensing), storage within 5% to 95% (non-condensing)
Dimensions: 27.5 cm x 2.8 cm x 2.3 cm.
Weight: 0.05 kg.
Package contents:
1 x POE Splitter (USB0503)
