Replacement for Blum 110 Cabinet Hinges in Compact 33 Hinge, HYLEBOR 8Pack Hinges for Cabinet Doors to Replace Original Blum Cabinet Hinges (with Screws, Screwdriver, Without Mounting Plate)
Replacement for Blum 110 Cabinet Hinges in Compact 33 Hinge, HYLEBOR 8Pack Hinges for Cabinet Doors to Replace Original Blum Cabinet Hinges (with Screws, Screwdriver, Without Mounting Plate)
Product Overview

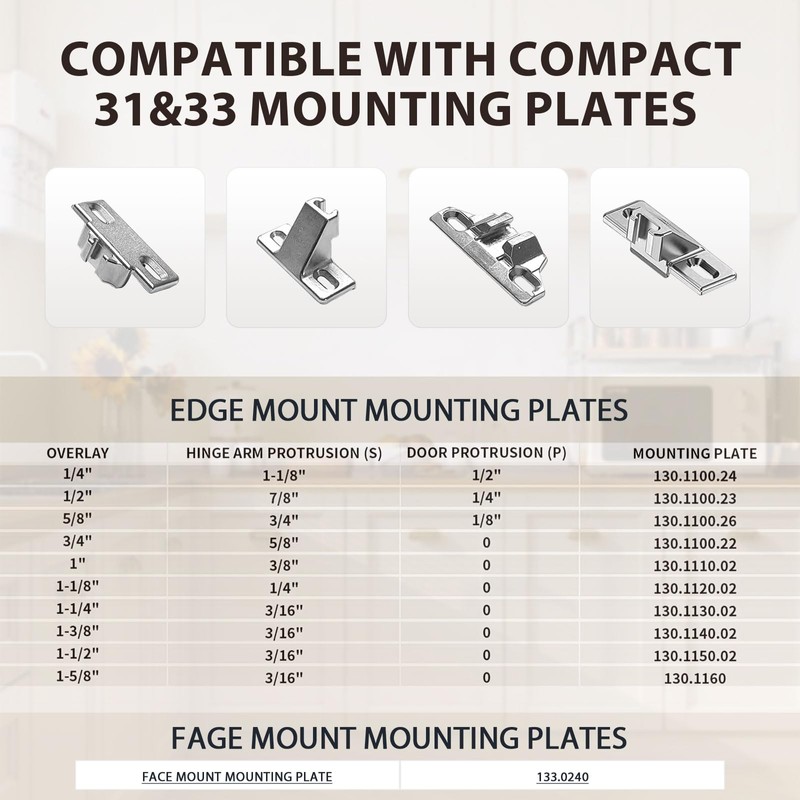

- 【Hinge Adaptation Model】This 30.310-11.02 compact 33 hinge can replace the old blum compact 31 hinge, and perfectly fits blum compact 33&31 mounting plates: 1/4 inch (130.1100.24), 1/2 inch (130.1100.23), 5/8 inch (130.1100.26), 3/4 inch (130.1100.22), 1 inch (130.1110.02), 1-1/8 inch (130.1120.02), 1-1/4 inch (130.1130.02), 1-3/8 inch (130.11140.02), 1-1/2 inch (130.1150.02), 1-5/8 inch overlapping face frame edge mounting plates and a minimum of 1-3/8 inch variable overlap mounting plate. If your blum cabinet hinges have the number 30.310-11.02 printed on the black plastic back, this is the cabinet door hinge you should replace.
- 【Sturdy Structure】The replacement part of the blum 30.310-11.02 hinge uses high-quality metal as the main material, and the nickel-plated surface layer further enhances corrosion resistance, ensuring the hinge operates smoothly, can withstand frequent use, is not easy to wear, and prolongs its overall service life. Add a modern touch to your kitchen cabinets, create a seamless design, and bring a new and smooth function and experience. Note: Although the new and old hinges look different, they have the same function.

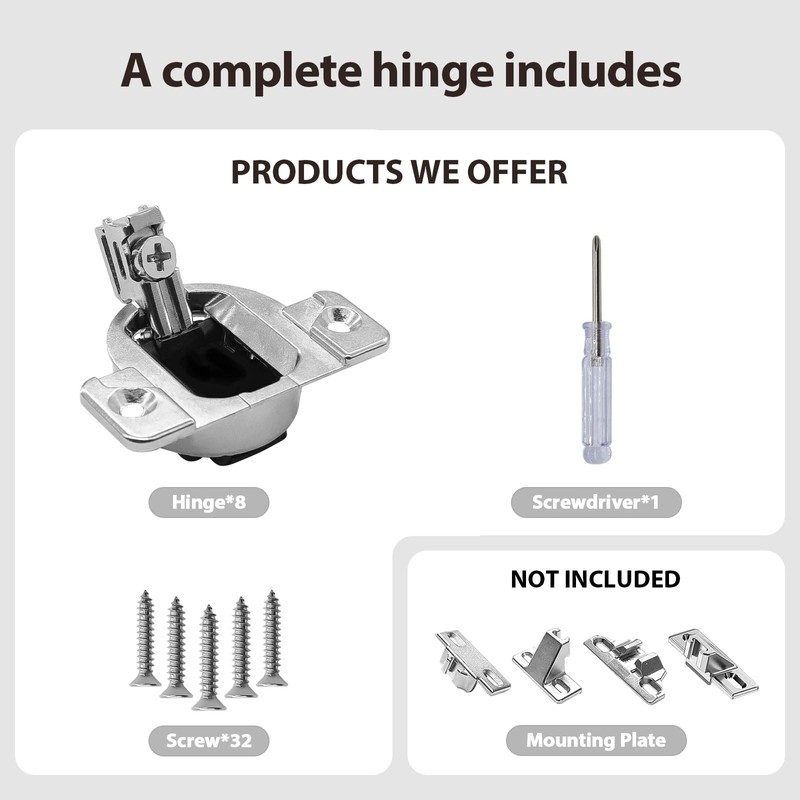

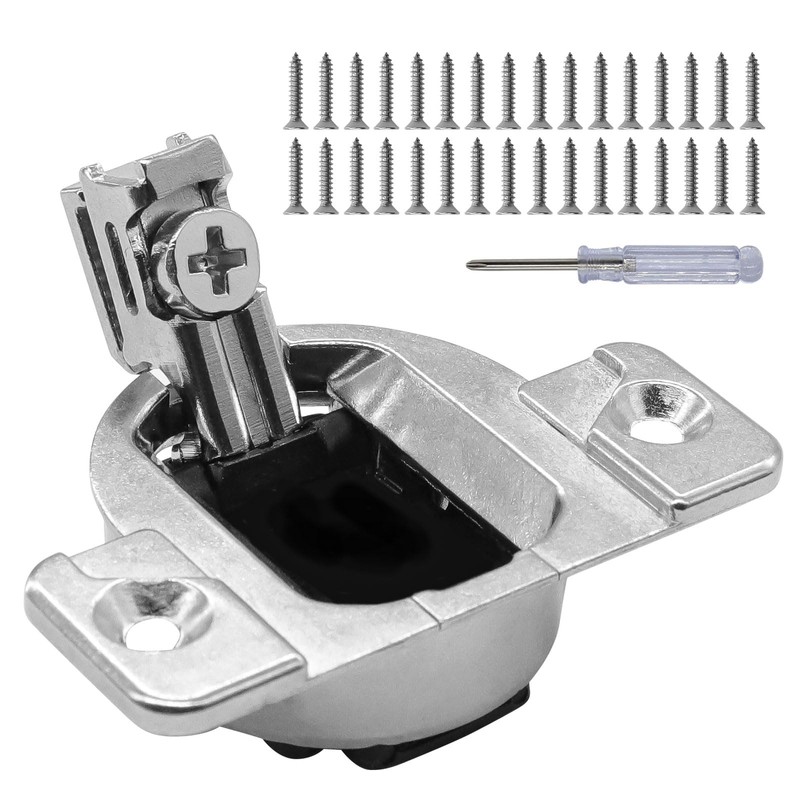

- 【Easy to Install】This blum 110 cabinet hinges replacement features an easy-to-install screw-on design with a compact structure that fits snugly into the cabinet's Blum mounting plate without taking up too much space. It offers a wide opening angle of 110 degrees for easy access to cabinet items. In addition, it comes with 32 screws and a screwdriver for even easier installation.

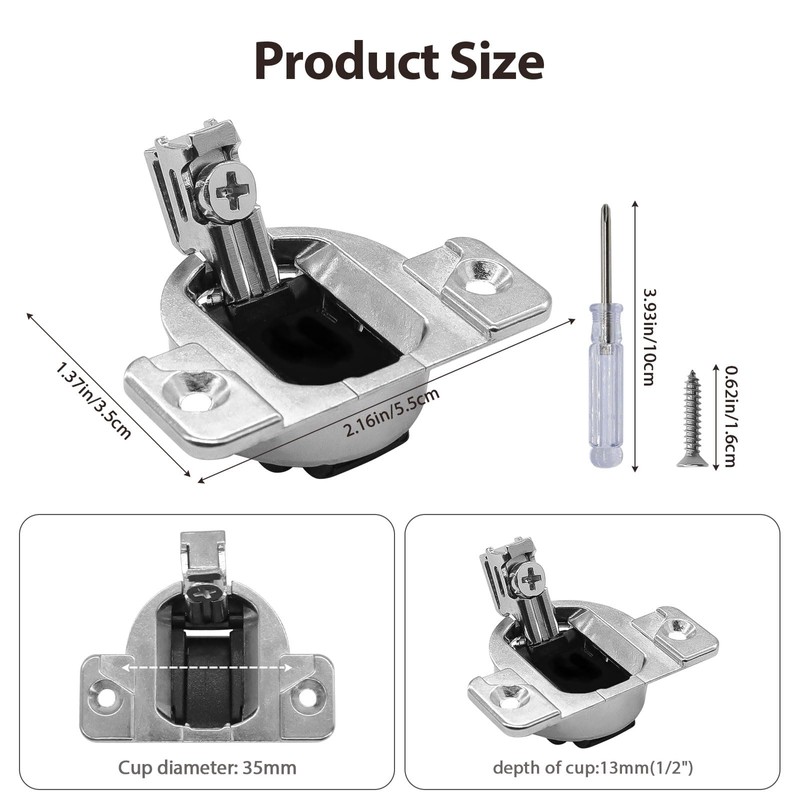

- 【Installation Details】For doors 16mm to 19mm (approx. 5/8" to 3/4") thick. Installs in a 35mm cup on the back of a cabinet door. The cup is 1/2" deep. The hole spacing (the distance from the edge of the 35mm cup to the edge of the door) for all applications of this hinge is 1/8". After installation, this blum hinge is adjustable, the side-to-side adjustment range is plus or minus 1/8", and the height adjustment range is plus or minus 9/64". Before purchasing mounting plates, always confirm the desired coverage size and compatibility.
- 【Customer Support】Customers can enjoy 24/7 online support and lifetime technical support. If you have any questions, please feel free to contact us - effective communication helps to better solve the problem. Note: This package only contains 8 replacements for blum 30.310-11.02 hinges (without Mounting plate).
| Brand: | HYLEBOR |
|---|---|
| Color: | Silver |
| Manufacturer: | HYLEBOR |
| Part Number: | 5HG1FNM |
| Material Type: | Metal |
| Isin: | IBI5RFFTOJ4R |
Guaranteed as described or your money back. Learn program terms
- 30-Day Money-Back Guarantee
- Secure Checkout
- Reliable Shipping & Tracking
- Responsive Customer Support
Product Overview
- 【Hinge Adaptation Model】This 30.310-11.02 compact 33 hinge can replace the old blum compact 31 hinge, and perfectly fits blum compact 33&31 mounting plates: 1/4 inch (130.1100.24), 1/2 inch (130.1100.23), 5/8 inch (130.1100.26), 3/4 inch (130.1100.22), 1 inch (130.1110.02), 1-1/8 inch (130.1120.02), 1-1/4 inch (130.1130.02), 1-3/8 inch (130.11140.02), 1-1/2 inch (130.1150.02), 1-5/8 inch overlapping face frame edge mounting plates and a minimum of 1-3/8 inch variable overlap mounting plate. If your blum cabinet hinges have the number 30.310-11.02 printed on the black plastic back, this is the cabinet door hinge you should replace.
- 【Sturdy Structure】The replacement part of the blum 30.310-11.02 hinge uses high-quality metal as the main material, and the nickel-plated surface layer further enhances corrosion resistance, ensuring the hinge operates smoothly, can withstand frequent use, is not easy to wear, and prolongs its overall service life. Add a modern touch to your kitchen cabinets, create a seamless design, and bring a new and smooth function and experience. Note: Although the new and old hinges look different, they have the same function.
- 【Easy to Install】This blum 110 cabinet hinges replacement features an easy-to-install screw-on design with a compact structure that fits snugly into the cabinet's Blum mounting plate without taking up too much space. It offers a wide opening angle of 110 degrees for easy access to cabinet items. In addition, it comes with 32 screws and a screwdriver for even easier installation.
- 【Installation Details】For doors 16mm to 19mm (approx. 5/8" to 3/4") thick. Installs in a 35mm cup on the back of a cabinet door. The cup is 1/2" deep. The hole spacing (the distance from the edge of the 35mm cup to the edge of the door) for all applications of this hinge is 1/8". After installation, this blum hinge is adjustable, the side-to-side adjustment range is plus or minus 1/8", and the height adjustment range is plus or minus 9/64". Before purchasing mounting plates, always confirm the desired coverage size and compatibility.
- 【Customer Support】Customers can enjoy 24/7 online support and lifetime technical support. If you have any questions, please feel free to contact us - effective communication helps to better solve the problem. Note: This package only contains 8 replacements for blum 30.310-11.02 hinges (without Mounting plate).
| Brand: | HYLEBOR |
|---|---|
| Color: | Silver |
| Manufacturer: | HYLEBOR |
| Part Number: | 5HG1FNM |
| Material Type: | Metal |
| Isin: | IBI5RFFTOJ4R |
