$17.37

  • $14.50 shipping from United States

  • Arrives

1、The relay module is single‑channel, it is not interfered by additional circuits when in use, and is safe and stable. 2、The power supply voltage is DC12V, which can control DC or AC loads within 5A to meet more application requirements. 3、The relay module can be used as a DIY development board to control solenoid valves, water pumps, motors, light strips, etc. 4、As a power‑off delay timing circuit switch, any time can be adjusted from 0.01 second to 999 minutes. 5、Small and compact structure with mounting holes for easy installation and disassembly.

Isin:
IRXAE1U8UKSM

$17.37

  • $14.50 shipping from United States

  • Arrives

In Stock

Sold by , Fulfilled by IBSPOT • Ships from US

IBSPOT Buyer Protection
  • Free 30-Day Returns
  • Full Refund for Damaged or Incorrect Items
  • Guaranteed Delivery or Money Back
  • Secure Checkout & Fast Support
scroll to top arrow
Relay Module Single Channel Cycle Trigger Delay Control Extension Board YYC-2S DC12V

Relay Module Single Channel Cycle Trigger Delay Control Extension Board YYC-2...

$17.37

1、The relay module is single‑channel, it is not interfered by additional circuits when in use, and is safe and stable. 2、The power supply voltage is DC12V, which can control DC or AC loads within 5A to meet more application requirements. 3、The relay module can be used as a DIY development board to control solenoid valves, water pumps, motors, light strips, etc. 4、As a power‑off delay timing circuit switch, any time can be adjusted from 0.01 second to 999 minutes. 5、Small and compact structure with mounting holes for easy installation and disassembly.

Isin:
IRXAE1U8UKSM

1、The relay module is single‑channel, it is not interfered by additional circuits when in use, and is safe and stable. 2、The power supply voltage is DC12V, which can control DC or AC loads within 5A to meet more application requirements. 3、The relay module can be used as a DIY development board to control solenoid valves, water pumps, motors, light strips, etc. 4、As a power‑off delay timing circuit switch, any time can be adjusted from 0.01 second to 999 minutes. 5、Small and compact structure with mounting holes for easy installation and disassembly.

More Information

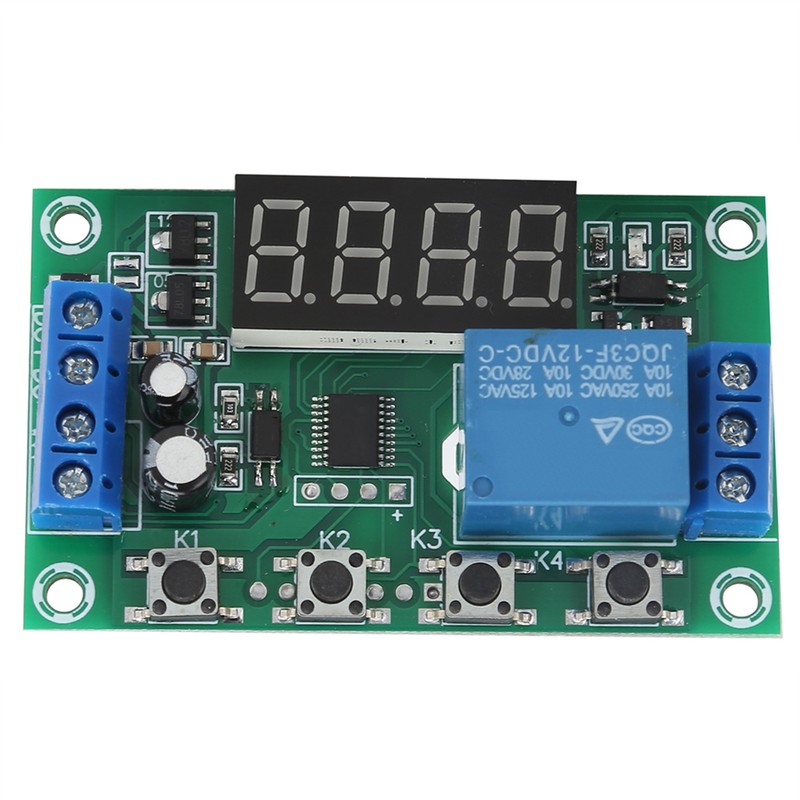

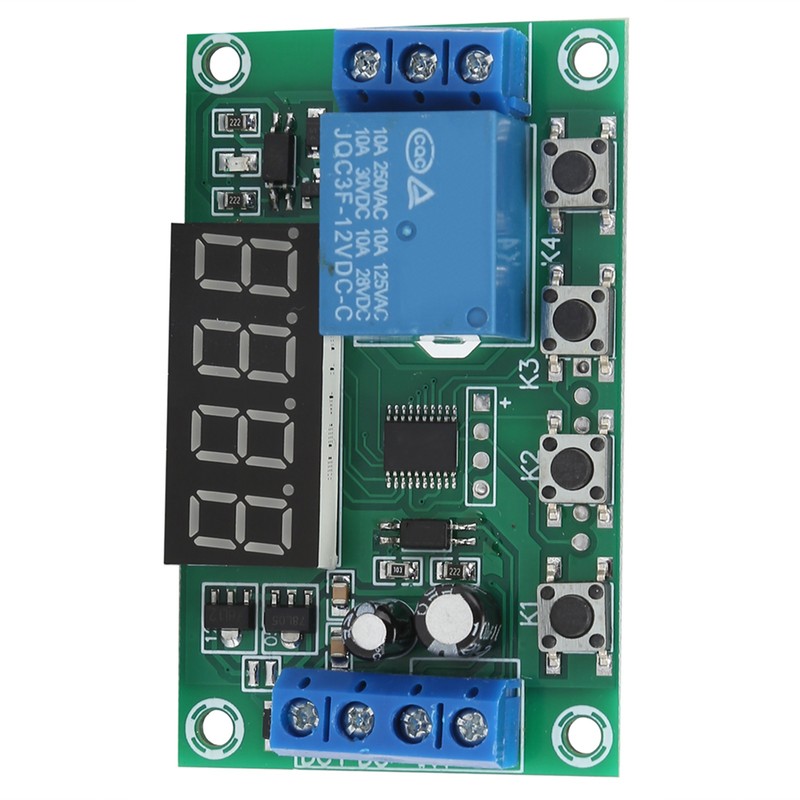

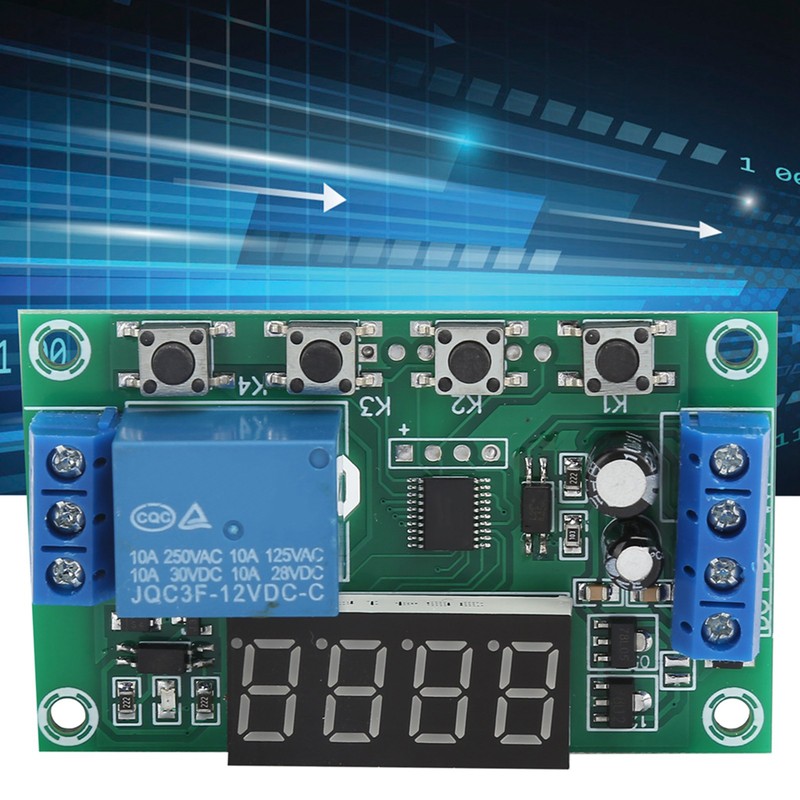

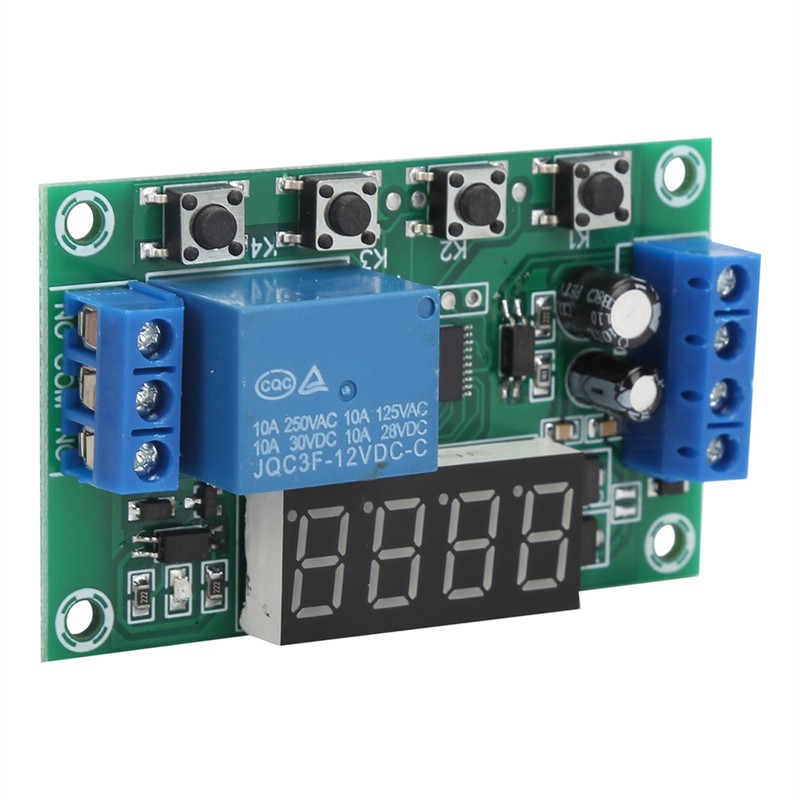

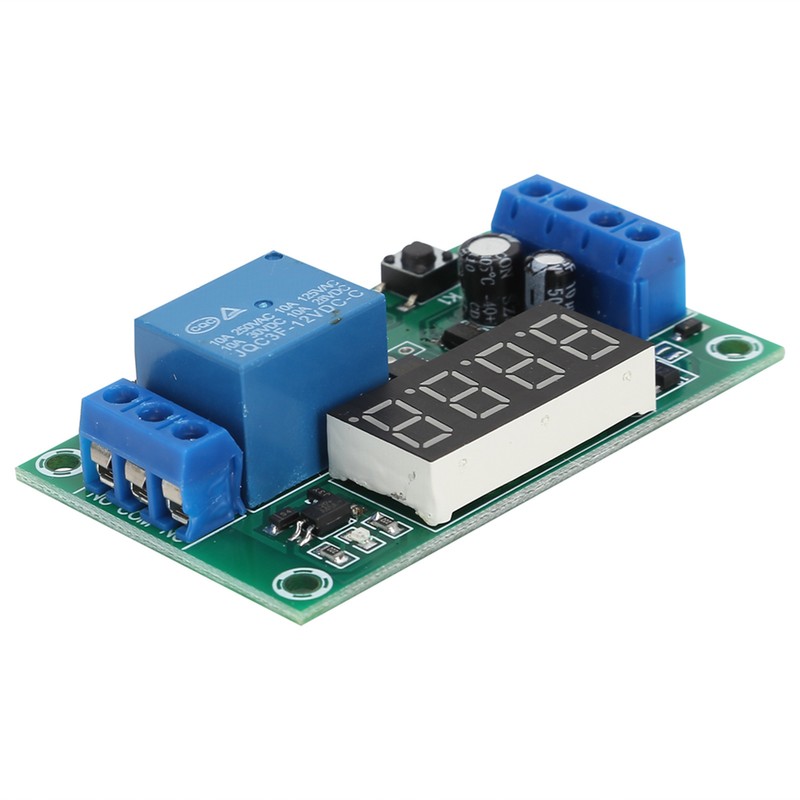

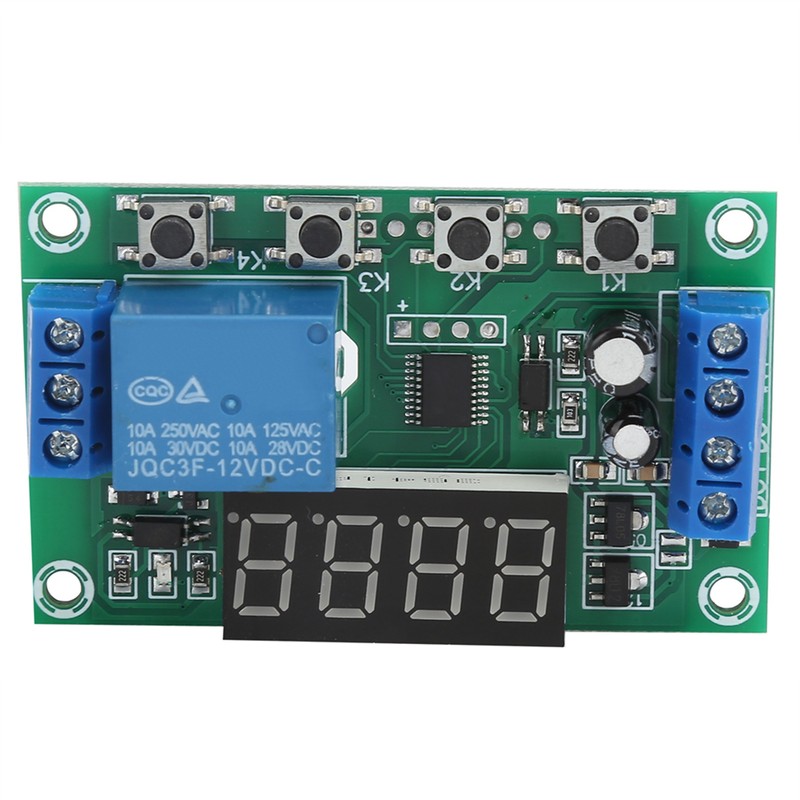

Item Type: Relay Module
Material: Resin
Model: YYC-2S DC12V
Button Trigger: (Positive Trigger: DC- and IN- are short-circuited, DC+ and IN+ are connected to the button)
1. Function List:
P-11: Jog (to pull in the signal relay, the signal disappears and the relay stops)
P-12: Self-locking (turn on the signal relay once, and stop the signal relay again)
P-13: Give the signal, and the relay will automatically stop after closing for A second; triggering is invalid during the delay period
P-14: Give the signal, the relay will stop automatically for A second; trigger to re-timing during the delay period
P-15: Give the signal, the relay will stop automatically for A second; during the delay period, the superposition timer will be triggered
P-16: Give the signal, and the relay will stop automatically for A second; trigger reset during the delay period
P-17: Give the signal, the relay is closed, the input signal is disconnected, and the power is turned off after the start of timing A second, and the signal is kept output during the delay period, and the timing stops
P-18: After the power is turned on, the relay will be closed immediately, and the power will be turned off after a delay of A seconds; until the next power on
P-21: Give the signal, after a delay of A second, the relay is closed
P-22: Give the signal, after more than A second, the relay is closed, the signal disappears, and the relay stops
P-23: After the signal disappears for more than A seconds, the relay is closed, there is a signal, and the relay stops
P-24: There is a signal. After A second, the relay is closed. After the signal disappears for more than A second, the relay stops.
P-25: There is a signal. After A second, the relay is closed. When there is another signal for more than A second, the relay stops.
P-26: When there is a signal, the relay will stop after closing for A second, and when the signal disappears, the relay will stop after closing again for A second.
P-27: If there is a pulse signal, the relay stops; if there is no pulse signal, the relay will be closed for A second; (the signal continues or the signal disappears will be regarded as no pulse signal)
P-28: After power-on, after a delay of A seconds, the relay will be closed until the power is off
P-31: After power on, the relay is closed for A second, disconnected for B second, infinite loop; power off stops
P-32: When there is a signal, start P-31 infinite loop; when the signal disappears, terminate the loop
P-33: Give a signal to start P-31 infinite loop; give another signal to terminate the loop
P-34: After power-on, the relay will be closed after a delay of A seconds, and stop after being closed for B seconds
P-35: There is a signal, after a delay of A second, the relay will be closed, and the relay will be closed after being closed for B seconds.
P-36: When there is a signal, after A second, the relay will be closed, and after B second, the relay will stop, the signal disappears, and the timer will be cleared and stopped.
P-37: If there is a signal, the relay will stop automatically for A second when the relay is closed, and then it will count for B seconds after it stops. The signal trigger is invalid within the time A+B.
P-38: When there is a signal, the relay will automatically stop when it is closed for A second, and after stopping and counting for B seconds, it will stop automatically when it is closed again for A second.
P-41: No action when there is a signal; trigger when the signal disappears; the relay is disconnected after a delay of A time
P-42: The signal disappears, after delaying time A, the relay works; working time B ends
P-43: The signal disappears. After the time A exceeds, the relay works; the working time B ends
P-44: After power on, the relay will work for A time and stop for B time; it will automatically stop after cycling C times.
P-45: No action when energized, after the signal is given; the relay works for A time, stop for B time; cycle C times and automatically stop; give the signal again and execute again
P-46: After giving the signal more than A times, the relay will be closed; keep closed; power off and stop
P-47: After giving the signal more than A times, the relay will be closed for B seconds and stop
P-48: Within C seconds, after continuously giving the signal more than A times, the relay will be closed for B seconds and stop
2. Button Setting Instructions: Power-on display "————" means entering the standby state;
Press K1 For The First Time, (it Takes More Than 1 second to be effective to prevent false triggering) Display: P -11: K2 adjustment main mode, K3K4 adjustment function
Press K1 For The Second Time, The Screen Displays: A001: K2 and K3 adjust the first time A, K4 adjusts the decimal point (time unit)
Press K1 For The Third Time, The Screen Displays: B001: K2 and K3 adjust the second time B, K4 adjusts the decimal point (time unit)
Press K1 for the fourth time, the display "————" means entering the standby state
Press K4 in standby mode to permanently turn off/on the display and switch to low power consumption mode
3. Decimal Point Time Unit Description:
The decimal point is in the hundred (X.XX) Timing Range: 0.01 seconds to 9.99 seconds
The decimal point is in the tenth place (XX.X) Timing Range: 0.1 seconds to 99.9 seconds
No decimal point (XXX) Timing Range: 1 second to 999 seconds
The decimal point is in the ones place (XXX.) Timing Range: 1 minute to 999 minutes
