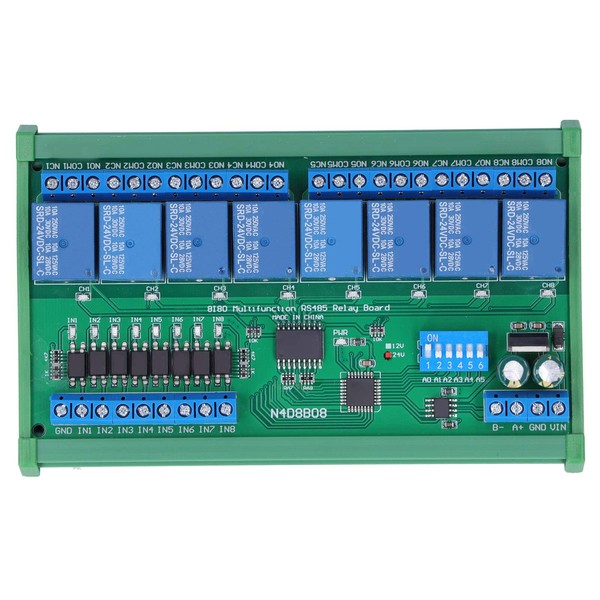

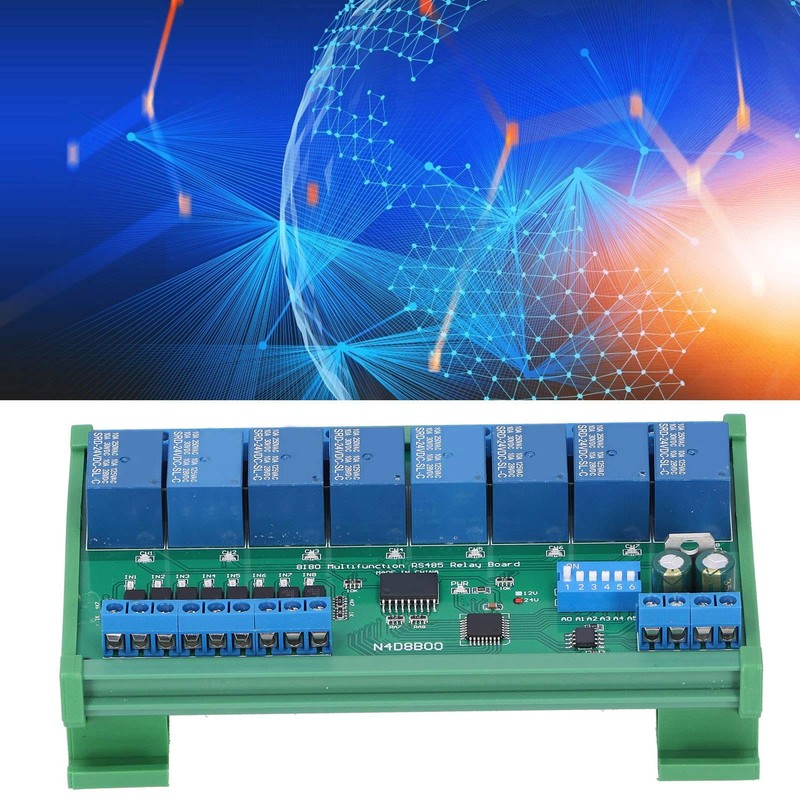

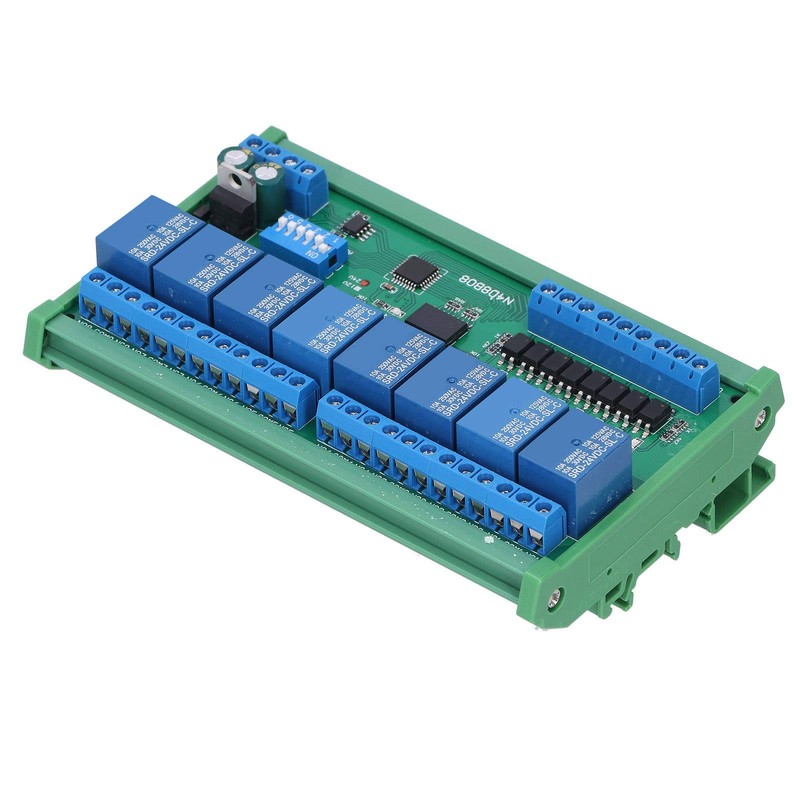

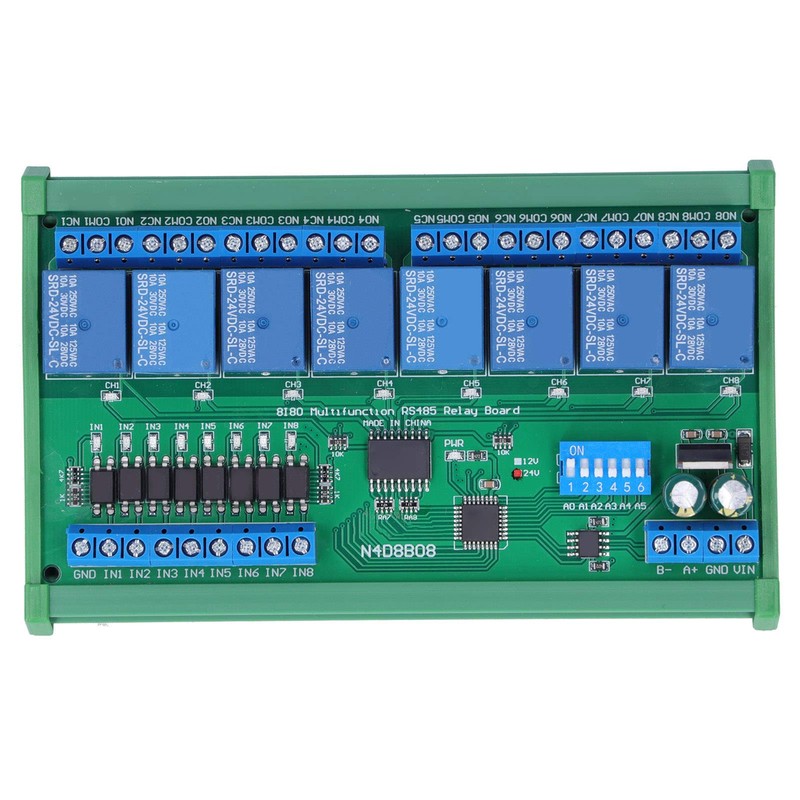

Relay Board Rail Box Relay Solid State Relay 8 Inputs 8 Output PLC Expansion Module Industrial Supplies DIN35 24V N4D8B08-R
$75.57
- $9.99 shipping from Germany View details
-
Arrives
- Baud rate: The standard baud rate is 9600 BPS, and the baud rate 2400 4800 19200 BPS can be selected via jumper.
- AT command: In command mode, up to 64 devices can be used in parallel on the relay card.
- Easy to use: In addition to the hyperterminal input of the serial port, the command can also be entered by others.
- Good performance: This relay module has a professional structure, a long service life and easy operation.
- Strong anti-interference resistance: the relay module has a strong anti-interference performance, low working current consumption and a large contact capacity.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Baud rate: The standard baud rate is 9600 BPS, and the baud rate 2400 4800 19200 BPS can be selected via jumper.
- AT command: In command mode, up to 64 devices can be used in parallel on the relay card.
- Easy to use: In addition to the hyperterminal input of the serial port, the command can also be entered by others.
- Good performance: This relay module has a professional structure, a long service life and easy operation.
- Strong anti-interference resistance: the relay module has a strong anti-interference performance, low working current consumption and a large contact capacity.
1. The standard baud rate is 9600 BPS, and the baud rate 2400 4800 19200 BPS can be selected via jumper.

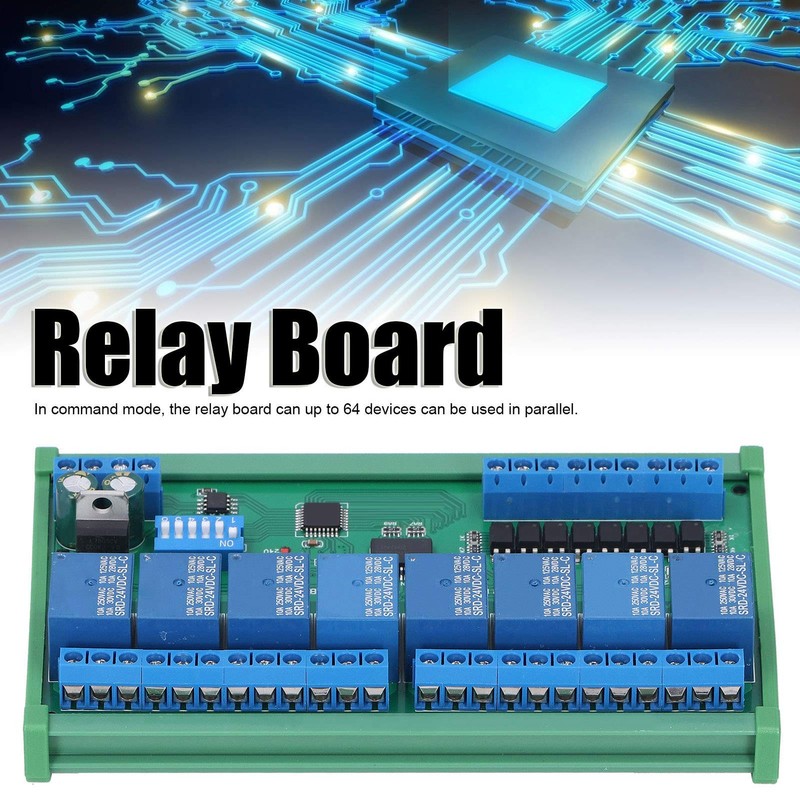

2. In command mode, up to 64 devices can be used in parallel on the relay board.
3. In addition to entering the hyperterminal for the serial port, the command can also be entered by others.
4. This relay module has a professional structure, long service life and easy operation.
5. Strong anti-interference performance, low working current consumption, large contact capacity and other advantages.
Specification:
Element Type: Relay Board
Operating voltage: 24 V.
Working current: standby: 13MA.
1 x relay on: 41 mA.
2 x relays on: 69 mA.
3 x relay on: 95 mA.
4 x relays on: 121 mA.
5 x relays on: 149 mA.
6 x relays on: 175 mA.
7 x relay on: 199 mA.
8 x relay on: 225 mA.

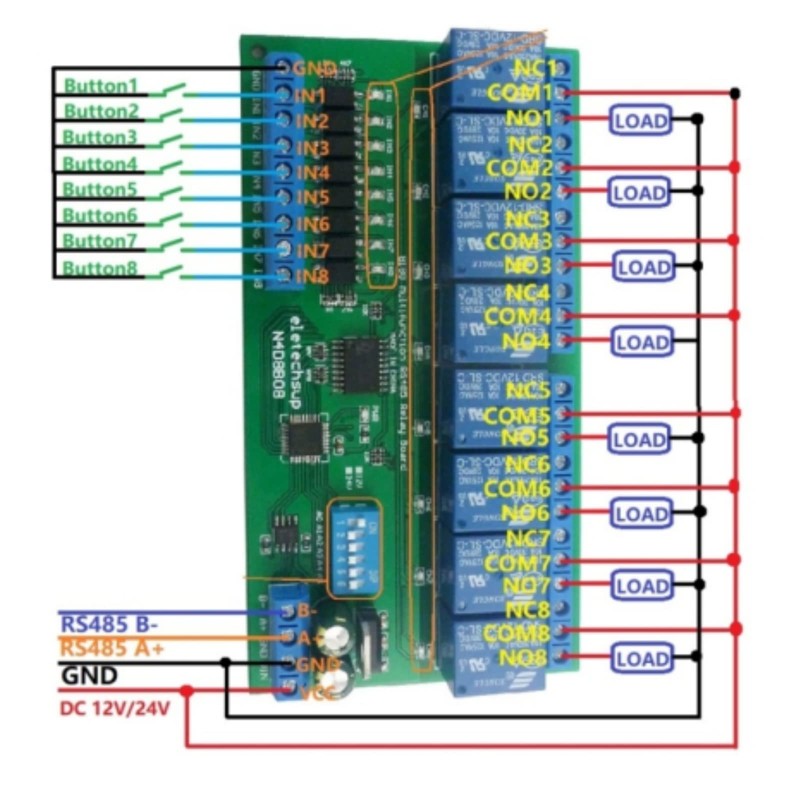

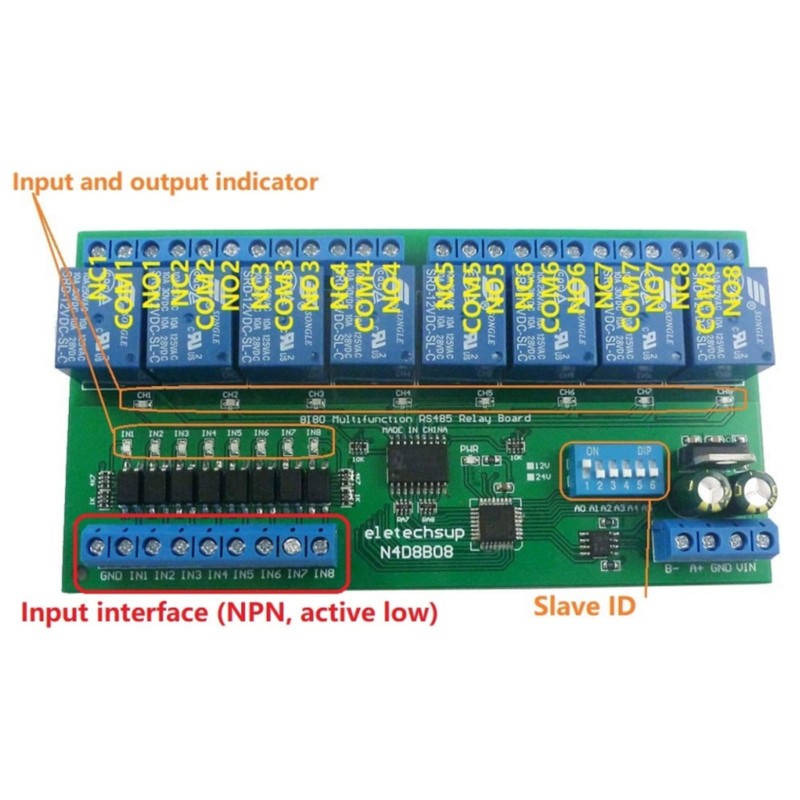

8 x photoelectric isolation input port (NPN is active at low level), the input and output relationship can be set to mapped (default) and unmapped via commands.
6 working modes: open, close, type, self-lock, lock and delay

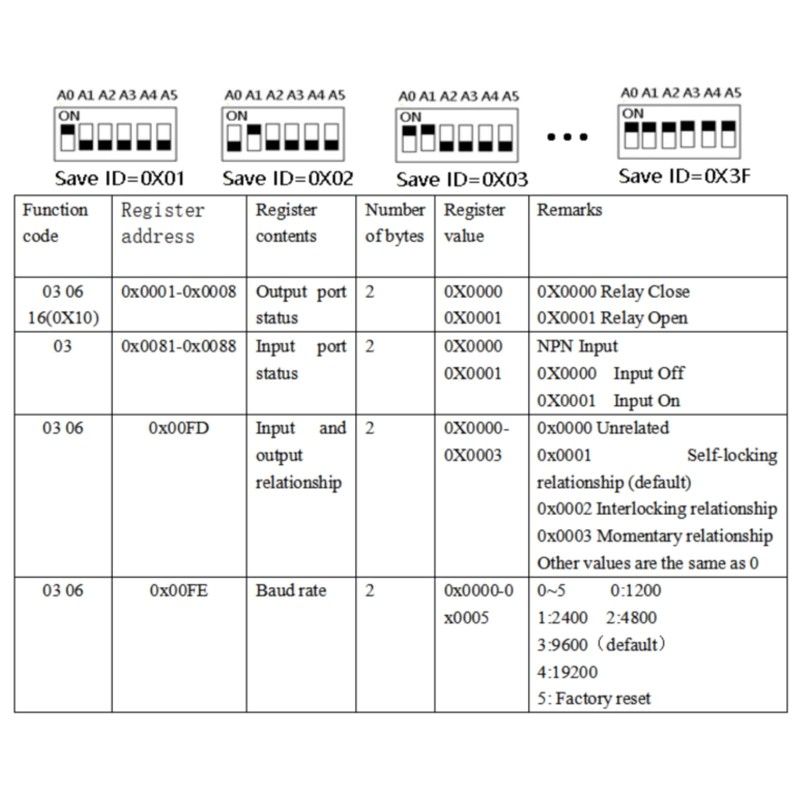

The instruction supports function code 03 06 16
The maximum delay under command is 255 seconds
AT commands can be entered via the super terminal of the serial port (serial assistant). In addition to the hyperterminal input of the serial port, the command can also be entered by others.
In command mode, up to 64 devices can be used in parallel.
The standard baud rate is 9600 BPS, and the baud rate 2400 4800 19200 BPS can be selected via jumper.
Package list:
1 x relay.
