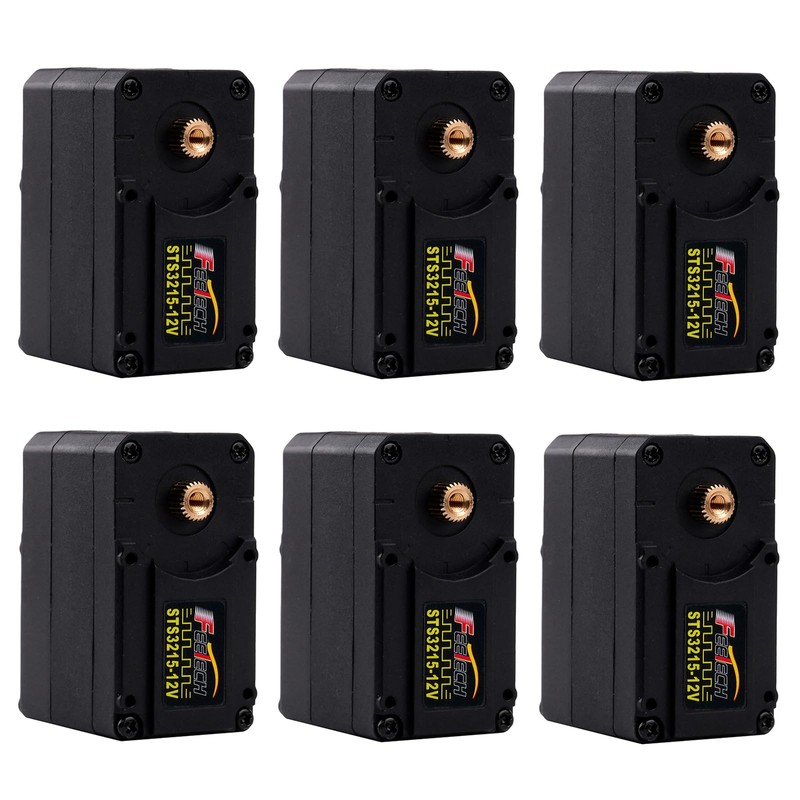

Rcmall 6 Pack Feetech 30KG Serial Bus Servo STS3215 12V Robot Motor with 360° Magnetic Encoder High Precision and Torque for Educational Robot Projects

$271.50

  • High Torque: Provides 30kg of torque, ideal for demanding robot and RC applications that require precise control and powerful movement
  • Continuous Rotation: Full 360 degree continuous rotation function with magnetic encoder for accurate position feedback and control
  • Digital Control: Smart serial bus interface with built-in magnetic encoder technology enables programmable operation and precise positioning
  • Rated Voltage: Operates on 12V power source, ensuring stable and reliable performance in a variety of automation projects
  • COMPLETE KIT: Includes aluminum flange and mounting hardware with screws for versatile installation in a variety of project configurations

Size:
30kg
Color:
Black
Manufacturer:
Rcmall
Part Number:
LPQQ4FR
Material Type:
Metal
Isin:
IKD84FSPHMRI

$271.50

In Stock

, Fulfilled by IBSPOT • Ships from US

IBSPOT Buyer Protection
  • Free 30-Day Returns
  • Full Refund for Damaged or Incorrect Items
  • Guaranteed Delivery or Money Back
  • Secure Checkout & Fast Support
scroll to top arrow
Rcmall 6 Pack Feetech 30KG Serial Bus Servo STS3215 12V Robot Motor with 360° Magnetic Encoder High Precision and Torque for Educational Robot Projects

Rcmall 6 Pack Feetech 30KG Serial Bus Servo STS3215 12V Robot Motor with 360°...

$271.50

  • High Torque: Provides 30kg of torque, ideal for demanding robot and RC applications that require precise control and powerful movement
  • Continuous Rotation: Full 360 degree continuous rotation function with magnetic encoder for accurate position feedback and control
  • Digital Control: Smart serial bus interface with built-in magnetic encoder technology enables programmable operation and precise positioning
  • Rated Voltage: Operates on 12V power source, ensuring stable and reliable performance in a variety of automation projects
  • COMPLETE KIT: Includes aluminum flange and mounting hardware with screws for versatile installation in a variety of project configurations

Size:
30kg
Color:
Black
Manufacturer:
Rcmall
Part Number:
LPQQ4FR
Material Type:
Metal
Isin:
IKD84FSPHMRI

Storage Temperature Range: -22°F to 176°F (-30°C to 80°C).
Operating Temperature Range: -4°F to 140°F (-20°C to 60°C)

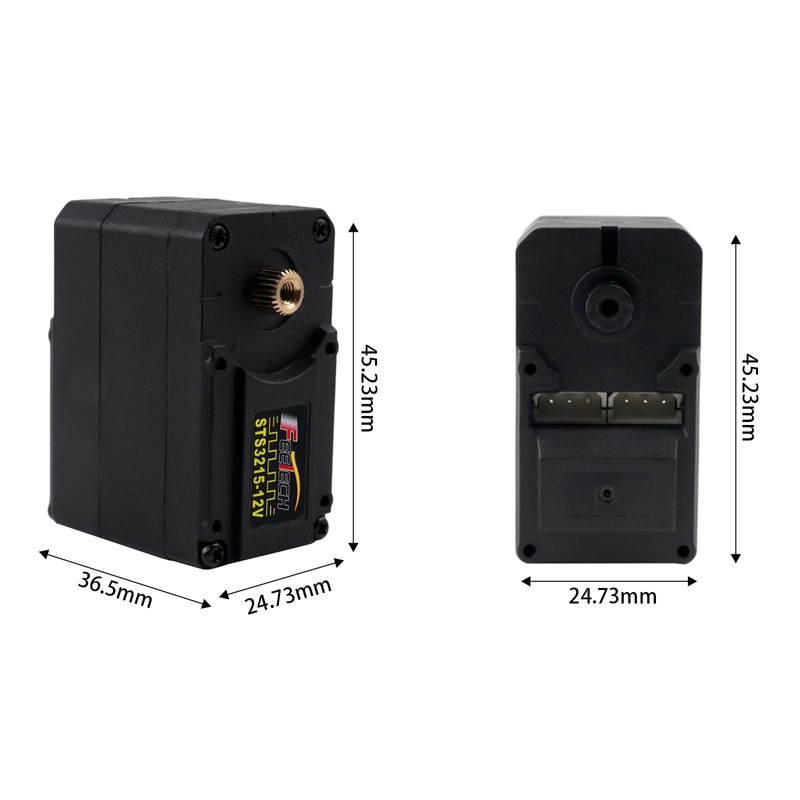

Size: 1.8 inches (45.2 mm), B: 0.9 inches (24.7 mm), C: 1.4 inches
Weight:80g
Gear Type: Steel Gear
Limit Angle: No Limit
Bearing: Ball bearing
Horn Gear Spline: 25T/OD 5.9mm
Horn Type: Plastic, POM
Case: PA+GF
Connector Wire:15cm
Motor: Core motor
Operating Voltage Range: 4-14V

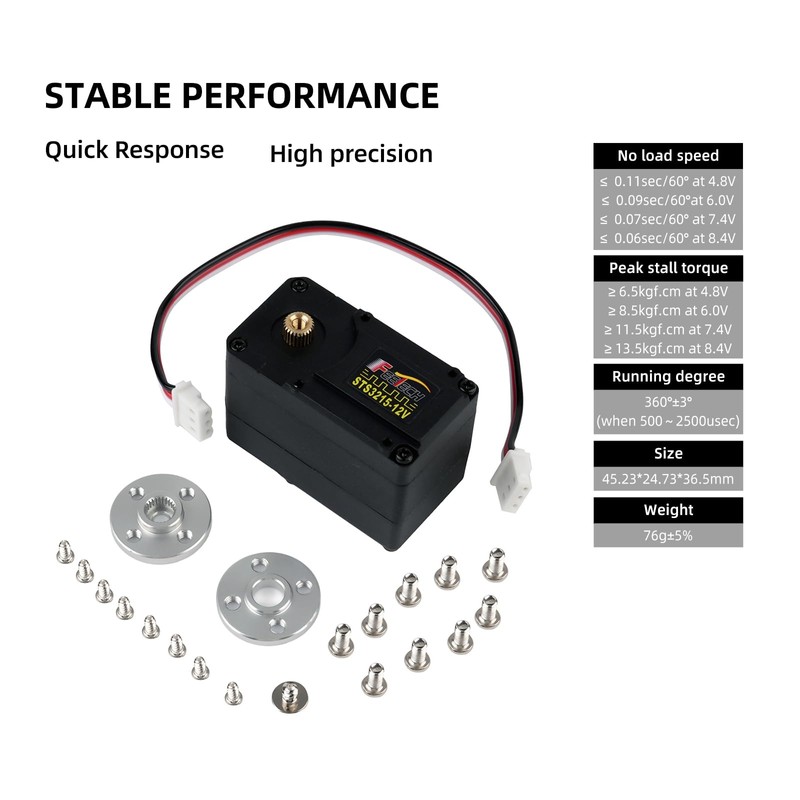

No-load Speed: 0.22 sec/60° @ 12V
Operating current (at no load): 180mA @ 12V
Peak Stall Torque: 66.1 lbs (30 kg), cm @ 12 V
Rated torque: 22.0 lbs (10 kg.cm)@12V
Stall Current: 2.7A @ 12V
Command Signal: DigitalPacket
Protocol type: half duplex asynchronous serial communication
ID Range: 0-253
Transmission speed: 38400bps - 1Mbps
Driving: 360° (at 0 - 4096)
Feedback: Load, Position, Speed, Input Voltage, Current
Specific Applications Interface Definition(Control Signal Parameter):
Maximum Position Update Rate: lms
Signal High Voltage: 2V-5V
Signal low voltage: 0.OV-0.45V
Life test: >100,000
Forward 60 degree rotation (0.25 seconds) → 0.5 second pause → 60 degree backward rotation (0.25 seconds) → 0.5 second pause Continuous operation at 20% of stall torque
Motor Noise 45±5dB
Ambient noise level: 40-45dB measured by 30cm from sound meter
Steering Gear Noise: 65±5dB
Ambient Noise: 40-45dB at 30cm (measured with no load speed 12V electricity)
Waterproof:No
Overload: When the load exceeds 80% of stall torque for 2 seconds, protection is triggered. Send a new position command to clear the overload flag. User adjustable both torque threshold (80%) and duration (2 seconds).
Over Current Protection: Over 2A current will disable the output for 2 seconds. Clear obstacle flag with new position commands. The threshold (2A) and duration (2 seconds) can be adjusted by the user.
Over/Low Voltage Protection: Triggered when voltage >14V or <4V. Automatically resets when voltage returns to normal range. User threshold (4V-14V) can be set
Overheating Protection: Torque output will be disabled if the temperature exceeds 158°F (70°C).

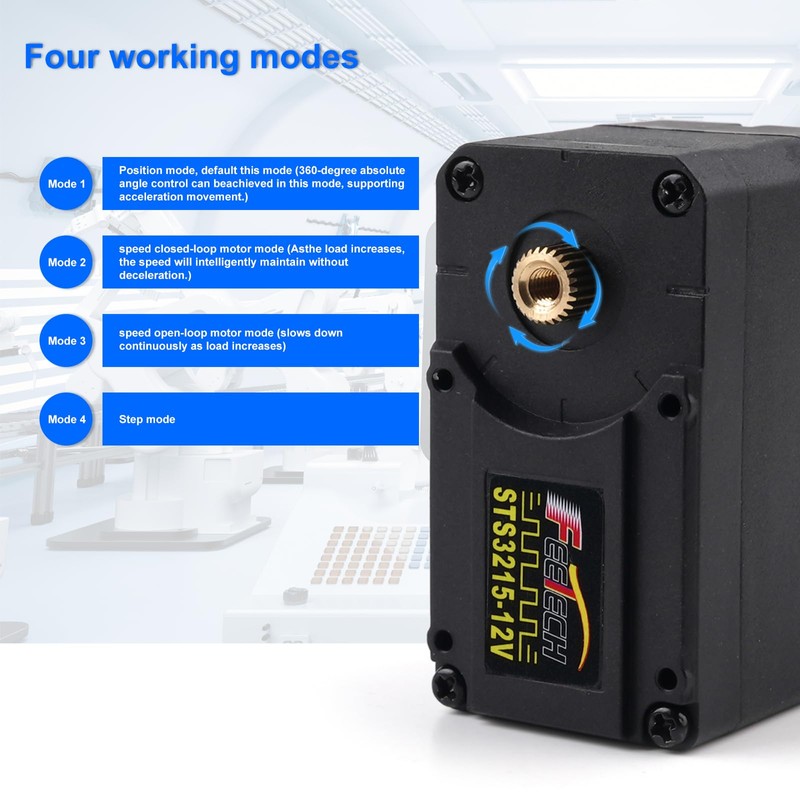

Mode: 0-position servo mode (default) control the absolute position from 0-360° range
Mode: 1 Closed Loop Speed Mode Maintain Constant Speed Under Load (Anti-Stall)
Mode: 2 Open Loop Speed Mode Speed decreases in proportion with increased load
Mode: 3-step mode: Performs a relative movement from your current location.
Multi-turn mode ± 7 turn Absolute position control Maximum precision (non-volatile memory supported) Double resolution can be achieved by extending the turn count
Center Calibration One Click Calibration: Automatically sets a 360° position to a center point (Address 40 Input: 128) Allows flexible installation at any angle
