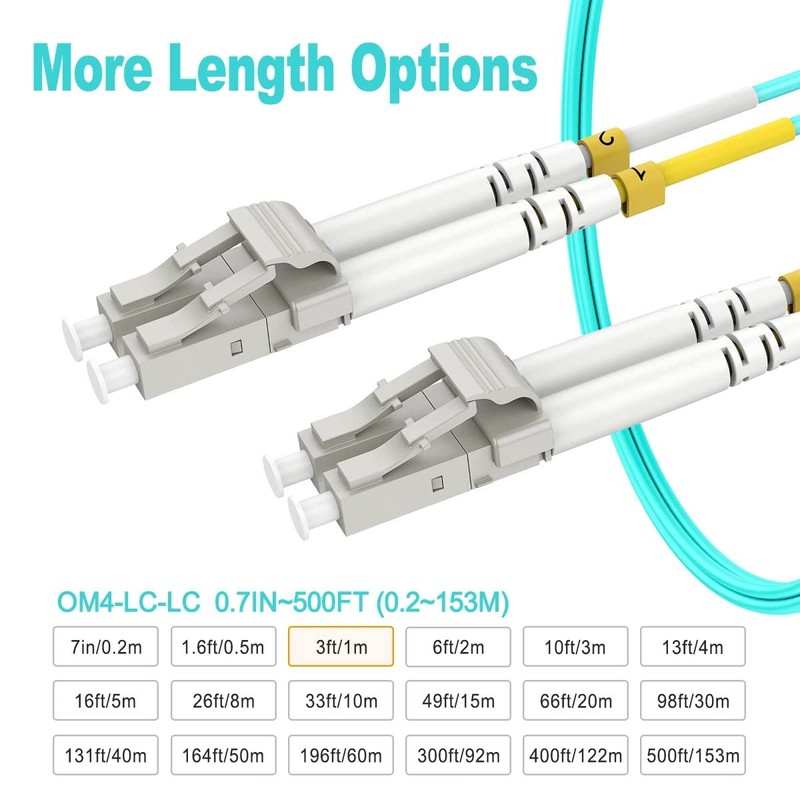

3ft(1m) OM4 LC LC Fiber Patch Cables MMF Multimode, Options 7in~500ft(0.2m~153m), Fiber Optic Cable Duplex, 50/125μm 40G/100G LSZH 𝙍𝙖𝙢𝙗𝙤𝘾𝙖𝙗𝙡𝙚𝙨
$25.82
- $5.95 shipping from United States View details
-
Arrives
- 🔌【1m/3ft OM4 LC-LC Fiber Patch Cable】 RamboCables OM4 1m/3ft LC to LC fiber patch cable multimode duplex has a 50/125μm high rated fiber cladding, 850/1300nm Wavelength, 2.0mm fiber cable diameter and environmentally friendly LSZH fiber jacket. This high quality 50/125μm OM4 multimode LC to LC fiber patch cables ensure a more stable and efficient network for you.

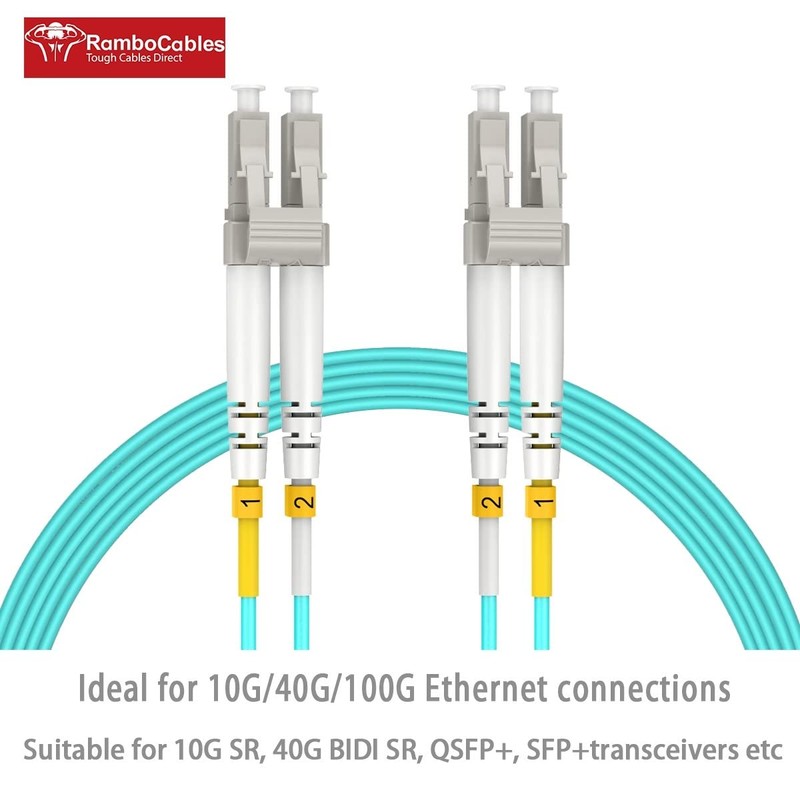

- 📡【Wide Usage】OM4 MMF is the preferred fiber specification for 40G Ethernet connections. OM4 LC to LC Multimode Duplex Fiber patch cords is specially designed for connecting 10G SR, 40G BIDI SR, QSFP+, SFP+ transceivers etc, ideal for 10G/40G/100G Ethernet connections. RamboCables OM4 LC-LC optic fiber patch cables help saving more space for your high density cabling in data centers, enterprise networks, telecom room and any places patch cables are needed.
- 🔗【Transmission Distance】OM4 LC to LC fiber patch cables have a 4700 MHz·km @850nm bandwidth, allow for 10Gb Ethernet transmission distance of 400Meters at 850nm wavelength; 40Gb Ethernet transmission distance of 350Meters at 850nm wavelength; 100Gb Ethernet transmission distance of 125Meters at 850nm wavelength.
- 📦【Why to Choose】OM4 LC to LC multimode fiber optic patch cables are Constructed with LSZH environmentally friendly Jacket. Fiber cables Insertion Loss: ≤0.3dB, Return Loss: ≥30dB, operating temperature: -20~70°C. Optimum IL and RL of the Zirconia Ceramic Ferrule ensures a stable signal transmission(Accordance with EIA/TIA 604-2, 100% inspected), bend radius at 7.5mm, which improves duct utilization, enables smaller enclosures and provides a smooth and stable transmission for your network.
- 📩【Tough Cables Direct】RamboCables OM4 lc to lc fiber patch cable meets industry standards for efficient network transmission. It ensures reliable and efficient network connectivity for telecommunications and other applications.
- 🔌【1m/3ft OM4 LC-LC Fiber Patch Cable】 RamboCables OM4 1m/3ft LC to LC fiber patch cable multimode duplex has a 50/125μm high rated fiber cladding, 850/1300nm Wavelength, 2.0mm fiber cable diameter and environmentally friendly LSZH fiber jacket. This high quality 50/125μm OM4 multimode LC to LC fiber patch cables ensure a more stable and efficient network for you.
- 📡【Wide Usage】OM4 MMF is the preferred fiber specification for 40G Ethernet connections. OM4 LC to LC Multimode Duplex Fiber patch cords is specially designed for connecting 10G SR, 40G BIDI SR, QSFP+, SFP+ transceivers etc, ideal for 10G/40G/100G Ethernet connections. RamboCables OM4 LC-LC optic fiber patch cables help saving more space for your high density cabling in data centers, enterprise networks, telecom room and any places patch cables are needed.
- 🔗【Transmission Distance】OM4 LC to LC fiber patch cables have a 4700 MHz·km @850nm bandwidth, allow for 10Gb Ethernet transmission distance of 400Meters at 850nm wavelength; 40Gb Ethernet transmission distance of 350Meters at 850nm wavelength; 100Gb Ethernet transmission distance of 125Meters at 850nm wavelength.
- 📦【Why to Choose】OM4 LC to LC multimode fiber optic patch cables are Constructed with LSZH environmentally friendly Jacket. Fiber cables Insertion Loss: ≤0.3dB, Return Loss: ≥30dB, operating temperature: -20~70°C. Optimum IL and RL of the Zirconia Ceramic Ferrule ensures a stable signal transmission(Accordance with EIA/TIA 604-2, 100% inspected), bend radius at 7.5mm, which improves duct utilization, enables smaller enclosures and provides a smooth and stable transmission for your network.
- 📩【Tough Cables Direct】RamboCables OM4 lc to lc fiber patch cable meets industry standards for efficient network transmission. It ensures reliable and efficient network connectivity for telecommunications and other applications.
Production Details
1M/3FT LC-LC OM4 Multimode Fiber Optic Patch Cable | Options: 0.2-122m, 40G/100G Duplex MMF Fiber Patch Cable LSZH 50/125μm 850/1300nm,Length Options:0.2m/7inch-122m/400ft - RamboCables
Cable Length(included connector): 1M/3FT
Manufacturer: RamboCables
Product Specifications
Fiber Type: OM4(Laser-optimized) Multimode
Cable Color: Aqua
Wavelengths: 850nm and 1300nm
Connector Type: Duplex LC to LC
Polarity: UPC to UPC
Ferrule Material: Ceramic
Cable Jacket: LSZH

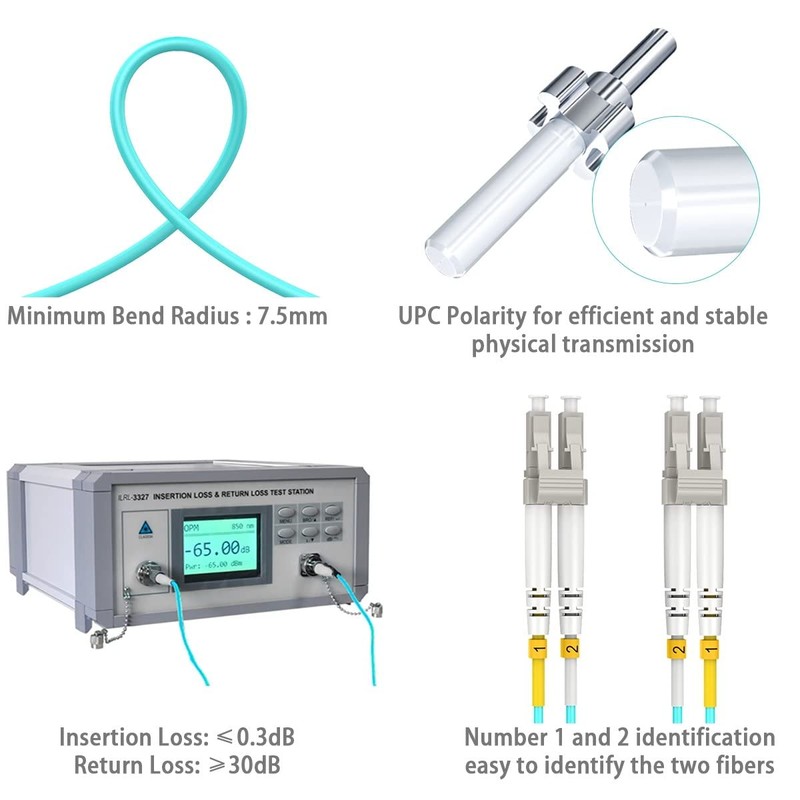

Minimum Bend Radius: 7.5mm
Cable Diameter: 2.0mm
Operating Temperature: -20~70°C

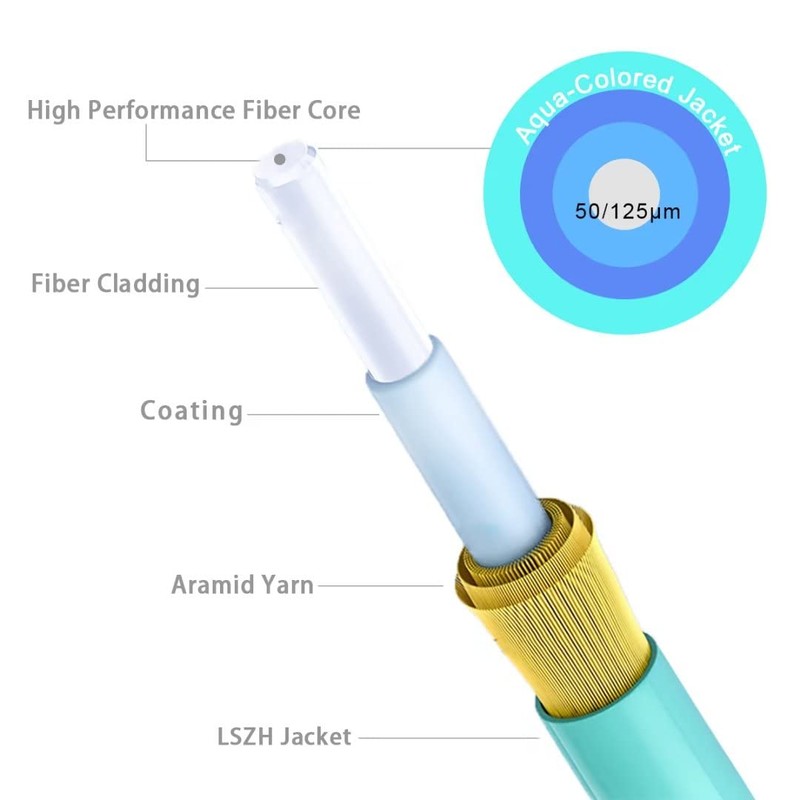

Fiber Core: High Rated 50/125um Fiber and Cladding
Length in Meters: 1M
Length in Feets: 3FT
Insertion Loss: ≤0.3dB
Return Loss: ≥20dB

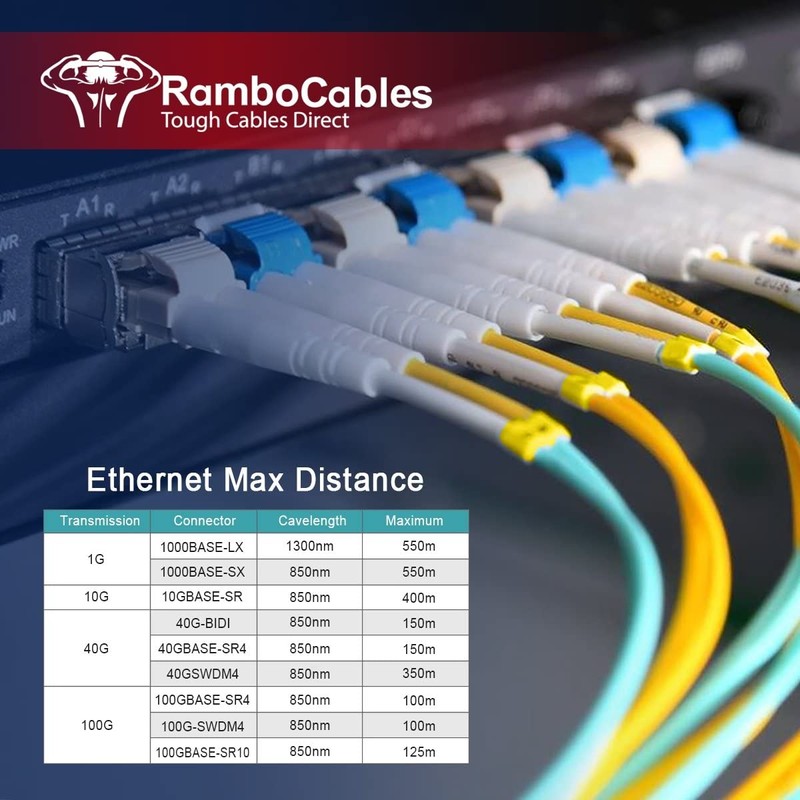

Transmission Distance
Wavelength: 850nm and 1300nm
1G Ethernet Max Distance: 550 Meters at 850nm
10G Ethernet Max Distance: 400Meters at 850nm
40G Ethernet Max Distance: 400Meters at 850nm
100G Ethernet Max Distance: 300Meters at 850nm
Bandwidth: 4700 MHz·km at 850nm
Attenuation at 850nm: 3.0 dB/km
Attenuation at 1300nm : 1.0 dB/km
Applications
Computer Networking - Transfers data at a higher rate of speed.
Telecommunications - Carries data to internet, cable TV and phone subscribers at greater bandwidths.
Military and Defense - Transmits data signals more clearly.
