Raccord Union 12 x de serrage 3/4 kit de cône pour des tubes métalliques, Euro A11
$34.93
- $12.99 shipping from Germany View details
-
Arrives

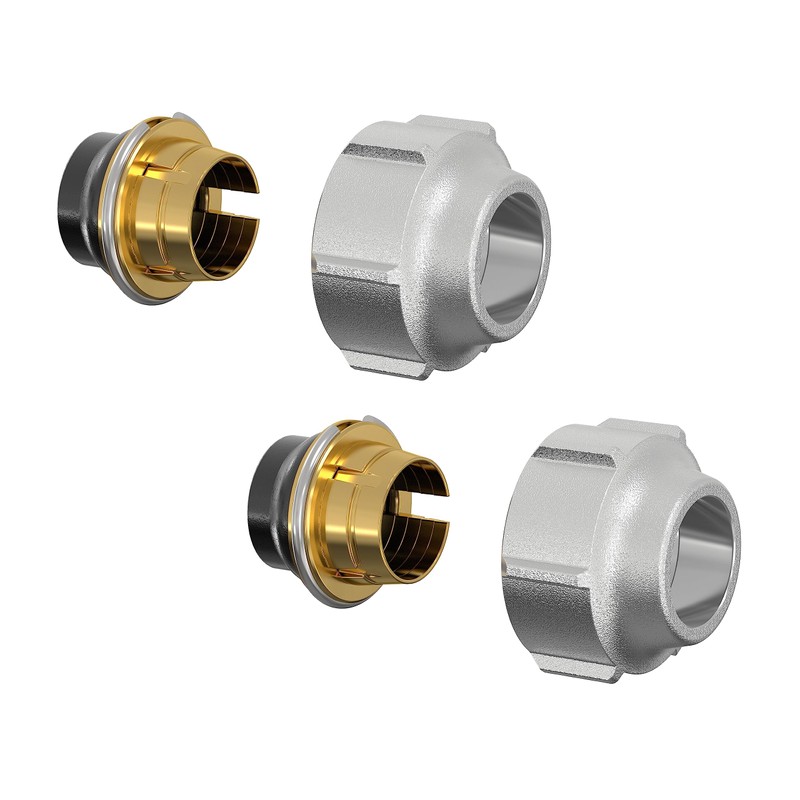

- Pack of 2. Compression adapter for use in heating systems for empty, nickel and chrome plated copper pipes, carbon steel pipes and stainless steel pipes

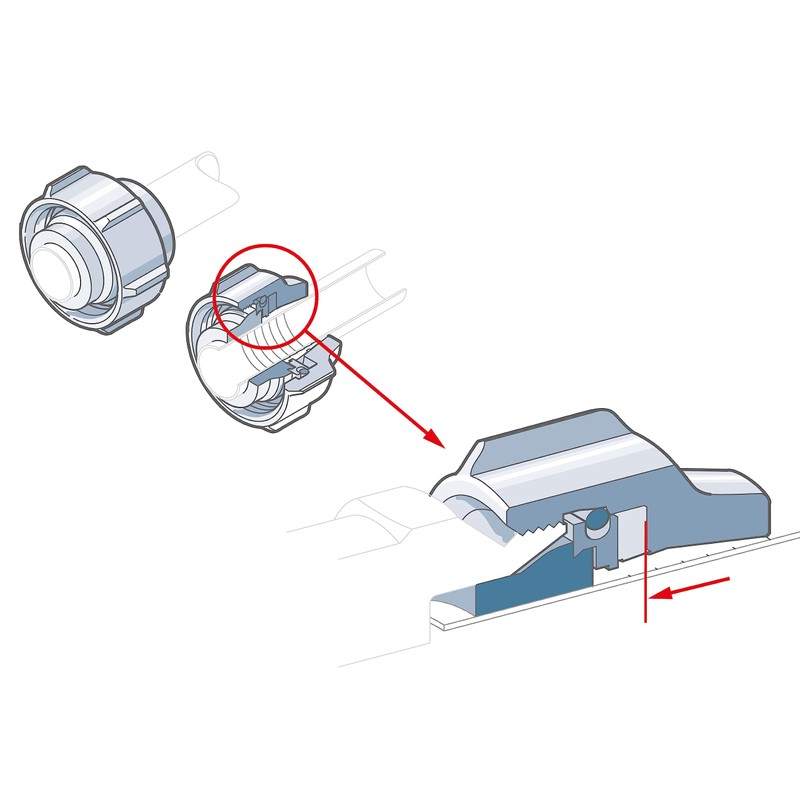

- Suitable for G 3/4 inch M Euro conicity, elastic seal, extended clamping rings for high pull-out forces, no support sleeves required, ribbed nut (spanner width 30 mm), with fixed stop, 2-step function: sealing - clamping.
- High tensile forces targeted with hard tube surface, no torque specifications
- Gentle pipe connection without deformation of the connecting pipe, detachable connection
- Long-lasting sealing thanks to clear raw material formula developed for the sealing element
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Pack of 2. Compression adapter for use in heating systems for empty, nickel and chrome plated copper pipes, carbon steel pipes and stainless steel pipes
- Suitable for G 3/4 inch M Euro conicity, elastic seal, extended clamping rings for high pull-out forces, no support sleeves required, ribbed nut (spanner width 30 mm), with fixed stop, 2-step function: sealing - clamping.
- High tensile forces targeted with hard tube surface, no torque specifications
- Gentle pipe connection without deformation of the connecting pipe, detachable connection
- Long-lasting sealing thanks to clear raw material formula developed for the sealing element
High extraction forces especially for hard pipe surfaces.
No torque specifications.
Gentle pipe connection without deformation of the connection pipe.
Releasable connection
Long-lasting sealing thanks to uniquely developed raw material formula for the sealing element.
Technical details:
Max. Operating temperature: 110°C continuous temperature, 130°C short-term
Max. Operating pressure: 10 bar.
Operating medium: heating water according to VDI 2035.
Euro cone: DIN EN 16313.
Suitable pipes.
Copper pipes (blank, nickel-plated, chrome-plated*) according to DIN EN 1057 (soft, semi-hard, hard).
Pipes made of carbon steel (blank, galvanised) according to DIN EN 10305.
Pipes made of stainless steel according to DIN EN 10312.
* Restrictions for chromed copper pipes: dimension 14-18 mm for semi-hard and hard copper pipes
Materials
Nut: nickel-plated brass.
Shackle, clamping ring: brass.
Sealing cone: EPDM.
Locking ring: stainless steel.
Pack of 2 clamping adapters for use in heating systems, for bare nickel-plated and chrome-plated copper pipes, carbon steel pipes and stainless steel pipes, suitable for G 3/4 inch M Euro cone, elastic seal, extended clamping rings for high tensile forces, no support sleeves required, ribbed nut (spanner width 30 mm), with fixed stop, 2-step function: sealing clamps.
