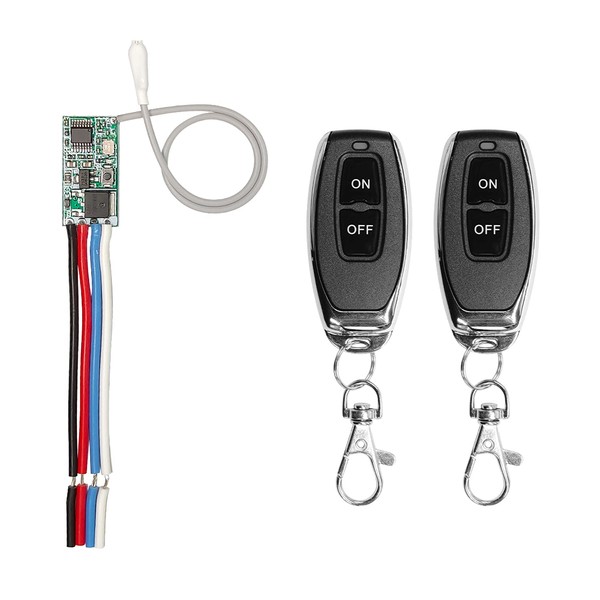

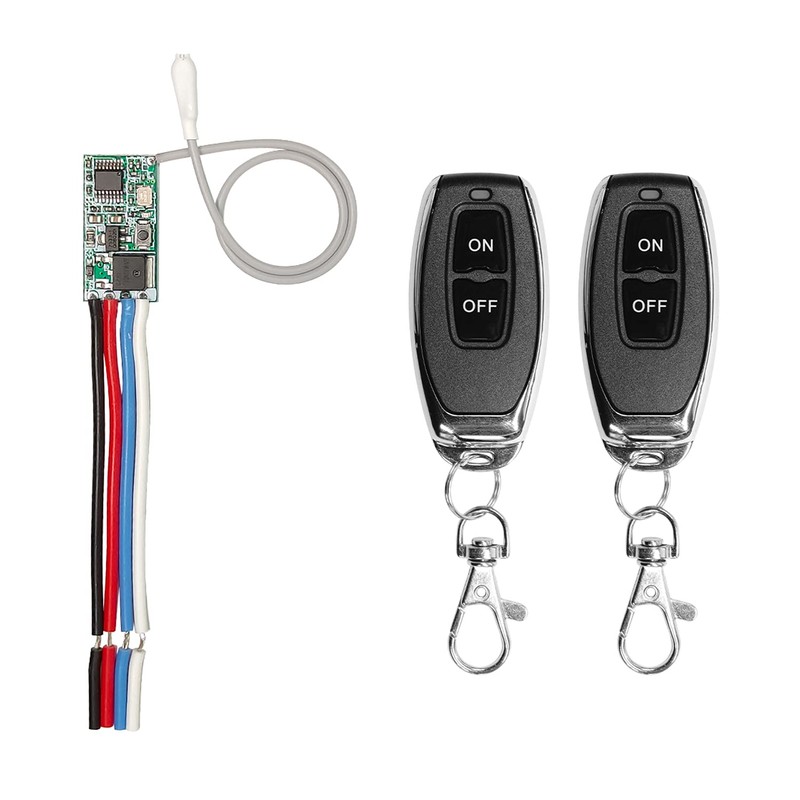

QIACHIP 433MHz RF Wireless Remote Control Relay Switch Module Radio Control Receiver Module with 2 Transmitters DC 3.7V 5V 9V 12V
$53.45
- $9.99 shipping from Germany View details
-
Arrives
- A strong signal: Operating voltage: DC 3.6V-24V, 433MHz wireless remote control switch. High reception sensitivity, with RF technology, this remote control switch can pass through walls, floors and doors with a maximum range of 164 feet in the absence of obstacles
- Safety control: can be controlled independently without disturbing each other, learning the code provides high security thanks to its low repetition rate and re-learning mode. It is possible to delete old codes and learn new ones.

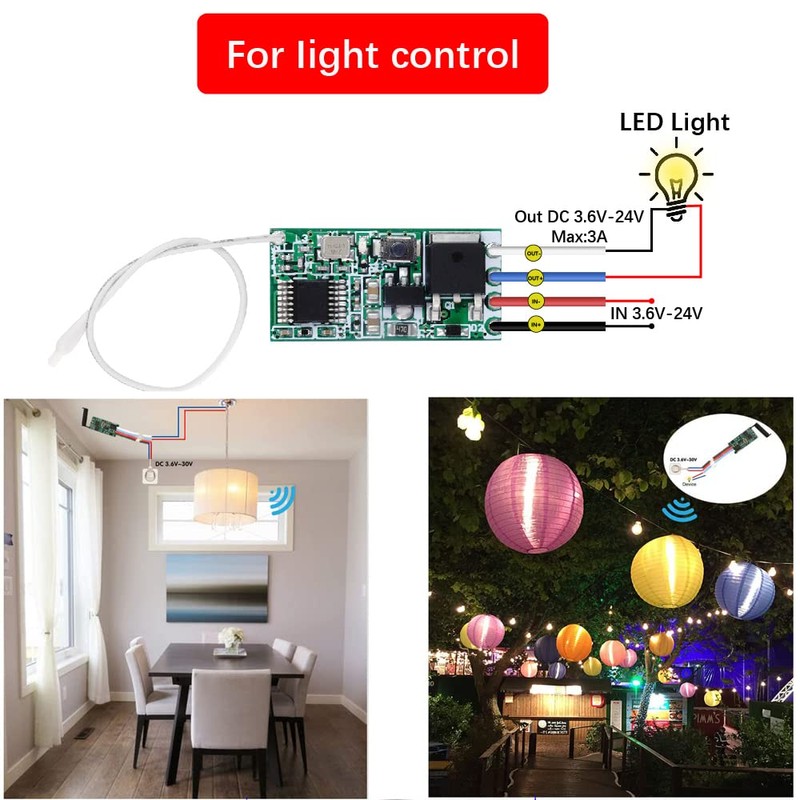

- Compact design: the small receiver fits easily into junction boxes such as canopies, junction boxes, switch boxes. Ideal for use in offices, hotels, restaurants, factories. It can also be easily hidden in the ceiling or mounted on the surface
- Easy installation: no wires to pull, no walls to remove, just connect to the circuit and install to use. The relay is equipped with buttons, so you can always operate it if the remote control is lost.
- Common use: one receiver can hold approx. 15 transmitters store, the chip code is the EV1527 learning code and there is a screw clamp on the back of the transmitter that can be removed to replace the battery
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- A strong signal: Operating voltage: DC 3.6V-24V, 433MHz wireless remote control switch. High reception sensitivity, with RF technology, this remote control switch can pass through walls, floors and doors with a maximum range of 164 feet in the absence of obstacles
- Safety control: can be controlled independently without disturbing each other, learning the code provides high security thanks to its low repetition rate and re-learning mode. It is possible to delete old codes and learn new ones.
- Compact design: the small receiver fits easily into junction boxes such as canopies, junction boxes, switch boxes. Ideal for use in offices, hotels, restaurants, factories. It can also be easily hidden in the ceiling or mounted on the surface
- Easy installation: no wires to pull, no walls to remove, just connect to the circuit and install to use. The relay is equipped with buttons, so you can always operate it if the remote control is lost.
- Common use: one receiver can hold approx. 15 transmitters store, the chip code is the EV1527 learning code and there is a screw clamp on the back of the transmitter that can be removed to replace the battery
About working mode:
Currently: Press the remote button, the relay connects, release the remote button, the relay disconnects.
Switch: press as soon as the remote control button is pressed, the relay connects, press the remote control button twice, the relay disconnects.
Locking: press the remote button A, the relay connects, press the remote button B, disconnect the relay.
1. Clear code: Press the learning button on the module eight times in a row, and the light flashes seven times and then goes out.
2. Momentary mode: press the module learning button 1 time, the indicator light always lights up, then press the remote control, the indicator light flashes 3 times and then goes out, then the learning is successful; if the code is not successful, the indicator goes out of the learning state after 15 seconds.
3. Switch mode: press the module learning button 2 times, the indicator light always lights up; then press the remote control button, the indicator lights flicker three times and then off, then the learning is successful; if the code was not successful, the indicator light will go out of the learning status after 15 seconds.
4. Locking mode: press the module learning button three times, the indicator light always lights up; and then press the buttons on the remote control, the indicator lights flicker three times and then off, then the learning is successful; If the code was not successful, the indicator light will go out of learning status after 15 seconds.
Note:

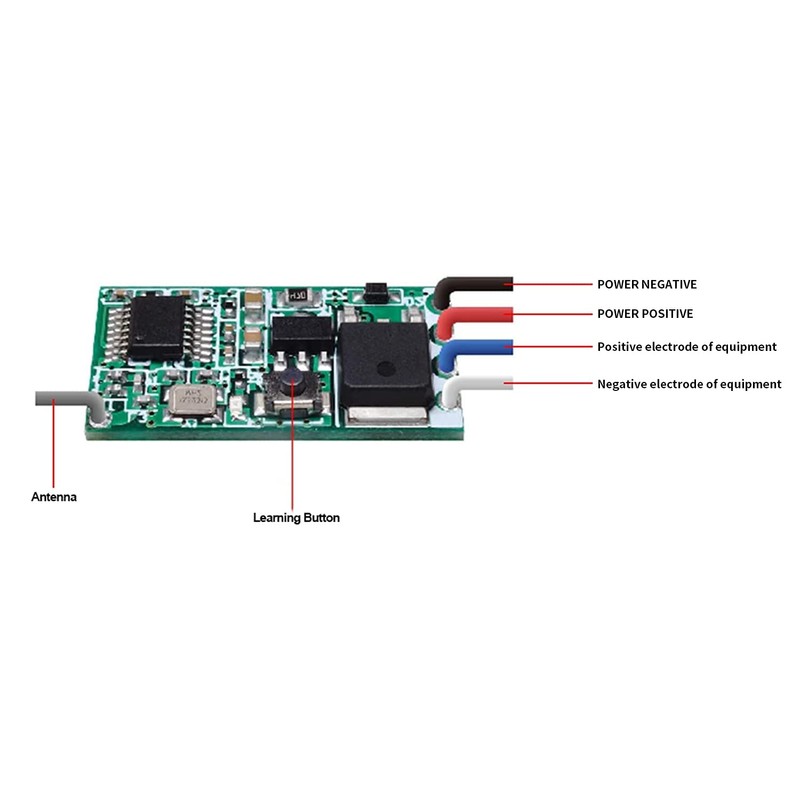

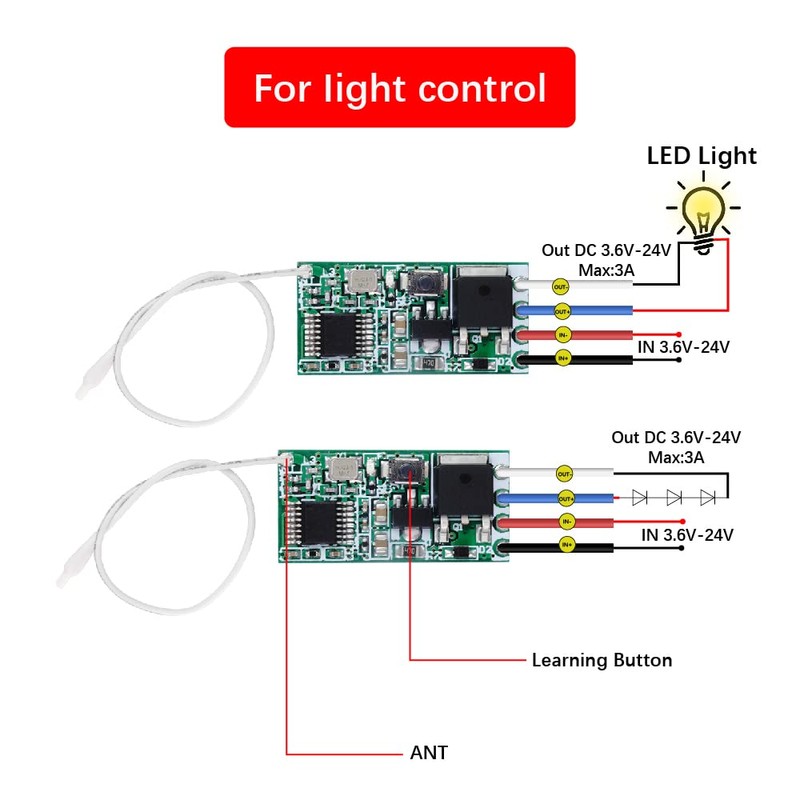

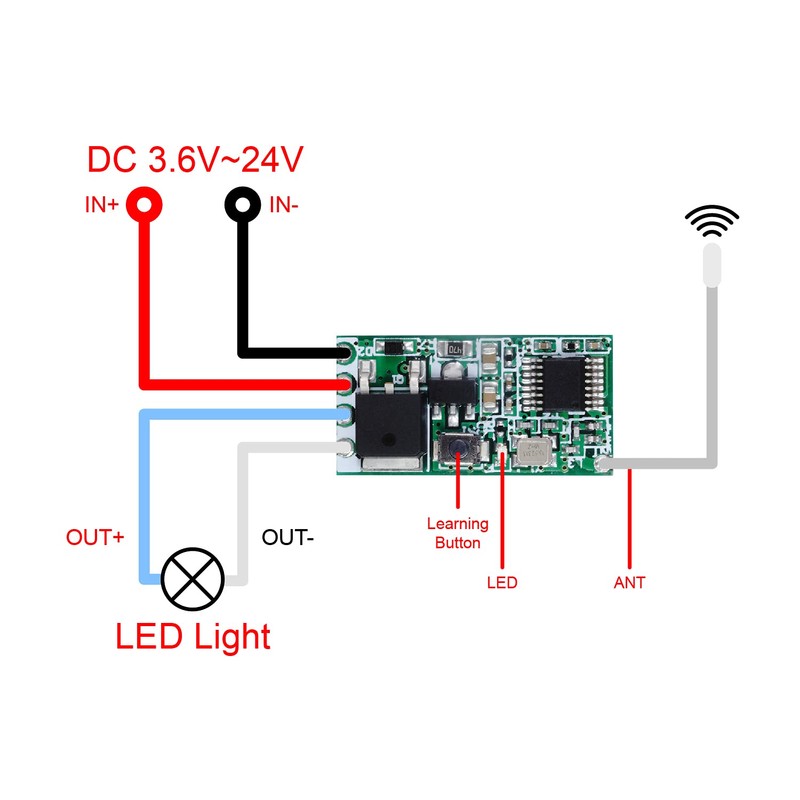

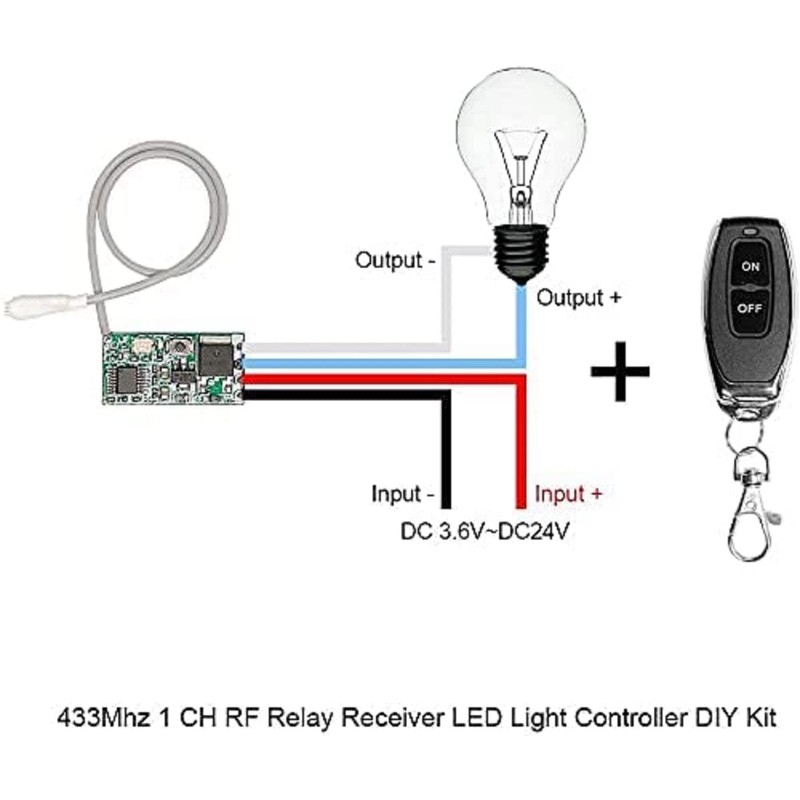

The blue output line is always Vcc (input voltage)! The device only switches the ground.
