Pwm Signal Voltage Converter, 0-10V Analog Output Voltage 0-100% 1-3Khz PWM Signal Input, D/A Digital-Analog Sps Module, For Controlling Motor Speed

Brand: Fyearfly

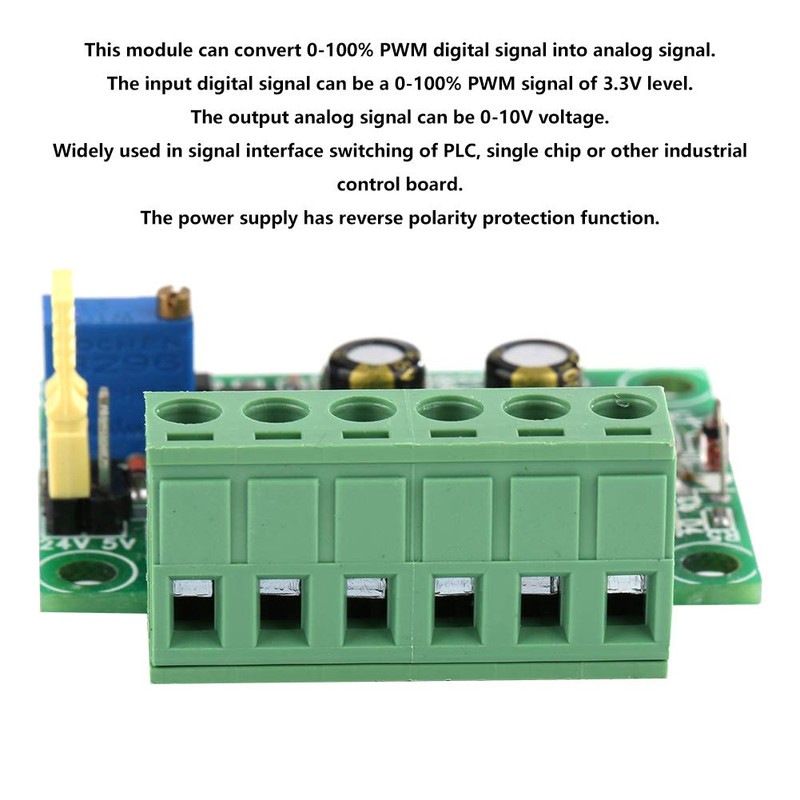

  • High performance: this PWM to voltage module can convert the digital PWM signal into an analogue signal 0 ~ 10 V. The digital input signal of this moudle can be 5V or 24V level 0-100% PWM signal, and the analogue output signal can be 0-10V voltage or 0-5V voltage
  • Easy to use: its PWM-to-voltage is equipped with embedded microcontroller technology, making it easy to wire and operate, you can also easily fine adjust the potentiometer
  • Widely used: This PWM to analog converter module can be used in different places. It can be used for industrial panel PLC or other signal interface circuit, only need to adjust the PWM duty cycle to regulate the output voltage to meet your different requirements.
  • Easy to install: Designed with suitable size, it can be used in different places, also designed with mounting hole, makes it easy to be fixed by screws.
  • 【Working range】PWM signal reception frequency range: 1KHz ~ 3KHz, take the PWM signal input level range by short circuit, the power supply has reverse polarity protection function.
Brand: Fyearfly
Manufacturer: Fyearfly
Part Number: MDZHCS8
Isin: IZ1UPQ6A776K

$28.48

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
Pwm Signal Voltage Converter, 0-10V Analog Output Voltage 0-100% 1-3Khz PWM Signal Input, D/A Digital-Analog Sps Module, For Controlling Motor Speed

Pwm Signal Voltage Converter, 0-10V Analog Output Voltage 0-100% 1-3Khz PWM S...

$28.48

Specification:
1. Model: 3.3P-5V.
Function: input 0-100% PWM signal from 3.3V level, output 0-10V voltage
2. PWM signal reception frequency range: 100Hz to 3kHz (1-3kHz is recommended)
3. Use the jump starter pin at 5 V.
4. Analog Voltage Output: Below is the output voltage of 0-10V for illustration
5. Supply voltage: 15-30 VDC (power supply requirement: >100 mA), 12 V adaptable.

Instruction manual:
If there is no input signal after switching on, the output is 0V
Calibration can be performed for the first time - enter a signal with 50% duty cycle and 3.3V amplitude on DIN- and DIN+. The frequency is 1-3 kHz. Use a multimeter to measure two ports for AO and GND. Adjust the potentiometer on the board so that the multimeter shows 5.40V. This calibrates the corresponding relationship between the pulse signal and this module. The resolution of this module is 0.1 V. The output current is 10 mA. If the duty cycle percentage is inversely proportional to the voltage, you can check the STEP LOW, ACTIVE checkbox to set the pins of the PWM output in the MACH3 software.

Port:
1. DIN +: Positive of PWM signal (for a common cathode connect it to the PWM signal; for common anode, connect it to 3.3V of the signal port)
2. DIN: negative of PWM signal (connect to GND when cathode is shared; for common anode, connect it to the PWM signal).
3. 12-30V: Positive of power supply.
4. GND: mass of power supply
5. GND: Power supply ground. It is connected to the ground of the power supply.
6. AO: Output port of analog voltage (0-10V)

Package list:
1 x digital-analogue PLC module.
