PWM Motor Driver DC 5V 12V 24V 30V 150W Motor Speed Controller Adjustable Speed Regulator with Stepless Variable Rotary Switch Signal Generator Driver Module by LLD_TK
PWM Motor Driver DC 5V 12V 24V 30V 150W Motor Speed Controller Adjustable Speed Regulator with Stepless Variable Rotary Switch Signal Generator Driver Module by LLD_TK
PWM Motor Driver DC 5V 12V 24V 30V 150W Motor Speed Controller Adjustable Speed Regulator with Stepless Variable Rotary Switch Signal Generator Driver Module by LLD_TK
Product Overview
- PWM Motor Speed Controller is made of premium quality circuit board material for durability and wear-resistance to ensure a long term service.
- Soft start protection reduces the inrush current, protect and prolong motor life
- Encoder knob adjust motor speed accuratly and consistent control than regualr potentiometers. Same valute input when you rotate next time. High precision.
- 3 digits LED motor speed regulator can adjust the duty cycle, the upper and lower duty cycle limits and the operating frequency. The adjustable electronic speed controller automatically save the set parameters to prevent data loss after a power failure

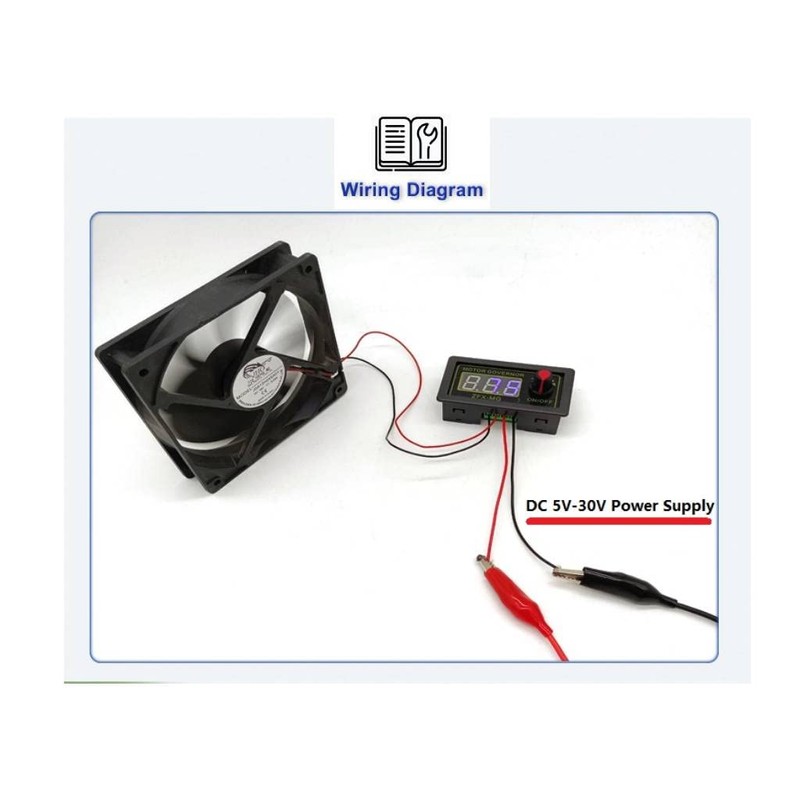

- Start and Stop Button can be controlled by an external switch, meet multiple control needs. Maximum power: 150W. Working voltage: DC5V~30V, input with anti-reverse connection protection.
| Brand: | LLD_TK |
|---|---|
| Manufacturer: | LLD_TK |
| Part Number: | M3TN5CZ |
| Material Type: | Copper |
| Isin: | IUXDI50A07NI |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
Product Overview
- PWM Motor Speed Controller is made of premium quality circuit board material for durability and wear-resistance to ensure a long term service.
- Soft start protection reduces the inrush current, protect and prolong motor life
- Encoder knob adjust motor speed accuratly and consistent control than regualr potentiometers. Same valute input when you rotate next time. High precision.
- 3 digits LED motor speed regulator can adjust the duty cycle, the upper and lower duty cycle limits and the operating frequency. The adjustable electronic speed controller automatically save the set parameters to prevent data loss after a power failure
- Start and Stop Button can be controlled by an external switch, meet multiple control needs. Maximum power: 150W. Working voltage: DC5V~30V, input with anti-reverse connection protection.
| Brand: | LLD_TK |
|---|---|
| Manufacturer: | LLD_TK |
| Part Number: | M3TN5CZ |
| Material Type: | Copper |
| Isin: | IUXDI50A07NI |
Features:
- Support ON/OFF output
- Soft start function
- Support set duty cycle
- Support set frequency
- Adjustable digital encoder
- Instrument case
- Support reverse connection protection
- Support parameter memory function
Parameter Set Mode:
- Short press potentiometer: Select the parameter you want to set including Lower Limit Value of duty cycle, Upper Limit Value and Output Frequency, which could be switched by yourself.
** The lower limit of the duty cycle is displayed as "L" + two digits; The upper limit of the duty cycle is displayed as "H" + two digits or "100"; And the operating frequency is displayed as "F" + two digits.
- Long press potentiometer: Save parameter and quit setting mode to normal display mode.
- Rotate potentiometer clockwise: Increase the setting value.
- Rotate potentiometer counterclockwise:Decrease the setting value.
- STOP pads inside:It is used to connect to an external switch button to turn ON/OFF output if user need control output by another button or controller.
Note:
- The module is a PMW driver, which controls the controlled device by changing the frequency and duty cycle of the output signal. It is not a voltage converter, it has no function to change the output voltage.
Potentiometer Introduction:
1. Long press means need keep press for more than 3second.
2. Default display duty cycle.
3. Normal display mode:
3.1 Short press potentiometer:Turn ON/OFF output signal.
3.2 Long press potentiometer:Enter parameter set mode.
3.3 Rotate potentiometer clockwise:Increase duty cycle value.
3.4 Rotate potentiometer counterclockwise:Decrease duty cycle value.
Use Steps:
1. Connect right work voltage(Note:don’t connect load before set parame
