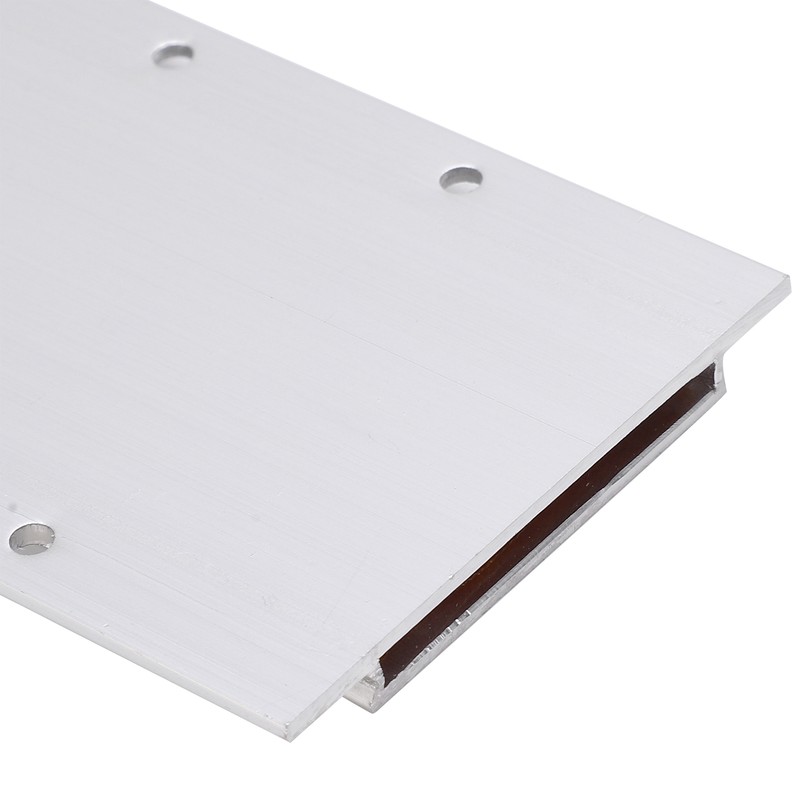

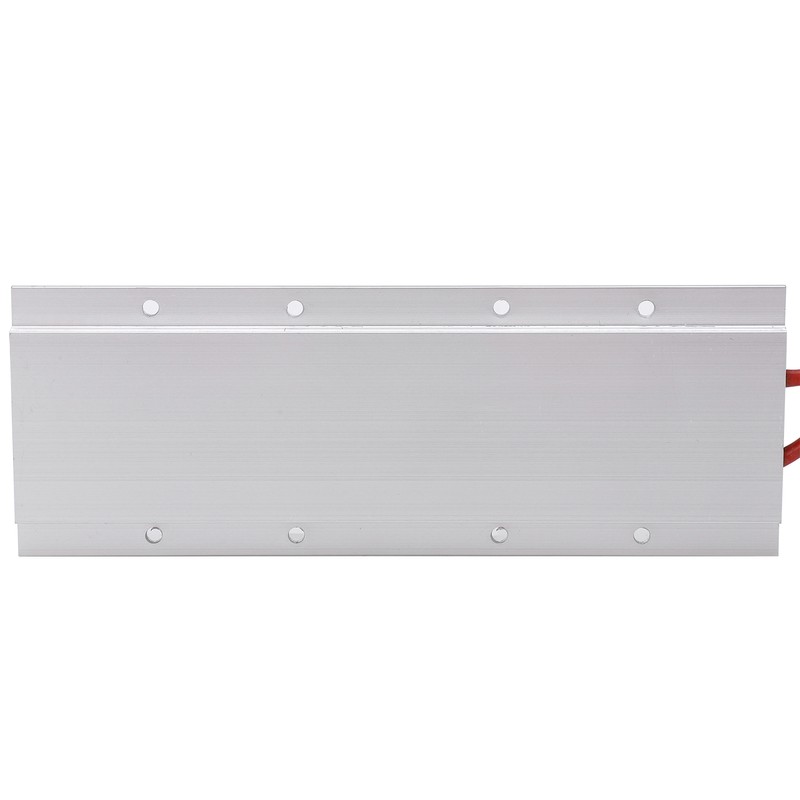

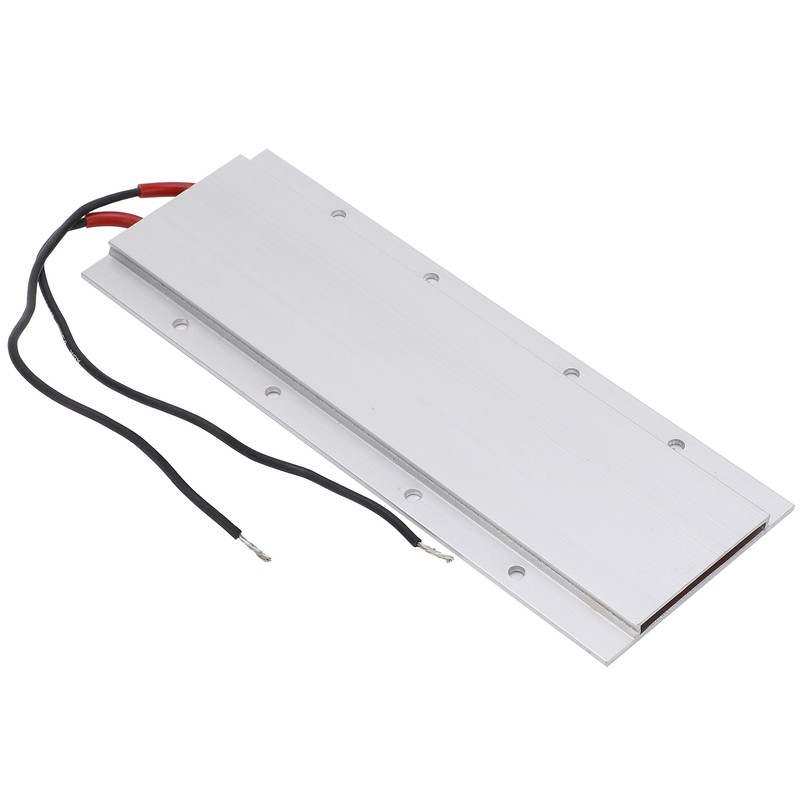

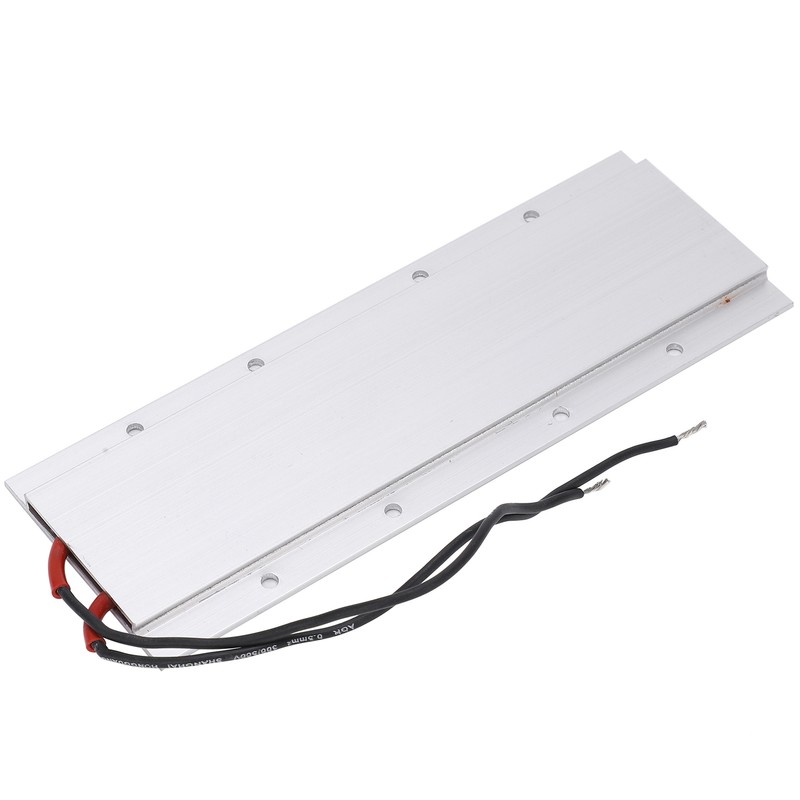

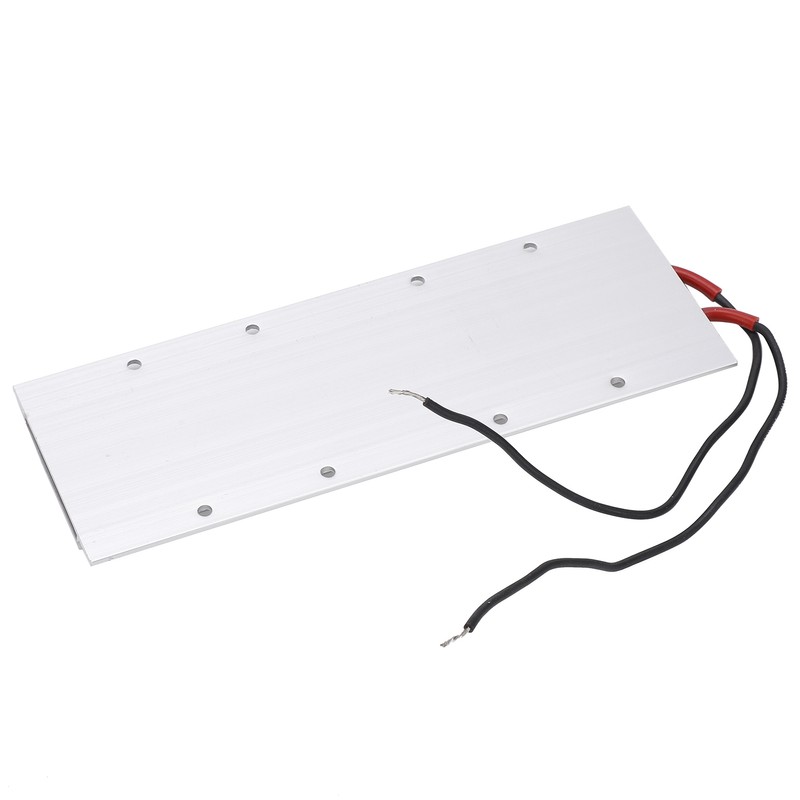

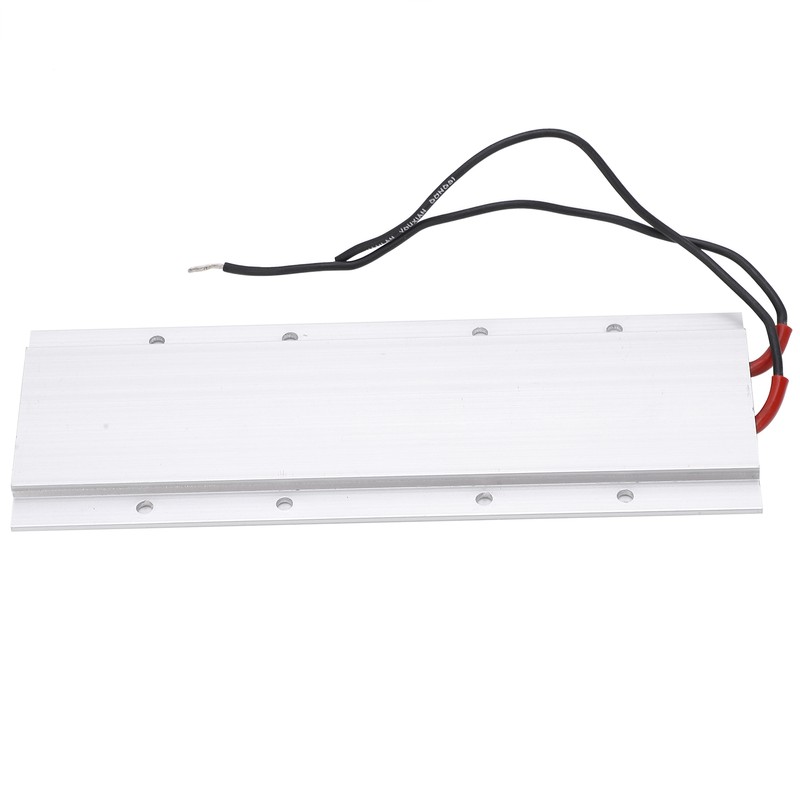

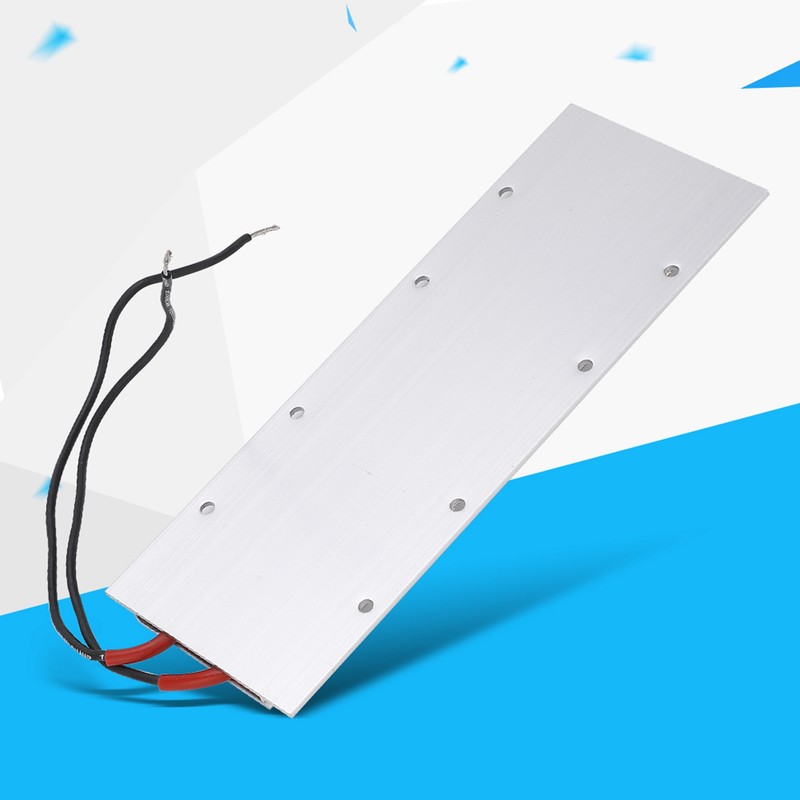

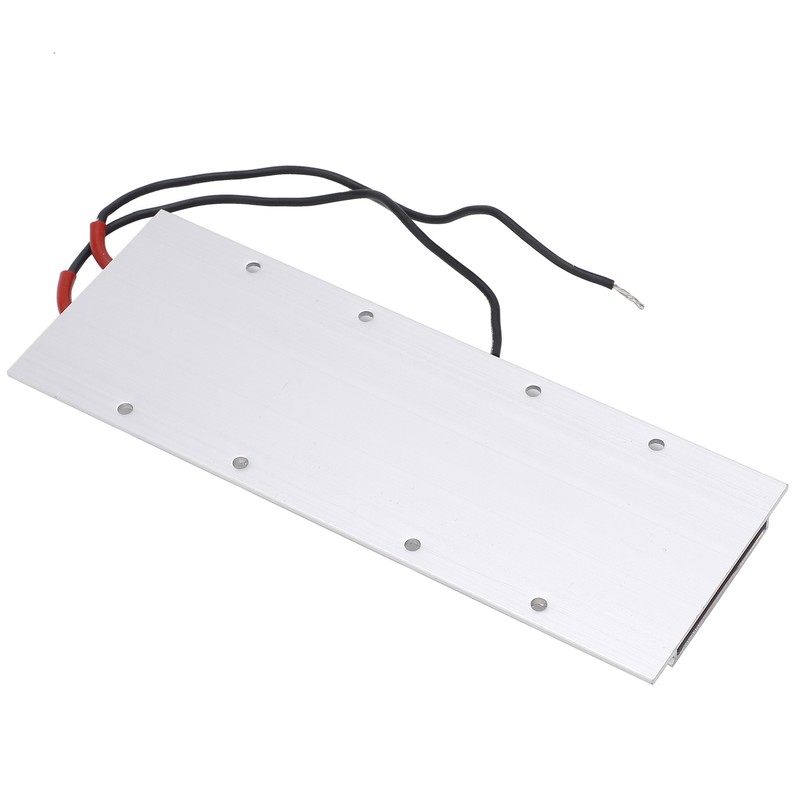

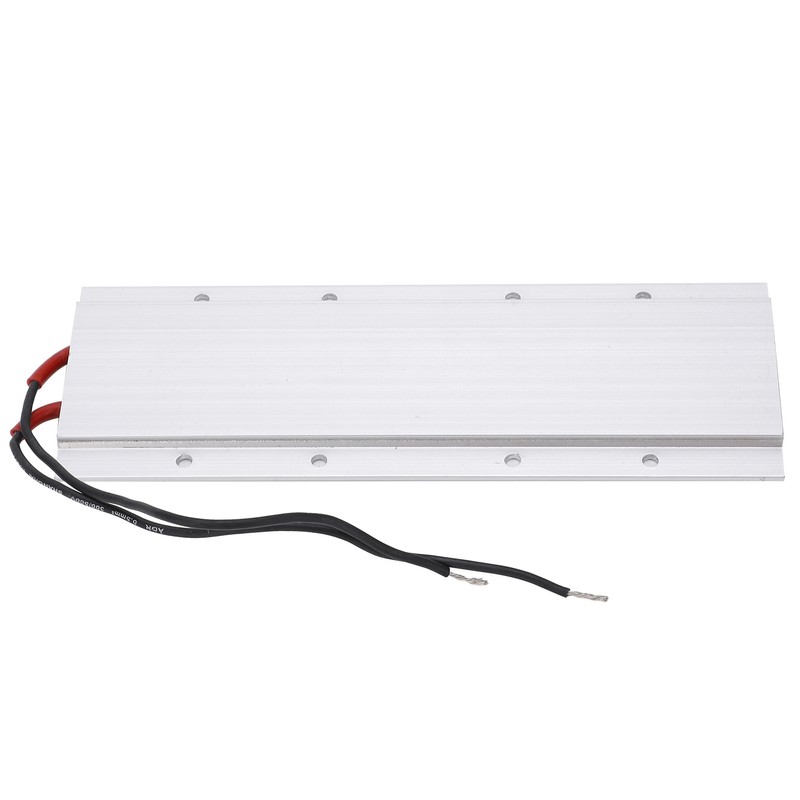

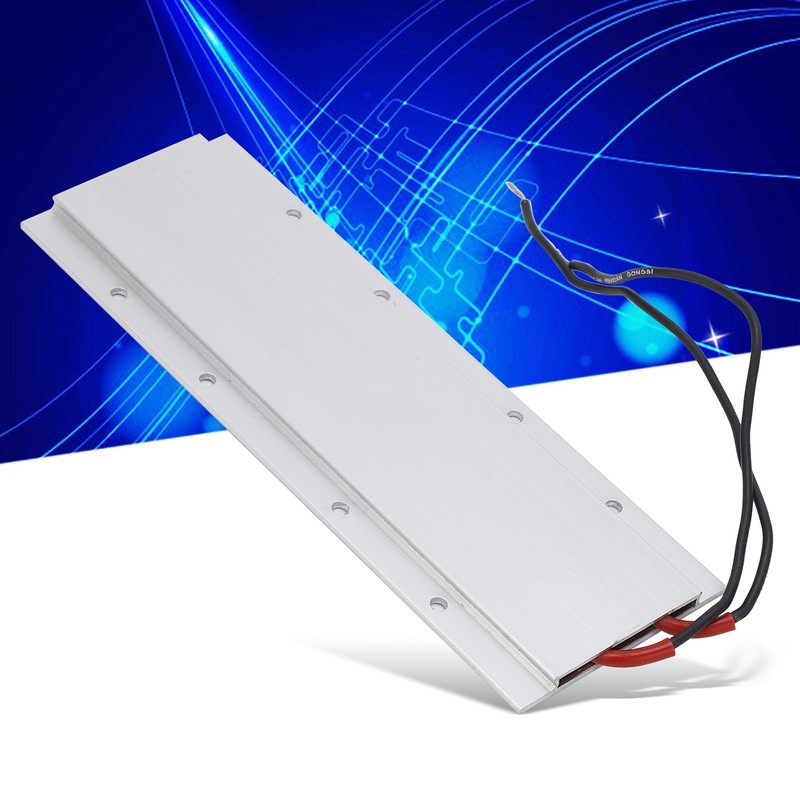

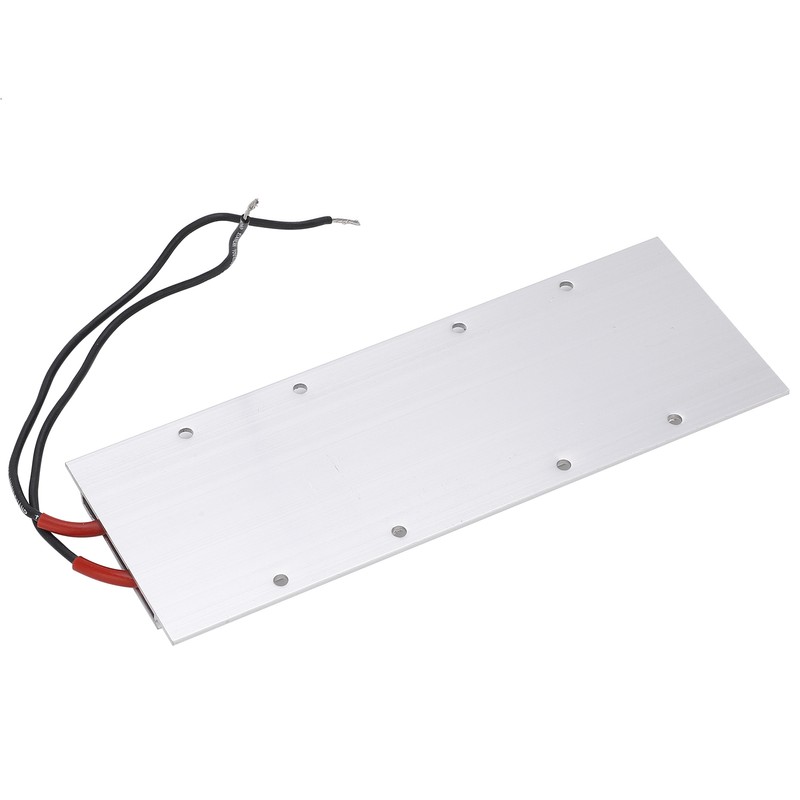

PTC Heating Element Constant Temperature Insulated Aluminum Shell for Electronic Device AC220V80℃
$27.85
- $14.50 shipping from United States
-
Arrives

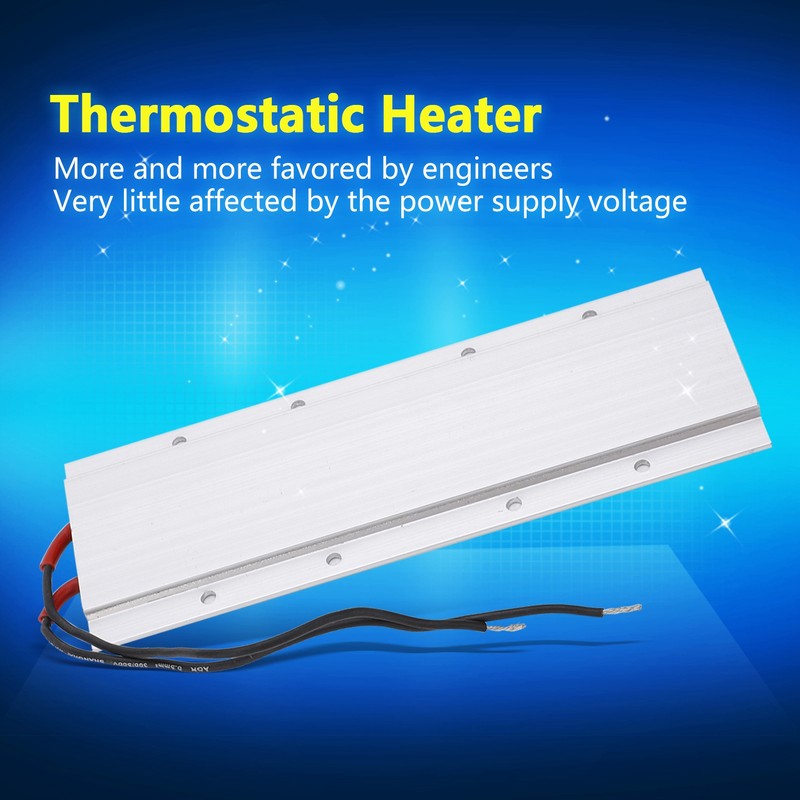

1、The heating element has the advantages of constant temperature heating, no open flame, high heat conversion rate, and minimal influence of the power supply voltage. 2、The application of heating element is more and more favored by engineers. 3、The electric heating plate has the characteristics of automatic energy saving. When the heater is working, as the ambient temperature increases, its power will gradually decrease to 90% of the rated power, 80% or less. 4、The performance of the heating plate is not affected by the repeated switching of tens of thousands of times. 5、The standard to measure its life is the degree of aging. Generally, the power attenuation is less than 10% when working for 2000 hours
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
1、The heating element has the advantages of constant temperature heating, no open flame, high heat conversion rate, and minimal influence of the power supply voltage. 2、The application of heating element is more and more favored by engineers. 3、The electric heating plate has the characteristics of automatic energy saving. When the heater is working, as the ambient temperature increases, its power will gradually decrease to 90% of the rated power, 80% or less. 4、The performance of the heating plate is not affected by the repeated switching of tens of thousands of times. 5、The standard to measure its life is the degree of aging. Generally, the power attenuation is less than 10% when working for 2000 hours
1、The heating element has the advantages of constant temperature heating, no open flame, high heat conversion rate, and minimal influence of the power supply voltage. 2、The application of heating element is more and more favored by engineers. 3、The electric heating plate has the characteristics of automatic energy saving. When the heater is working, as the ambient temperature increases, its power will gradually decrease to 90% of the rated power, 80% or less. 4、The performance of the heating plate is not affected by the repeated switching of tens of thousands of times. 5、The standard to measure its life is the degree of aging. Generally, the power attenuation is less than 10% when working for 2000 hours
More Information

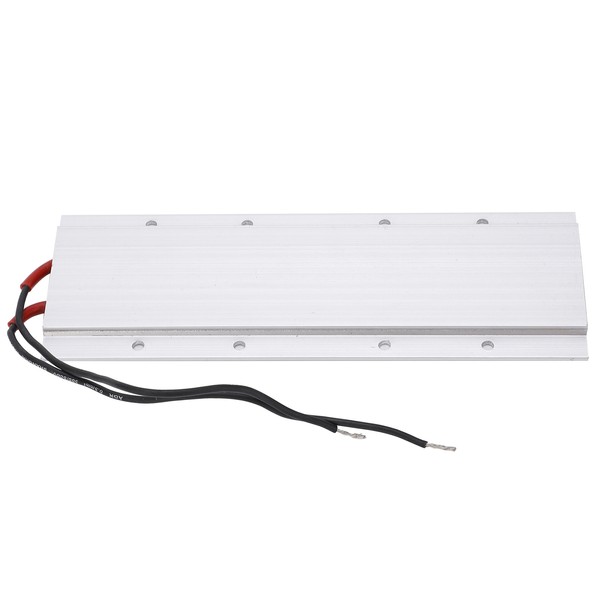

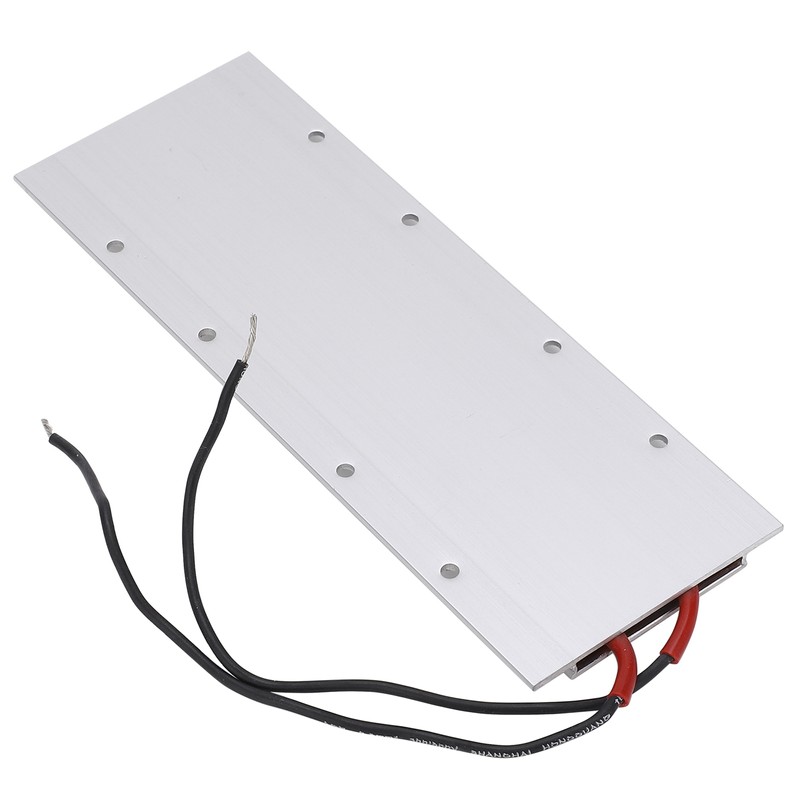

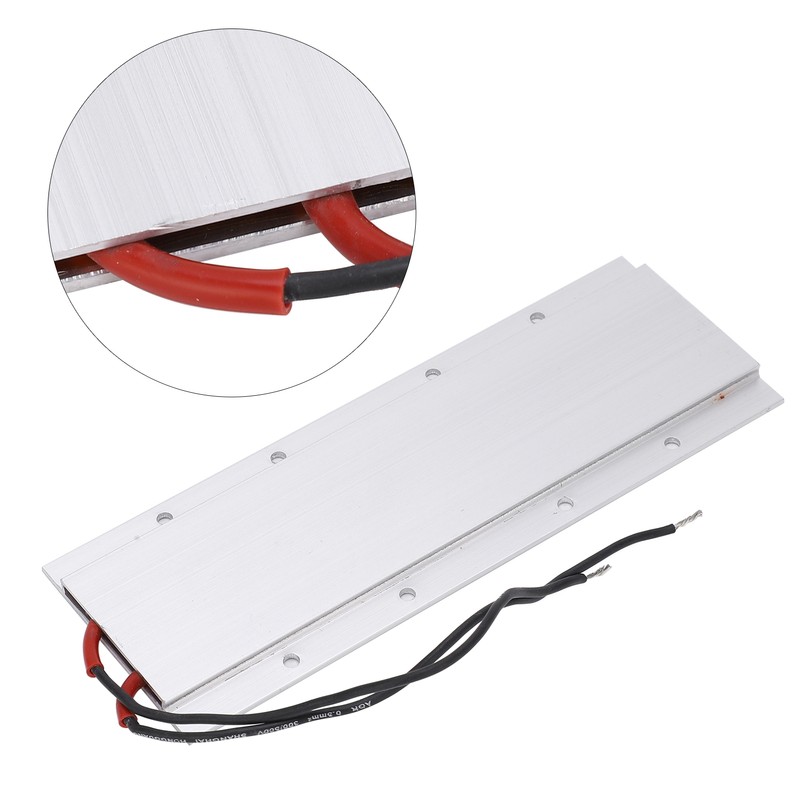

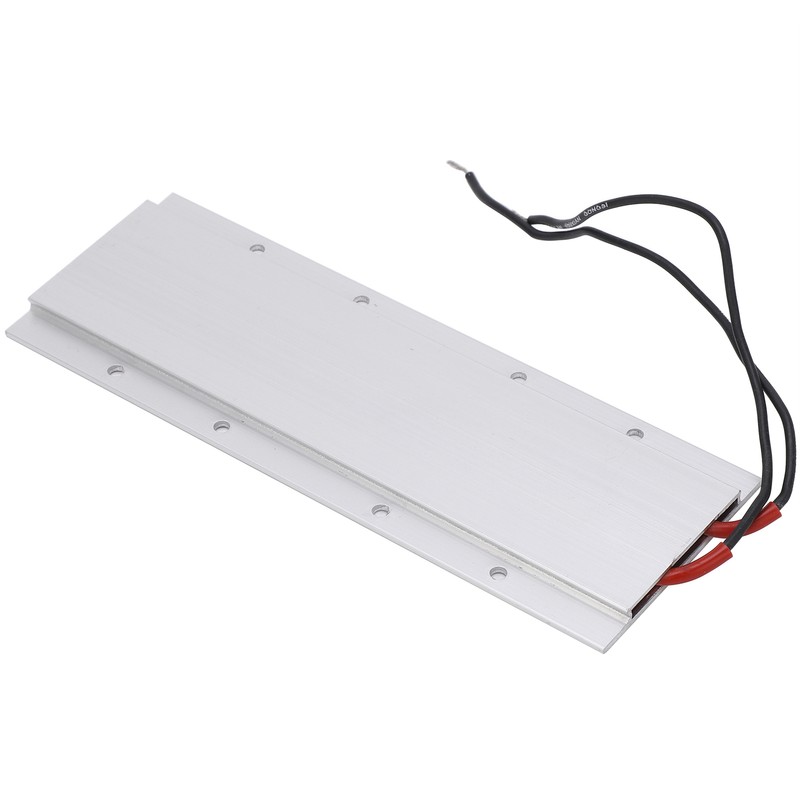

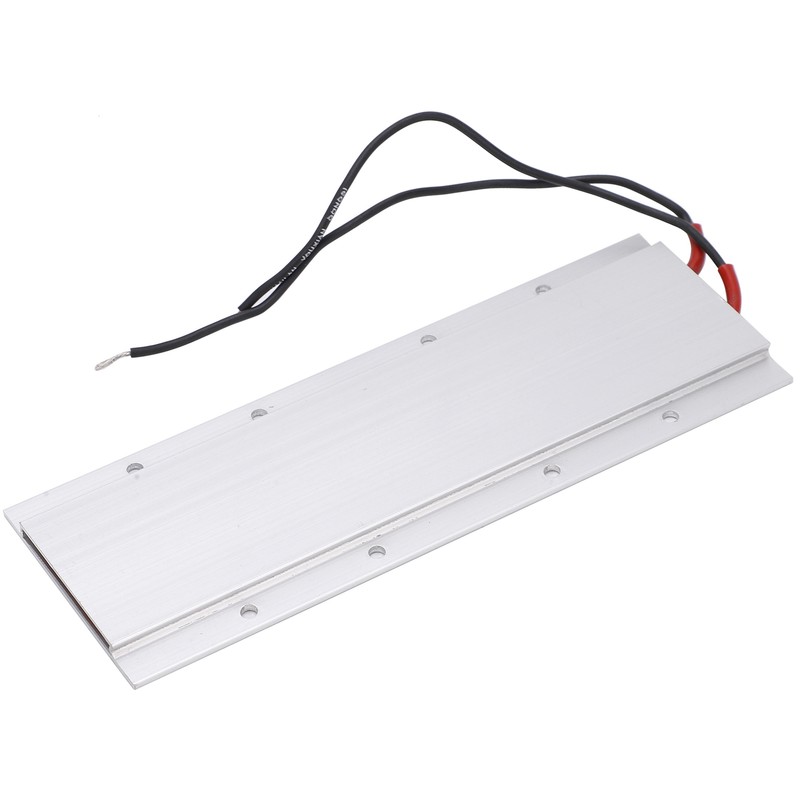

Item Type: PTC Heating Element

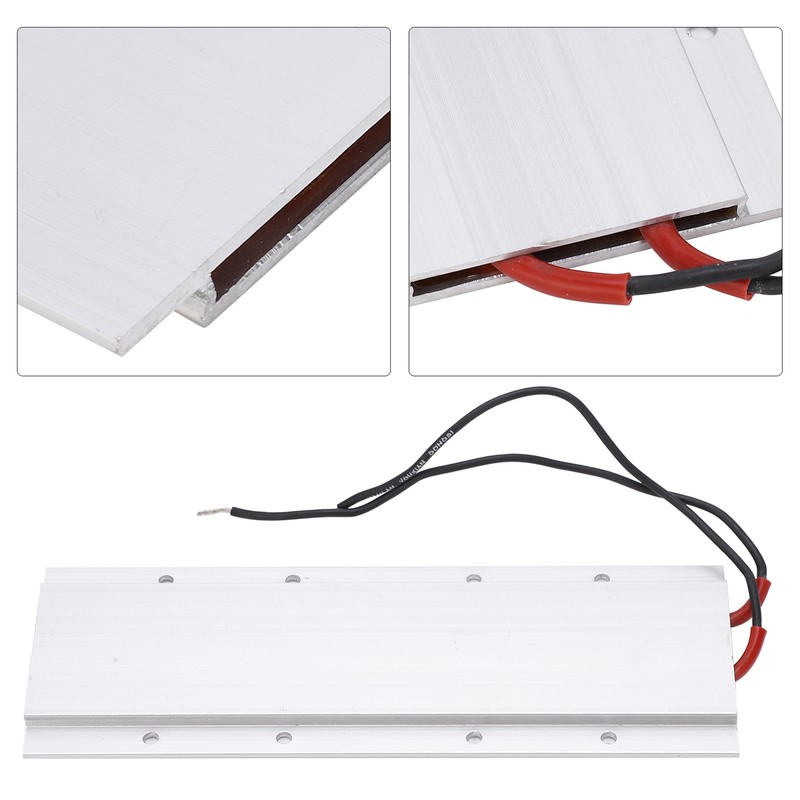

Material: Aluminum shell + PTC ceramic heating element

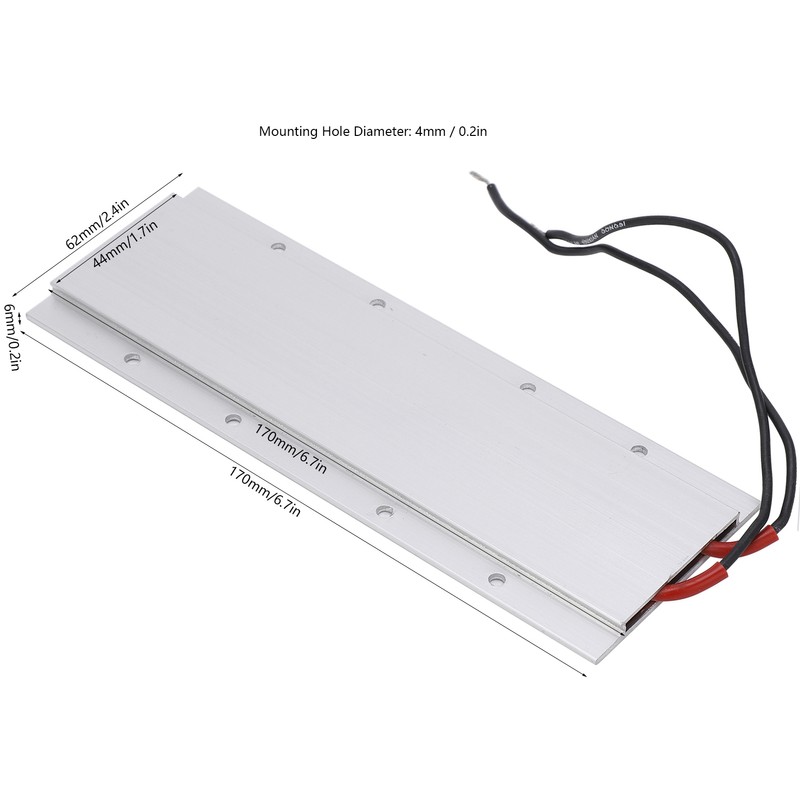

Product Size: Approix. 170 x 62 x 6mm / 6.7 x 2.4 x 0.2in
Shell Material: Aluminum shell
Heating Material: PTC ceramic heating sheet

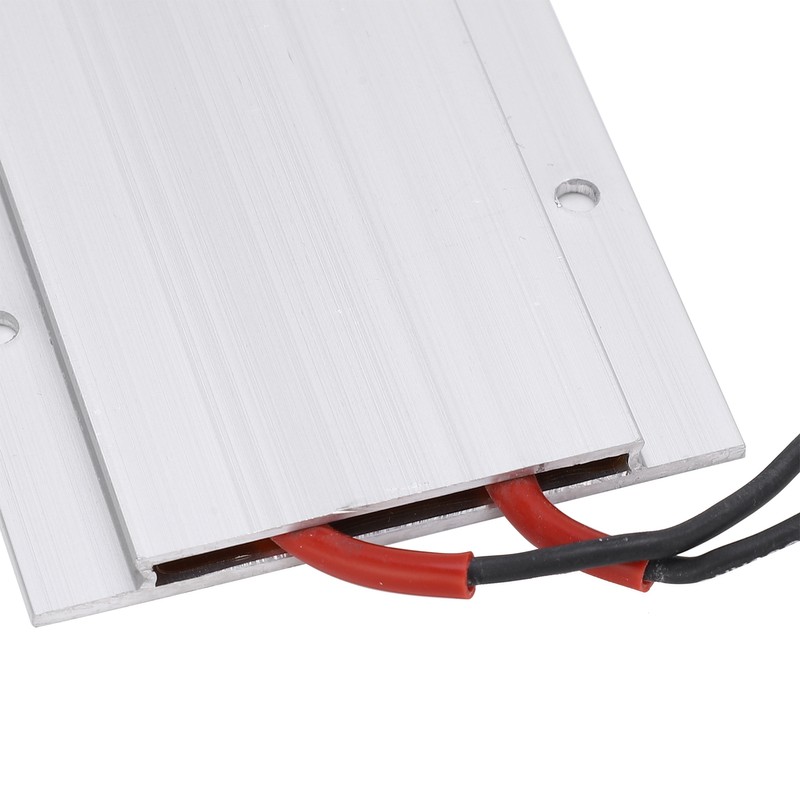

Lead Length: Approix. 17mm / 0.7in
Temperature Error: ±10℃
Raised Surface Size: Approix. 170 x 44mm / 6.7 x 1.7in
Mounting Hole Diameter: Approx. 4mm / 0.2in
Rated Voltage: AC220V
Surface Temperature: 60-250℃

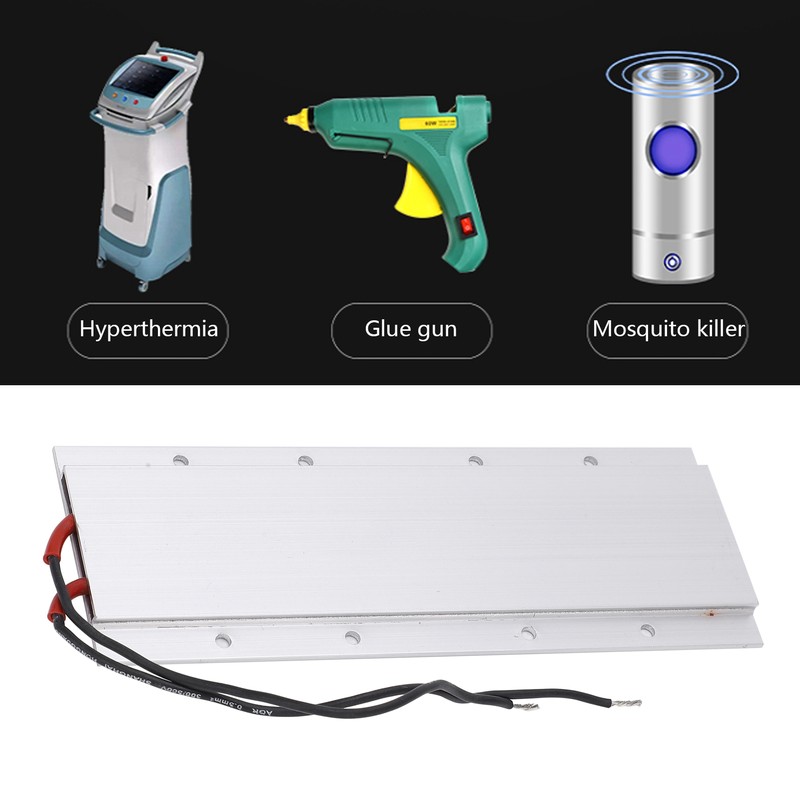

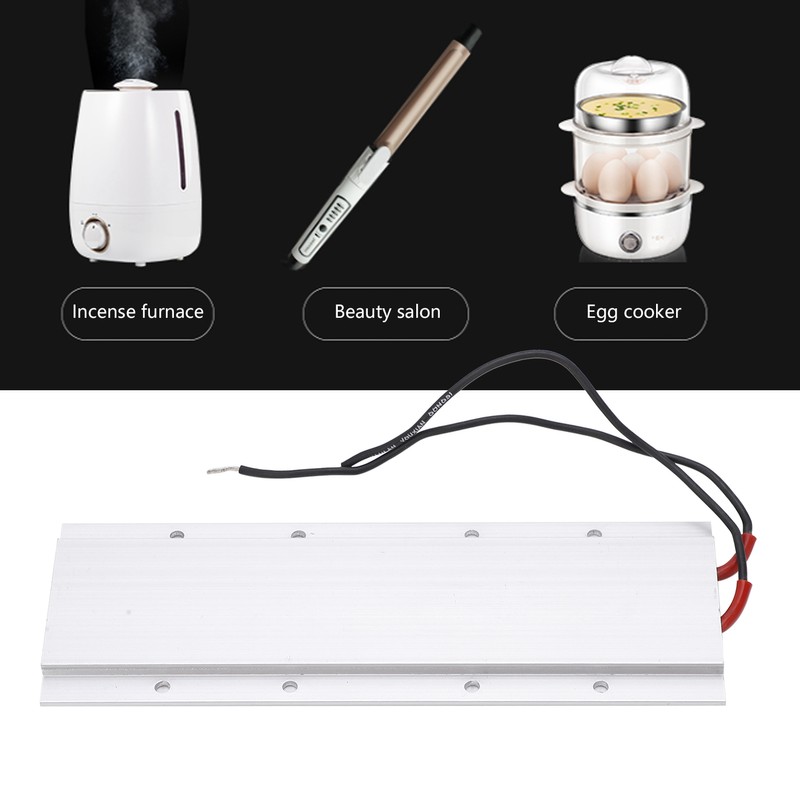

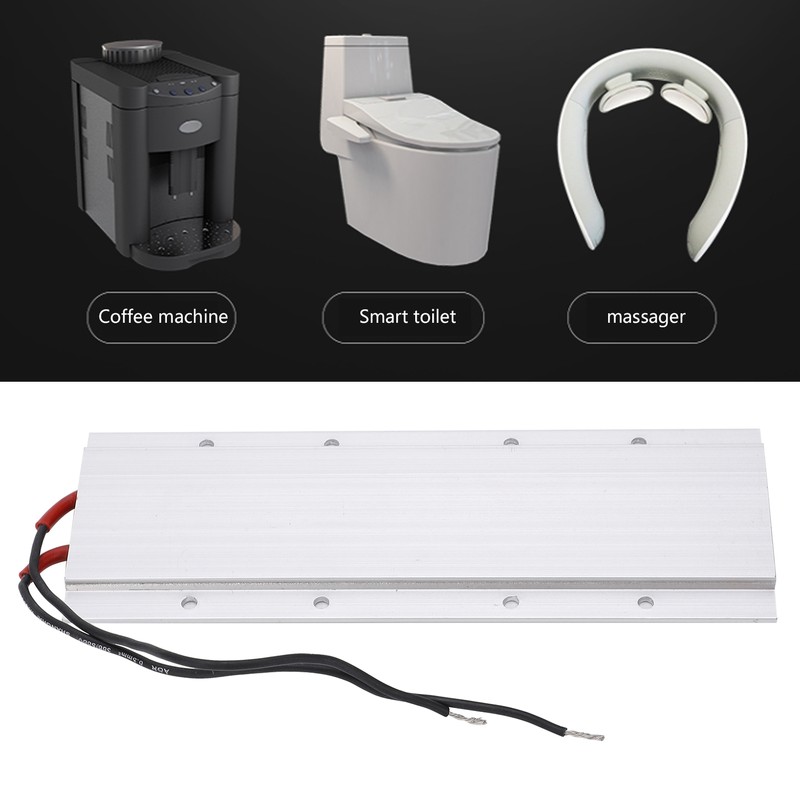

Uses: Coffee machine, smart toilet, massager, hyperthermia, glue gun, mosquito killer, incense furnace, beauty salon, egg cooker...
Temperature description
1. Marked temperature is the surface temperature of the product without touching any objects in a 24C environment.
2. The increase in temperature is not only determined by the heating plate. Large space, good insulation, basic temperature, etc. are all important factors. Therefore, the stable temperature of the heated object under different use environments cannot be estimated.
3. Temperature control is uncontrollable, choose according to your needs, if you need to control the temperature flexibly, you can match the temperature control equipment by yourself.
Power description
1.Maximum power: The power marked in the option means that both sides of the heating plate can dissipate heat under extremely good conditions at the same time. If the heating plate only touches the object on one side, the maximum power is directly reduced to half
2.Actual power: The power of the PTC heating plate is not a fixed value, it is a range. The better the actual power heat is dissipated, the greater the power (similar to the principle of inverter air conditioning)
3.Impact power: about 2 times the maximum power
4.Dry burning power: about 20% of the maximum power (the power that dissipates naturally when not touching any objects)
5.Low-voltage products: not only need to meet its voltage, but also need to pay attention to the current. If the power supply current cannot meet the product's impulse current, low-voltage products | The product may have slow temperature rise, low temperature, or even short circuit.
PTC characteristics
1.Dissipated power: Due to the different user usage methods and the energy-saving characteristics of the PTC itself, the power in actual use is mostly within the range of 50%-200% of its rated power (the better the acid and heat, the greater the power)
2.Dry burning power: about 20% of rated power (this product is dry burning type)
