Polimetro Digital Pinza Amperimétrica Trifásica, Kethvoz 1000A Multímetros 9999 Conteo Trifásico Electrical Medidor Medida AC DC Voltaje Corriente Prueba Ohmios Factor Potencia Ángulo Fase
$193.08
- $12.99 shipping from Mexico View details
-
Arrives
- ✅Multímetro digital: Pinza amperimétrica KE-580P es un multímetro de rango automático con una pantalla de 9999 conteos. Puede medir corriente de irrupción de CA (RMS real) de 0,01 A a 999,9 A, corriente de μA de 0,01 μA a 999,9 μA (TRMS), voltaje de CA y CC de 0,1 mV a 600,0 voltios (RMS real), resistencia de 0,1 ohmios a 99,99MΩ, capacitancia de 0,001 μF a 7000 μF, temperatura del líquido de -58 °F a 1000 °F y frecuencia de 40 Hz a 1kHz.

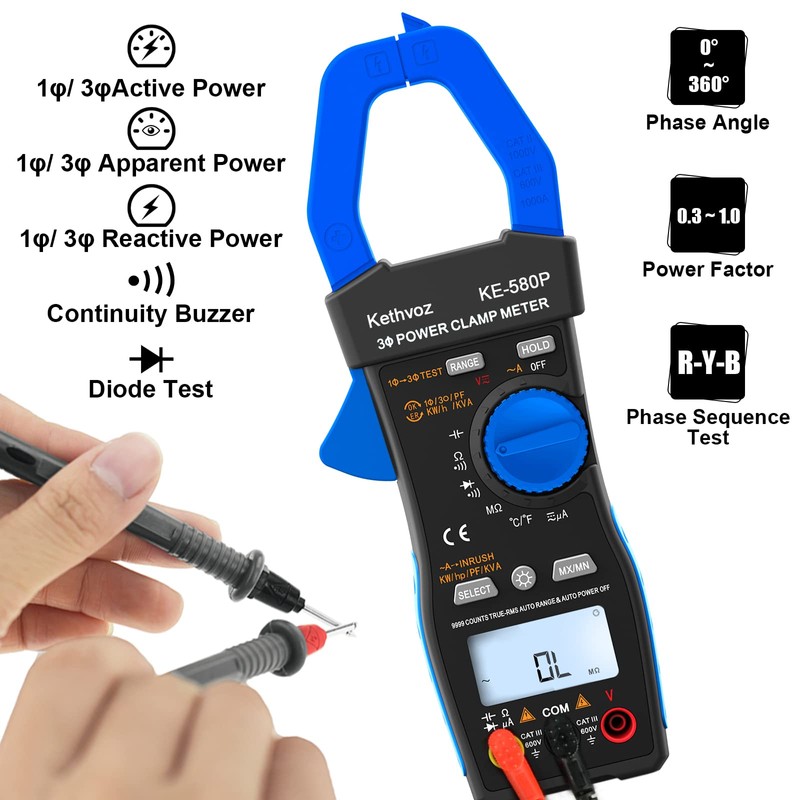

- ✅Medidor electrónico de 1/3 fases: No solo un medidor de amperios digital, sino también un probador de rotación de fase y un medidor de ángulo de fase. Puede probar potencia activa trifásica de 99.99KW a 600.0KW (99.99HP/800HP), potencia aparente trifásica de 0.01KVA a 600.0KVA, medir potencia reactiva trifásica de 0.01KVAr a 600.0KVAr, pruebe el ángulo de fase 1φ/3φ de 0° a 360° y pruebe el factor de potencia de 0,3 a 1,0.
- ✅Probador de continuidad: Conecte los cables de prueba del multímetro en el amperímetro de abrazadera, luego puede convertir este probador de voltaje en un probador de continuidad con zumbador. Cuando la lectura eléctrica sea inferior a 40 mV, le avisará con un pitido continuo. Un multímetro inteligente para ayudarlo a diagnosticar rápidamente los circuitos eléctricos.

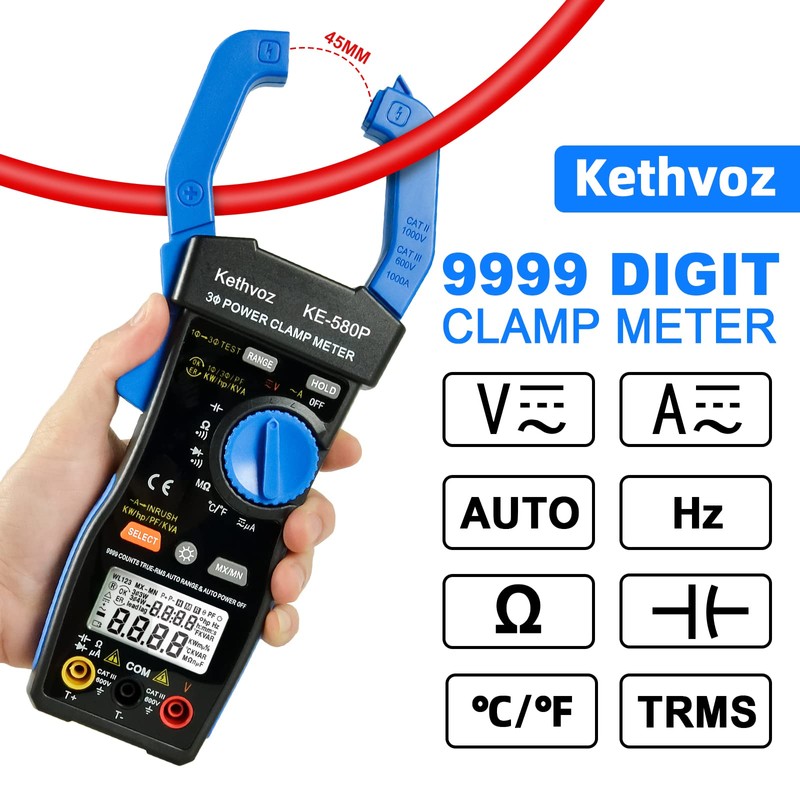

- ✅Pinza amperimétrica AC/DC: Diseño de mordaza abierta de 45 mm, sin necesidad romper cables eléctricos, simplemente sujete y luego mida los amperios de CA hasta 1000 amperios fácilmente; Botón de "retención de datos" con un clic para congelar los datos de medición para su posterior análisis; Voltímetro amperímetro portátil utilizado en compresores AC, baterías de motores de automóviles y mantenimiento de electrodomésticos.
- ✅Calidad y Garantía: Cualificado con IEC 1010-2-32 y EN-61010-1 sobre instrumentos electrónicos de medida con categoría de sobretensión 600V (CAT II). La protección contra sobrecarga de 600 V y 1000 A lo protege a usted y al multímetro de abrazadera correctamente. La pinza amperimétrica trifásica de alta calidad viene con 365 días de garantía y soporte técnico de por vida :)
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- ✅Multímetro digital: Pinza amperimétrica KE-580P es un multímetro de rango automático con una pantalla de 9999 conteos. Puede medir corriente de irrupción de CA (RMS real) de 0,01 A a 999,9 A, corriente de μA de 0,01 μA a 999,9 μA (TRMS), voltaje de CA y CC de 0,1 mV a 600,0 voltios (RMS real), resistencia de 0,1 ohmios a 99,99MΩ, capacitancia de 0,001 μF a 7000 μF, temperatura del líquido de -58 °F a 1000 °F y frecuencia de 40 Hz a 1kHz.
- ✅Medidor electrónico de 1/3 fases: No solo un medidor de amperios digital, sino también un probador de rotación de fase y un medidor de ángulo de fase. Puede probar potencia activa trifásica de 99.99KW a 600.0KW (99.99HP/800HP), potencia aparente trifásica de 0.01KVA a 600.0KVA, medir potencia reactiva trifásica de 0.01KVAr a 600.0KVAr, pruebe el ángulo de fase 1φ/3φ de 0° a 360° y pruebe el factor de potencia de 0,3 a 1,0.
- ✅Probador de continuidad: Conecte los cables de prueba del multímetro en el amperímetro de abrazadera, luego puede convertir este probador de voltaje en un probador de continuidad con zumbador. Cuando la lectura eléctrica sea inferior a 40 mV, le avisará con un pitido continuo. Un multímetro inteligente para ayudarlo a diagnosticar rápidamente los circuitos eléctricos.
- ✅Pinza amperimétrica AC/DC: Diseño de mordaza abierta de 45 mm, sin necesidad romper cables eléctricos, simplemente sujete y luego mida los amperios de CA hasta 1000 amperios fácilmente; Botón de "retención de datos" con un clic para congelar los datos de medición para su posterior análisis; Voltímetro amperímetro portátil utilizado en compresores AC, baterías de motores de automóviles y mantenimiento de electrodomésticos.
- ✅Calidad y Garantía: Cualificado con IEC 1010-2-32 y EN-61010-1 sobre instrumentos electrónicos de medida con categoría de sobretensión 600V (CAT II). La protección contra sobrecarga de 600 V y 1000 A lo protege a usted y al multímetro de abrazadera correctamente. La pinza amperimétrica trifásica de alta calidad viene con 365 días de garantía y soporte técnico de por vida :)
El multímetro de abrazadera de 1/3 fases de rango automático KE-580P puede medir voltaje de CA, corriente de irrupción, resistencia, capacitancia, frecuencia, factor de potencia, ángulo de fase, potencia activa, potencia aparente y potencia reactiva.

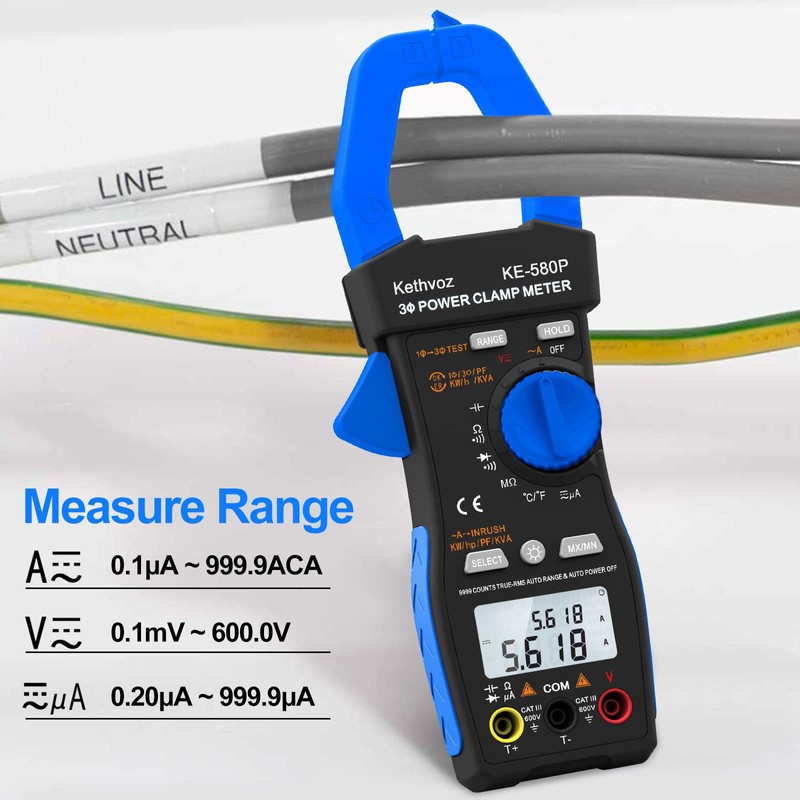

Rango de medición y precisión:
- Corriente transitoria de CA: 99,99 A (±2% ±30 dígitos (50, 60 Hz)); 999.9A (±4% ±30 dígitos (40-400Hz))
- Corriente AC/DC (TRMS): 99,99 μA / 999,9 μA (±1% ± 30 dígitos)
- Voltaje CA: 999,9 mV / 9,999 V / 99,99 V / 600,0 V (±1 % ±30 dígitos (50,60 Hz)) o (±2 % ±30 dígitos (40-400 Hz))
- Voltaje CC: 999,9 mV / 9,999 V / 99,99 V / 600,0 V (±1% ±30 dígitos)

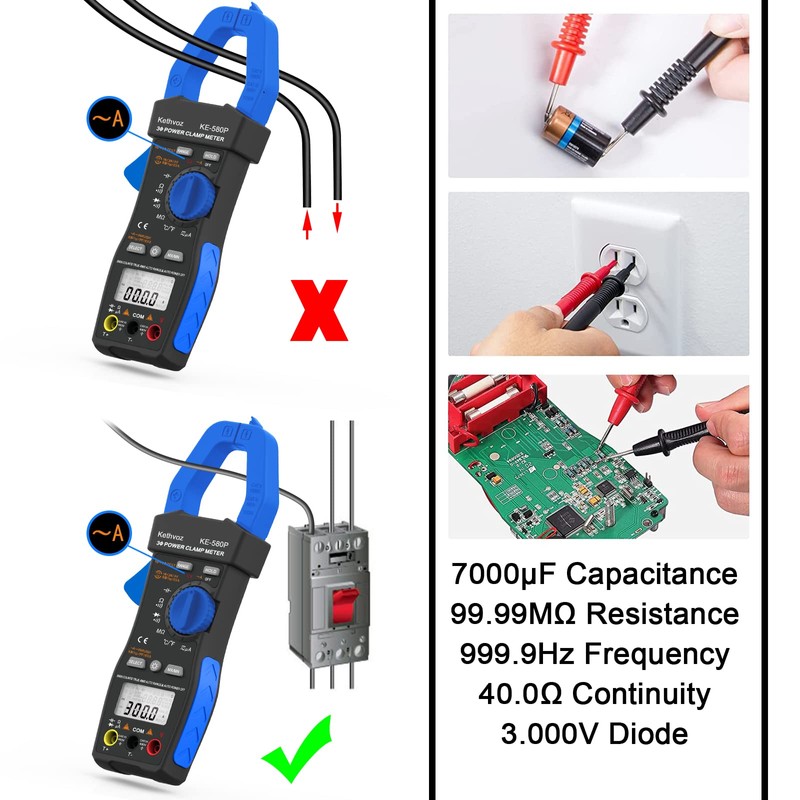

- Resistencia: 999.9Ω~ 999.9KΩ (±1% ±10 dígitos); 9.999MΩ~ 99.99MΩ (±5% ±10 dígitos)
- Capacitancia: 10.000μF ~ 1000.0μF(±1.5%±5 dígitos); 7000μF (±2.5% ±15 dígitos)

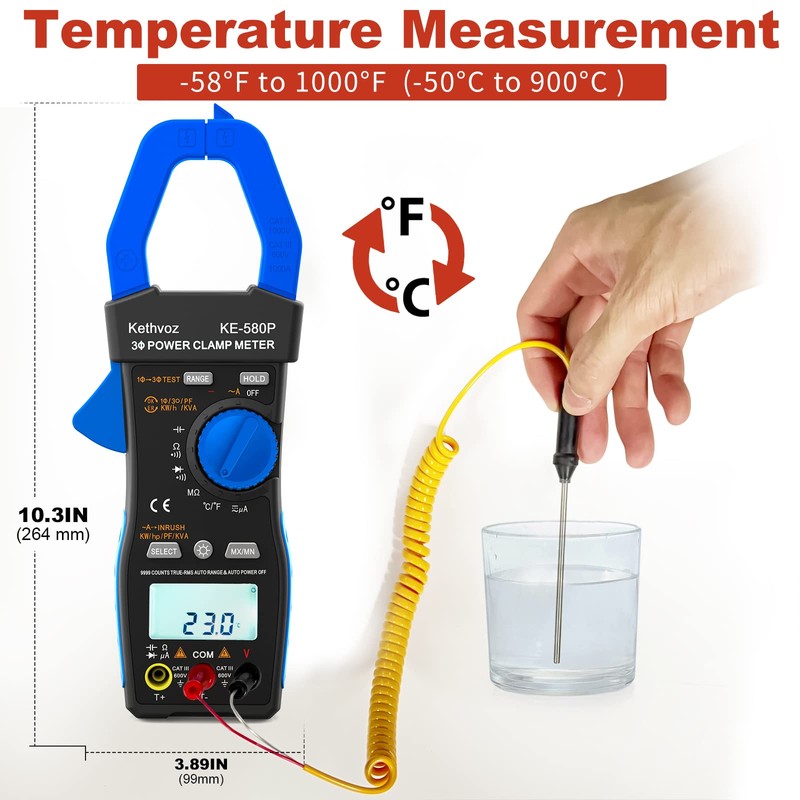

- Temperatura: -50 °C a 900 °C (±1,5 % ±2 °C)
- Potencia activa monofásica: 99,99 kW/600 kW (99,99 CV/800 CV)
- Potencia aparente monofásica: 99,99kWA / 600kWA; Potencia reactiva monofásica: 99,99 kW / 600 kW
- Factor de potencia: 0,3~1,0; Ángulo de fase: 0°~ 360°
Más características:
- prueba de diodo
- Congelar datos
- zumbador de continuidad
- Medición RMS real
- prueba de corriente de irrupción
- prueba de rotación de fase
- Medición máx./mín
- 9999 cuenta doble pantalla

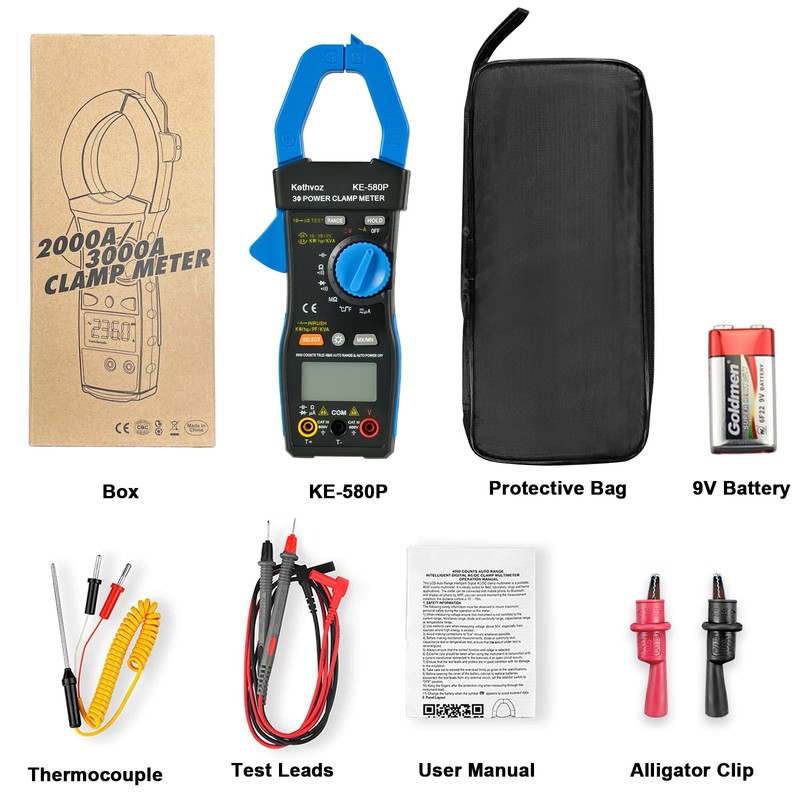

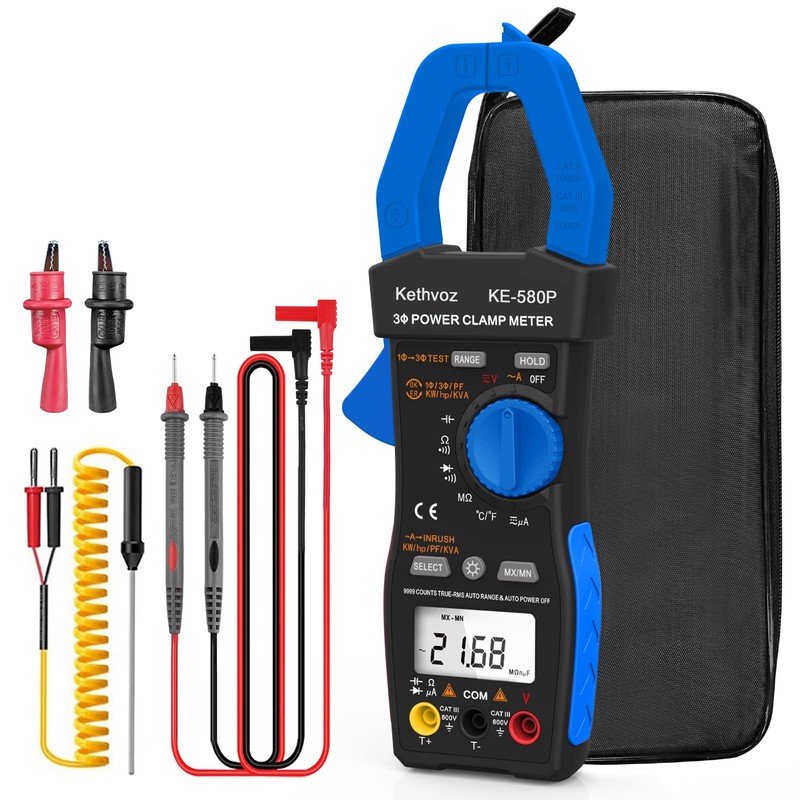

Lista de embalaje:
1 x amperímetro digital con abrazadera 580P
2 x cables de prueba de multímetro
2 x pinzas de cocodrilo eléctricas
1 x sonda de temperatura extraíble
1 x Estuche portátil para multímetro
