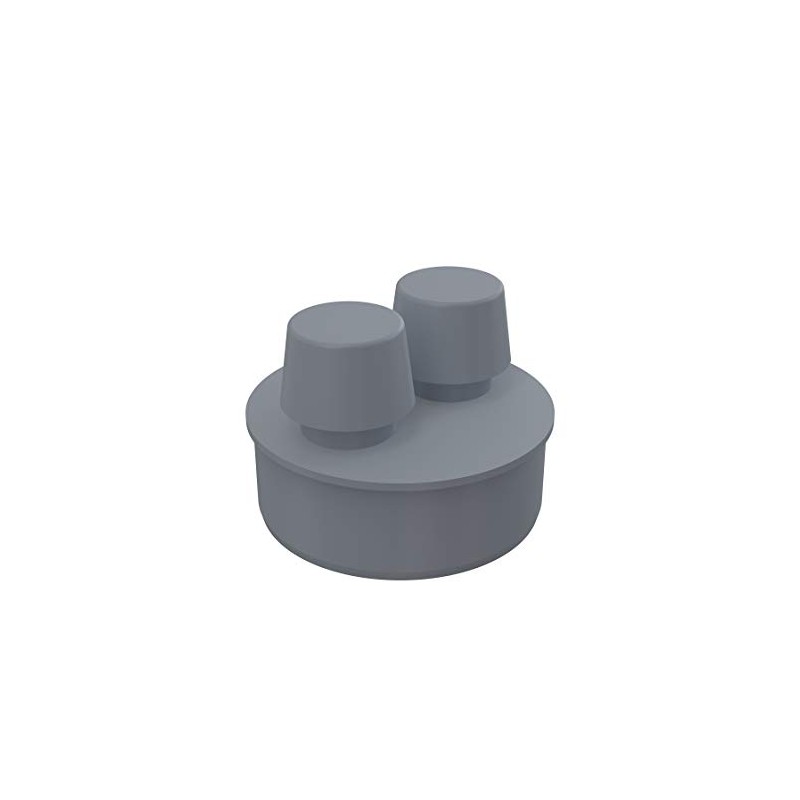

Pipe Aerator DN 100
$62.53
-
$14.50
shipping from Germany
Duties & customs included — no extra fees on delivery -
Arrives
- AlcaPlast APH waste water pipe aerator ventilation valve for HT pipes with corresponding pipe diameter
- Pipe aerators prevent the empty suction of siphons (audible glucking) and at the same time the penetration of odour from the sewer pipe. A rubber diaphragm allows automatic opening of the pipe aerator in case of negative pressure and automatic closing (due to the resulting pressure equalization in the pipe). After the automatic closing of the pipe aerator, the tube is sealed odour-tight and is only opened again at negative pressure (water drain).
- Easy to install, no unpleasant smell from the sewage pipes and sanitary equipment
- Ventilation of the pipe system and promotes water outflow. Prevents possible fire and smoke spread (chimney effect) in waste water pipes. Resistant to normal mechanical, chemical and thermal influences
- Ventilation DN40 (40 mm) up to 87 l/min (1.45 l/s), ventilation DN50 (50 mm) up to 87 l/min (1.45 l/s), ventilation DN75 (75 mm) up to 72 l/min (1.2 l/s), ventilation DN100 (110 mm) up to 144 l/min (2.4 l/min). Material PP PP Material PP Material PP Colour: grey. Standard: EN12380
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- AlcaPlast APH waste water pipe aerator ventilation valve for HT pipes with corresponding pipe diameter
- Pipe aerators prevent the empty suction of siphons (audible glucking) and at the same time the penetration of odour from the sewer pipe. A rubber diaphragm allows automatic opening of the pipe aerator in case of negative pressure and automatic closing (due to the resulting pressure equalization in the pipe). After the automatic closing of the pipe aerator, the tube is sealed odour-tight and is only opened again at negative pressure (water drain).
- Easy to install, no unpleasant smell from the sewage pipes and sanitary equipment
- Ventilation of the pipe system and promotes water outflow. Prevents possible fire and smoke spread (chimney effect) in waste water pipes. Resistant to normal mechanical, chemical and thermal influences
- Ventilation DN40 (40 mm) up to 87 l/min (1.45 l/s), ventilation DN50 (50 mm) up to 87 l/min (1.45 l/s), ventilation DN75 (75 mm) up to 72 l/min (1.2 l/s), ventilation DN100 (110 mm) up to 144 l/min (2.4 l/min). Material PP PP Material PP Material PP Colour: grey. Standard: EN12380
Ventilation valve for HT pipes with corresponding pipe diameter.
Pipe aerators prevent the empty suction of siphons (audible glucking) and at the same time the penetration of odour from the sewer pipe.
A rubber membrane allows automatic opening of the pipe aerator in case of negative pressure (thus ventilation of the pipe) and automatic closing (due to the resulting pressure equalization in the pipe). This process is done automatically, e.g. when the toilet flush is operated or when using a sink. After the automatic closing of the pipe aerator, the pipe is sealed odour-tight and is only automatically opened again at negative pressure (water drain).
The pipe ventilation gives you more flexibility when installing your water pipe: a ventilated pipe requires only 0.5% instead of 1% gradient. With connection lines, only 3 deflections are usually allowed, while with a ventilated pipeline, the number of bends is not limited. An elaborate ventilation line can also be dispensed with.
When choosing the installation location, please note that the aerator is mounted at least 10 cm for connection lines and at least 60 cm above the highest branch or pipeline for downpipes.
Easy to install, no unpleasant odour from the sewage pipes and sanitary facilities. Ventilation of the pipe system and the water drain works possible fire and smoke spread (chimney effect) in sewage pipes resistant to normal mechanical, chemical and thermal influences
