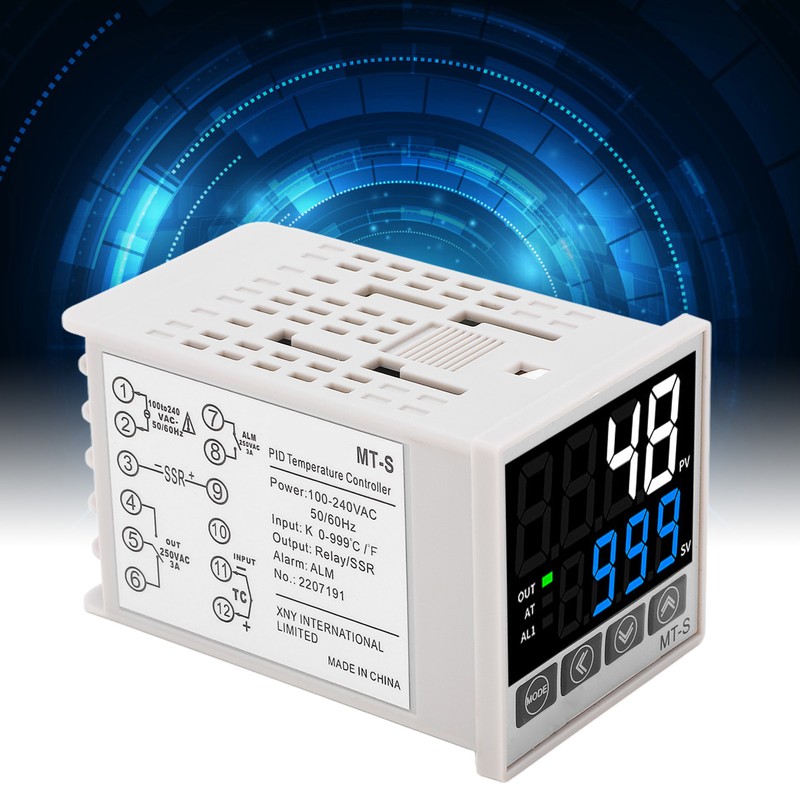

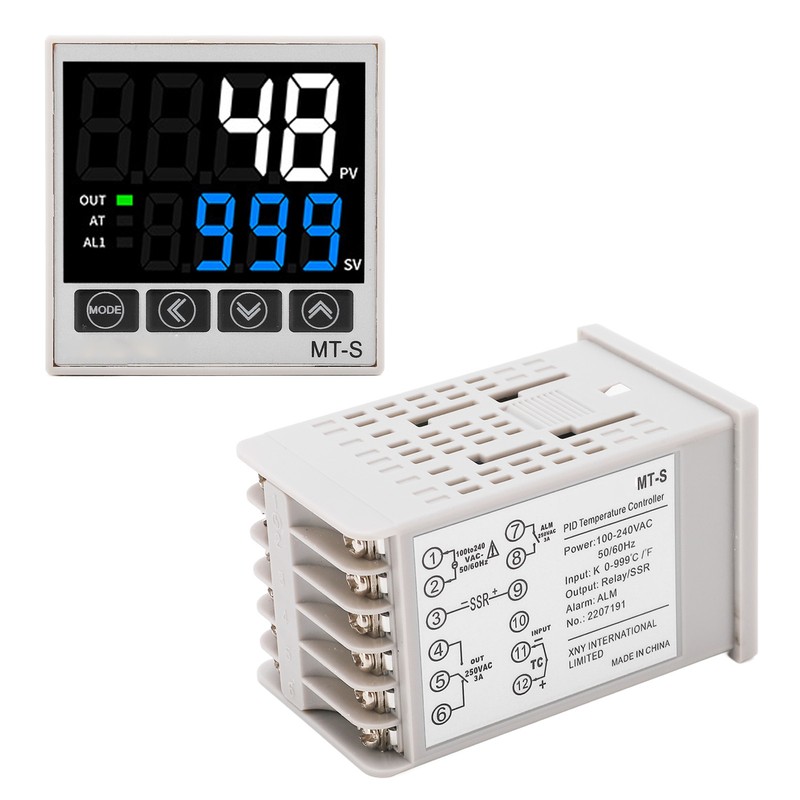

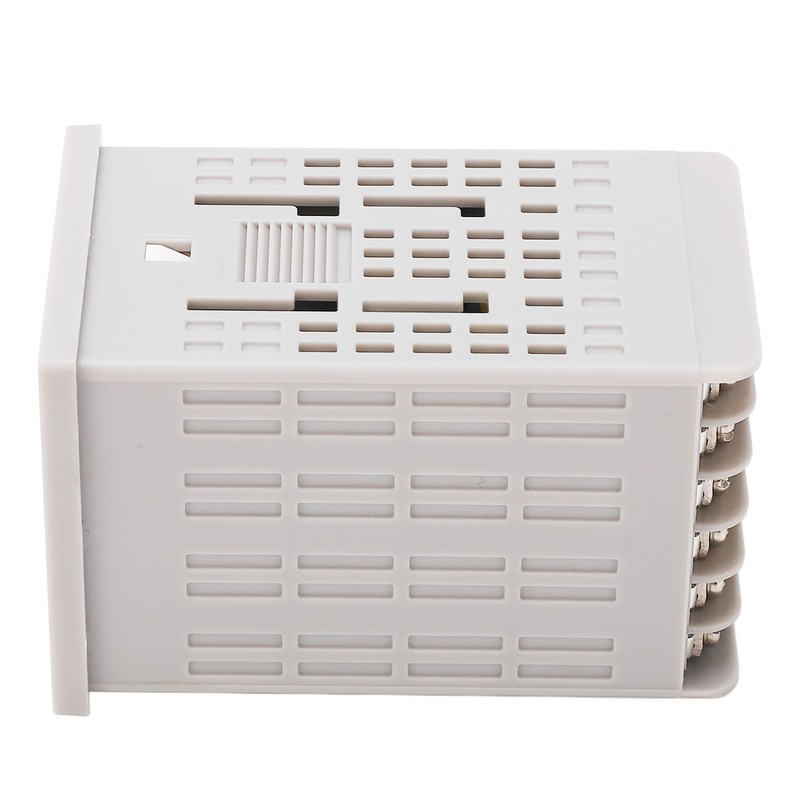

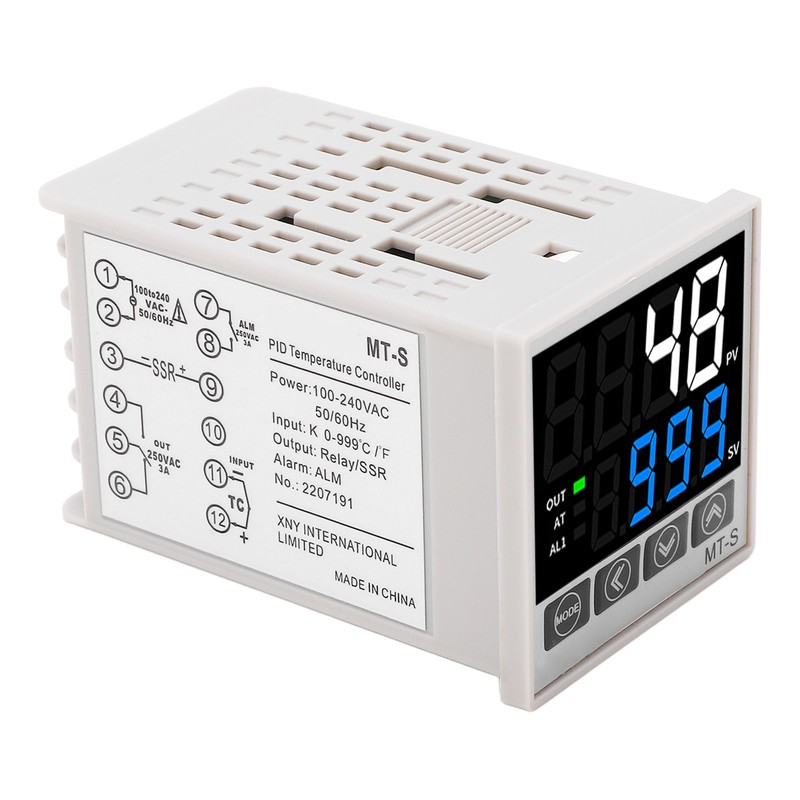

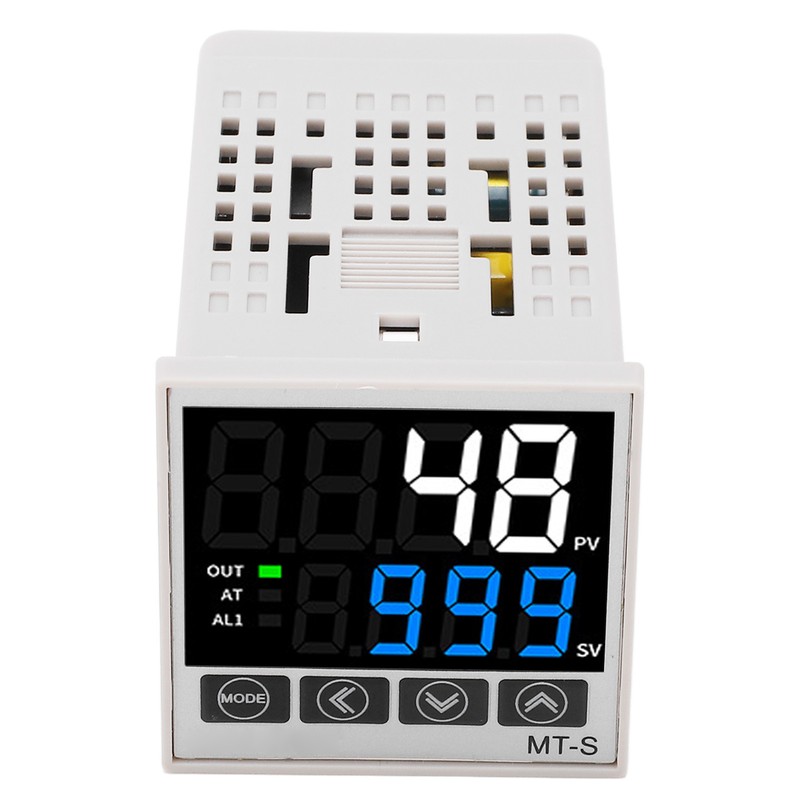

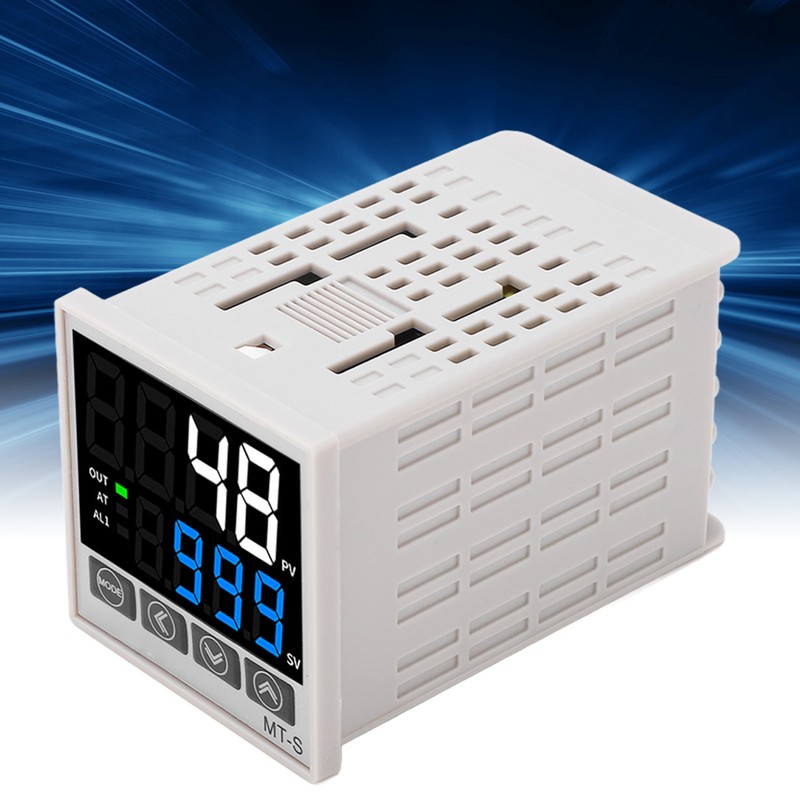

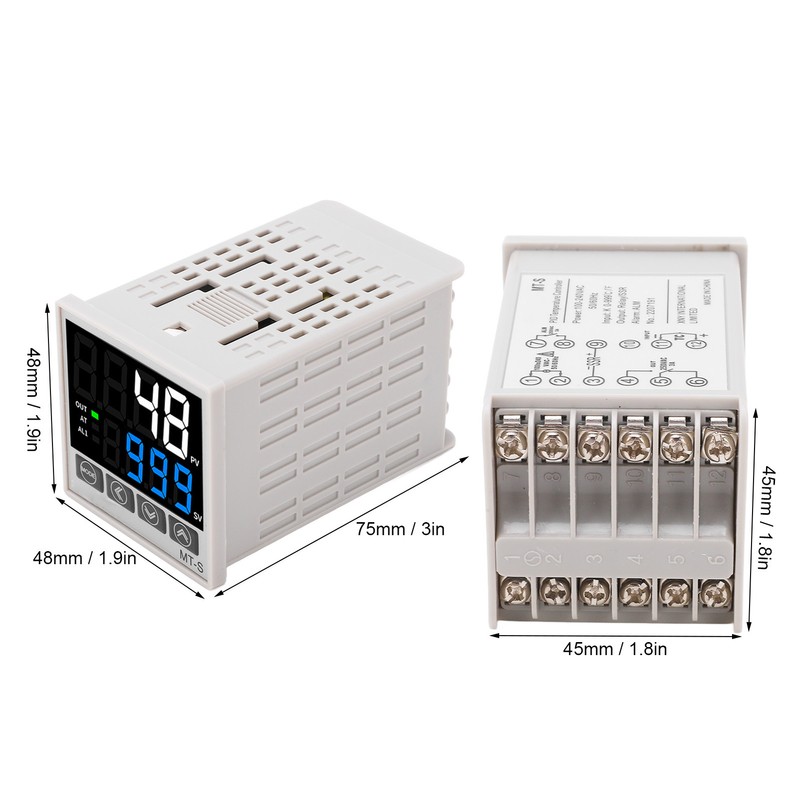

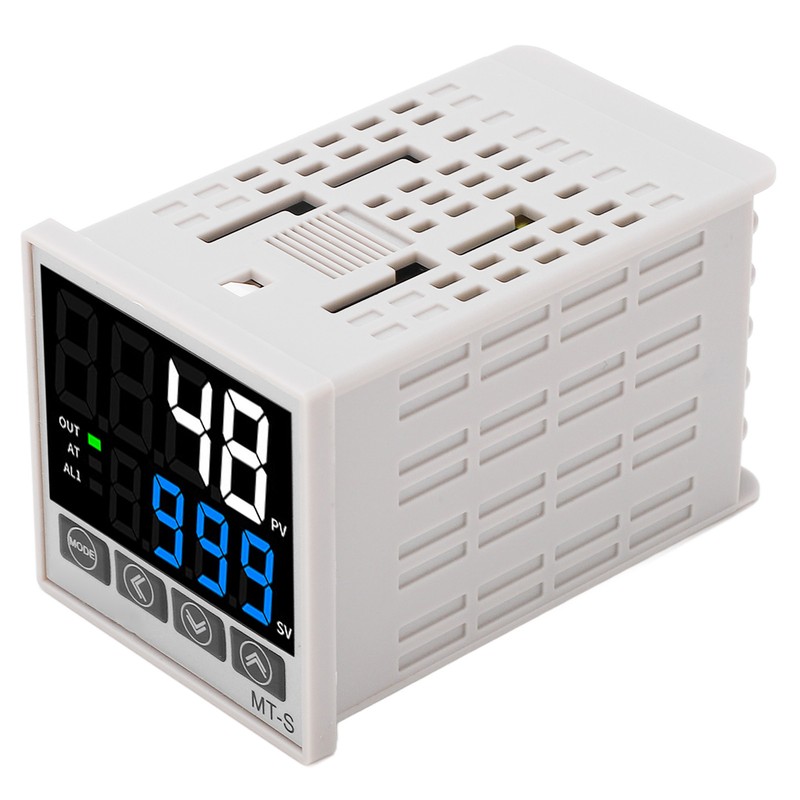

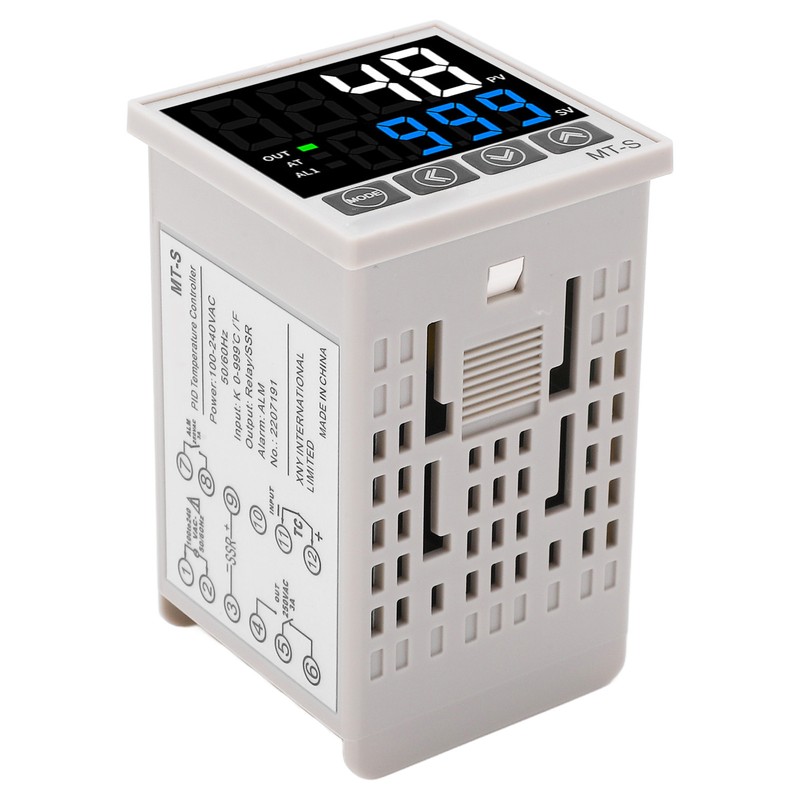

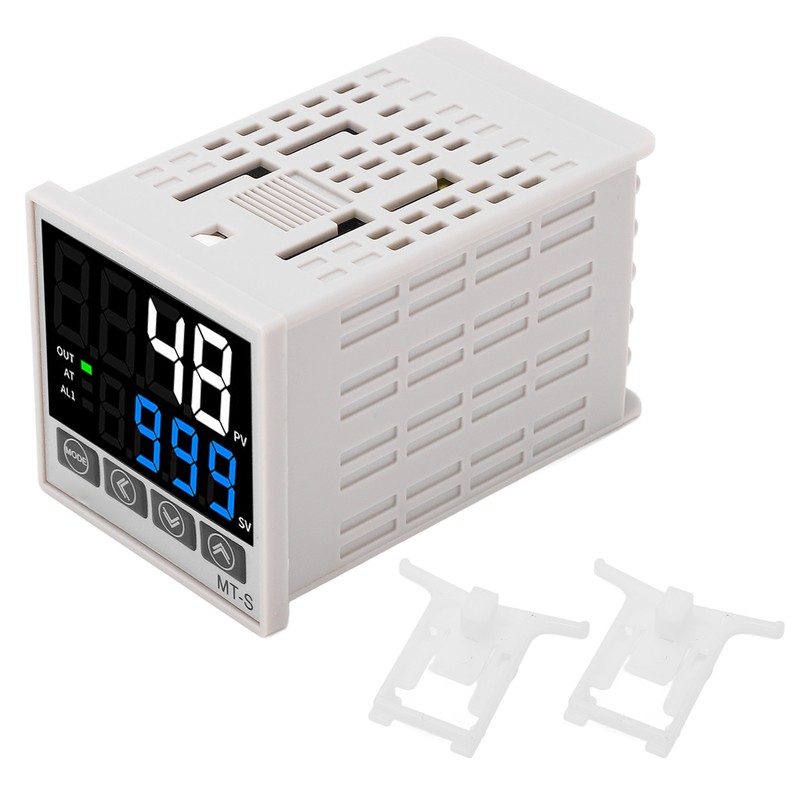

PID Temperature Controller Kit Intelligent Digital Display Automatic Temperature Control Instrument AC100‑240V 48 X 48mm
PID Temperature Controller Kit Intelligent Digital Display Automatic Temperature Control Instrument AC100‑240V 48 X 48mm
PID Temperature Controller Kit Intelligent Digital Display Automatic Temperature Control Instrument AC100‑240V 48 X 48mm
1、Intelligent Controller: This temperature controller is a microcomputer microcontroller controlled intelligent temperature control instrument with PID self tuning function. 2、Digital Display: This temperature controller is backlit display, both day and night can better observe the data in the screen. 3、2 Working Methods: This thermostat has heating and cooling modes, and users can choose the mode according to their needs. 4、5 Display Functions: This temperature controller has five status display, which are process value, set value, output, alarm and self tuning. 5、Auto Return: The temperature controller has a display auto return function, when forget to return to the main display mode, the meter will automatically return after 30 seconds.
| Isin: | I59AFJFVZ6TG |
|---|
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
1、Intelligent Controller: This temperature controller is a microcomputer microcontroller controlled intelligent temperature control instrument with PID self tuning function. 2、Digital Display: This temperature controller is backlit display, both day and night can better observe the data in the screen. 3、2 Working Methods: This thermostat has heating and cooling modes, and users can choose the mode according to their needs. 4、5 Display Functions: This temperature controller has five status display, which are process value, set value, output, alarm and self tuning. 5、Auto Return: The temperature controller has a display auto return function, when forget to return to the main display mode, the meter will automatically return after 30 seconds.
More Information
Item Type: PID Temperature Controller Kit
Material: ABS
Supply Voltage: AC100-240V 50/60HZ
Input: Support 4 kinds of thermocouple (K, J, E, N) user can freely switch settings

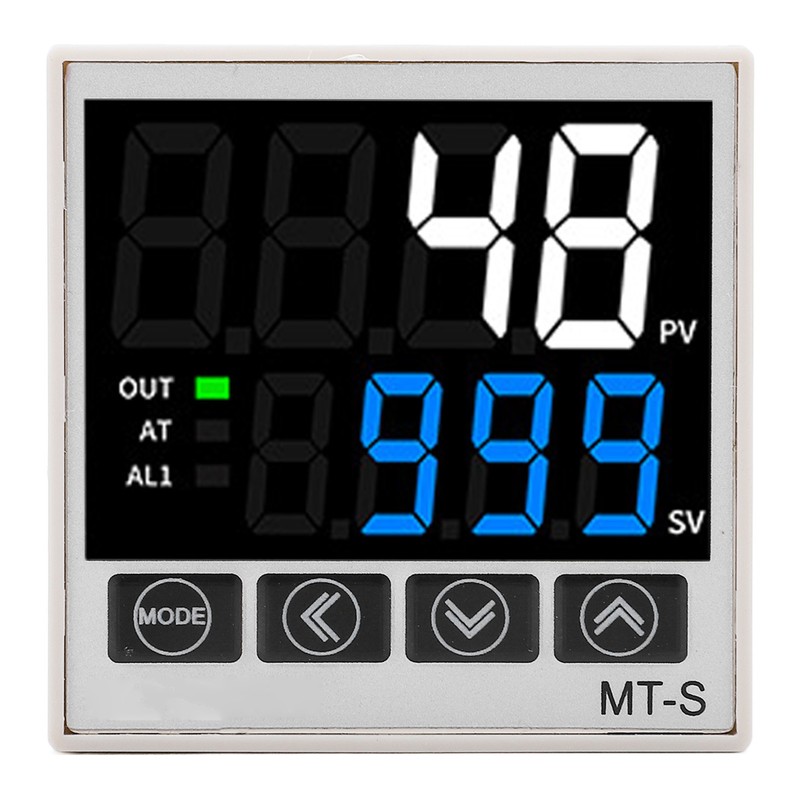

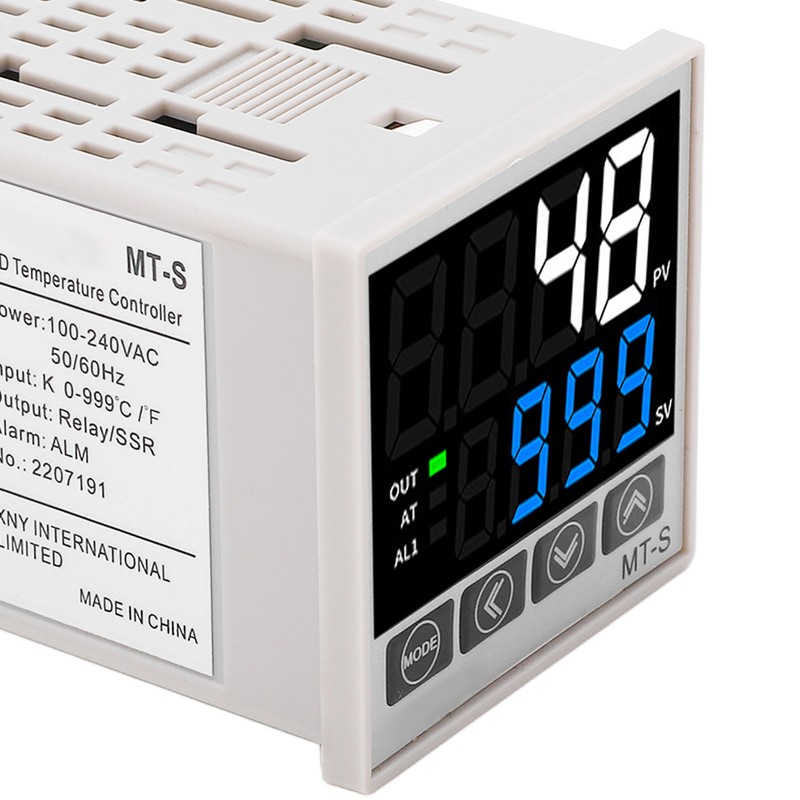

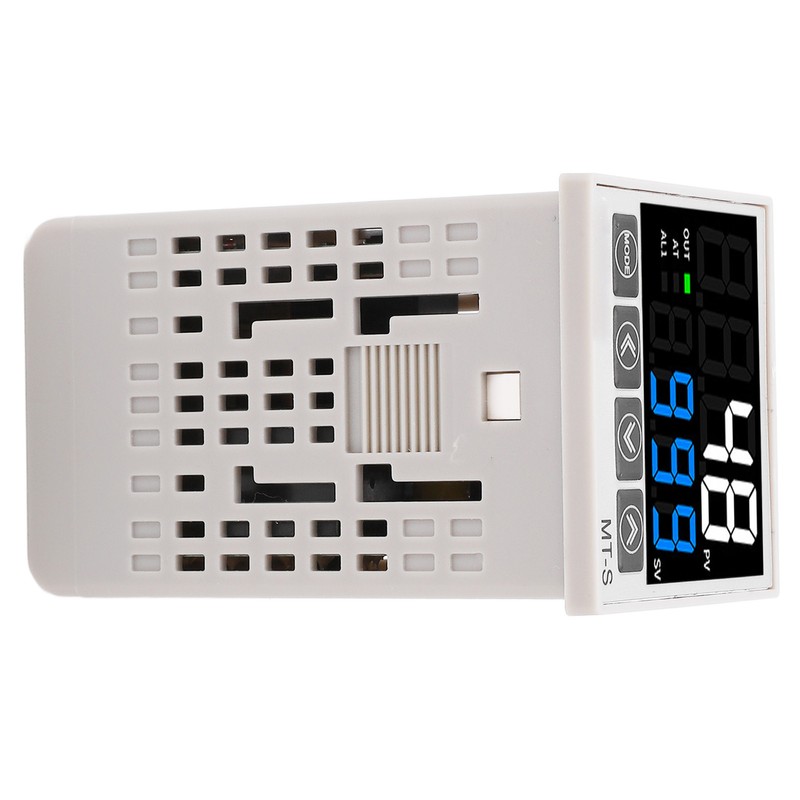

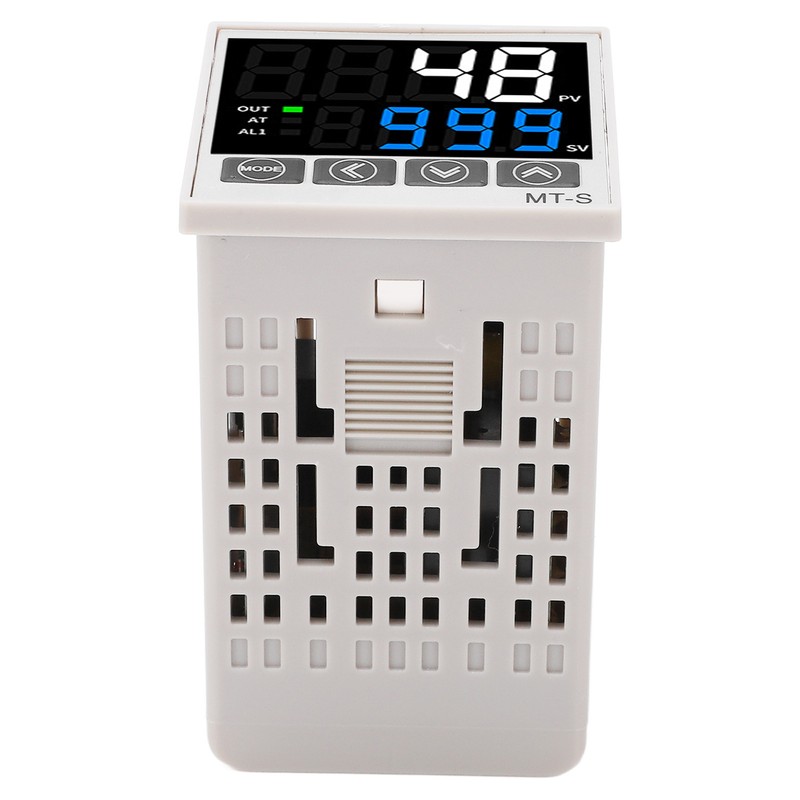

Display: Process value (PV), set value (SV), output (OUT), alarm (ALM), self tuning (AT) status display
Display Temperature Unit: Celsius ℃ / Fahrenheit ℉, can switch to set the display unit
Control Mode:
1.PID control (including NO/OFF, bit type PID and continuous PID)
2. Self tuning control
Working Mode: Reverse action (heating), positive action (cooling), user can set
Accuracy: Measurement accuracy: ±0.5%FS Sampling Period: 0.5 seconds
Set Value Range:
Set Value (SV): Same range (PV)
Proportional Band (P): 0-full range (set 0, for NO/OFF control)
Integration Time (I): 0-999 seconds (set 0 when no integration effect)
Differential Time (D): 0-999 seconds (set 0 when no differential effect)
Proportional Period: 1-100 seconds
Bit Control Output Hysteresis Loop Width: 1-100℃ (or other PV units)

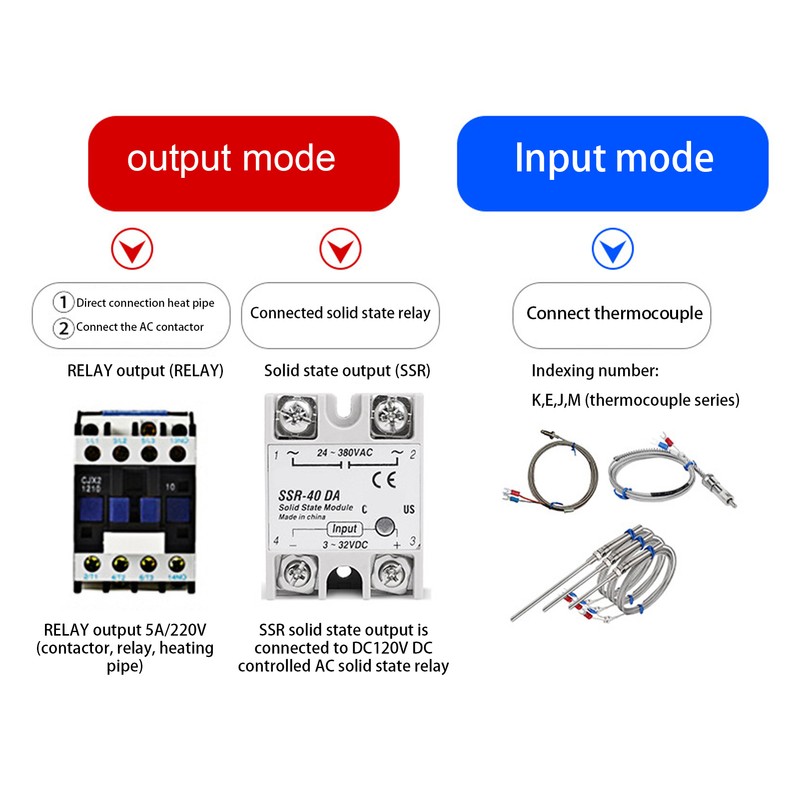

Control Output: A set of main control output, while supporting the following 2 output methods for the user to choose.
Relay Output: contact capacity AC250V 3A (resistive load)
Voltage Pulse Output: 0-12V (for external solid state relay SSR)
Alarm Function Output: One set of output, 6 modes selection Alarm output contact capacity AC250V 3A
Other Parameters:
Power Consumption: <10VA
Use Environment: Temperature not exceeding 0-50℃, humidity not exceeding 30-80%RH without corrosive gas
Notice
1. Check whether the instrument index number specification and power supply voltage are the same as the ordered instrument.

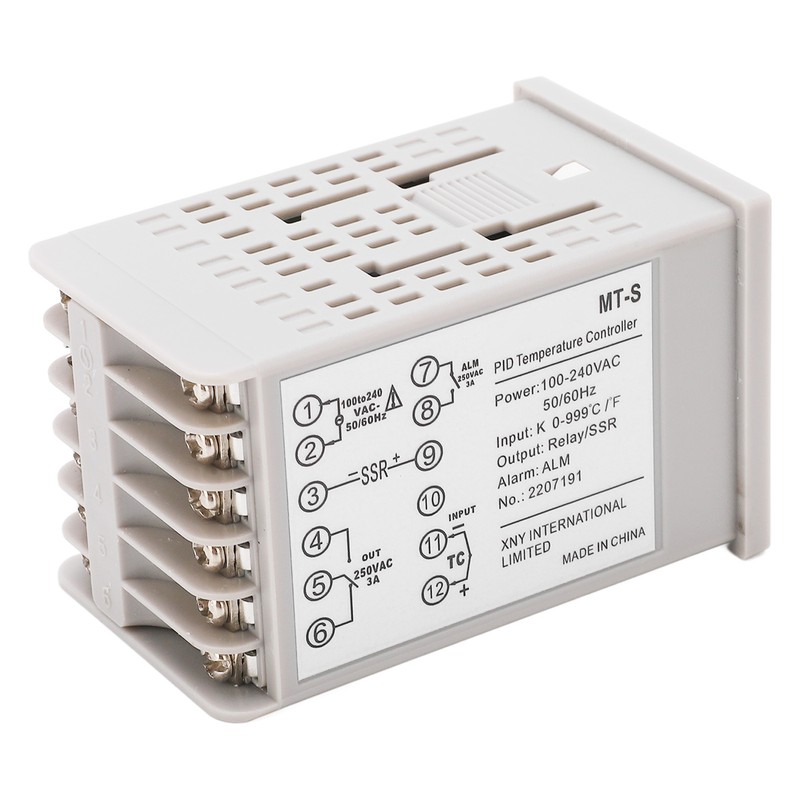

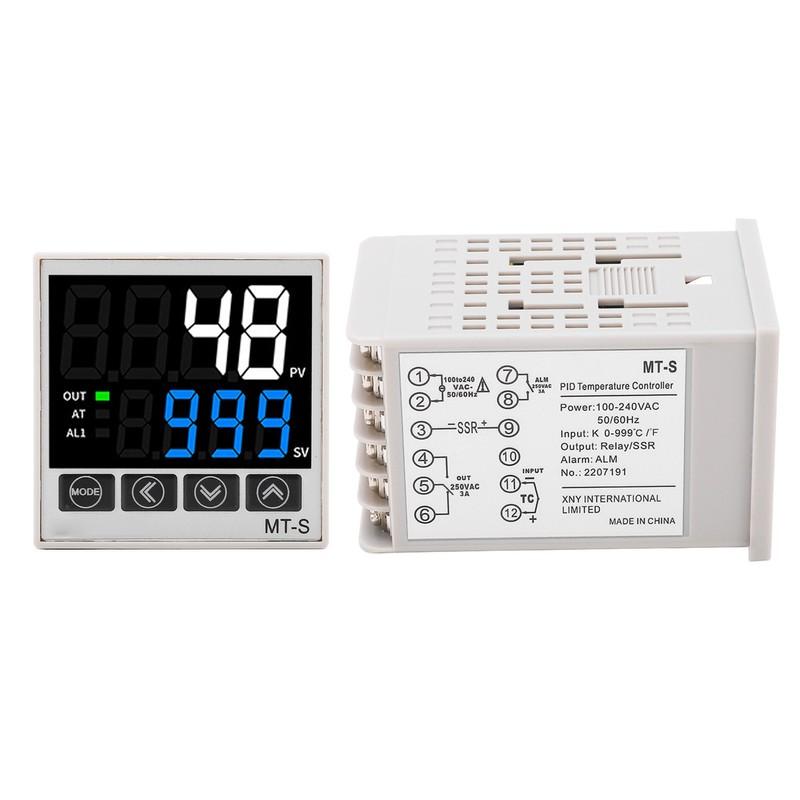

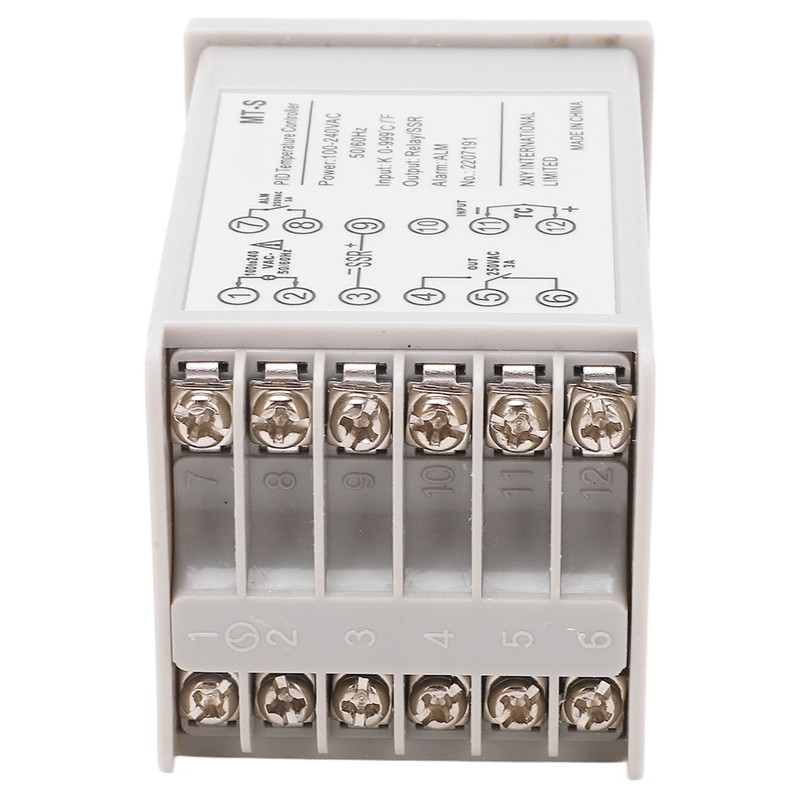

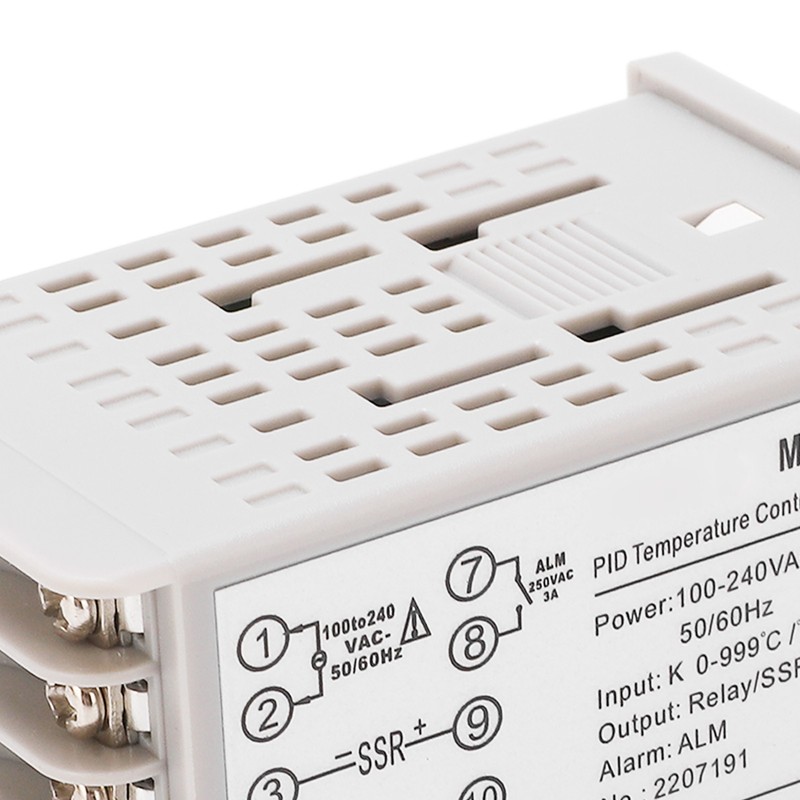

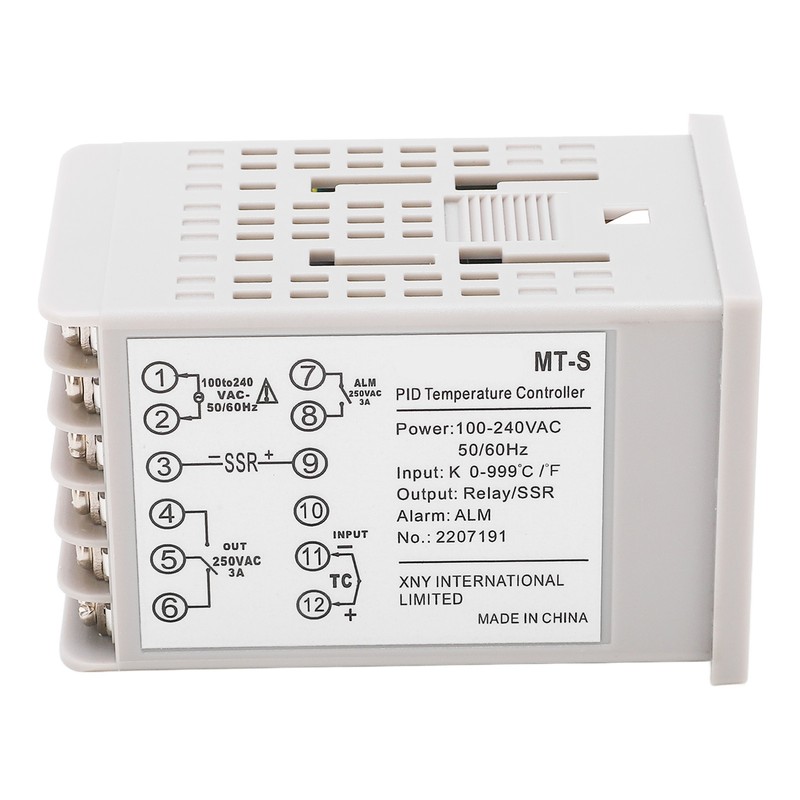

2. According to the wiring diagram, wiring is correct.
3. For thermocouple input signal, please use the same material compensation wire as thermocouple wire.
4. For RTD input signal, please use the same specification of low resistance wire, and the length of the three wires should be the same as possible.
5. Pay special attention to the power input line and sensor signal input line can not be confused with the wrong connection, otherwise the entire instrument burned and scrapped, can not be repaired. Output terminals can not be short‑circuited by strong current.
6. Instrument power and signal lines as far as possible and high‑current output lines separate surface lines to reduce the impact of electromagnetic radiation on the instrument, in case of unavoidable instrument connection, please try to use shielded lines.
