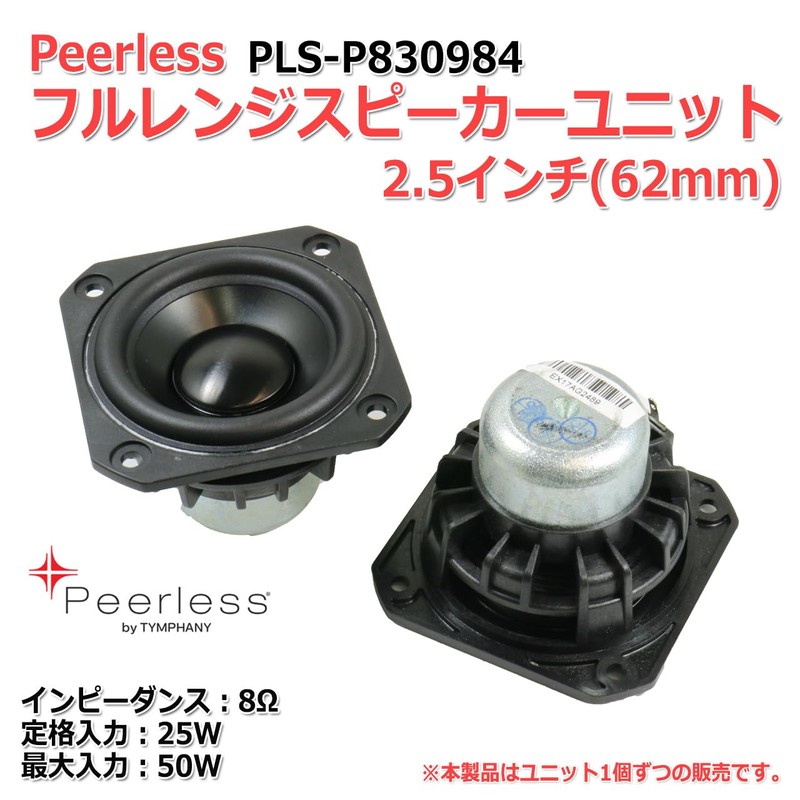

Peerless PLS-P830984 Full Range Speaker Unit 2.5" (62mm) 8Ω/MAX50W [Speaker DIY Audio] / 1 Piece
$69.31
- $9.99 shipping from Japan View details
-
Arrives
- Sold as 1 unit
- Copper Short Ring & Neodymium Magnetic Circuit for Low Coil Inductance
- Adopts diaphragm with anodizing processing (aluminum anodized) and improved properties
- Durable and flexible nitrile rubber edges
- Large Diameter 1.0 inch (26 mm) Voice Coil & Aluminum Voice Coil Bobbin
- Uses a resin reinforced frame with ventilation on the bottom of the damper
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Sold as 1 unit
- Copper Short Ring & Neodymium Magnetic Circuit for Low Coil Inductance
- Adopts diaphragm with anodizing processing (aluminum anodized) and improved properties
- Durable and flexible nitrile rubber edges
- Large Diameter 1.0 inch (26 mm) Voice Coil & Aluminum Voice Coil Bobbin
- Uses a resin reinforced frame with ventilation on the bottom of the damper
Tymphany PLS-P830984 Peerless Brand 2.5 inch (62 mm) 8Ω/Max 50W Full Range Speaker Unit
This brother unit is almost identical to the PLS-P830985 unit, a high-quality sound quality unit that is used as a unit for B○O speakers.
Despite its small size, it is the strongest full-range speaker unit with powerful and delicate expressions.
There is only a speaker unit with high quality sound design, and it is not only made of materials but also a design of different dimensions.
Don't miss this time for super high cost performance.
The adhesive on the edges and frames will appear white, but this unit looks like a default because you can see the same condition on the manufacturer's website.
If you are concerned about it, please apply black from the top.
The legendary siblings units are now in stock.
PLS-P830984, a twin brother that has been sold out with the popular popularity of PLS-P830985.
The spec sheet may vary somewhat but it is not the same as most PLS-P830985!
As seen in our company's popular NFJ enclosure, we conducted a sound quality check with the same sound quality as the PLS-P830985 enclosure, and it has almost the same sound quality as the PLS-P830985 unit.
This is a full range speaker unit that changes to the "PLS-P830985" unit that has been sold out in stock!!
We only have a full range unit with high sound quality design and are designed not only for the material but also the design!
This product is offered at a very low price with this spot purchase.
Don't miss this time for super high cost performance.
You will be able to experience the value of the price almost without any doubt that this is our highest level of cost performance.
This model is designed and produced with generous use of expensive materials, so it is a very expensive item as a manufacturer, but this time we have been able to set a price that cannot be imitated by our buyers.
Experience ultra-high sound quality that exceeds the price of the product.
We highly recommend this masterpiece.
This is a very popular brand unit, please note that it will be sold out sooner.
This time is still on the spot, and when it is gone.
We do not have a long term quantity to sell as well, so we recommend that you be prepared as soon as possible with spares included.
Product Features:
Copper short ring and neodymium magnetic circuit for low coil inductance.
Neodymium magnets that produce powerful magnetic force, combined with copper short rings to form a current distortion prevention mechanism on the magnetic circuit.
By reducing the current distortion generated in the middle and high range, the high impedance increases in the high range, it also achieves an exquisite sound balance in addition to the delicate expression of the medium and high range, as well as a rich bass range.
Adopts diaphragm with anodizing processing (aluminum anodized) and improved characteristics.
Special surface oxidation treatment aluminum cones and aluminum center caps increase frequency characteristics.
The center cap is joined with an aluminum voice coil bobbin to improve the diffusion and response properties of treble range.
Durable and flexible nitrile rubber edges.
Heavy duty nitrile rubber edge as edge material
Large diameter 1.0 inch (26 mm) voice coil & aluminum voice coil bobbin.
The large caliber voice coil is not suitable for the size, so it has realistic and impressive sound quality while the lightweight and robust aluminum bobbin has a port on the top for exhaust pressure for increased stroke response.
Uses a resin reinforced frame with a vent on the bottom of the damper.
Designed with a high damper strength to maximize the advantage of heavy duty materials and reinforced frame strength.
The holes on the bottom of the frame reduce exhaust air resistance when offset, ensuring smooth response of aluminum cones.
About Peerless
Peerless is a Danish speaker unit manufacturer since 1926.
In 1995 The same Danish speaker manufacturer Vifa absorbs Peerless and the Peerless name remains as the brand.
In 2000, Vifa and Scan-Speak were combined to become Danish Sound Technology (DST).
In 2005, DST and Tymphany have merged together in 2005, Tymphany has become a survival, and continues the Peerless brand with Scan-Speak.
[Precautions]
Please be aware that this product is brand new, but there may be some stains or minor scratches as it is imported.
This product is sold individually. Please note that these are not sold in pairs.
※Although we do not offer a warranty, we will replace it if you can check any injuries or fatal damage at the time of receiving the product.
Please be aware that we will not be able to deal with defects after processing.
The adhesive on the edges may look white, as shown in the pictures, but the same condition on the manufacturer's website can be confirmed in the same condition. This is not a defect.
→ If you are concerned about it, please apply black from the top.

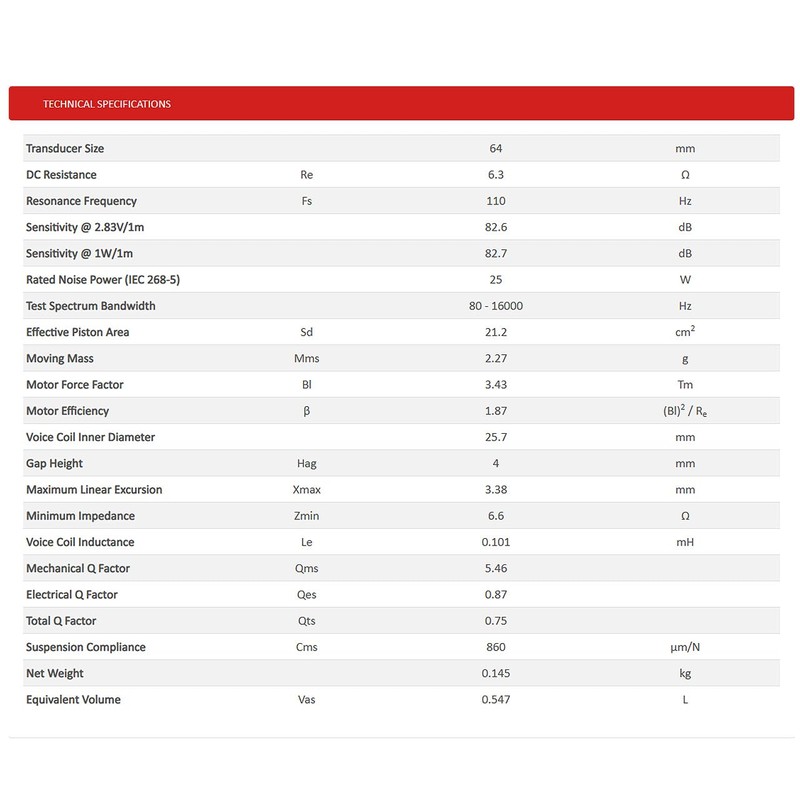

Product Specifications:
Unit of measure : 1 piece
Manufacturer: TYMPHANY
Brand: Peerless
Manufacturer Model Number: PLS-P830984
Format: Full Range
Diaphragm Material: Aluminum cone (anodized)
Edge Material: Rubber
Magnet: Neodymium magnet (anti-magnetic type).
Impedance: 8Ω
Input (rated/max): 25W/50W
Efficiency (output sound pressure level 1W/1m): 82.7dB

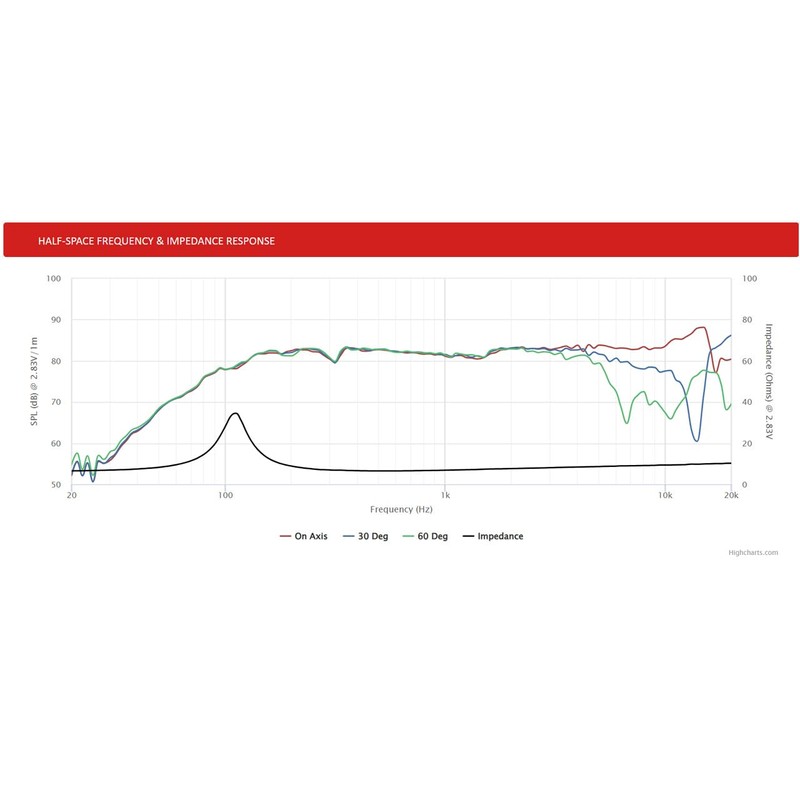

Frequency Response Range: 80 - 16,000Hz
Minimum resonance frequency F0: 110Hz
Voice coil diameter: 1.0 inches (26 mm)

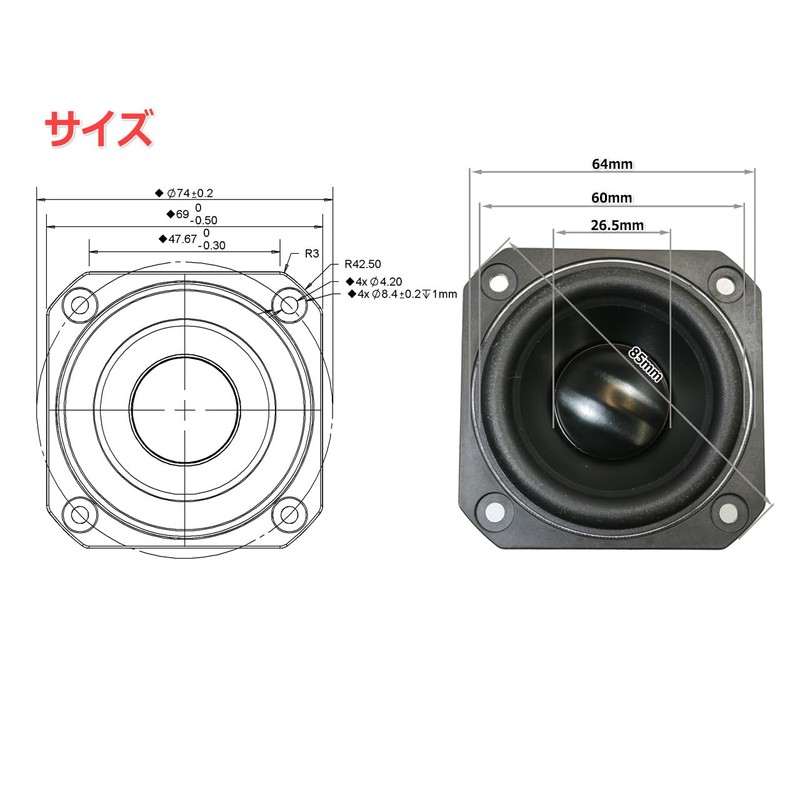

Unit caliber (cone diameter with edge): 2.5" (64mm)
Baffle opening diameter: 2.4 inches (62 mm)
Center Cap Diameter: 1.0 inches (26.5 mm)
Screw hole: Screw pitch (diagonal diameter) 2.9 inches (74 mm) / Screw hole diameter approx. 0.2 inches (4.2 mm)

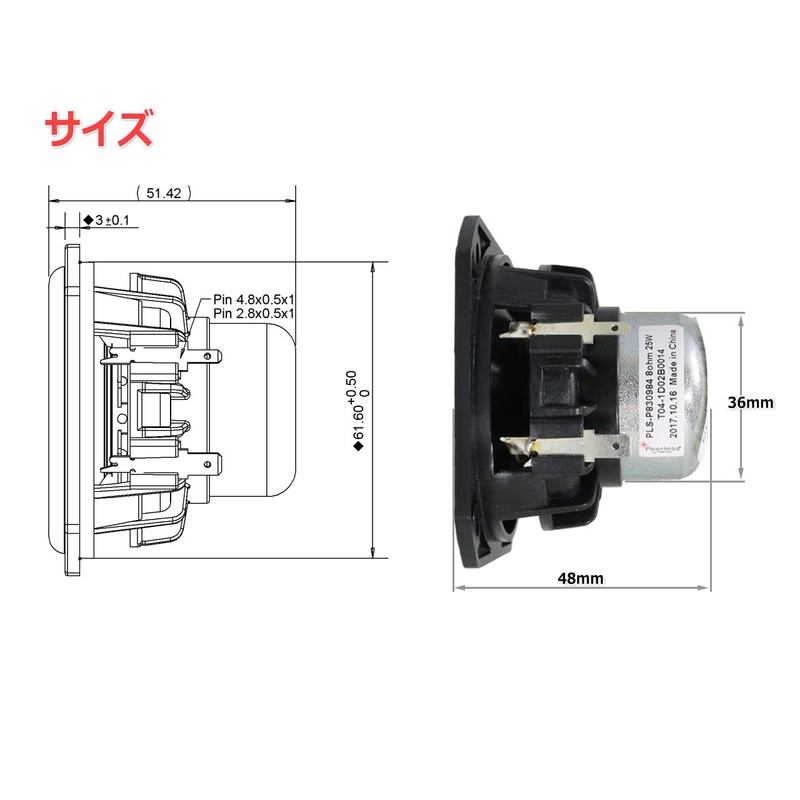

Size: 2.7 x 2.7 x 1.9 inches (69 x 6
Weight: 200g
