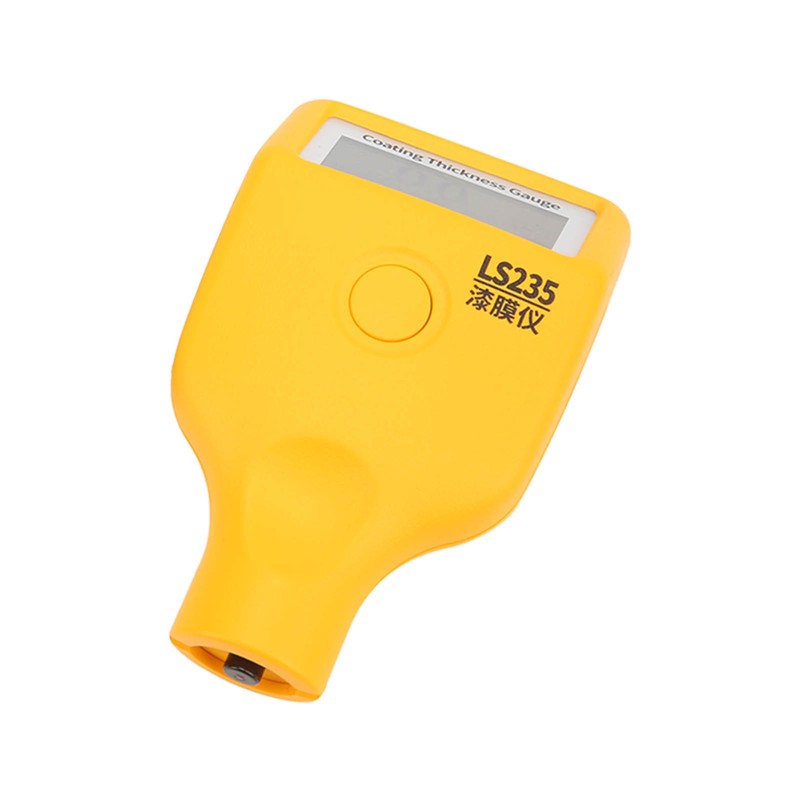

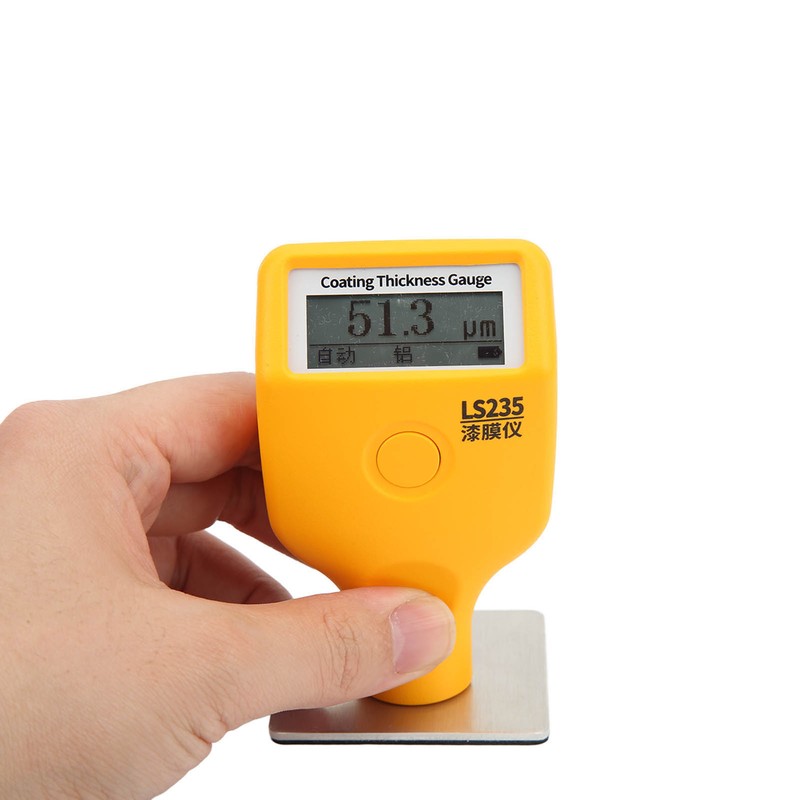

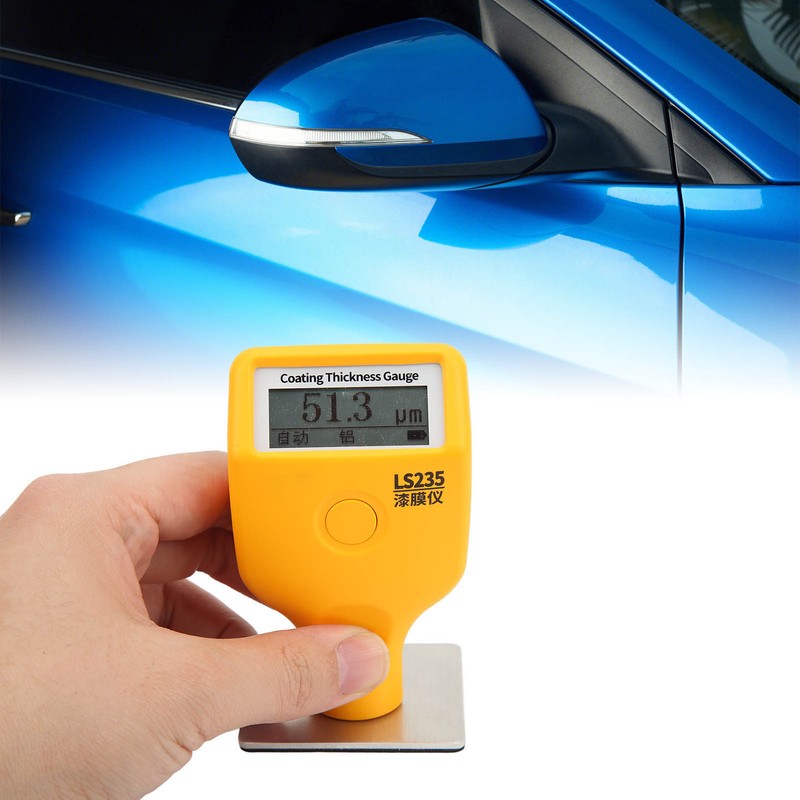

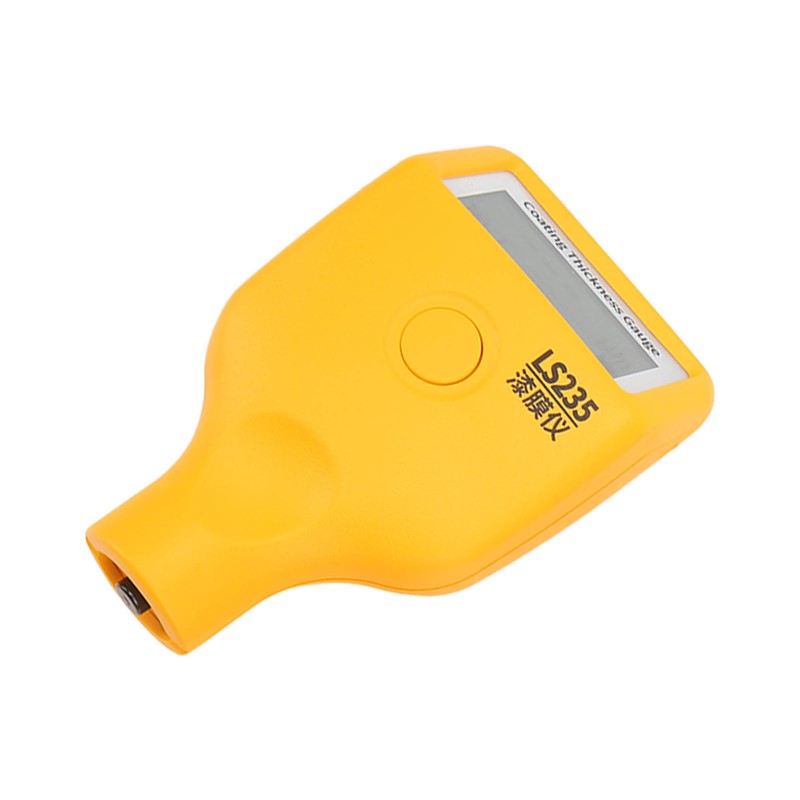

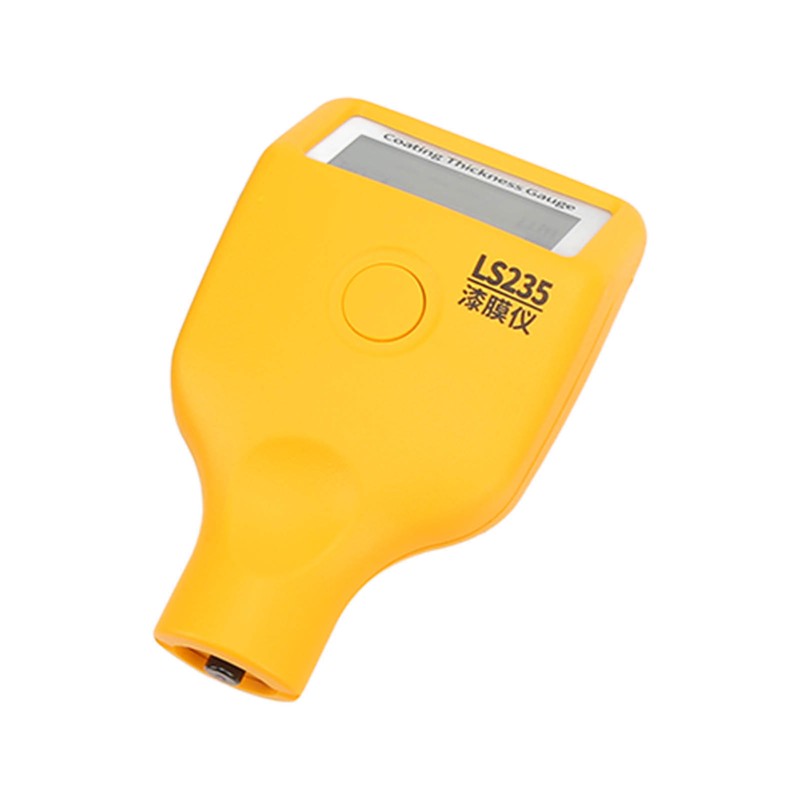

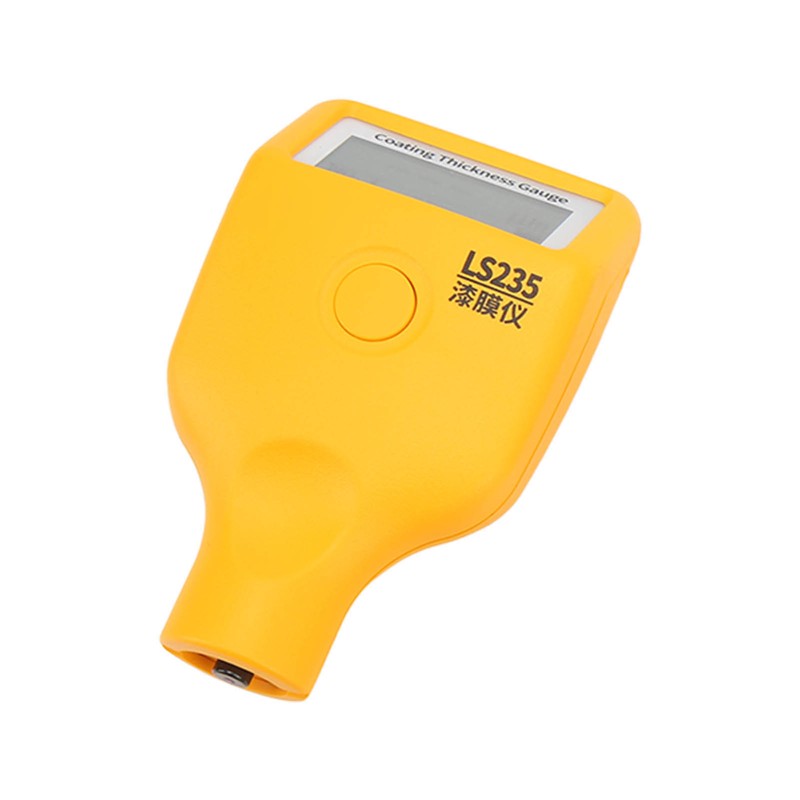

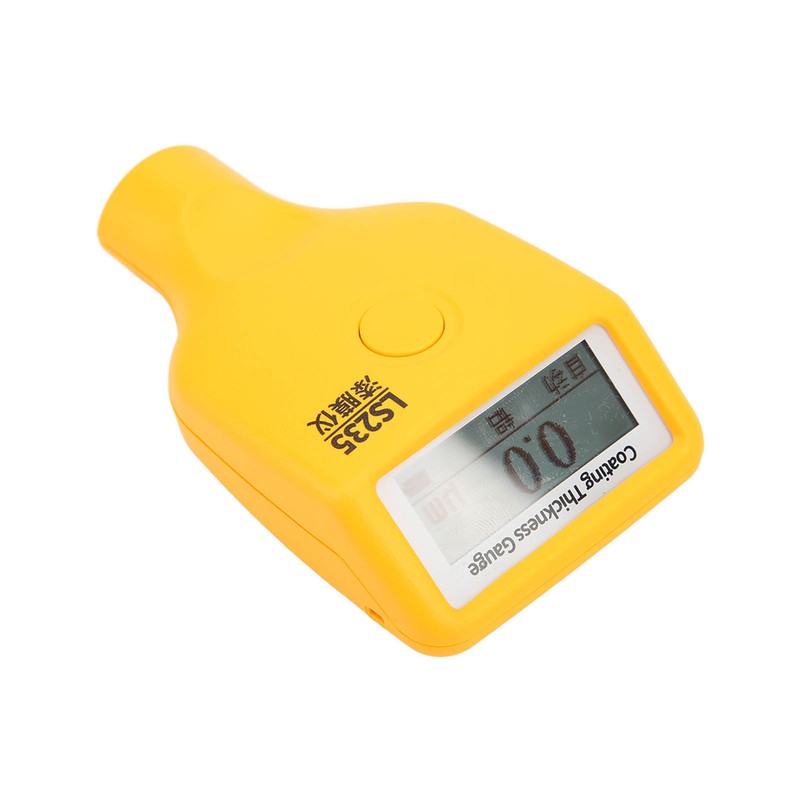

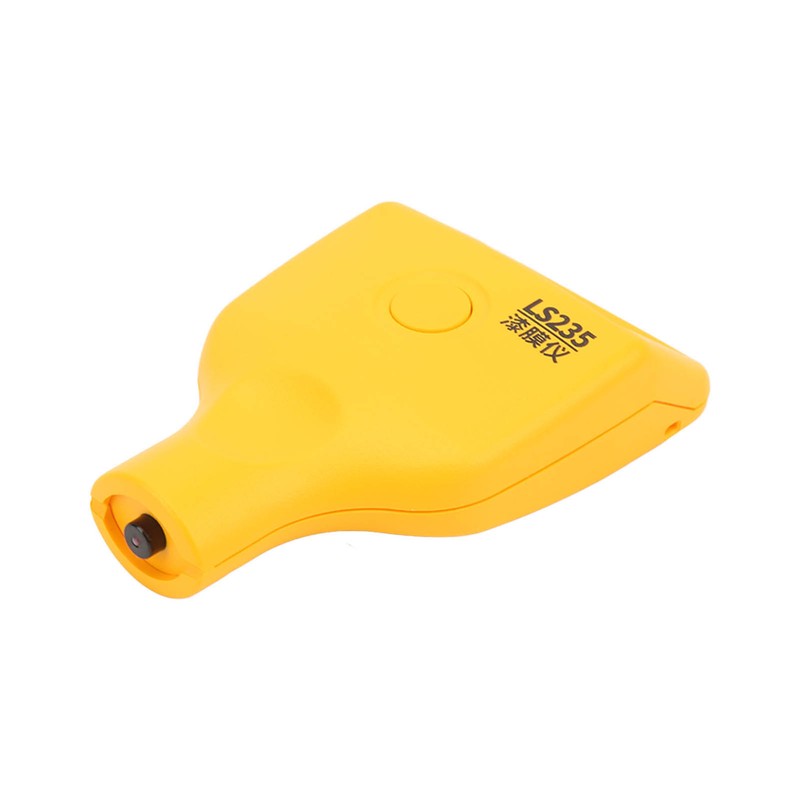

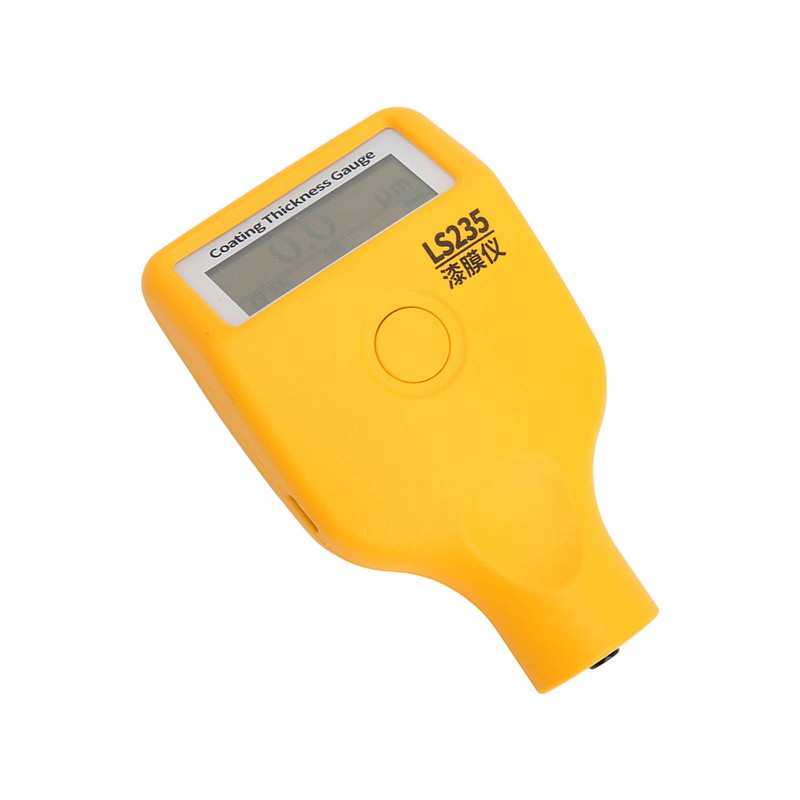

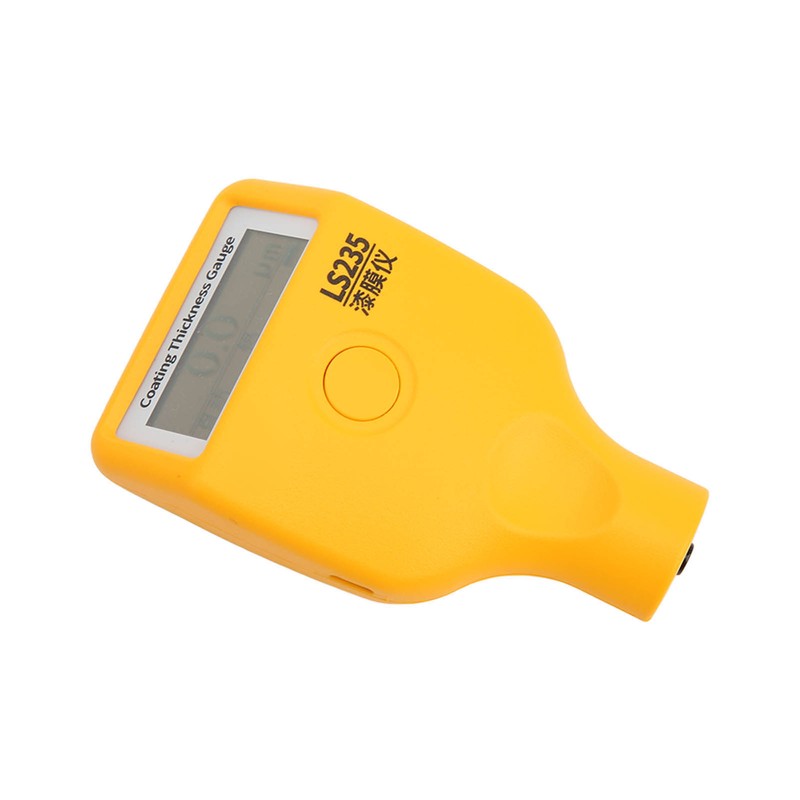

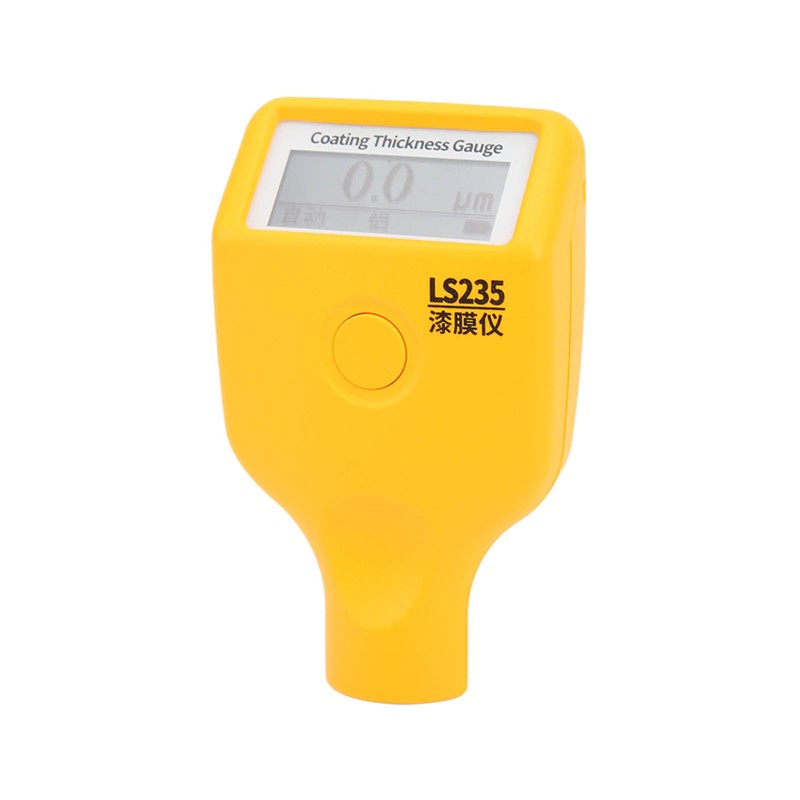

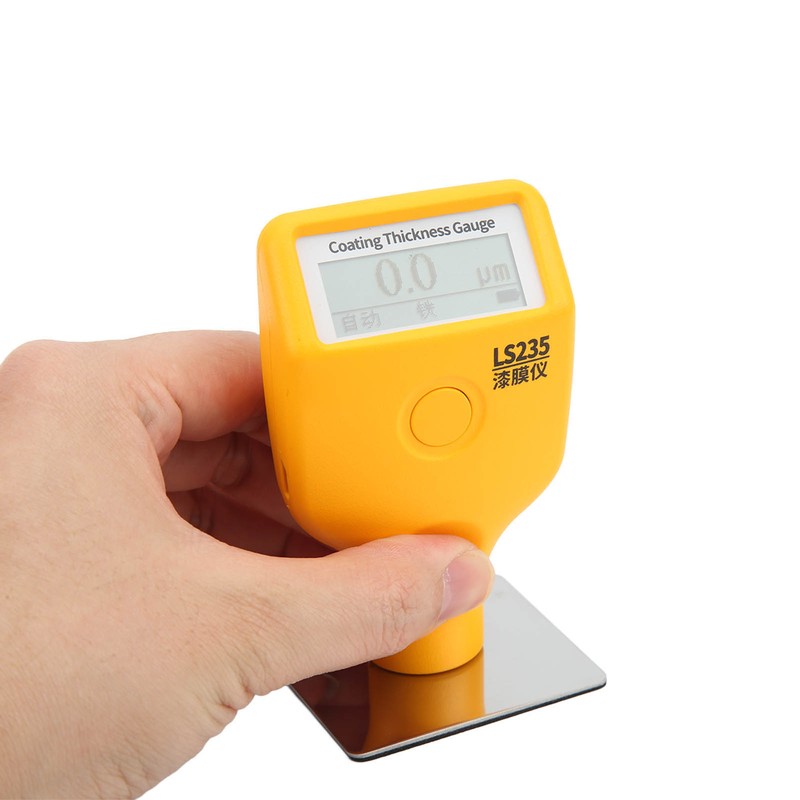

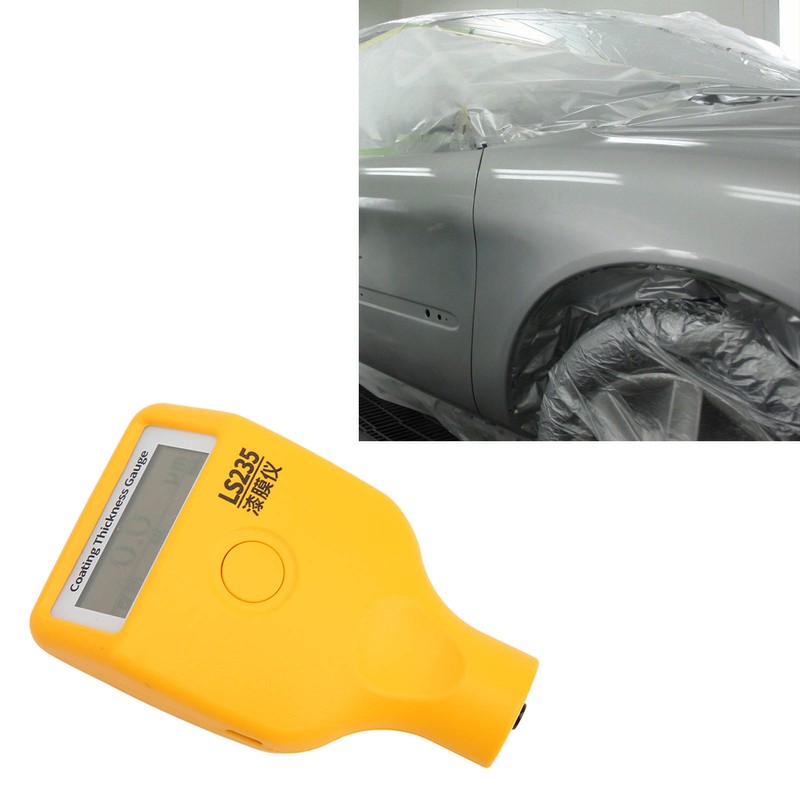

Paint Thickness Gauge Multifunctional Low Temperature Resistant Automotive Paint Surface Coating Detector
$177.51
- $9.99 shipping from United States View details
-
Arrives

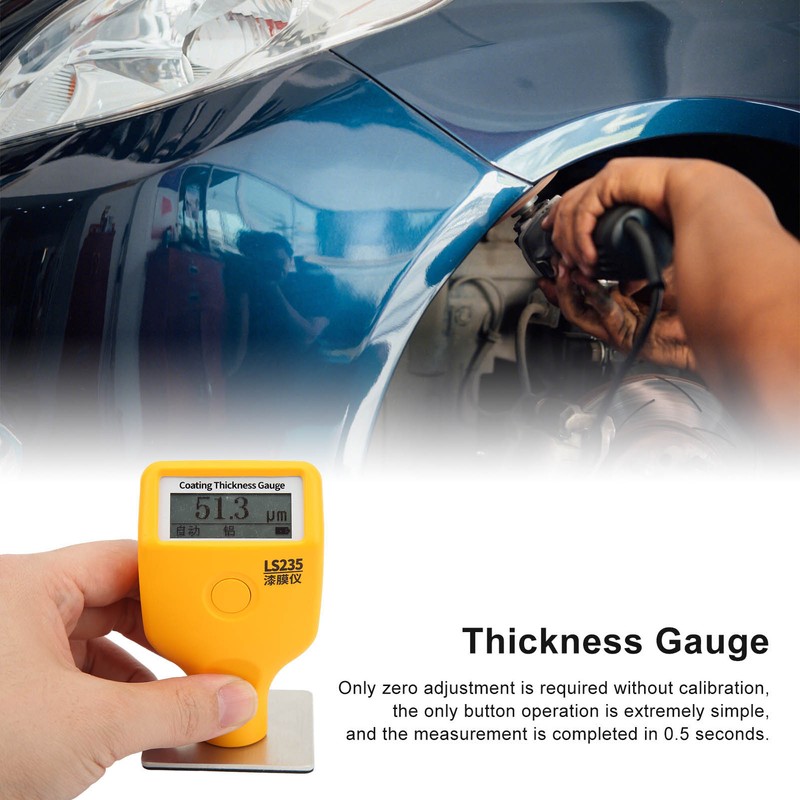

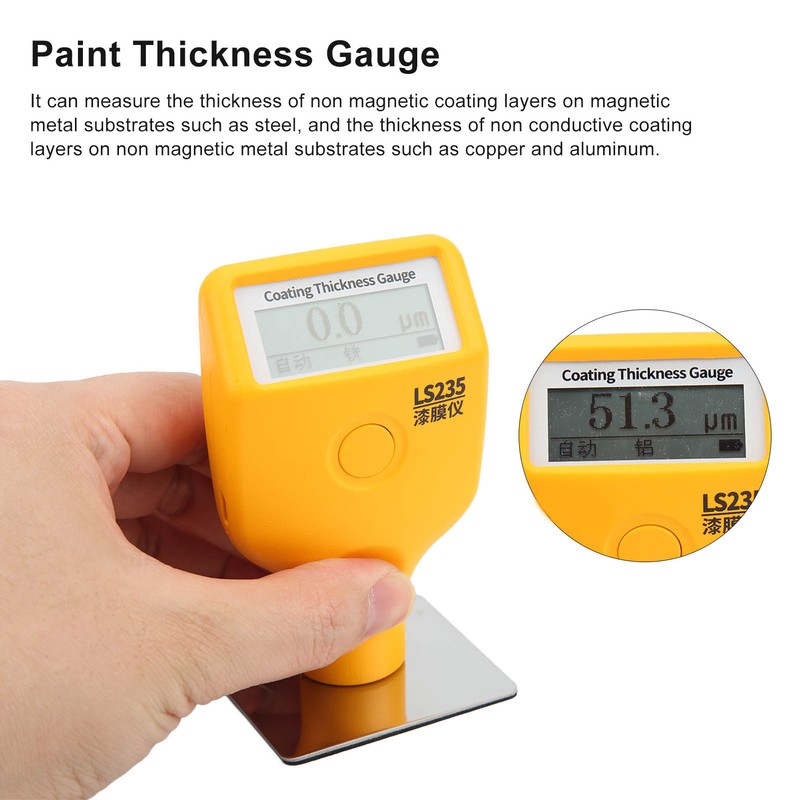

1、Simple Operation: Only zero adjustment is required without calibration, the only button operation is extremely simple, and the measurement is completed in 0.5 seconds. 2、Multifunction: The instrument has the recognition function of iron powder putty layer and iron galvanized layer, and adopts 3 color backlight indication. The wear resistance of the carbuncle probe ensures long term effective use of the instrument. 3、Iron Aluminum Dual Purpose Probe: Automatically identify iron, aluminum and non metallic substrates, and can be quickly and automatically converted. "Fe" "NFe" "Fe/NFe" three measurement modes can be set. 4、Applicability: It can measure the thickness of non magnetic coating layers on magnetic metal substrates such as steel, and the thickness of non conductive coating layers on non magnetic metal substrates such as copper and aluminum. 5、Digital Probe Technology: Using advanced digital probe technology, digital signal processing is directly completed on the probe, the probe is not easily disturbed and provides excellent test accuracy. Even if temperature changes do not affect the measurement, the reading remains stable to ensure very good repeatability throughout the measurement.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support

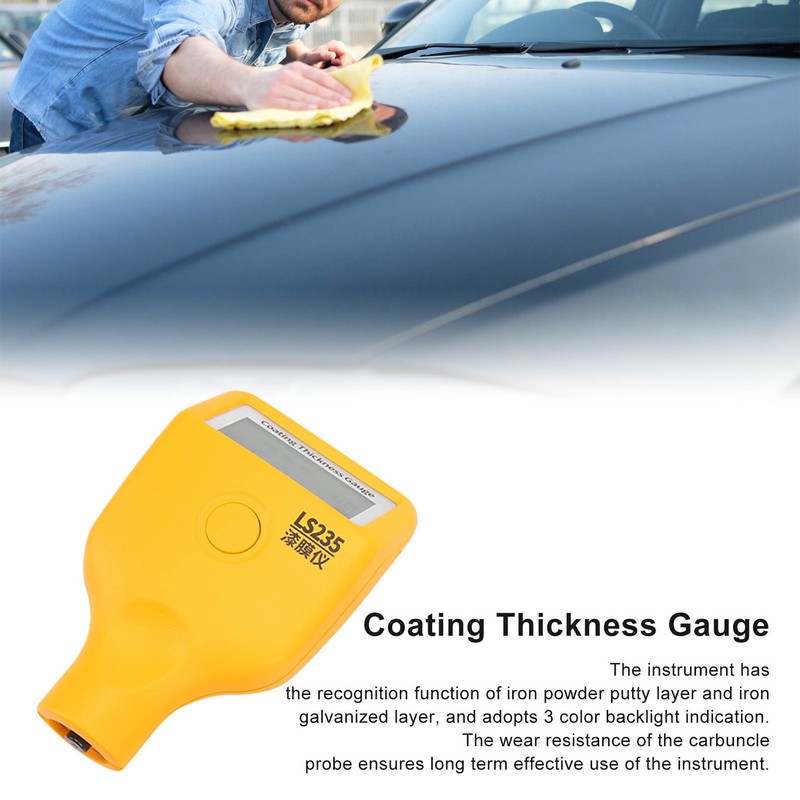

1、Simple Operation: Only zero adjustment is required without calibration, the only button operation is extremely simple, and the measurement is completed in 0.5 seconds. 2、Multifunction: The instrument has the recognition function of iron powder putty layer and iron galvanized layer, and adopts 3 color backlight indication. The wear resistance of the carbuncle probe ensures long term effective use of the instrument. 3、Iron Aluminum Dual Purpose Probe: Automatically identify iron, aluminum and non metallic substrates, and can be quickly and automatically converted. "Fe" "NFe" "Fe/NFe" three measurement modes can be set. 4、Applicability: It can measure the thickness of non magnetic coating layers on magnetic metal substrates such as steel, and the thickness of non conductive coating layers on non magnetic metal substrates such as copper and aluminum. 5、Digital Probe Technology: Using advanced digital probe technology, digital signal processing is directly completed on the probe, the probe is not easily disturbed and provides excellent test accuracy. Even if temperature changes do not affect the measurement, the reading remains stable to ensure very good repeatability throughout the measurement.
1、Simple Operation: Only zero adjustment is required without calibration, the only button operation is extremely simple, and the measurement is completed in 0.5 seconds. 2、Multifunction: The instrument has the recognition function of iron powder putty layer and iron galvanized layer, and adopts 3 color backlight indication. The wear resistance of the carbuncle probe ensures long term effective use of the instrument. 3、Iron Aluminum Dual Purpose Probe: Automatically identify iron, aluminum and non metallic substrates, and can be quickly and automatically converted. "Fe" "NFe" "Fe/NFe" three measurement modes can be set. 4、Applicability: It can measure the thickness of non magnetic coating layers on magnetic metal substrates such as steel, and the thickness of non conductive coating layers on non magnetic metal substrates such as copper and aluminum. 5、Digital Probe Technology: Using advanced digital probe technology, digital signal processing is directly completed on the probe, the probe is not easily disturbed and provides excellent test accuracy. Even if temperature changes do not affect the measurement, the reading remains stable to ensure very good repeatability throughout the measurement.
More Information
Item Type: Paint Thickness Gauge
Material: ABS

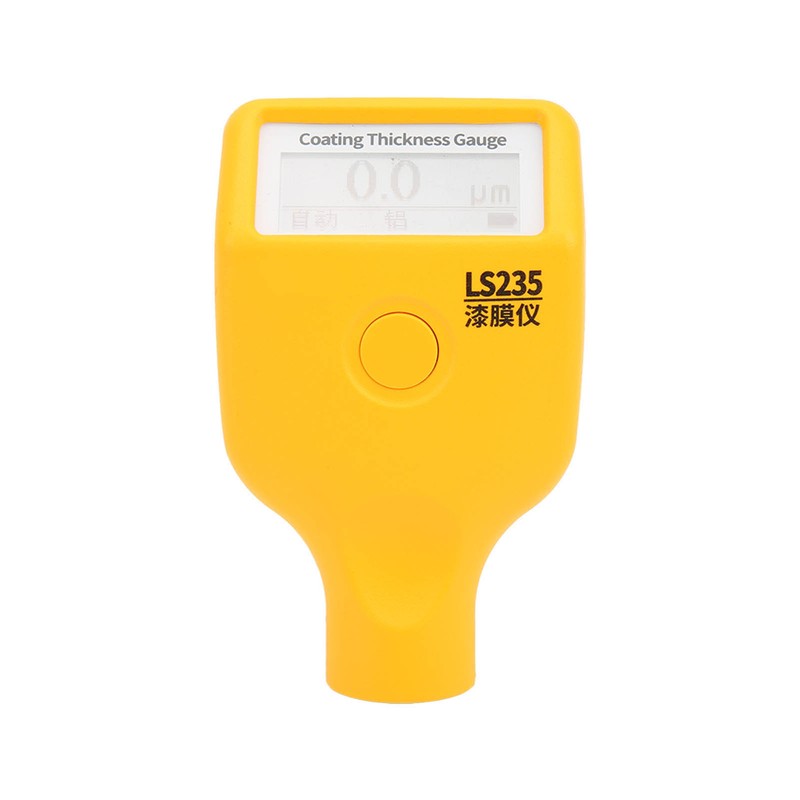

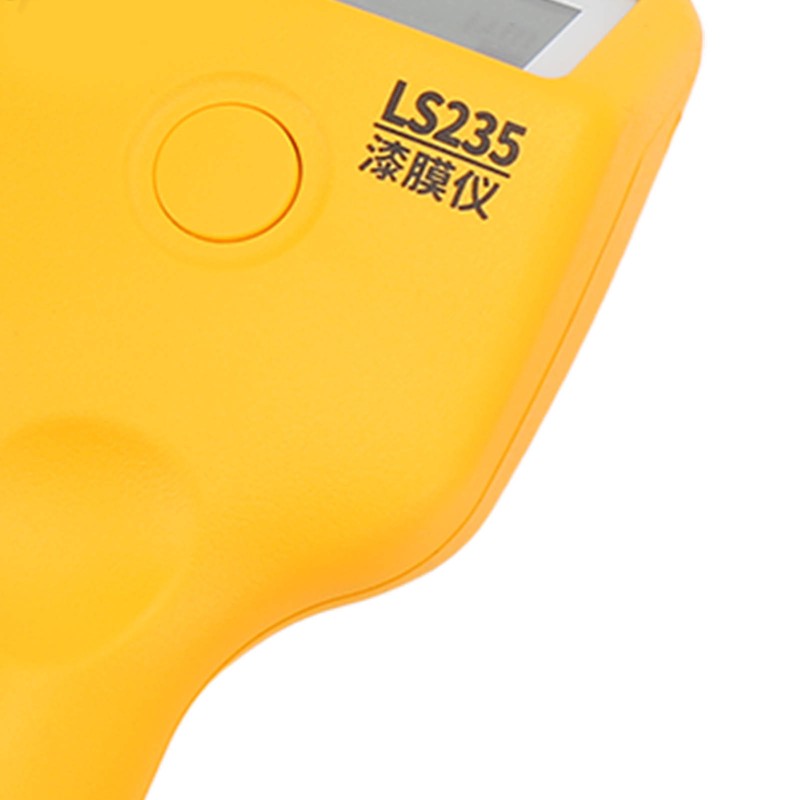

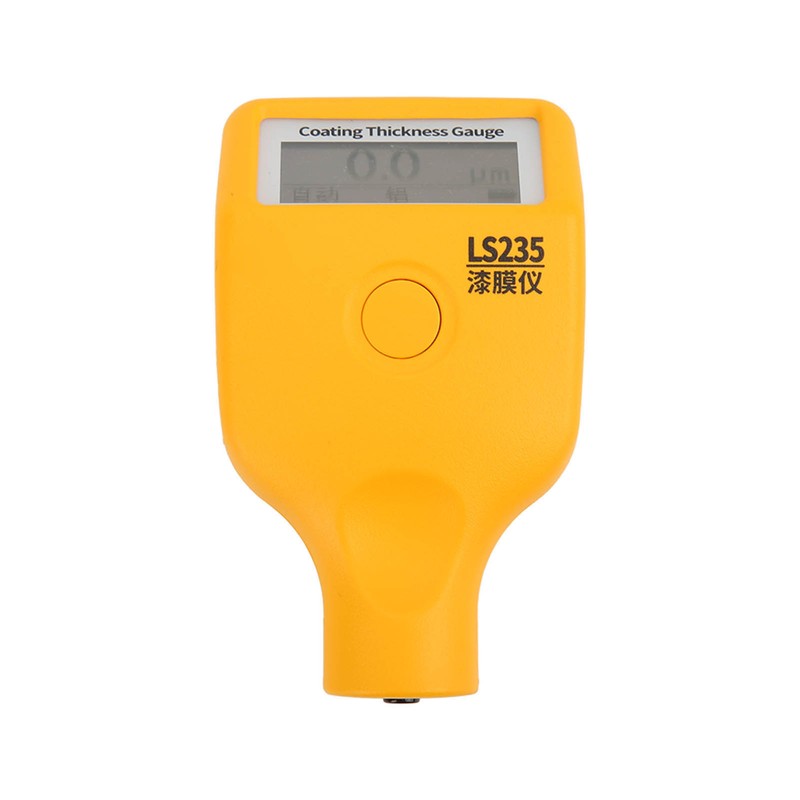

Model: LS235
Battery: AAA 1.5V x 2 (Battery Not Included)
Application: Paint Film, Coating Thickness Measurement

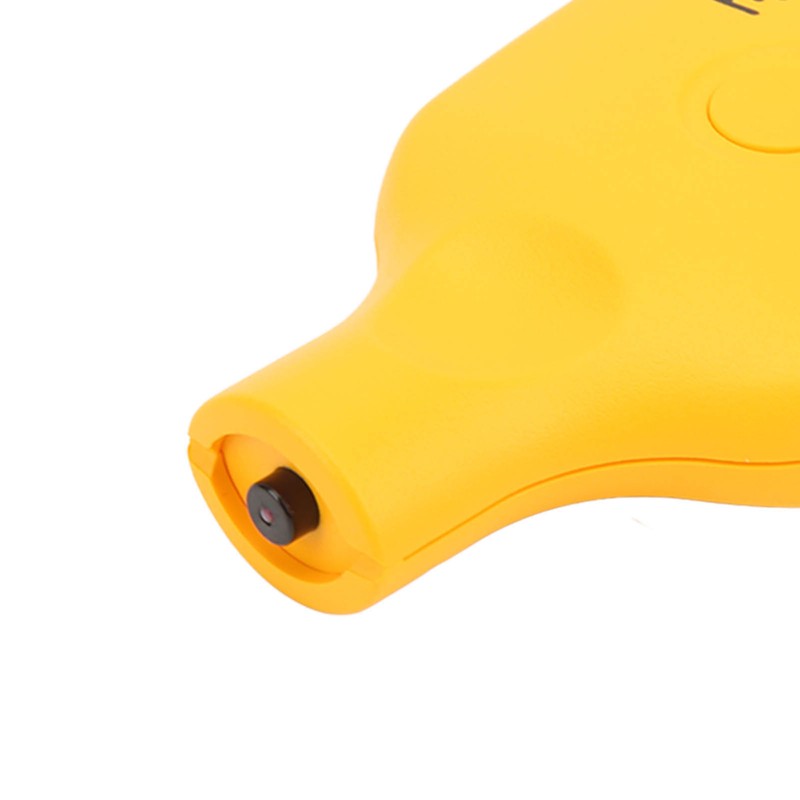

Probe Tip: Carbuncle
Measuring Principle: Fe: Hall Effect / NFe: Eddy Current
Probe Type: Built in One Piece
Measuring Range: 0.0-2000μm
Resolution:
0.1μm: (0μm-99.9μm)
1μm: (100μm-999μm)
0.01mm: (1.00mm-2.00mm)
Measurement Accuracy: ≤± (3% Reading, 2μm)
Measurement Mode: “Fe” “NFe” “Fe/NFe”
Unit: μm/mil
Measurement Interval: 0.5s
Minimum Measurement Area: φ=25mm
Minimum Radius Of Curvature: Convex: 5mm/Concave: 25mm
Minimum Substrate Thickness: Fe: 0.2mm/NFe: 0.05mm

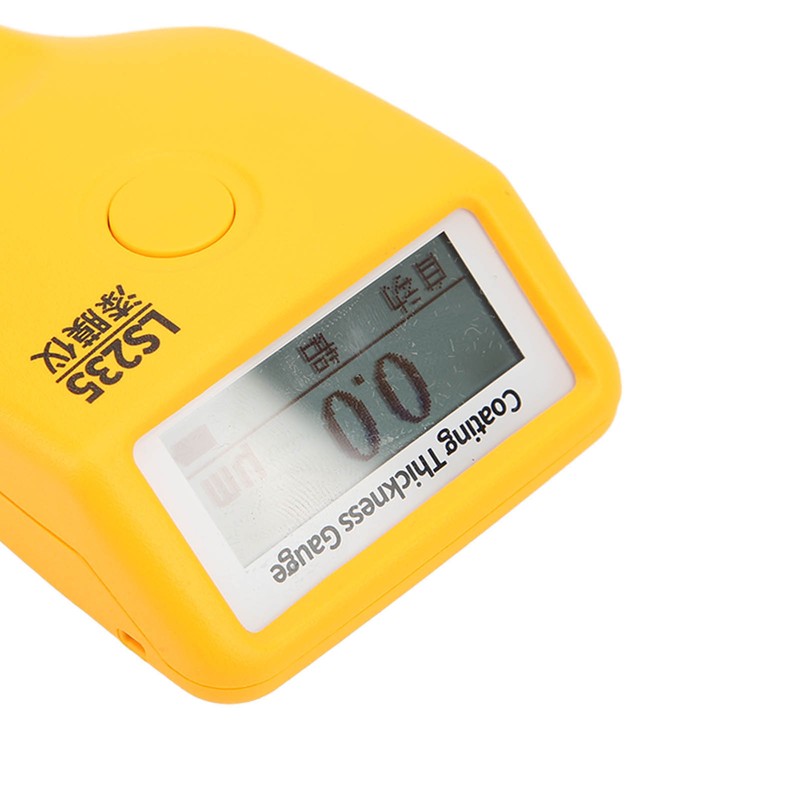

Display: 128 x 48 Lattice LCD
Power Supply: 2 x 1.5V AAA Alkaline Batteries
Operating Temperature Range: -20℃-50℃
Storage Temperature Range: -20℃-60℃
Host Size: Approx.101 x 62 x 28mm / 4 x 2.4 x 1.1in
Weight (including Battery): 79g
Material Identification: Support
Three Color Backlight Prompt: Support
