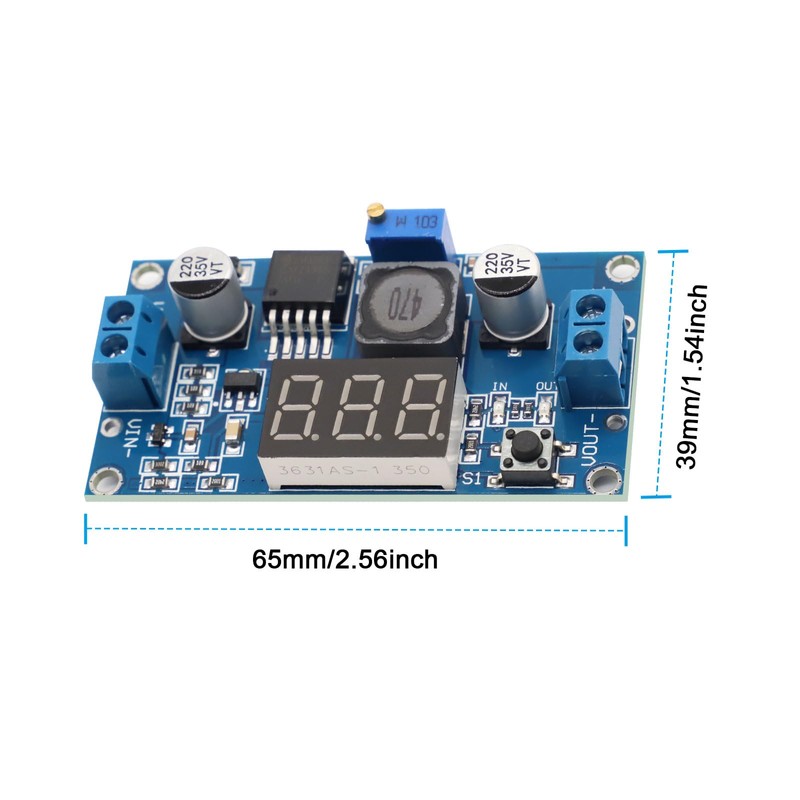

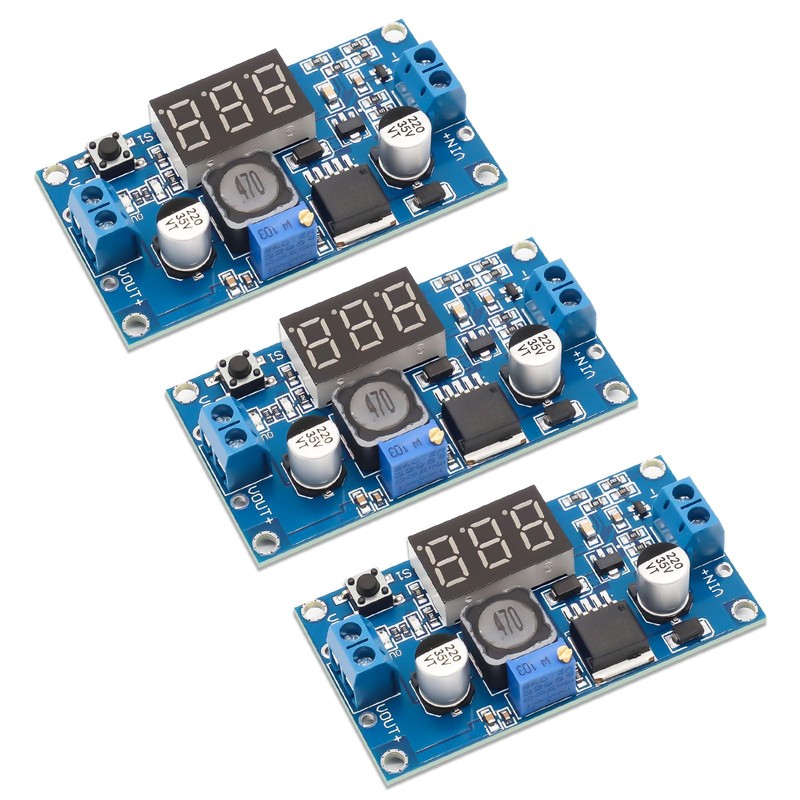

Pack of 3 Step Down Converter, QIQIAZI DC-DC Buck Converter Module, DC Converter Voltage Regulator, Buck Converter for 4-40V to 3.3-24V with 3-Digit Digital Display
$29.62
- $9.99 shipping from Germany View details
-
Arrives
- High precision: DC-DC buck converter with adjustable voltage and integrated voltmeter. Voltmeter Accuracy: ±0.1V Input voltage: 4.0-40V; Output voltage: 1.25-37V Note: For input voltages below 4V, the voltmeter does not work and does not display values.
- Safe protection: the step down converter offers low power consumption and high efficiency. Equipped with overheating and short circuit protection. Additional cooling is recommended for powers above 15W. Built-in reverse polarity protection prevents damage caused by incorrect connection.
- Adjustable step-down converter: With an internal oscillation frequency of 150 kHz and high-quality solid state capacitors, the buck converter ensures stability and durability. Effective filtering of high frequency noise for reliable voltage regulation.
- Important note: Before first use, turn the potentiometer counterclockwise more than 10 times. Step down converter switch between input and output voltage with the button next to the voltmeter. Green LED light shows output voltage, red LED light shows input voltage.
- Versatile applications: step down converter is ideal for voltage reduction projects where the input voltage is higher than the output voltage. Applications include batteries, transformers, DIY power supplies, vehicle power adapters (e.g. B. 24 V to 12 V), industrial voltage adjustments and much more.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- High precision: DC-DC buck converter with adjustable voltage and integrated voltmeter. Voltmeter Accuracy: ±0.1V Input voltage: 4.0-40V; Output voltage: 1.25-37V Note: For input voltages below 4V, the voltmeter does not work and does not display values.
- Safe protection: the step down converter offers low power consumption and high efficiency. Equipped with overheating and short circuit protection. Additional cooling is recommended for powers above 15W. Built-in reverse polarity protection prevents damage caused by incorrect connection.
- Adjustable step-down converter: With an internal oscillation frequency of 150 kHz and high-quality solid state capacitors, the buck converter ensures stability and durability. Effective filtering of high frequency noise for reliable voltage regulation.
- Important note: Before first use, turn the potentiometer counterclockwise more than 10 times. Step down converter switch between input and output voltage with the button next to the voltmeter. Green LED light shows output voltage, red LED light shows input voltage.
- Versatile applications: step down converter is ideal for voltage reduction projects where the input voltage is higher than the output voltage. Applications include batteries, transformers, DIY power supplies, vehicle power adapters (e.g. B. 24 V to 12 V), industrial voltage adjustments and much more.
Input voltage: DC 4.0 ~ 40 V.
Output voltage: 1.25 V ~ 37 V (infinitely adjustable, the input voltage must be at least 1.5 V higher than the output voltage).
Output current: 2A (stable), 3A maximum.
● Efficiency: up to 92%.
Output rib: <30mV.
Switching frequency: 150 kHz.
Operating temperature: -45°C ~ +85°C.

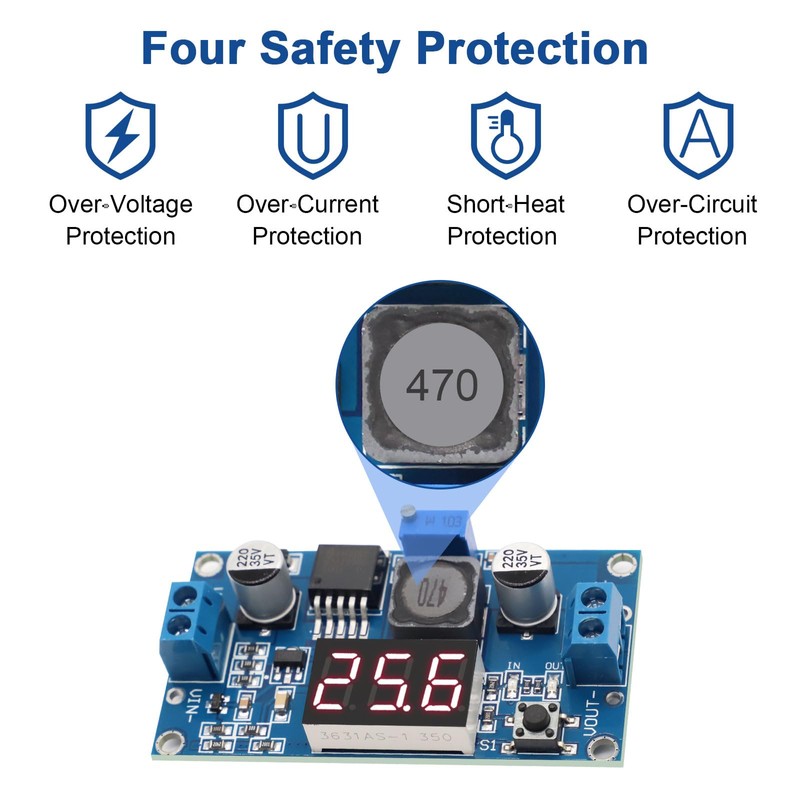

● Protection functions: reverse polarity protection, overheating protection and short circuit protection.

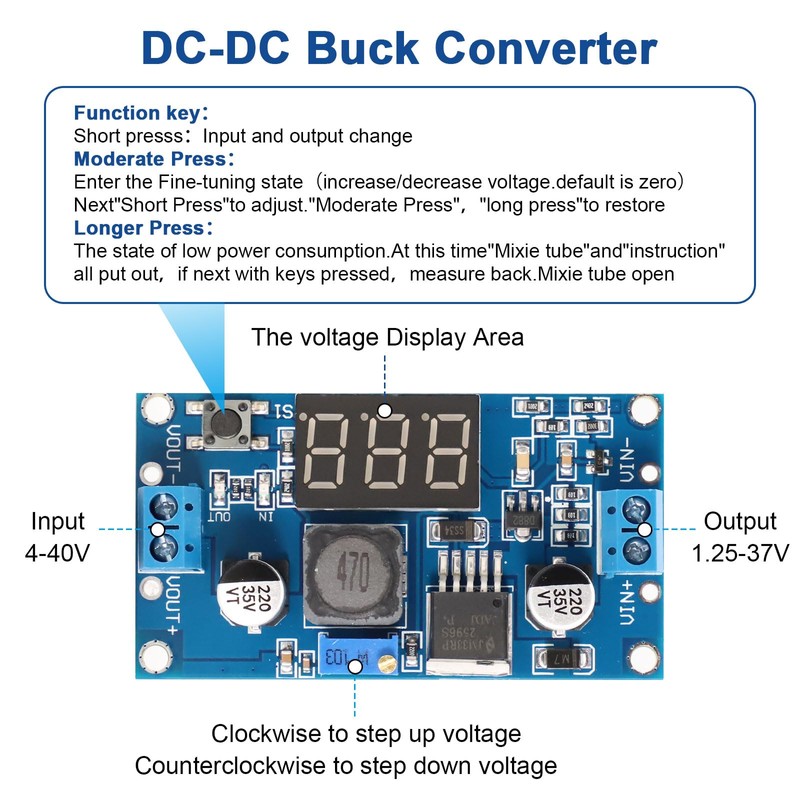

Connection instructions:
● IN+: Connect this to the positive pole of the input source.
● IN-: Connect this to the negative pole of the input source.
● OUT+: Connect this to the positive pole of the output source.
● Out: Connect this to the negative pole of the output source.
Digital Voltmeter Calibration:
(Optional for users who need high-precision voltage measurement)
1. Short press the left button "ON/OFF" to activate the digital voltmeter. Press the button longer (>1s, <4s) to disable it.
2. Press and hold the left button (>4 seconds) to start the self-calibration of the voltmeter (calibration range: -0.5 V to +0.5 V, factory setting: 0.0 V). The "IN" indicator lights up = calibration of the input voltage begins.
3. Press and hold the right button "Mode" (>2 seconds) to start the calibration of the output voltage (""OUT" indicator lights). Use the left/right button to adjust the values in small steps (approx. 0.1 V).
4. After calibration, press the right button "Mode" (> 2 seconds) to save the changes. The setting remains even after a power failure.

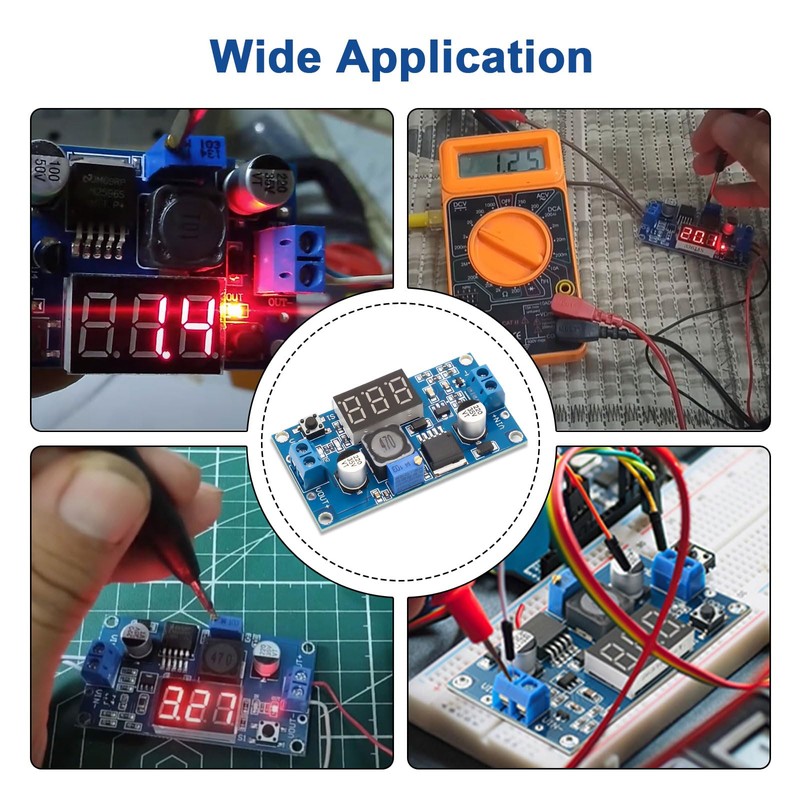

Applications:
This step-down converter is suitable for applications where the input voltage is higher than the output voltage. Examples: batteries, transformers, DIY power supplies, 24V notebook power adapters, industrial voltage converters, conversions such as 12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V, 36V to 24V and more.
