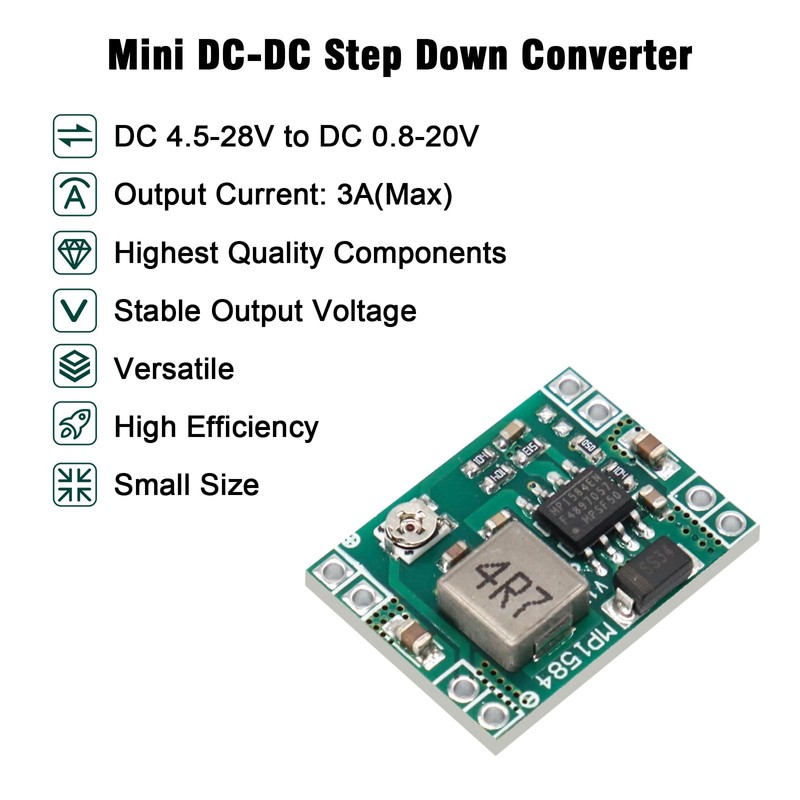

Pack of 10 Mini Step Down Converter Module, QIQIAZI DC-DC Buck Converter MP1584EN 4.5-28V to 0.8-20V DC-DC Converter Module, 24V to 12V 9V 5V 3V Step Down Adjustable Converter
$33.97
- $9.99 shipping from Germany View details
-
Arrives
- 【Adjustable Output Voltage】Input voltage: 4.5V to 28V; Output voltage: 0.8V to 20V (adjustable); Output current: maximum 3A, recommended below 2.5A; Conversion efficiency: up to 92%; Output ripple: less than 30mV; Switching frequency: maximum 1.5MHz, typical 1 MHz.
- Miniature design: Mini DC-DC down module with a size of only 22 mm x 17 mm x 4 mm. Perfect for applications with limited space, such as Aviation models, DIY power banks, surveillance systems, communication devices and much more.
- High performance: the step-down converter module works with high efficiency and minimal ripple, provides excellent voltage control during load changes and supports loads up to 3A.
- Wide range of applications: the buck converter module with an input voltage range of 4.5 V to 28 V, the module is suitable for numerous applications, including those with high input voltages, such as in automotive technology.
- 【Safety and usage instructions】Operating temperature: -45°C to 85°C. Please note that the input and output ports must not be swapped to avoid damage. Avoid operation with light or without load (below 10% of output).
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- 【Adjustable Output Voltage】Input voltage: 4.5V to 28V; Output voltage: 0.8V to 20V (adjustable); Output current: maximum 3A, recommended below 2.5A; Conversion efficiency: up to 92%; Output ripple: less than 30mV; Switching frequency: maximum 1.5MHz, typical 1 MHz.
- Miniature design: Mini DC-DC down module with a size of only 22 mm x 17 mm x 4 mm. Perfect for applications with limited space, such as Aviation models, DIY power banks, surveillance systems, communication devices and much more.
- High performance: the step-down converter module works with high efficiency and minimal ripple, provides excellent voltage control during load changes and supports loads up to 3A.
- Wide range of applications: the buck converter module with an input voltage range of 4.5 V to 28 V, the module is suitable for numerous applications, including those with high input voltages, such as in automotive technology.
- 【Safety and usage instructions】Operating temperature: -45°C to 85°C. Please note that the input and output ports must not be swapped to avoid damage. Avoid operation with light or without load (below 10% of output).

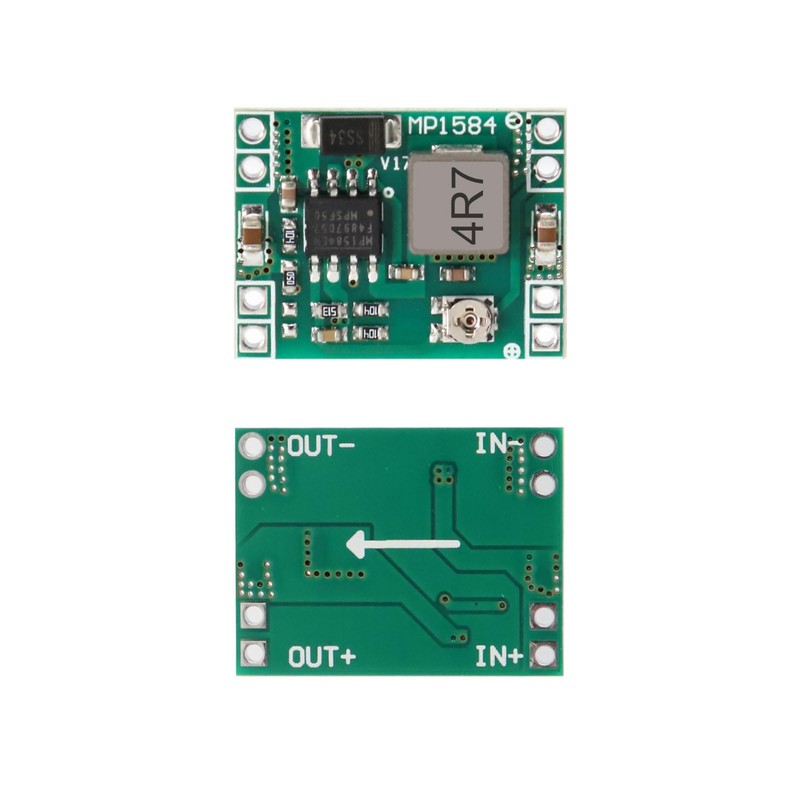

- Pay attention to the correct polarity of the connectors (positive/negative).
- Additional cooling is recommended for long-term operation at high current.
- Avoid operation with light load (less than 10% of output power) or without load.
- If the output voltage remains the same as the input voltage, turn the potentiometer clockwise more than 10 turns.
- This module is a step-down converter: it is used exclusively for voltage reduction. The output voltage must always be lower than the input voltage.
---

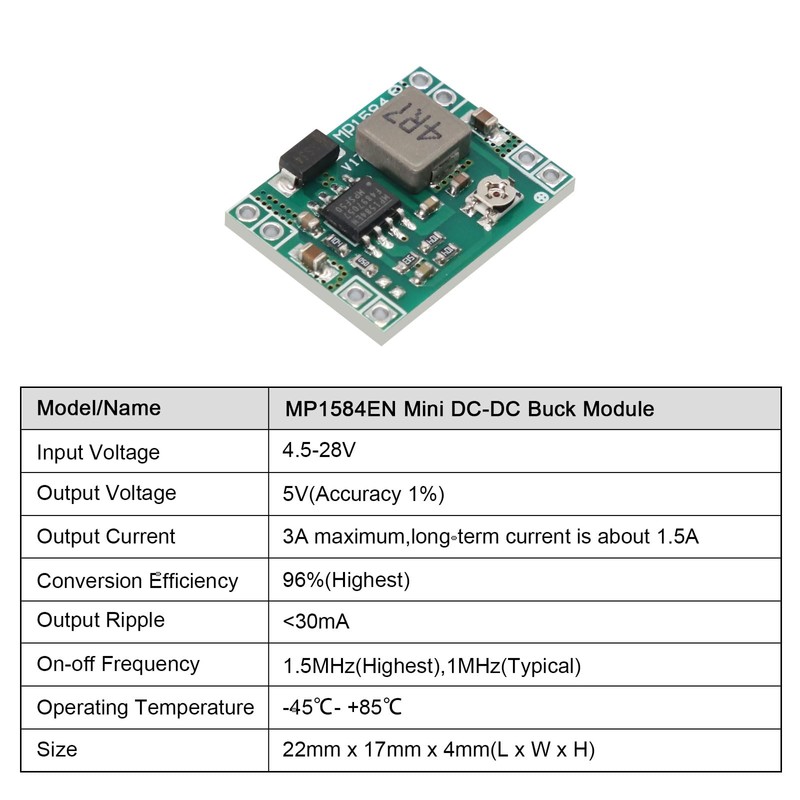

Specifications:
1. IC chip:** MP-1584EN
2. Input voltage: 4.5V to 28V
3. Output voltage: 0.8V to 20V (adjustable)
4. Maximum output current: 3A
5. Output ripple: less than 30mV
6. Conversion efficiency: up to 92%
7. Switching frequency: maximum 1.5 MHz, typical 1 MHz

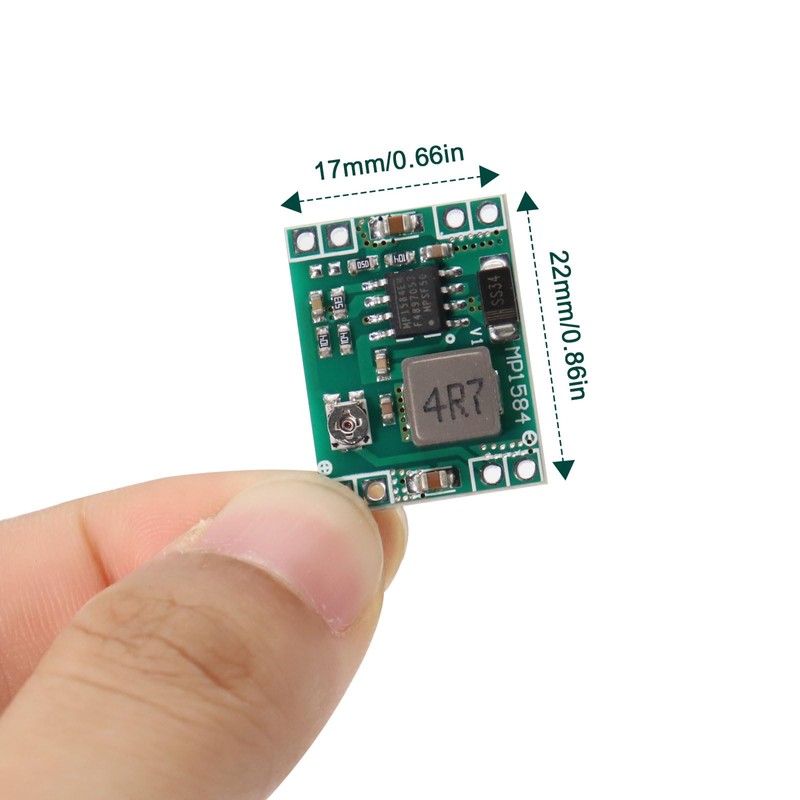

8. Dimensions: 22 mm x 17 mm x 4 mm.
9. Operating temperature: -45°C to +85°C.

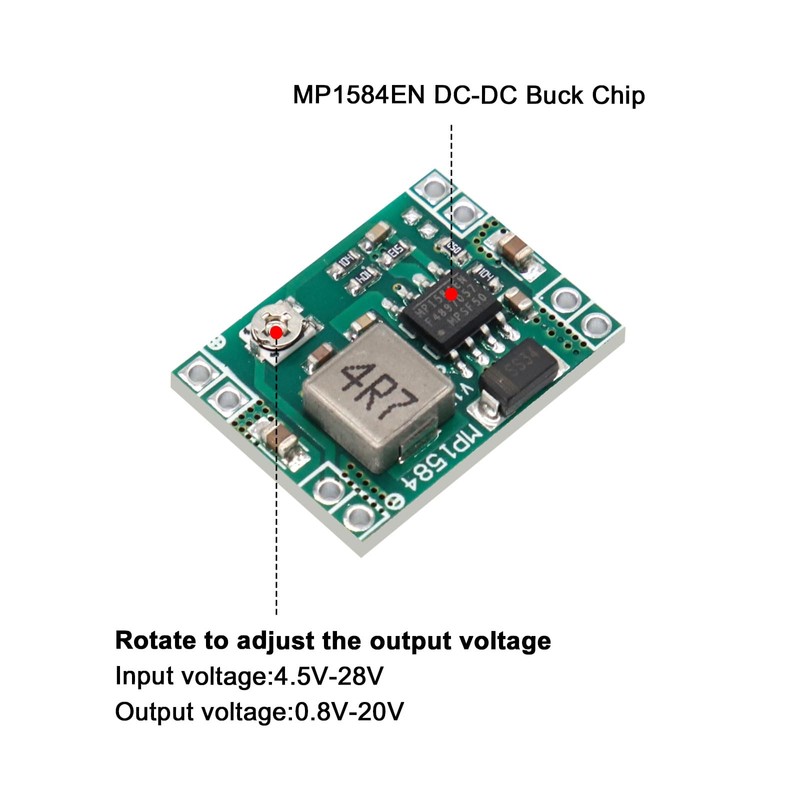

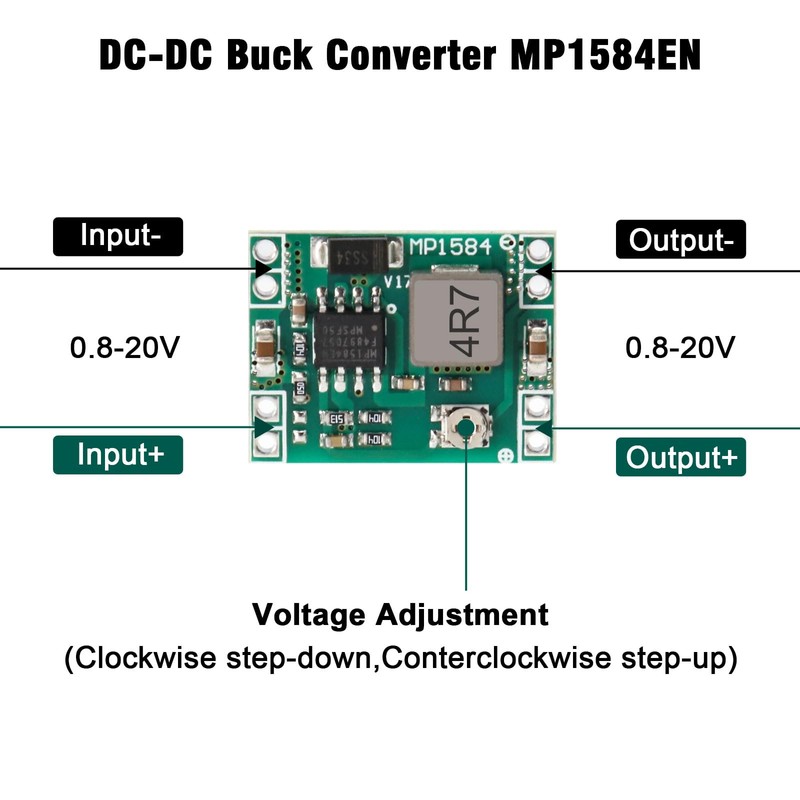

Voltage adjustment:
- Use a multimeter to measure the output voltage simultaneously while adjusting the potentiometer with a screwdriver.
- Fine adjustments allow precise output voltages.
IMPORTANT:
- Avoid short circuits at the output.
- Make sure the output voltage is stable before using the module.
Areas of use:
Ideal for applications that require compact and lightweight solutions:
- DIY power banks.
- Monitoring power supply.
- Power supply for children's vehicles.
- Camera and vehicle power supply.
- Communication devices
- Model aircraft and other scenarios with strict requirements for volume and weight.
Package includes:
- 6 x Mini MP-1584EN DC-DC Step-Down Converter Module
