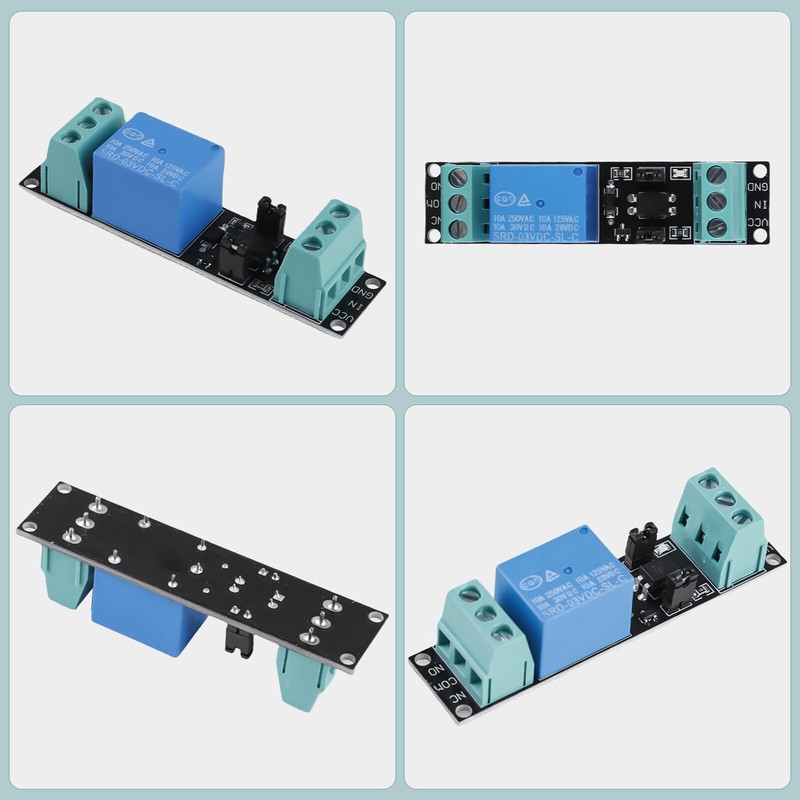

Pack of 10 3V 1 Channel Relay Power Switch Board, 1 Channel Relay Power Switch Module High-Level Trigger with Optocoupler Optoisolation for IOT ESP8266 Development Board
$39.66
-
Arrives
- Optocoupler insulation: the 3V/3.3V 1-channel relay power switch module supports optocoupler isolation control. The design with the double power supply selection has strong anti-interference ability and high reliability of photoelectric insulation protection; the relay has a long service life and can be continuously activated 100,000 times.
- High-level trigger: the 1-channel relay power switch board is triggered by the high-level signal input of the microcontroller IO. It has an output signal indicator light; the signal input port can be connected to the IO port of the microcontroller and controlled by high-level signals.
- Bypass cap: By removing the jumper cap on the pin, you can freely choose whether relay and signal share the power supply. It is recommended to share a power supply to make it more convenient to use. The external wiring uses rotating crimp terminals to reinforce wiring; it has fixed mounting holes for easy installation.
- 30 VDC 250 VAC load: Equipped with a high current relay, AC250 V 10 A; DC 30 V 10 A, each relay has normally open and normally closed contacts. Selectable via jumper relay and TTL or ground.
- Product specifications: Built-in signal output indicator light, cable connection and mounting holes, compatible with 10A 250VAC and 10A 30VDC loads. Module size: 70mm x 17mm x 20mm / 2.76 x 0.70 x 0.79 inches.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Optocoupler insulation: the 3V/3.3V 1-channel relay power switch module supports optocoupler isolation control. The design with the double power supply selection has strong anti-interference ability and high reliability of photoelectric insulation protection; the relay has a long service life and can be continuously activated 100,000 times.
- High-level trigger: the 1-channel relay power switch board is triggered by the high-level signal input of the microcontroller IO. It has an output signal indicator light; the signal input port can be connected to the IO port of the microcontroller and controlled by high-level signals.
- Bypass cap: By removing the jumper cap on the pin, you can freely choose whether relay and signal share the power supply. It is recommended to share a power supply to make it more convenient to use. The external wiring uses rotating crimp terminals to reinforce wiring; it has fixed mounting holes for easy installation.
- 30 VDC 250 VAC load: Equipped with a high current relay, AC250 V 10 A; DC 30 V 10 A, each relay has normally open and normally closed contacts. Selectable via jumper relay and TTL or ground.
- Product specifications: Built-in signal output indicator light, cable connection and mounting holes, compatible with 10A 250VAC and 10A 30VDC loads. Module size: 70mm x 17mm x 20mm / 2.76 x 0.70 x 0.79 inches.
1. With output signal indicator light;
2. The signal input port can be connected to the IO port of the microcontroller and controlled by high level signals;
3. The design for selecting the double power supply has strong anti-interference ability and high reliability of photoelectric insulation protection.
4. With diode freewheel protection;
5. The response time is less than 20 milliseconds.
6. The relay has a long service life and can be continuously activated 100,000 times;
7. For external connections, twist crimp terminals are used to make the wiring stronger.
8. With fixed mounting holes for easy installation.

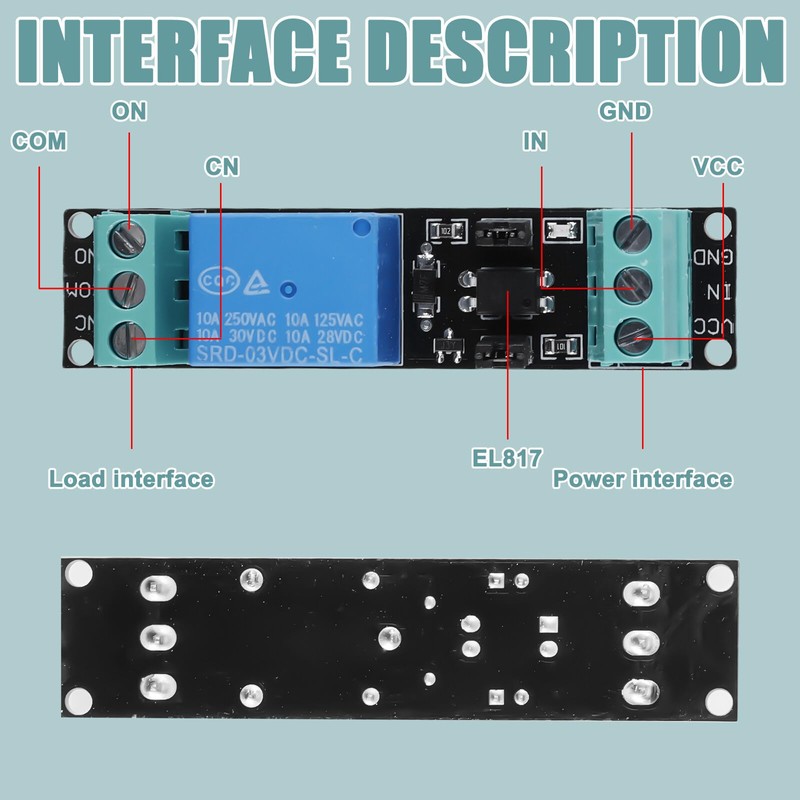

Charging interface:
No: normally open interface.
COM: public relay interface
NC: normally closed interface.

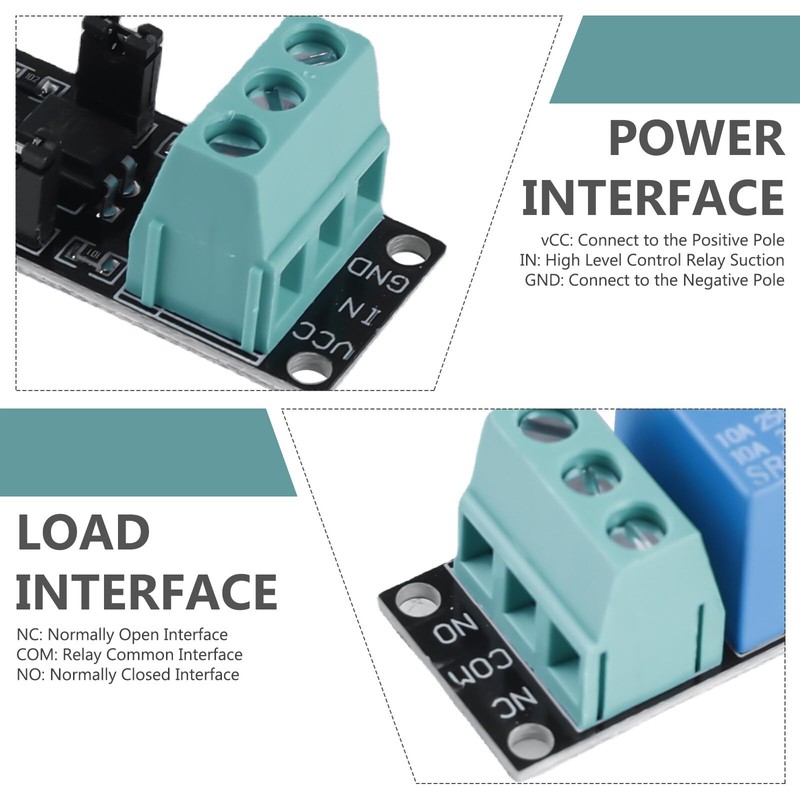

Power interface:
VCC(+): Connect to positive pole.
IN: High level control relay retraction
GND(-): connect to the negative pole.
Specification:
Channel: 1 channel.
Material: PCB
Control signal: TTL.
Operating voltage: DC 3 V/3.3 V.
Main chip: EL817, SRD-DC03V-SL-C
Compatible load: 10A 250VAC, 10A 30VDC.
Response time: less than 20 milliseconds.
Single socket length: 7.5 mm.

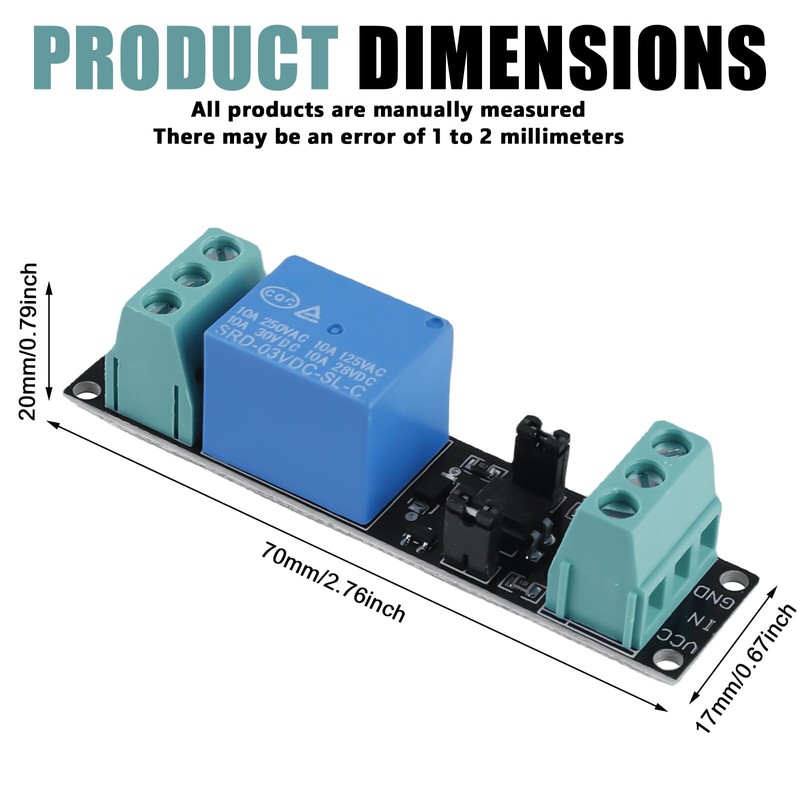

Relay Size: 70mm x 17mm x 20mm (Length x Width x Height)
Package includes:
8pcs x1-channel relay power switch module
