OSOYOO Pro Micro Shiled Breakout Board - GPIO Status LEDs, Power Protection, 3-Pin Sensor/Servo Ports, 5V/2A Independent Power Supply, Screw Terminals for Reliable Connections & Efficient Prototyping
$29.19
- $9.99 shipping from Germany View details
-
Arrives

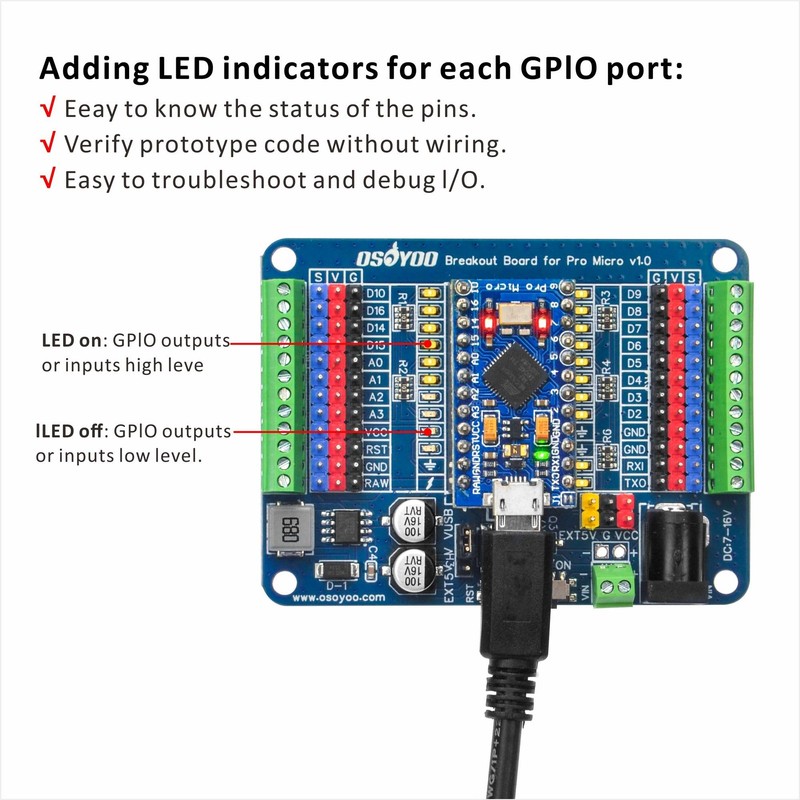

- GPIO status LED: LED on when GPIO outputs/inputs high level, LED off when GPIO outputs/inputs low level. It is a useful tool for troubleshooting and debugging I/O without the need for a meter or entering the software.
- Standard pin interface to achieve full compatibility with the Pitch Pro Micro and all Pro Micro compatible boards
- Digital IO port, 18 ports, prepared for digital modules or servos, analog IO port, 9 ports for analog sensor input
- EASY & FLEXIBLE WIRING Simplifies the connection of wires with Pro Micro Boards and provides easier and more flexible connections. Clamp block design allows for easy "screwing" of bare wires. Ideal for projects that require stable connections without soldering.
- GREAT FOR PRACTICAL, PRACTICAL PROJECTS This is a great way to connect items to the Pro Micro for projects you will actually use in the real world. These breakout board terminal expansion screens allow you to build items you will use in robotics and 3D printed projects where you need to connect and disconnect cables.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- GPIO status LED: LED on when GPIO outputs/inputs high level, LED off when GPIO outputs/inputs low level. It is a useful tool for troubleshooting and debugging I/O without the need for a meter or entering the software.
- Standard pin interface to achieve full compatibility with the Pitch Pro Micro and all Pro Micro compatible boards
- Digital IO port, 18 ports, prepared for digital modules or servos, analog IO port, 9 ports for analog sensor input
- EASY & FLEXIBLE WIRING Simplifies the connection of wires with Pro Micro Boards and provides easier and more flexible connections. Clamp block design allows for easy "screwing" of bare wires. Ideal for projects that require stable connections without soldering.
- GREAT FOR PRACTICAL, PRACTICAL PROJECTS This is a great way to connect items to the Pro Micro for projects you will actually use in the real world. These breakout board terminal expansion screens allow you to build items you will use in robotics and 3D printed projects where you need to connect and disconnect cables.

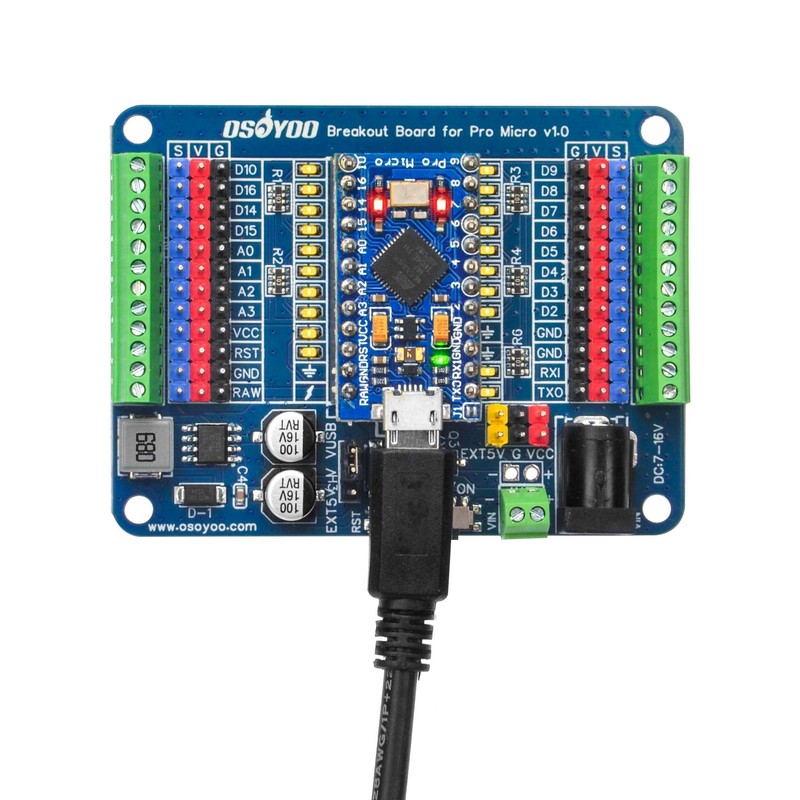

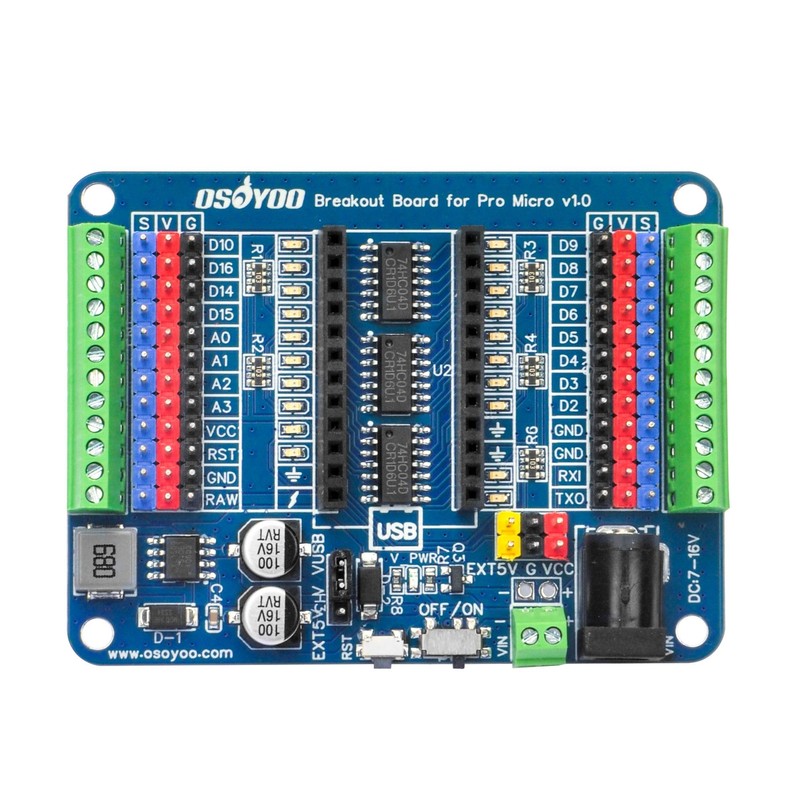

OSOYOO Breakout Board for Pro Micro - Advanced Prototyping Made Easy
Enhance your Pro Micro projects with the OSOYOO Breakout Board, designed for seamless prototyping and enhanced functionality. With built-in features such as GPIO status LEDs, reverse current protection, and versatile 3-pin sensor/servo interfaces, this board makes electronics development easier and more efficient.

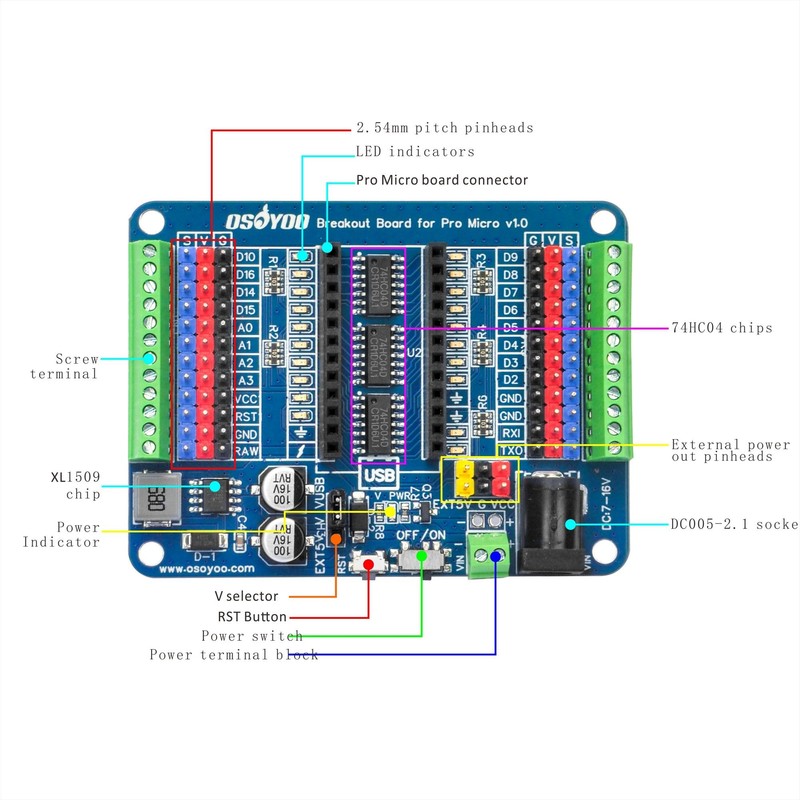

Key Features:

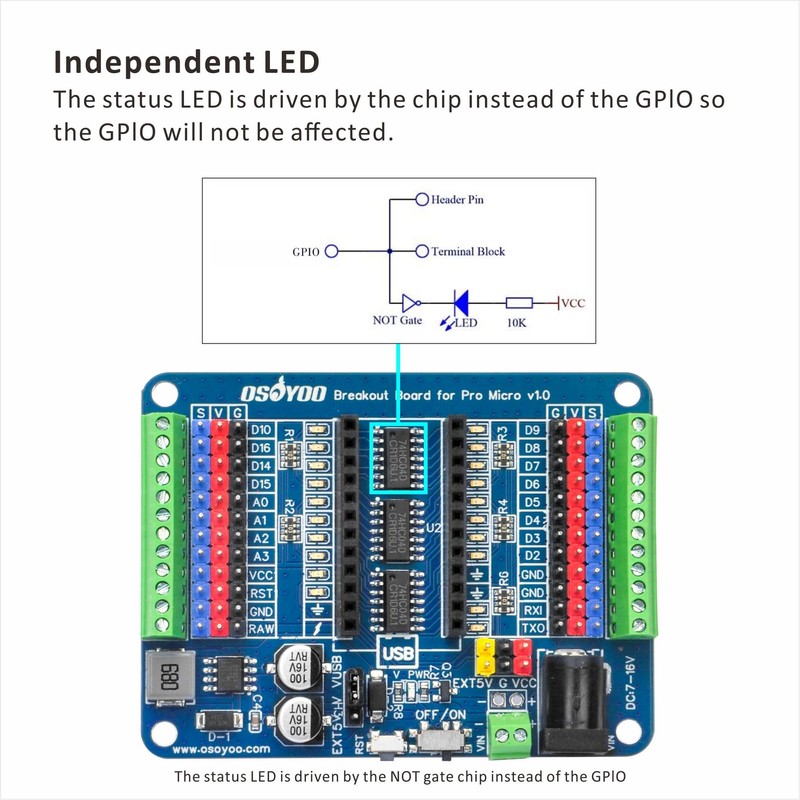

GPIO Status LEDs: Instantly monitor pin activity without wiring for faster debugging and prototyping.
Reverse Power Protection: Prevents circuit damage caused by automatic shutdown if the power supply is connected incorrectly.
3 Pin Sensor/Servo Interface Effortlessly connect sensors or SG90 servos to V and GND pins on each port.
INDEPENDENT POWER SUPPORT Built-in 5V/2A output delivers stable current for motors, servos and sensors.
Screw Terminals - Ensure reliable, secure wiring with integrated screw terminals for long-lasting connections.
Important Notes:
Operating voltage awareness:
Pro micro voltage compatibility: the board supports both 3.3 V and 5 V Pro Micro versions. Always check the operating voltage of your Pro Micro before connecting external modules.
V_Selector jumper cap setting: make sure the jumper cap is placed correctly on the V_Selector to match your voltage settings. Improper placement may cause damage to the IO port or chip burnout.
USB vs External Power: for USB powered use, set the jumper cap to USB_V. For external power supply (up to 5V/2A), switch it to EXT5V for high power projects.
Compatibility:
Pro Micro (All Versions)
OSOYOO PRO MICRO
OSOYOO PRO MICRO - TYPE C
All fully compatible Pro Micro boards
Note:

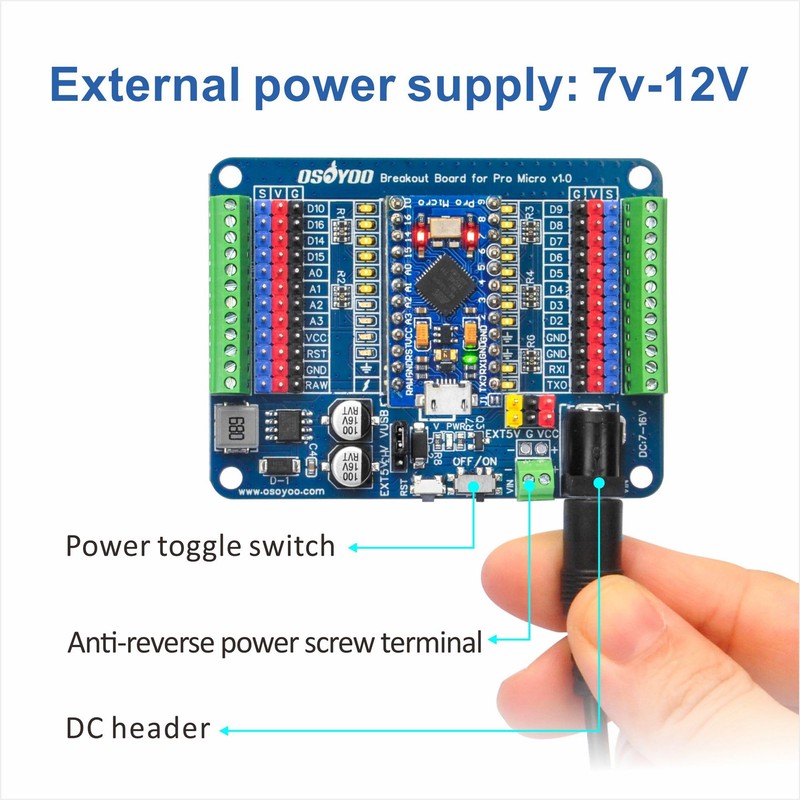

When powered by the DC header or screw terminal connector, make sure the RAW voltage for the Pro Micro is between 7-12V DC. If you are unsure, keep the input voltage below 12V to avoid damage or safety risks.
Unlock the potential of your project with the OSOYOO Breakout Board for Pro-Micro, the ideal prototyping companion for manufacturers, engineers and educators alike.
Technical specifications:
Name: OSOYOO Breakout Board for Pro Micro v.1.0
Working Voltage: 5V
Input voltage (recommended): 7-12 V.
Input voltage (limit): 7-16V
Digital I/O pins: 18.
PWM digital I/O pins: 5.
Analog input pins: 9
Power Switch: Yes
External Output: 5V/2A
Power Input Options: USB/DC005-2.1/Screw Terminal/Male Pinheads
On-board LED indicators: all GPIO ports

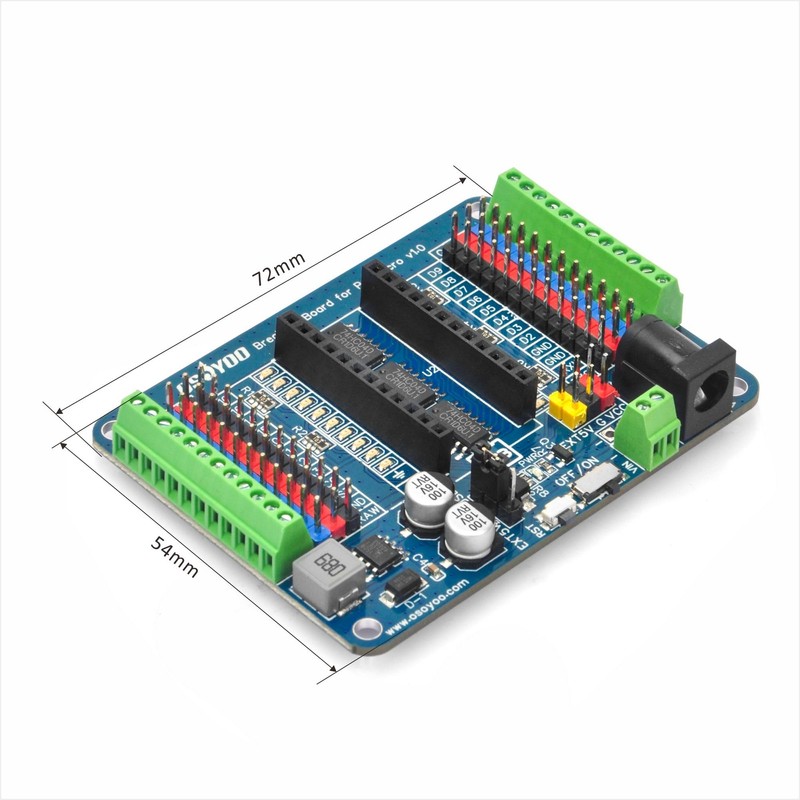

Length: 72 mm.
Width: 54 mm.
Weight: 25 g.
