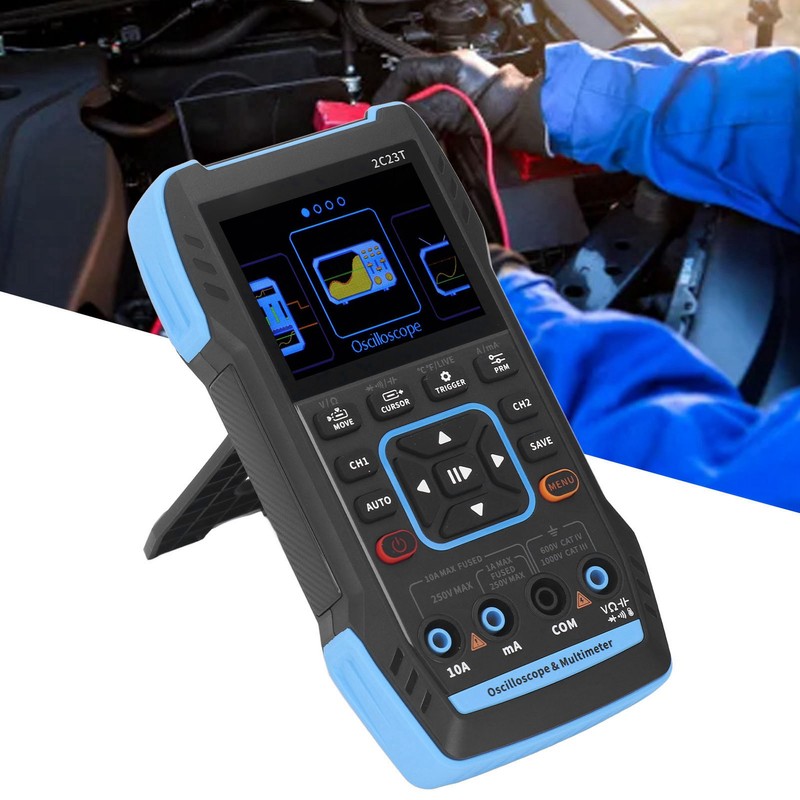

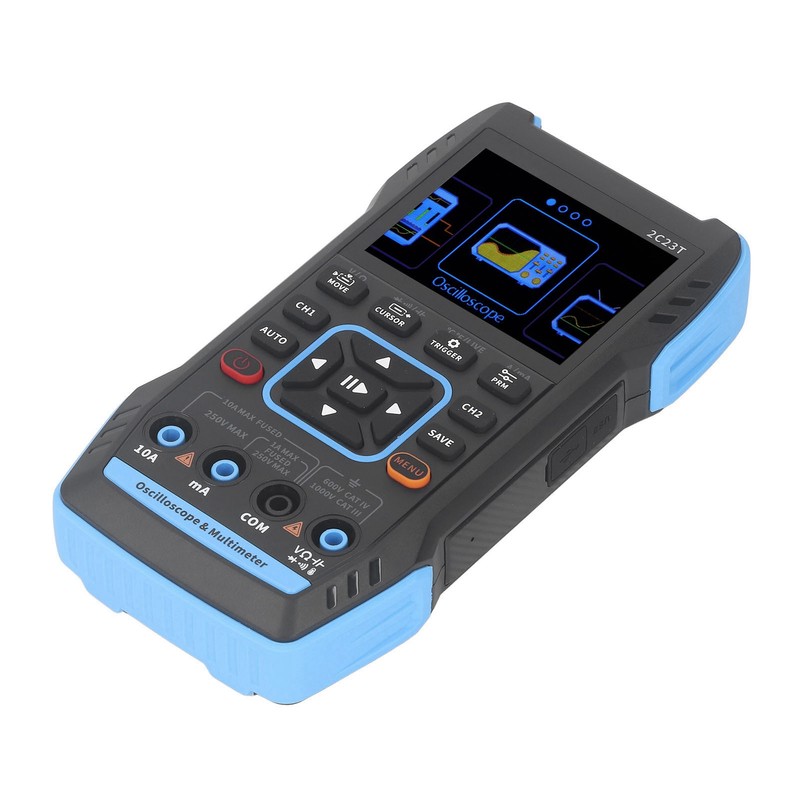

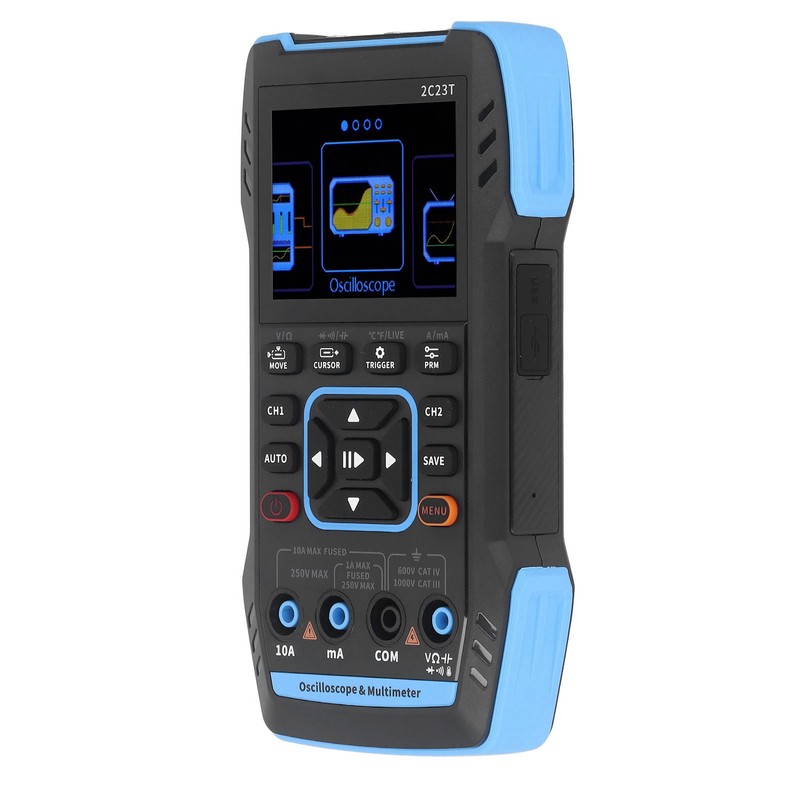

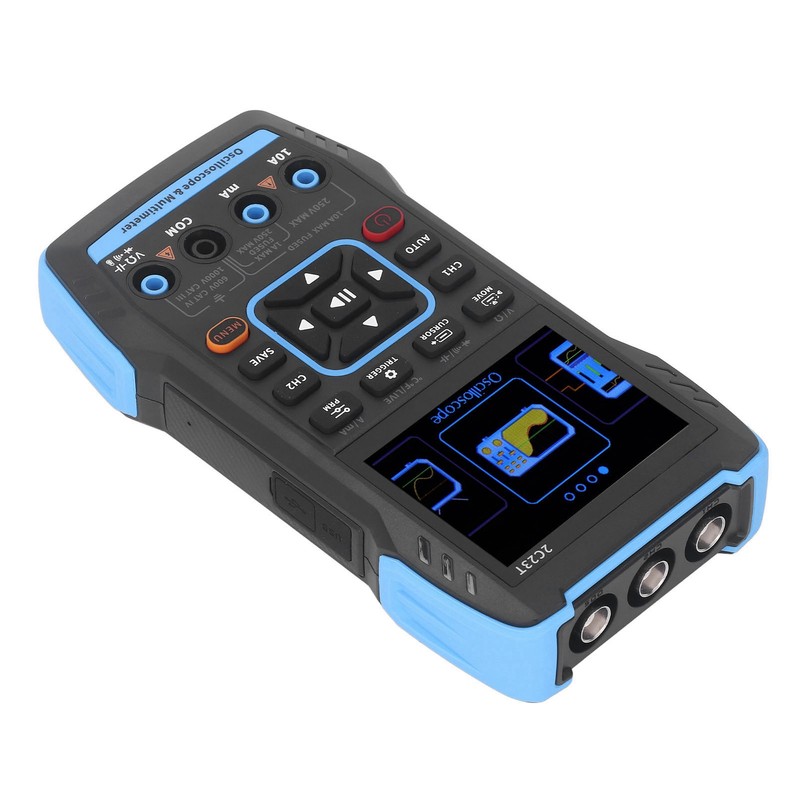

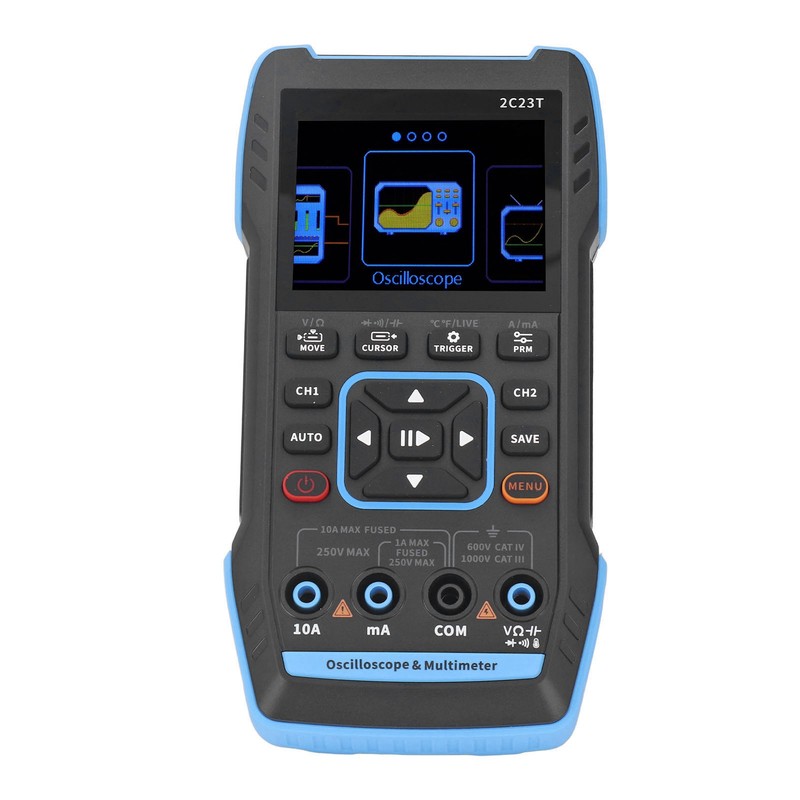

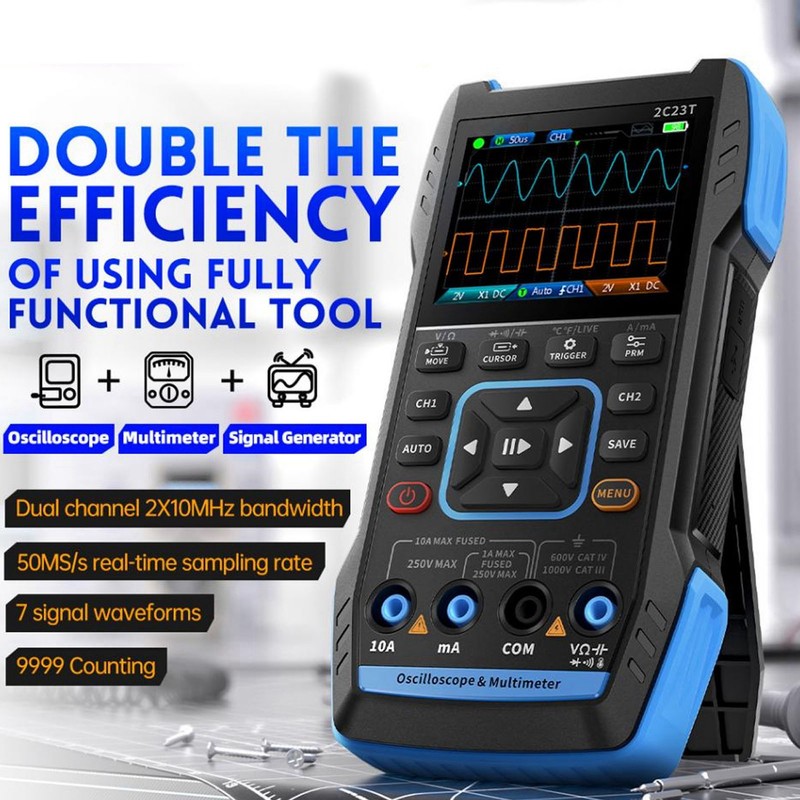

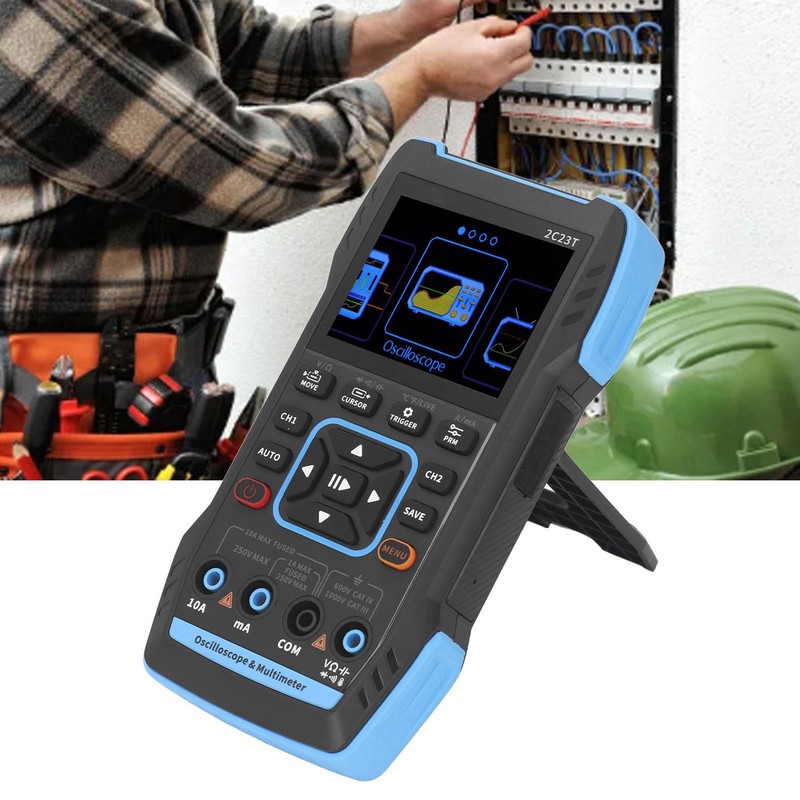

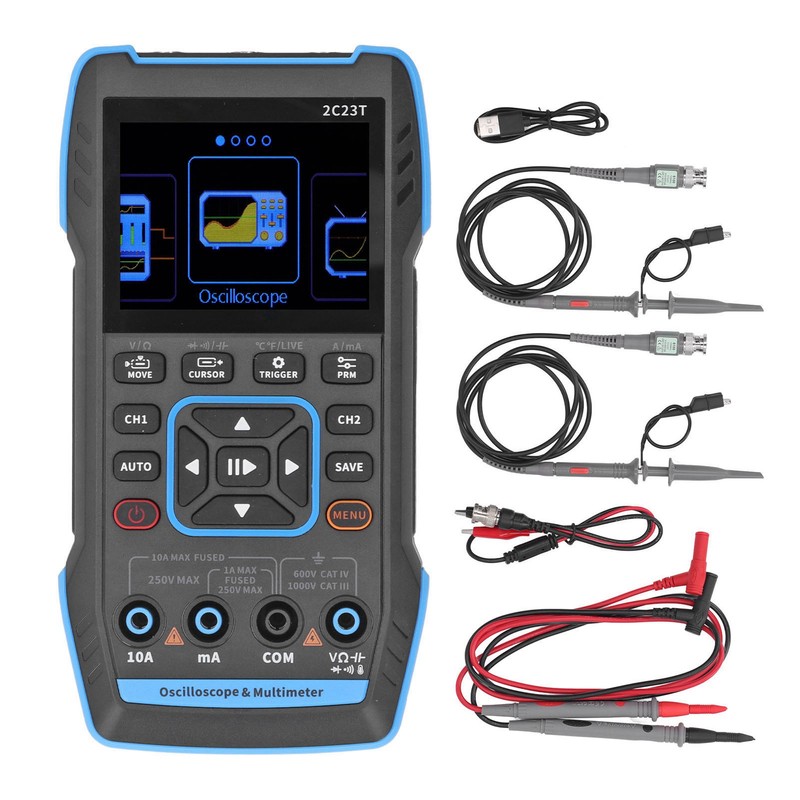

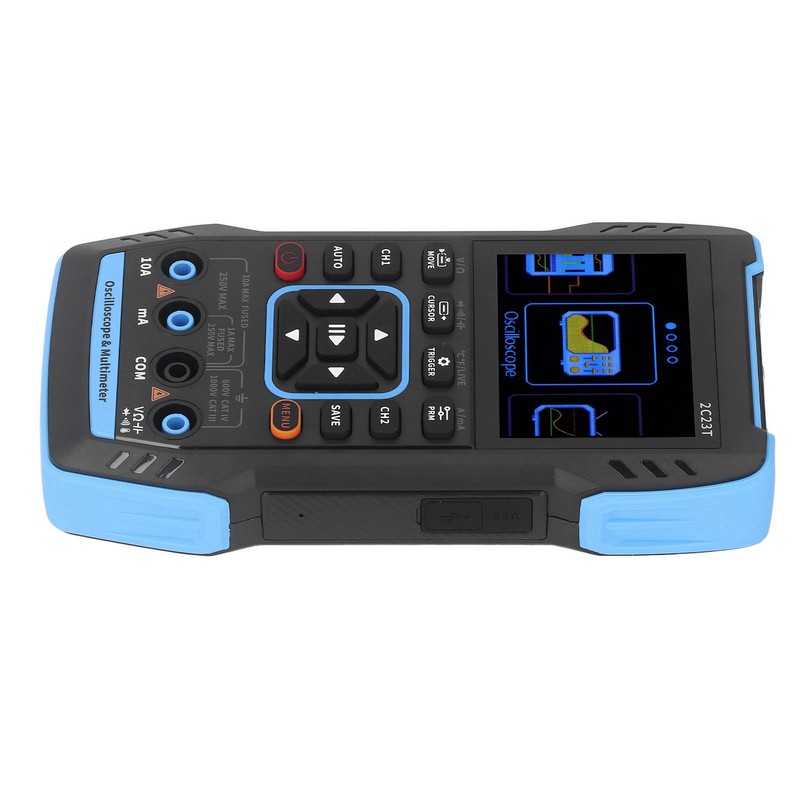

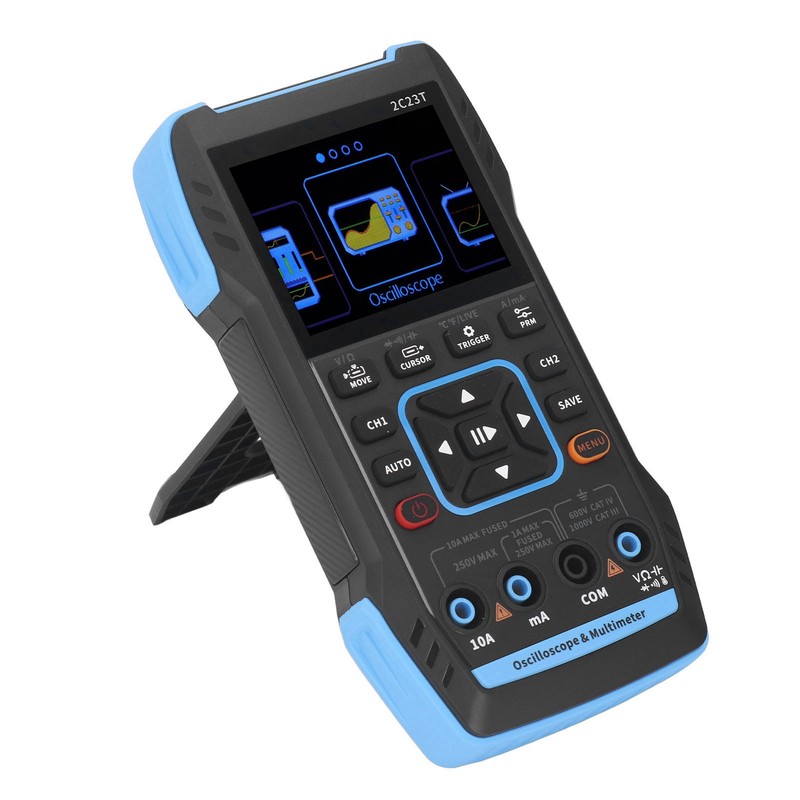

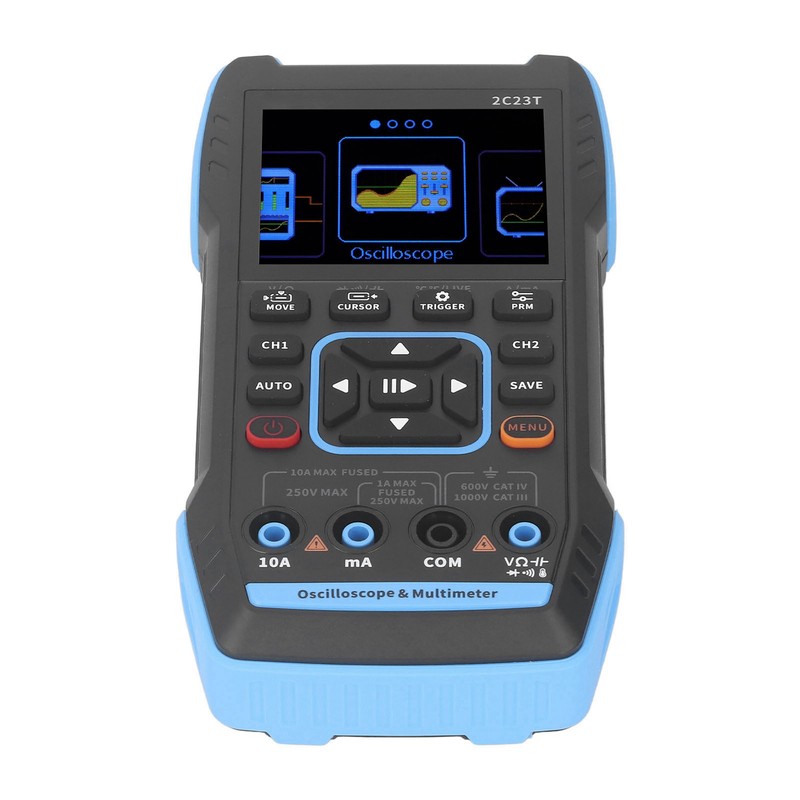

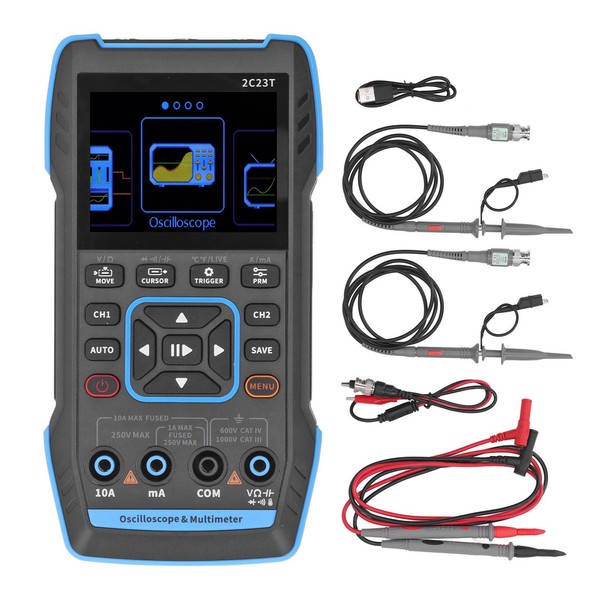

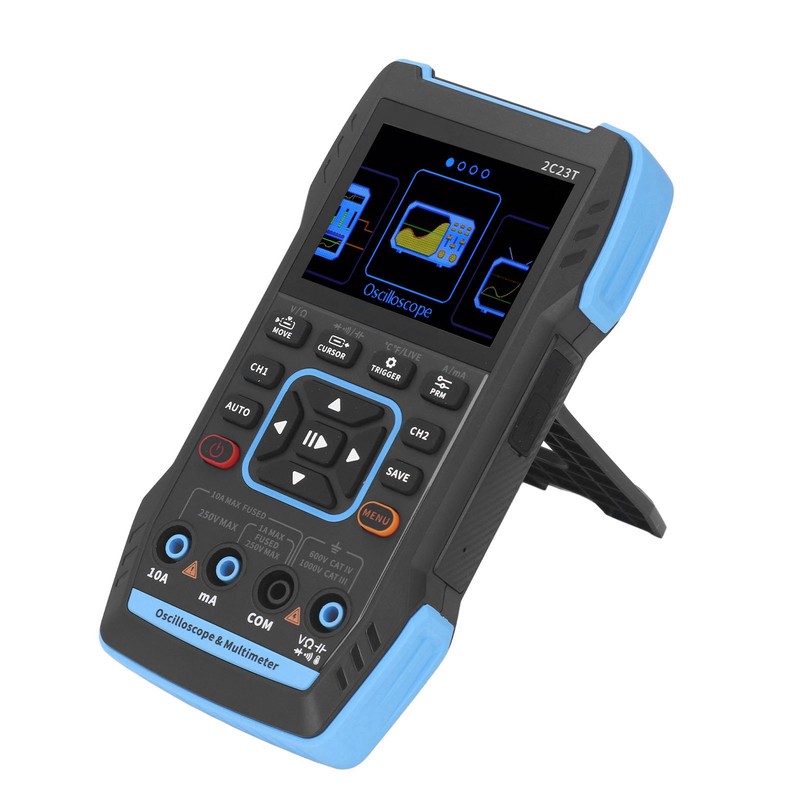

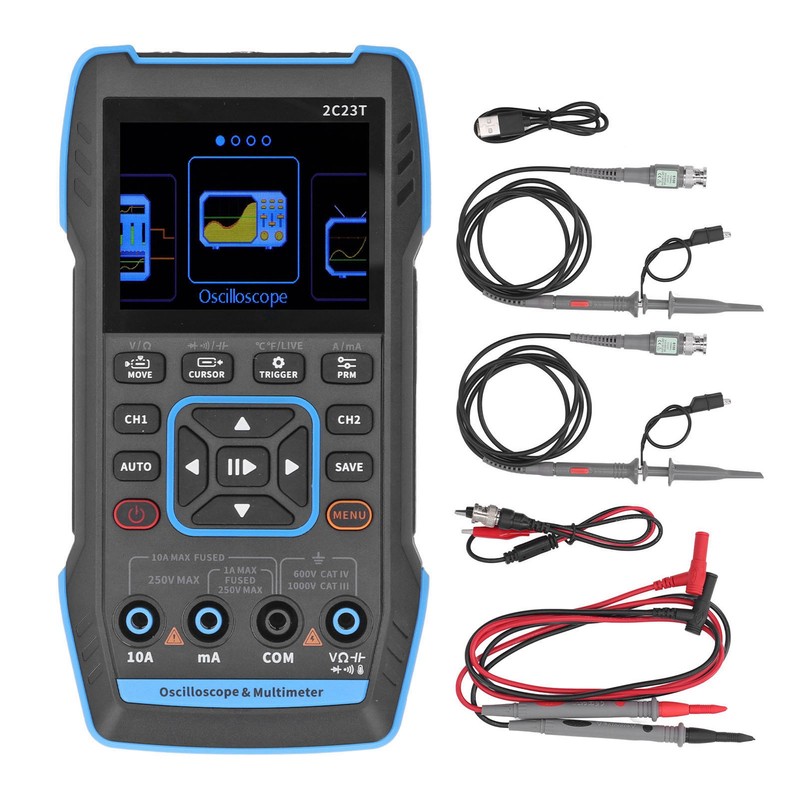

Oscilloscope Multimeter Waveform Generator 3 in 1 Handheld Digital Signal Tester 10MHz Bandwidth 50MS/s Sampling Rate
$107.59
- $9.99 shipping from United States View details
-
Arrives

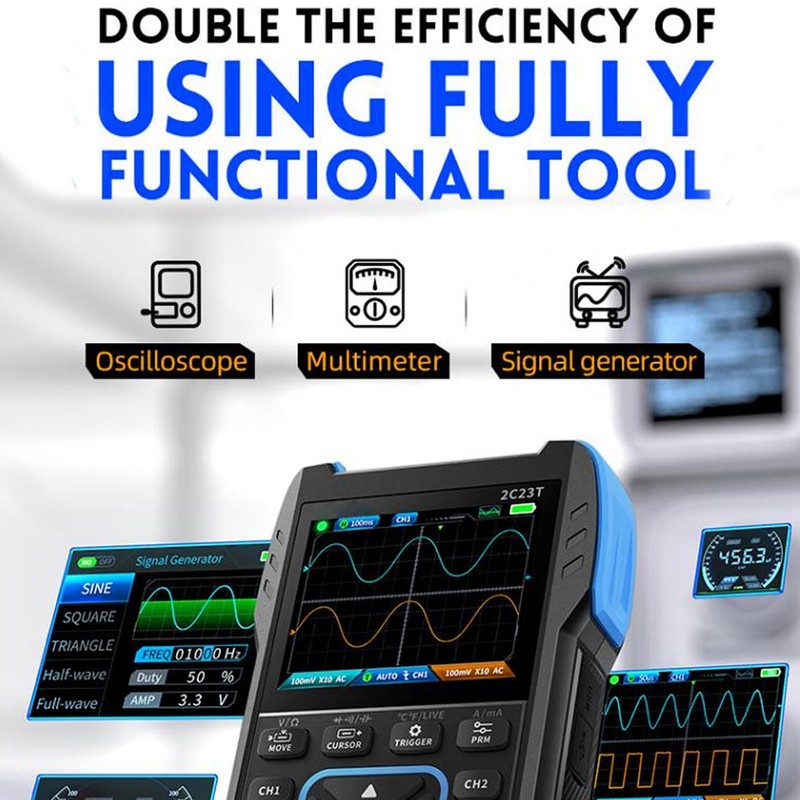

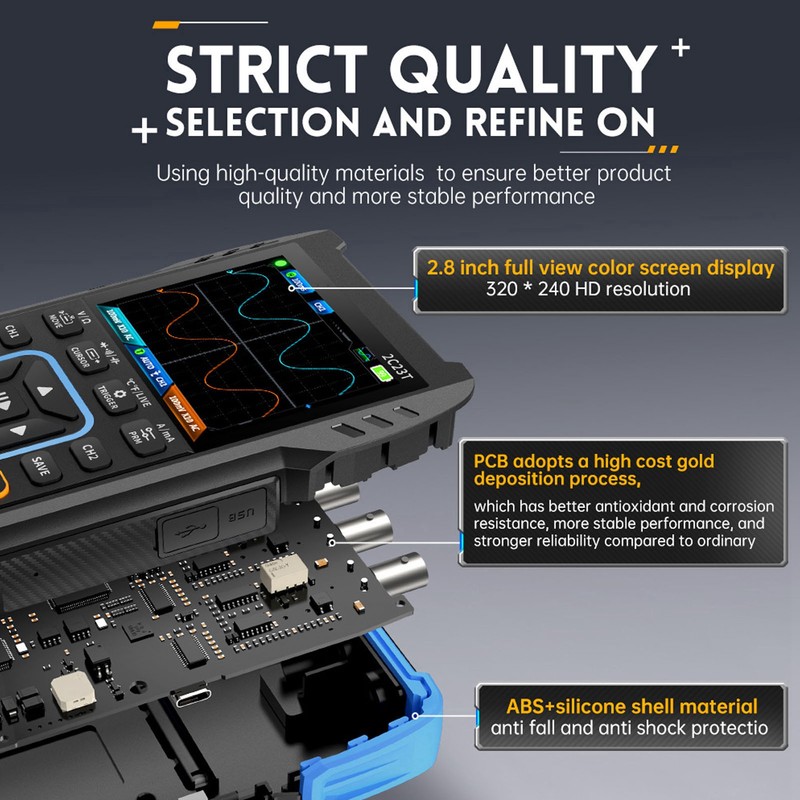

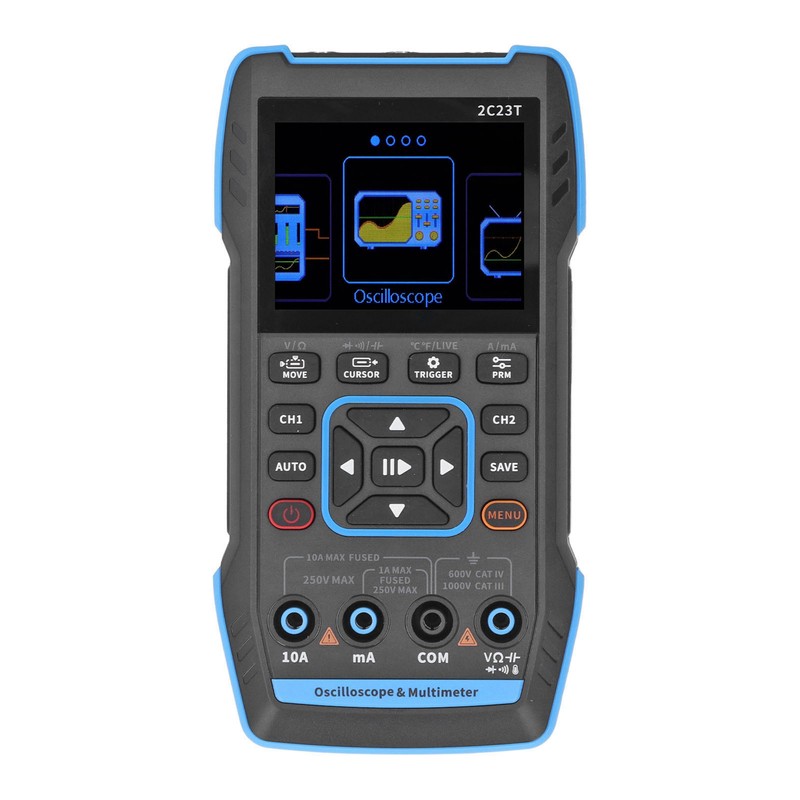

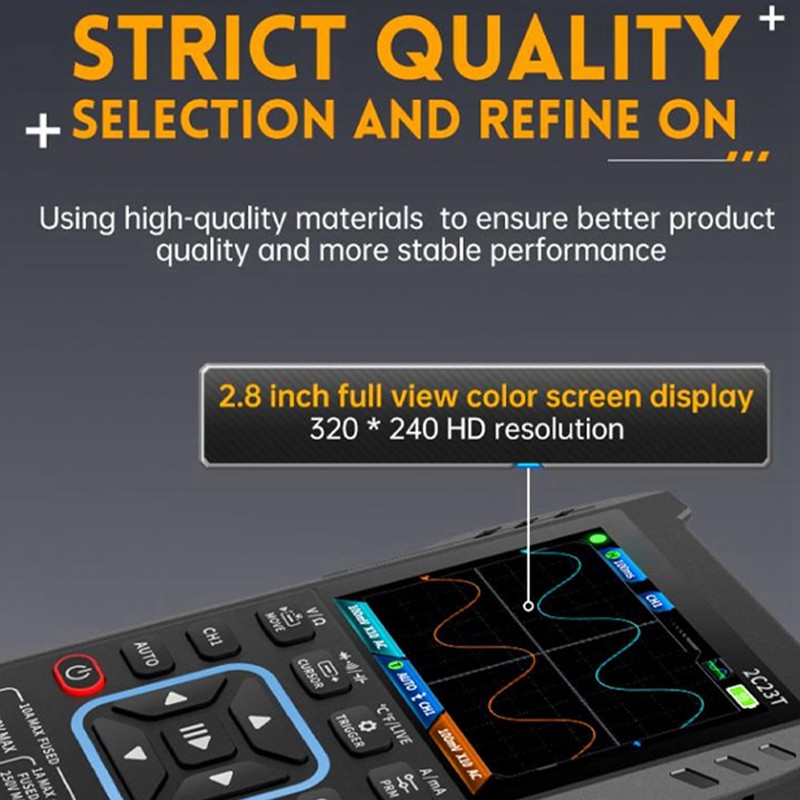

1、PRACTICAL AND PORTABLE: The oscilloscope use a 2.8in 320x240 resolution HD LCD display, built in 3000mAh rechargeable lithium battery, standby time of up to 6 hours. With a small volume to provide users with more and stronger practical functions, while having a good portability 2、MULTIPLE FUNCTIONS: The 2C23T is a full featured, highly practical, three in one two channel digital oscillograph targeted at the maintenance industry and the R and D industry. The device has three functions: oscilloscope, multimeter and signal generator 3、SAMPLING RATE AND BANDWIDTH: The oscilloscope adopt FPGA, MCU, and ADC hardware architecture, with 50MS/s sampling rate, 10Mhz analog bandwidth, built in high voltage protection module, maximum support ±400V peak voltage measurement; Save and view waveform screenshots for secondary analysis 4、ADJUSTABLE PARAMETERS: Oscilloscope multimeter waveform generator built in DDS function signal generator, which could output 7 kinds of function signals, the maximum output of all signals was 2MHz, and the step was 1Hz; The output frequency, amplitude and duty cycle is adjustable 5、WIDELY APPLICABLE: The multimeter function use 4 bit 10000 point true RMS value, support AC and DC voltage and current measurement, capacitance, resistance, diode, on and off measurement functions, whether professional, factory, school, hobbyists or family use, is an ideal multi function instrument
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
1、PRACTICAL AND PORTABLE: The oscilloscope use a 2.8in 320x240 resolution HD LCD display, built in 3000mAh rechargeable lithium battery, standby time of up to 6 hours. With a small volume to provide users with more and stronger practical functions, while having a good portability 2、MULTIPLE FUNCTIONS: The 2C23T is a full featured, highly practical, three in one two channel digital oscillograph targeted at the maintenance industry and the R and D industry. The device has three functions: oscilloscope, multimeter and signal generator 3、SAMPLING RATE AND BANDWIDTH: The oscilloscope adopt FPGA, MCU, and ADC hardware architecture, with 50MS/s sampling rate, 10Mhz analog bandwidth, built in high voltage protection module, maximum support ±400V peak voltage measurement; Save and view waveform screenshots for secondary analysis 4、ADJUSTABLE PARAMETERS: Oscilloscope multimeter waveform generator built in DDS function signal generator, which could output 7 kinds of function signals, the maximum output of all signals was 2MHz, and the step was 1Hz; The output frequency, amplitude and duty cycle is adjustable 5、WIDELY APPLICABLE: The multimeter function use 4 bit 10000 point true RMS value, support AC and DC voltage and current measurement, capacitance, resistance, diode, on and off measurement functions, whether professional, factory, school, hobbyists or family use, is an ideal multi function instrument
1、PRACTICAL AND PORTABLE: The oscilloscope use a 2.8in 320x240 resolution HD LCD display, built in 3000mAh rechargeable lithium battery, standby time of up to 6 hours. With a small volume to provide users with more and stronger practical functions, while having a good portability 2、MULTIPLE FUNCTIONS: The 2C23T is a full featured, highly practical, three in one two channel digital oscillograph targeted at the maintenance industry and the R and D industry. The device has three functions: oscilloscope, multimeter and signal generator 3、SAMPLING RATE AND BANDWIDTH: The oscilloscope adopt FPGA, MCU, and ADC hardware architecture, with 50MS/s sampling rate, 10Mhz analog bandwidth, built in high voltage protection module, maximum support ±400V peak voltage measurement; Save and view waveform screenshots for secondary analysis 4、ADJUSTABLE PARAMETERS: Oscilloscope multimeter waveform generator built in DDS function signal generator, which could output 7 kinds of function signals, the maximum output of all signals was 2MHz, and the step was 1Hz; The output frequency, amplitude and duty cycle is adjustable 5、WIDELY APPLICABLE: The multimeter function use 4 bit 10000 point true RMS value, support AC and DC voltage and current measurement, capacitance, resistance, diode, on and off measurement functions, whether professional, factory, school, hobbyists or family use, is an ideal multi function instrument
More Information
Item Type: Oscilloscope Multimeter Waveform Generator

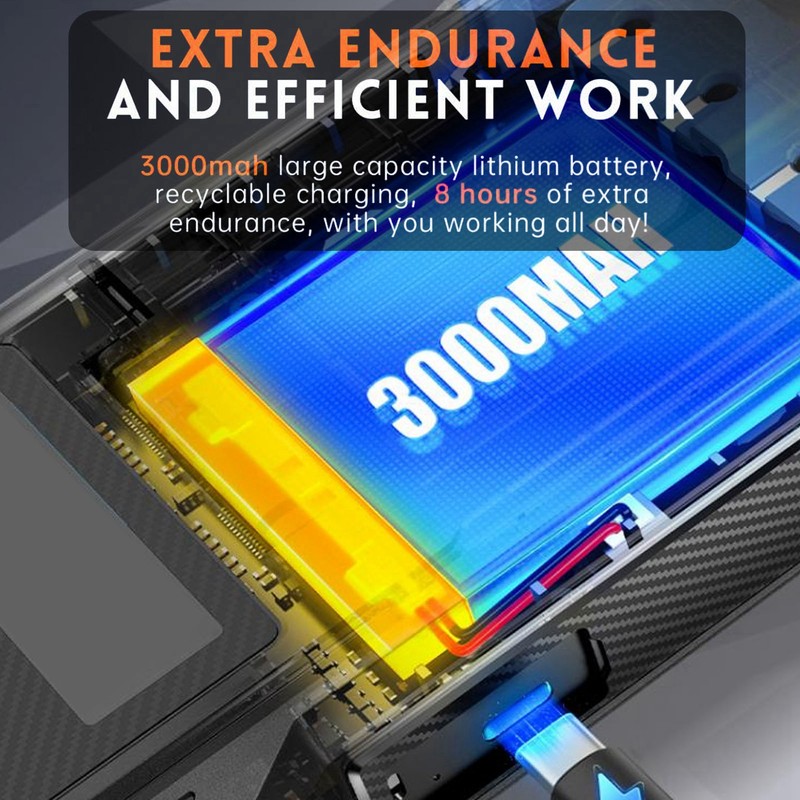

Battery: 1 x 3000mAh rechargeable lithium battery

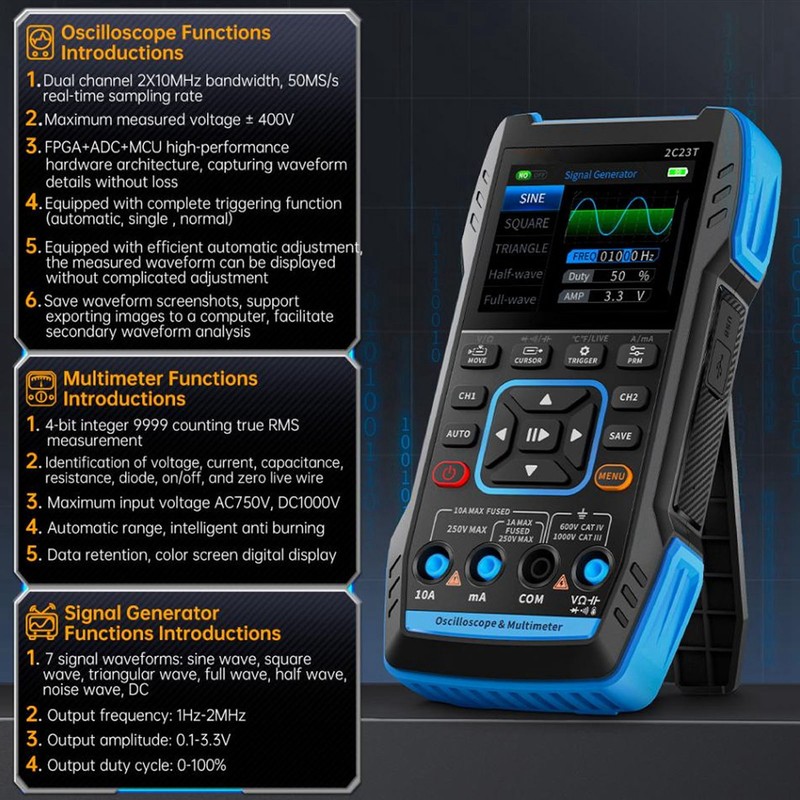

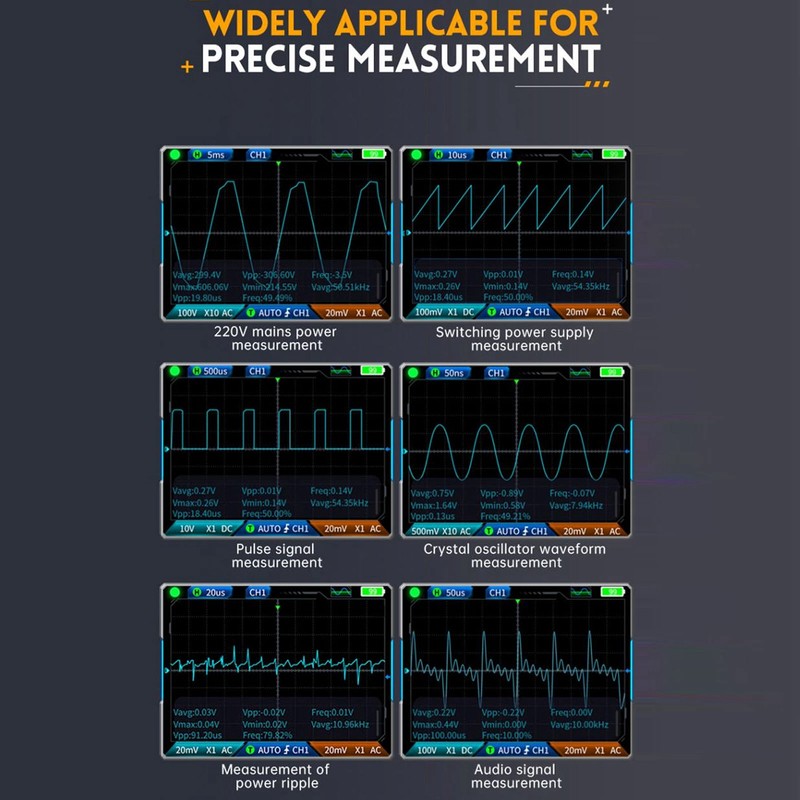

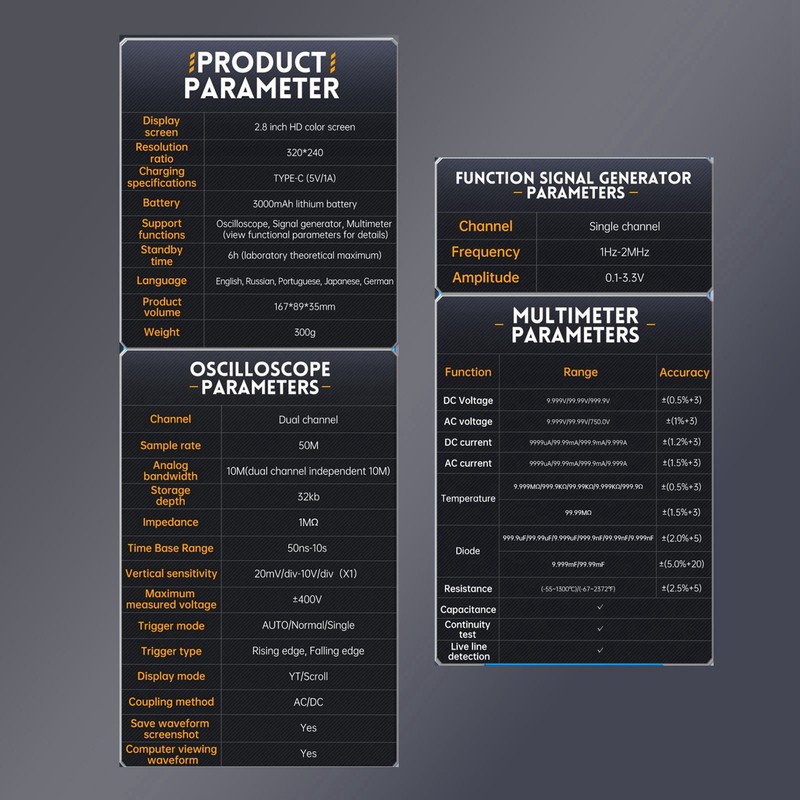

Oscilloscope Parameters:

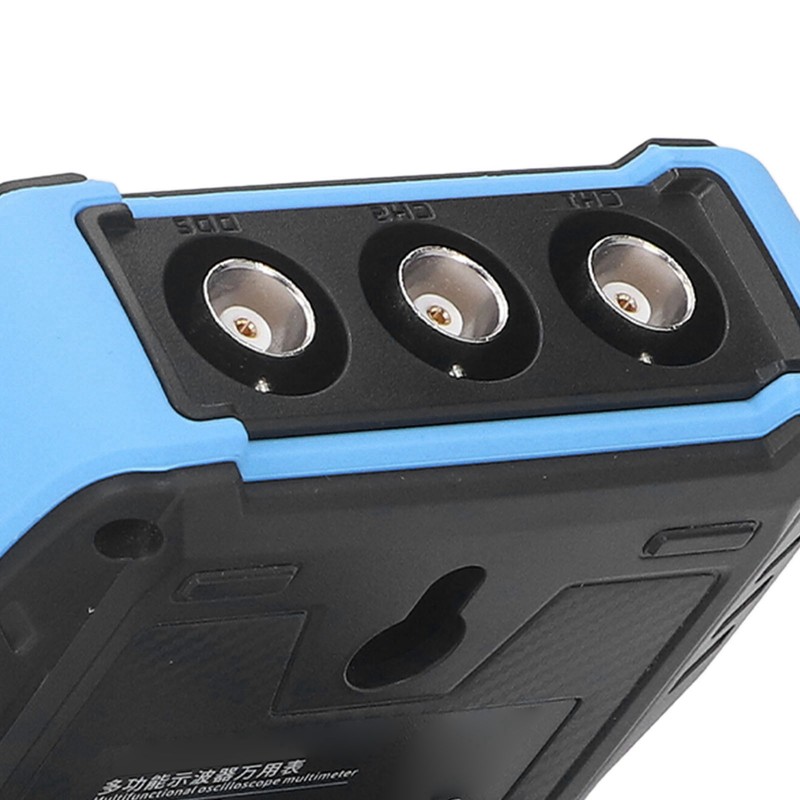

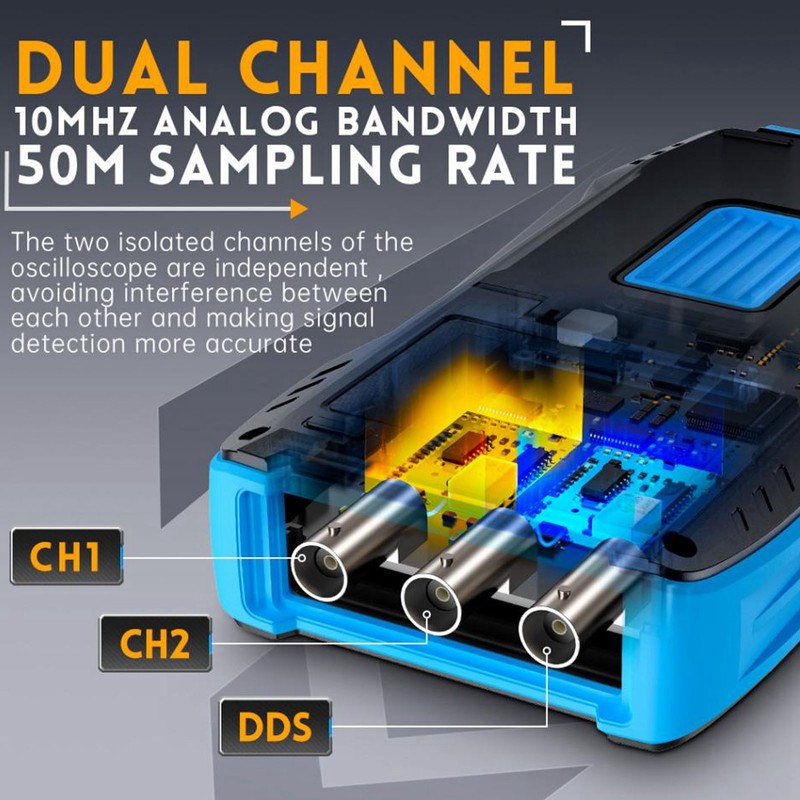

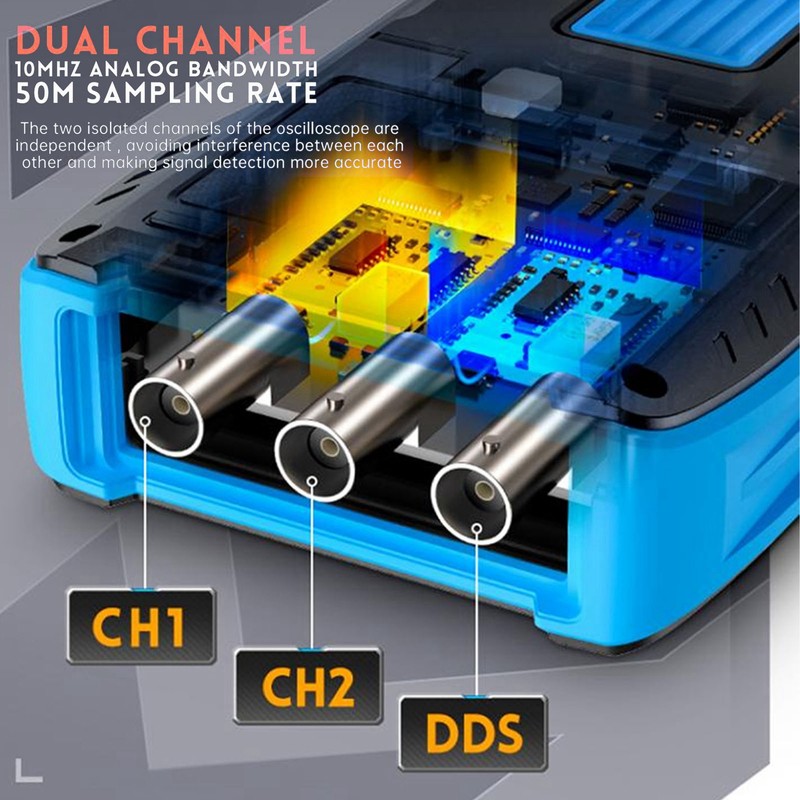

Channel: Dual channel
Sampling Rate: 50M
Analog Bandwidth: 10M(dual channel independent 10M)
Storage Depth: 32kb
Input Impedance: 1MQ
Time Base Range: 50ns-10s
Vertical Sensitivity: 20mV/div-10V/div (X1)
Maximum Measurement Voltage: ±400V
Trigger Mode: Automatic, normal, and single
Trigger Type: Rising edge, falling edge
Display Mode: YT, scroll
Coupling: AC, DC
Waveform Screensaver: Supported

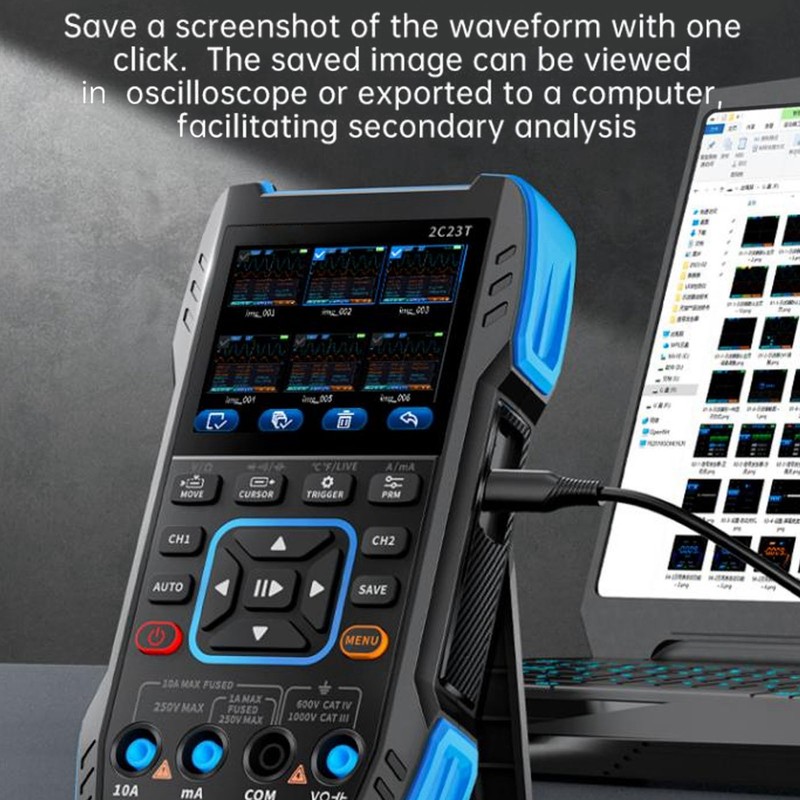

Export Waveform Image: Supported

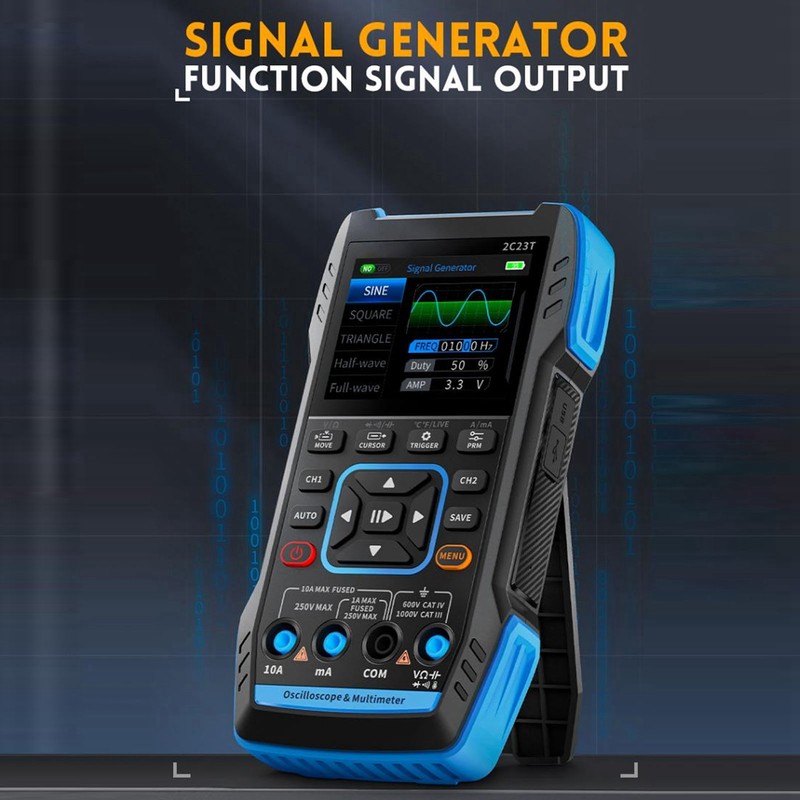

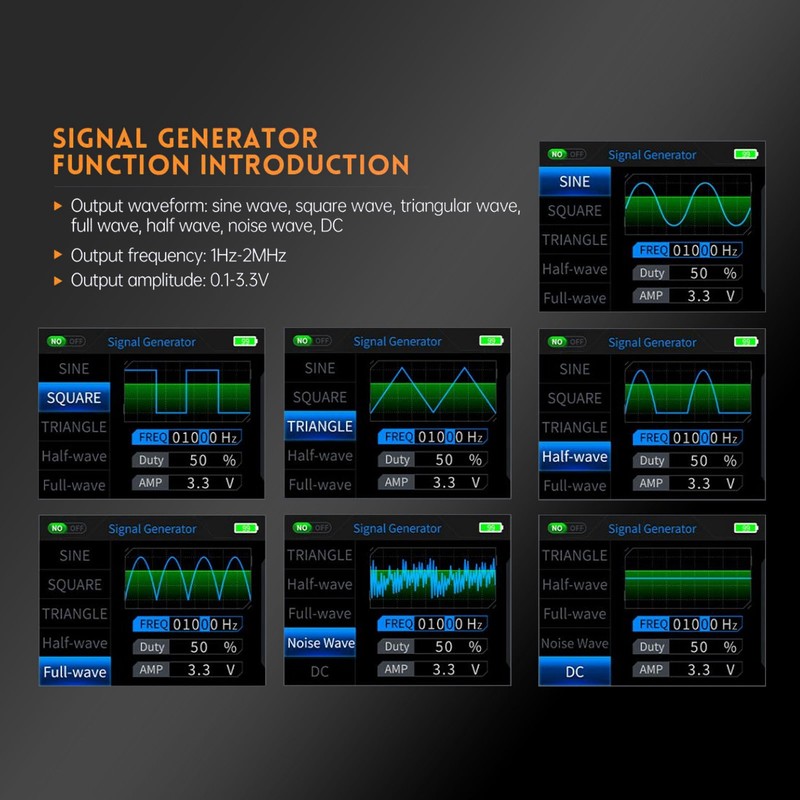

Function Signal Generator Parameters:
Channel: Single channel
Frequency: 1Hz-2MHz
Amplitude: 0.1-3.3V

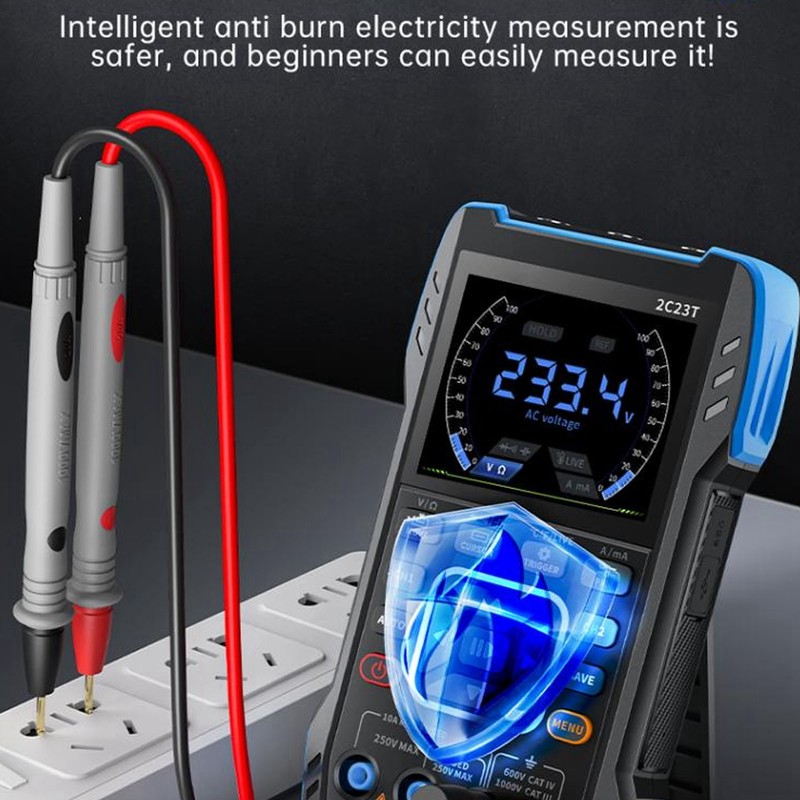

Multimeter Parameters:
DC Voltage Range: 9.999V, 99.99V, 999.9V, Accuracy: ±(0.5%+3)
AC Voltage Range: 9.999V, 99.99V, 750.0V, Accuracy: ±(1%+3)
DC Current Range: 9999uA, 99.99mA, 999.9mA, 9.999A, Accuracy: ±(1.2%+3)
AC Current Range: 9999uA, 99.99mA, 999.9mA, 9.999A, Accuracy: ±(1.5%+3)
Resistance Range: 9.999MΩ, 999.9KΩ, 99.99KΩ, 9.999KΩ, 999.9Ω, Accuracy: ±(0.5%+3); 99.99MΩ, Accuracy: ±(1.5%+3)
Capacitance Range: 999.9uF, 99.99uF, 9.999uF, 999.9NF, 99.99nF, 9.999nF, Accuracy: ±(2.0%+5); 9.999mF, 99.99mF, Accuracy: ±(5.0%+20)
Temperature Range: (-55~1300℃), (-67~2372℉), Accuracy: ±(2.5%+5)
Diode: Supported
On Off: Supported
Firewire Detection: Supported
