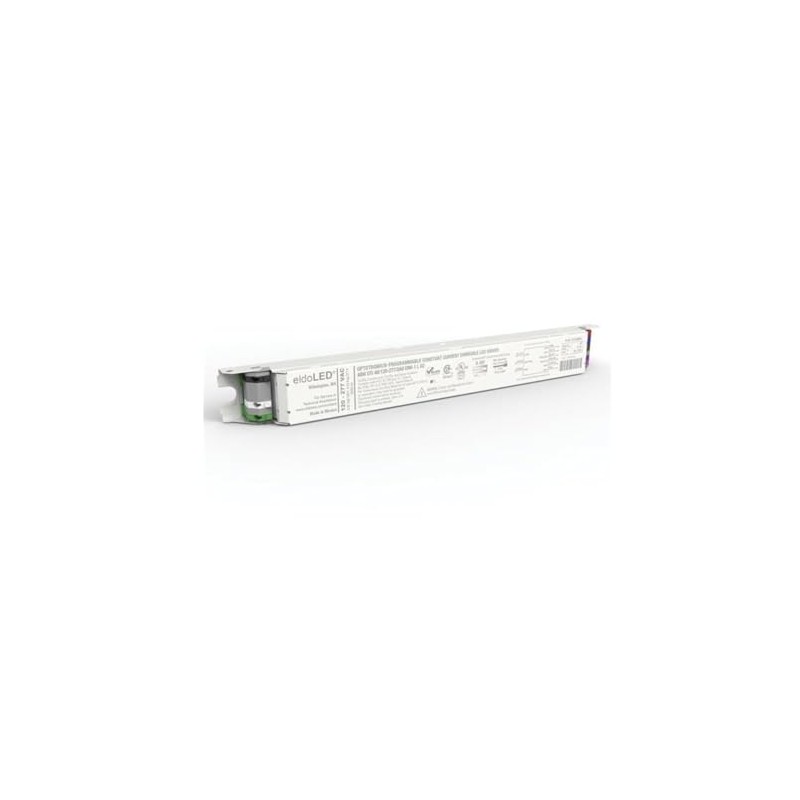

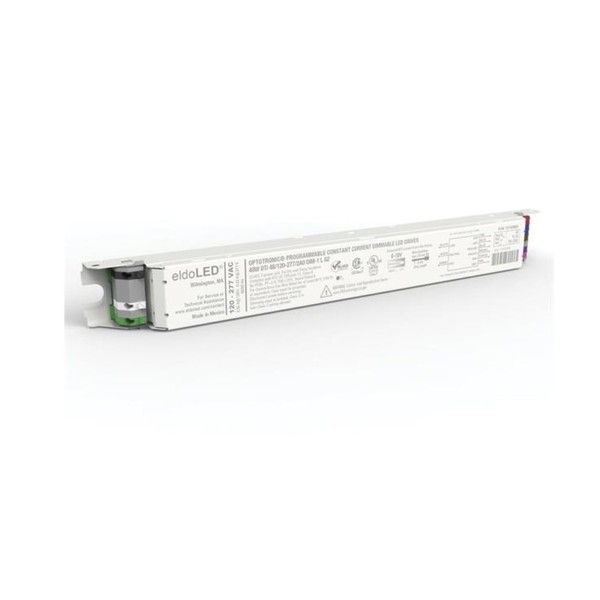

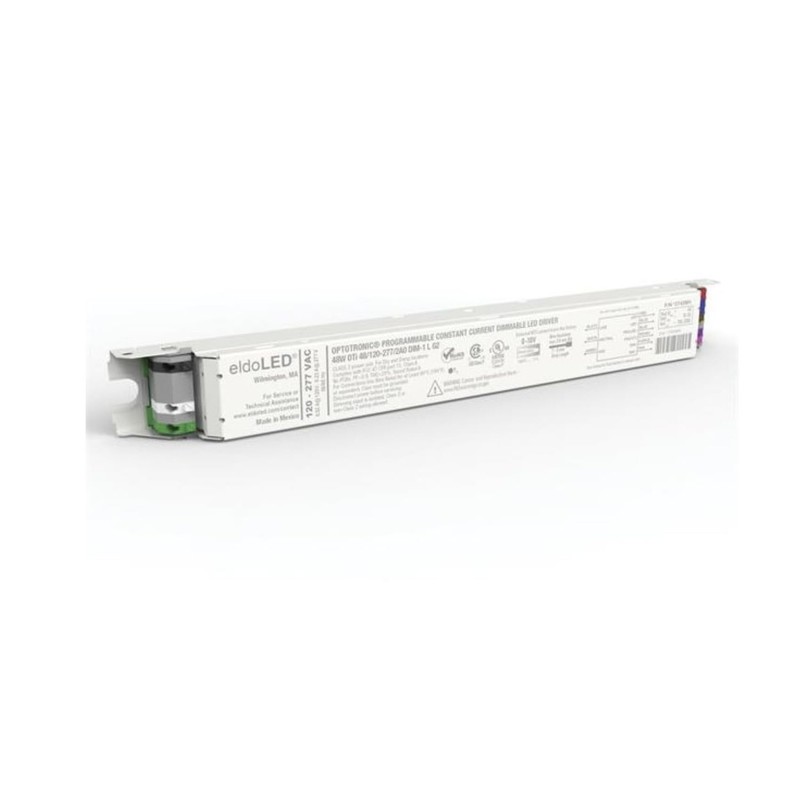

OPTOTRONIC OTi 48W 120-277 2A0 DIM-1 L G2 Constant Current Programmable Linear LED Driver (*2743WH / 57434)
$77.75
- $5.95 shipping from United States View details
-
Arrives
- 48W Constant Current Programmable LED Driver – Set your desired output from 700mA to 2000mA (1mA resolution), with a default of 1400mA. Designed for recessed, linear, and architectural lighting projects.
- Smooth 1% Dimming with Dim-to-Off – Supports isolated 0–10V analog dimming. Delivers ultra-smooth dimming and advanced features like Soft Start, Synchronized ON/OFF, and Dim-to-Off for architectural-grade performance.
- No Power Required for Programming – Easily program offline with OEM tools. Includes advanced features: Constant Lumen Maintenance, End-of-Life Indication, LED Thermal Protection, and Overload/Overtemp protection.
- Slim, Versatile & Installer-Friendly – Universal input voltage (120–277V & 347V), Class 2 output, and compact linear design. Easily integrates into new builds or retrofit lighting upgrades.
- UL Listed & Reliable – Rated for dry and damp locations (UL File: E333135), FCC Part 15 Class A compliant, 2.5kV dimming interface protection, and full suite of driver protections for dependable long-term use.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- 48W Constant Current Programmable LED Driver – Set your desired output from 700mA to 2000mA (1mA resolution), with a default of 1400mA. Designed for recessed, linear, and architectural lighting projects.
- Smooth 1% Dimming with Dim-to-Off – Supports isolated 0–10V analog dimming. Delivers ultra-smooth dimming and advanced features like Soft Start, Synchronized ON/OFF, and Dim-to-Off for architectural-grade performance.
- No Power Required for Programming – Easily program offline with OEM tools. Includes advanced features: Constant Lumen Maintenance, End-of-Life Indication, LED Thermal Protection, and Overload/Overtemp protection.
- Slim, Versatile & Installer-Friendly – Universal input voltage (120–277V & 347V), Class 2 output, and compact linear design. Easily integrates into new builds or retrofit lighting upgrades.
- UL Listed & Reliable – Rated for dry and damp locations (UL File: E333135), FCC Part 15 Class A compliant, 2.5kV dimming interface protection, and full suite of driver protections for dependable long-term use.
OPTOTRONIC OTi 48W 120-277 2A0 DIM-1 L G2 Constant Current Programmable Linear LED Driver (*2743WH / 57434)
The OPTOTRONIC OTi 48W 120-277 indoor linear programmable LED drivers are exclusive to North America. All of these highly efficient constant current drivers dim to 1% with unique architectural grade features—such as Dim to Off, Vaux Output and Synchronized ON/OFF Timing—to meet the tough demands of your lighting projects. Our 48W indoor linear LED drivers’ programmable output current range (700-2000mA)—coupled with their universal input voltage range (120-277V and 347V)—provides you with a highly efficient and flexible drive solution for indoor lighting. Perfect for indirect and direct lighting, linear and recessed lighting applications.Features:
- OEM Programmable with 1mA resolution to perfectly match LED load and maximize performance
- Integrated OEM programmable features include: Constant lumen maintenance, End-of-life indication, LED thermal protection, Dim to off, Soft start
- Programming doesn't require powering up or connecting the driver to AC line voltage
- Specification grade dimming down to true 1% or 10% on 0-10V dimmers.
- Slim form factors
- Input voltage: Universal 120-277Vac 50/60Hz, 347Vac 50/60 Hz
- UL Class 2 output for safe operation
Specifications:
- Ambient Operating Temperature: -30ºC to 50ºC
- Case Temperature (Tc): 85ºC Max, 75°C – (50kHrs)
- Max. Storage Temp: 70ºC
- Max. Relative Humidity (%): 85% non-condensing
- Transient Protection: NEMA SSL 1 - 2010, Non-Roadway 2.5KV
- UL Rating: Dry & Damp
- UL File number: E333135
- EMI Compliance: FCC Part 15 Class A
- Sound Rating: Class A
Input:
- Input Voltage (VAC): 120V-277V (+/- 10%)
- Frequency Range (Hz): 50 – 60 Hz (+/- 10%)
Output:
- Output Current (mA): 700-2000mA (1mA step), Default 1400mA
- Output Voltage (VDC): 10-55VDC
- Output Ripple Current: <20% @ 2000mA
- Max. Output Power (W): 48W
- LED Power-Up Time: <1sec
- Load Regulation: <5%
- Line Regulation: <5%
- Over Voltage Protection: Yes, non-latching
- Over Load Protection: Yes, non-latching
- Output Short-Circuit Protection: Yes, non-latching
- Over Temperature Protection: Foldback at 110ºC
Dimming:
- Dimming Control: 0 – 10V (Isolated)
- Dimming Range: 1-100%
- Dimming Type: Analog
- Dimming Input Isolation: 2.5kV
- Source/Sink Current: 0.2mA max
- Dim-to-Off OFF/ON Threshold: 0.7V/1V
- Stand-by Power (max): 1.4W(120V); 1.7W(277V)
- Dimming Interface Protection: Yes, 120-277Vac
